  1. FTPC Review - Software Janet Seyboth for the FTPC group • DAQ • Online • Calibration • Databases • Offline • Documentation • FTPC computers at BNL FTPC Review - J. Seyboth

  2. DAQ (Tonko Ljubicic) • Map FTPC electronics to DAQ • Gain table for DAQ • remove noisy pads at the DAQ level • still needs to be tested with Tonko FTPC Review - J. Seyboth

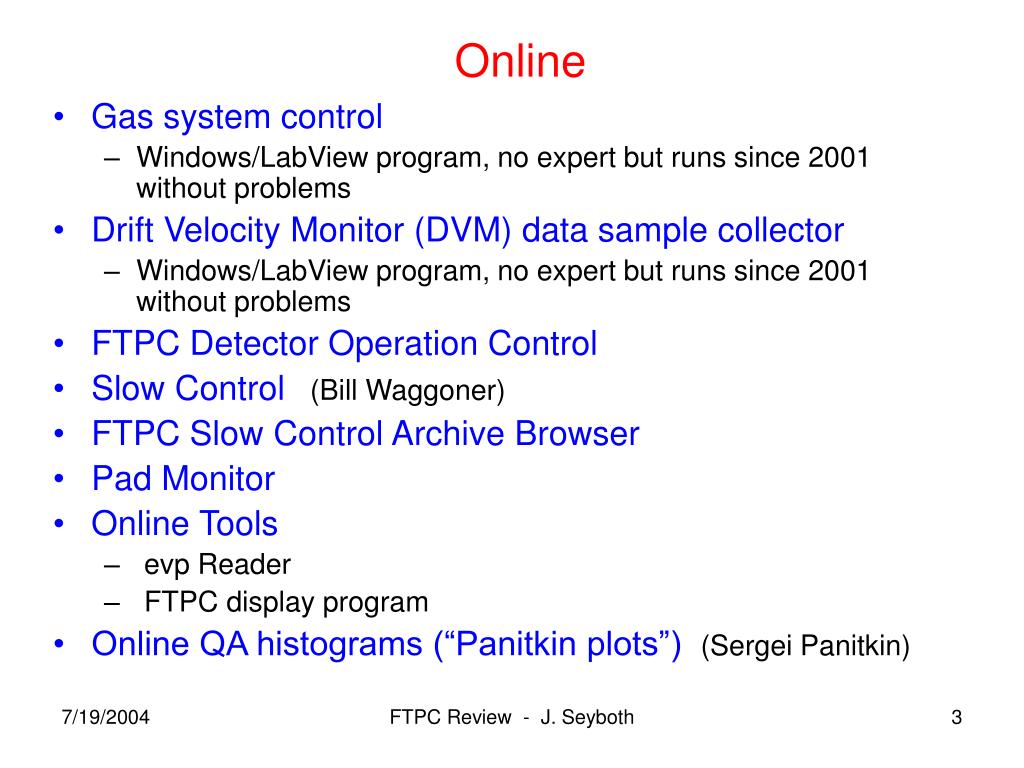

  3. Online • Gas system control • Windows/LabView program, no expert but runs since 2001 without problems • Drift Velocity Monitor (DVM) data sample collector • Windows/LabView program, no expert but runs since 2001 without problems • FTPC Detector Operation Control • Slow Control (Bill Waggoner) • FTPC Slow Control Archive Browser • Pad Monitor • Online Tools • evp Reader • FTPC display program • Online QA histograms (“Panitkin plots”) (Sergei Panitkin) FTPC Review - J. Seyboth

  4. Calibration • Drift velocity maps StFtpcDriftMapMaker • ExB effect, radius-dependent drift velocity • Gas composition • Laser analysis StFtpcLaserMaker • DVM analysis StFtpcDVMMaker • T0 adjustment StFtpcClusterMaker • Radial step QA histogram • Inner cathode offset correction • TPC-FTPC alignment • Difference between FTPC and TPC vertex • Gain tables NoiseFinder • Flag dead and noisy pads FTPC Review - J. Seyboth

  5. Databases (Michael DePhillips) • Slow Control → MySQL online data base → MySQL offline data base • Calibrations_ftpc/ftpcGasOut, ftpcGasSystem(?) • MYSQL offline data base • Calibrations_ftpc • Geometry_ftpc • Data base idl files StDb/idl • Code parameters StarDb/ftpc FTPC Review - J. Seyboth

  6. Offline (Jerome Lauret) • GEANT detector geometry description (Maxim Potekhin)pams/geometry/ftpcgeo • FTPC Daq Readers StDAQMaker, StDaqLib • Simulation • Fast simulator StFtpcClusterMaker • Slow simulator StFtpcSlowSimMaker • Reconstruction • Cluster Maker StFtpcClusterMaker • Track Maker StFtpcTrackMaker • QA histograms St_QA_Maker (Gene Van Buren) • StFtpcUtil FTPC Review - J. Seyboth

  7. Embedding (Eric Hjort) • StFtpcMixerMaker • Analysis • StFtpcMcAnalysisMaker • StFtpcAnalysisMaker • ITTF • StFtpc Makers in ITTF chain • StiFTPC (Maria Mora-Corral + Mike Miller) FTPC Review - J. Seyboth

  8. Documentation • FTPC Web pages at BNL • http://www.star.bnl.gov/STAR/html/ftpc_l/ftpc.html • http://www.star.bnl.gov/protected/ftpc • FTPC Web pages at MPI • http://wwwstar.mppmu.mpg.de FTPC Review - J. Seyboth

  9. FTPC Computers at BNL (Wayne Betts) • bond.starp (Gas Room) • Windows/LabView • Gas system + DVM • cassini.starp (Control Room) • Linux RedHat 7.2 • Detector operations • virgo.starp (Control Room) • Linux RedHat 8.0 • Online monitoring • MPI and Purdue PCs in 902b • fonda.star, streisand.star, sarandon.star, andromeda.star Linux RedHat 7.2 • Purdue PCs FTPC Review - J. Seyboth
