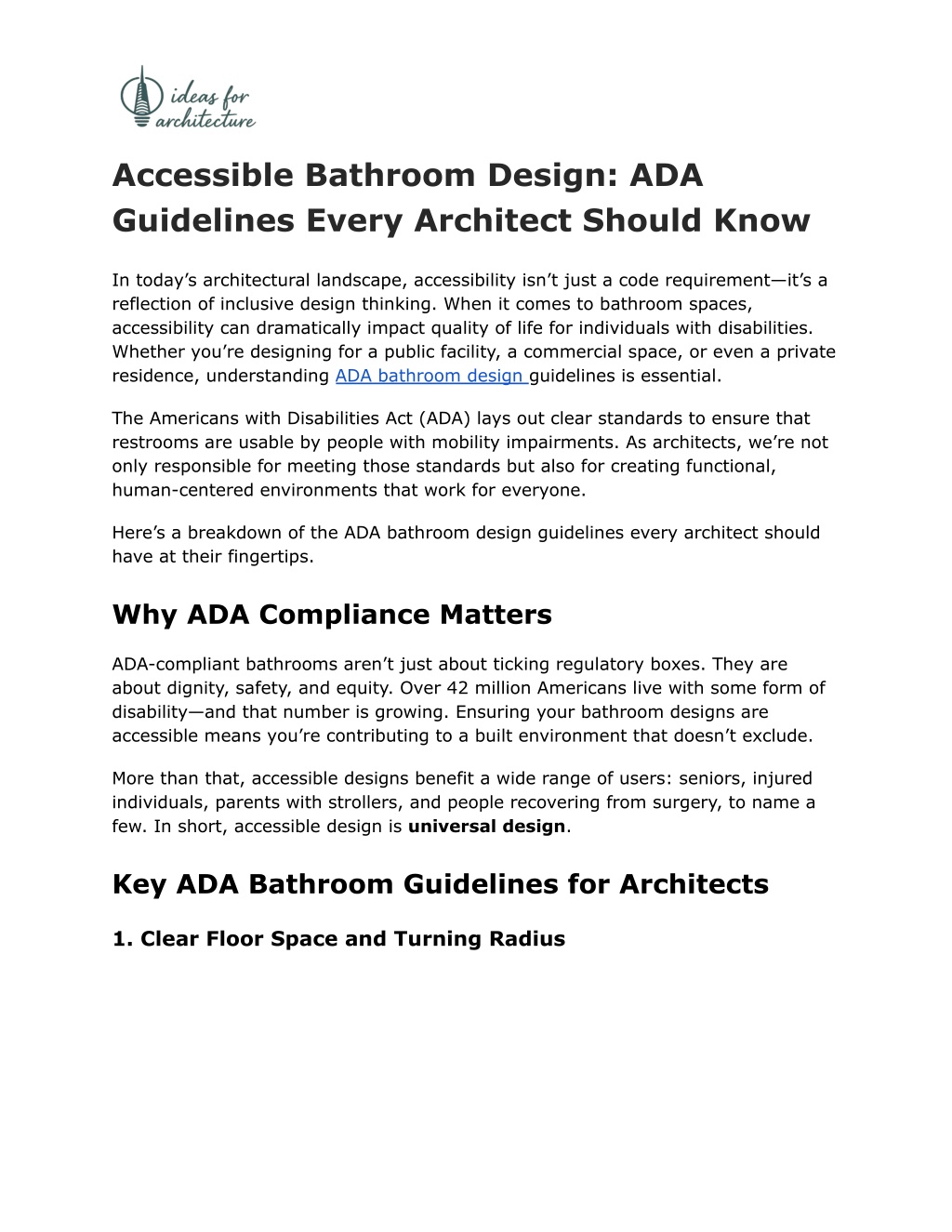

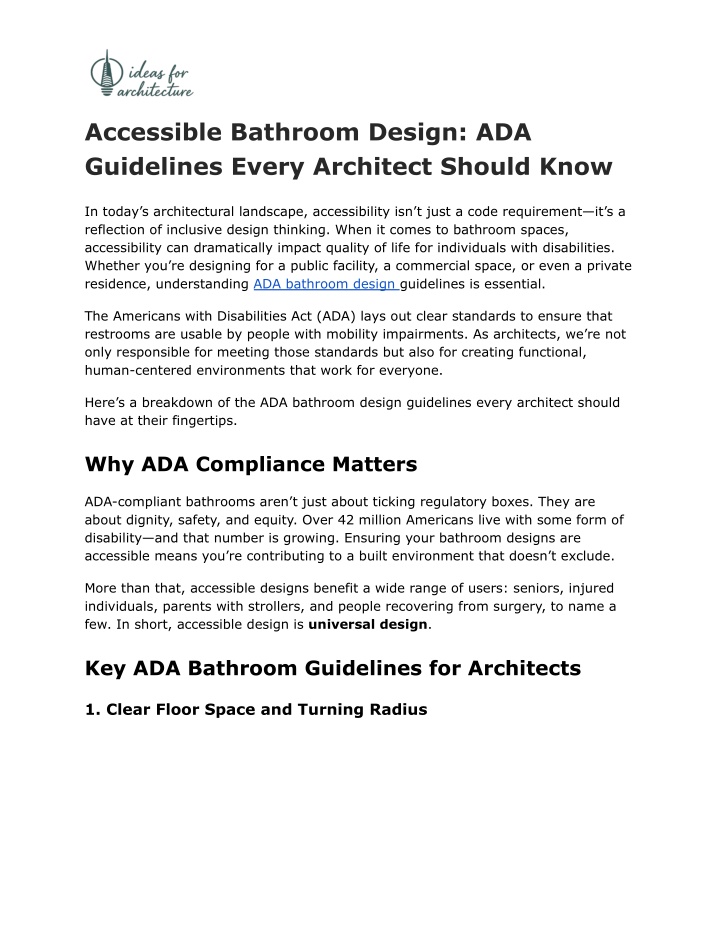

  1. Accessible Bathroom Design: ADA Guidelines Every Architect Should Know In today’s architectural landscape, accessibility isn’t just a code requirement—it’s a reflection of inclusive design thinking. When it comes to bathroom spaces, accessibility can dramatically impact quality of life for individuals with disabilities. Whether you’re designing for a public facility, a commercial space, or even a private residence, understanding ADA bathroom design guidelines is essential. The Americans with Disabilities Act (ADA) lays out clear standards to ensure that restrooms are usable by people with mobility impairments. As architects, we’re not only responsible for meeting those standards but also for creating functional, human-centered environments that work for everyone. Here’s a breakdown of the ADA bathroom design guidelines every architect should have at their fingertips. Why ADA Compliance Matters ADA-compliant bathrooms aren’t just about ticking regulatory boxes. They are about dignity, safety, and equity. Over 42 million Americans live with some form of disability—and that number is growing. Ensuring your bathroom designs are accessible means you’re contributing to a built environment that doesn’t exclude. More than that, accessible designs benefit a wide range of users: seniors, injured individuals, parents with strollers, and people recovering from surgery, to name a few. In short, accessible design is universal design. Key ADA Bathroom Guidelines for Architects 1. Clear Floor Space and Turning Radius

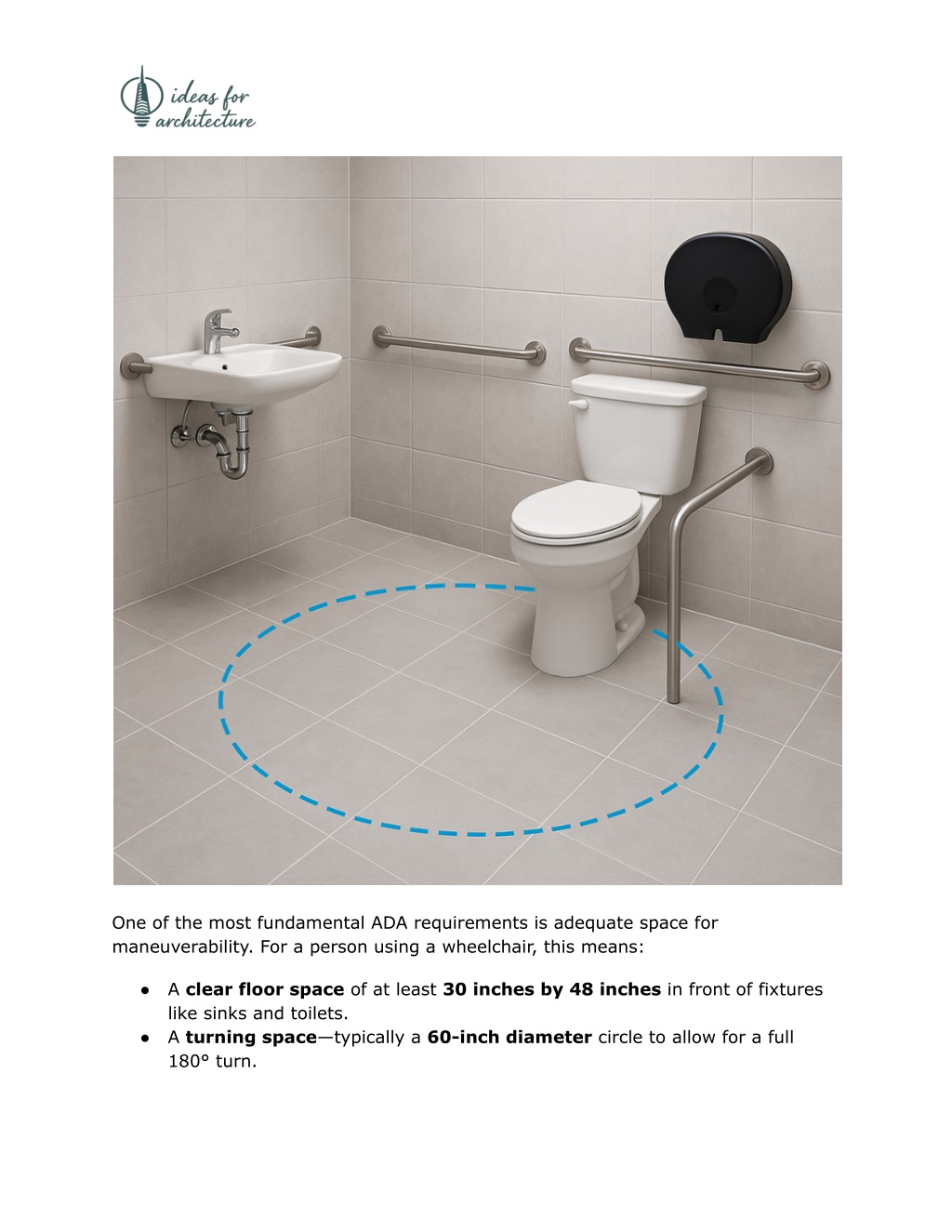

  2. One of the most fundamental ADA requirements is adequate space for maneuverability. For a person using a wheelchair, this means: ● A clear floor space of at least 30 inches by 48 inches in front of fixtures like sinks and toilets. ● A turning space—typically a 60-inch diameter circle to allow for a full 180° turn.

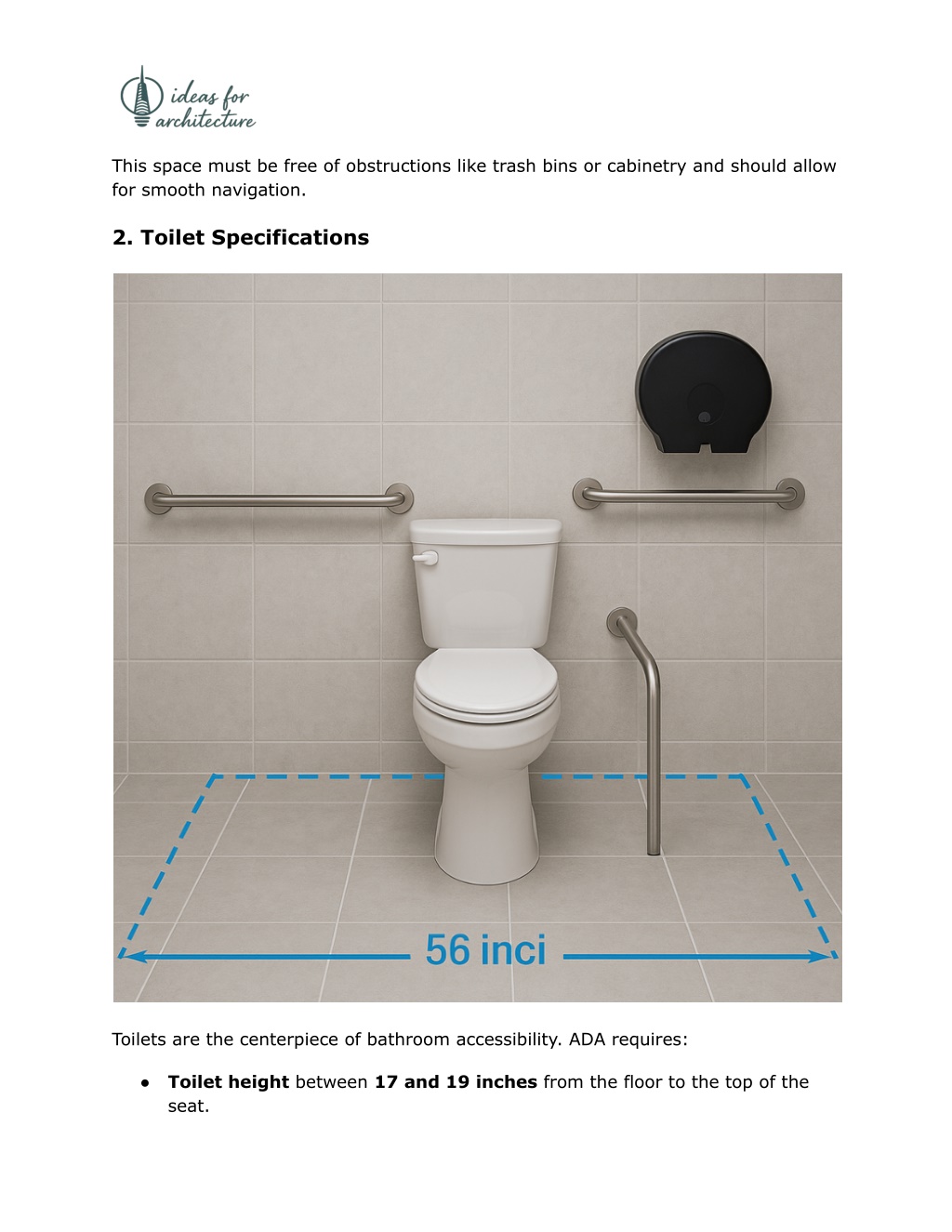

  3. This space must be free of obstructions like trash bins or cabinetry and should allow for smooth navigation. 2. Toilet Specifications Toilets are the centerpiece of bathroom accessibility. ADA requires: ● Toilet height between 17 and 19 inches from the floor to the top of the seat.

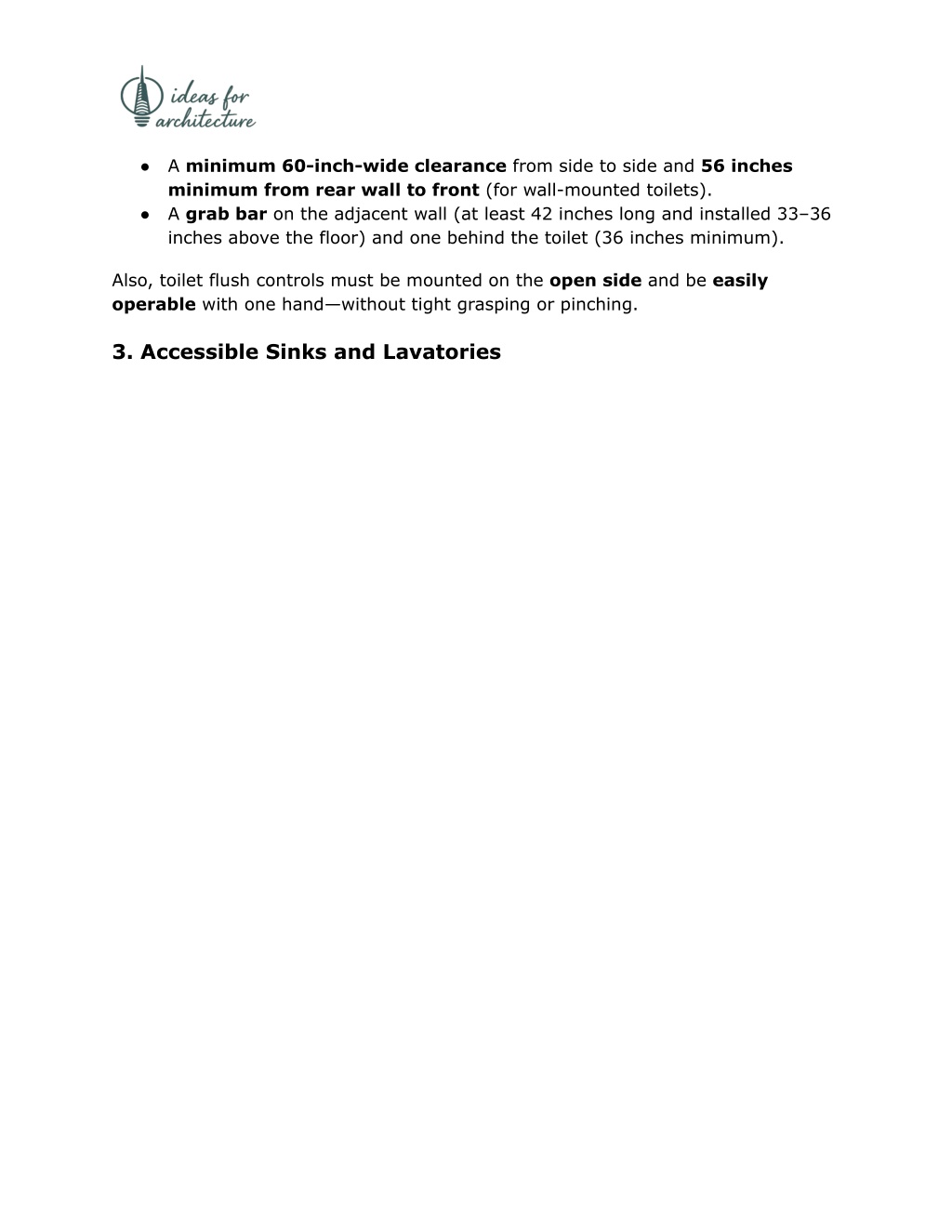

  4. ● A minimum 60-inch-wide clearance from side to side and 56 inches minimum from rear wall to front (for wall-mounted toilets). ● A grab bar on the adjacent wall (at least 42 inches long and installed 33–36 inches above the floor) and one behind the toilet (36 inches minimum). Also, toilet flush controls must be mounted on the open side and be easily operable with one hand—without tight grasping or pinching. 3. Accessible Sinks and Lavatories

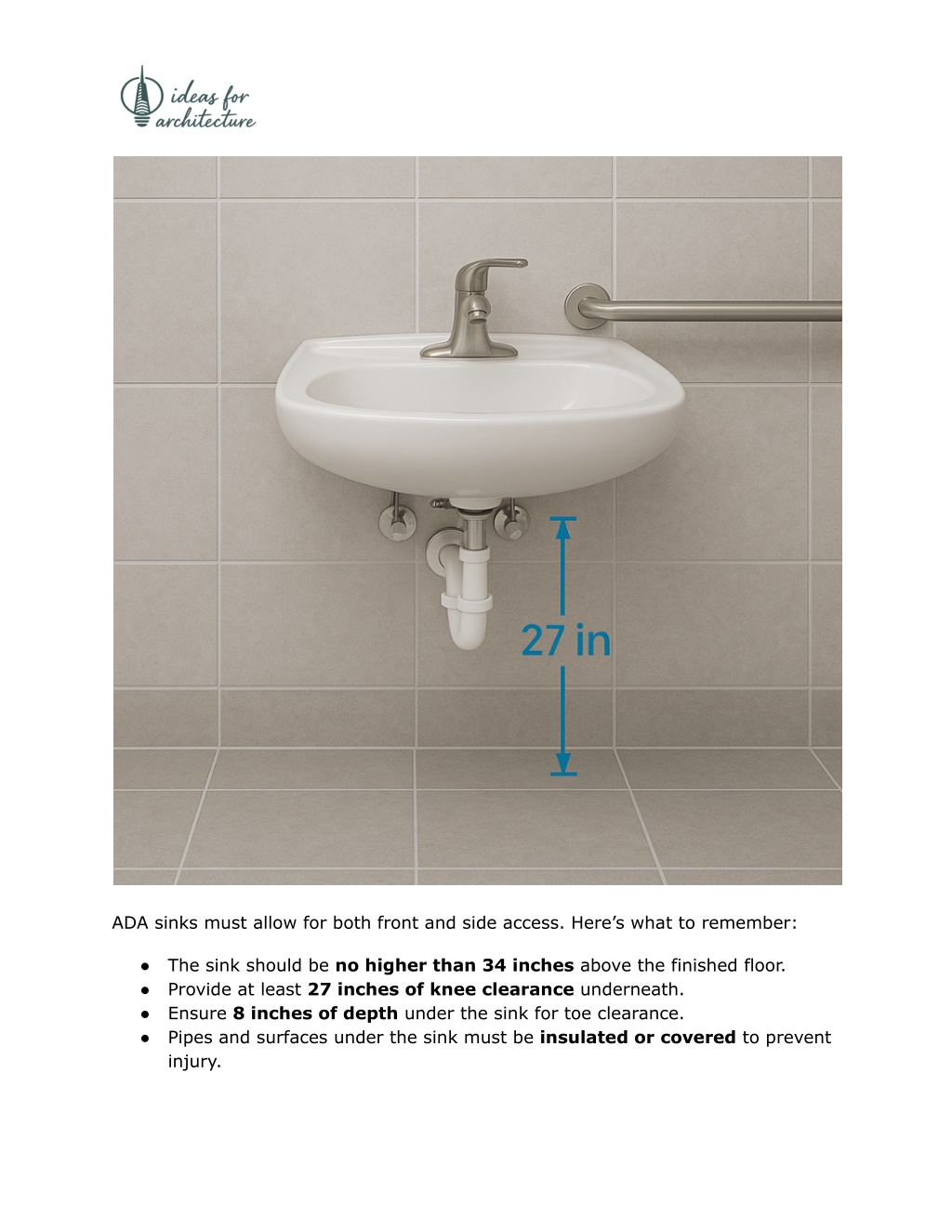

  5. ADA sinks must allow for both front and side access. Here’s what to remember: ● The sink should be no higher than 34 inches above the finished floor. ● Provide at least 27 inches of knee clearance underneath. ● Ensure 8 inches of depth under the sink for toe clearance. ● Pipes and surfaces under the sink must be insulated or covered to prevent injury.

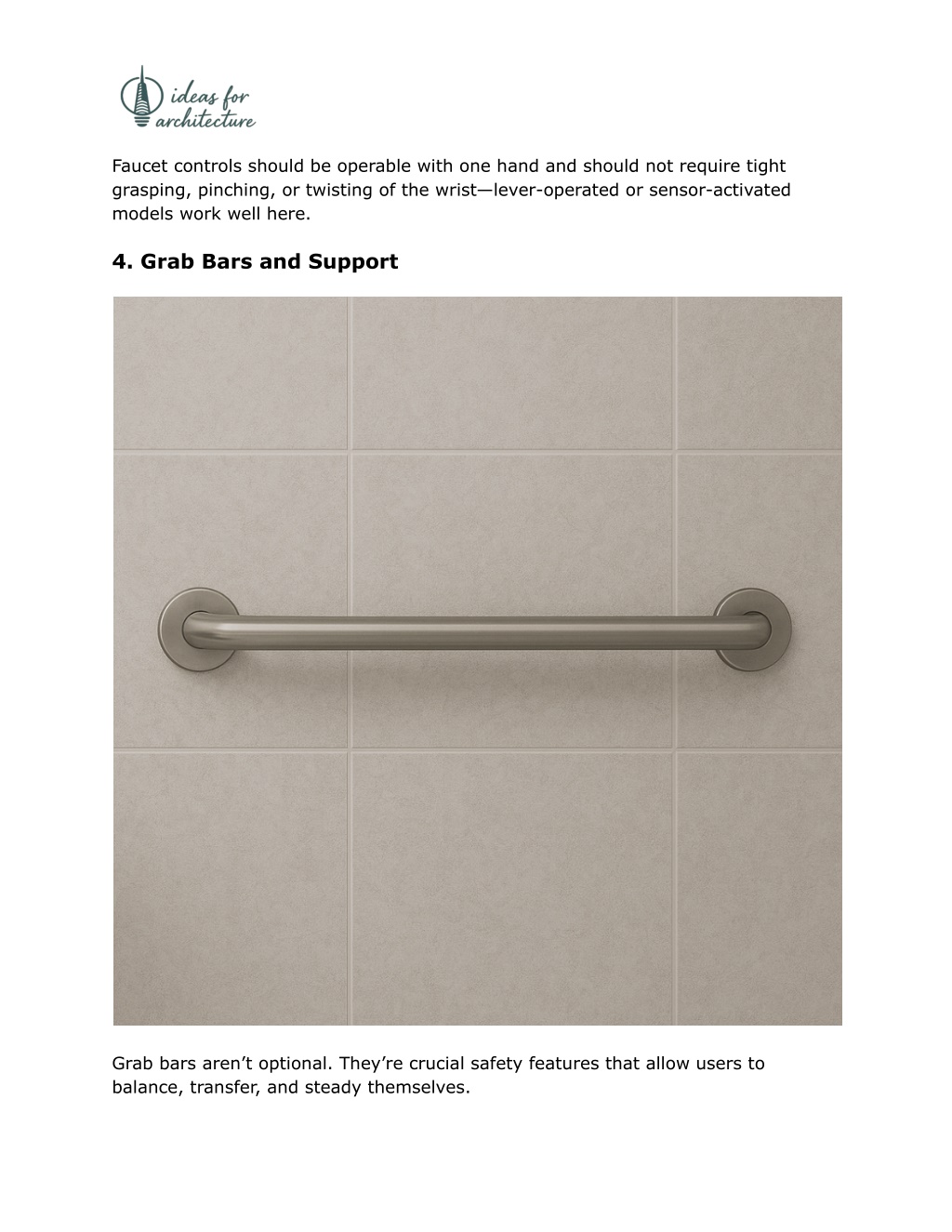

  6. Faucet controls should be operable with one hand and should not require tight grasping, pinching, or twisting of the wrist—lever-operated or sensor-activated models work well here. 4. Grab Bars and Support Grab bars aren’t optional. They’re crucial safety features that allow users to balance, transfer, and steady themselves.

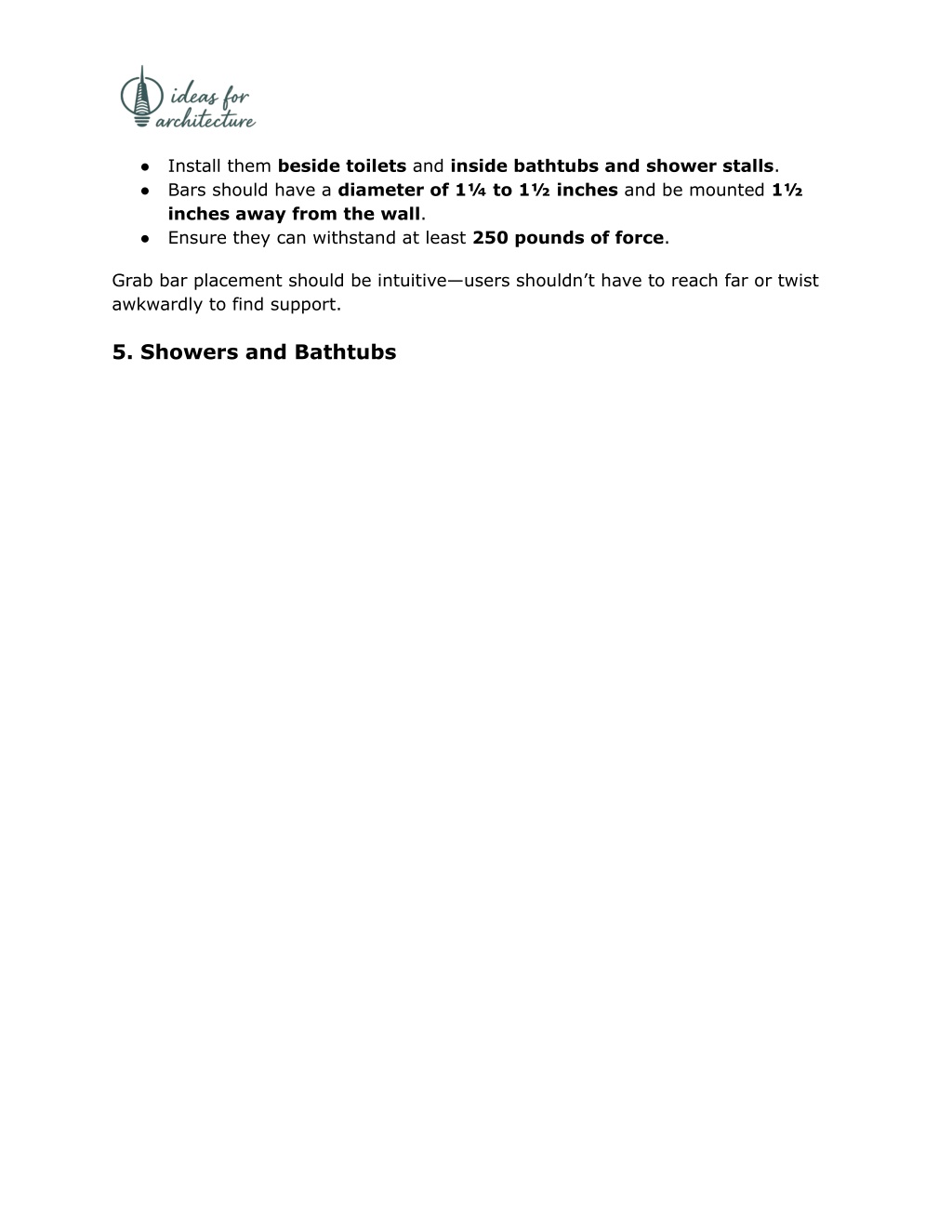

  7. ● Install them beside toilets and inside bathtubs and shower stalls. ● Bars should have a diameter of 1¼ to 1½ inches and be mounted 1½ inches away from the wall. ● Ensure they can withstand at least 250 pounds of force. Grab bar placement should be intuitive—users shouldn’t have to reach far or twist awkwardly to find support. 5. Showers and Bathtubs

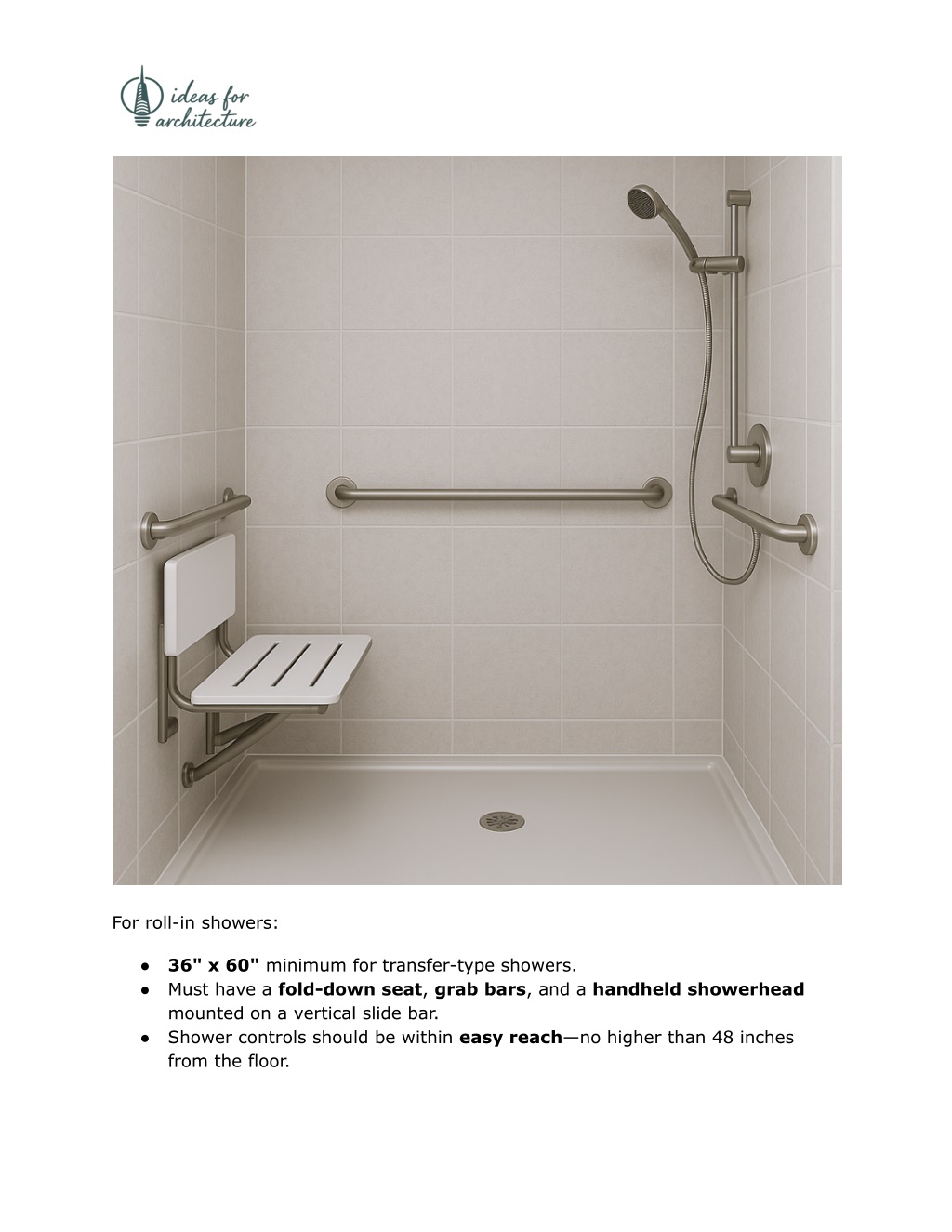

  8. For roll-in showers: ● 36" x 60" minimum for transfer-type showers. ● Must have a fold-down seat, grab bars, and a handheld showerhead mounted on a vertical slide bar. ● Shower controls should be within easy reach—no higher than 48 inches from the floor.

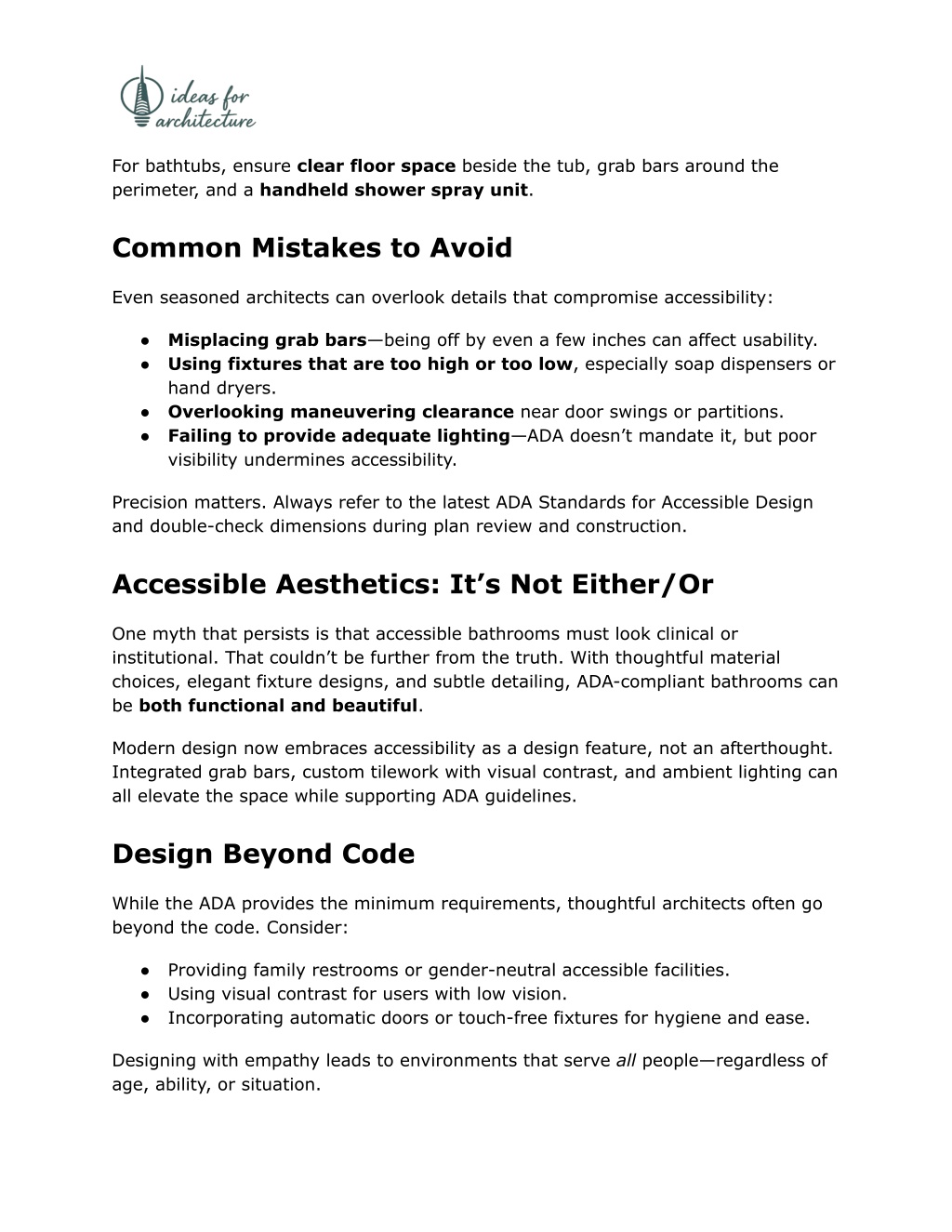

  9. For bathtubs, ensure clear floor space beside the tub, grab bars around the perimeter, and a handheld shower spray unit. Common Mistakes to Avoid Even seasoned architects can overlook details that compromise accessibility: ● Misplacing grab bars—being off by even a few inches can affect usability. ● Using fixtures that are too high or too low, especially soap dispensers or hand dryers. ● Overlooking maneuvering clearance near door swings or partitions. ● Failing to provide adequate lighting—ADA doesn’t mandate it, but poor visibility undermines accessibility. Precision matters. Always refer to the latest ADA Standards for Accessible Design and double-check dimensions during plan review and construction. Accessible Aesthetics: It’s Not Either/Or One myth that persists is that accessible bathrooms must look clinical or institutional. That couldn’t be further from the truth. With thoughtful material choices, elegant fixture designs, and subtle detailing, ADA-compliant bathrooms can be both functional and beautiful. Modern design now embraces accessibility as a design feature, not an afterthought. Integrated grab bars, custom tilework with visual contrast, and ambient lighting can all elevate the space while supporting ADA guidelines. Design Beyond Code While the ADA provides the minimum requirements, thoughtful architects often go beyond the code. Consider: ● Providing family restrooms or gender-neutral accessible facilities. ● Using visual contrast for users with low vision. ● Incorporating automatic doors or touch-free fixtures for hygiene and ease. Designing with empathy leads to environments that serve all people—regardless of age, ability, or situation.

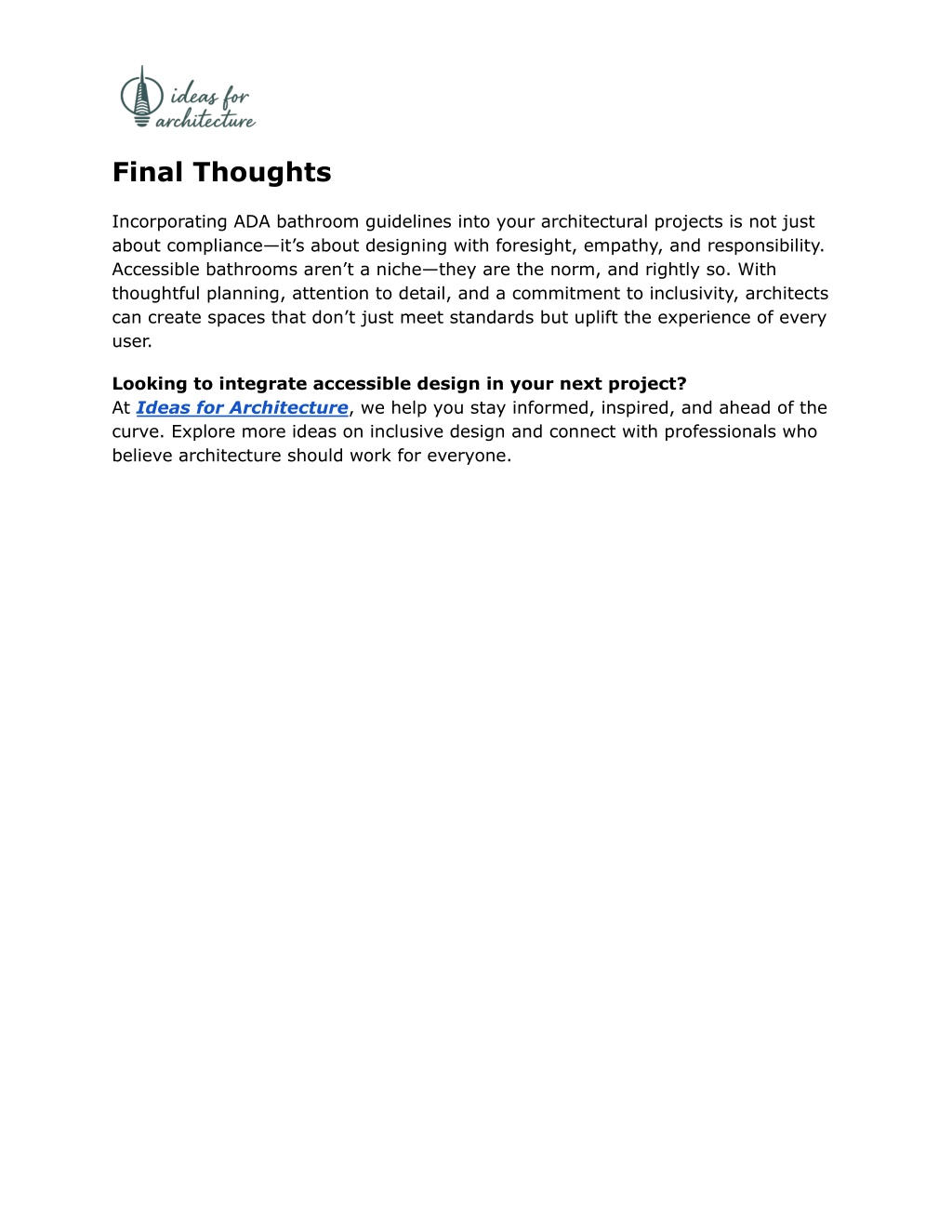

  10. Final Thoughts Incorporating ADA bathroom guidelines into your architectural projects is not just about compliance—it’s about designing with foresight, empathy, and responsibility. Accessible bathrooms aren’t a niche—they are the norm, and rightly so. With thoughtful planning, attention to detail, and a commitment to inclusivity, architects can create spaces that don’t just meet standards but uplift the experience of every user. Looking to integrate accessible design in your next project? At Ideas for Architecture, we help you stay informed, inspired, and ahead of the curve. Explore more ideas on inclusive design and connect with professionals who believe architecture should work for everyone.
