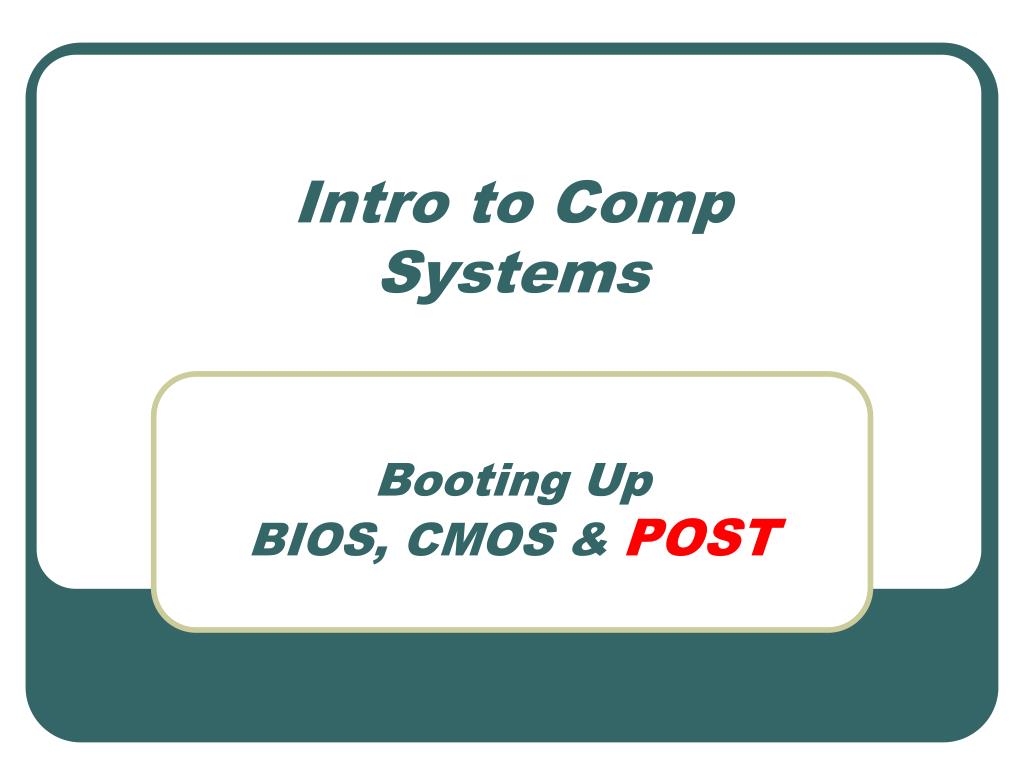

  1. Intro to Comp Systems Booting UpBIOS, CMOS & POST

  2. POST • Power • On • Self • Test • To complete POST, a PC must have working CPU, video card and RAM. • Beeps are used in POST to communicate success or failure. • Some beep codes are common and others are unique to that specific motherboard

  3. BIOS software – aka “firmware” NOT Built In Operating System • Basic • Input • Output • System • Flash BIOS means that the BIOS has been recorded on a rewriteable memory chip and can be updated if necessary. • Job is to load the OS – this is where the CPU gets the first instructions when the PC is powering up.

  4. Functions of BIOS • Performs the Power On Self Test (POST) • Activates other BIOS chips on different cards installed in the computer • Contains all the code required to control the keyboard, display screen, disk drives, serial ports, etc. • Detects PnP devices and loads device drivers for some peripherals (display, NIC, keyboard)

  5. Sequence of BIOS Operations • Turn on Power • BIOS loads into CPU • Performs (POST) • BIOS detects PnP components • Checks CMOS for custom settings • Goes to MBR (Master Boot Record) to determine where OS is kept • Loads Operating System • Opens up GUI

  6. Cold Boot and Warm Boot Cold boot • Sequence used when PC is powered on from an OFF condition. • POST sequence runs Warm boot • Performed when system is already powered on. • Performed when the system is restarted with restart button or CTRL+ALT+DEL keys. • POST sequence is skipped

  7. What is CMOS? • Stands for Complementary Metal Oxide Semiconductor • Maintained by a battery • Stores info from Config Setup - hardware configuration and customized settings • Maintains internal clock, controls how fast the computer reads from memory, etc. Don’t need to know this – just interesting!

  8. Resources for components • To talk to the CPU, each component needs a group of ID numbers: • IRQ = Interrupt Request – the device sends a signal asking for attention and the CPU looks at the IRQ number to see which device is signaling. • I/O addresses:each device has it’s own unique identifier so that the CPU can call it or send it instructions. • DMA Channel:“direct memory access channel” – a shortcut lane that allows an I/O device to send data directly to memory, bypassing the CPU.

  9. Configuration Setup Program Config setup is needed when: • Installing or changing hardware on a system • Change the system start-up boot sequence – where to look for the OS • Managing resource conflicts • Improving the behavior of a computer

  10. CMOS vs. BIOS • BIOS refers to firmware instructions that are located on the BIOS ROM • CMOS refers to low-power RAM that holds the system's setup parameters

  11. Practice • Complete Booting & Troubleshooting worksheet • Read Troubleshooting Codes • Complete Troubleshooting Worksheet
