  1. AMN Experimentation Trident Warrior ‘10

  2. Trident Warrior 2010 (TW10) OVERVIEW TRIDENT WARRIOR (TW) is the premier annual FORCEnet Sea Trial Fleet experimentation event that executes a series of operational experiments involving fleet assets (at sea and ashore). TW provides the Navy with a quality venue to experiment with technologies in a maritime environment that could potentially provide near-term solutions to enhance warfighting capabilities and fill capability gaps. Ultimately, TW is designed to accelerate the delivery of new/improved capabilities to the warfighter through Program of Record (POR) acceleration or transition of new technologies into PORs. AMN TW10 CONOPS NECC is sponsoring AMN to assess and demonstrate improved C3 capabilities, situational awareness, and force protection for its Echelon IV units. MSRON-3 C2 Det will set up a MAST tent with associated SHF communications gear that will integrate with the Joint Expeditionary C3 (JEC3) system to correlate multiple sensor inputs – on land and at sea - and produce a robust common operational picture. Autonomous Maritime Navigation (AMN) system which will be conducting surveillance missions in the San Diego Bay OPAREA in the vicinity of Point Loma/North Island.

  3. AMN TW 10 Objectives • Overarching Objective: • Demonstrate autonomous flexibility by converting a standard Navy RHIB into an autonomous USV capable of cooperative autonomy in order to provide persistent surveillance and relevant information to the expeditionary commander via an adhoc expeditionary WAN. • Sub-objectives • Demonstrate multiple USVs are capable of accomplishing assigned mission(s) by executing flexible and sufficient cooperative autonomy mission behaviors • Demonstrate autonomous USVs can provide persistent surveillance and locate, identify and track contacts in accordance with assigned mission. • Demonstrate an autonomous USV capable of providing relevant,timely and accurate information to the expeditionary EC3 via an adhoc expeditionary WAN. • Demonstrate the flexibility of AMN sensor and autonomous capability by converting a standard Navy RHIB into an autonomous USV.

  4. Autonomous Maritime Navigation (AMN) • OPERATIONAL NEED • Objective: Transition AMN autonomous control system module and multi-purpose sensor system for Navy Expeditionary Combat Command (NECC) autonomous USV operations (solo or cooperative) using existing and purpose built small boat inventory. • Value to Warfighter: Persistent ISR capability with no risk to personnel, reduction in required manpower and bandwidth costs over remote control operations. • PROPOSED SOLUTION • Technology: NASA Jet Propulsion Laboratory (JPL) robotics technologies and advanced algorithms for autonomous platform systems management, operation, and navigation, operational software and COTS/GOTS portable sensors. • Partners: NASA JPL, Marshall University, NSWCCD Carderock, OSD OFT, Spatial Integrated Systems • Similar Related products: No similar known fully autonomous USV. Many remote controlled, man in the loop USVs under development. • CAPABILITIES • Full autonomous capability for any Unmanned Surface Vessel (USV) enabled by an adaptable sensor module and an autonomy and fusion module • - Flexible Modules: Variable sensor mix and ruggedized container sizes • - Can make any vessel a USV in days • Use existing boat inventories • Adapt sensors and autonomous behaviors to fit operational needs

  5. To FACSFAC VACAPES Joint Expeditionary Command, Control and Communications (JEC3) NECC JEC3 Merchant Traffic AMN #1 AMN #2 Autonomous Maritime Navigation (AMN) Go Fast Boat MDA JEC3 and AMN OV-1 MDA-01.01, 16.01

  6. AMN SV-1 Link 16 RM to SIPR AMN C2 Center co- located with EC3 AMN Contacts in MSCT format with Correlating JPG Picture via internet to APAN unclas COP AMN Contacts & USV Location data via Sealancet Radio NECC JEC3 MSCT APAN / VRMTC-A unclas COP • NECC JEC3 US Classified Tactical picture Subscribe via internet APAN / VRMTC-A COI For AMN contacts Fused contact reports And JPG pictures via Sealancet radio In MSCT format Fused contact reports And JPG pictures via Sealancet radio in MSCT format Fused contact reports Via Sealancet Radio / MSCT sw Fused contact reports Via Sealancet radio/ MSCT sw Coalition Partners Coalition UNCLAS COP Boat-to-Boat comms Via Sealancet radios for Cooperative behavior AMN 1 AMN 2

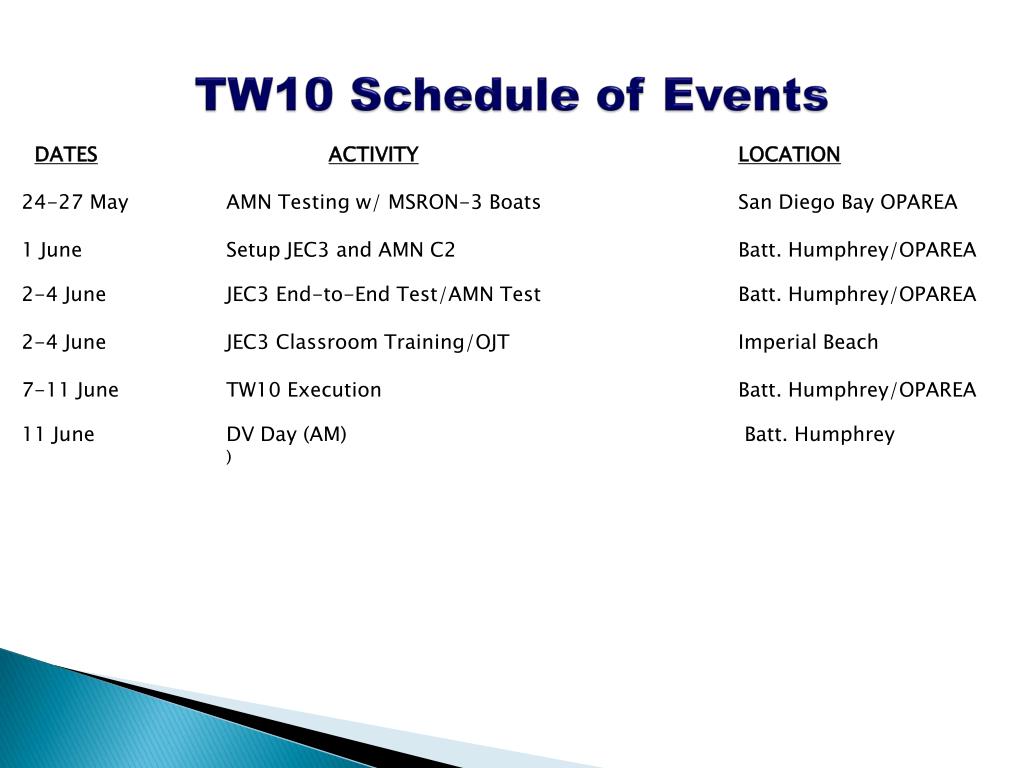

  7. TW10 Schedule of Events DATESACTIVITYLOCATION 24-27 May AMN Testing w/ MSRON-3 Boats San Diego Bay OPAREA 1 June Setup JEC3 and AMN C2 Batt. Humphrey/OPAREA 2-4 June JEC3 End-to-End Test/AMN Test Batt. Humphrey/OPAREA 2-4 June JEC3 Classroom Training/OJT Imperial Beach 7-11 June TW10 Execution Batt. Humphrey/OPAREA 11 June DV Day (AM) Batt. Humphrey )

  8. TW10/NECC Participants MSRON-3 (~15) Daily C2 Operators Set-up/Breakdown Personnel ESU-1 (~3) Daily C2 Operators Ratheon-Solypsis (4) Mr. Barry Hertsgaard Mr. Jeremy Hurley Mr. Boris Rasputnis Mr. Rob Harris AMN CDR Michael Junge (OSD OFT) Mr. Eric Hansen (NSWCCD) Mr. Kim Sage (NSWCCD) CAPT Rick Simon, USN, Ret Mr. Dave Summer NECC (5) CAPT Glenn Allen (N9) Mr. Dale Shiflett (Deputy N9) Mr. Jim Fowler (SA) Mr. Tom Scheurich (N9 C4I) Mr. Eric Alegre (N9 T&E) TW (5) RADM Gerald Beaman (USFFC N3/5/9) Mr. Skip Hiser (USFFC SES) CDR Robert Nowakowski (NCAG) NPS Data Collectors NSWC Dam Neck (3) C2 Study Assessors and JEC3 SMEs

  9. AMN TW 10 Missions

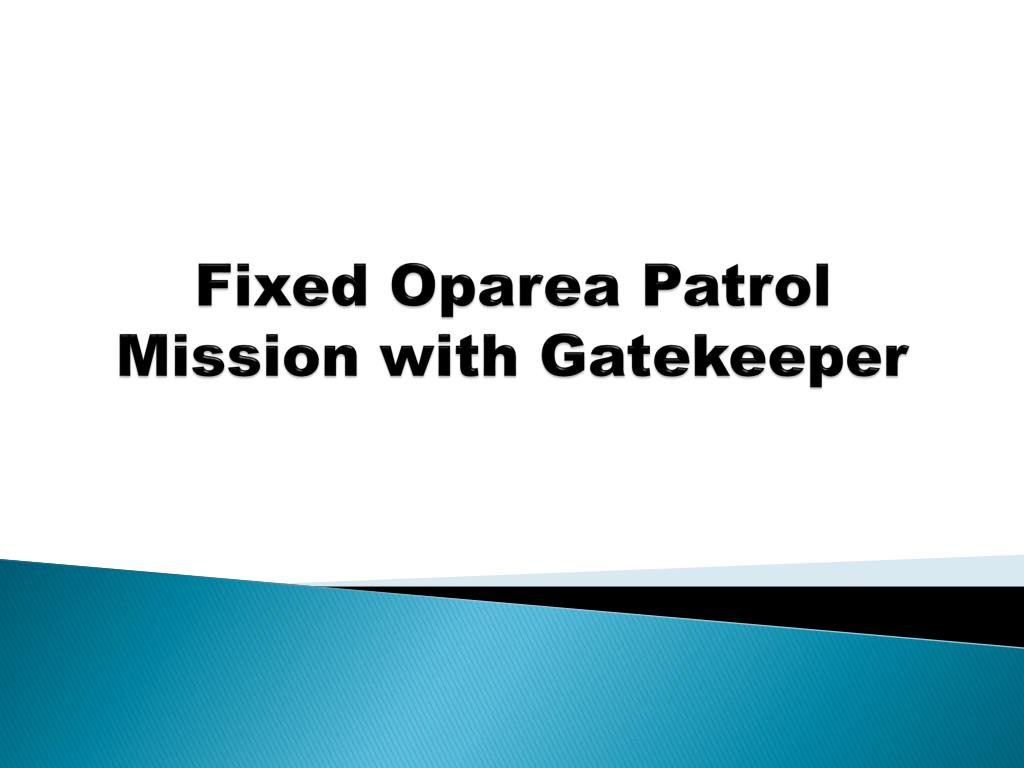

  10. Fixed Oparea Patrol Mission with Gatekeeper

  11. Fixed Oparea Patrol Mission with Gatekeeper • Mission: • AMN “A Fixed area patrol • Detect, track and report • AMN B will track and block any • Intruder in gatekeeper box • AMN A & B will swap missions • via cooperative autonomy based • on tactical situation • 6 hour missions on 7 and 8 June • Objectives: • Persistent surveillance • Cooperative autonomy • Feed real time CTP at JEC3 Detect, track and Report A Track and Block B Gatekeeper Expeditionary Base / JEC3

  12. High Value Unit (HVU) Escort Mission • Mission: • AMN A and B escort HVU via an open ocean • and chokepoint transit • AMN A and B will track and block any intruder • coming within 500 yds of HVU but 1 AMN • must remain with HVU at all times • AMN A and B will swap missions as tactical • situation detects i.e 1 AMN will intercept • while second AMN continues escort • and when intercept and blocking • complete, AMN rejoin escort mission • Escort missions run on 9 and 10 June B A HVU

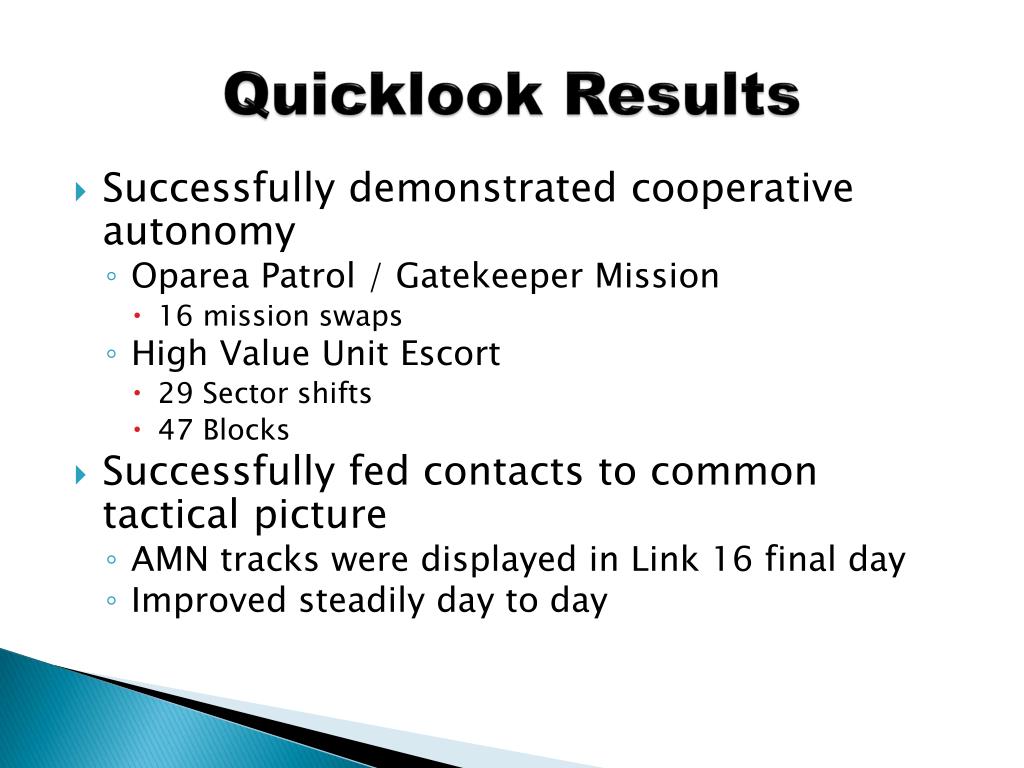

  13. Quicklook Results • Successfully demonstrated cooperative autonomy • Oparea Patrol / Gatekeeper Mission • 16 mission swaps • High Value Unit Escort • 29 Sector shifts • 47 Blocks • Successfully fed contacts to common tactical picture • AMN tracks were displayed in Link 16 final day • Improved steadily day to day

  14. TW 10 Cooperative Behavior Plan Rick Simon Director, SIS 30 April 2010

  15. Purpose • NECC has multiple missions and operational needs that would be drastically enhanced with the implementation of USVs. AMN is an autonomous system, able to turn a manned surface craft into an unmanned craft, which has the potential capabilities to meet several NECC mission needs.

  16. Objectives • Successfully demonstrate the capability to pass data to an expeditionary C2 node (through EC3) providing greater situational awareness in real-time • Demonstrate persistent surface surveillance capability • Locate and track targets of interest for classification and threat identification • Cooperative complex autonomous behavior between two AMN USVs • Harbor patrol activity, deter and/or engage unwanted vessels • Autonomous escort of high value asset through a choke point location • Successfully demonstrate the expeditious installation of AMN on a Navy craft (NECC type vessel) • Successfully demonstrate the addition of new sensors, expanding to the systems’ capabilities

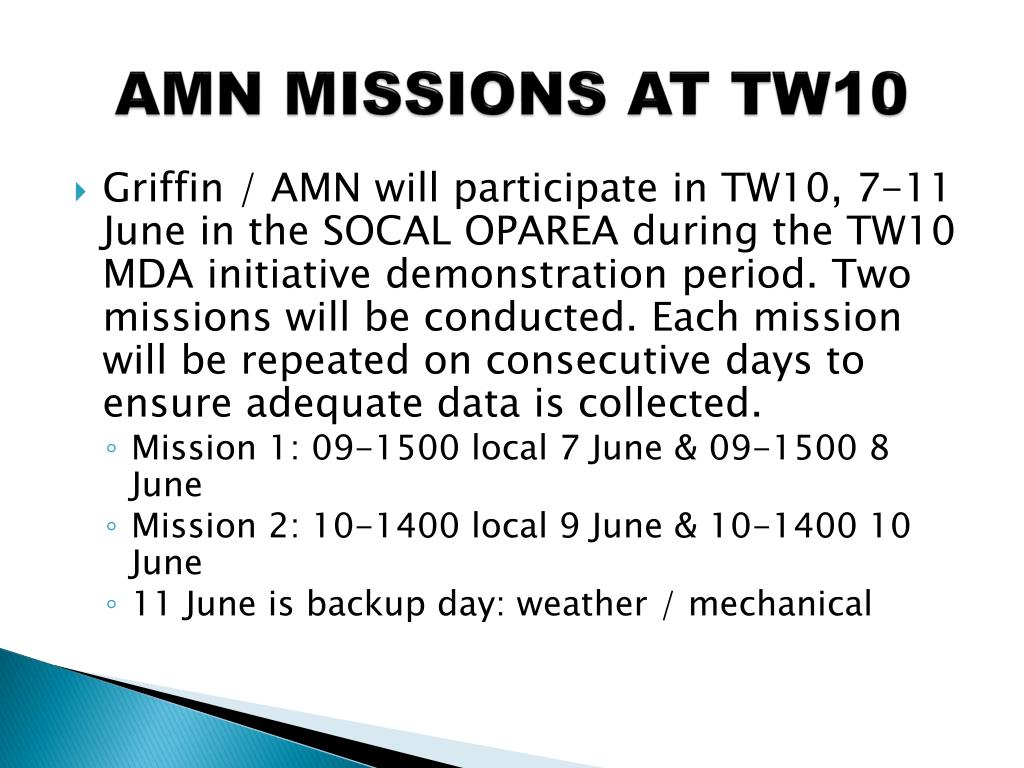

  17. AMN MISSIONS AT TW10 • Griffin / AMN will participate in TW10, 7-11 June in the SOCAL OPAREA during the TW10 MDA initiative demonstration period. Two missions will be conducted. Each mission will be repeated on consecutive days to ensure adequate data is collected. • Mission 1: 09-1500 local 7 June & 09-1500 8 June • Mission 2: 10-1400 local 9 June & 10-1400 10 June • 11 June is backup day: weather / mechanical

  18. MISSION DETAILS – Mission 1 • Fixed OPAREA patrol and goalkeeper / blocker for expeditionary base (6 hours) • Demonstrate harbor patrol activity • Persistent surface surveillance, as a subset of ISR • Real-time tactical picture with usable data for situational awareness and tactical responses • Blocking and deterring behavior

  19. MISSION DETAILS – Mission 2 • High value asset (HVA) littoral escort in a choke point area (4 hours) • Demonstrate escort capability • Exhibit roles in choke point area while escorting • Real-time tactical picture with usable data for situational awareness and tactical responses • Blocking and deterring behavior

  20. TW 10 Cooperative Harbor Patrol Blocking Behavior Plan - Original (Goalkeeper)

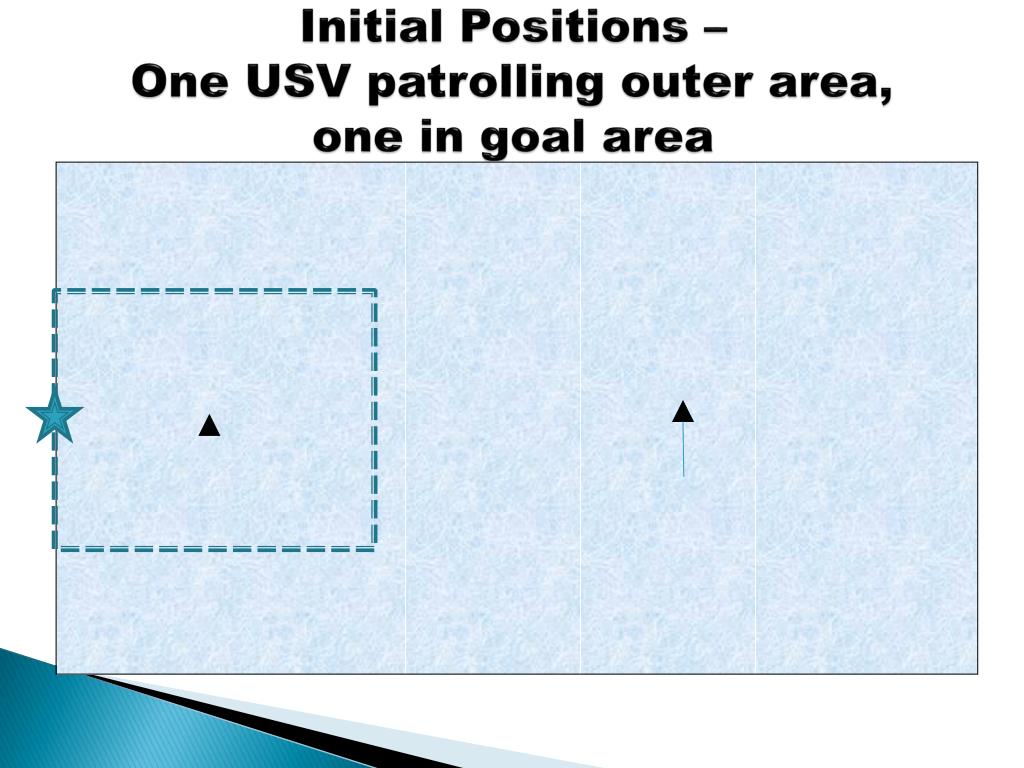

  21. Initial Positions – One USV patrolling outer area, one in goal area

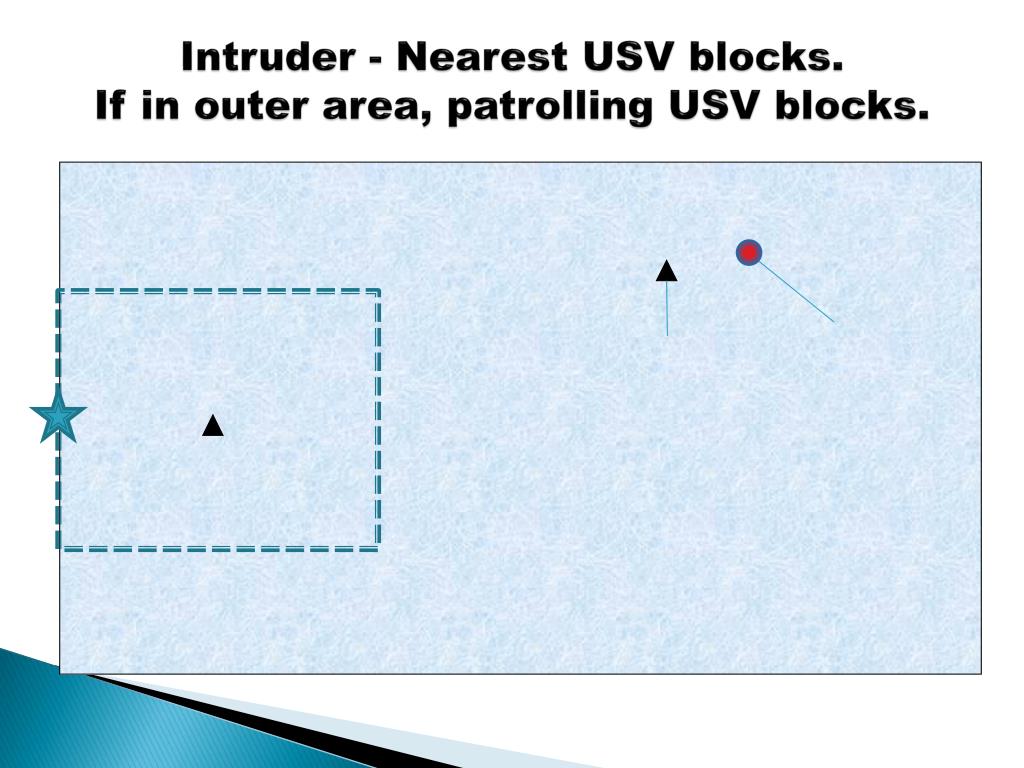

  22. Intruder - Nearest USV blocks. If in outer area, patrolling USV blocks.

  23. Intruder - Nearest USV blocks. If Intruder is nearest to Goalkeeper USV, then ‘Goalie’ blocks and patrolling USV moves to ‘Goalie’ position.

  24. If two Intruders, both USV’s block in goal box.

  25. TW 10 Cooperative Harbor Patrol Blocking Behavior Plan - Optional

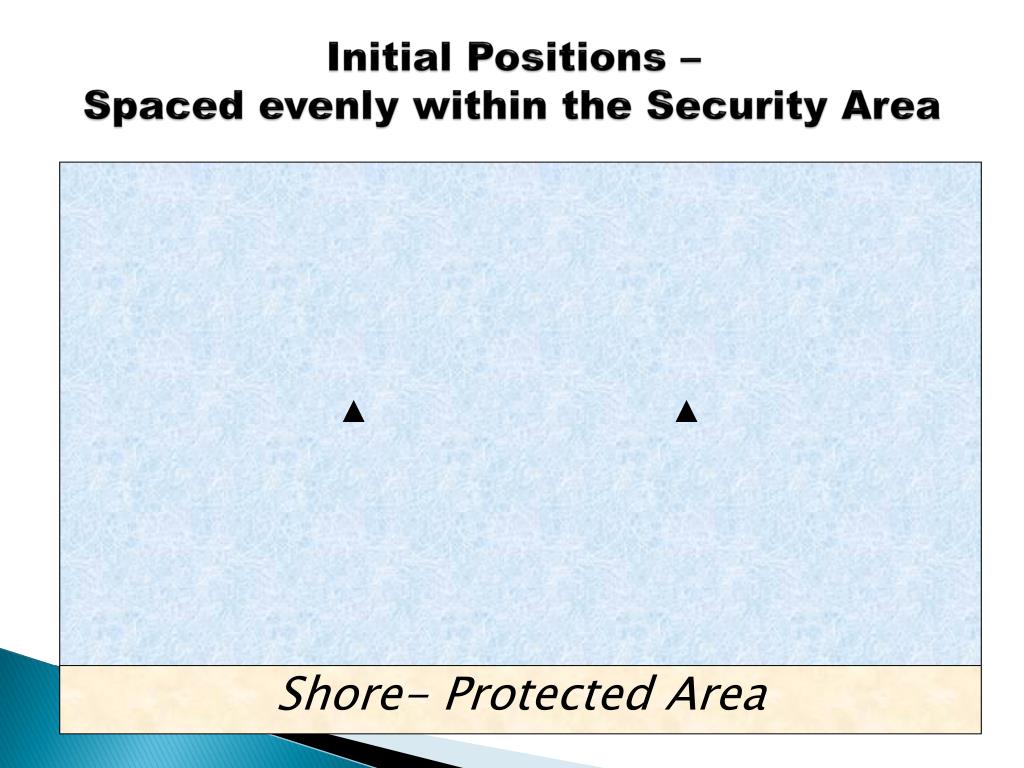

  26. Initial Positions – Spaced evenly within the Security Area Shore- Protected Area

  27. Intruder enters - Closest USV moves to block (hold position 200m closer to Shore than Intruder), Untasked USV moves to Center Shore- Protected Area

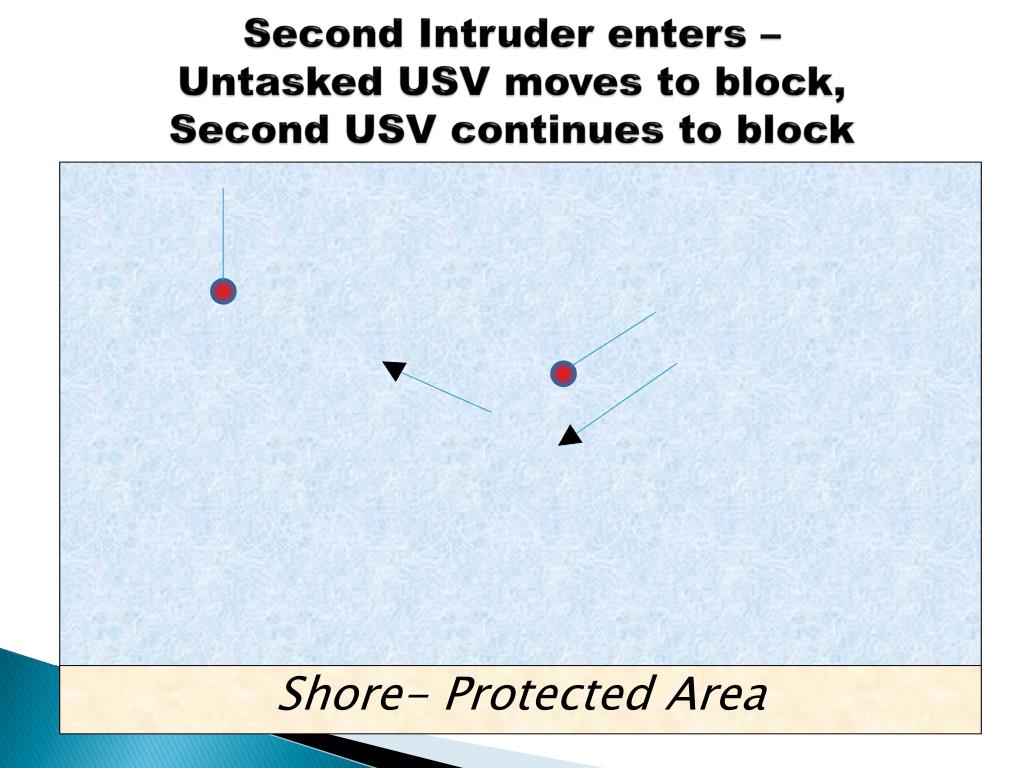

  28. Second Intruder enters – Untasked USV moves to block, Second USV continues to block Shore- Protected Area

  29. USV’s continue to block until their Intruder leaves the area Shore- Protected Area

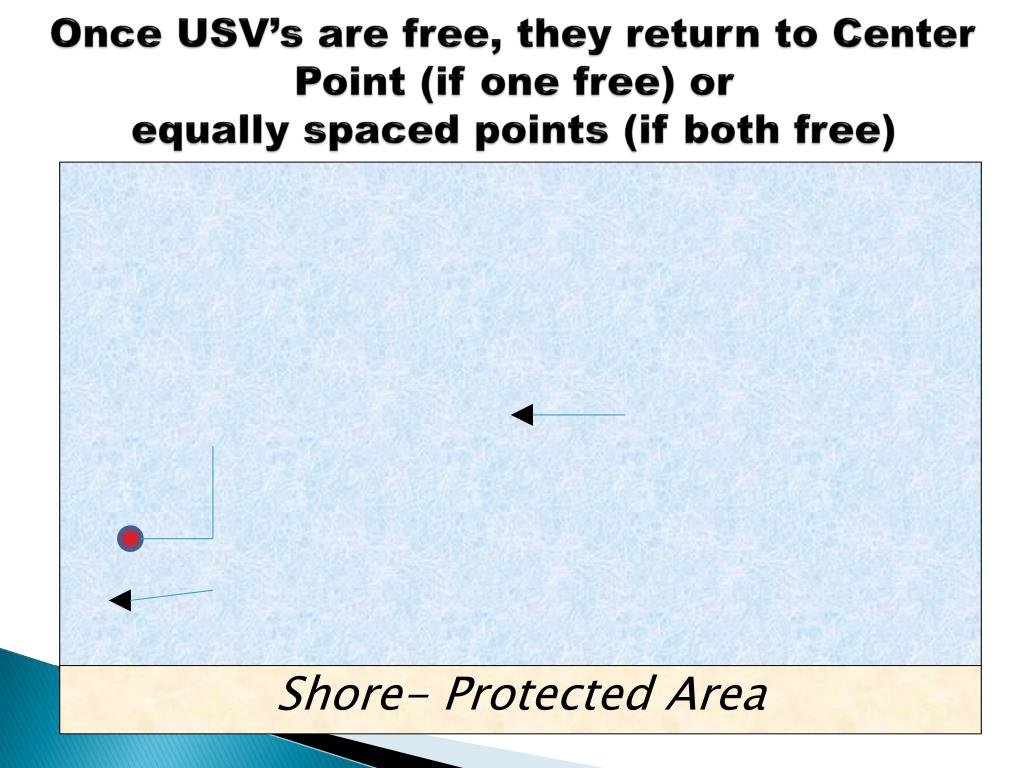

  30. Once USV’s are free, they return to Center Point (if one free) or equally spaced points (if both free) Shore- Protected Area

  31. TW 10 Cooperative HVU Escort transiting Choke Point Behavior Plan

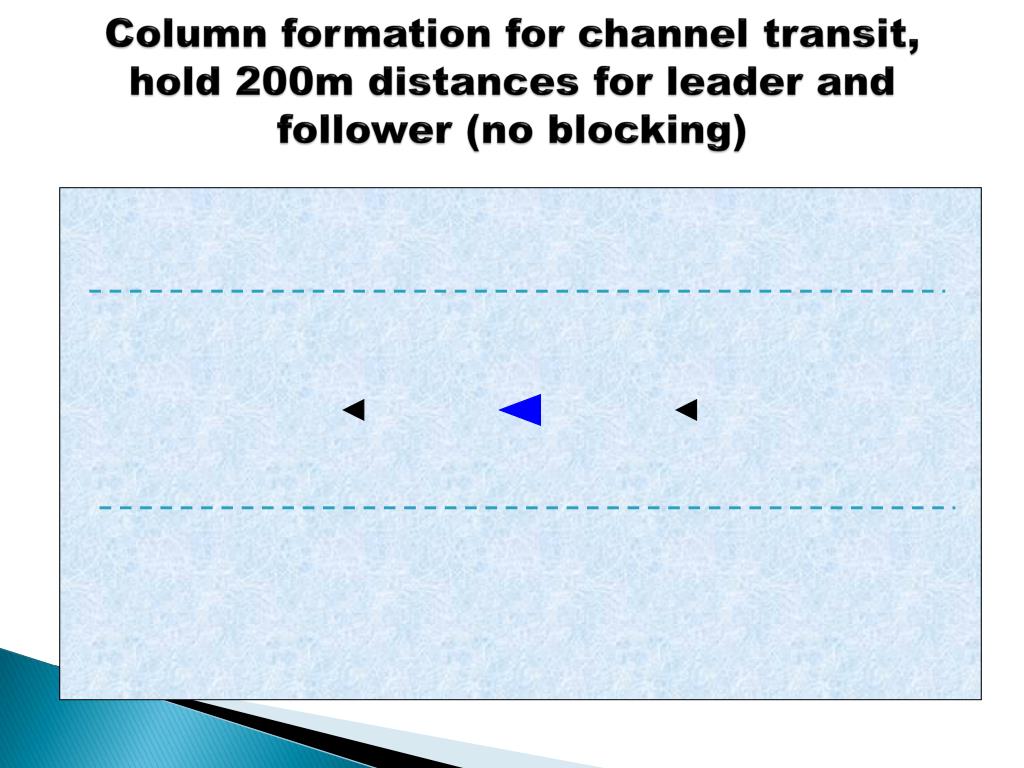

  32. Column formation for channel transit, hold 200m distances for leader and follower (no blocking)

  33. Upon channel exit, Escort USV’s assume line abreast formation (3 and 9 o’clock positions) at 200m

  34. When Intruder approaches within 500m of HVU, nearest USV moves to block (keeps 200m distance from HVU), untasked USV moves opposite

  35. When two Intruders approach within 500m of HVU, both USV’s block (still maintaining 200m from HVU)

  36. TW 10 Playbook for Fixed Oparea Patrol Mission

  37. Initial Morning Setup North HVU GK E W P A2 A = Aggressor Boat GK = Goalkeeper P – Patrol A1 South

  38. Run Alpha – A1 enters, P blocks; A2 enters, GK blocks in secure area; A1 departs box, A2 retires and stays in outer box causing GK to move out of secure area and continue blocking which transitions P to GK North HVU GK #4 #3 E W A2 P #5 #2 #6 A1 #1 A = Aggressor Boat GK = Goalkeeper P – Patrol South

  39. Run Bravo – A2 enters box, GK moves to block and causes P to transition to GK; A1 enters and new GK (old P) blocks inner secure area; A2 retires; A1 retires North HVU GK E #1 W A2 P #3 #2 #4 A1 A = Aggressor Boat GK = Goalkeeper P – Patrol South

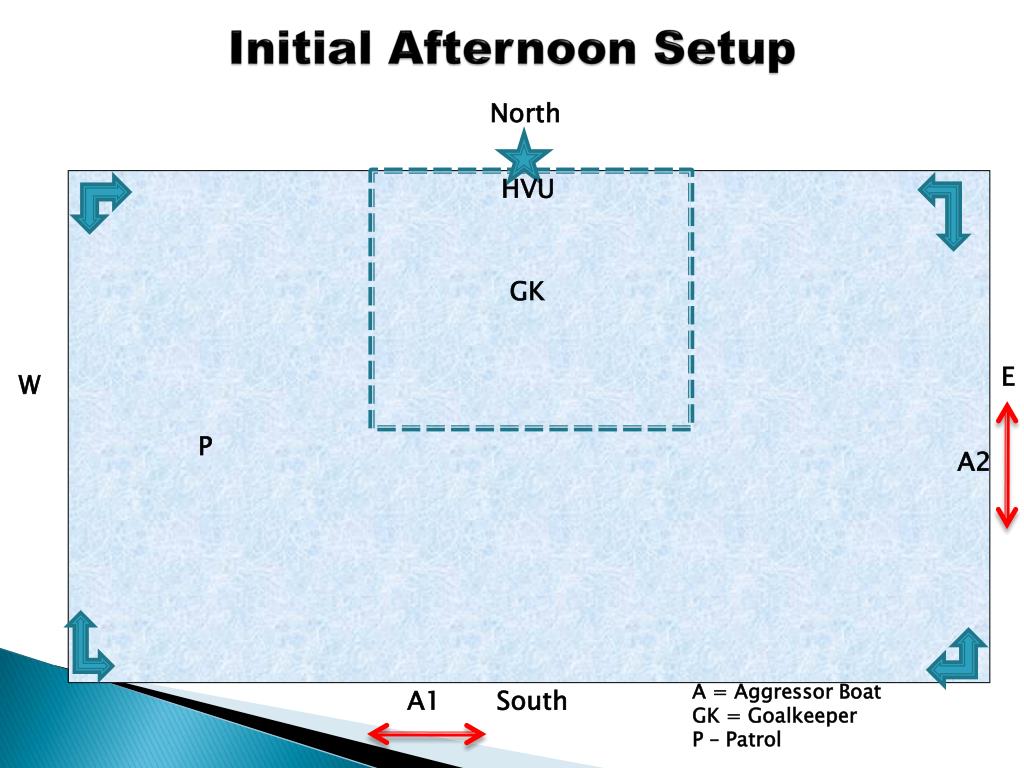

  40. Initial Afternoon Setup North HVU GK E W P A2 A = Aggressor Boat GK = Goalkeeper P – Patrol A1 South

  41. Run Charlie– A1 enters, P blocks; A2 enters, GK blocks; A1 departs box, A2 retires and stays in outer box causing GK to move out of secure area and continue blocking which transitions P to GK North HVU #6 GK #4 E W P #3 A2 #5 #2 #1 A1 A = Aggressor Boat GK = Goalkeeper P – Patrol South

  42. Run Delta– A2 enters box, GK moves to block and causes P to transition to GK; A1 enters and new GK blocks inner secure area; A2 retires; A1 retires North HVU #1 GK A2 E W #3 P #4 #2 A1 A = Aggressor Boat GK = Goalkeeper P – Patrol South

  43. Playbook for TW 10 Cooperative HVU Escort transiting Choke Point Mission

  44. Column formation for channel transit, hold 200m distances for leader and follower (no blocking)

  45. Upon channel exit, Escort USV’s assume line abreast formation (3 and 9 o’clock positions) at 200m

  46. Run Alfa: Both target boats approaching from 1 side off the bow of HVU USV 2 HVU USV 1 A 2 A 1 A = Aggressor Boat USV = Powervent / 11M RHIB HVU = Escorted vessel

  47. Run Bravo: Target boats approaching from either side off the bow of HVU USV 2 A 2 HVU USV 1 A 1 A = Aggressor Boat USV = Powervent / 11M RHIB HVU = Escorted vessel

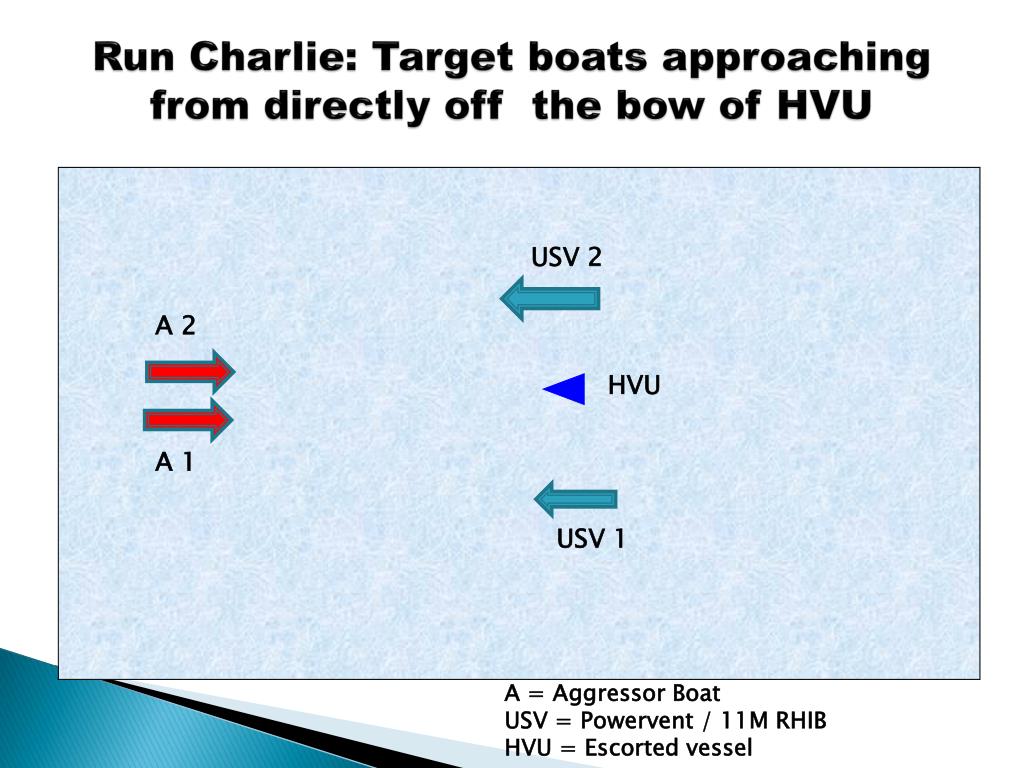

  48. Run Charlie: Target boats approaching from directly off the bow of HVU USV 2 A 2 HVU A 1 USV 1 A = Aggressor Boat USV = Powervent / 11M RHIB HVU = Escorted vessel
