  1. RANSAC experimentation Slides by Marc van Kreveld

  2. Experimental research • Research in computer science may result in: • definitions of new, useful structures or concepts • new algorithms to solve problems • Further knowledge on the new structure, concept or algorithm can be obtained by: • proofs of properties, complexities, efficiency of structures, concepts or algorithms • experiments to answer research questions where proofs cannot be given, e.g. running times on real-World data; user studies to determine aesthetics or perceived difficulty

  3. Common sense tips in experiments • Know exactly what you are doing and why • Make sure to fix some specific research questions at the start • Do not even think about trying to answer more questions, or hoping to get more information, during the design phase. Concentrate on the chosen questions only • Design your data and your experiment to answer the questions as well as reasonably possible • Make sure your experiment can be replicated

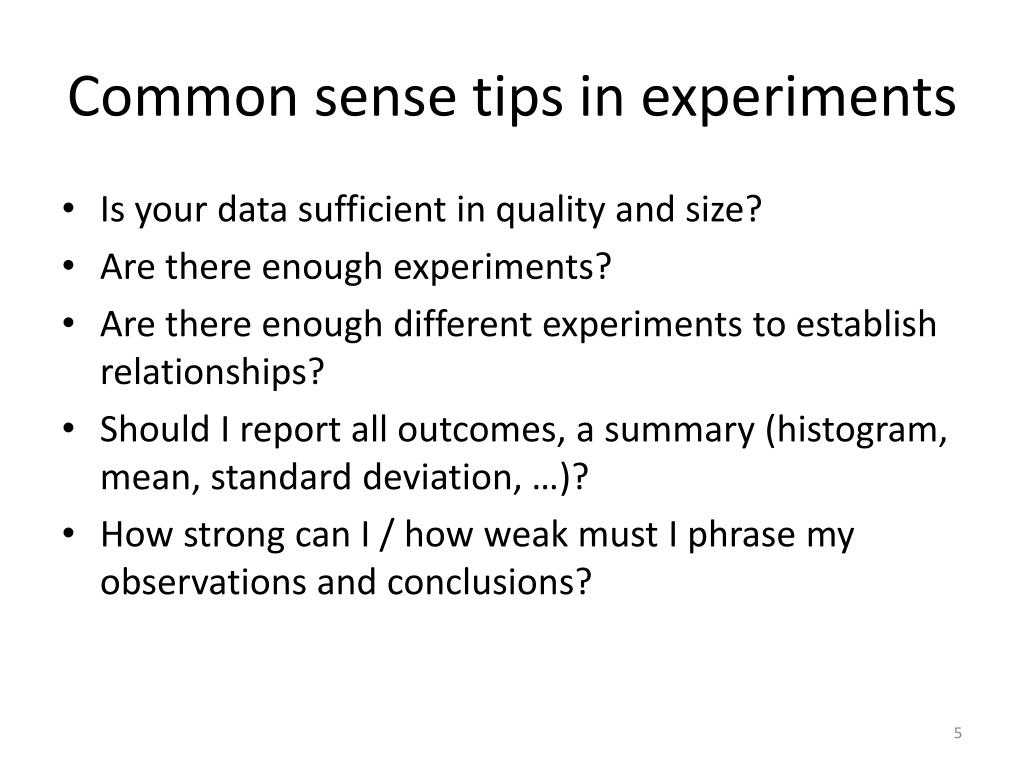

  4. Common sense tips in experiments • Is your data sufficient in quality and size? • Are there enough experiments? • Are there enough different experiments to establish relationships? • Should I report all outcomes, a summary (histogram, mean, standard deviation, …)? • How strong can I / how weak must I phrase my observations and conclusions?

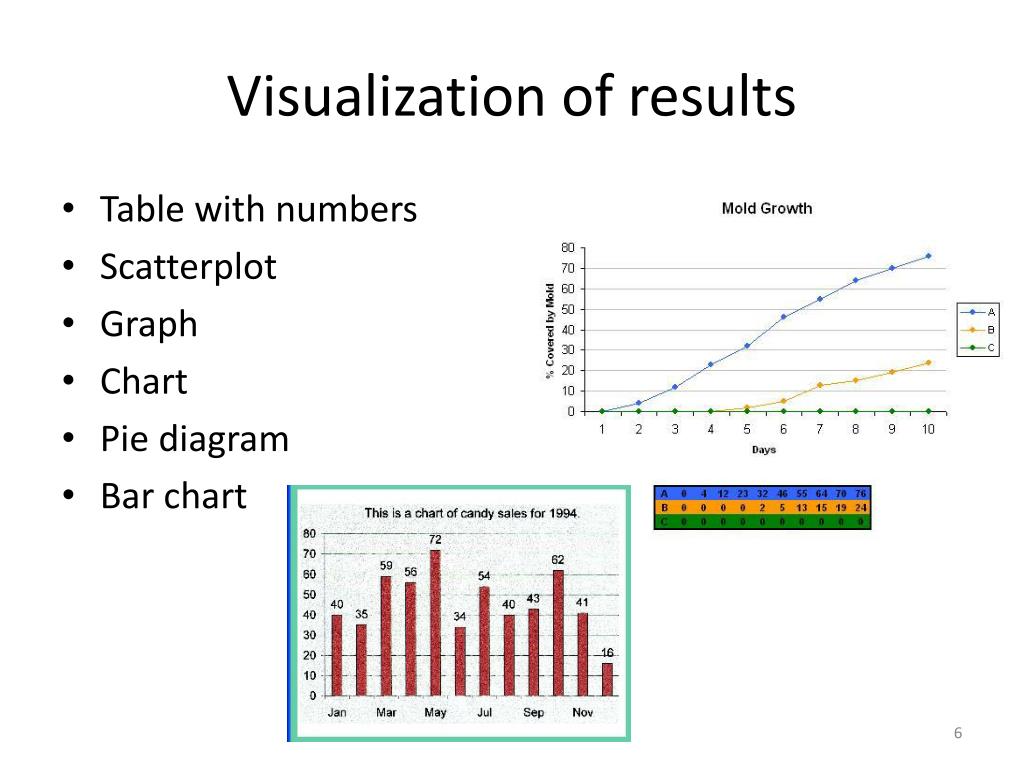

  5. Visualization of results • Table with numbers • Scatterplot • Graph • Chart • Pie diagram • Bar chart

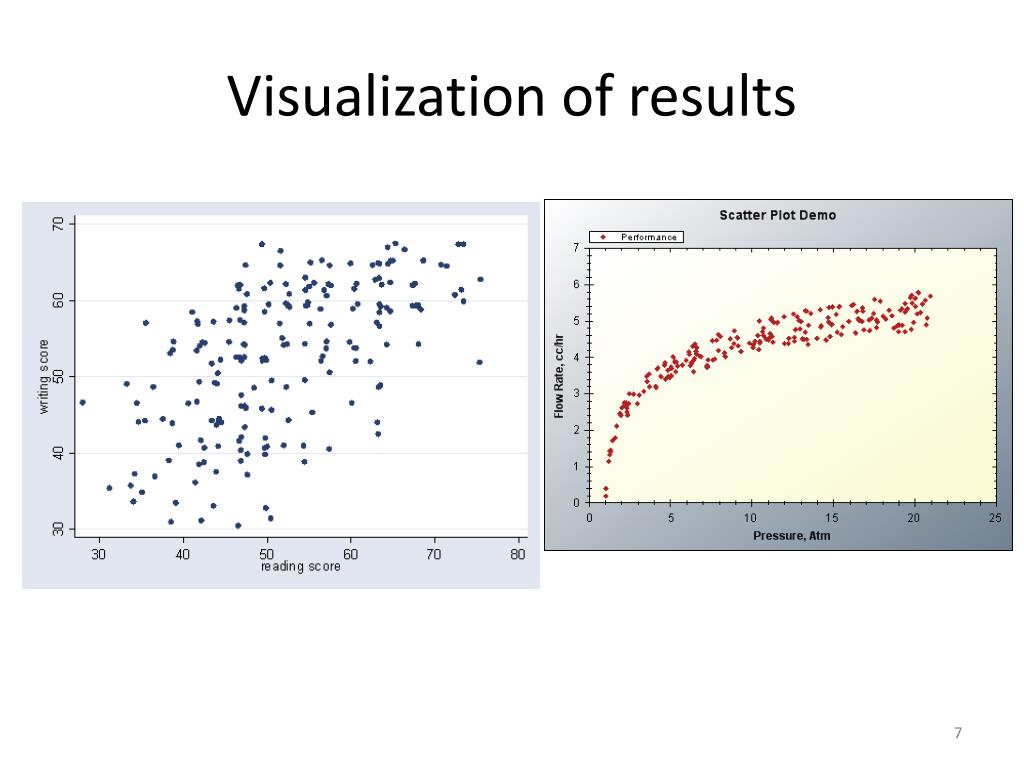

  6. Visualization of results

  7. Visualization of results

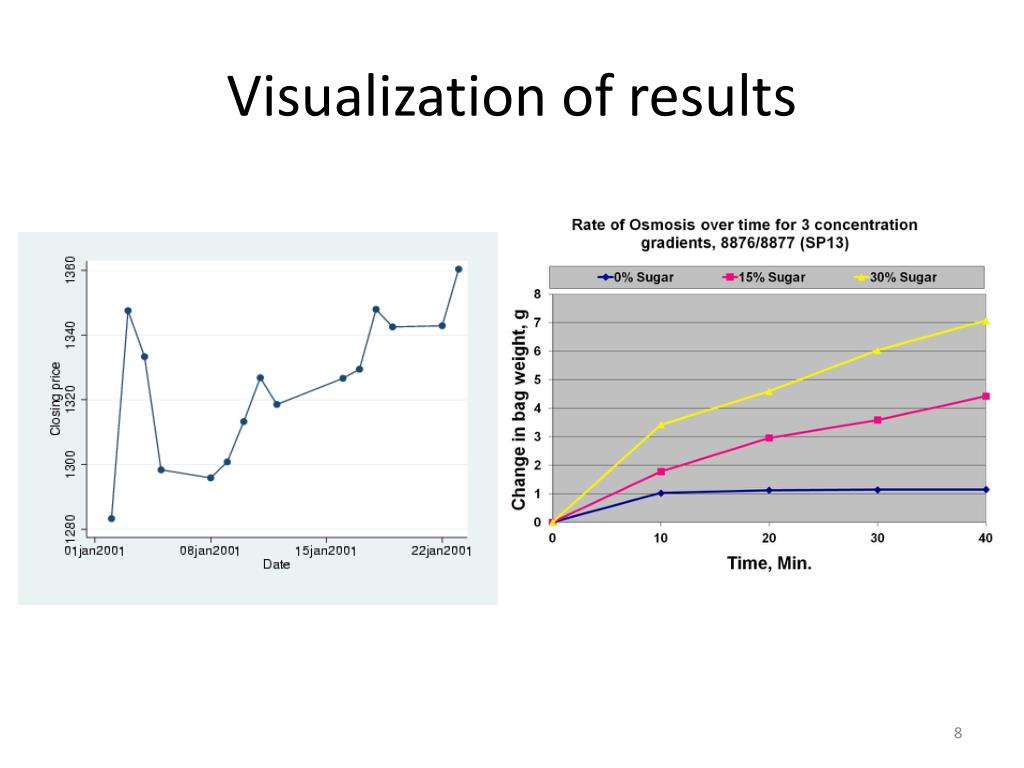

  8. Visualization of results

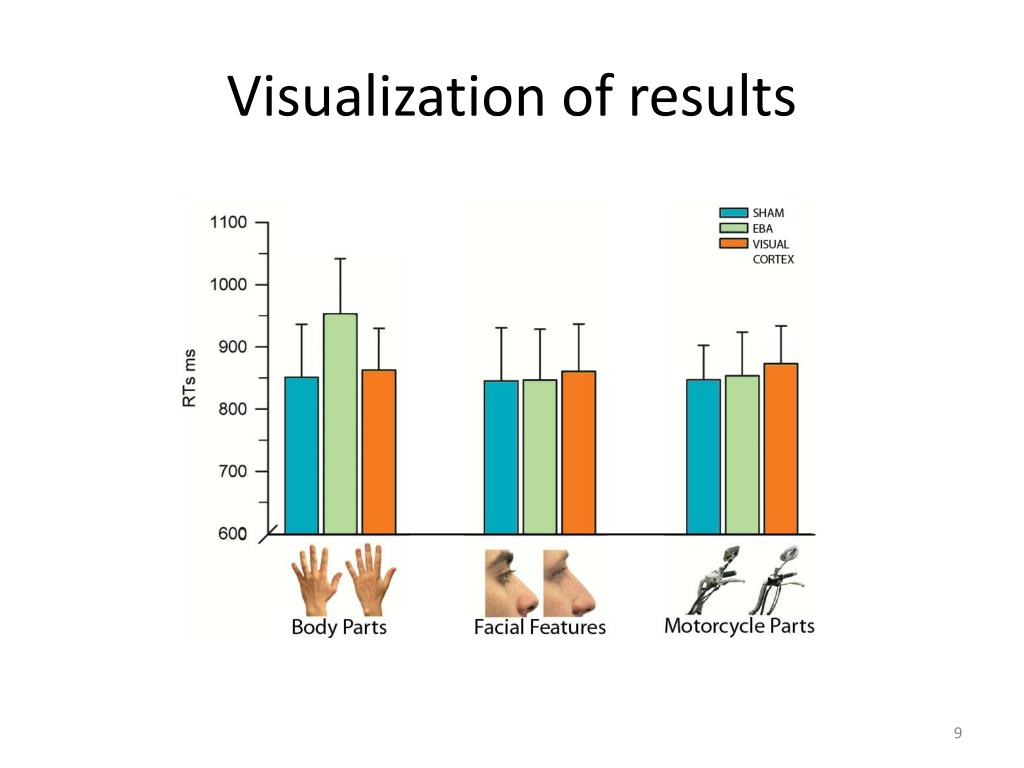

  9. Visualization of results

  10. Visualization of results

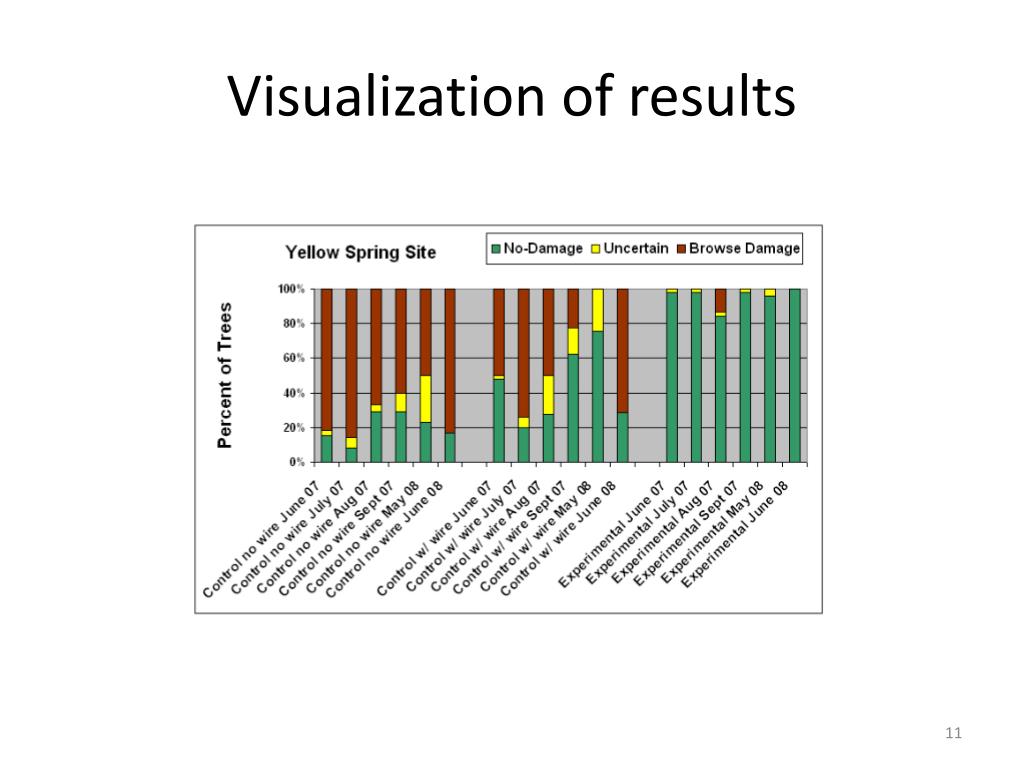

  11. Visualization of results

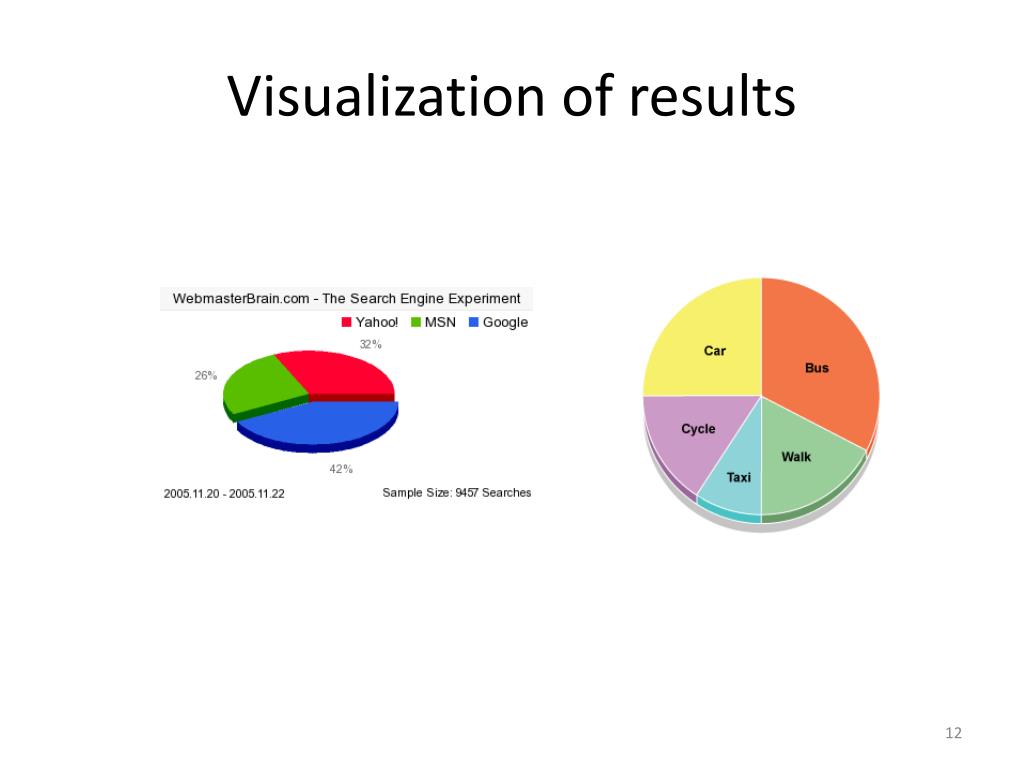

  12. Visualization of results

  13. RANSAC Goal: Given a set of points P, some of which lie on a line L*. Find line L* • Choose a threshold distance d • For #iterations do • Choose 2 points, make line L • For each point q in P, test if q lies within distance d from L If yes, increase the support of L by 1 • If L has higher support than the highest-support line found so far, remember L and its support • Return Las the line with most points near it

  14. RANSAC • For testing whether a point q supports a line L, we do not actually compute the distance from q to L • Instead, we generate two lines at distance d from L • Then we test for each point whether it lies below the upper and above the lower line

  15. RANSAC • How large should the threshold distance d be? • How many iterations should we do to have a high probability of finding the line with highest support? the threshold distance is related to the measurement error (~5 cm) and the flatness of the surface the number of iterations depends on the inlier-outlier ratio and with how much probability we want to find the best line

  16. RANSAC, iterations • Suppose we want to have 95% probability, p=0.95, of finding the line • Suppose there are k points on the line (inliers) and n points in total • Then the probability of choosing 2 points on the line is (k/n)2 • The probability of never selecting 2 points on the line in r iterations is ( 1 – (k/n)2 )r • The probability of finding the line in r iterations is 1 – ( 1 – (k/n)2 )r

  17. RANSAC, iterations • So we want 1 – ( 1 – (k/n)2 )r > p( 1 – (k/n)2 )r < 1 – plog( 1 – (k/n)2 )r < log (1 – p)r log( 1 – (k/n)2) < log (1 – p)r > log (1 – p) / log( 1 – (k/n)2 )

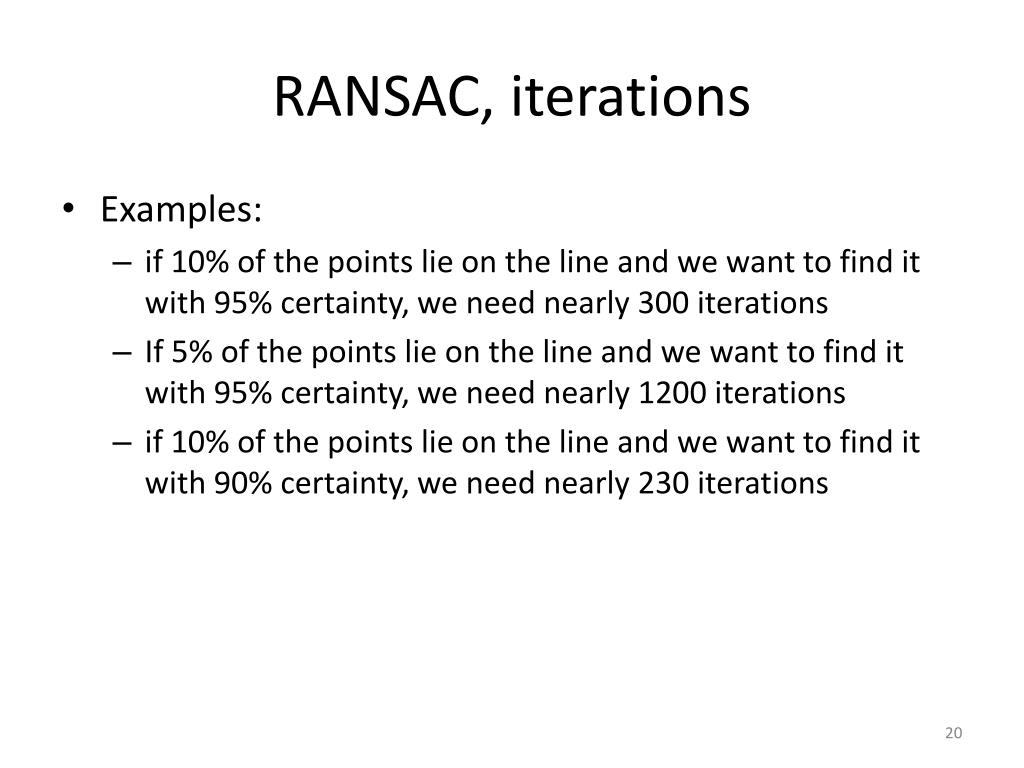

  18. RANSAC, iterations • Examples: • if 10% of the points lie on the line and we want to find it with 95% certainty, we need nearly 300 iterations • If 5% of the points lie on the line and we want to find it with 95% certainty, we need nearly 1200 iterations • if 10% of the points lie on the line and we want to find it with 90% certainty, we need nearly 230 iterations

  19. Practical 3: RANSAC with Noise

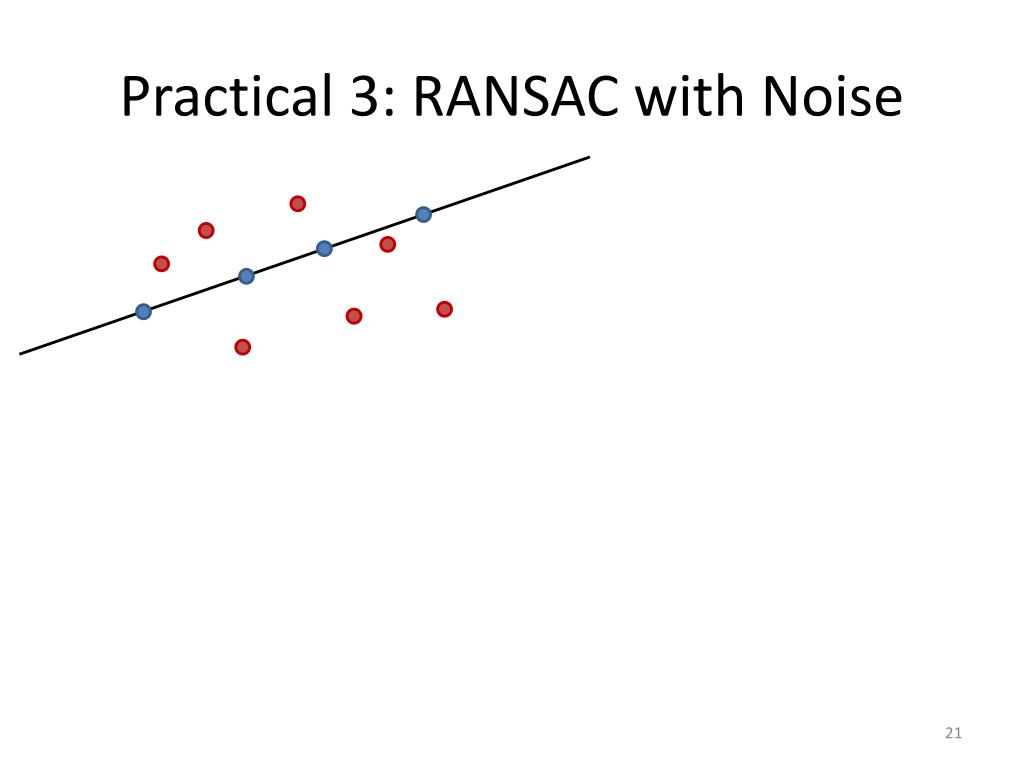

  20. Practical 3: RANSAC with Noise • 1. Does the number of iterations required to find the best plane increase when noise is present, and how does it increase in the amount of noise?

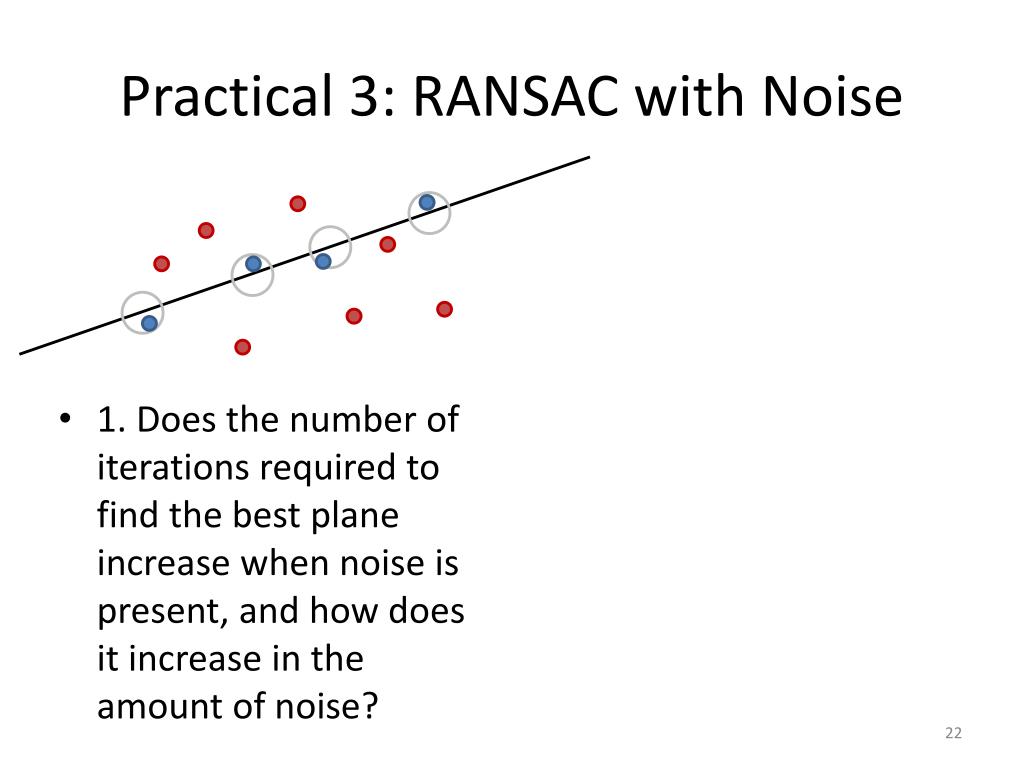

  21. Practical 3: RANSAC with Noise • 1. Does the number of iterations required to find the best plane increase when noise is present, and how does it increase in the amount of noise? • 2. When noise is present, does the facet shape influence the number of iterations that is needed, and in what way?

  22. Experimental research • http://en.wikipedia.org/wiki/Design_of_experiments • http://en.wikipedia.org/wiki/Charts
