Solids can be divided into two main types.

Solids. Solids can be divided into two main types. Crystalline solids: which have a highly regular, repeating pattern in their structure.

ila-ross
Télécharger la présentation

Solids can be divided into two main types.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

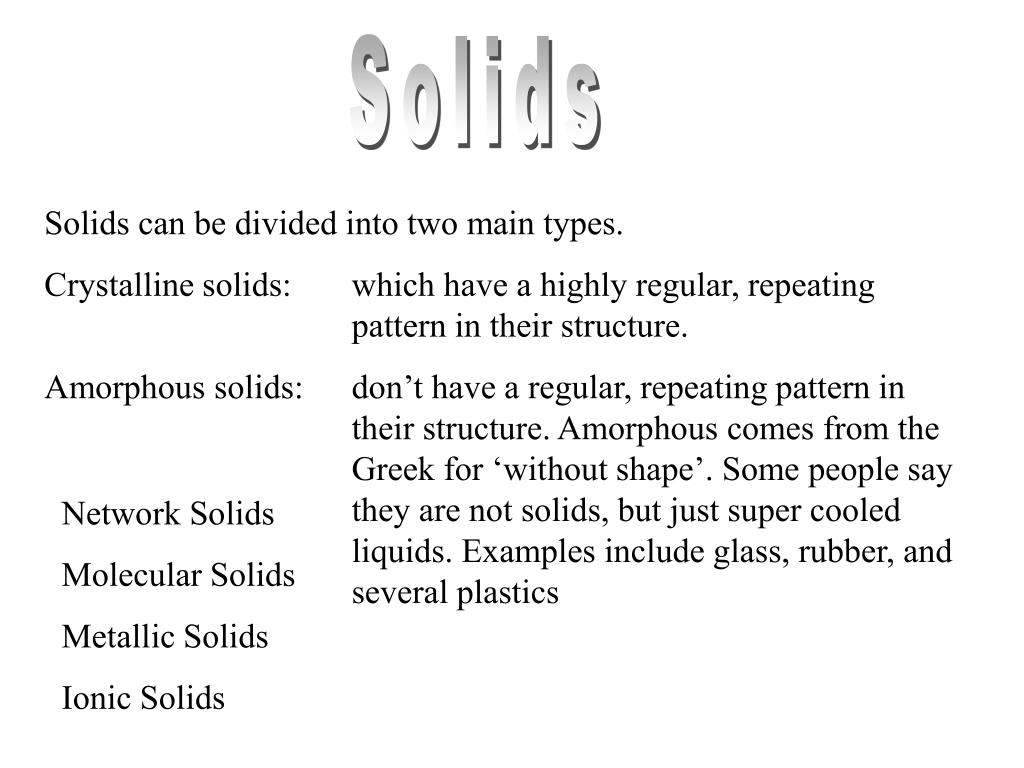

  1. Solids Solids can be divided into two main types. Crystalline solids: which have a highly regular, repeating pattern in their structure. Amorphous solids: don’t have a regular, repeating pattern in their structure. Amorphous comes from the Greek for ‘without shape’. Some people say they are not solids, but just super cooled liquids. Examples include glass, rubber, and several plastics Network Solids Molecular Solids Metallic Solids Ionic Solids

  2. History Of Materials

  3. Alloys The properties of pure metals can be modified by adding atoms of other elements to their crystalline structure. A mixture of elements that retains the properties of metals is called an alloy. Two types of alloys are; Substitutional alloys have some of the host metal atoms replaced by other metal atoms of similar size. E.g. Brass, sterling silver, pewter Interstitial alloys have some of the small holes in the structure occupied by small atoms. E.g. Steel

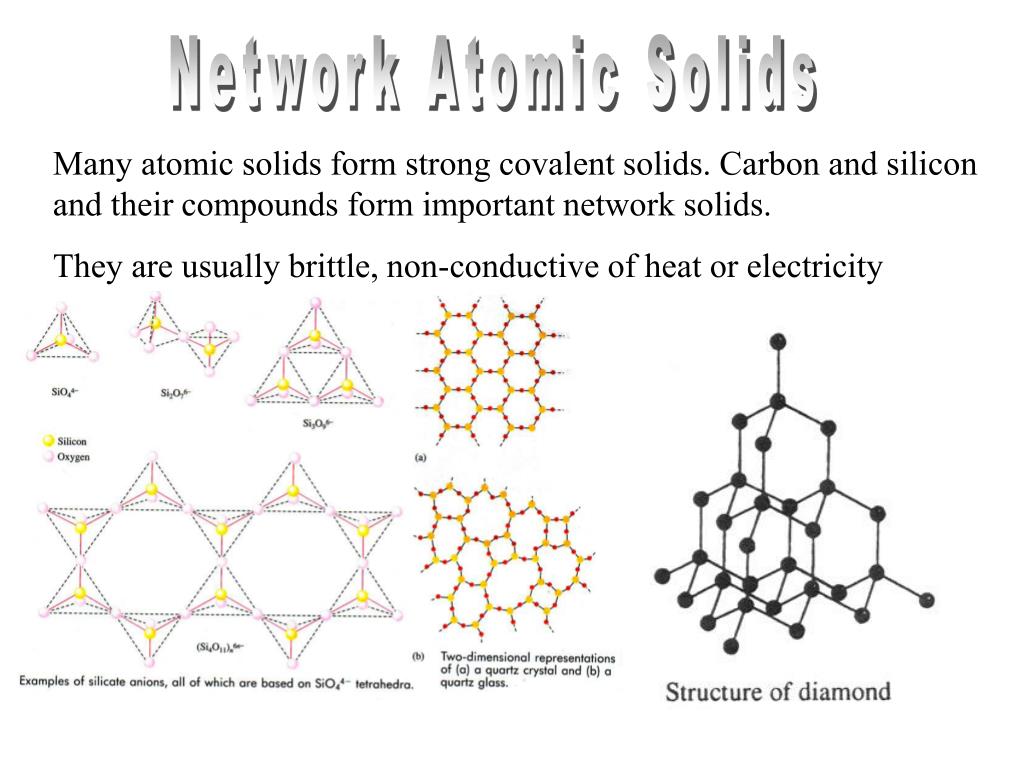

  4. Network Atomic Solids Many atomic solids form strong covalent solids. Carbon and silicon and their compounds form important network solids. They are usually brittle, non-conductive of heat or electricity
