  1. CCNA 2 v3 JEOPARDY Module 6 K. Martin

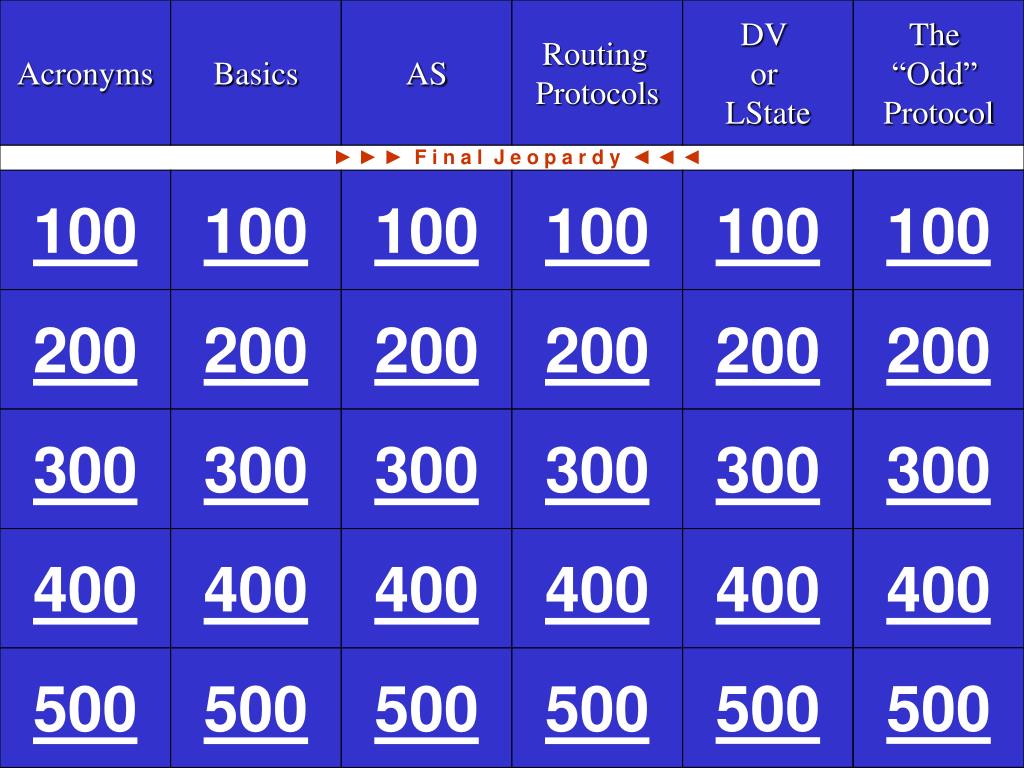

  2. Router Modes Router Modes Acronyms Basics WAN Encapsulation WAN Encapsulation AS WAN Services WAN Services Routing Protocols Router Basics Router Basics DV or LState Router Commands Router Commands The “Odd” Protocol ► ► ► F i n a l J e o p a r d y ◄ ◄ ◄ 100 100 100 100 100 100 100 100 200 200 200 200 200 200 200 200 300 300 300 300 300 300 300 300 400 400 400 400 400 400 400 400 500 500 500 500 500 500 500 500

  3. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms100 ISP A: What is Internet Service Provider? CCNA2 v3 Module 6

  4. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms200 AS A: What is Autonomous System? CCNA2 v3 Module 6

  5. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms300 SPF A: What is Shortest Path First? CCNA2 v3 Module 6

  6. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms400 BGP A: What is Border Gateway Protocol? CCNA2 v3 Module 6

  7. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms500 DUAL A: What is Diffused Update Algorithm? CCNA2 v3 Module 6

  8. 100 100 100 100 100 100 100 100 100 100 100 100 200 200 200 200 200 200 200 200 200 200 200 200 Question 300 300 300 300 300 300 300 300 300 300 300 300 400 400 400 400 400 400 400 400 400 400 400 400 500 500 500 500 500 500 500 500 500 500 500 500 Basics100 This type of routing protocol makes adjustments automatically A: What is a Dynamic routing protocol? CCNA2 v3 Module 6

  9. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Basics 200 This type of routing protocol is programmed by a network administrator. A: What is a Static Route? CCNA2 v3 Module 6

  10. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Basics 300 The command used to create a static route. A: What is ip route? CCNA2 v3 Module 6

  11. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Basics 400 This type of route is used to direct traffic when a network is not listed in the routing table. A: What is a default static route? CCNA2 v3 Module 6

  12. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Basics 500 The command used to test whether a destination network is reachable. A: What is ping? CCNA2 v3 Module 6

  13. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 AS100 The organization that assigns AS numbers. A: Who is the American Registry of Internet Numbers (ARIN)? CCNA2 v3 Module 6

  14. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 AS200 The size of an AS. A: What is 16 bits? (0 – 65,535) CCNA2 v3 Module 6

  15. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 AS 300 The purpose of an AS. A: What is To provide a consistent view of routing to the outside world? CCNA2 v3 Module 6

  16. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 AS 400 A routing protocol that requires an AS. A: What is IGRP or EIGRP? CCNA2 v3 Module 6

  17. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 AS 500 The type of routing protocol used to send traffic from one AS to another. A: What is an External routing protocol? CCNA2 v3 Module 6

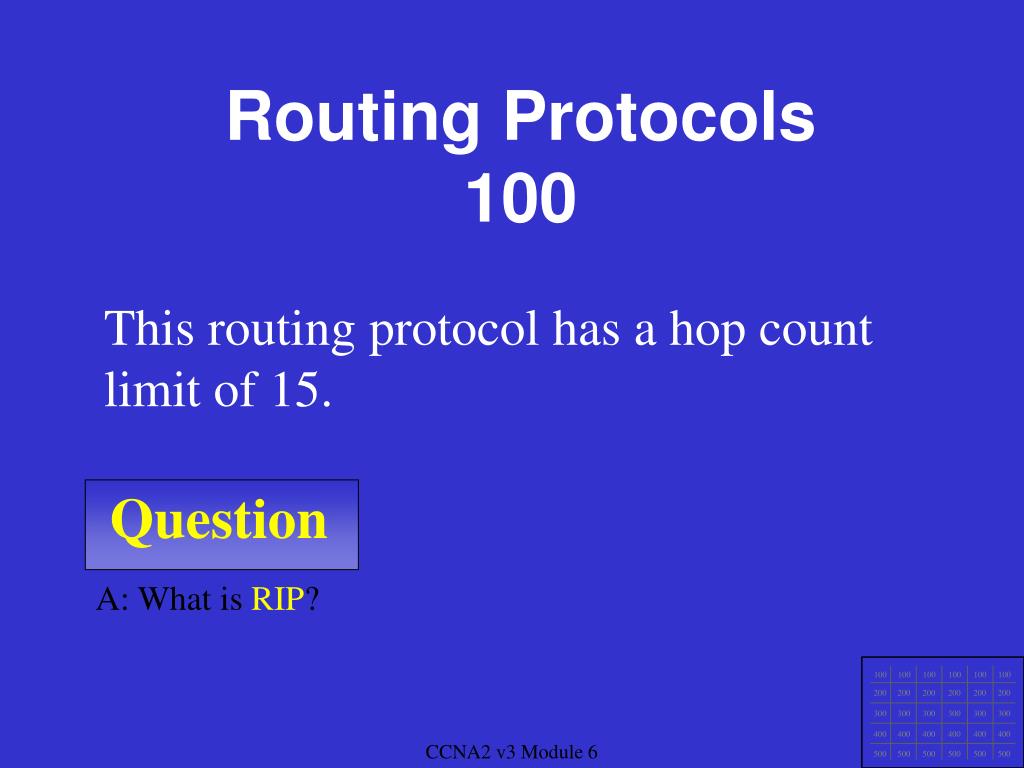

  18. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Routing Protocols100 This routing protocol has a hop count limit of 15. A: What is RIP? CCNA2 v3 Module 6

  19. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Routing Protocols 200 This routing protocol uses the DUAL algorithm. A: What is EIGRP? CCNA2 v3 Module 6

  20. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Routing Protocols 300 This routing protocol uses bandwidth, delay, load, and reliability to calculate a metric. A: What is IGRP? CCNA2 v3 Module 6

  21. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Routing Protocols 400 This routing protocol sends updates every 30 seconds, regardless of topology changes. A: What is RIP? CCNA2 v3 Module 6

  22. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Routing Protocols 500 This routing protocol floods updates when the topology changes. A: What is OSPF? CCNA2 v3 Module 6

  23. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DV or LState100 Uses fewer system resources, such as RAM and processing power. A: What are Distance Vector protocols? CCNA2 v3 Module 6

  24. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DV or LState 200 Each router maintains a complete view of the network. A: What are Link State protocols? CCNA2 v3 Module 6

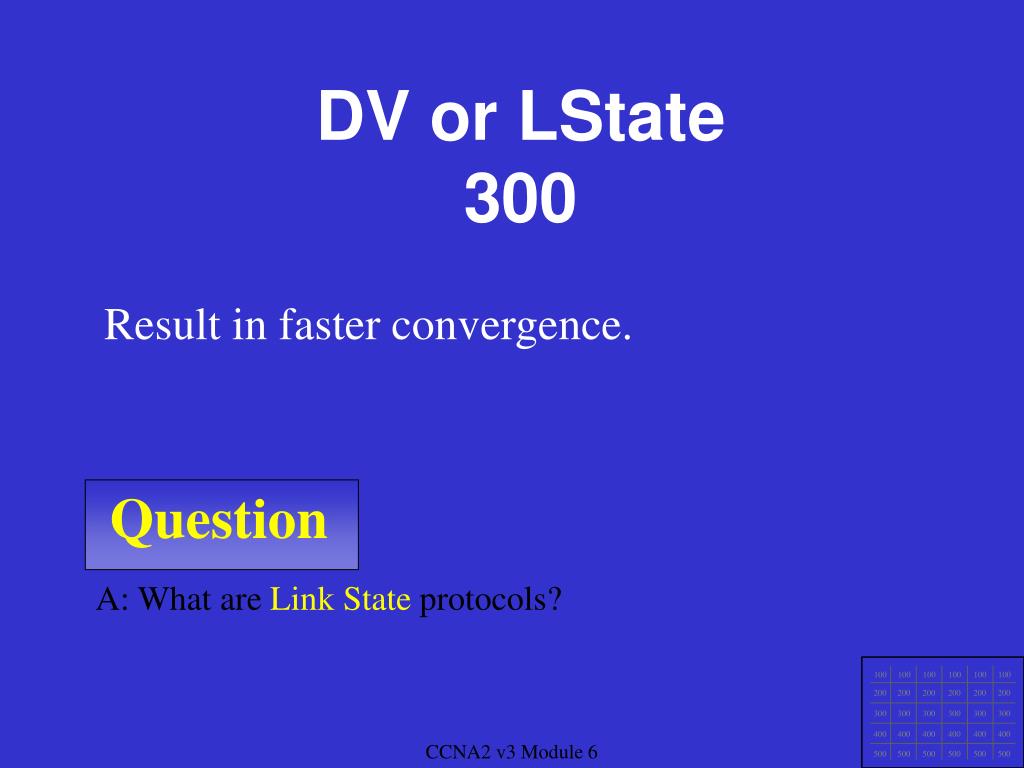

  25. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DV or LState 300 Result in faster convergence. A: What are Link State protocols? CCNA2 v3 Module 6

  26. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DV or LState 400 Less bandwidth intensive, once operational. A: What are Link State protocols? CCNA2 v3 Module 6

  27. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DV or LState 500 Sends updates at a regular interval. A: What are Distance Vector protocols? CCNA2 v3 Module 6

  28. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 The “Odd” Protocol100 OSPF, RIP, IGRP A: What is OSPF? (RIP & IGRP are distance vector protocols) CCNA2 v3 Module 6

  29. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 The “Odd” Protocol 200 IGRP, EIGRP, RIP A: What is RIP? (IGRP & EIGRP are both Cisco proprietary protocols) CCNA2 v3 Module 6

  30. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 The “Odd” Protocol 300 IS-IS, EIGRP, OSPF A: What is EIGRP? (IS-IS & OSPF are link state protocols) CCNA2 v3 Module 6

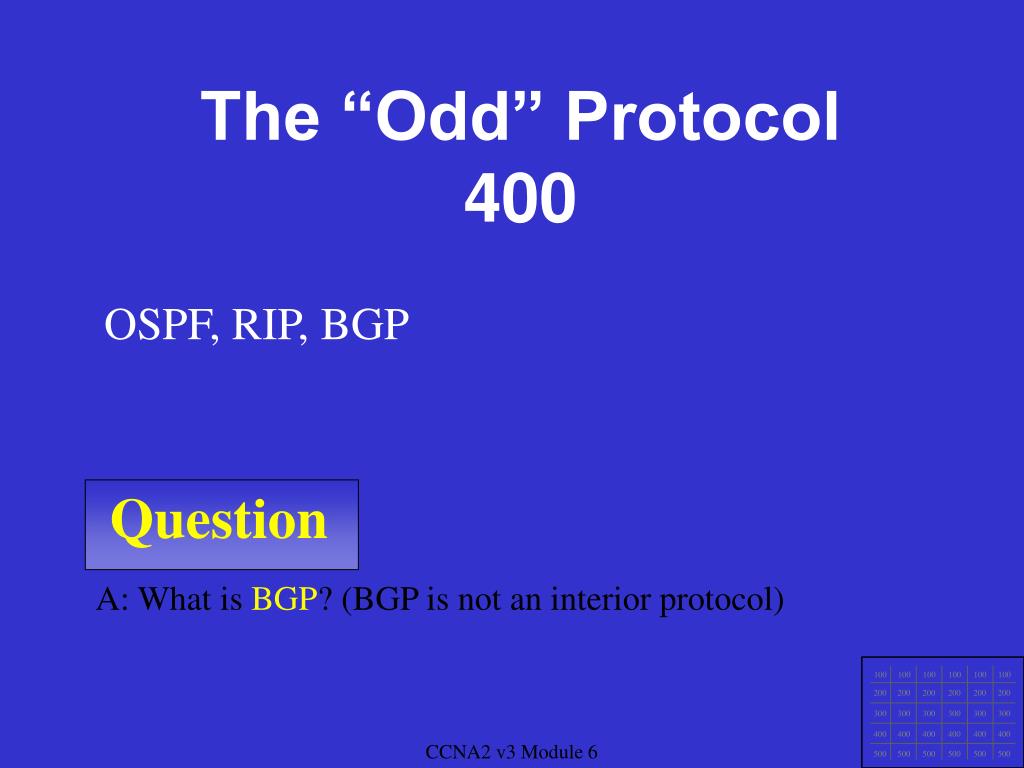

  31. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 The “Odd” Protocol 400 OSPF, RIP, BGP A: What is BGP? (BGP is not an interior protocol) CCNA2 v3 Module 6

  32. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 The “Odd” Protocol 500 RIP, EIGRP, IS-IS A: What is IS-IS? (RIP & EIGRP are distance vector protocols) CCNA2 v3 Module 6

  33. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Final Jeopardy The full command used direct all traffic for destinations not in the routing table out through serial port 0/1. A: What is ip route 0.0.0.0 0.0.0.0 s0/1? CCNA2 v3 Module 6
