  1. Computer ArchitectureAdvanced Branch Prediction Lihu Rappoport and Adi Yoaz

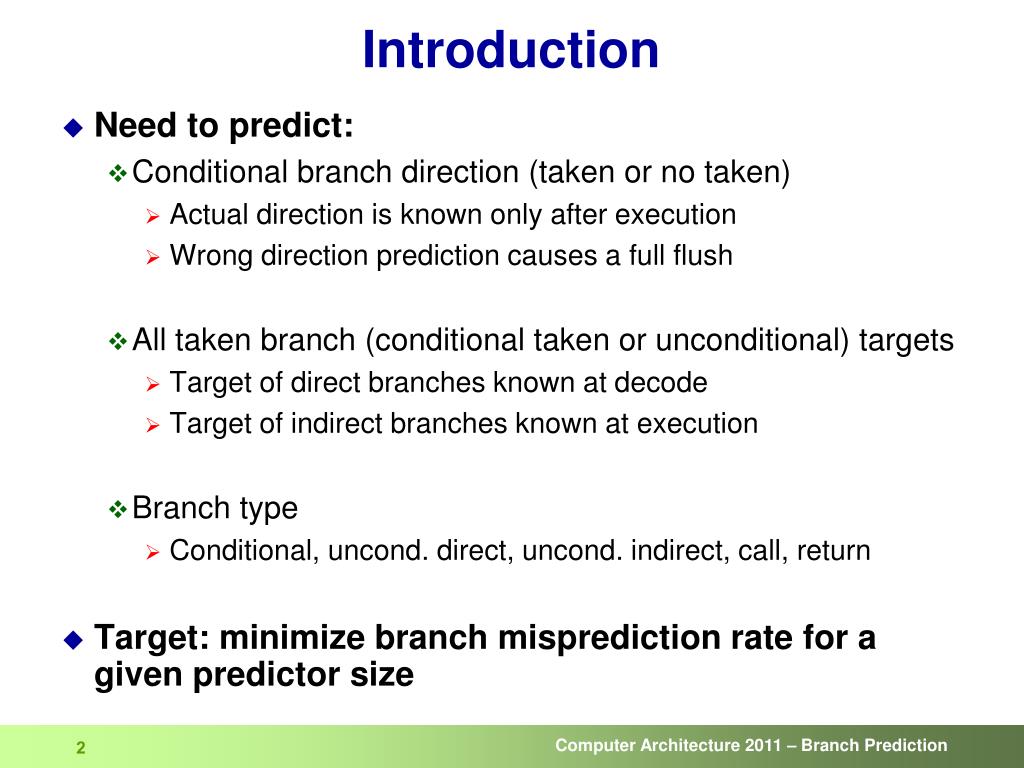

  2. Introduction • Need to predict: • Conditional branch direction (taken or no taken) • Actual direction is known only after execution • Wrong direction prediction causes a full flush • All taken branch (conditional taken or unconditional) targets • Target of direct branches known at decode • Target of indirect branches known at execution • Branch type • Conditional, uncond. direct, uncond. indirect, call, return • Target: minimize branch misprediction rate for a given predictor size

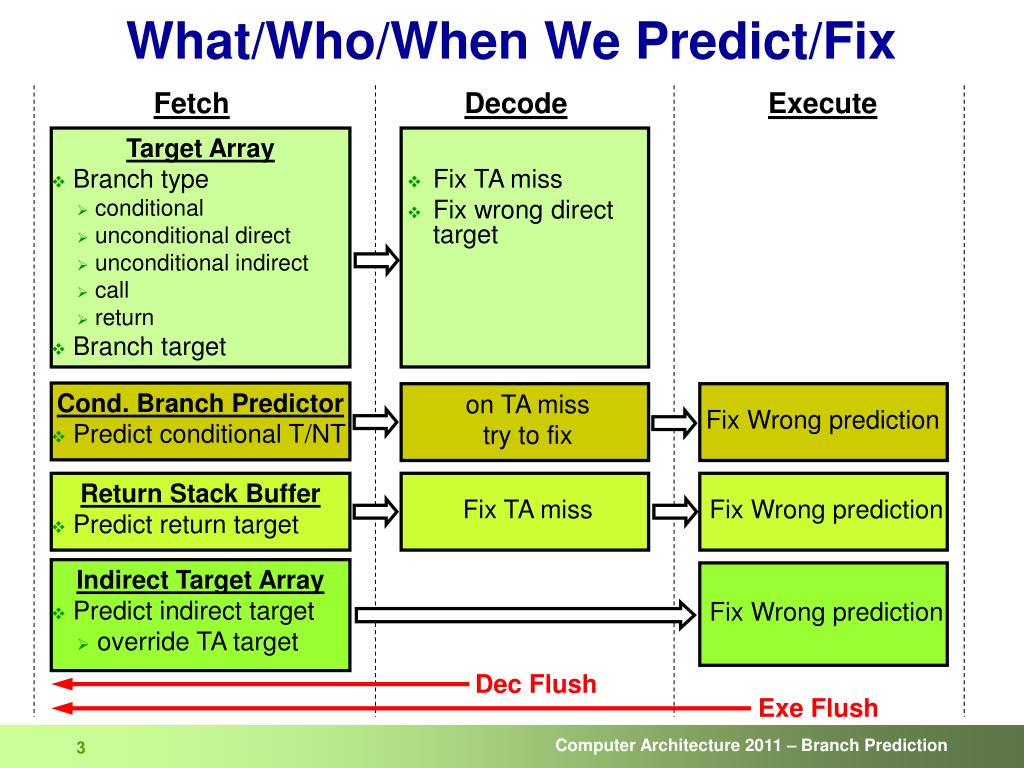

  3. What/Who/When We Predict/Fix Fetch Decode Execute Target Array • Branch type • conditional • unconditional direct • unconditional indirect • call • return • Branch target • Fix TA miss • Fix wrong direct target Cond. Branch Predictor • Predict conditional T/NT on TA miss try to fix Fix Wrong prediction Return Stack Buffer • Predict return target Fix TA miss Fix Wrong prediction Indirect Target Array • Predict indirect target • override TA target Fix Wrong prediction Dec Flush Exe Flush

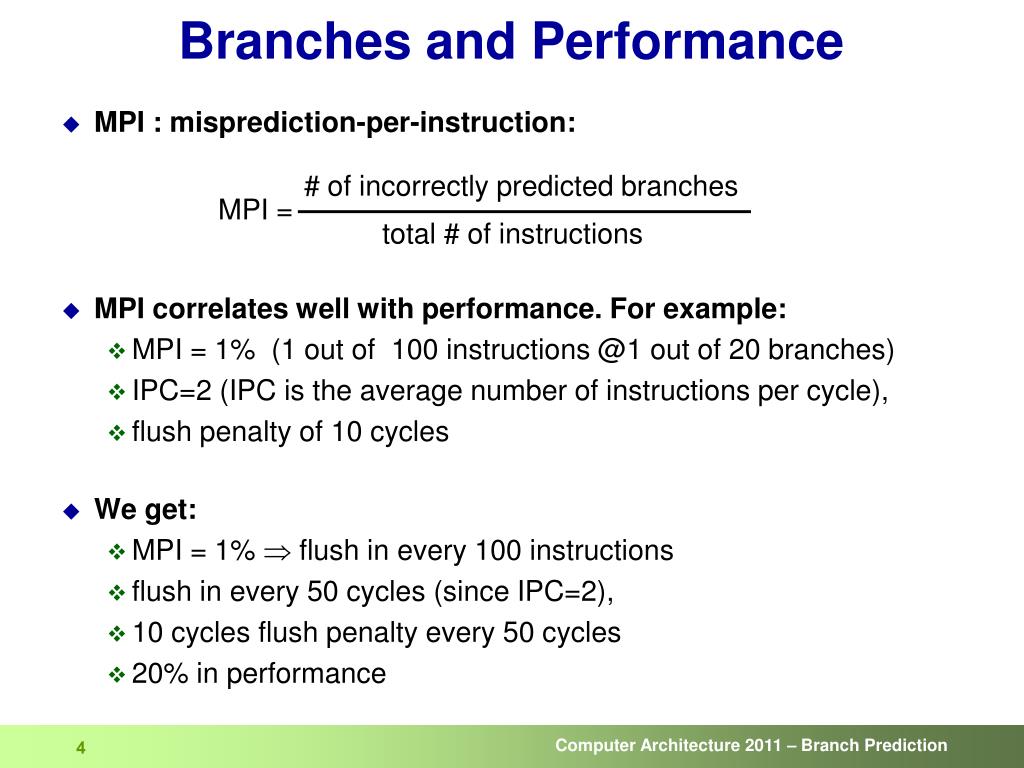

  4. Branches and Performance • MPI : misprediction-per-instruction: # of incorrectly predicted branches MPI = total # of instructions • MPI correlates well with performance. For example: • MPI = 1% (1 out of 100 instructions @1 out of 20 branches) • IPC=2 (IPC is the average number of instructions per cycle), • flush penalty of 10 cycles • We get: • MPI = 1%  flush in every 100 instructions • flush in every 50 cycles (since IPC=2), • 10 cycles flush penalty every 50 cycles • 20% in performance

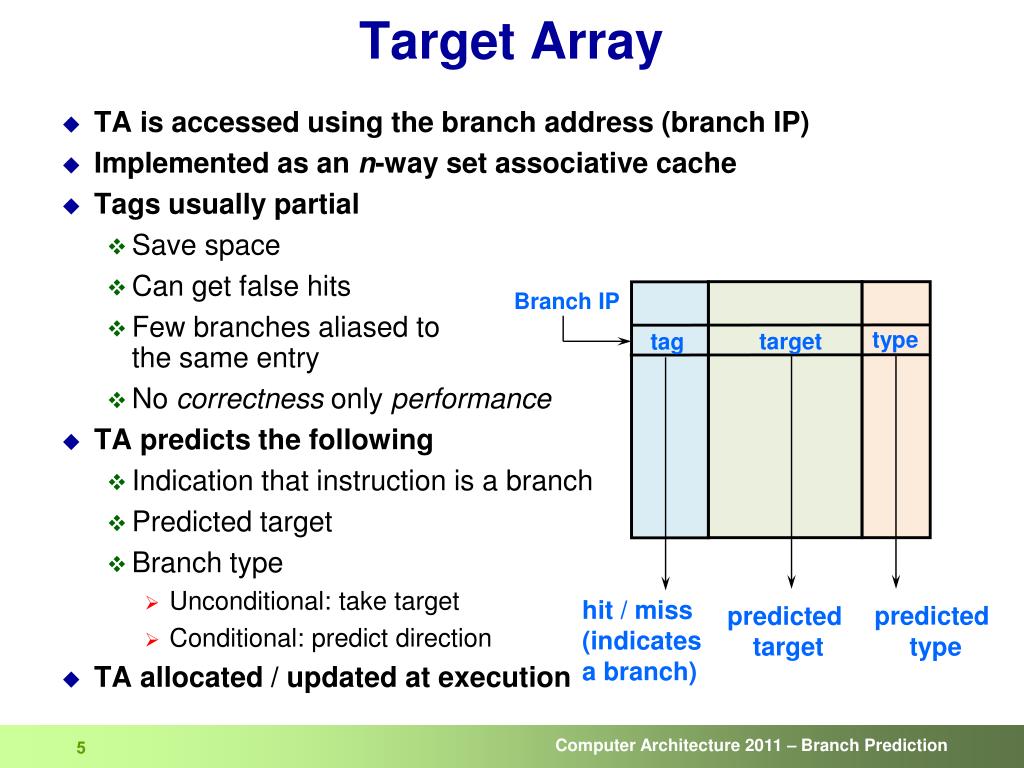

  5. Target Array • TA is accessed using the branch address (branch IP) • Implemented as an n-way set associative cache • Tags usually partial • Save space • Can get false hits • Few branches aliased to the same entry • No correctness only performance • TA predicts the following • Indication that instruction is a branch • Predicted target • Branch type • Unconditional: take target • Conditional: predict direction • TA allocated / updated at execution Branch IP type target tag hit / miss (indicates a branch) predicted type predicted target

  6. Conditional BranchDirection Prediction

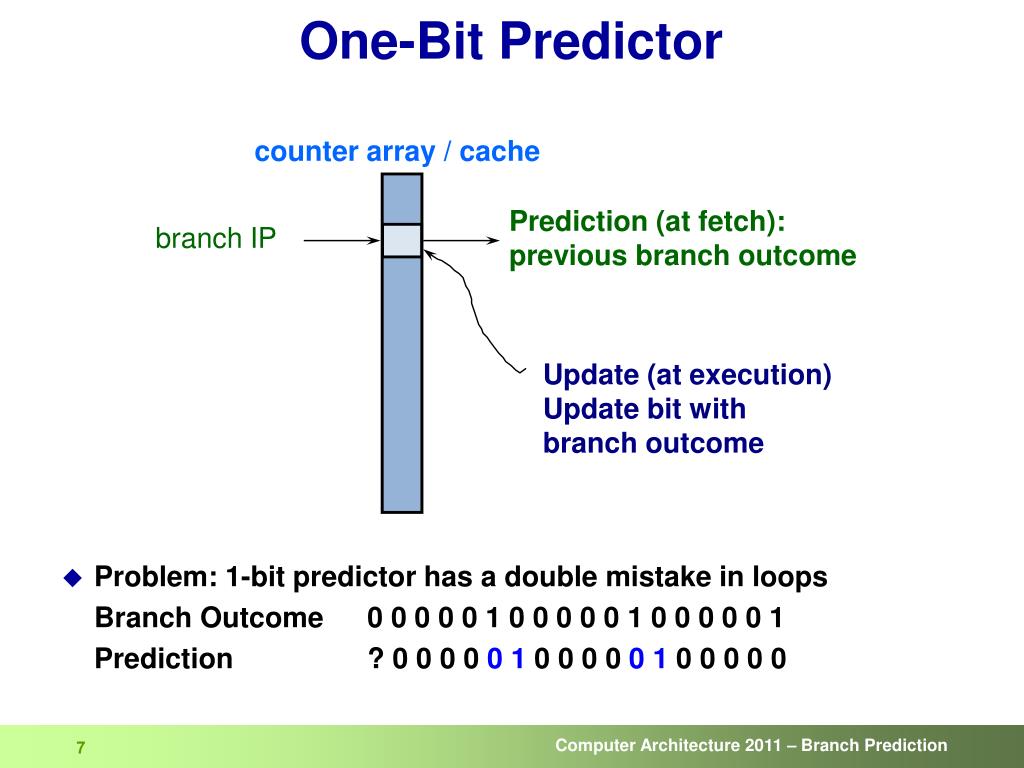

  7. One-Bit Predictor • Problem: 1-bit predictor has a double mistake in loops Branch Outcome 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 Prediction ? 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 counter array / cache Prediction (at fetch): previous branch outcome branch IP Update (at execution) Update bit with branch outcome

  8. taken taken taken 11 ST 00 SNT 01 WNT 10 WT not- taken taken not-taken not-taken not-taken Predict not-taken Predict taken Bimodal (2-bit) Predictor • A 2-bit counter avoids the double mistake in glitches • Need “more evidence” to change prediction • 2 bits encode one of 4 states • 00 – strong NT, 01 – weakly NT, 10 – weakly taken, 11 – strong taken • Initial state: weakly-taken (most branches are taken) • Update • Branch was actually taken: increment counter (saturate at 11) • Branch was actually not-taken: decrement counter (saturate at 00) • Predict according to m.s.bit of counter (0 – NT, 1 – taken) • Does not predict well branches with patterns like 010101…

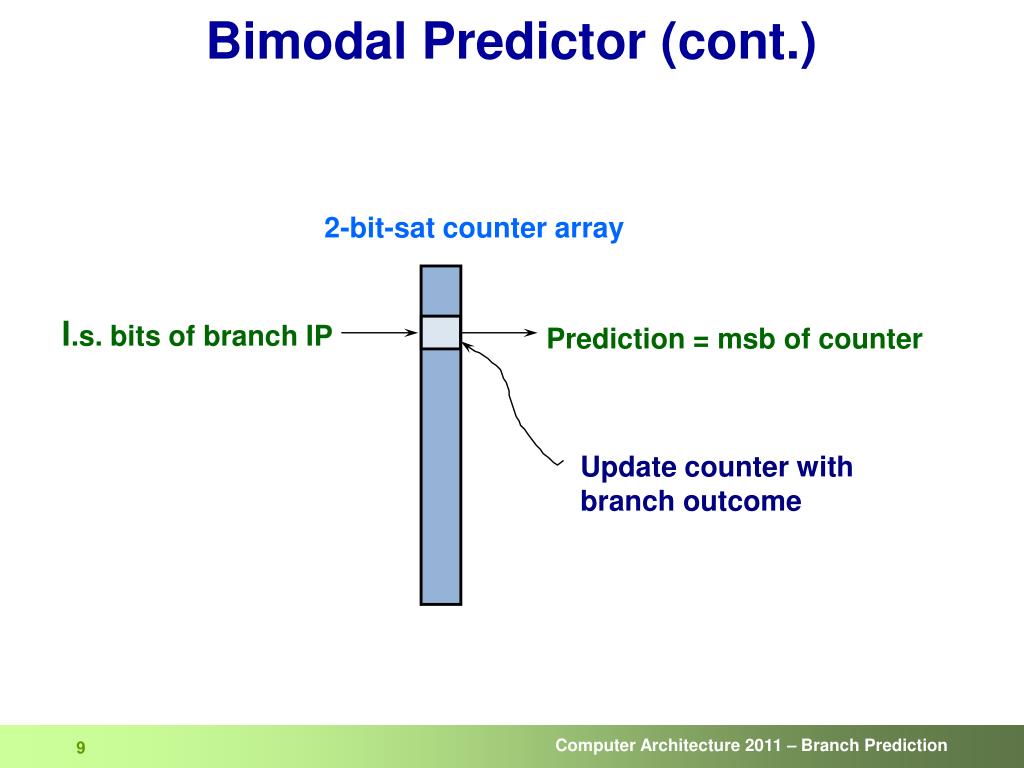

  9. Bimodal Predictor (cont.) l.s. bits of branch IP 2-bit-sat counter array Prediction = msb of counter Update counter with branch outcome

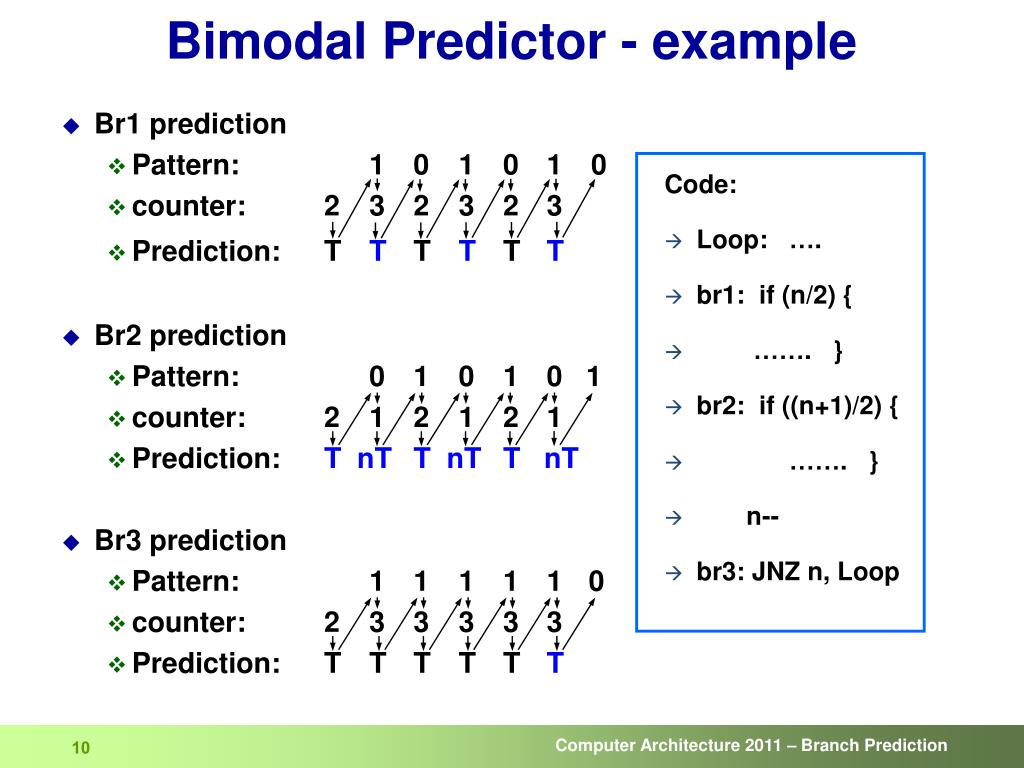

  10. Bimodal Predictor - example • Br1 prediction • Pattern: 1 0 1 0 1 0 • counter: 2 3 2 3 2 3 • Prediction: T T T T T T • Br2 prediction • Pattern: 0 1 0 1 0 1 • counter: 2 1 2 1 2 1 • Prediction: T nT T nT T nT • Br3 prediction • Pattern: 1 1 1 1 1 0 • counter: 2 3 3 3 3 3 • Prediction: T T T T T T • Code: • Loop: …. • br1: if (n/2) { • ……. } • br2: if ((n+1)/2) { • ……. } • n-- • br3: JNZ n, Loop

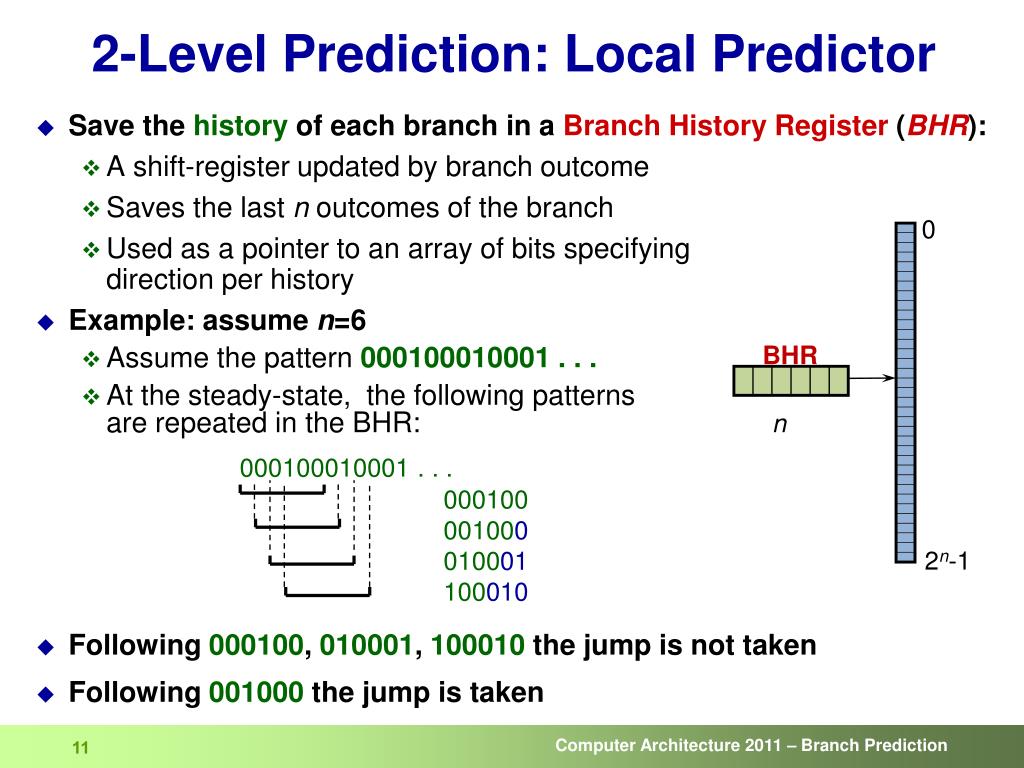

  11. 0 BHR n 2n-1 2-Level Prediction: Local Predictor • Save the history ofeach branch in a Branch History Register (BHR): • A shift-register updated by branch outcome • Saves the last n outcomes of the branch • Used as a pointer to an array of bits specifying direction per history • Example: assume n=6 • Assume the pattern 000100010001 . . . • At the steady-state, the following patterns are repeated in the BHR: 000100010001 . . . 000100 001000 010001 100010 • Following 000100, 010001, 100010 the jump is not taken • Following 001000 the jump is taken

  12. 2-bit-sat counter array BHR history prediction = msb of counter Update History with branch outcome Update counter with branch outcome Local Predictor (cont.) • There could be glitches from the pattern • Use 2-bit saturating counters instead of 1 bit to record outcome: • Too long BHRs are not good: • Past history may be no longer relevant • Warm-Up is longer • Counter array becomes too big

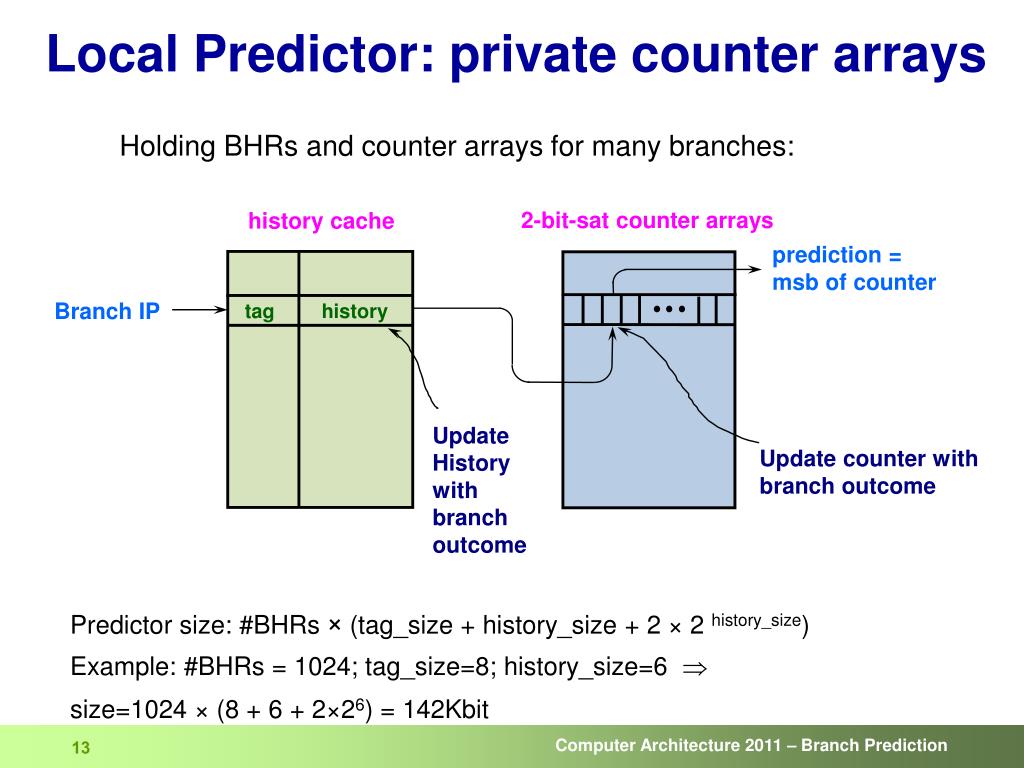

  13. 2-bit-sat counter arrays history cache prediction = msb of counter Branch IP tag history Update History with branch outcome Update counter with branch outcome Local Predictor: private counter arrays Holding BHRs and counter arrays for many branches: Predictor size: #BHRs × (tag_size + history_size + 2 ×2 history_size) Example: #BHRs = 1024; tag_size=8; history_size=6  size=1024 × (8 + 6 + 2×26) = 142Kbit

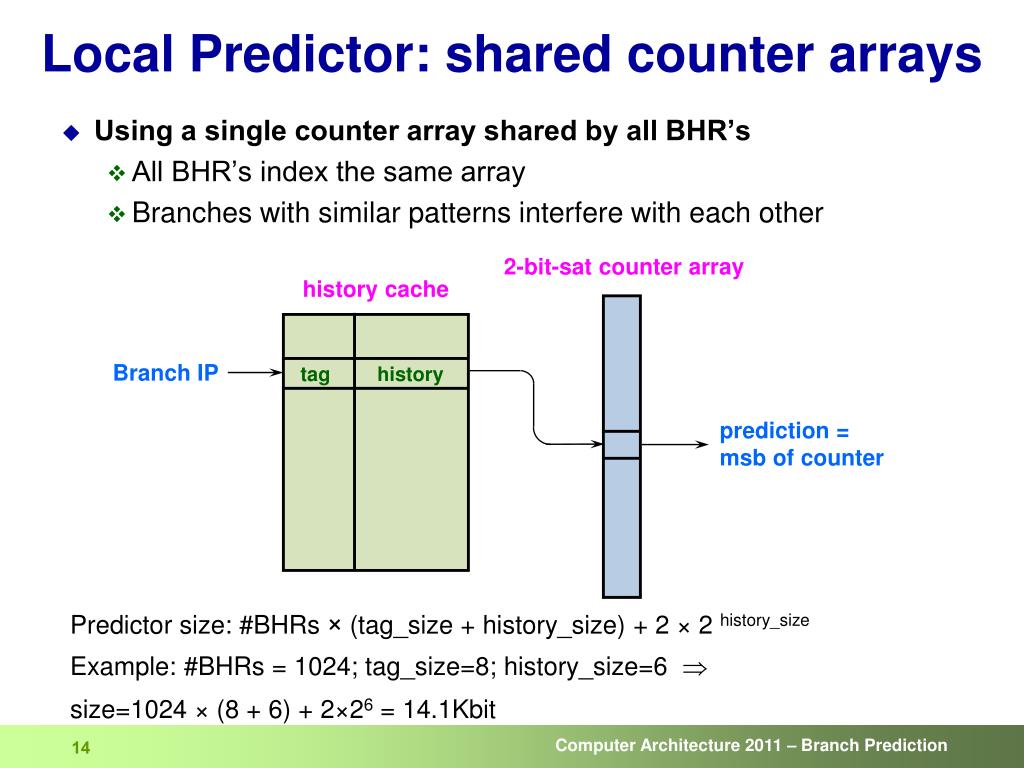

  14. 2-bit-sat counter array history cache Branch IP tag history prediction = msb of counter Local Predictor: shared counter arrays • Using a single counter array shared by all BHR’s • All BHR’s index the same array • Branches with similar patterns interfere with each other Predictor size: #BHRs × (tag_size + history_size) + 2 ×2 history_size Example: #BHRs = 1024; tag_size=8; history_size=6  size=1024 × (8 + 6) + 2×26 = 14.1Kbit

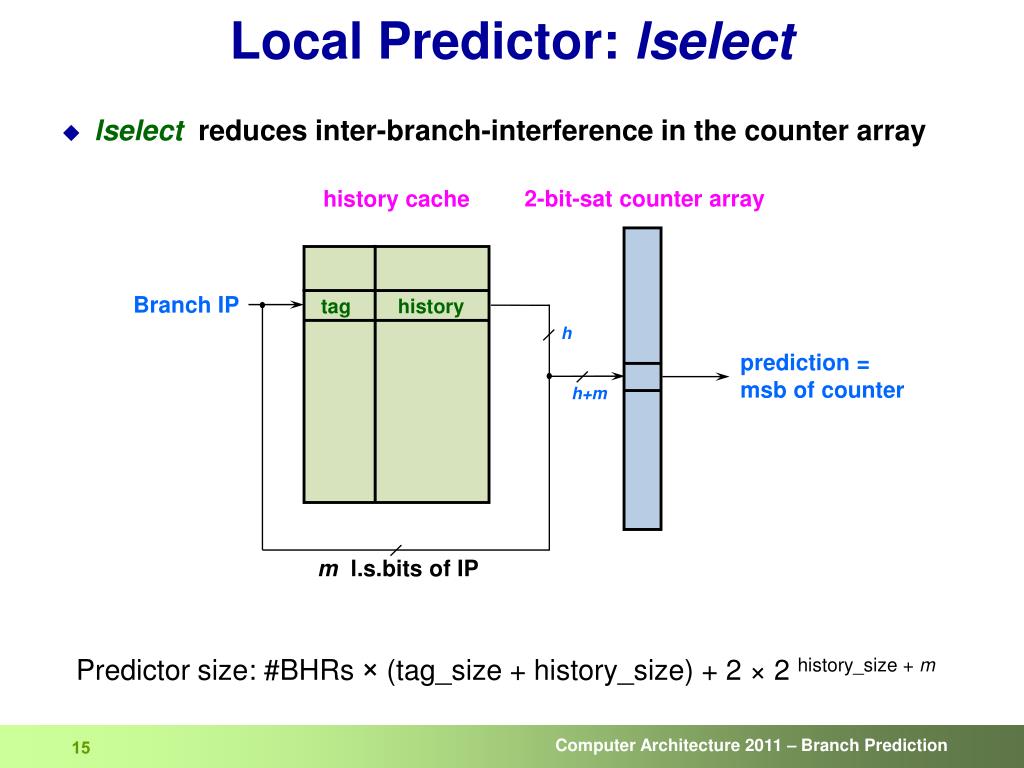

  15. 2-bit-sat counter array history cache Branch IP tag history h prediction = msb of counter h+m m l.s.bits of IP Local Predictor: lselect • lselect reduces inter-branch-interference in the counter array Predictor size: #BHRs × (tag_size + history_size) + 2 ×2 history_size + m

  16. 2-bit-sat counter array history cache Branch IP tag history h prediction = msb of counter h h l.s.bits of IP Local Predictor: lshare lsharereduces inter-branch-interference in the counter array: maps common patterns in different branches to different counters Predictor size: #BHRs × (tag_size + history_size) + 2 ×2 history_size

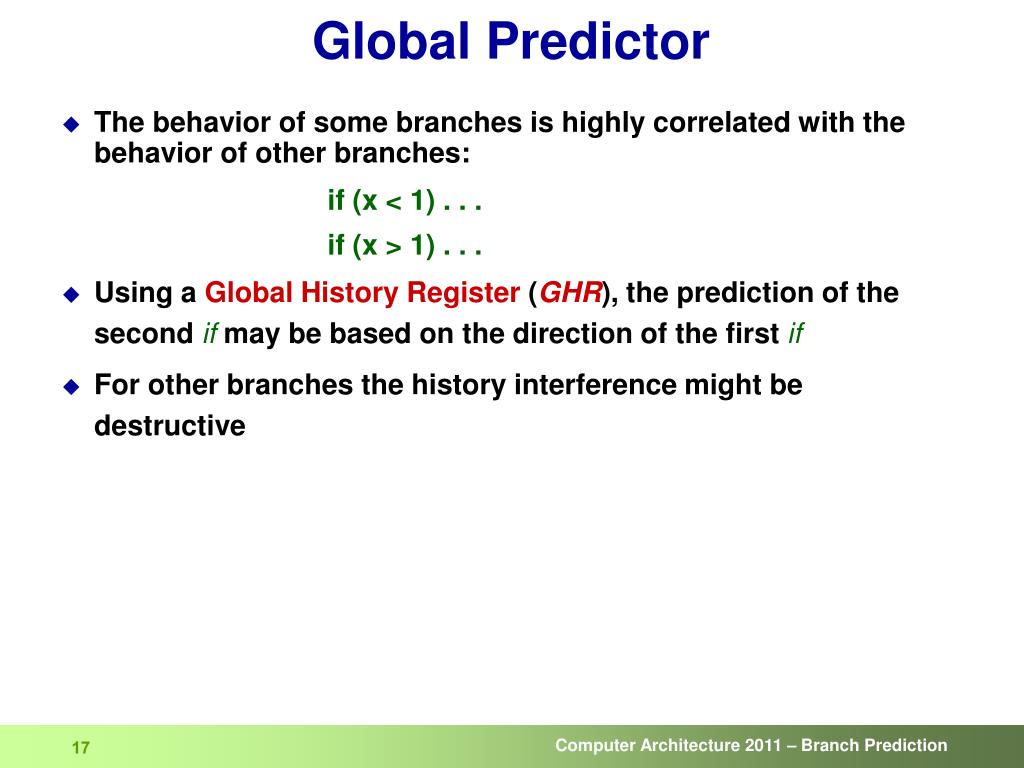

  17. Global Predictor • The behavior of some branches is highly correlated with the behavior of other branches: if (x < 1) . . . if (x > 1) . . . • Using a Global History Register (GHR), the prediction of the second ifmay be based on the direction of the firstif • Forother branches the history interference might be destructive

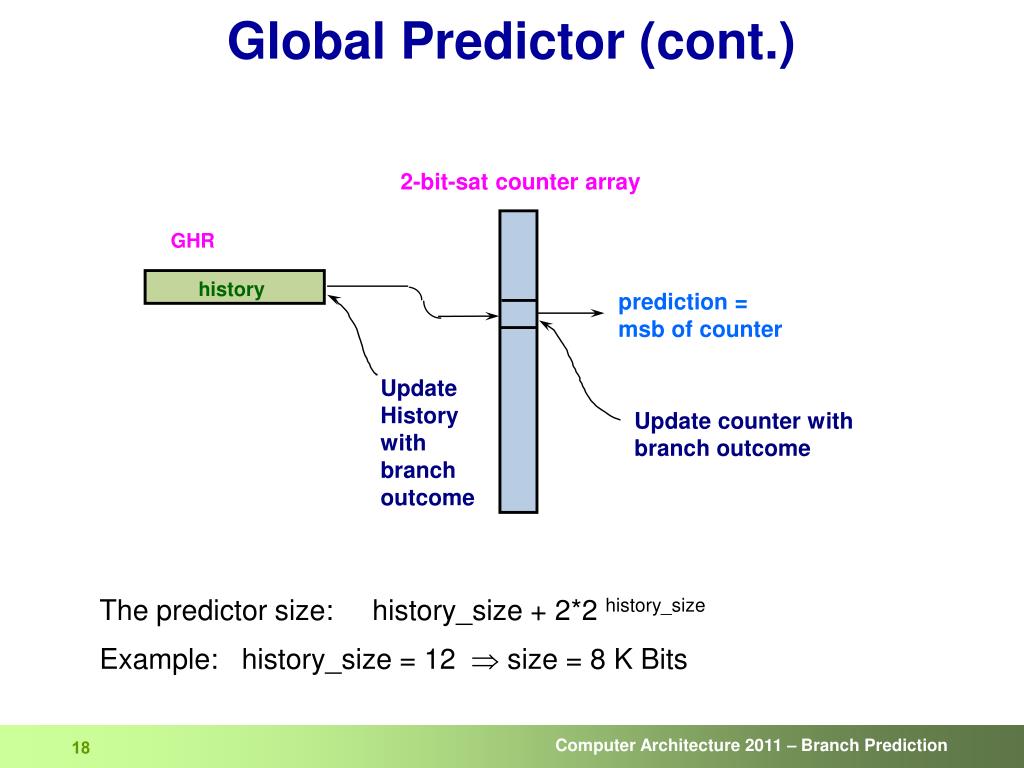

  18. 2-bit-sat counter array GHR history prediction = msb of counter Update History with branch outcome Update counter with branch outcome Global Predictor (cont.) The predictor size: history_size + 2*2 history_size Example: history_size = 12  size = 8 K Bits

  19. 2-bit-sat counter array GHR history prediction = msb of counter Branch IP Update History with branch outcome Update counter with branch outcome Global Predictor: Gshare gshare combines the global history information with the branch IP

  20. Global GHR Prediction Bimodal / Local Branch IP +1 if Bimodal / Local correct and Global wrong -1 if Bimodal / Local wrong and Global correct Chooser array (an array of 2-bit sat. counters) Chooser A chooser selects between 2 predictor that predict the same branch: Use the predictor that was more correct in the past • The chooser may also be indexed by the GHR

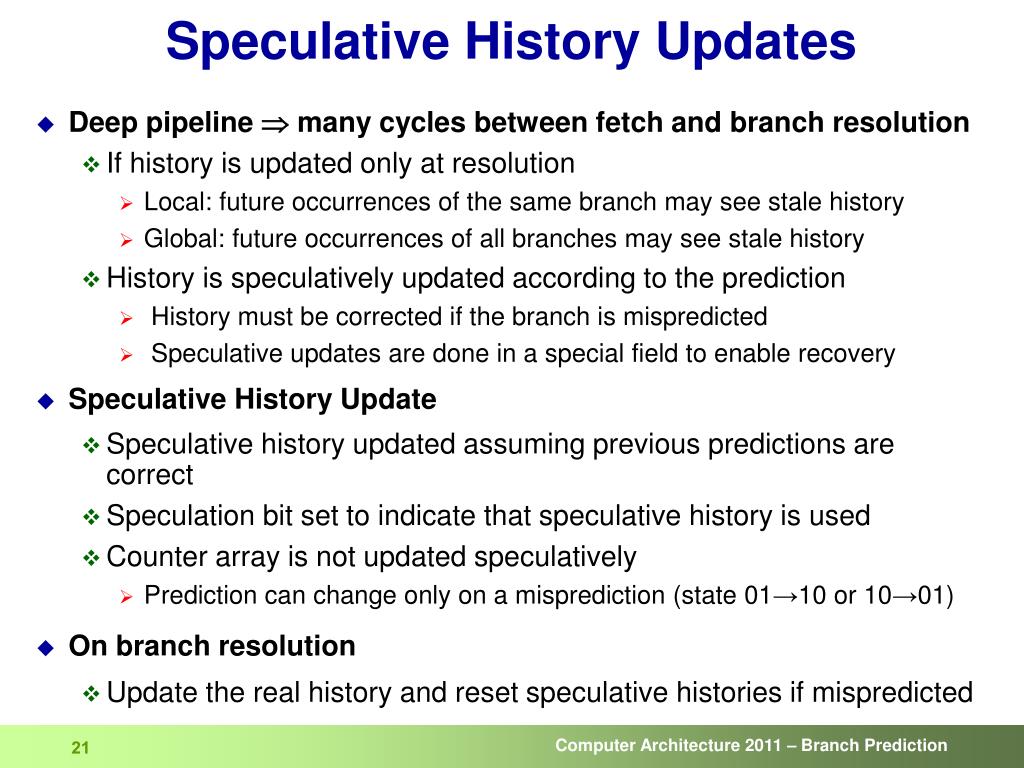

  21. Speculative History Updates • Deep pipeline  many cycles between fetch and branch resolution • If history is updated only at resolution • Local: future occurrences of the same branch may see stale history • Global: future occurrences of all branches may see stale history • History is speculatively updated according to the prediction • History must be corrected if the branch is mispredicted • Speculative updates are done in a special field to enable recovery • Speculative History Update • Speculative history updated assuming previous predictions are correct • Speculation bit set to indicate that speculative history is used • Counter array is not updated speculatively • Prediction can change only on a misprediction (state 01→10 or 10→01) • On branch resolution • Update the real history and reset speculative histories if mispredicted

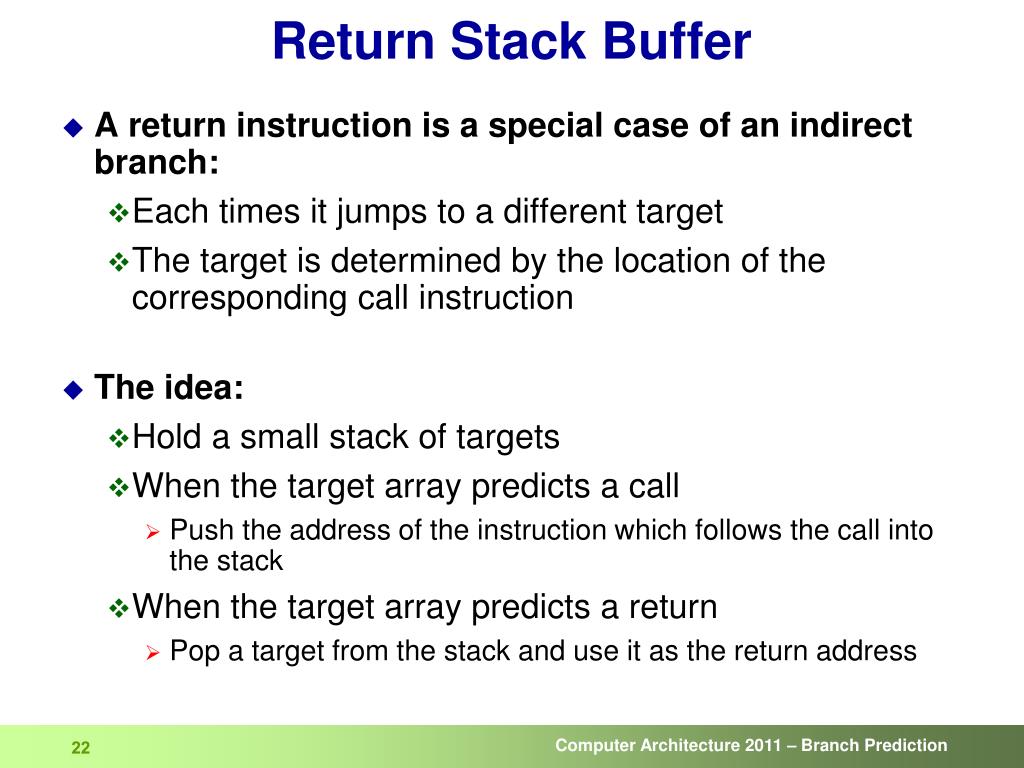

  22. Return Stack Buffer • A return instruction is a special case of an indirect branch: • Each times it jumps to a different target • The target is determined by the location of the corresponding call instruction • The idea: • Hold a small stack of targets • When the target array predicts a call • Push the address of the instruction which follows the call into the stack • When the target array predicts a return • Pop a target from the stack and use it as the return address

  23. Branch Prediction in commercial Processors

  24. Older Processors • 386 / 486 • All branches are statically predicted Not Taken • Pentium • IP based, 2-bit saturating counters (Lee-Smith) • BTB miss - statically predicted Not Taken

  25. 1001 0 counters Tag Target Hist V T P IP LRR 9 Pred= msb of counter 1 2 1 4 2 9 32 32 128 sets 15 Branch Type 00- cond 01- ret 10- call 11- uncond Per-Set Way 3 Way 0 Way 1 Way 2 Intel Pentium III • 2-level, local histories, per-set counters • 4-way set associative: 512 entries in 128 sets Return Stack Buffer

  26. Alpha 264 - LG Chooser Local • New entry on the Local stage is allocated on a global stage miss-prediction • Chooser state-machines: 2 bit each: • one bit saves last time global correct/wrong, • and the other bit saves for the local correct/wrong • Chooses Local only if local was correct and global was wrong Histories Counters In each entry: 6 bit tag + 10 bit History 256 1024 IP 3 4 ways Global Counters 4096 GHR 2 12 Chooser Counters 4096 2

  27. Pentium® M • Combines 3 predictors • Bimodal, Global and Loop predictor • Loop predictor analyzes branches to see if they have loop behavior • Moving in one direction (taken or NT) a fixed number of times • Ended with a single movement in the opposite direction

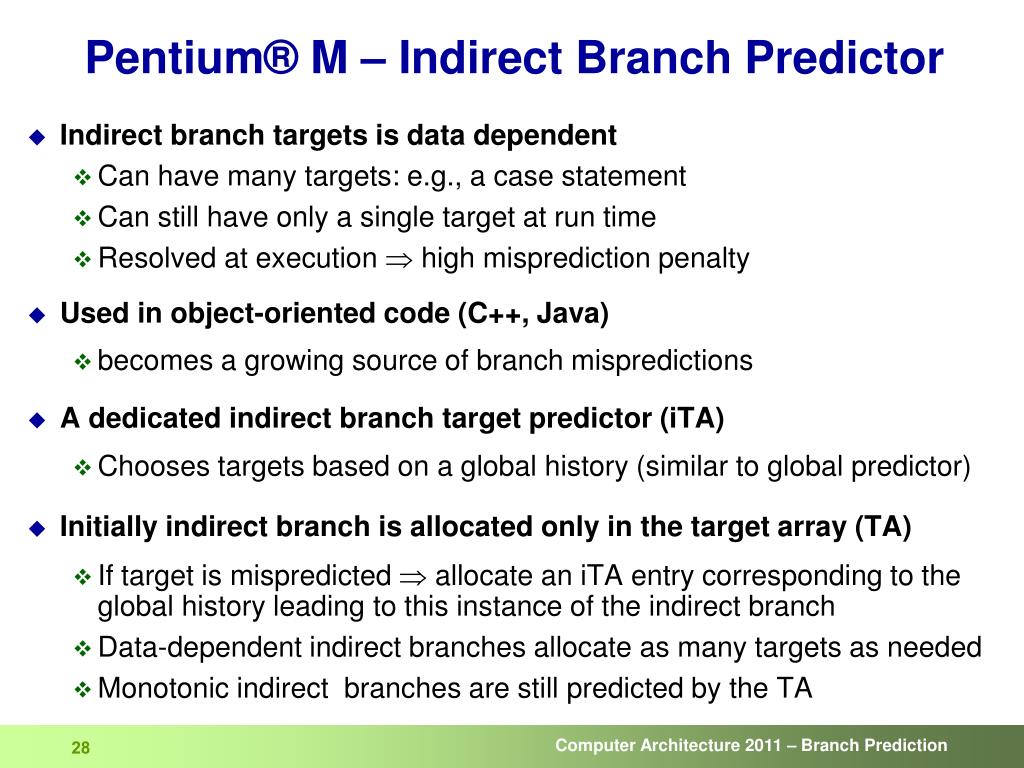

  28. Pentium® M – Indirect Branch Predictor • Indirect branch targets is data dependent • Can have many targets: e.g., a case statement • Can still have only a single target at run time • Resolved at execution  high misprediction penalty • Used in object-oriented code (C++, Java) • becomes a growing source of branch mispredictions • A dedicated indirect branch target predictor (iTA) • Chooses targets based on a global history (similar to global predictor) • Initially indirect branch is allocated only in the target array (TA) • If target is mispredicted  allocate an iTA entry corresponding to the global history leading to this instance of the indirect branch • Data-dependent indirect branches allocate as many targets as needed • Monotonic indirect branches are still predicted by the TA

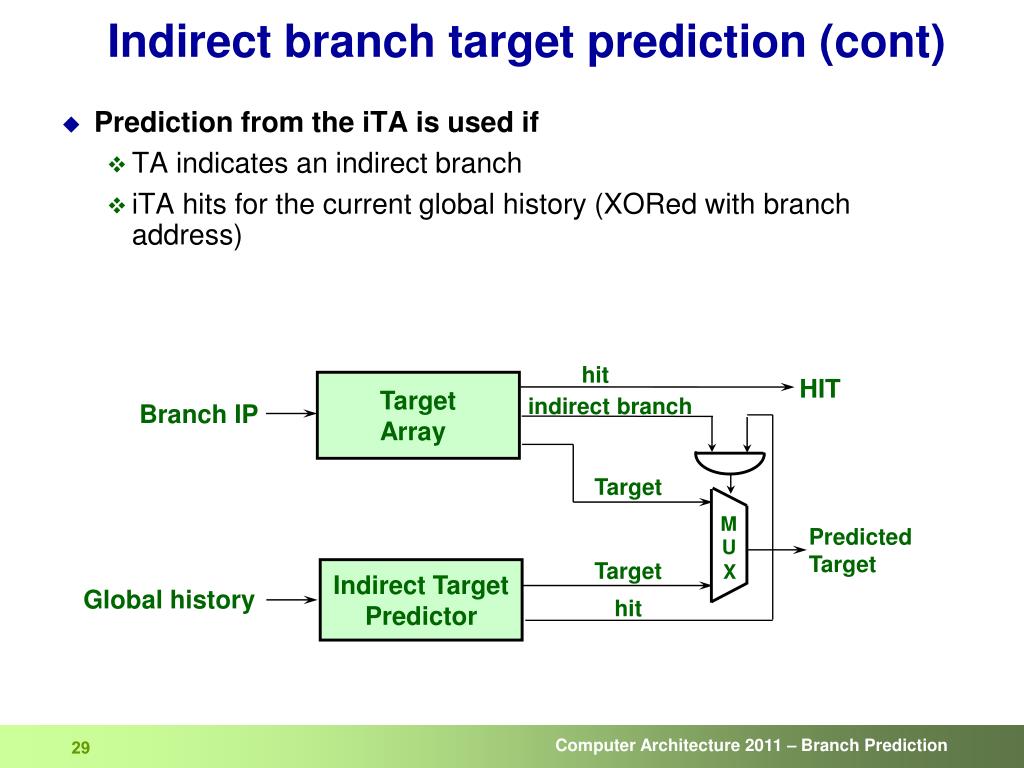

  29. hit M HIT Target Array indirect branch Branch IP U X Target Predicted Target Target IndirectTargetPredictor Global history hit Indirect branch target prediction (cont) • Prediction from the iTA is used if • TA indicates an indirect branch • iTA hits for the current global history (XORed with branch address)

  30. Backup

  31. 13 bit global history AMD-K6 BHT - Branch History Table 2-level 8,192-entry global predictor: • 16 Entry BTC - Branch Target Cache • Supplies the first 16 bytes of target instructions to the decoders when the branches are predicted. • Organized as 16 entries of 16 bytes. • Avoids a bubble for correct predictions. • No Target Address Buffer: • Address ALUs calculate target addresses on-the-fly during decode GHR 2-bit-sat counter array • 16 Entry RAS - Return Address Stack • Caches the return addresses

  32. HP PA-8000 • 256 X 3- bit branch history table (BHT) • Instead of 2-bit-sat counters, stores the results of the last three iterations of each branch • The prediction is based on a majority vote of the three bits • Offers a similar level of hysteresis and accuracy as 2-bit-sat, but easier to update (shift results vs. read-modify-write) • The BHT is only updated as branch instructions are retired • prevents corrupting the history information with speculative executions of the branch
