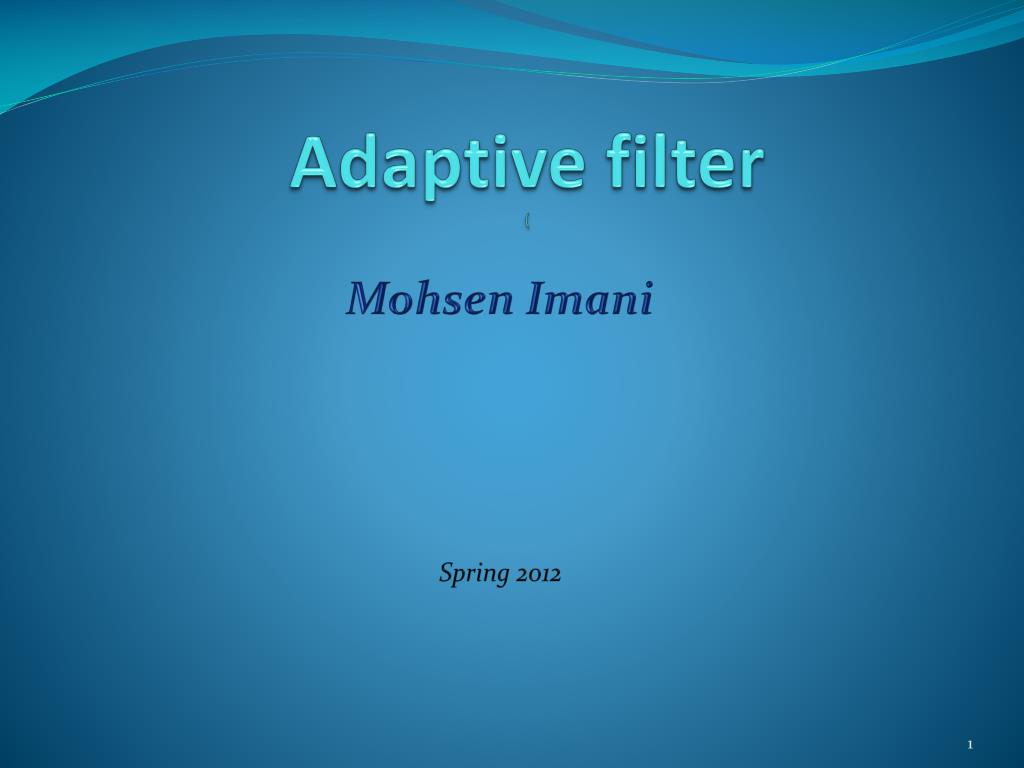

  1. Adaptive filter) Mohsen Imani Spring 2012

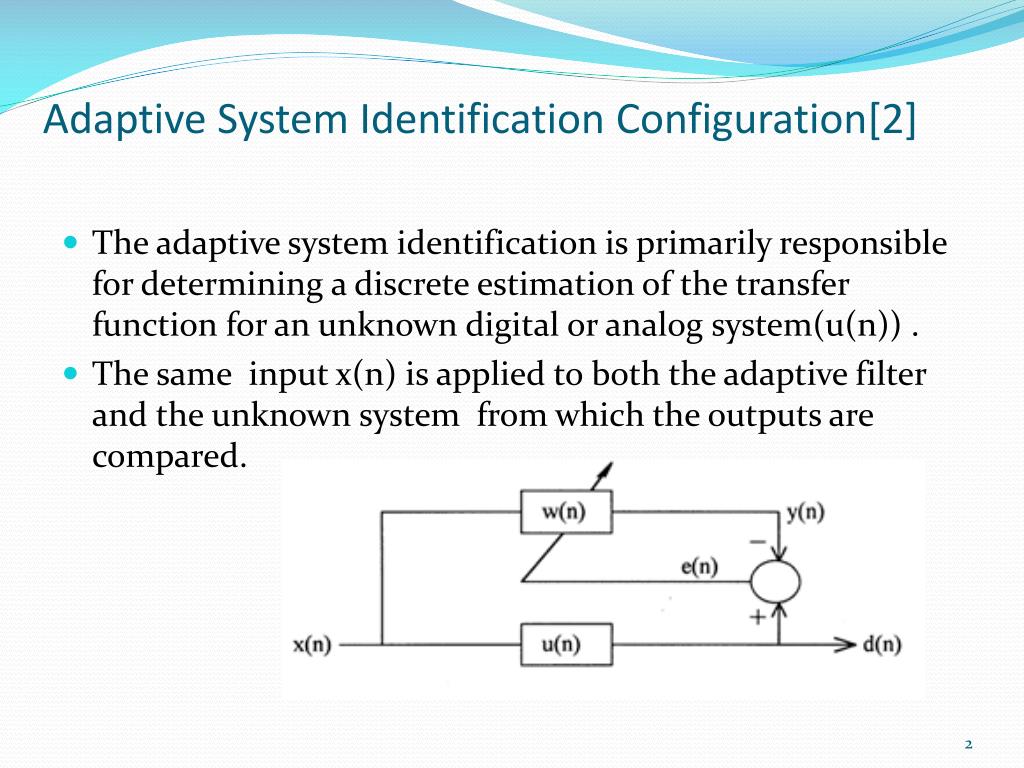

  2. Adaptive System Identification Configuration[2] • The adaptive system identification is primarily responsible for determining a discrete estimation of the transfer function for an unknown digital or analog system(u(n)) . • The same input x(n) is applied to both the adaptive filter and the unknown system from which the outputs are compared.

  3. Coefficient Adaptation • The principal behind determining the coefficients of the filter model is to maximize the statistical correlation between the desired signal and the coefficients. • Typically, this is done by minimizing the correlation between the error signal and the filter state as is relevant to the coefficients. • If the adaptive filter is working, the error signal decreases in magnitude, which slows down the movement of the coefficients. The filter is therefore converging to a solution.

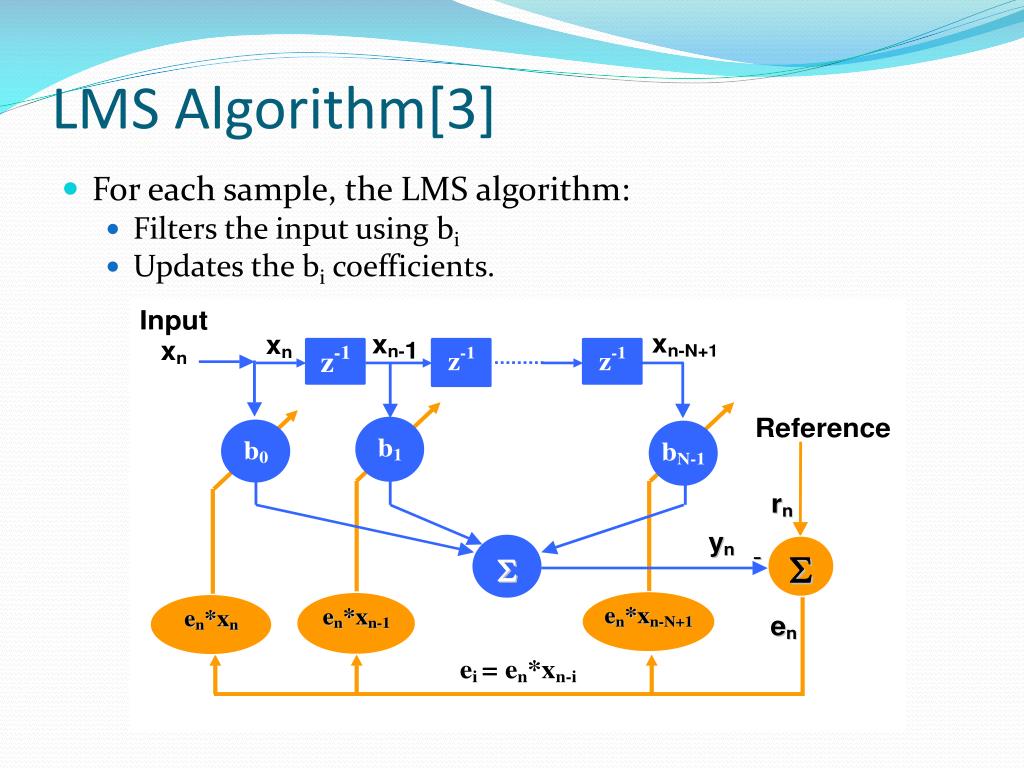

  4. LMS Algorithm[3] • For each sample, the LMS algorithm: • Filters the input using bi • Updates the bi coefficients.

  5. LMS Algorithm at Each Sample Time • FIR Filtering equation: • Coefficient updating equation:

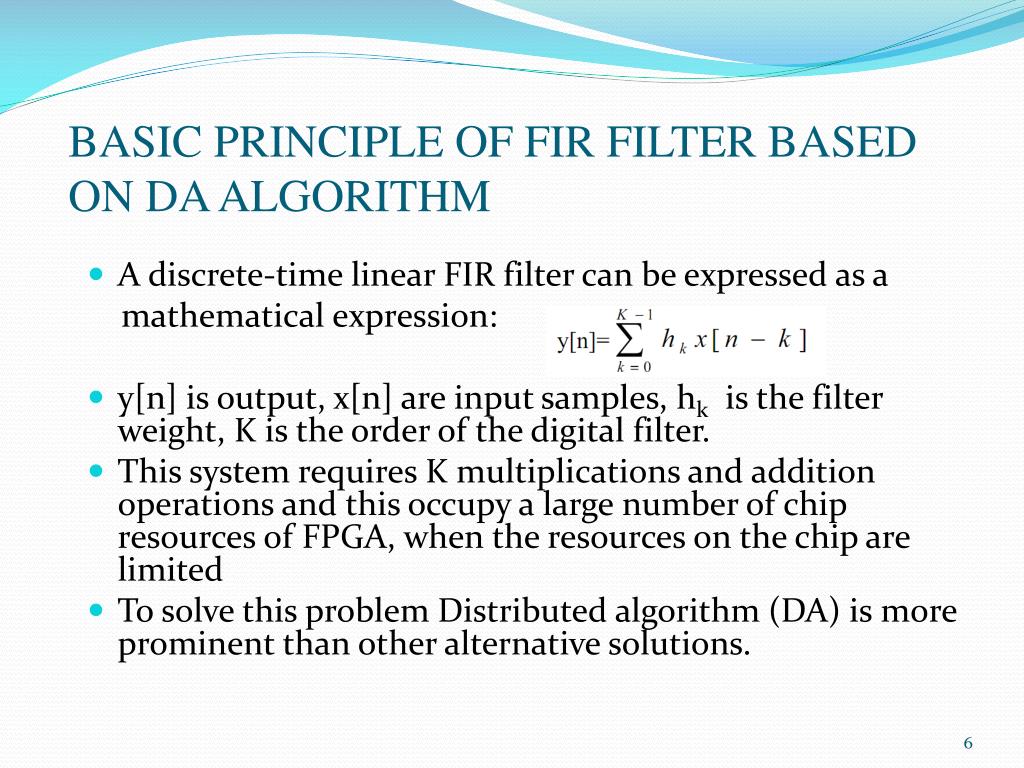

  6. BASIC PRINCIPLE OF FIR FILTER BASED ON DA ALGORITHM • A discrete-time linear FIR filter can be expressed as a mathematical expression: • y[n] is output, x[n] are input samples, hkis the filter weight, K is the order of the digital filter. • This system requires K multiplications and addition operations and this occupy a large number of chip resources of FPGA, when the resources on the chip are limited • To solve this problem Distributed algorithm (DA) is more prominent than other alternative solutions.

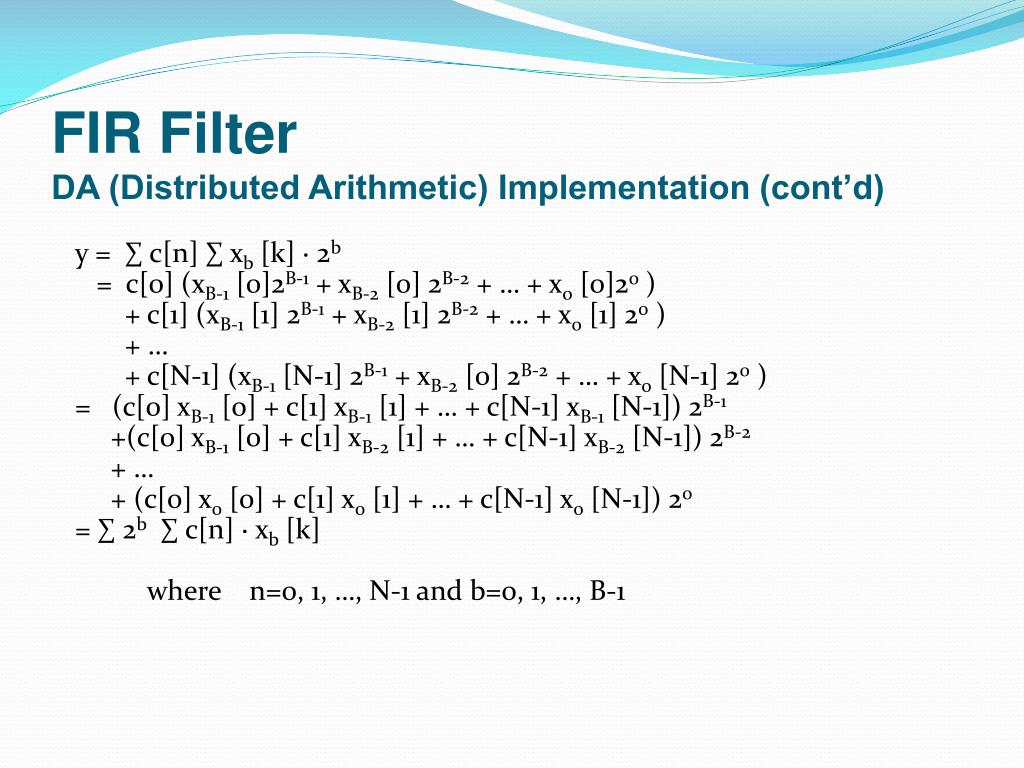

  7. FIR FilterDA (Distributed Arithmetic) Implementation (cont’d) y = ∑ c[n] ∑ xb [k] ∙ 2b = c[0] (xB-1 [0]2B-1 + xB-2 [0] 2B-2 + … + x0 [0]20 ) + c[1] (xB-1 [1] 2B-1 + xB-2 [1] 2B-2 + … + x0 [1] 20 ) + … + c[N-1] (xB-1 [N-1] 2B-1 + xB-2 [0] 2B-2 + … + x0 [N-1] 20 ) = (c[0] xB-1 [0] + c[1] xB-1 [1] + … + c[N-1] xB-1 [N-1]) 2B-1 +(c[0] xB-1 [0] + c[1] xB-2 [1] + … + c[N-1] xB-2 [N-1]) 2B-2 + … + (c[0] x0 [0] + c[1] x0 [1] + … + c[N-1] x0 [N-1]) 20 = ∑ 2b ∑ c[n] ∙ xb [k] where n=0, 1, …, N-1 and b=0, 1, …, B-1

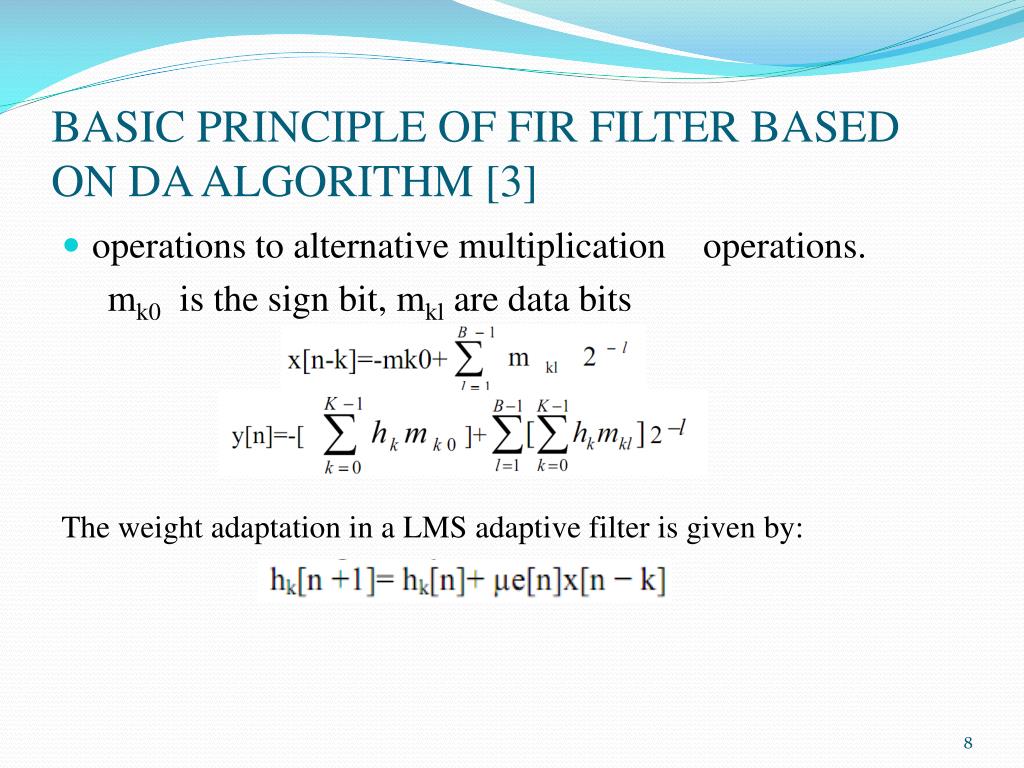

  8. BASIC PRINCIPLE OF FIR FILTER BASED ON DA ALGORITHM [3] • operations to alternative multiplication operations. mk0is the sign bit, mklare data bits The weight adaptation in a LMS adaptive filter is given by:

  9. The way to inquire DA-F-LUT[1][4]

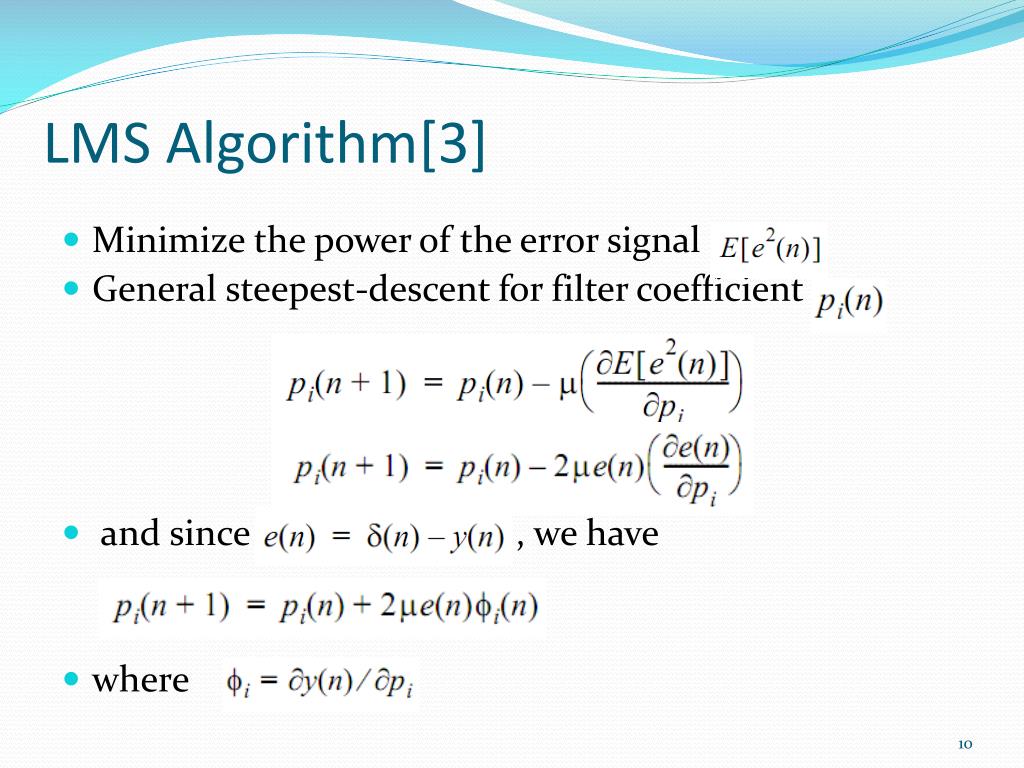

  10. LMS Algorithm[3] • Minimize the power of the error signal • General steepest-descent for filter coefficient • and since , we have • where

  11. In the one-dimensional case

  12. Variants of the LMS Algorithm[2] • To reduce implementation complexity, variants are taking the sign of e(n) and/or • LMS - • sign-data LMS - • Sign-error LMS - • Sign-sign LMS - p However, the sign data and sign-sign data algorithms may not converge!

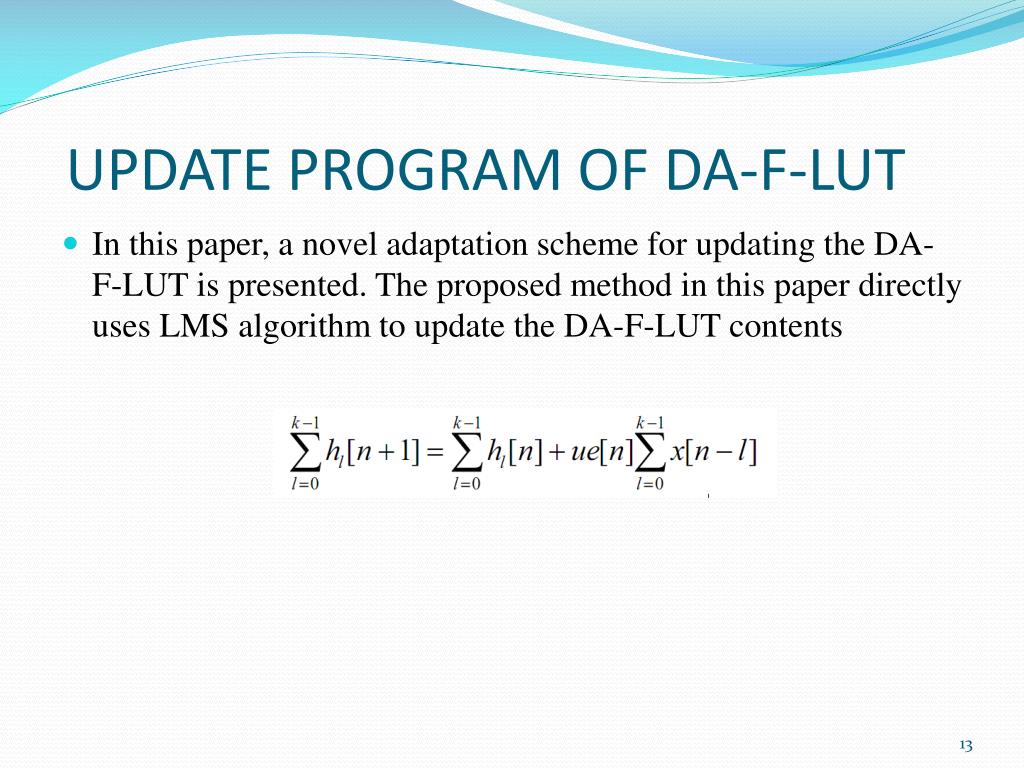

  13. UPDATE PROGRAM OF DA-F-LUT • In this paper, a novel adaptation scheme for updating the DA-F-LUT is presented. The proposed method in this paper directly uses LMS algorithm to update the DA-F-LUT contents

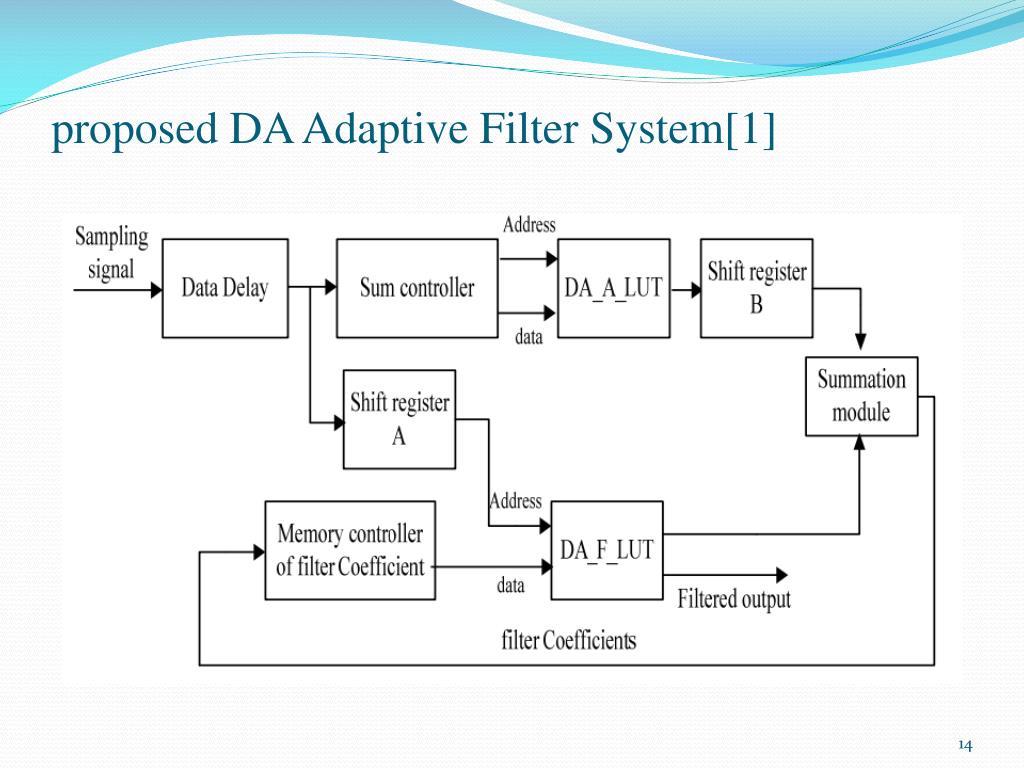

  14. proposed DA Adaptive Filter System[1]

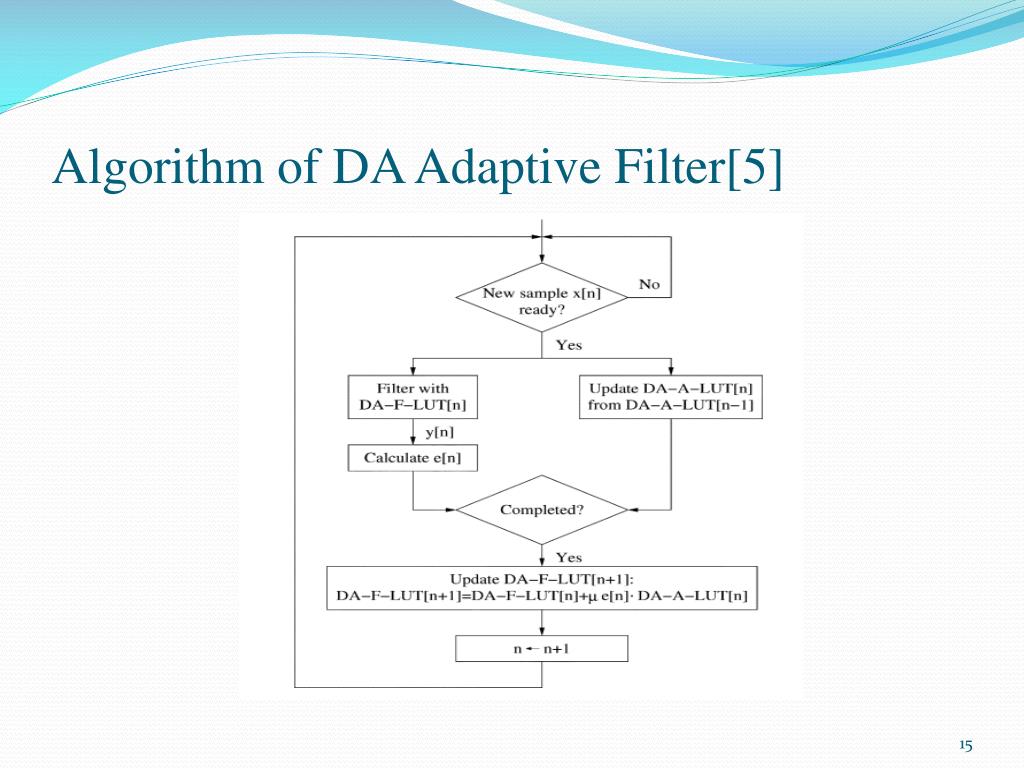

  15. Algorithm of DA Adaptive Filter[5]

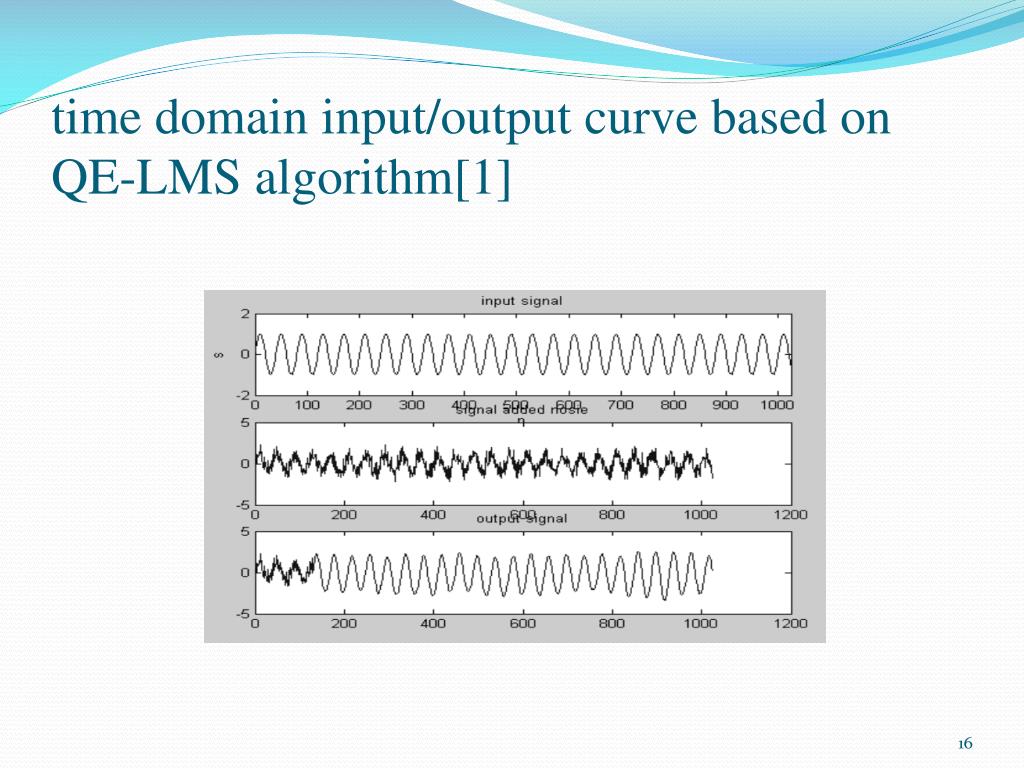

  16. time domain input/output curve based on QE-LMS algorithm[1]

  17. CONCLUSION • This paper simulated filter using look-up table method using MAC method. • Both of the software environment are QuartusII 6.0, devices are Cyclone EP1C3T144C8. • The LUT method only occupies 1% of memory resources and 9% of logic resources; • Although the MAC method does not occupy storage resources, but occupies 44% of the chip logic resources • DA algorithm is suitable for hardware implementation, it can greatly reduce hardware resources consumption

  18. REFERENCES • [1] Z. Bo, T. XiuweiDesign of a Novel Adaptive FIR Filter Based on FPGA. IEEE ICEMI Magazine 2011,4:624-628. • [2] PARHI K Kˊ A systematic approach for design of digit-serial signal processing architectures[J] ˊIEEE J Solid-State Circ1992,27:29-43 ˊ • [3] WHITE S AˊApplication of distributed arithmetic to digit signals • processing: A tutorial review[J]ˊIEEE ASSP Magazineˈ 1989 ˈ6:4-19 ˊ • [4] ALLRED D J, YOO H. LMS adaptive filter using distributed arithmetic for high throughput[J]. IEEE Regular Papers, 2005,52(7): 1327-1337. • [5] ALLRED D J, YOO H. A novel high performance distributed arithmetic adaptive filter implementation on an FPGA[J]. Acoustic,Speech,andSignal Processing,2004, 5: 161-164.
