  1. Standardized Boundary Marks • Aldis Rausis • Rīga, 20.09.2013

  2. Research «On Cadastral survey quality» (2007) • Cēsu county Raiskuma parish • Rīgas county Salaspils parish • island Dole • 620boundary points, set with graphical methods • 277measured boundary points Present situation

  3. With graphical methods set boundary points: ResultsoftheResearch: Measured boundary points:

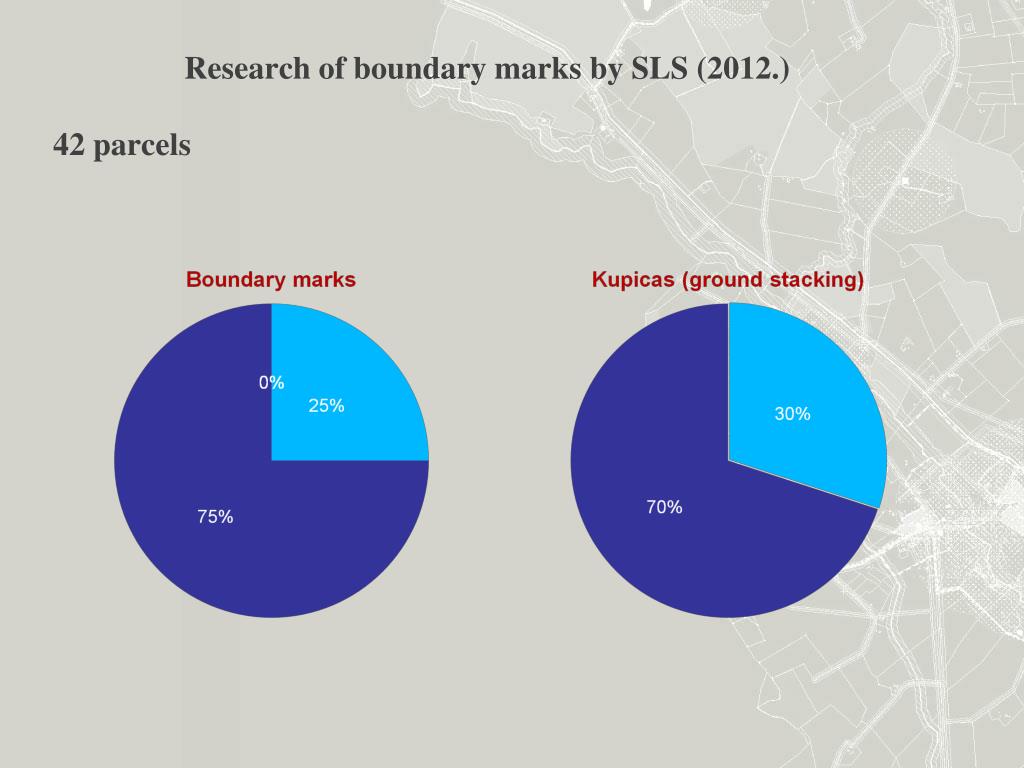

  4. Researchofboundarymarksby SLS (2012.) 42 parcels

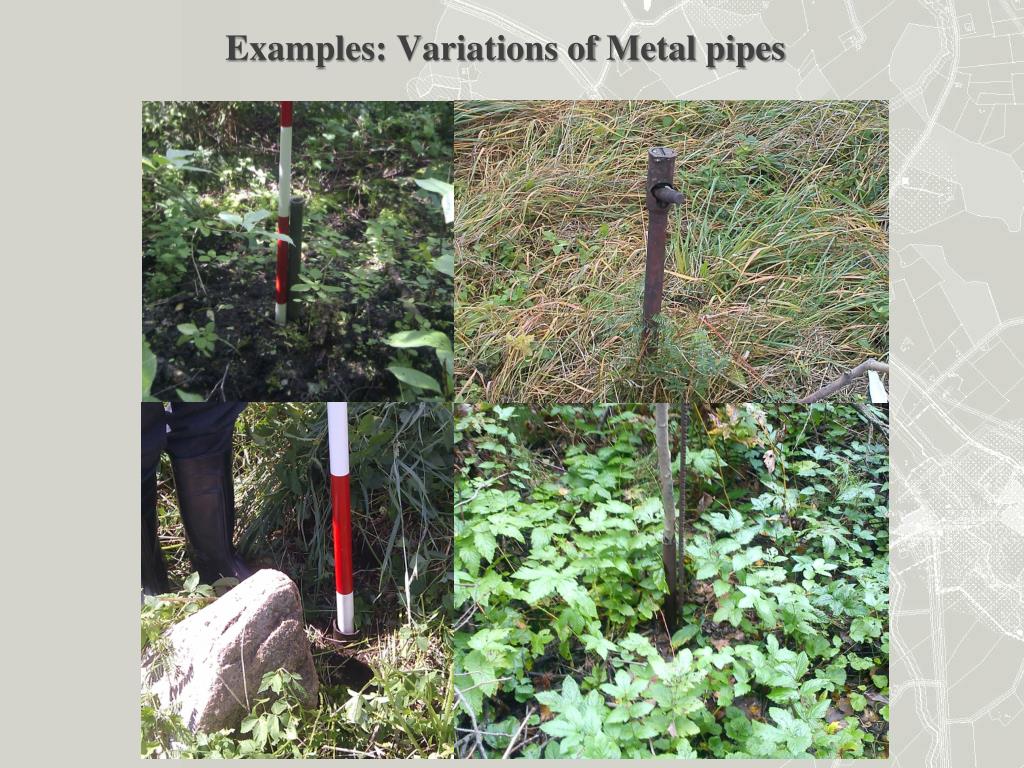

  5. Examples: Variations of Metal pipes

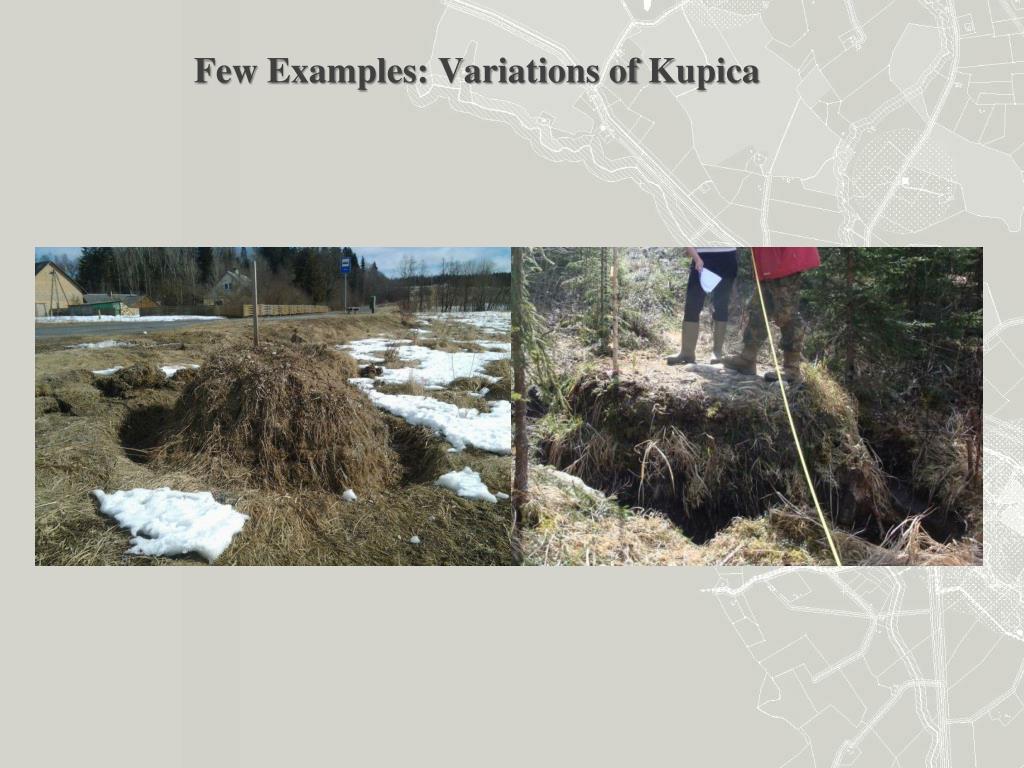

  6. Few Examples: Variations of Kupica

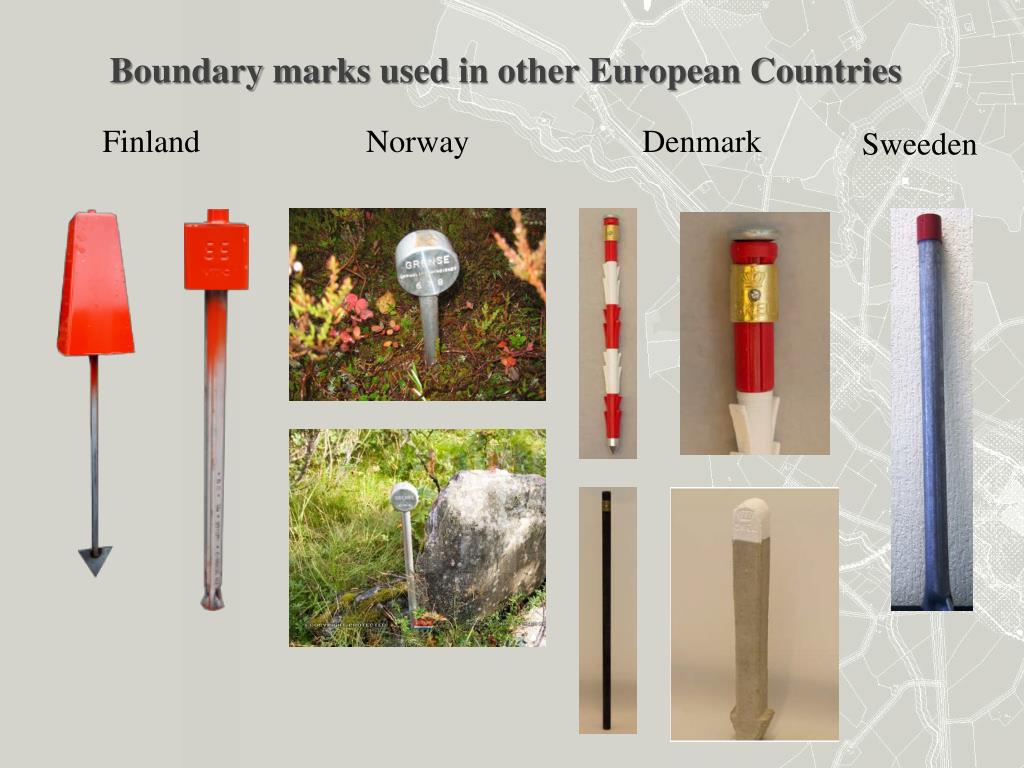

  7. Finland Norway Denmark Sweeden Boundary marks used in other European Countries

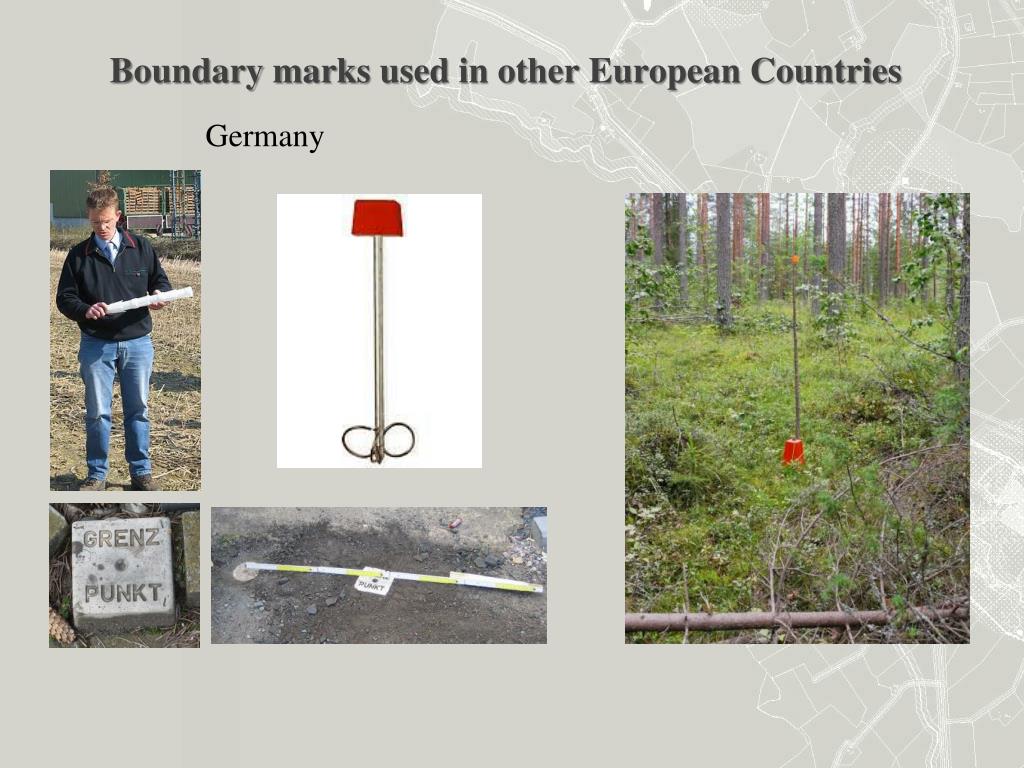

  8. Boundary marks used in other European Countries Germany

  9. 9 different boundary marks and 2types of ground stacking – kupicasallowedbynow

  10. Fundamentalvalues • Unique identification • Sustainability • Indestructibility • Simple insallation

  11. Boundary Mark Nr.1 Boundary mark consisting of plastic sections, metal top part and polyplastic cube Willbeused in areas with wet, soft soil Also in areas with high damage hazard of boundary mark

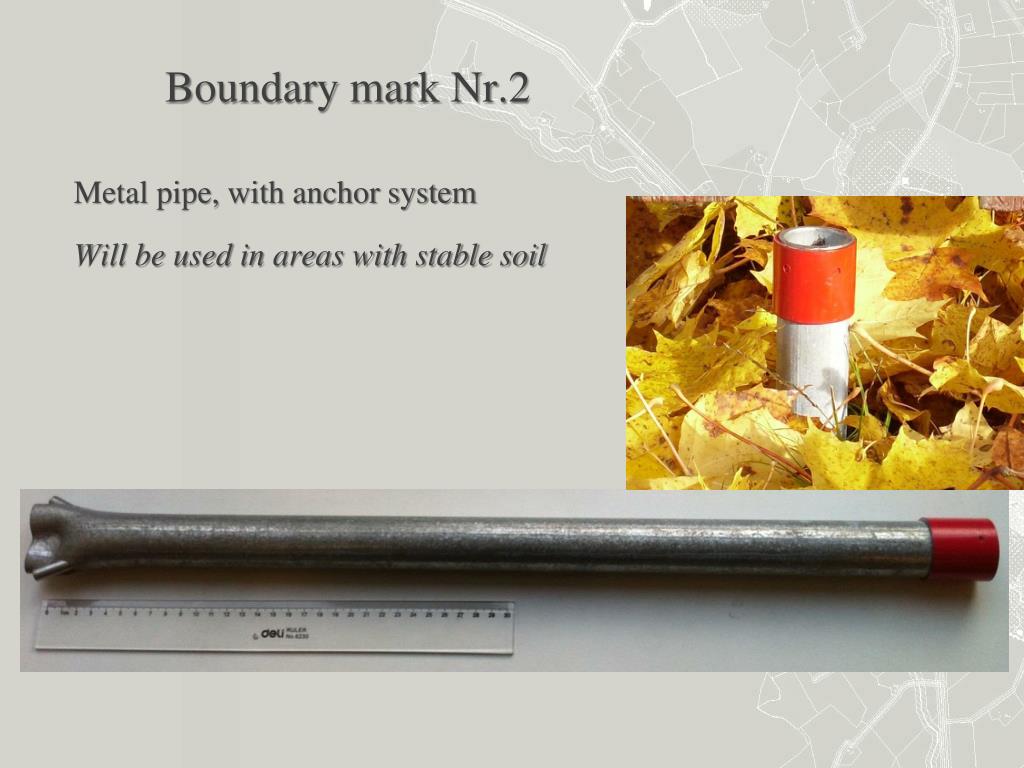

  12. Boundary mark Nr.2 Metal pipe, with anchor system Will be used in areas with stable soil

  13. Boundary mark Nr.3 Mark of metal and plastic with anchor system Will be used in builtupareaswithsolidsoil

  14. Boundary Mark Nr.4 Metal pin with informative metalic disc Will be used in areas with hard flooring like asphalt

  15. Approbation of proposed boundary marks 2. Analysis of results of approbation 3. Creationoflegalbackground 4. Informative campaign 5. Organizationofproduction 6. Organizationofdistribution Future Actions

  16. Thankyou!
