  1. Hardware Accelerated MarketOrder Packet Generation Ankur Gupta, DhananjayPalshikar , MithilaParyekar , SushantBhardwajand Yasser Mohammed

  2. Aim of the Project • The designed system aims at accelerating the release of packets on the network. • Optimization is achieved in terms of reducing the latency, decreasing the data uploaded on the Avalon bus which will eventually lead to power optimization. • A software application running on a soft-processor would change the transaction data going over the network in runtime. • Our implementation accelerates the sending of data to the network while receiving of data is handled in software.

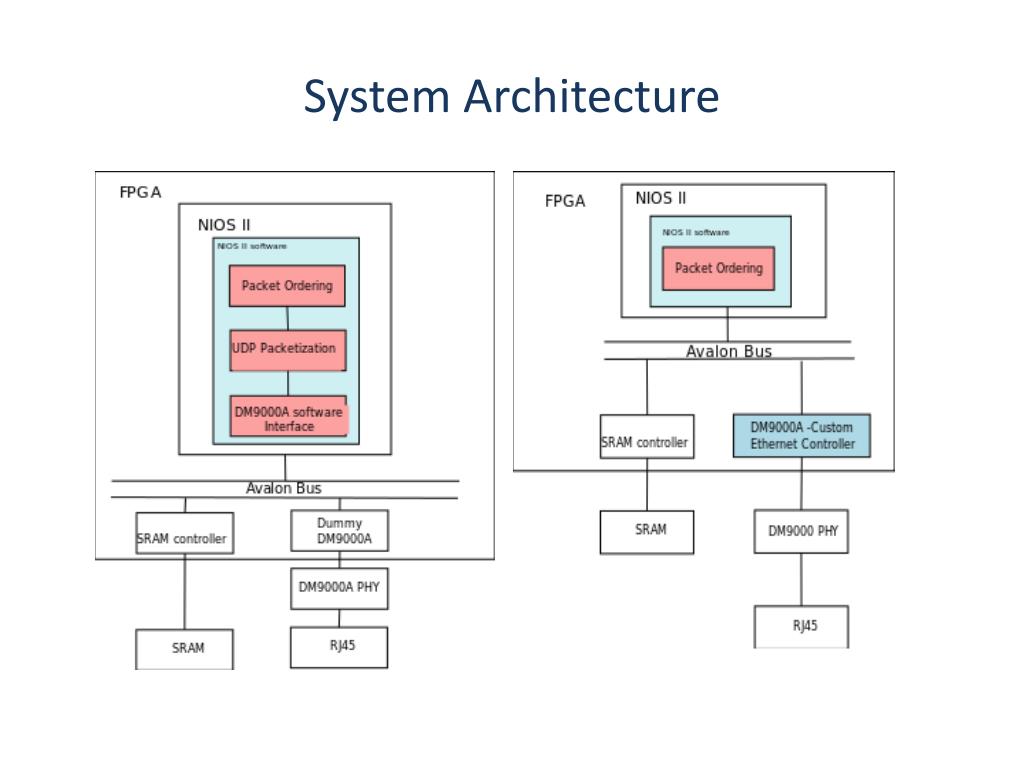

  3. System Architecture

  4. Custom DM9000 Basic Automata: • Avalon Peripheral • UDP Packetization Component • DM9000A initialization component • DM9000A Communication Iterator: • Loops over basic automata • Accomplishes Basic read/write functionality

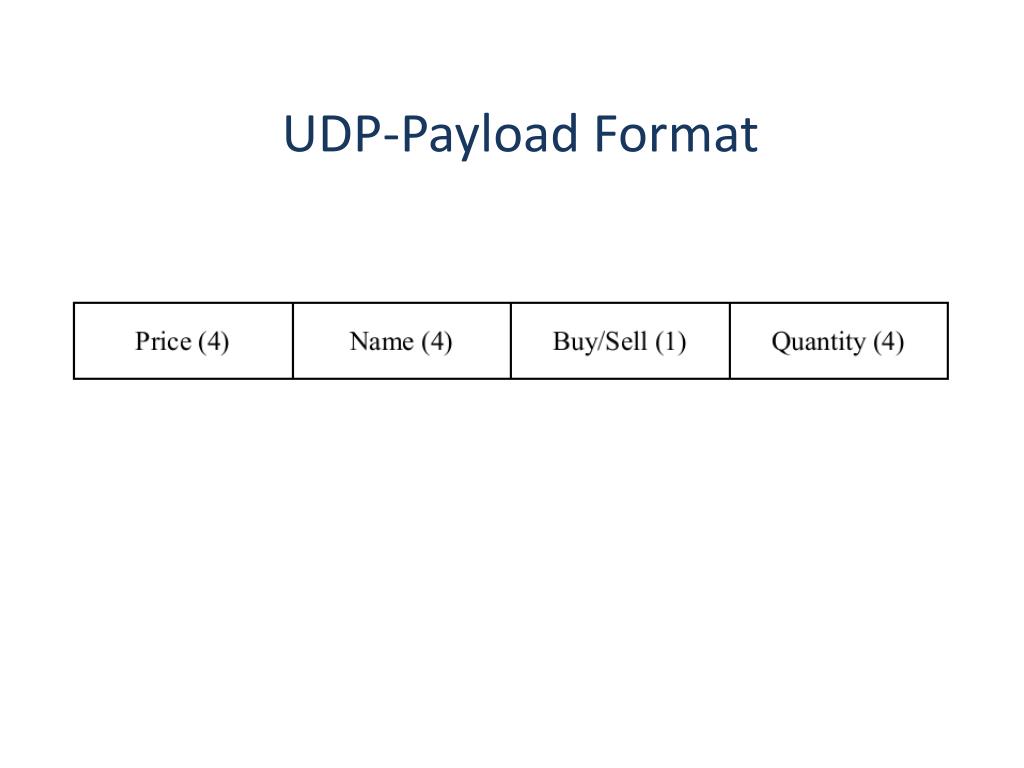

  5. UDP-Payload Format

  6. Automata of Custom Hardware

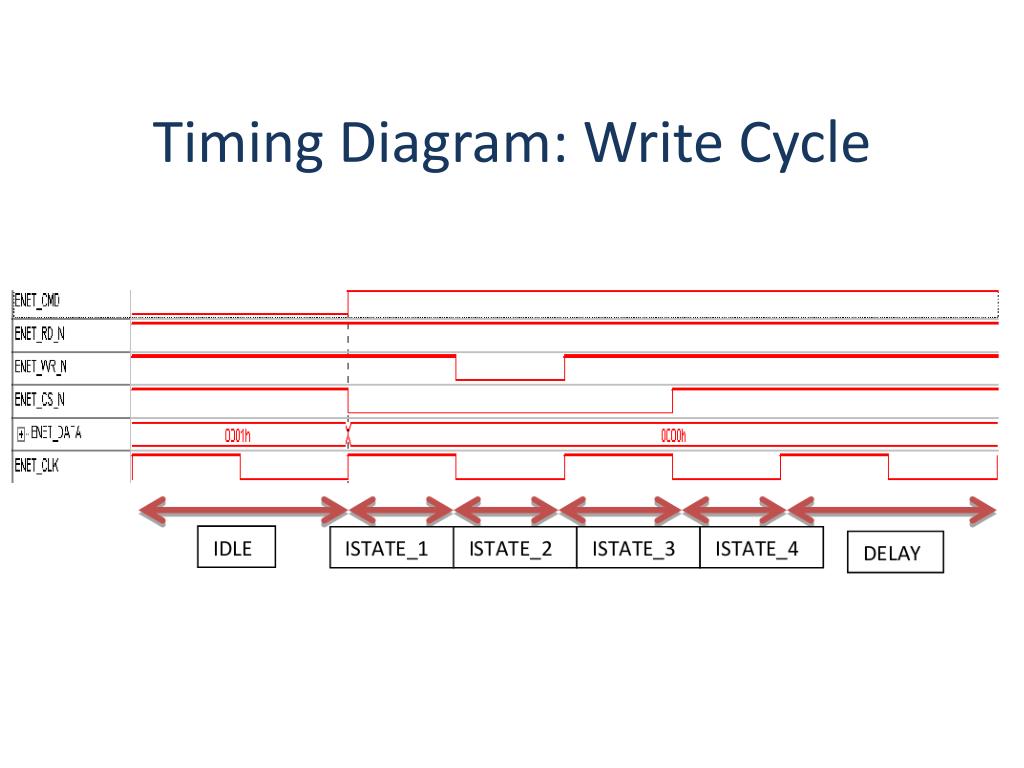

  7. Timing Diagram: Write Cycle

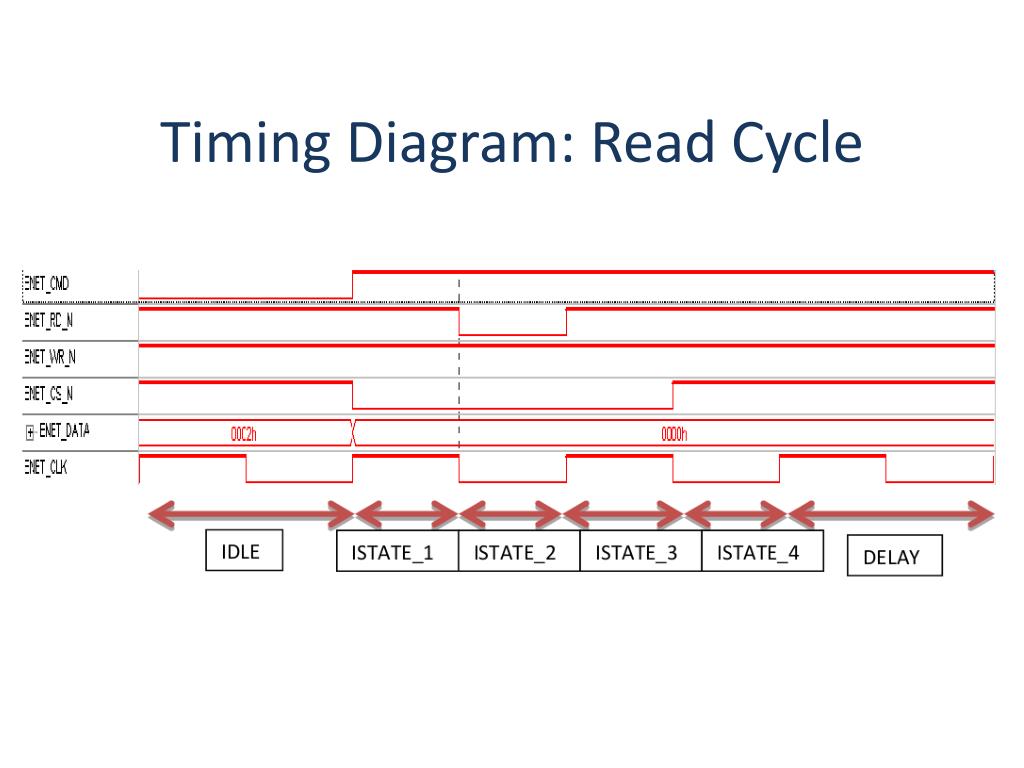

  8. Timing Diagram: Read Cycle

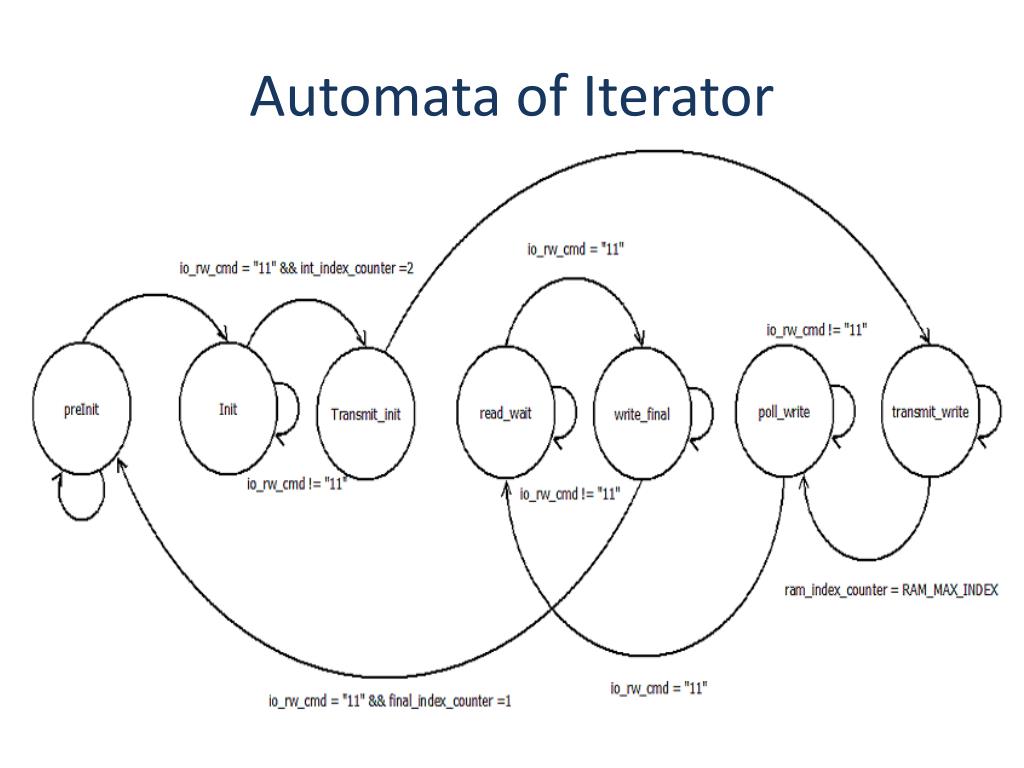

  9. Automata of Iterator

  10. Result • Original (software) transmission rate = 18.50 Kbps • Improved (hardware) transmission rate = 687.16 Kbps • X 36 times faster!
