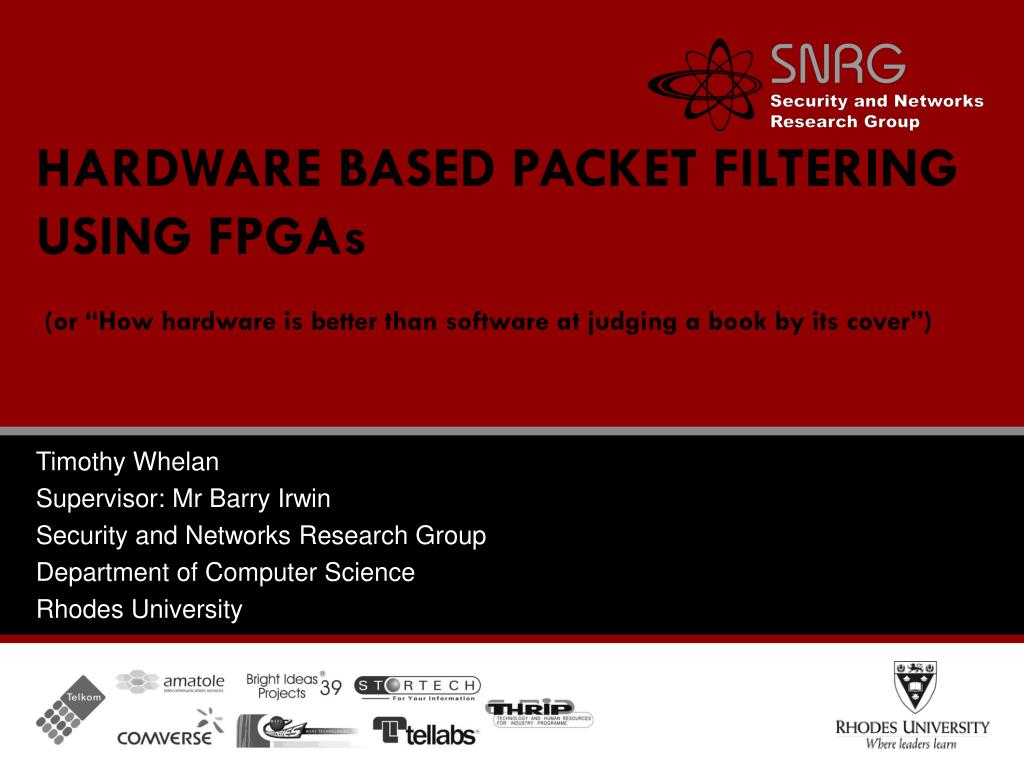

  1. HARDWARE BASED PACKET FILTERING USING FPGAs (or “How hardware is better than software at judging a book by its cover”) Timothy Whelan Supervisor: Mr Barry Irwin Security and Networks Research Group Department of Computer Science Rhodes University

  2. Problem Description • FPGA Pros • FPGA Cons • Theory of Operation • Lessons Learned • Future Extensions Contents Overview

  3. 1 2 • Network nodes receive a lot of packets. • Not all packets are good. • Some packets are better. Wouldn’t it be nice to be able to accept/reject packets based on who the sender is and what they are sending? Problem Description VS 3 And let’s try to do that as fast as possible!

  4. Goals • Be able to classify packets according to basic 5-tuple. • (source/destination IP/port and transport protocol used) • Provides a basic context in which further decisions can be made. • Be able to alter classification rules with relative ease. • Times change; classification rules will need to change too. • Assess feasibility of using FPGA’s. • Can they do the job? • Are they worth it? Problem Description - Goals

  5. Ultimately they are circuits. • They are also re-configurable circuits. • Useful for changing classification rules. • Dedicated to the application. • Won’t waste time on “other stuff”. • Xilinx support is HUGE. • IP cores, code generators, user guides, application notes, case studies, reference designs, step-by-step tutorials. FPGA Pros

  6. Unfamiliar platform. • Xilinx support is HUGE! • Too large to quickly learn how to use tools – ChipScope, CoreGenerator. • Provide best worse-case performance. • A dedicated IC will always out perform an FPGA. • Ultra low level. • But voltage level conversions are normally provided. • No default I/O for debugging. • Have to create a form of basic I/O to use as debugging. FPGA Cons

  7. RS-232 interface Ethernet cable Theory of Operation RX_clk RX_dv Rule count RX_data (nybble)

  8. Theory of Operation: Locating fields

  9. Extracting packet data • Extracting protocol number and IP address Theory of Operation: Stripping fields

  10. Theory of Operation: Bit-for-bit AND 0011001100 0101010101 and 0001000100

  11. To get rule counts from the device the user pushes a button on the board. • The device then reads each rule count stored in memory and transmits it over a serial RS-232 interface to a connected computer. Theory of Operation: Data output

  12. Require much experience one does. • Inference engine can destroy synchronized signals. • FPGA’s are extremely versatile. • Range of applications: DSP – video processing – network computing. • RTFM • If you can’t figure out how it works, read the manual. • It might actually work! • The full process can be simulated and synthesized without timing warnings. (And the literature says so). Lessons Learned

  13. Output counts over the network • Can monitor device from anywhere. • Implement the RAM interface. • Board has a 512MB DDR2 RAM chip. • Add functionality. • Provide more rule matching e.g. TCP flags • Board as a LCD screen built on it and has a VGA output. Future extensions

  14. Thanks for your attention
