Implementation of RFID, Warehouse Storage Solution

1. Implementation of RFID, Warehouse Storage Solution Material Handling Packing ,Tagging and Storage Dispatch management Warehouse Management Verification and Sample Testing APHMHIDC

2. What is RFID ? Radio Frequency Identification for tracking of Tagged items under a closed environment. What Constitutes an RFID System? • One or more RF tags • Two or more antennas • One or more interrogators • One or more host computers • Appropriate software RFID PASSIVE TAG Fixed RFID Reader Handheld RFID Reader APHMHIDC

3. RFID Operations APHMHIDC

4. Some tags APHMHIDC

5. Implementation Outline of RFID Technology at SWH Central Database Customer Value Creation • Information Flow • High Resolution • Real-time • Process Based • High Accuracy Middleware with Local Database for offline transactions Application Innovation Process Agility RFID Process Quality and Measurement APHMHIDC

6. Architecture of the RFID Implementation APHMHIDC

7. 10 Product Information (PML Format) Main Server 11 Internet Internet Read Manager Antenna Transaction Data Store Write data to RF tags Items with RF Tags Application Systems Reader RF Antenna 8 1 2 3 4 5 6 7 Tag/Item Relationship Database 9 RFID enables End to end Solution for Material Handling and inventory Management APHMHIDC

8. Infrastructure : Hardware and IT Landscape APHMHIDC

9. Process Flow: Receiving Goods from Suppliers RFID Tagging Area / Zone Fixed UHF RFID Reader Tagged RFID DRUGS to Storage Section Manual Tagging Process APHMHIDC

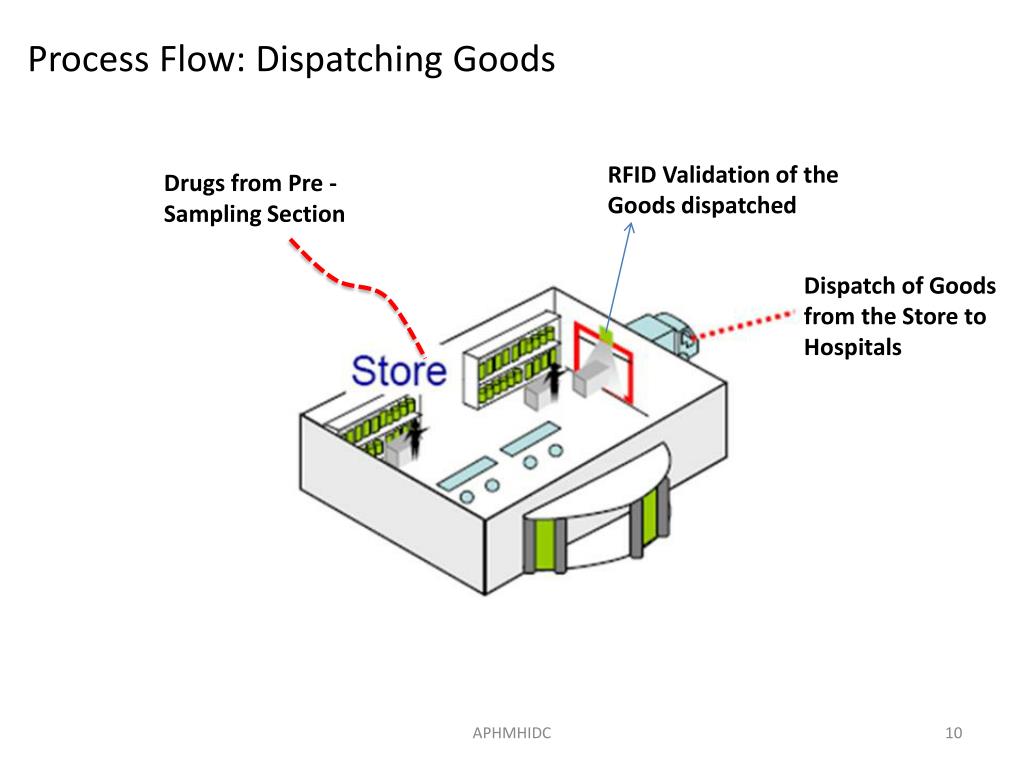

10. Process Flow: Dispatching Goods RFID Validation of the Goods dispatched Drugs from Pre -Sampling Section Dispatch of Goods from the Store to Hospitals APHMHIDC

11. Proposed Architecture- Features • Easy to track the flow of inventory • Gives real time Stock details online • Can be integrated to any kind of database which is already existing • Mandates proper stock management in stores • Pilfering can be avoided • Easy to audit in real time • Easy to identify and Track the movement of stock between various internal departments. APHMHIDC

12. Material Handling Aggregate / De-aggregate Few Additional Features of our Implementation Real Time Stock Identification through Handheld Readers Real time Alerts for Unauthorized Transactions at Entrances and Exits APHMHIDC

13. Value Addition and Conclusions • Adoption of Biometric Finger prints for Accessing the Application software • Alerts should be acknowledged by authorized personnel only • Stock can be moved from one location to other using authorized finger prints only APHMHIDC

14. Warehouse Management Equipment The role of equipment in warehouse operations • Reduce cost (labor + space) • enhance space utilization by, e.g., • enabling the exploitation of the vertical dimension of the facility • allowing for denser packing • allow for more efficient order-picking by, e.g., • increasing the density • supporting the automated transfer of material from storage to sorting and Dispatch area • Enhance responsiveness • increase the throughput of the facility, e.g., • increasing the SKU(Stock keeping Unit) density • establishing a more ergonomic environment/arrangement for the warehouse operators • facilitating the parallelization of order picking • by parallelizing the tasks of order-picking and replenishment APHMHIDC

15. Various Warehouse Equipment Fork Lifting Equipment Storage Racks Pallets (1200X1000 mm type) APHMHIDC

16. Proposed CIVIL and Warehousing architecture at Scientific warehouse of Hyderabad and Mahbubnagar > Four Layouts of the Warehouse are proposed following the International Warehouse Design standards > The Preferences were assigned to each of the layout considering the maximum space utilization as priority. APHMHIDC
