Pointers

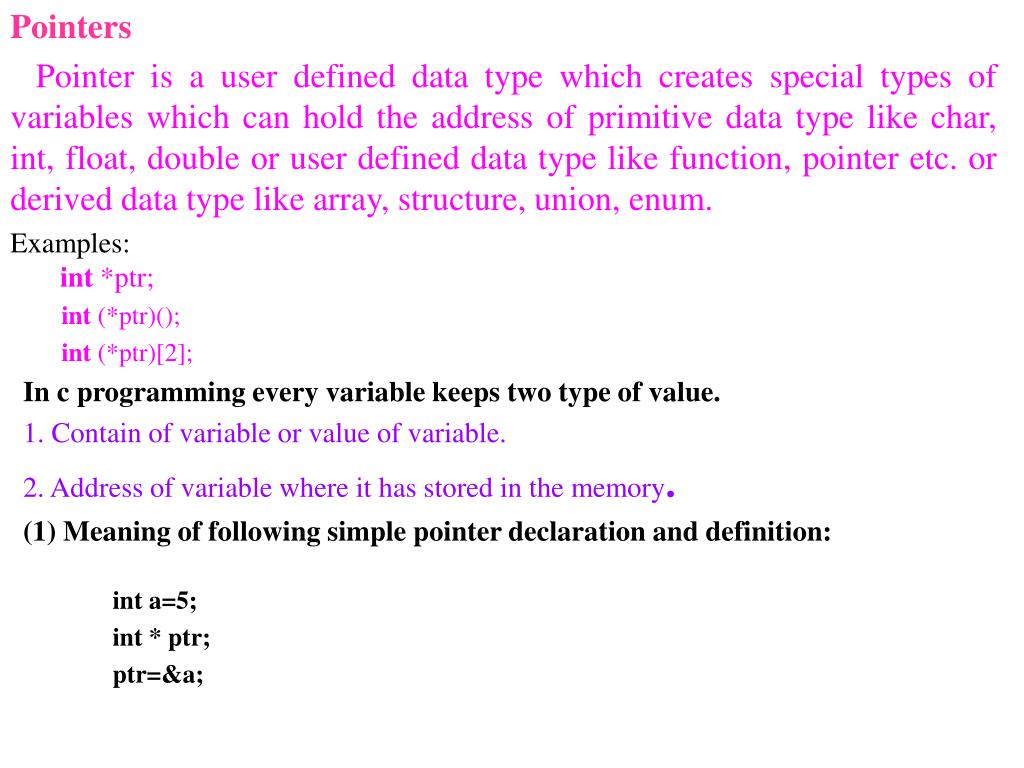

1. Pointers Pointer is a user defined data type which creates special types of variables which can hold the address of primitive data type like char, int, float, double or user defined data type like function, pointer etc. or derived data type like array, structure, union, enum. Examples:int *ptr; int (*ptr)(); int (*ptr)[2]; In c programming every variable keeps two type of value. 1. Contain of variable or value of variable. 2. Address of variable where it has stored in the memory. (1) Meaning of following simple pointer declaration and definition: int a=5; int * ptr; ptr=&a;

2. Explanation: About variable a: 1. Name of variable : a 2. Value of variable which it keeps: 5 3. Address where it has stored in memory : 1025 (assume) About variable ptr:4. Name of variable : ptr 5. Value of variable which it keeps: 1025 6. Address where it has stored in memory : 5000 (assume) Note: A variable where it will be stored in memory is decided by operating system. We cannot guess at which location a particular variable will be stored in memory.

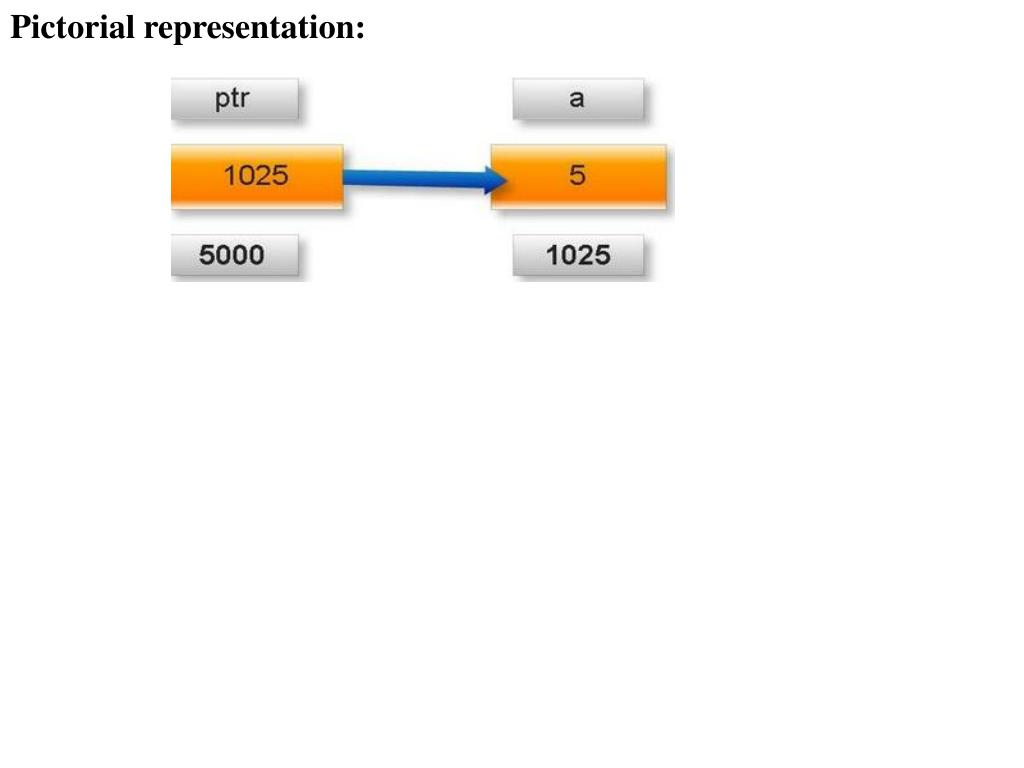

3. Pictorial representation:

4. Example: #include<stdio.h> #include<conio.h> void main() {     int i=9;     clrscr();     printf("Value of i : %d\n",i);     printf("Address of i : %u\n",&i);     printf("Value at address of i : %d",*(&i));     getch(); } Output: The values of i:9 Address of i:65524 Value at address of i:9

5. Passing pointers to function: • C provides a special feature of  pointer to a function. Every function defined in C language have a base address attached to it. This base address acts as an entering point into that function. • This address can be stored in a pointer known as function pointer. The pointer to a function is the declaration of pointer that holds the base address of the function. Syntax :return_type (* pointer_name) ( variable1_type variable1_name  , variable2_type variable2_name , variable3_type variable3_name .................);

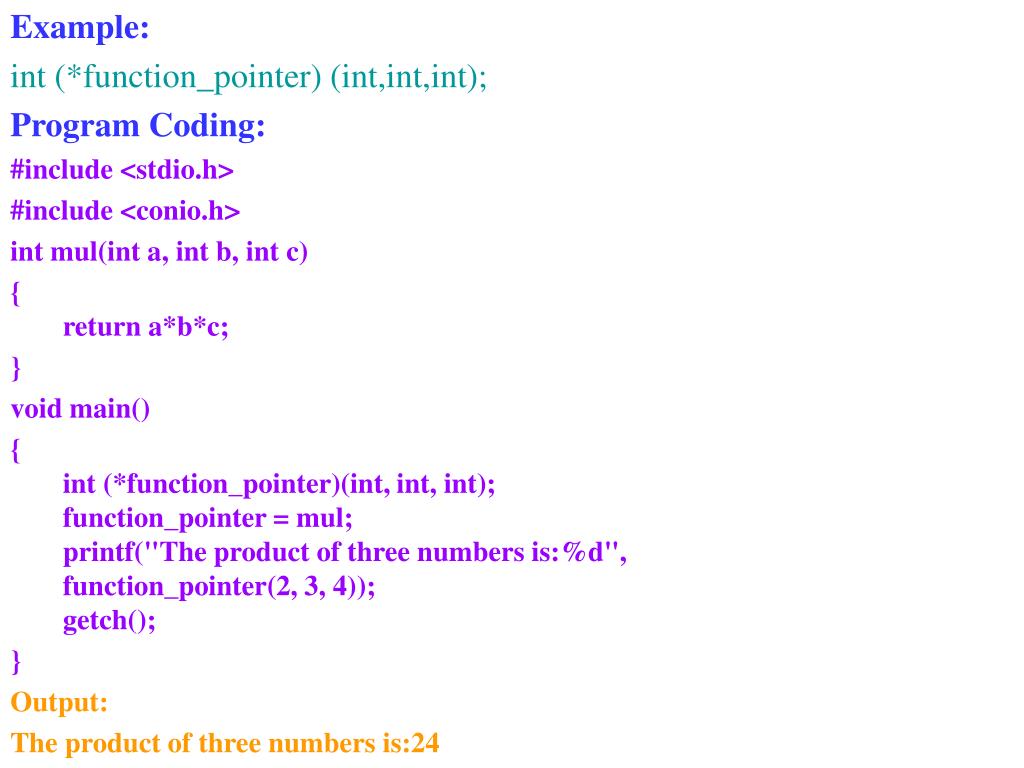

6. Example: int (*function_pointer) (int,int,int);  Program Coding: #include <stdio.h> #include <conio.h> int mul(int a, int b, int c)  {  return a*b*c; } void main()  {  int (*function_pointer)(int, int, int);  function_pointer = mul;  printf("The product of three numbers is:%d",  function_pointer(2, 3, 4));  getch(); } Output: The product of three numbers is:24

7. Operations in Pointers Eight basic operations that can be performed with pointer variables. In addition to these operations, you can use the relational operators to compare pointers. • pointer reference by an arithmetic operation. For example: int x = 5, *ip = &x; ip++; Array of Pointers Apointer is a variable that contains the memory location of another variable. The values you assign to the pointers are memory addresses of other variables (or other pointers). A running program gets a certain space in the main memory. Syntax of declaring a pointer:data_type_name * variable name;

8. Pointer Operators-& and * C provides two special operators known as pointer operators. They are & and *.They are & and *.& stands for ‘Address of’ and it is used to retrieve the address of a variable.* stands for ‘value at address’ and it is used to access the value at a location by means of its address. Syntax data-type * variable-name; Example int *ip; where,ip is declared to be a pointer variable of int type Example #include<stdio.h> #include<conio.h> void main() { int i=10,*ip;

9. float f=3.4 *fp; char c=‘a’ *cp; clrscr(); printf(“i=%d \n,i); printf(“f=%f \n,f); printf(“c=%c” \n”,c); ip=&i; printf(“\n Address of i=%u \n”,ip); printf(“Value of i=%d \n”,*ip); fp=*f; printf(“\n Address of f=%u \n,fp); printf(“Value of f=%f \n”,*fp); cp=&c; printf(“\n Address of c=%u \n”,cp); printf(“Value of c=%c \n”,*cp); getch(); }

10. Pointers and Arrays Elements of an array are accessed through pointers internally. 1.Pointers and One-Dimensional Arrays Consider one-dimensional arrays and pointers. Suppose a is a one-dimensional array of int type and of size 10. int a[10]; Since a is the address of a[0],*a is the element stored in the first location.(a+1) gives the address of the second element a[1] of the array.*(a+1) gives the element itself stored at a[1].Similary,(a+2) is the address of a[2] and *a(a+2) is the value at a[2]. For Ex: *a=*(a+0)=a[0] =*(a+1)=a[1] =*(a+2)=a[2] =*(a+3)=a[3] ……………. =*(a+i)=a[i]

11. #include<stdio.h> void main() { int a[10],n,I; clrscr(); printf(“Enter no. of elements \n”); scanf(“%d”,&n); printf(“Enter %d elements \n”,n); for(i=0;i<n;i++) scanf(“%d”,a+i); printf(“The list if elements \n”); for(i=0;i<n;i++) printf(“%d \n”,*(a+i)); getch(); } Enter no. of elements 5 Enter 5 elements 1 2 3 4 5 The list of items 1 2 3 4 5

12. Pointers and Two-dimensional Arrays a is an array of two dimensions of int type,which is declared as: int a[2][3]; The array name a gives its base address,i.e., the address of its first element. For example, *(*(a+1)+0) gives the first element in the 1st array a[0][0] *(*(a+1)+1) gives the first element in the 1st array a[0][1] *(*(a+1)+2) gives the first element in the 1st array a[0][2] In general,a[i][j] can be written as *(*(a+i)+j)

13. Example: #include<stdio.h> #include<conio.h> void main() { int a[3][3],m,n,I,j; clrscr(); printf(“Enter the order of the matrix a \n”); scanf(“%d%d”,&m,&n); printf(“Enter elements of the matrix a of order %d %d \n”,m,n); for(i=0;i<m;i++) for(j=0;j<n;j++) scanf(“%d”,*(a+i)+j); printf(“Matrix a \n”); for(i=0;i<m;i++) { for(j=0;j<n;j++) printf(“%4d”,*(a(a+1)+j)); printf(“\n”); } getch(); } Output Enter the order of the matrix a 2 Enter elements of the matrix a of order 2*2 2 3 4 Matrix a 1 2 3 4

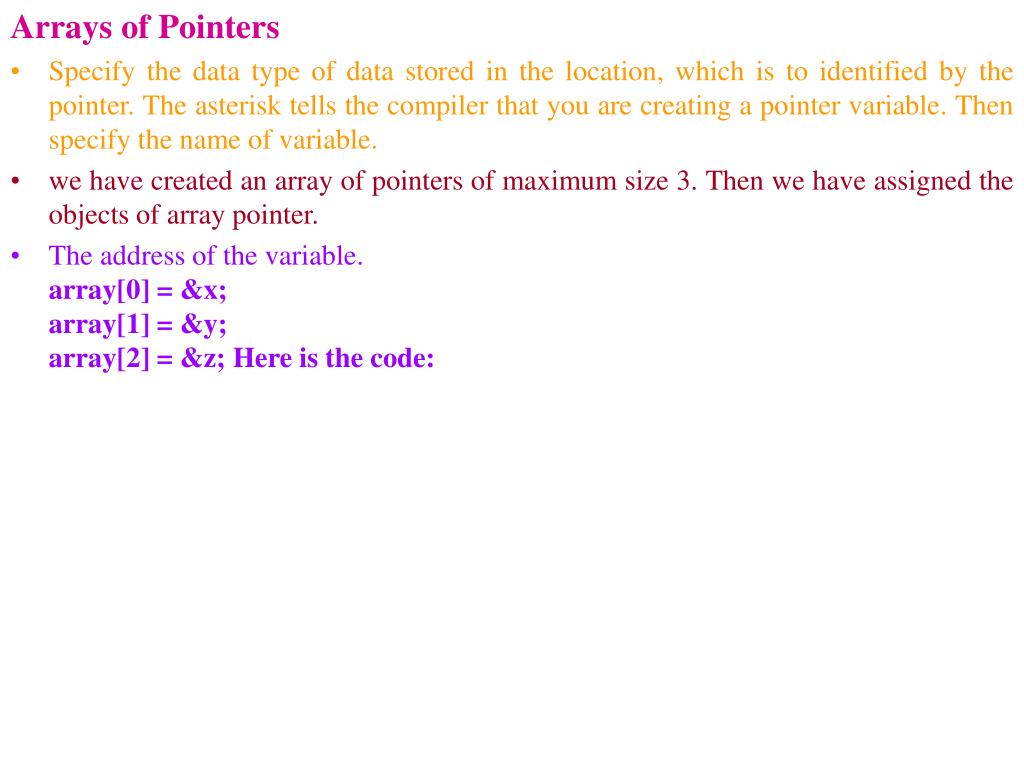

14. Arrays of Pointers • Specify the data type of data stored in the location, which is to identified by the pointer. The asterisk tells the compiler that you are creating a pointer variable. Then specify the name of variable. • we have created an array of pointers of maximum size 3. Then we have assigned the objects of array pointer. • The address of the variable. array[0] = &x;array[1] = &y;array[2] = &z;Here is the code:

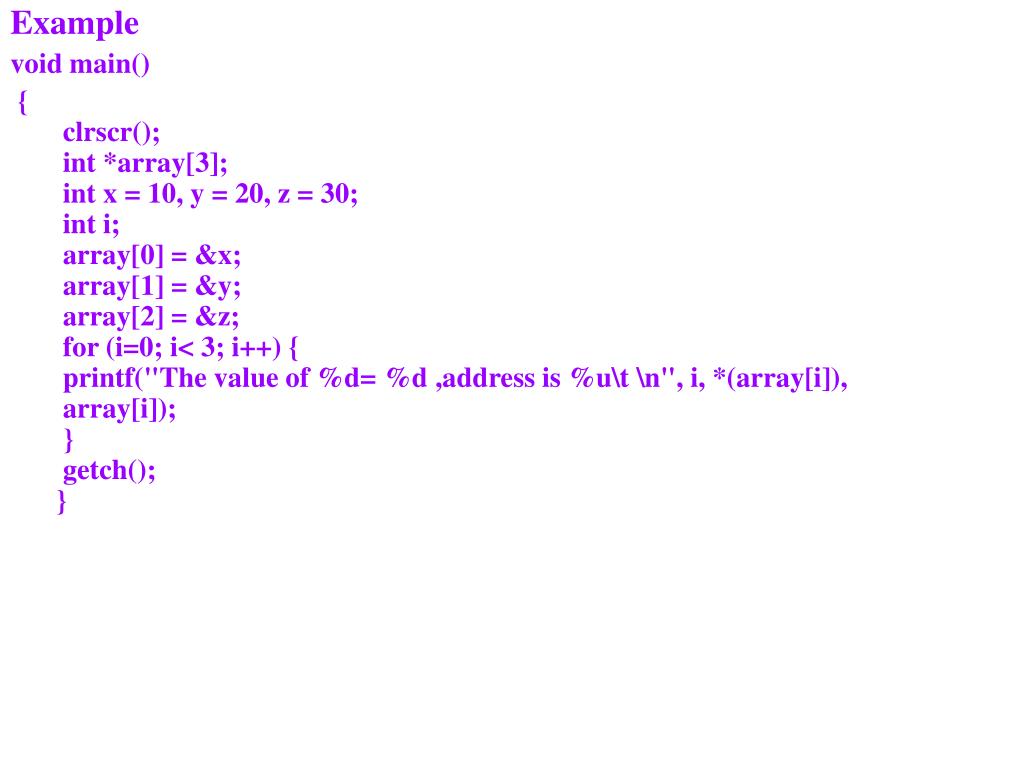

15. Example void main()  {  clrscr();  int *array[3];  int x = 10, y = 20, z = 30;  int i;  array[0] = &x;  array[1] = &y;  array[2] = &z;  for (i=0; i< 3; i++) {  printf("The value of %d= %d ,address is %u\t \n", i, *(array[i]),  array[i]);  }  getch(); }

16. Pointers and Structure The concept of pointers can be used in two ways: 1.Address of a structure variable can be retrieved using & operator. 2.We use & operator to retrieve the address of a structure variable. Example struct temp { int i; float f; char c; }struct temp t,*tp; Where, t is declared to be variable of struct temp type.tp is declared to be a pointer to struct temp type.

17. Example: #include<stdio.h> #include<conio.h> struct temp { int i; float f; char c; }; void main() { struct temp t={123,34.56,’p’},*tp; clrscr(); tp=&t; printf(“t.i=%d \n”,tp->i); printf(“t.f=%f \n”,tp->f); printf(“t.c=%c \n”,tp->c); getch(); }

18. Structures containing Pointers struct temp { int i; int *ip; }; The structure definition includes ip,a pointer to int type as one of its members. Example #include<stdio.h> #include<conio..h> Struct temp { int i; int *ip; }; void main() { struct temp t; int a=10; clrscr(); t.i=a; t.ip=&a; printf(“Value of a=%d”,t.i); printf(“Address of a=%u \n”,t.ip); getch(); } Output: Value of a=10 Address of a=65520

19. Files • Files can be classified into many types depending upon the contents of the file. Key terms used in file processing: Field:A field is an elementary data item that is used to store a single unit of data. Example:name Record: A group of related fields constitute a record. Example:rollnumber,name,mark1,etc. File:A group of related records form a file.Generally,this type of file is called a data file. Example:Employee data file Stream:Input and output operations are performed through streams. In C files are streams of characters.The stream of characters are decoded by various Input and output functions like scanf(),getc(),etc.

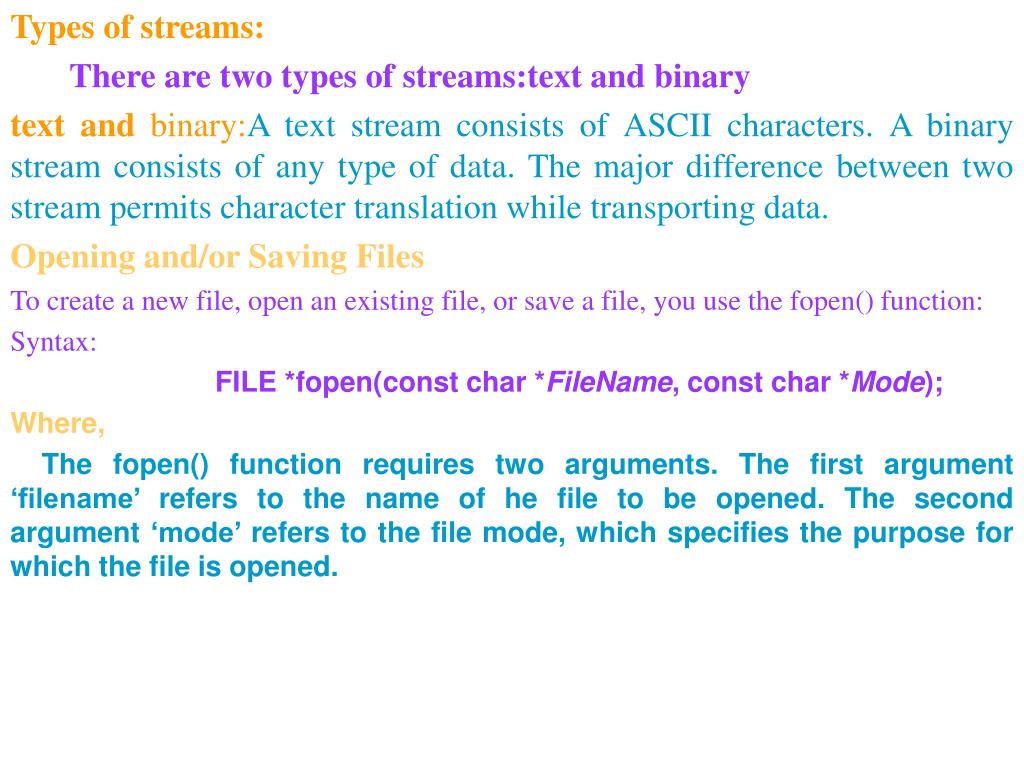

20. Types of streams: There are two types of streams:text and binary text and binary:A text stream consists of ASCII characters. A binary stream consists of any type of data. The major difference between two stream permits character translation while transporting data. Opening and/or Saving Files To create a new file, open an existing file, or save a file, you use the fopen() function: Syntax: FILE *fopen(const char *FileName, const char *Mode); Where, The fopen() function requires two arguments. The first argument ‘filename’ refers to the name of he file to be opened. The second argument ‘mode’ refers to the file mode, which specifies the purpose for which the file is opened.

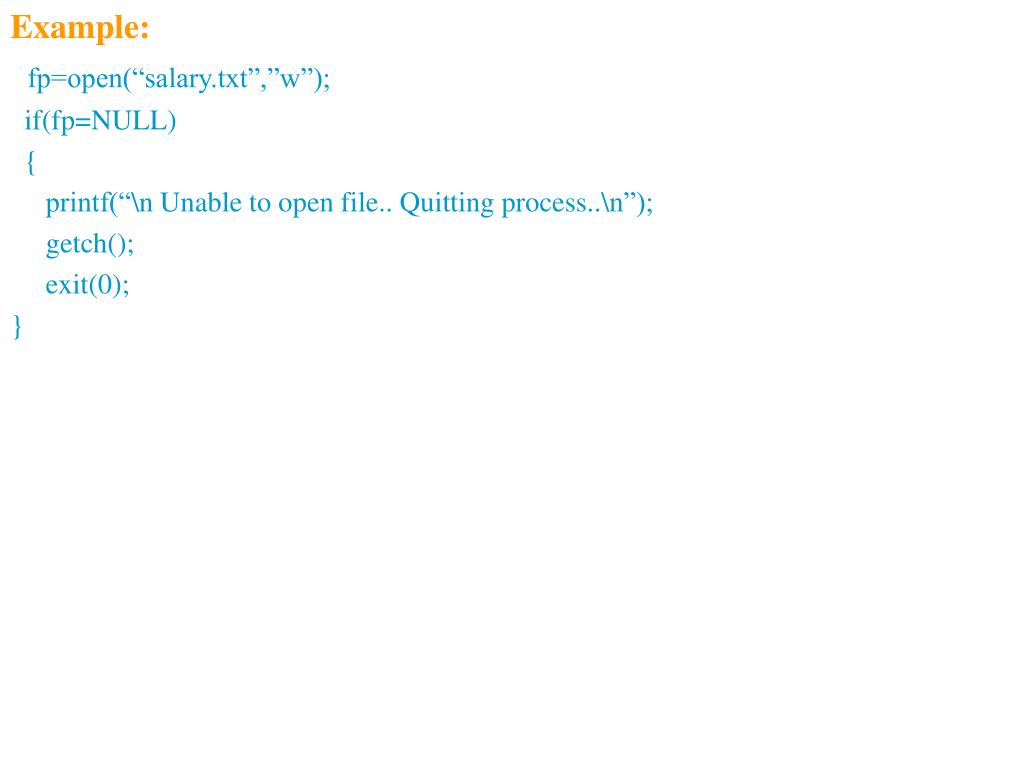

21. Example: fp=open(“salary.txt”,”w”); if(fp=NULL) { printf(“\n Unable to open file.. Quitting process..\n”); getch(); exit(0); }

22. The following table illustrates the different modes of file operation:

23. For example, consider the statements: FILE *fp1,*fp2; …….. …….. fp1=fopen(“emp.dat”,”r”); fp2=fopen(“salary.txt”,”w”); Closing a file A file is closed when all the input/output operations are completed on it. The fclose is used to close an opened file. Syntax: int fclose(FILE *fp); Where, The file pointer fp is closed.

24. Operations on Files The following are various functions that are used on files. 1.putc() function: This function is similar to the putchar(). Syntax: int putc(int ch,FILE *fp); 2.getc() function:This function is similar to the getchar() function. Syntax: int getc(int ch,FILE *fp); 3.putw() function:This function is used to write an integer value onto the file pointed by the pointer. Syntax: int putc(int w,FILE *fp); 4.fprintf() function:This function is similar to the scanf() function. Syntax: int fprintf(FILE *fp,format specifications,list of variables); 5.fscanf() function:This functionis similar to the scanf() function. Syntax: int fscanf(FILE *fp,format specifications,list of variables); 6.fread() function:This function reads data from stream file or file of any data type using binary representation.. Syntax: size_t fread(void *ptr,size_t size,size_t n,FILE *fp); 7.fwrite() function:This function writes to a stream or specified file. Syntax: size_t fwrite(const void *ptr,size_t size_t n,FILE *fp);
