Basics of BLAST

Basics of BLAST. Basic BLAST Search - What is BLAST? - The framework of BLAST - Different protocols of BLAST - The database you can search - Where can I BLAST?. What is BLAST?. BLAST stands for B asic L ocal A lignment S earch T ool NCBI- BLAST vs. WU- BLAST BLAST ! = BLAT

ion
Télécharger la présentation

Basics of BLAST

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Basics of BLAST • Basic BLAST Search - What is BLAST? - The framework of BLAST - Different protocols of BLAST - The database you can search - Where can I BLAST?

  2. What is BLAST? • BLAST stands for Basic Local Alignment Search Tool • NCBI- BLAST vs. WU- BLAST • BLAST ! = BLAT • Why is BLAST popular? - Good balance of sensitivity and speed - Reliability - Flexibility

  3. The Framework of BLAST (1) • Scoring matrix - high BLOSUM (low PAM)  closely related sequences - low BLOSUM (high PAM)  distantly related sequences - Default is BLOSUM 62

  4. BLOSUM Matrix • BLOSUM = BLOcks SUbstitution Matrix http://helix.biology.mcmaster.ca/721/distance/node10.html

  5. The Framework of BLAST (2) • Sequence Alignment - W (word size); blastn 11; others 2 or 3 - G (gap open penalty); blastn 5; others 11 - E (gap extension penalty); blastn 2; others 1 • Statistic Interpretation - e (threshold for expectation value) default 10

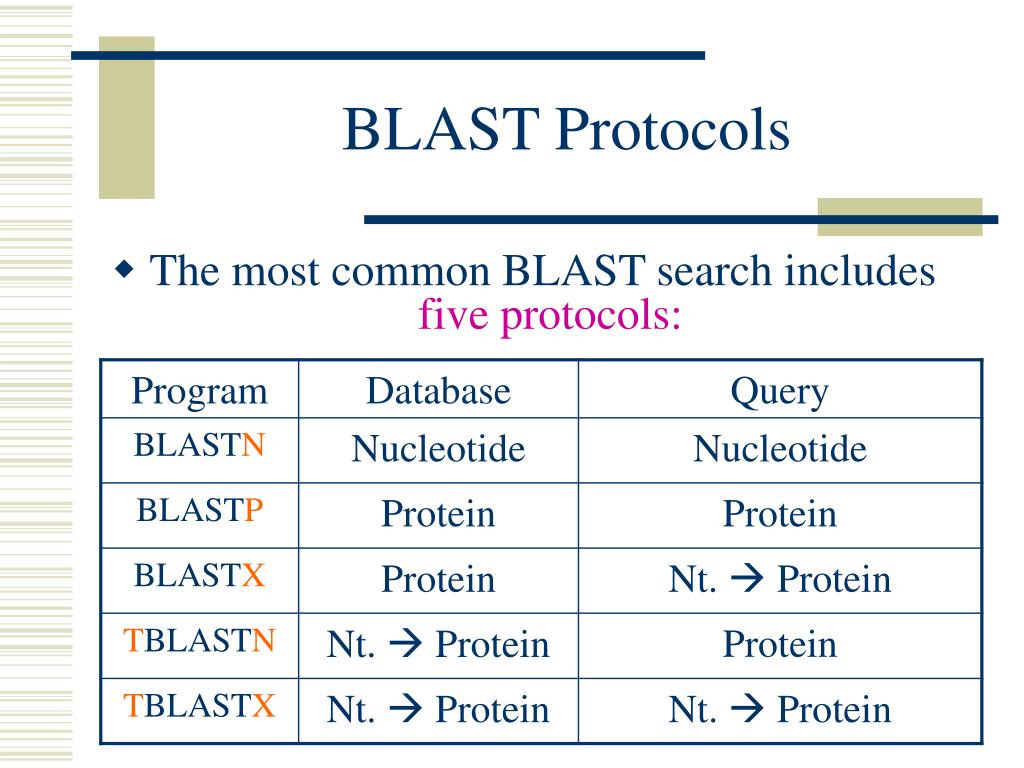

  6. BLAST Protocols • The most common BLAST search includes fiveprotocols:

  7. BLASTN • BLASTN - The query is a nucleotide sequence. - The database is a nucleotide database - No conversion is done on the query or database • DNA :: DNA homology - Mapping oligos to a genome - Cross-species sequence exploration - Annotating genomic DNA with ESTs

  8. BLASTP • BLASTP - The query is an amino acid sequence - The database is an amino acid database - No conversion is done on the query or database • Protein :: Protein homology - Protein function exploration - Novel gene  makes parameters more sensitive

  9. BLASTX • BLASTX - The query is a nucleotide sequence - The database is an amino acid database - All six reading frames are translated on the query and used to search the database • Coding nucleotide seq :: Protein homology - Gene finding in genomic DNA - Annotating ESTs (and Shotgun Sequence)

  10. TBLASTN • TBLASTN - The query is an amino acid sequence - The database is a nucleotide database - All six frames are translated in the database and searched with the protein sequence • Protein :: Coding Nucleotide DB homology - Mapping a protein to a genome - Mining ESTs (Shotgun DNA) for protein similarities

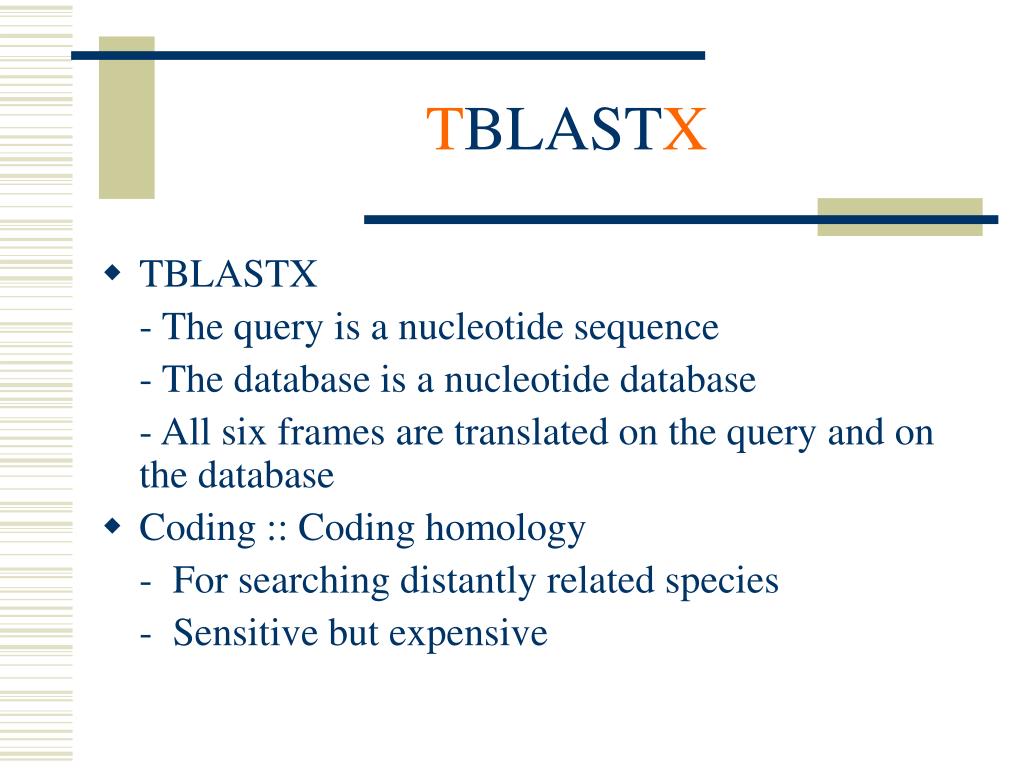

  11. TBLASTX • TBLASTX - The query is a nucleotide sequence - The database is a nucleotide database - All six frames are translated on the query and on the database • Coding :: Coding homology - For searching distantly related species - Sensitive but expensive

  12. BLAST output • List of Sequences with scores – Raw score, higher is better (length dependant) – Expect Value, smaller is better (length and database size independent) • List of alignments

  13. The Databases (1) • Genbank NR (protein and nucleotide versions) Non-redundant large databases (compile and remove dups) Anyone can submit, you can call your sequence anything Quality low; names can be meaningless • EST databases Short single reads of cDNA clones Other short single reads High error rates

  14. The Databases (2) • Swissprot Curated from literature REAL proteins; REAL functions; small; • Genomic Databases Human, Mouse, Drosophila, Arabidopsis etc NCBI, species specific web pages

  15. Where Can I run BLAST? • Three choices: – NCBI (www.ncbi.nih.gov) databases updated constantly (daily); very slow at times – Goose web (goose.wustl.edu/blast/blast.html) –command line (blastall)
