Equivalent High-Side Parameters Calculation for a 50kVA Transformer

In this analysis, we will calculate the equivalent high-side parameters of a 50kVA transformer with given test data from short-circuit and open-circuit tests. The transformer operates at 2400–600 V and 60 Hz, with testing values of Voc = 600 V, Vsc = 76.4 V, Ioc = 3.34 A, Isc = 20.8 A, Poc = 484 W, and Psc = 754 W. Understanding these parameters is critical for transformer modeling and performance evaluation.

irene-manning
Télécharger la présentation

Equivalent High-Side Parameters Calculation for a 50kVA Transformer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

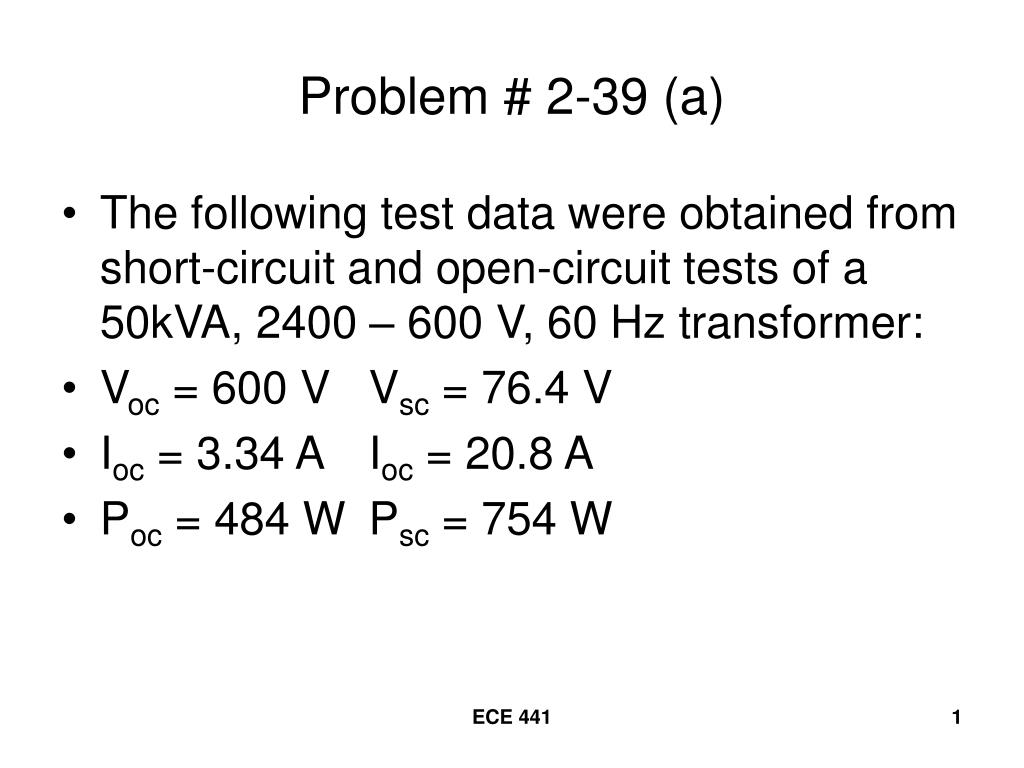

  1. Problem # 2-39 (a) • The following test data were obtained from short-circuit and open-circuit tests of a 50kVA, 2400 – 600 V, 60 Hz transformer: • Voc = 600 V Vsc = 76.4 V • Ioc = 3.34 A Ioc = 20.8 A • Poc = 484 W Psc = 754 W ECE 441

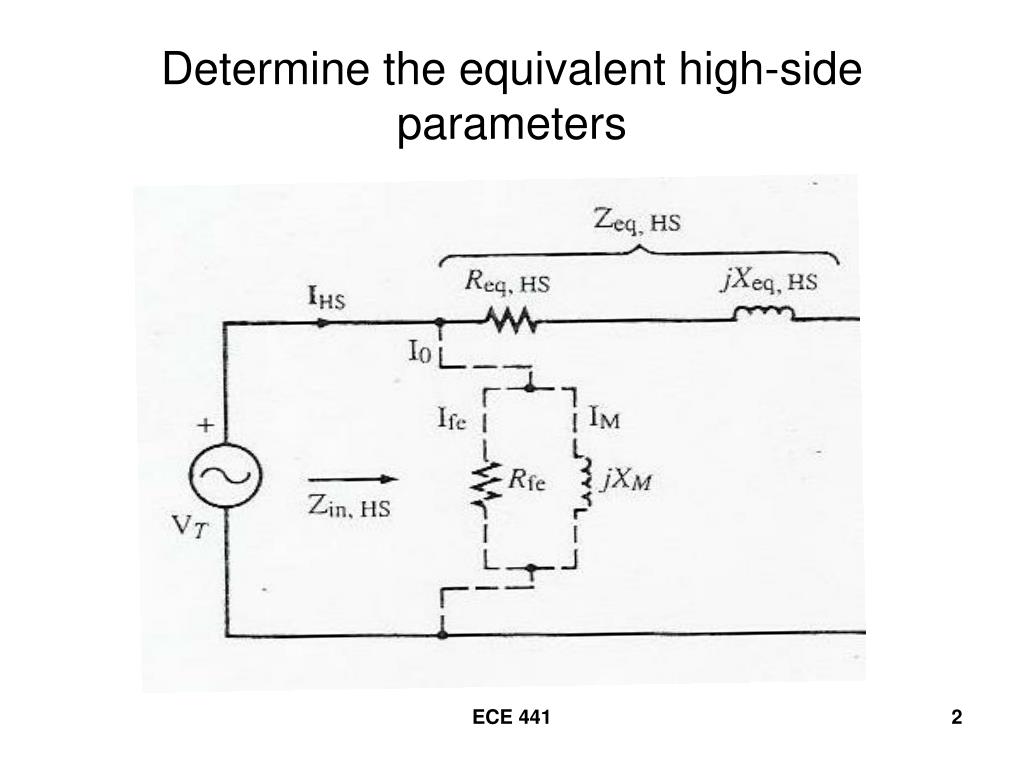

  2. Determine the equivalent high-side parameters ECE 441

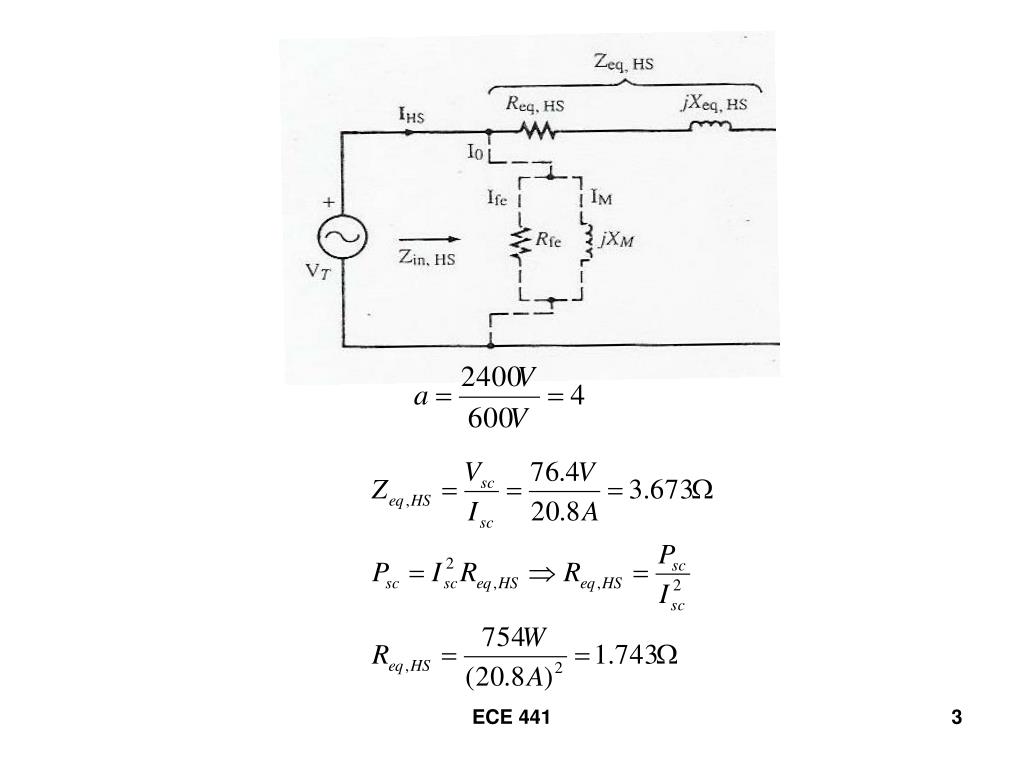

  3. ECE 441

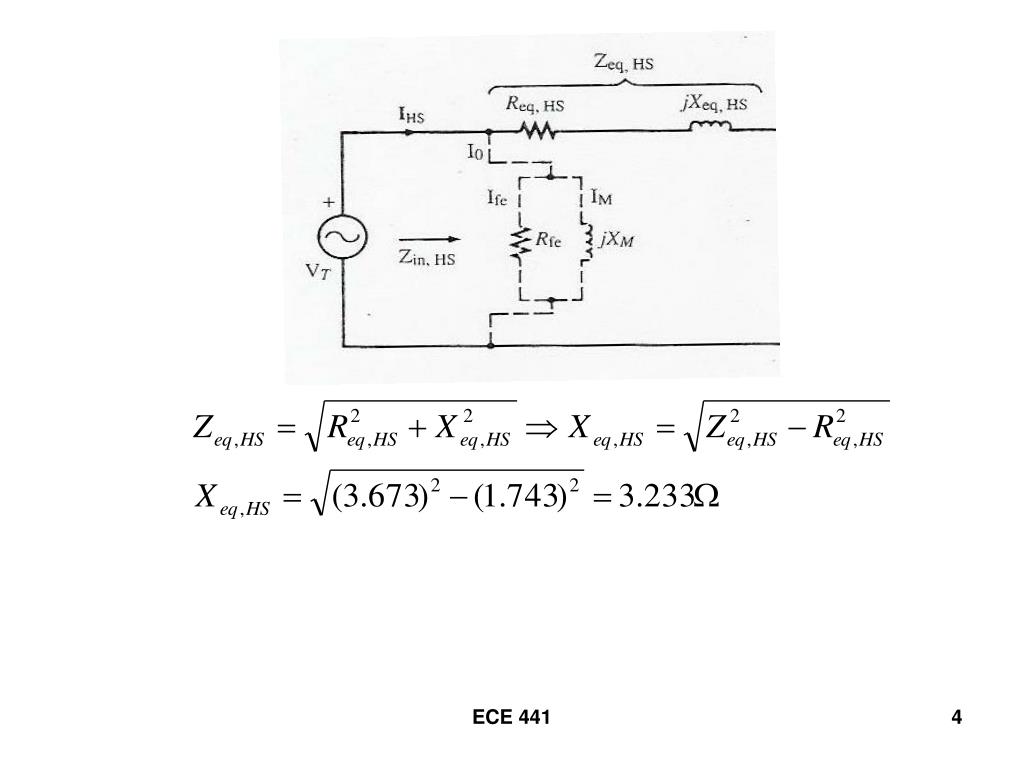

  4. ECE 441

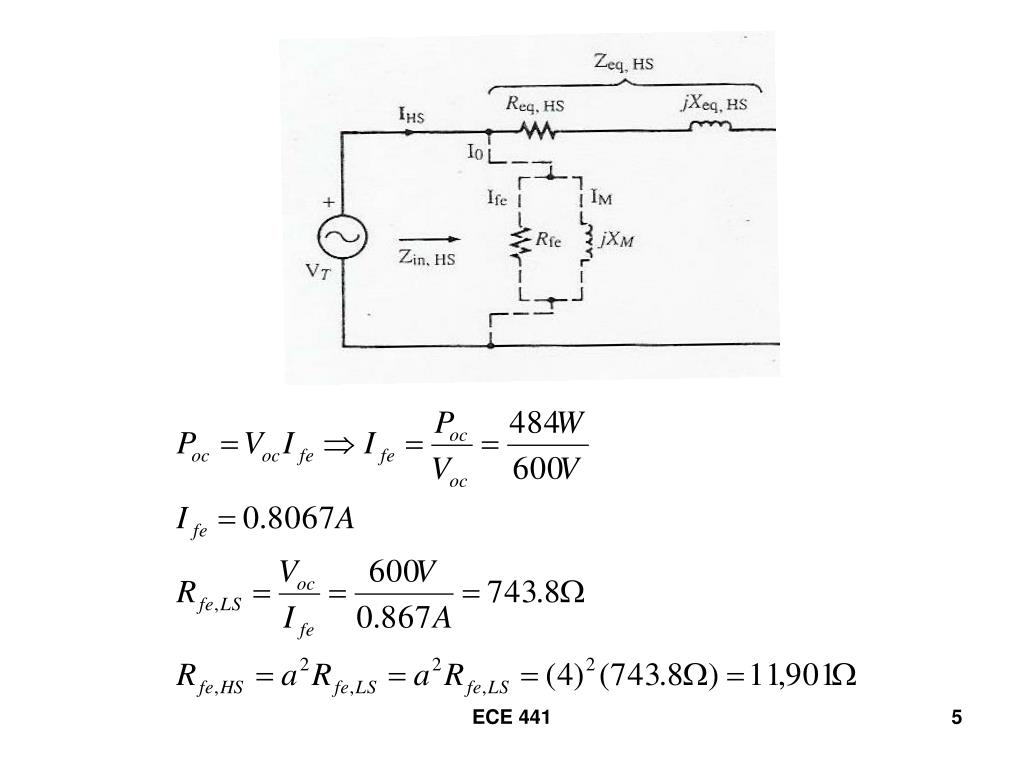

  5. ECE 441

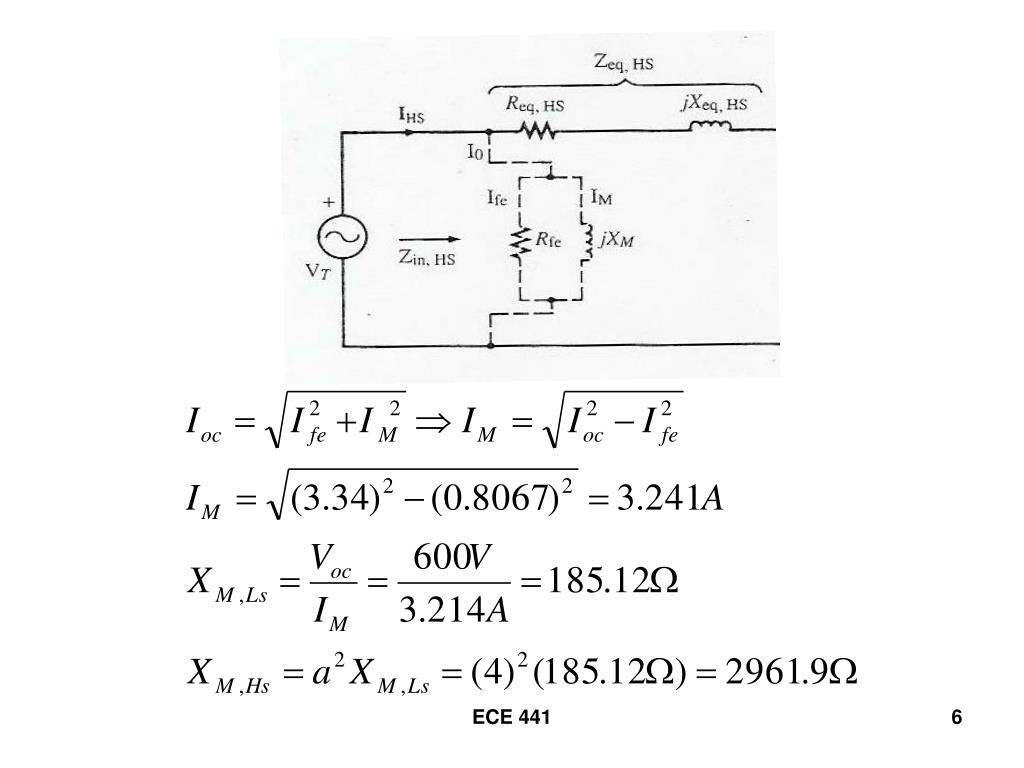

  6. ECE 441
