1 / 30

LAB #8

LAB #8. Centripetal Forces: Circular Motion. F NET = ma. F c = ma c. a c = v 2 /r. F C = mv 2 /r. GOALS. 1 TO TEST THE FACTORS WHICH DETERMINE CENTRIPETAL FORCES REQUIRED FOR CIRCULAR MOTION Fc vs SPEED ( V ) Fc vs MASS ( m ) Fc vs RADIUS ( r ). CIRCULAR MOTION: Part 1. Ty.

iria
Télécharger la présentation

LAB #8

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

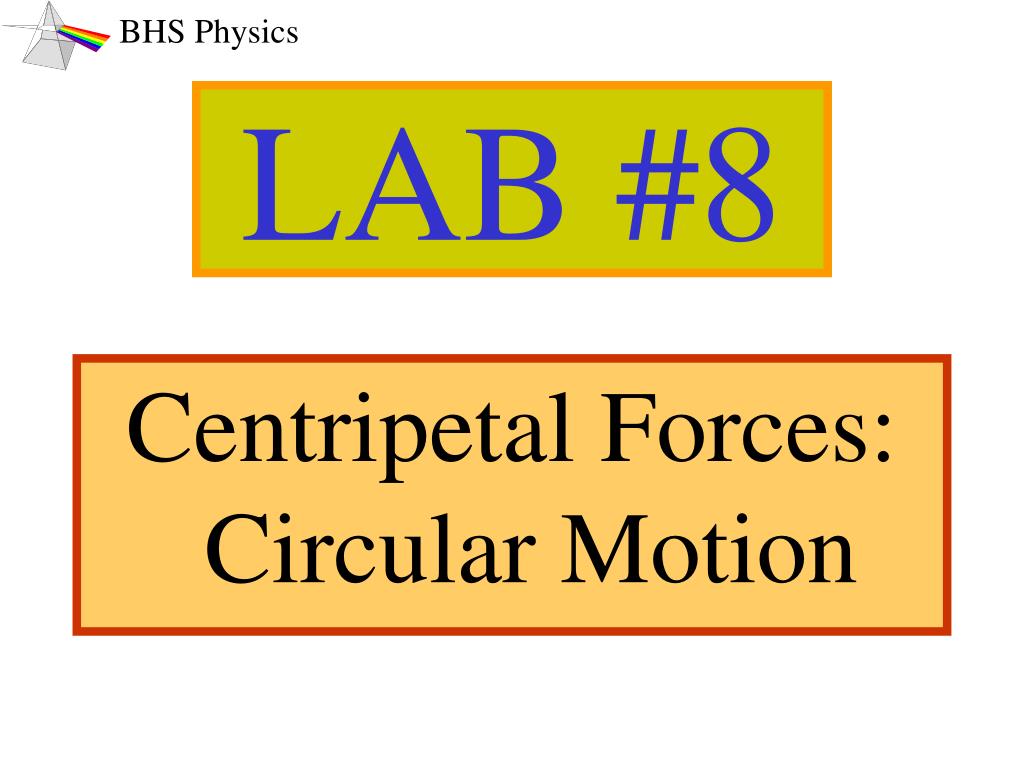

  1. LAB #8 Centripetal Forces: Circular Motion

  2. FNET = ma Fc = mac ac = v2/r FC = mv2/r

  3. GOALS 1 TO TEST THE FACTORS WHICH DETERMINE CENTRIPETAL FORCES REQUIRED FOR CIRCULAR MOTION Fc vs SPEED (V) Fc vs MASS (m) Fc vs RADIUS (r)

  4. CIRCULAR MOTION: Part 1 Ty T R Tx mg ay = 0 Ty = mg Tx is Fc Fnet = Tx Spring Scale

  5. PROCEDURE: Part 1: Fc vs V • MEASURE CONSTANTS: • MASS (m) OF STOPPER • RADIUS ( r ) OF MOTION • SPIN STOPPER WITH UNIFORM CIRCULAR MOTION. • TIME ATLEAST 10 REVOLUTIONS • MEASURE Fc WITH SPRING SCALE • REPEAT WITH ANOTHER UNIFORM SPEED, BUT FASTER. • MINIMUM OF 5 TRIALS

  6. CIRCULAR MOTIONDetermine Speed of Mass Speed = distance = Circumference time Period Period (T) = time / revolution = 2pr V = C T T

  7. I.P. CIRCULAR MOTION

  8. PROCEDURE: Part 2: Fc vs m • CREATE AN IP SIMULATION OF AN OVERHEAD VIEW OF A MASS ON A FRICTIONLESS SURFACE • TURN OFF GRAVITY • CREATE MASS • ATTACH A ROPE TO MASS OF A GIVEN LENGTH WHICH WILL DETERMINE RADIUS • GIVE MASS A TANGENTIAL VELOCITY • RECORD CONSTANTS: • RADIUS • SPEED • RUN SIMULATION, RECORD TENSION • MEASURE TENSION IN ROPE • CHANGE MASS AND REPEAT FOR 8 TRIALS

  9. PROCEDURE: Part 3: Fc vs r • USE THE SAME IP SIMULATION OF AN OVERHEAD VIEW OF A MASS ON A FRICTIONLESS SURFACE • SELECT AND RECORD CONSTANTS: • MASS • SPEED • RUN SIMULATION, RECORD TENSION • SHORTEN THE ROPE TO A NEW RADIUS • RUN SIMULATION AND RECORD TENSION • REPEAT FOR 8 TRIALS

  10. DATA TABLE PART 1: Fc vs V

  11. DATA TABLE PART 2: Fc vs M • MAKE YOUR OWN TABLE • 8-10 TRIALS • INCLUDE CONSTANTS • INDEPENDENT VARIABLE (WITH UNITS) • DEPENDENT VARIABLE (WITH UNITS)

  12. DATA TABLE PART 2: Fc vs r • MAKE YOUR OWN TABLE • 8-10 TRIALS • INCLUDE CONSTANTS • INDEPENDENT VARIABLE (WITH UNITS) • DEPENDENT VARIABLE (WITH UNITS)

  13. GRAPH #1: Fc vs V Fc (N) SPEED (m/s)

  14. GRAPH #2: Fc vs V Fc (N) SPEED2 (m2/s2)

  15. GRAPH #3: Fc vs MASS Fc (N) MASS (kg)

  16. GRAPH #4: Fc vs RADIUS Fc (N) RADIUS (m)

  17. GRAPH #5: Fc vs 1/RADIUS Fc (N) 1/RADIUS (1/m)

  18. WRITE-UP • ABSTRACT: • BACKGROUND • METHOD • SKETCH: ENHANCED I.P. SCREEN DUMP • DATA TABLES • GRAPHS • TRENDLINES • GRAPH ANALYSIS • TEXT BOX TO TELL STORY OF EACH GRAPH • INCLUDE THE SIGNIFICANCE OF SLOPE OF LINEAR TRENDLINES • CONCLUSION

  19. LAB #8 DATA ANALYSIS

  20. Graph Analysis Table

  21. GRAPH #1: Fc vs Vo Y a Xn Fc a V2 Relationship: Trendline: Polynomial: 2nd order Y = A x2 + B x1 + C x0 Fc (N) Fc = (m) V2 +(0)V1 + (0)V0 r Speed (m/s)

  22. Fc = m V2 r GRAPH #2: Fc vs. V2 Fc a V2 Relationship: Trendline: Linear Fc (N) y = m x + b ( ) + 0 VELOCITY ^2 (m2/s2)

  23. Fc = V2m r GRAPH #3: Fc vs Mass Fc aMass Fc (N) y = m x + b ( ) + 0 Mass

  24. GRAPH #4: Fc vs Radius Fc a 1/rn n = 1,2,? Fc (N) Radius (m)

  25. Fc = mv21 r GRAPH #4: Fc vs 1/r Fc a 1/r Fc (N) y = m x + b ( ) + 0 INVERSE RADIUS

More Related
