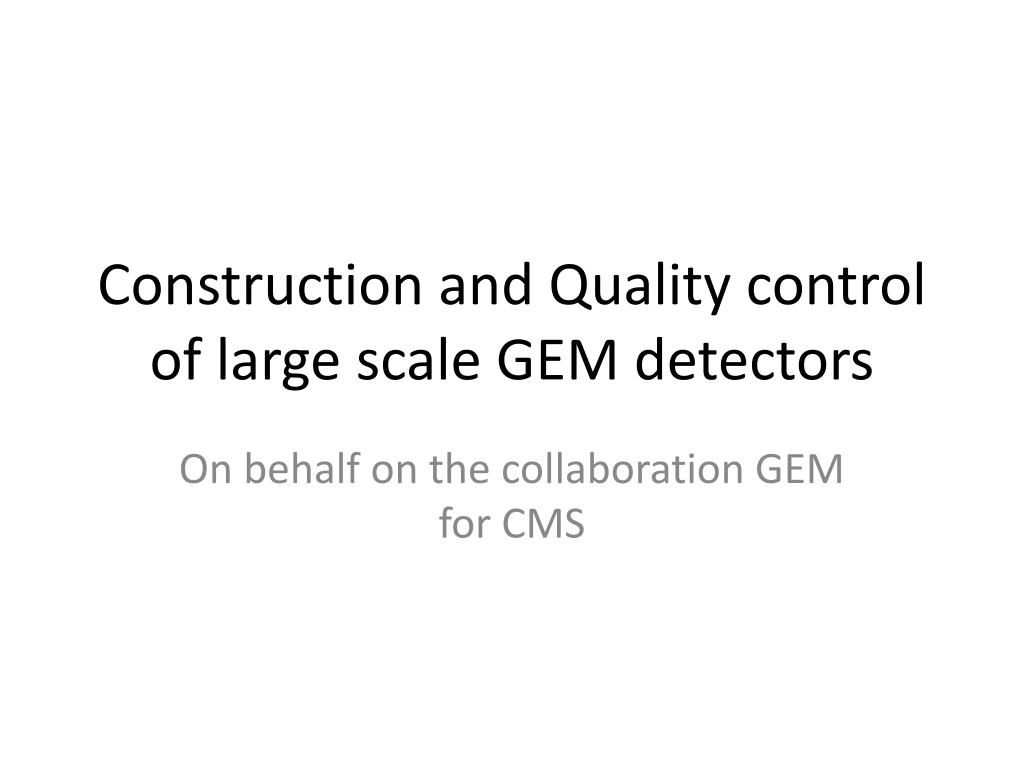

  1. Construction and Quality control of large scale GEM detectors On behalf on the collaboration GEM for CMS

  2. Status Prototype II Prototype I New NS2 technicassembly 4 prototypes produced

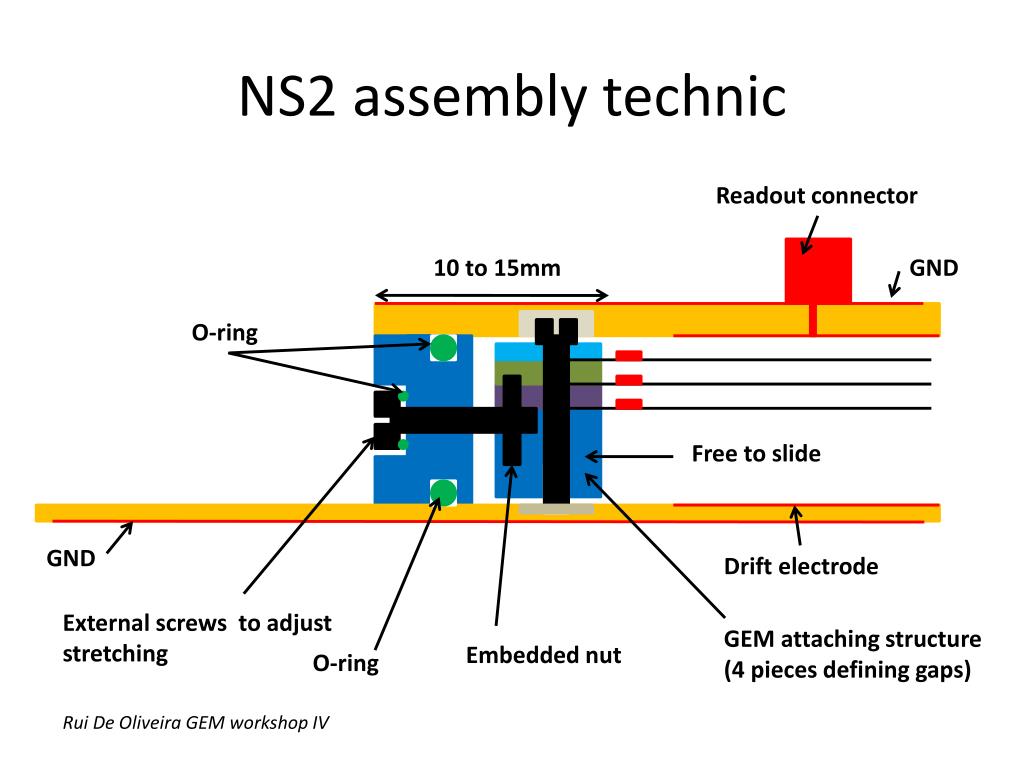

  3. NS2 assemblytechnic Readout connector 10 to 15mm GND O-ring Free to slide GND Drift electrode External screws to adjust stretching GEM attaching structure (4 pieces defining gaps) Embedded nut O-ring Rui De Oliveira GEM workshop IV

  4. GEM stackready

  5. Inserting drift board

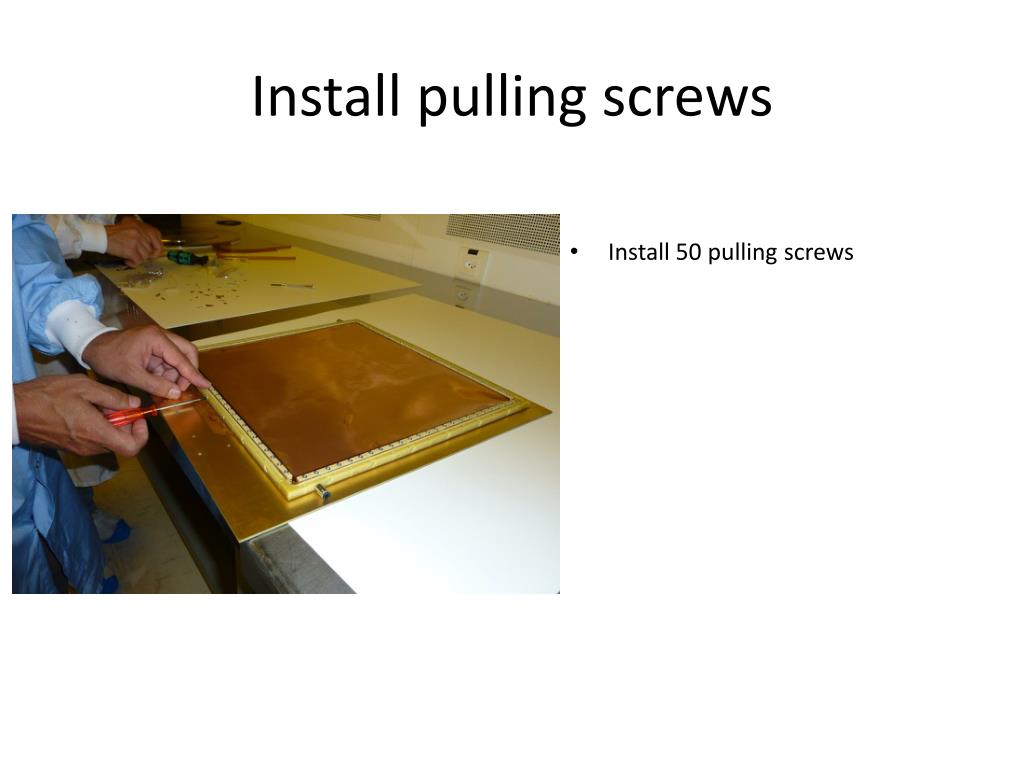

  6. Install pullingscrews • Install 50 pullingscrews

  7. Oring installation

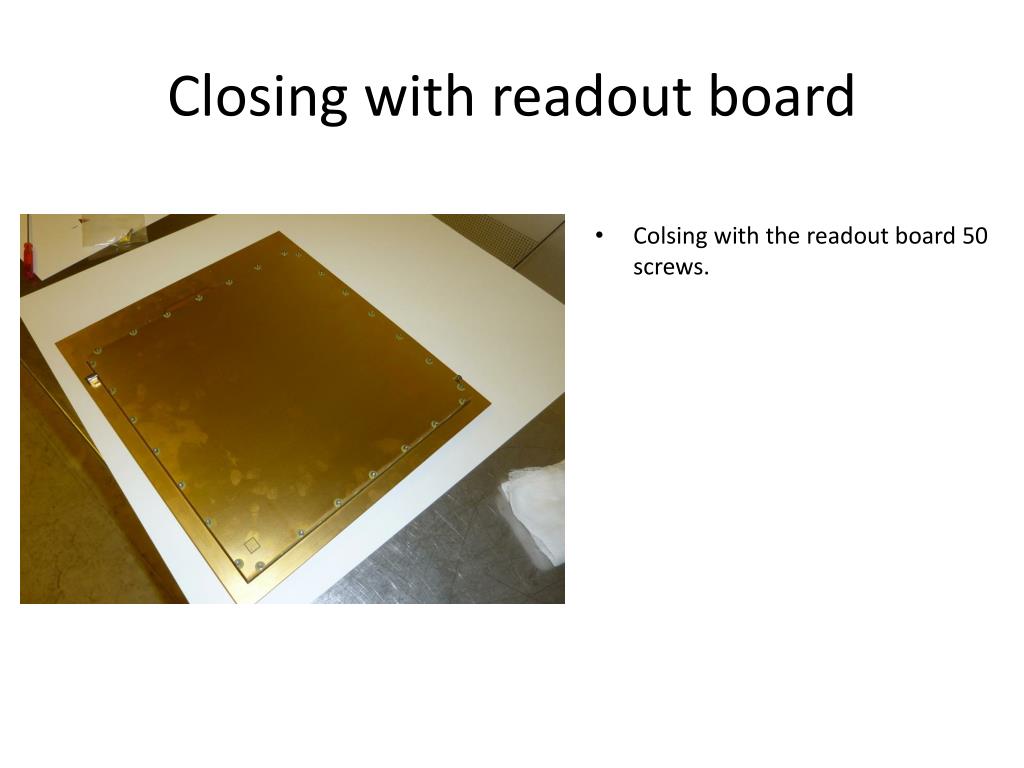

  8. Closingwithreadoutboard • Colsingwith the readoutboard 50 screws.

  9. Producing 6 new NS2 Large scale detectors External frame Produced in severalpieces, thengluedtogether. GEM foils ready, waiting for the readout and drift boards. Assemblynextweek.

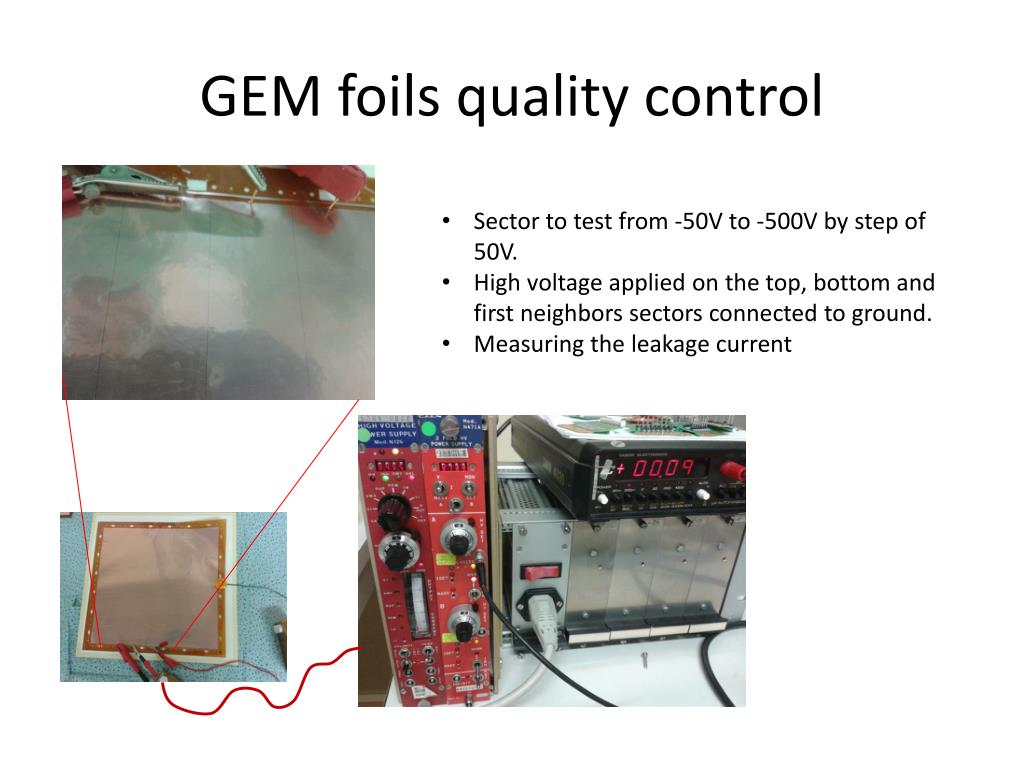

  10. GEM foils quality control • Sector to test from -50V to -500V by step of 50V. • High voltage applied on the top, bottom and first neighborssectorsconnected to ground. • Measuring the leakagecurrent

  11. Expectedleakagecurrent • Kaptonresisitvity ~1019ohm.m • Air resistivity ~1016ohm.m • R// = Rkaptonx Rair / (Rkapton+Rair) • R//(60µm)~1016 x 60.10-6= 6. 1011ohm • Iexpected~ 500/ R//(60µm)= 0.8 nA Leakagecurrent RKapton Rair HV (-500V)

  12. RESULTS HV (Volts) HV (Volts) GEM1 I (nA) I (nA) HV (Volts) HV (Volts) GEM2 I (nA) I (nA)

  13. Gain Uniformity Control Set up

  14. Eta Sector 4 Peak Position (ADC counts) 15 slices ->1 slice ~ 3cm X Position (mm)

  15. Eta Sector 5 Peak Position (ADC counts) X Position (mm)

  16. Eta Sector 6 Peak Position (ADC counts) X Position (mm)

  17. Eta Sector 7 Peak Position (ADC counts) X Position (mm)

  18. Eta Sector 8 Peak Position (ADC counts) X Position (mm)

  19. Slice N°1

  20. Slice N°2

  21. Uniformity Plot PeakPosition Variation (%)

  22. Uniformity TOP view

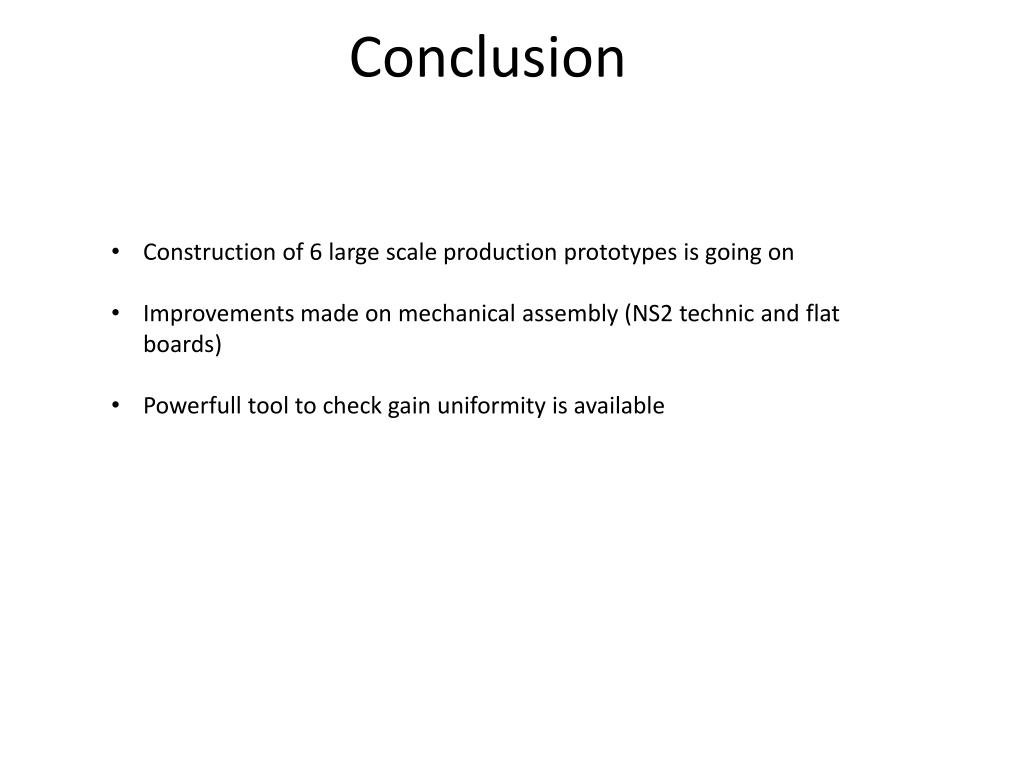

  23. Conclusion • Construction of 6 large scale production prototypes isgoing on • Improvements made on mechanicalassembly (NS2 technic and flat boards) • Powerfulltool to check gain uniformityisavailable
