  1. L7: Pipelining andParallel Processing VADA Lab.

  2. Pipelining transformation leads to a reduction in the critical path, which can be exploited to increase the clock speed (sample speed), or to reduce power consumption at same speed. In the parallel processing, multiple outputs are computed in parallel in a clock period. Therefore, the effective sampling speed is increased by the level of parallelism. Introduction (1)

  3. 3-tap FIR digital filter y(n) = ax(n)+bx(n-1)+cx(n-2) Sample Period Sampling frequency Introduction (2)

  4. Pipelining of FIR digital filter • Pipelined implementation of the 3-tap FIR filter is obtained by placing 2 additional latches. • The critical path is reduced from TM+2TA to TM+TA . • The two main drawbacks of the pipelining are increase in the number of latches and in system latency. <Pipelined FIR filter>

  5. Pipelining of FIR digital filter (2) • The critical path (longest path) can be reduced by suitably placing the pipelining latches in the architecture. • The pipelining latches can only be placed across any feed-forward cutset of the graph • Introduce 2 definitions of graph for pipelining. • Cutset A cutset is a set of edges of a graph such that if these edges are removed from the graph, the graph becomes disjoint. • Feed-forward Cutset A cutset is called a feed-forward cutset if the data move in the forward direction on all the edges of the cutset. • To obtain an appropriate pipelining circuit, pipelining latches should be inserted on all the edges in thefeed-forward cutset !!

  6. Signal-flow graph example Pipelining of FIR digital filter (3)

  7. Pipelining of FIR digital filter (4) • Data-Broadcast Structures • The critical path of the original 3-tap FIR filter can be reduced without introducing any pipelining latches by transposing the structure. • Transposition theorem “ Reversing the direction of all the edges in a given SFG (signal- flow graph) and interchanging the input and output ports preserves the functionality of the system.”

  8. < SFG representation of the FIR filter> < Transposed SFG representation of the FIR filter> Pipelining of FIR digital filter (5)

  9. Pipelining of FIR digital filter (6) • Transposed SFG representation leads to the data-broadcast structure where data are not stored but are broadcast to all the multipliers simultaneously. <Data-broadcast structure of the FIR filter>

  10. Pipelining of FIR digital filter (7) • Fine-Grain Pipelining • Let TM=10 units and TA units, and the desired clock period be (TM+TA)/2=6 units. • In this case the multiplier is broken into 2 smaller units with processing times of 6 units and 4 units, respectively. • By placing the latches on the horizontal cutset across the multiplier , the desired clock speed can be achieved.

  11. Parallel Processing (1) • Designing a Parallel FIR System • To obtain a parallel processing structure, the SISO(single-input single-output) system must be converted into a MIMO(multiple-input multiple-output) system. y(3k) = ax(3k)+bx(3k-1)+cx(3k-2) y(3k+1) = ax(3k+1)+bx(3k)+cx(3k-1) y(3k+2) = ax(3k+2)+bx(3k+1)+cx(3k) • Parallel Processing systems are also referred to as block processing systems.

  12. Parallel Processing (2) • Parallel processing architecture for a 3-tap FIR filter (with block size 3)

  13. Parallel Processing (3) • The critical path of the parallel processing system has remained unchanged and the clock period (Tclk) must satisfy : • But since 3 samples are processed in 1 clock cycle instead of 3, the iteration period is given by • In a Pipelined system : Tclk = Tsample

  14. Parallel Processing (4) • Complete parallel processing system with block size 4

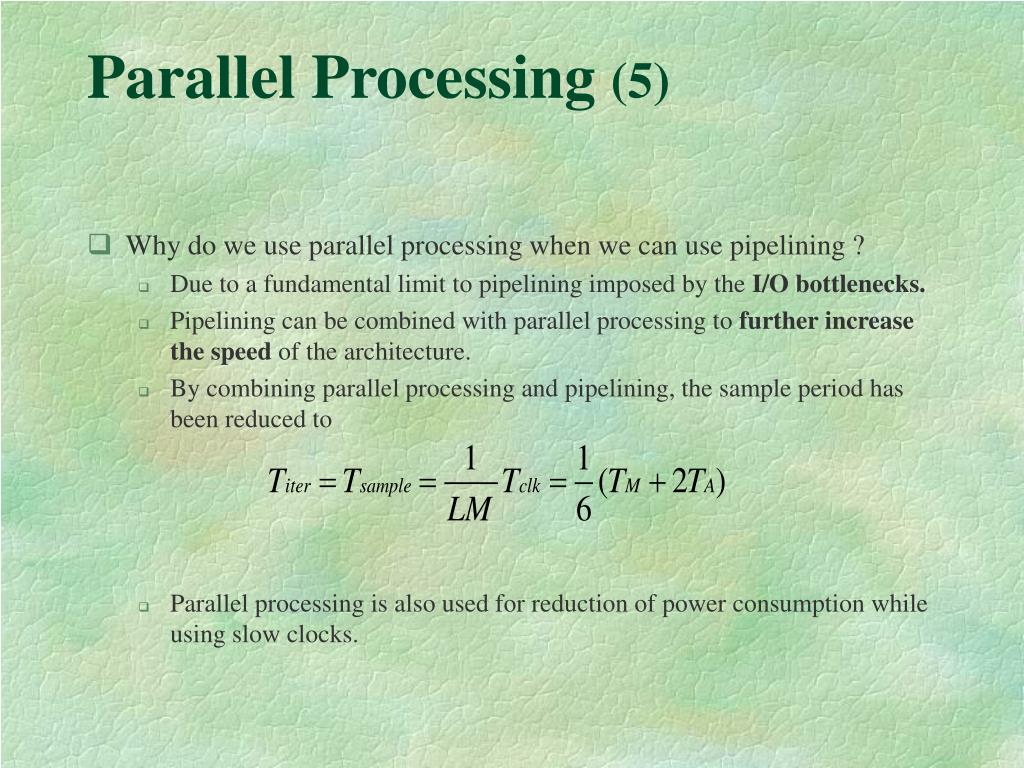

  15. Parallel Processing (5) • Why do we use parallel processing when we can use pipelining ? • Due to a fundamental limit to pipelining imposed by the I/O bottlenecks. • Pipelining can be combined with parallel processing to further increase the speed of the architecture. • By combining parallel processing and pipelining, the sample period has been reduced to • Parallel processing is also used for reduction of power consumption while using slow clocks.

  16. Parallel Processing (6) < A chip set>

  17. Parallel Processing (7) <Combined fine-grain pipelining and parallel processing for 3-tap FIR filter>

  18. Pipelining and Parallel processing for Low power • There are two main advantages of using pipelining and parallel processing : • Higher speed • Lower power • For CMOS circuit, the propagation delay can be written as : • Power consumption of a CMOS circuit can be estimated as :

  19. Pipelining for Low power (1) • represent the power consumed in the original filter. (where Tseq is the clock period of the original sequential filter) • In the M-level pipelined system, the critical path is reduced to 1/M of its original length and the capacitance to be charged/discharged in a single clock cycle is reduced to Ccharge / M. • supply voltage can be reduced to

  20. Pipelining for Low power (2) • The power consumption factor, , can be determined by examining the relationship between the propagation delay of the original filter and the pipelined filter.

  21. Parallel processing for Low power (1) • Parallel processing, like pipelining, can reduce the power consumption of a system by allowing the supply voltage to be reduced. • In an L-parallel system, the charging capacitance does not change while the total capacitance is increased by L times. • In order to maintain the same sample rate, the clock period of the L-parallel circuit must be increased to LTseq, where Tseq is the propagation delay of the sequential circuit. • There is more time to charge the same capacitance => supply voltage can be reduced to supply voltage can be reduced to

  22. Parallel processing for Low power (2) • The propagation delay of the L-parallel system is given by :

  23. Conclusions • The pipelining • Pipelining latches are placed across the feed-forward cutsets in the SFG and computation time of the critical path is reduced • The clock frequency can be increased and hence the sampling rate is increased. • Parallel processing • The hardware for the original serial system is duplicated and the resulting system is MIMO parallel system. • The clock freq. Stays the same, and the sampling freq. is increased. • Two scheme is used for higher speed and lower power design (using lower supply voltage).
