  1. Grid Technology: The Rough Guide Grid Building Hands-On Session Ashok Adiga, Texas Advanced Computing Center Victor Bolet, Georgia State University

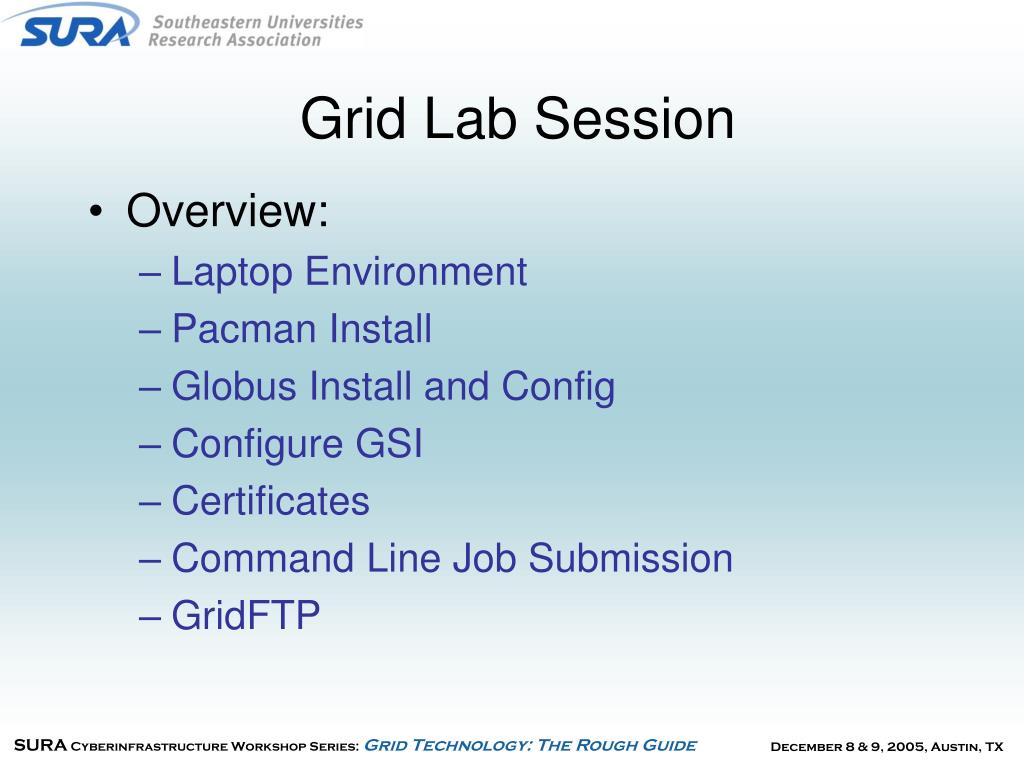

  2. Grid Lab Session • Overview: • Laptop Environment • Pacman Install • Globus Install and Config • Configure GSI • Certificates • Command Line Job Submission • GridFTP

  3. Grid Lab Session • Overview: (cont) • Ganglia Install • CondorG • MyProxy • Using a Grid Portal: SURAGrid • Portal Job Submission • Wrap Up

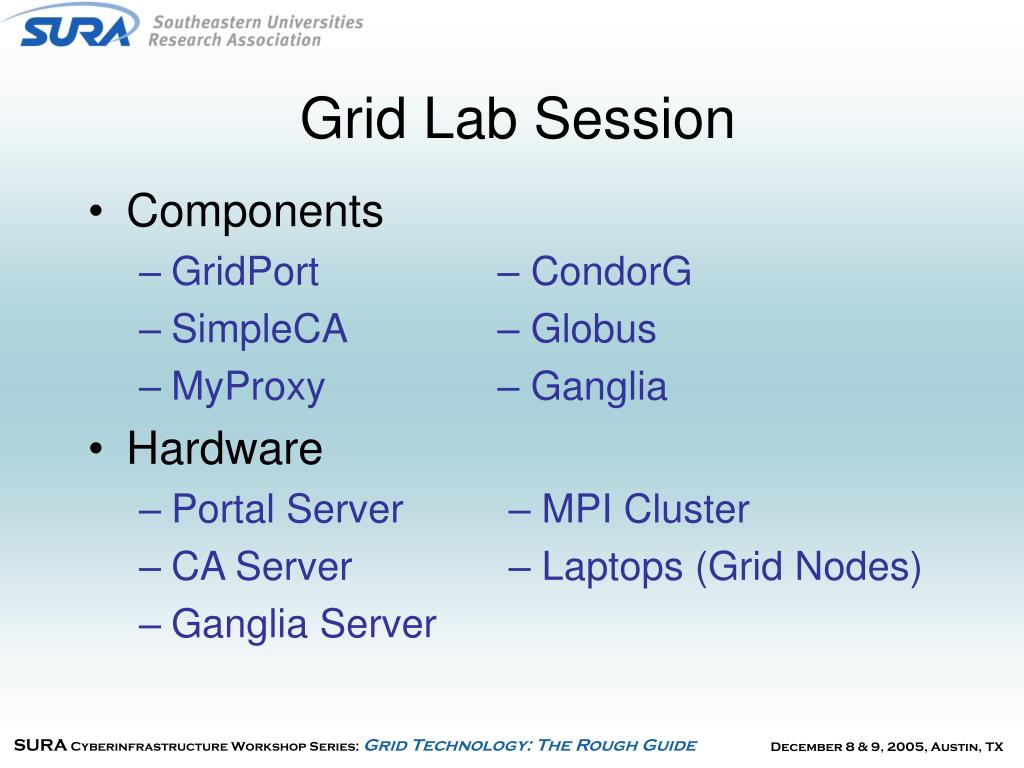

  4. Grid Lab Session • Components • GridPort – CondorG • SimpleCA – Globus • MyProxy – Ganglia • Hardware • Portal Server – MPI Cluster • CA Server – Laptops (Grid Nodes) • Ganglia Server

  5. Laptop Environment • Red Hat Enterprise 2.6.11 • Bash shell • Root Account: login: root password: Unx4me. • User Account: login: griduser password: griduser • Log in as griduser • Right click on desktop and select “Open Terminal” (you will need 2 terminals) • Login as root in one of the terminal windows • In one of the terminals type: su – • Enter the root password • Files for workshop are located in /root/workshop

  6. Network Setup • Grids are picky about networks • Host names • For a host cert, the fully qualified host name must be in there • When using services, host names are provided to call back to send status information • Firewalls • GridFTP, status messages can be blocked • On your laptop: • Applications menu -> System Settings -> Network • In the DNS tab, set the Hostname to be • labXX.tacc.utexas.edu (replace XX with your number) • File -> Save and then File -> Quit

  7. Time Setup • Grid security requires that the times on the hosts match up well • Grid-proxy-init • On a host that thinks it is 11am • You get a proxy valid from 11am today • Globusrun to a host • To a host that thinks that it is 10am • Does not allow you to run - your proxy isn’t valid • Check the time on your laptop • If it isn’t correct: • Use the date command to correct it • date [MMDDhhmm.ss]

  8. Pacman Install • In the root window, change into the vdt directory: • cd /usr/local/vdt • Fetch the pacman tarball: • wget http://physics.bu.edu/pacman/sample_cache/tarballs/pacman-latest.tar.gz • Expand the tarball: • tar zxvf pacman-latest.tar.gz • Install Pacman: • cd pacman-3.15/ • source setup.sh

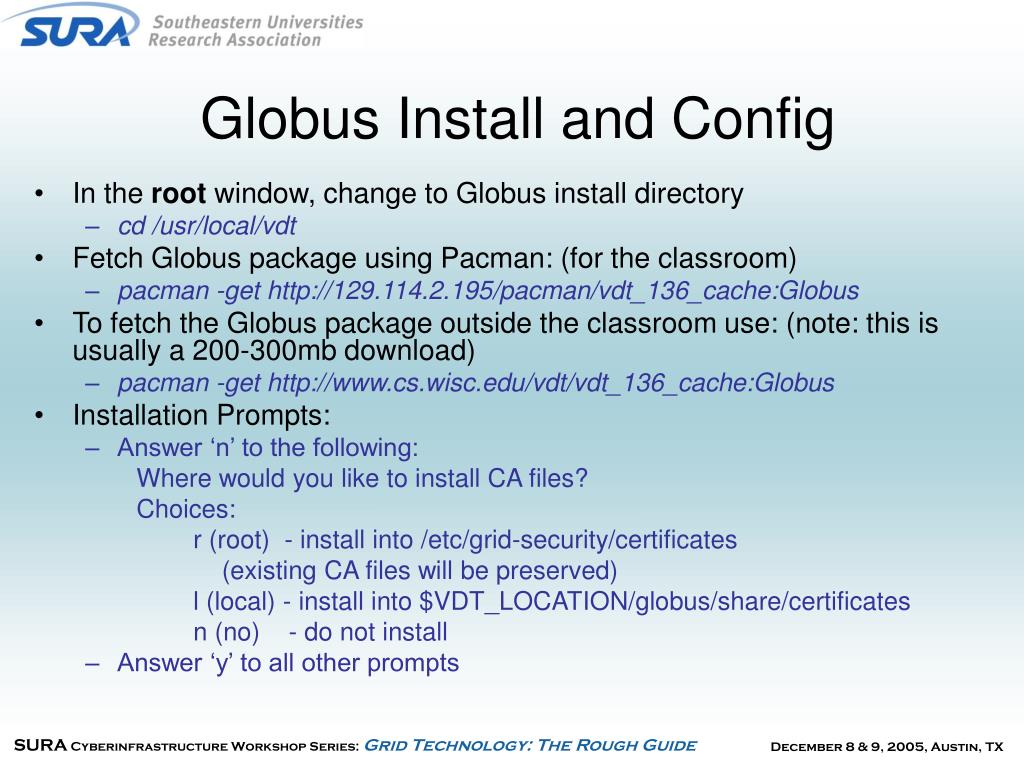

  9. Globus Install and Config • In the root window, change to Globus install directory • cd /usr/local/vdt • Fetch Globus package using Pacman: (for the classroom) • pacman -get http://129.114.2.195/pacman/vdt_136_cache:Globus • To fetch the Globus package outside the classroom use: (note: this is usually a 200-300mb download) • pacman -get http://www.cs.wisc.edu/vdt/vdt_136_cache:Globus • Installation Prompts: • Answer ‘n’ to the following: Where would you like to install CA files? Choices: r (root) - install into /etc/grid-security/certificates (existing CA files will be preserved) l (local) - install into $VDT_LOCATION/globus/share/certificates n (no) - do not install • Answer ‘y’ to all other prompts

  10. Configure GSI • In the root window,change to the install directory: • cd /usr/local/vdt • Configure Globus GSI: • source setup.sh • mkdir /etc/grid-security • gpt-build /root/workshop/globus_simple_ca_bffae137_setup-0.17.tar.gz gcc32dbg • gpt-postinstall (NOTE: Ignore Warning Messages) • /usr/local/vdt/globus/setup/globus_simple_ca_bffae137_setup/setup-gsi -default • Copy Certificates: • cd /etc/grid-security/certificates • tar xvf /root/workshop/certs.tar • Link the Globus Files • /root/workshop/gsi_certlinks.sh • This script does the following: ln -s /etc/grid-security/certificates /usr/local/vdt/globus/TRUSTED_CA ln -s /etc/grid-security/certificates /usr/local/vdt/globus/etc/certificates ln -s /etc/grid-security/globus-host-ssl.conf /usr/local/vdt/globus/etc/globus-host-ssl.conf ln -s /etc/grid-security/globus-user-ssl.conf /usr/local/vdt/globus/etc/globus-user-ssl.conf ln -s /etc/grid-security/grid-security.conf /usr/local/vdt/globus/etc/grid-security.conf

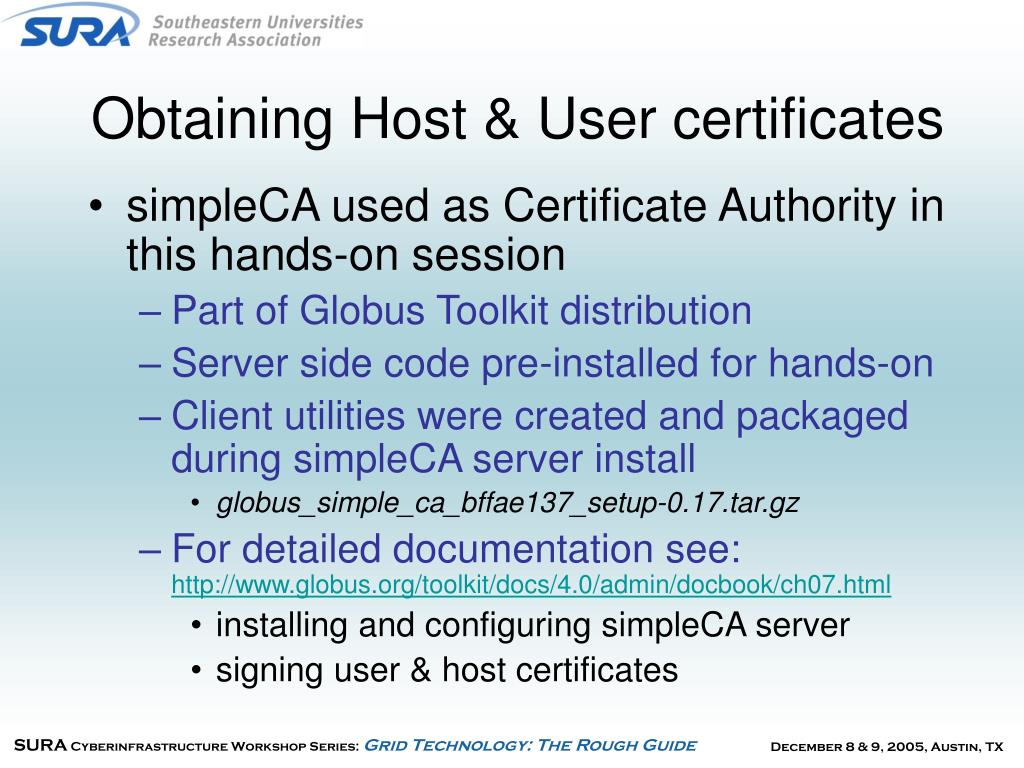

  11. Obtaining Host & User certificates • simpleCA used as Certificate Authority in this hands-on session • Part of Globus Toolkit distribution • Server side code pre-installed for hands-on • Client utilities were created and packaged during simpleCA server install • globus_simple_ca_bffae137_setup-0.17.tar.gz • For detailed documentation see: http://www.globus.org/toolkit/docs/4.0/admin/docbook/ch07.html • installing and configuring simpleCA server • signing user & host certificates

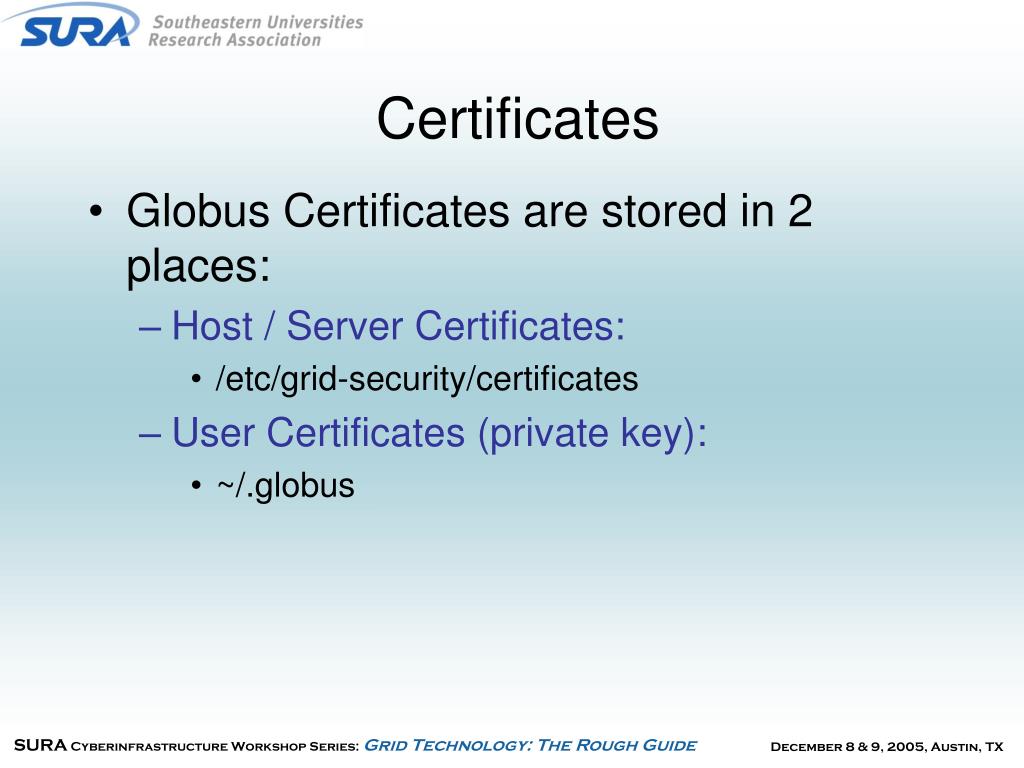

  12. Certificates • Globus Certificates are stored in 2 places: • Host / Server Certificates: • /etc/grid-security/certificates • User Certificates (private key): • ~/.globus

  13. Requesting Certificates • Generate Host Certificate Request (in root window): • source /usr/local/vdt/setup.sh • grid-cert-request –host `hostname` • (answer yes to the warning about fully qualified names) • cp /usr/local/vdt/globus/etc/hostkey.pem /etc/grid-security/ • Generate User Certificate Request (in griduser window): • source /usr/local/vdt/setup.sh • grid-cert-request • Enter your name • set a passphrase (Need to remember this!!!) • Certificates are ready to be Signed: • Inform the Instructor your certificates are ready

  14. Grid Security Files (local certs) • Verify policy files and “.0” files (in griduser window): • ls /etc/grid-security/certificates • Generate a proxy certificate: • grid-proxy-init • enter pass phrase used to generate certificate • Verify the certificate details: • grid-cert-info • grid-cert-info –subject

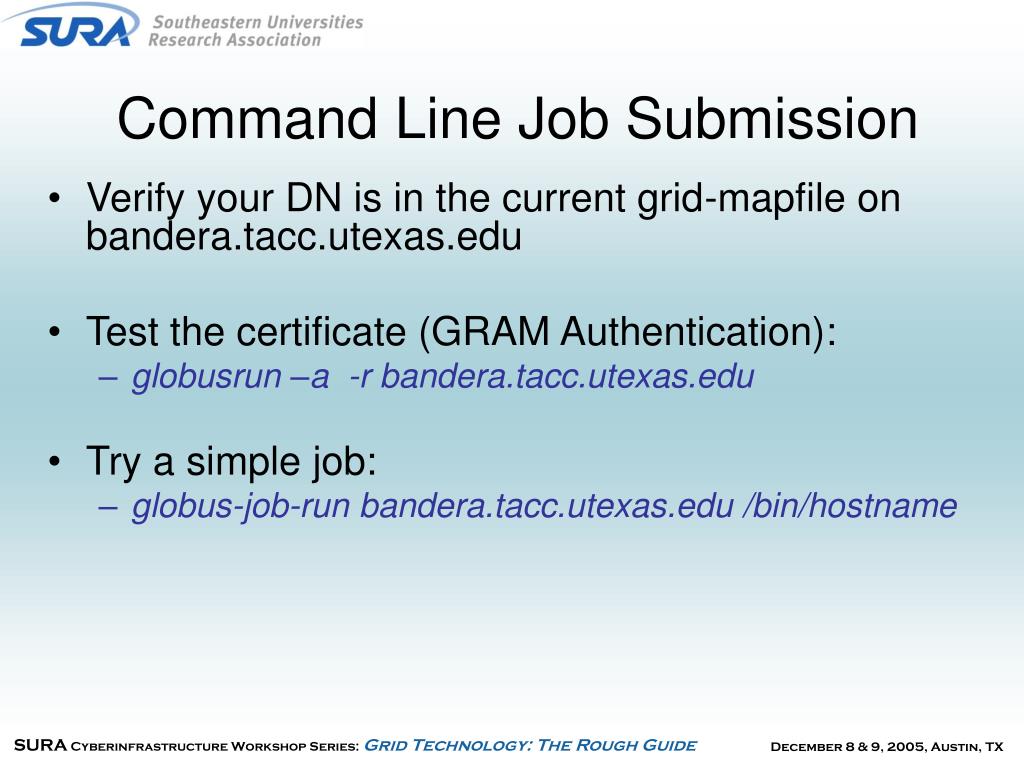

  15. Command Line Job Submission • Verify your DN is in the current grid-mapfile on bandera.tacc.utexas.edu • Test the certificate (GRAM Authentication): • globusrun –a -r bandera.tacc.utexas.edu • Try a simple job: • globus-job-run bandera.tacc.utexas.edu /bin/hostname

  16. GridFTP Create a test file to copy • echo “1 2 3 4 5” > /tmp/<hostname>numbers.txt • Copy the file to bandera using GridFTP • globus-url-copy file:///tmp/<hostname>numbers.txt \ gsiftp://bandera.tacc.utexas.edu/tmp/<hostname>numbers.txt • See your file on Bandera (instructor to display)

  17. Ganglia Monitoring Tool • Collector Machine: lab01 (preinstalled) • URL: http://129.114.2.195/ganglia • Collector machine runs gmetad service • Grid nodes report to lab01 through local gmond service • Server install documentation/download: • http://ganglia.sourceforge.net • Version 3.0.1

  18. Ganglia Install • Install gmond Service: (in root window) • rpm –i /root/workshop/ganglia-gmond-3.0.1-1.i386.rpm • edit /etc/gmond.conf • Under cluster: • name=<hostname> • owner=“Your Name” • Under udp_send_channel: • comment out (#) the mcast_join statement • add a "host = labXX.staff.utexas.edu" statement • Under udp_recv channel: • comment out (#) the mcast_join statement • comment out (#) the bind statement • Restart gmond • service gmond restart • Go to URL and see your node: • http://129.114.2.195/ganglia

  19. Condor Install, Config, Startup • Installs & configures all of Condor • We’ll just be using the Condor-G and DAGMan parts • In the root window, change to Globus install directory • cd /usr/local/vdt • Fetch Condor package using Pacman: (for the classroom) • pacman -get http://129.114.2.195/pacman/vdt_136_cache:Condor • To fetch the Globus package outside the classroom use: (note: this is a 100mb download) • pacman -get http://www.cs.wisc.edu/vdt/vdt_136_cache:Condor • Installation Prompts: • Would you like Condor to run automatically? • Yes • Update root environment so that you can use Condor • source /usr/local/vdt/setup.sh • Start the Condor Master (which starts all other Condor daemons) • cd /usr/local/vdt/condor/sbin/ • ./condor_master • You should see the condor daemons running as the condor user • ps -eaf | grep condor

  20. Using Condor-G • Working in the griduser window • Update the environment • source /usr/local/vdt/setup.sh • Look at the condor commands in /usr/local/vdt/condor/bin • condor_q to look at queued jobs • condor_submit to submit a condor job • condor_rm to remove a submitted job

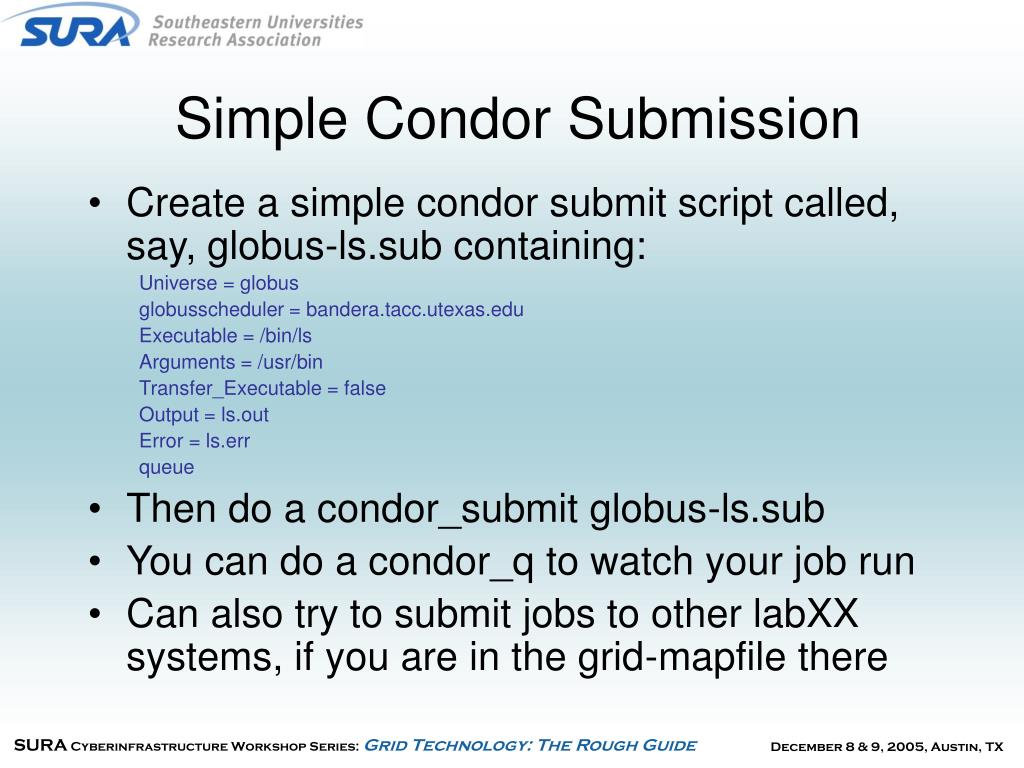

  21. Simple Condor Submission • Create a simple condor submit script called, say, globus-ls.sub containing: Universe = globus globusscheduler = bandera.tacc.utexas.edu Executable = /bin/ls Arguments = /usr/bin Transfer_Executable = false Output = ls.out Error = ls.err queue • Then do a condor_submit globus-ls.sub • You can do a condor_q to watch your job run • Can also try to submit jobs to other labXX systems, if you are in the grid-mapfile there

  22. MyProxy • Install MyProxy client (In root window): • cd /usr/local/vdt • pacman -get http://www.cs.wisc.edu/vdt/vdt_136_cache:MyProxy • MyProxy host name: • pecos.tacc.utexas.edu • for MyProxy server installation instructions, see: http://www.globus.org/toolkit/docs/4.0/security/myproxy/admin-index.html • Load MyProxy Certificate: • myproxy-init -s pecos.tacc.utexas.edu -l <portal_username> * portal_username is the same as your wireless account • enter User Certificate passphrase • enter MyProxy password • Need to Remember this Password!!

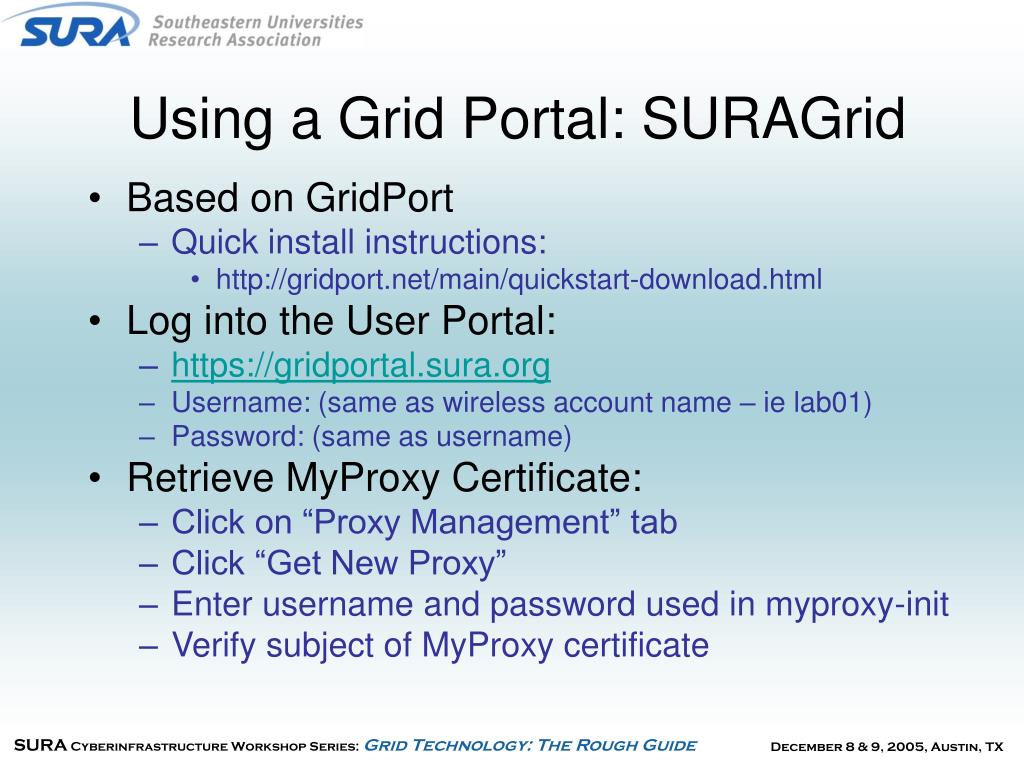

  23. Using a Grid Portal: SURAGrid • Based on GridPort • Quick install instructions: • http://gridport.net/main/quickstart-download.html • Log into the User Portal: • https://gridportal.sura.org • Username: (same as wireless account name – ie lab01) • Password: (same as username) • Retrieve MyProxy Certificate: • Click on “Proxy Management” tab • Click “Get New Proxy” • Enter username and password used in myproxy-init • Verify subject of MyProxy certificate

  24. SURAGrid Portal (cont.) • File Management tab: • Select Host: bandera.tacc.utexas.edu • Manage local files on bandera • Job Submission tab: • Host: bandera.tacc.utexas.edu • Port: 2119 (default) • Executable: /bin/hostname • Standard Output: /home/griduser/hostname.out • Use File Management tab to see if file is there

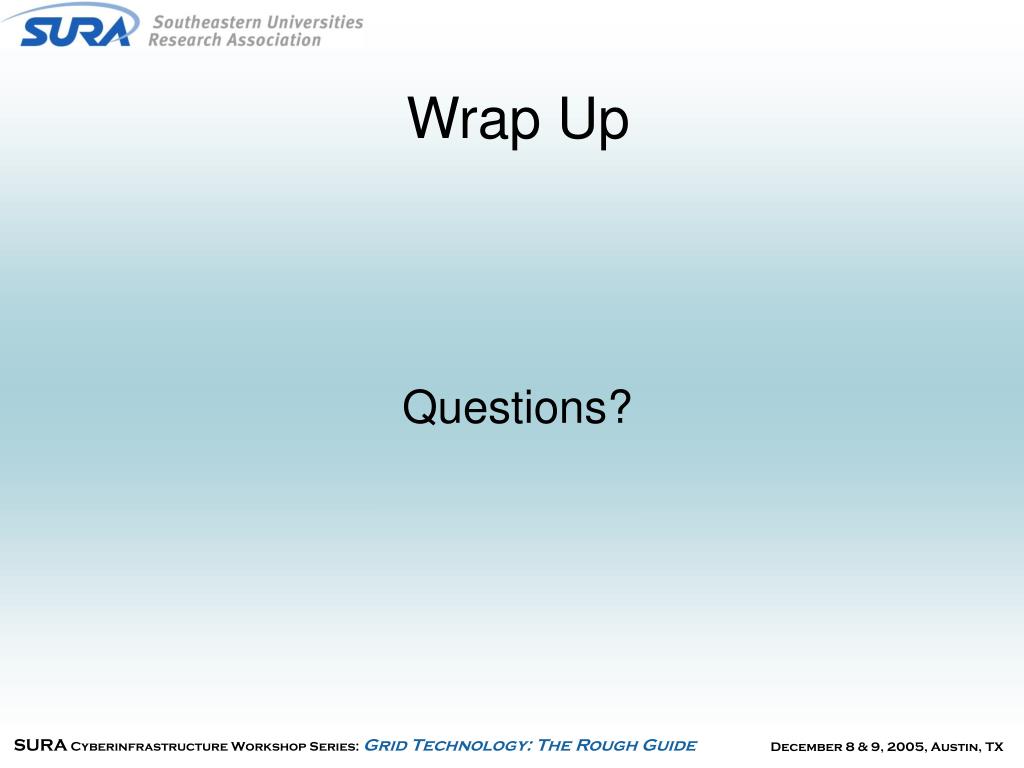

  25. Wrap Up Questions?
