  1. Analyzing Amusement Park Graphs California’s Great America 2012 Clarence Bakken Teacher Steering Committee

  2. Goals of this Activity • Help students understand graphs they obtain via electronic data collection • Help teachers assist students in understanding their data • Attain greater understanding of graphical information

  3. The Ride: Vortex

  4. Complete Set of Graphs

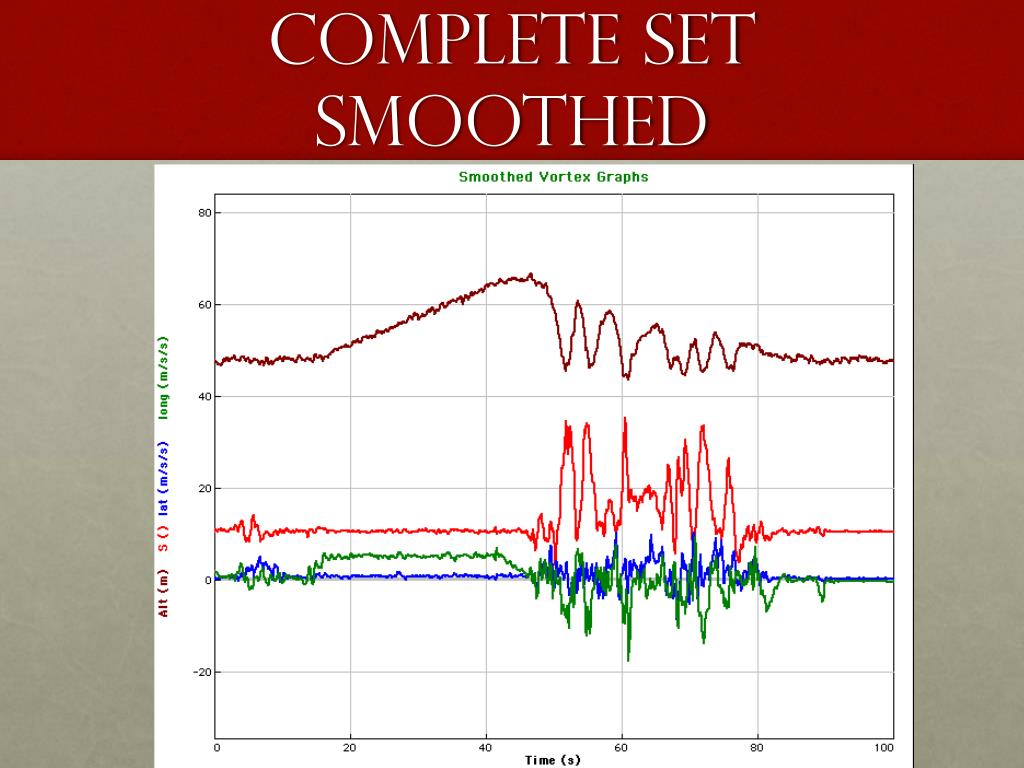

  5. Complete Set Smoothed

  6. Altitude vs. Time Lift hill Corkscrew Loop Ride Profile

  7. Vertical Acceleration/Forces Corkscrew Altitude (m) Bottom of Hill(Start of loop) Dip at end of initial section Vertical (m/s/s) Vertical Forces

  8. Corkscrew Altitude (m) Left turn top of lift hill Left turn thru corkscrew Left turn at end of run-on Lateral (m/s/s) Right turnbefore corkscrew Lateral Forces Lateral Acceleration/Forces

  9. Longitudinal Acceleration/Forces Lift Hill Longitudinal Forces Pushed forward - “Falling” backward Held back - Pitching forward…

  10. The Ride: Orbit

  11. Vertical & Longitudinal Maximum Longitudinal Force - mid-level Vertical Force Maximum Vertical Force – zero Longitudinal Force Vertical (m/s/s) Longitudinal (m/s/s) Vertical and Longitudinal

  12. Vertical Acceleration/Force 44.9 sec / 11 periods = 4.1 sec/period ~1.8 g’s ~2g’s Vertical Forces

  13. Longitudinal Acceleration/Force + 1g - 1g Longitudinal Acceleration

  14. The Ride: Centrifuge

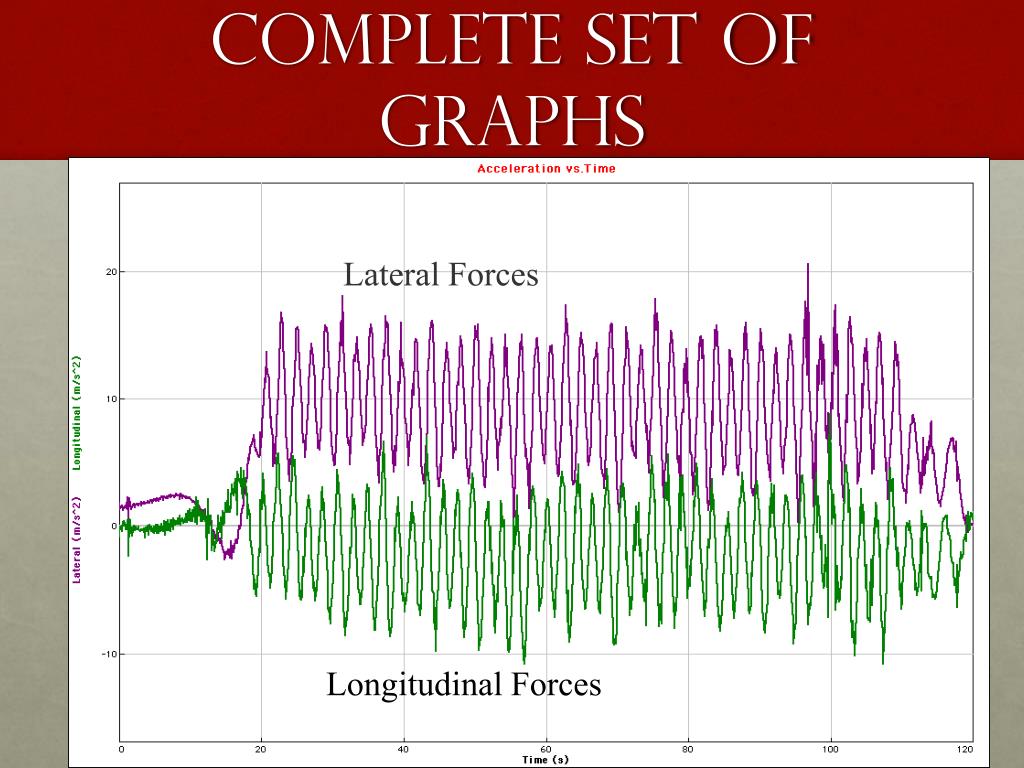

  15. Complete Set of Graphs Lateral Forces Longitudinal Forces

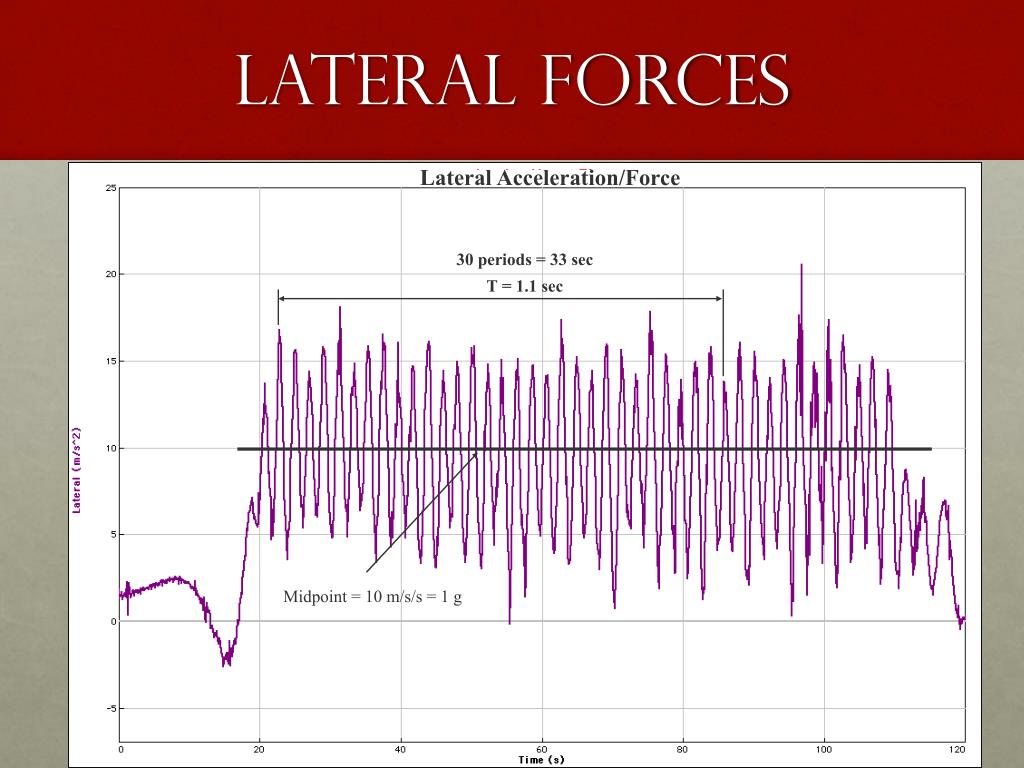

  16. Lateral Acceleration/Force 30 periods = 33 sec T = 1.1 sec Midpoint = 10 m/s/s = 1 g Lateral Forces

  17. The Ride: Drop Tower

  18. Ride Profile & Vertical Force Parabolic Altitude (m) Vertical (m/s/s) 3 sec Complete Set of Graphs

  19. Exponential decay Coupling change 3 sec Vertical Force

  20. Conclusion • Need to know direction of accelerometer(s) • Relate to orientation of rider • Relate to location on the ride • Give students opportunity to scour over data, too! • Smooth the data for easier analysis

  21. Have a great time at Great America!
