  1. A CMOS Phase Locked Loop Authors: Dan Booth Jared Hay Pat Keller • Advisor: • Dr. Peter Osterberg • Industry Representative: • Mr. Steve Kassel • (Ret.), Intel Corp. University of Portland School of Engineering

  2. Agenda • Introduction Dan Booth • Background Dan Booth • Methods Pat Keller • Results Pat Keller • Conclusions Jared Hay • Demonstration Jared Hay University of Portland School of Engineering

  3. Special Thanks Dr. Peter Osterberg Mr. Steve Kassel Dr. Wayne Lu Ms. Sandra Ressel MOSIS Educational Program Introduction University of Portland School of Engineering

  4. Introduction • Project problem definition: • Synthesize 90-110kHz from a 1kHz reference • Why frequency synthesis? • Frequency generator • Signal conditioning • Clock multiplication University of Portland School of Engineering

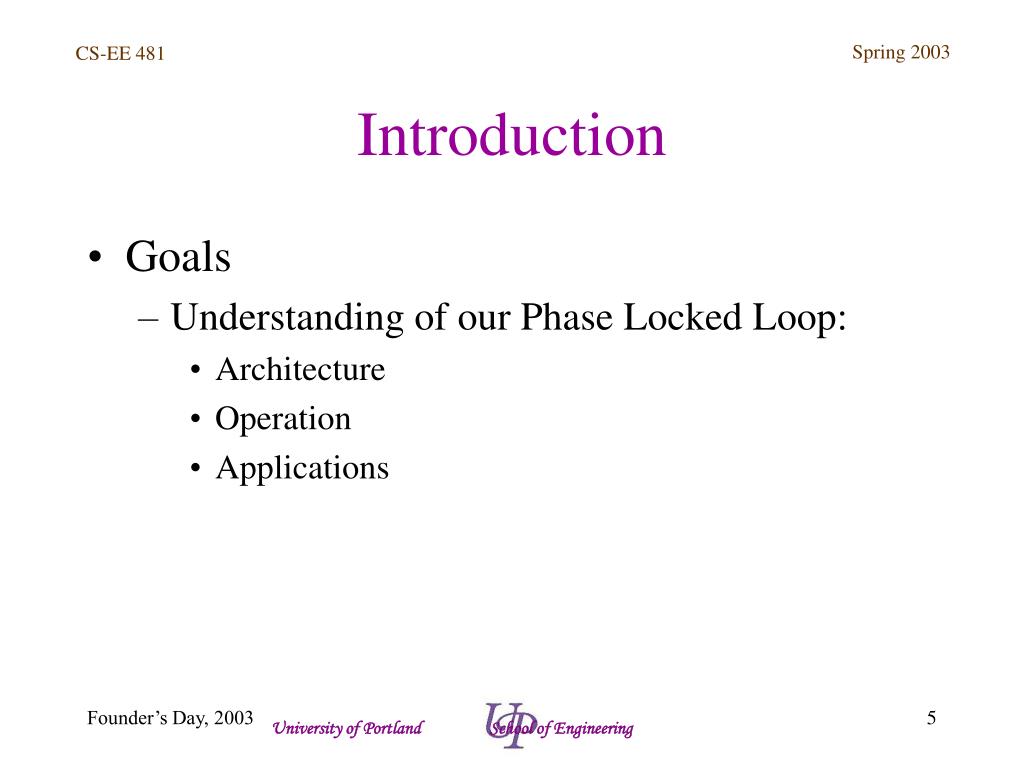

  5. Introduction • Goals • Understanding of our Phase Locked Loop: • Architecture • Operation • Applications University of Portland School of Engineering

  6. fout fin VC Verror Phase frequency detector Loop filter VCO fd Frequency Divider CMOS Chip N Control Background • Phase Locked Loop Architecture University of Portland School of Engineering

  7. Background • What our PLL frequency synthesizer does: • Produces an output of 90-110kHz in 1kHz increments • fin = 1kHz • N = integers from 90 to 110 • fout = N*fin = 90 – 110kHz • Key functional specifications: • fin and fout are 0 to 5 volt digital signals • Lock range of 90 – 110kHz University of Portland School of Engineering

  8. fin fin fin fd fd fd verror verror verror fd fd Background Phase Lock Feedback Situation A: Frequencies are in phase - VC held constant Situation B: fin leads fd - VC increases Situation C: fd leads fin - VC decreases University of Portland School of Engineering

  9. Methods Phase I: Research of PLLs University of Portland School of Engineering

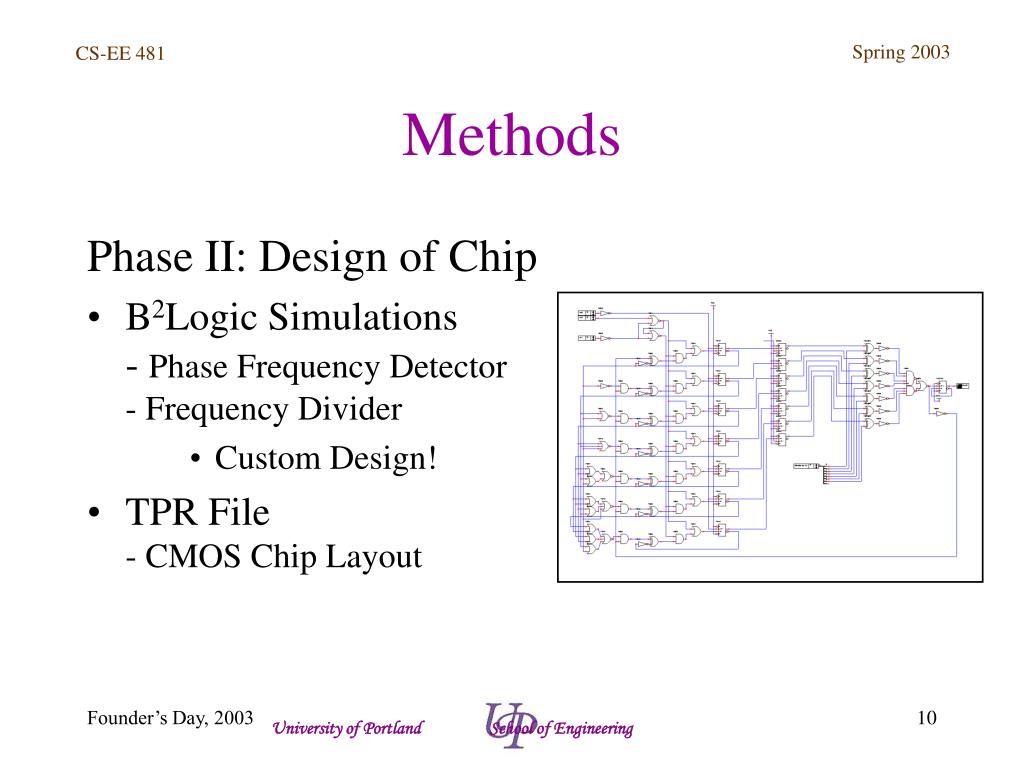

  10. Methods Phase II: Design of Chip • B2Logic Simulations- Phase Frequency Detector- Frequency Divider • Custom Design! • TPR File- CMOS Chip Layout University of Portland School of Engineering

  11. Methods Phase III: Building • Macromodel of Chip • VCO configuration- set control voltage range, VC- set output frequency range • Loop Filter- 2nd order low pass filter- set pole and zero for stability University of Portland School of Engineering

  12. Methods • Closing the feedback loop- Achieving lock • User interface- N-Control switches- Seven-segment displays University of Portland School of Engineering

  13. Digital CMOS Chip Frequency Divider Phase Frequency Detector Results = University of Portland School of Engineering

  14. Results • Off Chip Components • Loop Filter • Voltage Controlled Oscillator University of Portland School of Engineering

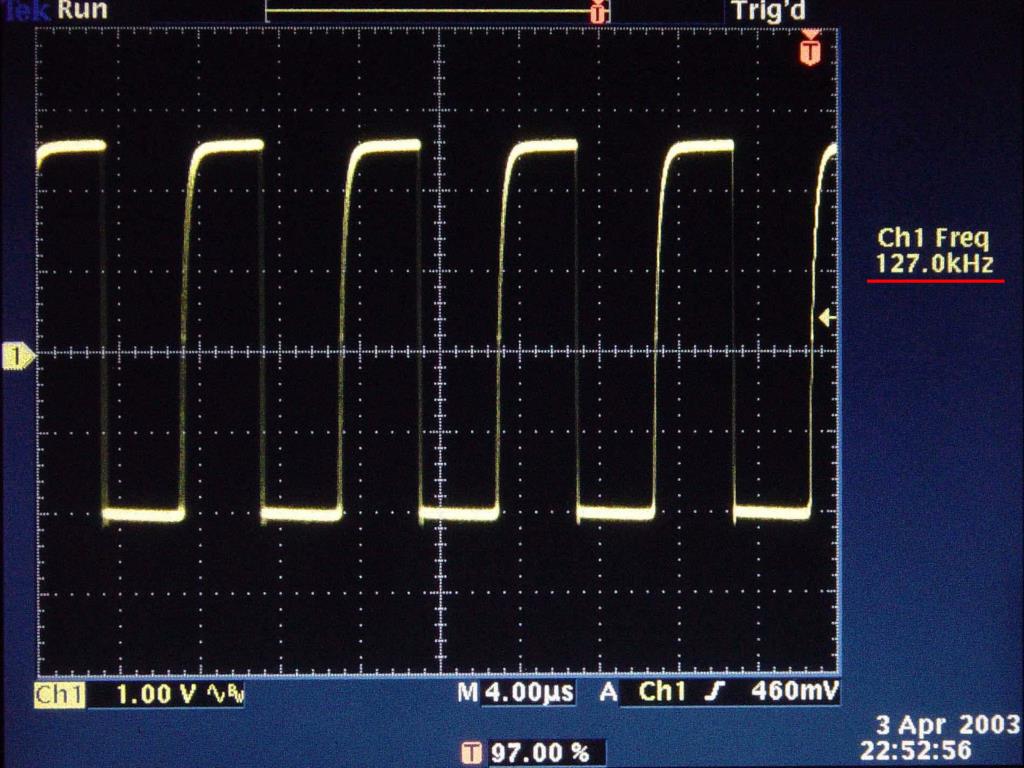

  15. Conclusions • CMOS Chip works! • Operation is stable • Increased Performance • Output range: 51 – 127kHz • Limited by VC range of 0-5 V University of Portland School of Engineering

  16. Conclusions • Possible Improvements • Increase reference frequency accuracy • Crystal oscillator • Applications • Frequency generator • Signal conditioning • Clock multiplication University of Portland School of Engineering

  17. Demonstration • Power up • fout displayed on scope- fout is N times fin - Lock is achieved quickly University of Portland School of Engineering

  18. University of Portland School of Engineering

  19. University of Portland School of Engineering

  20. University of Portland School of Engineering

  21. University of Portland School of Engineering

  22. University of Portland School of Engineering

  23. University of Portland School of Engineering

  24. University of Portland School of Engineering

  25. University of Portland School of Engineering

  26. Questions? University of Portland School of Engineering
