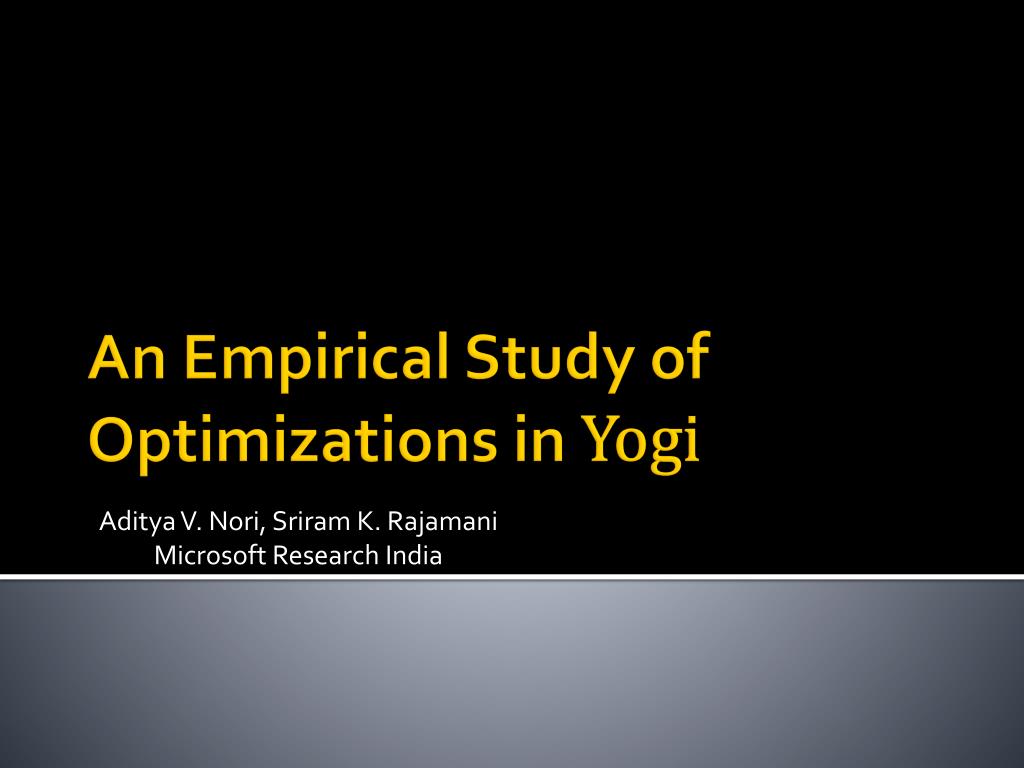

  1. Aditya V. Nori, Sriram K. Rajamani Microsoft Research India An Empirical Study of Optimizations in Yogi

  2. What is Yogi? • An industrial strength program verifier • Idea: Synergize verification and testing • Synergy [FSE ’06], Dash [ISSTA ‘08], SMASH [POPL ‘10] algorithms to perform scalable analysis • Engineered a number of optimizations for scalability • Integrated with Microsoft’s Static Driver Verifier (SDV) toolkit and used internally

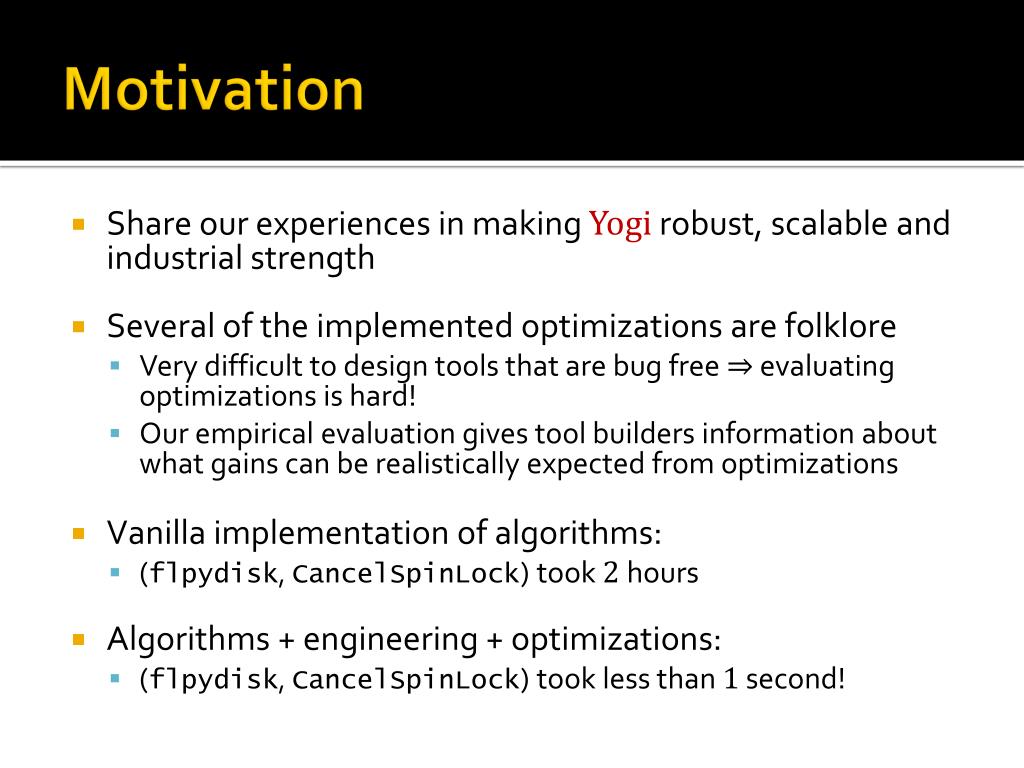

  3. Motivation • Share our experiences in making Yogi robust, scalable and industrial strength • Several of the implemented optimizations are folklore • Very difficult to design tools that are bug free evaluating optimizations is hard! • Our empirical evaluation gives tool builders information about what gains can be realistically expected from optimizations • Vanilla implementation of algorithms: • (flpydisk, CancelSpinLock) took 2 hours • Algorithms + engineering + optimizations: • (flpydisk, CancelSpinLock) took less than 1 second!

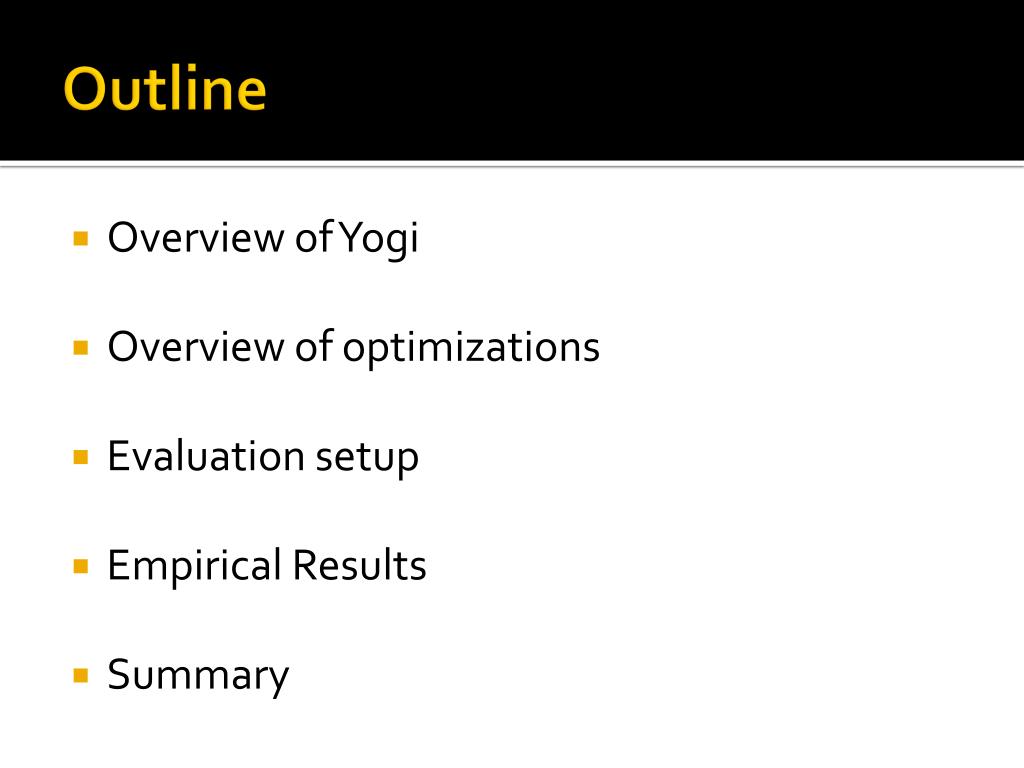

  4. Outline • Overview of Yogi • Overview of optimizations • Evaluation setup • Empirical Results • Summary

  5. Property checking Question Is error() unreachable for all possible inputs? void foo() { *p = 4; *q = 5; if (condition) error(); } Verification: can prove the absence of bugs, but can result in false errors Testing: finds bugs, but can’t prove their absence

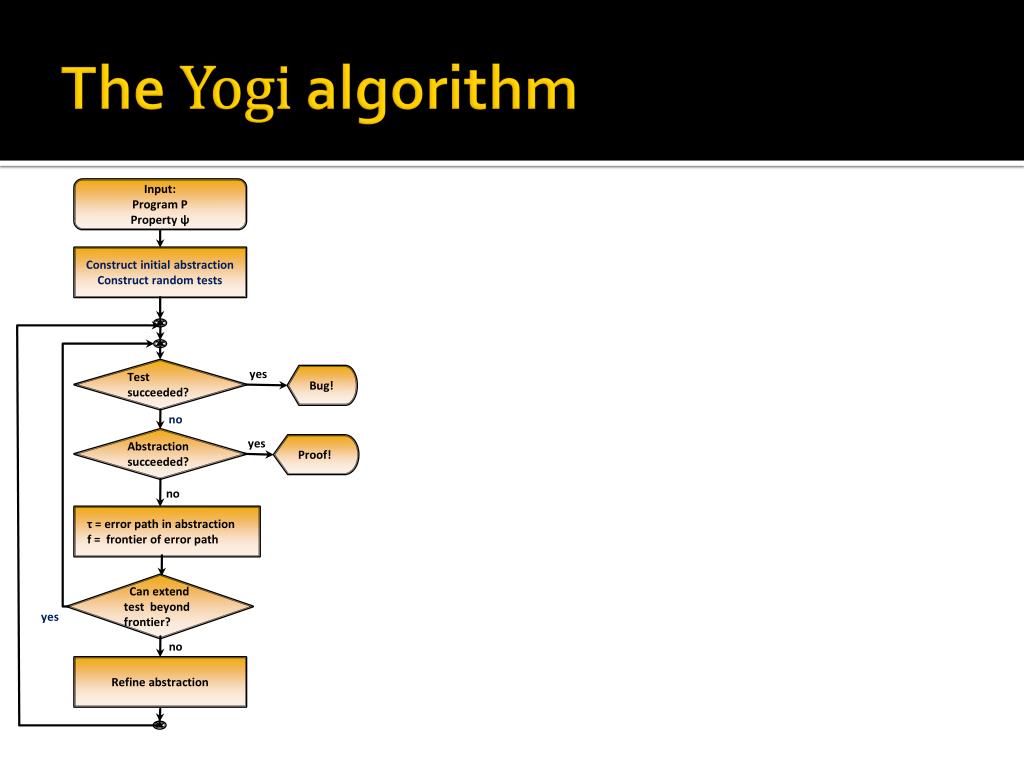

  6. The Yogi algorithm Input: Program P Property ψ Construct initial abstraction Construct random tests Test succeeded? yes Bug! no Abstractionsucceeded? yes Proof! no τ = error path in abstraction f = frontier of error path Can extend test beyond frontier? yes no Refine abstraction

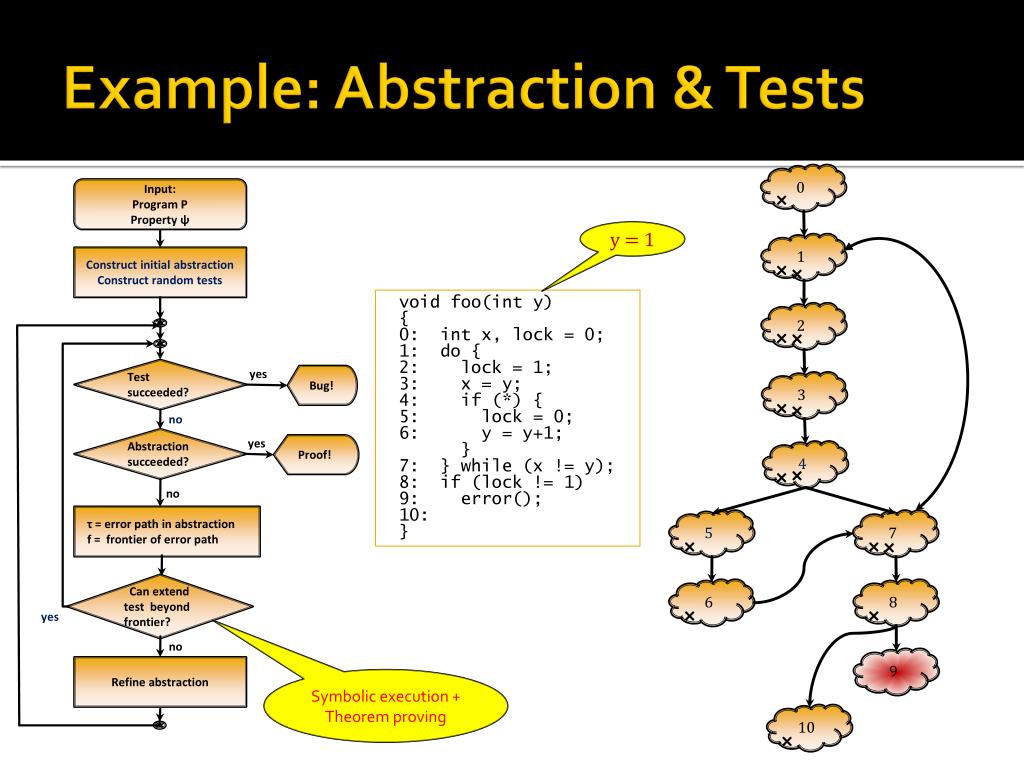

  7. Example: Abstraction & Tests Input: Program P Property ψ 0 Construct initial abstraction Construct random tests × y = 1 1 × × void foo(int y) { 0: int x, lock = 0; 1: do { 2: lock = 1; 3: x = y; 4: if (*) { 5: lock = 0; 6: y = y+1; } 7: } while (x != y); 8: if (lock != 1) 9: error(); 10: } 2 Test succeeded? yes Bug! × × no 3 × Abstractionsucceeded? × yes Proof! 4 no × × τ = error path in abstraction f = frontier of error path 5 7 × × × Can extend test beyond frontier? 6 8 × × yes no 9 Symbolic execution + Theorem proving Refine abstraction 10 ×

  8. Example: Refinement Input: Program P Property ψ 0 Construct initial abstraction Construct random tests × 1 × × void foo(int y) { 0: int x, lock = 0; 1: do { 2: lock = 1; 3: x = y; 4: if (*) { 5: lock = 0; 6: y = y+1; } 7: } while (x != y); 8: if (lock != 1) 9: error(); 10: } 2 Test succeeded? yes Bug! × × no 3 × Abstractionsucceeded? × yes Proof! 4 no × × τ = error path in abstraction f = frontier of error path 5 7 × × × Can extend test beyond frontier? 6 8:ρ 8:¬ρ × × × yes no 9 Refine abstraction 10 ×

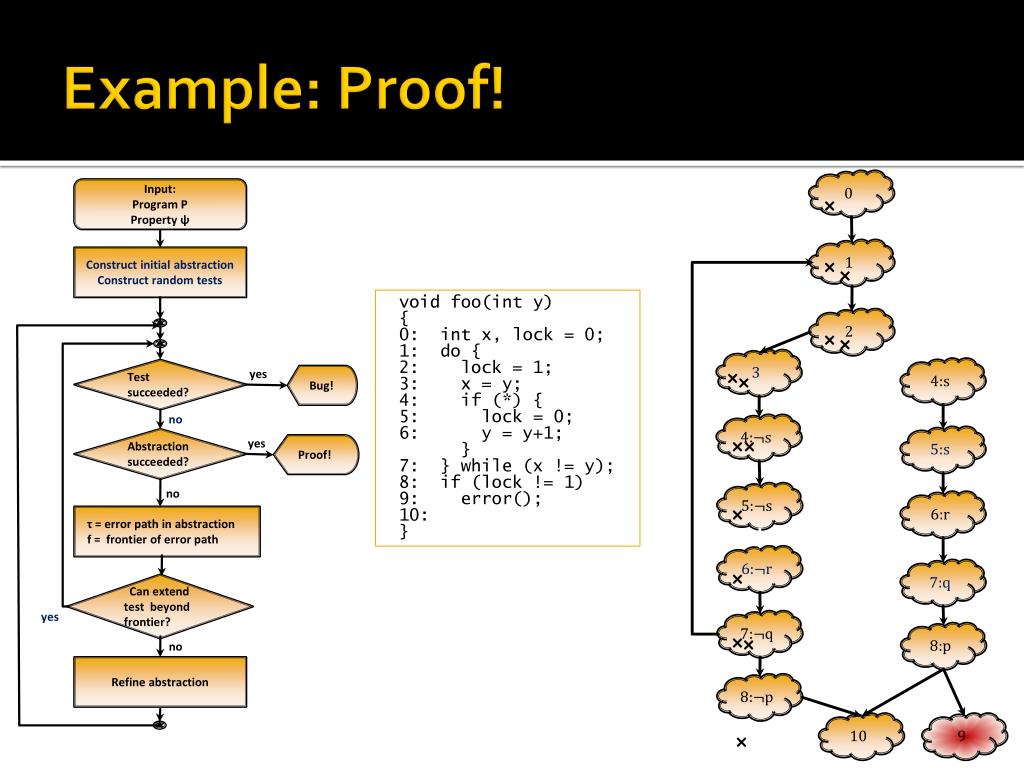

  9. Example: Proof! Input: Program P Property ψ Construct initial abstraction Construct random tests 0 × 1 × × void foo(int y) { 0: int x, lock = 0; 1: do { 2: lock = 1; 3: x = y; 4: if (*) { 5: lock = 0; 6: y = y+1; } 7: } while (x != y); 8: if (lock != 1) 9: error(); 10: } Test succeeded? yes 2 Bug! × × 3 × 4:s × no Abstractionsucceeded? yes Proof! 4:¬s × × 5:s no 5:¬s τ = error path in abstraction f = frontier of error path 6:r × 6:¬r × 7:q Can extend test beyond frontier? yes 7:¬q × 8:p × no Refine abstraction 8:¬p 10 9 ×

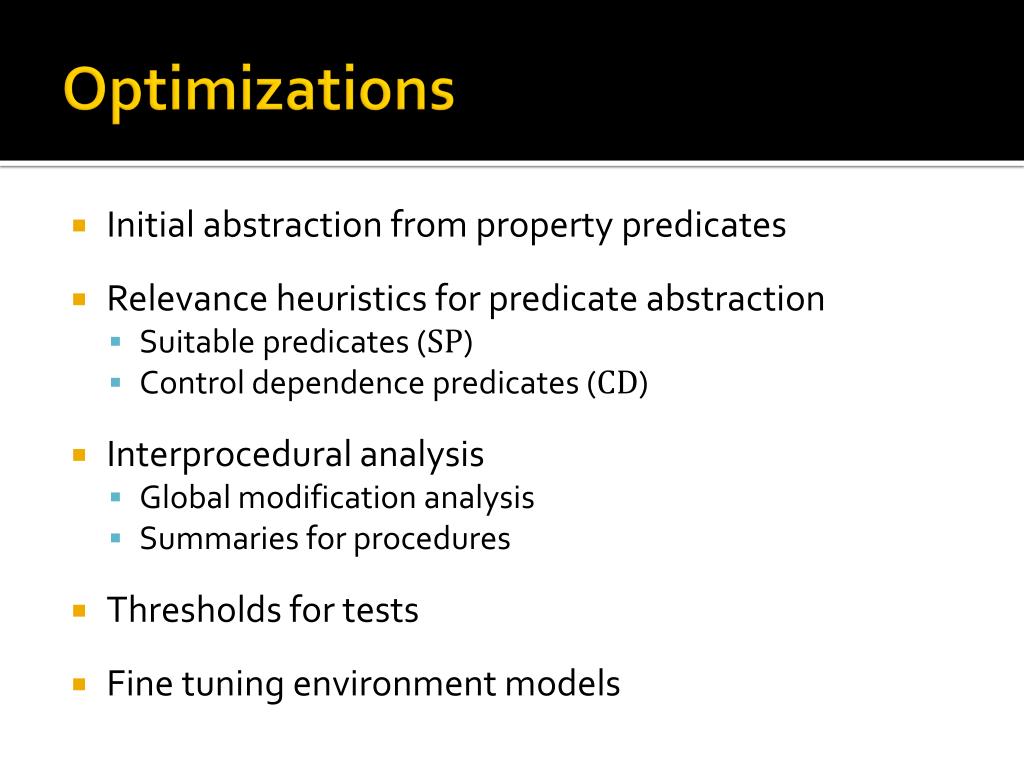

  10. Optimizations • Initial abstraction from property predicates • Relevance heuristics for predicate abstraction • Suitable predicates (SP) • Control dependence predicates (CD) • Interprocedural analysis • Global modification analysis • Summaries for procedures • Thresholds for tests • Fine tuning environment models

  11. Evaluation setup • Benchmarks: • 30 WDM drivers and 83 properties (2490 runs) • Anecdotal belief: most bugs in the tools are usually caught with this test suite • Presentation methodology: • Group optimizations logically such that related optimizations are in the same group • Total time taken, total number of defects found for every possible choice of enabling/disabling each optimization in the group

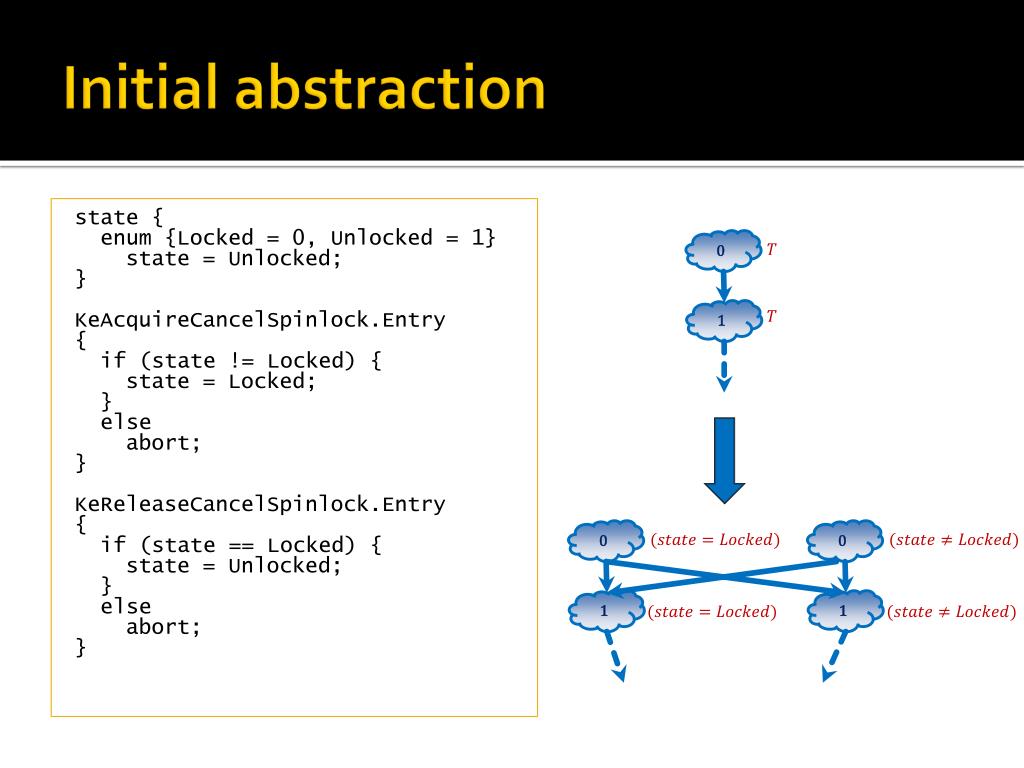

  12. Initial abstraction state { enum {Locked = 0, Unlocked = 1} state = Unlocked; } KeAcquireCancelSpinlock.Entry { if (state != Locked) { state = Locked; } else abort; } KeReleaseCancelSpinlock.Entry { if (state == Locked) { state = Unlocked; } else abort; } 0 0 0 1 1 1

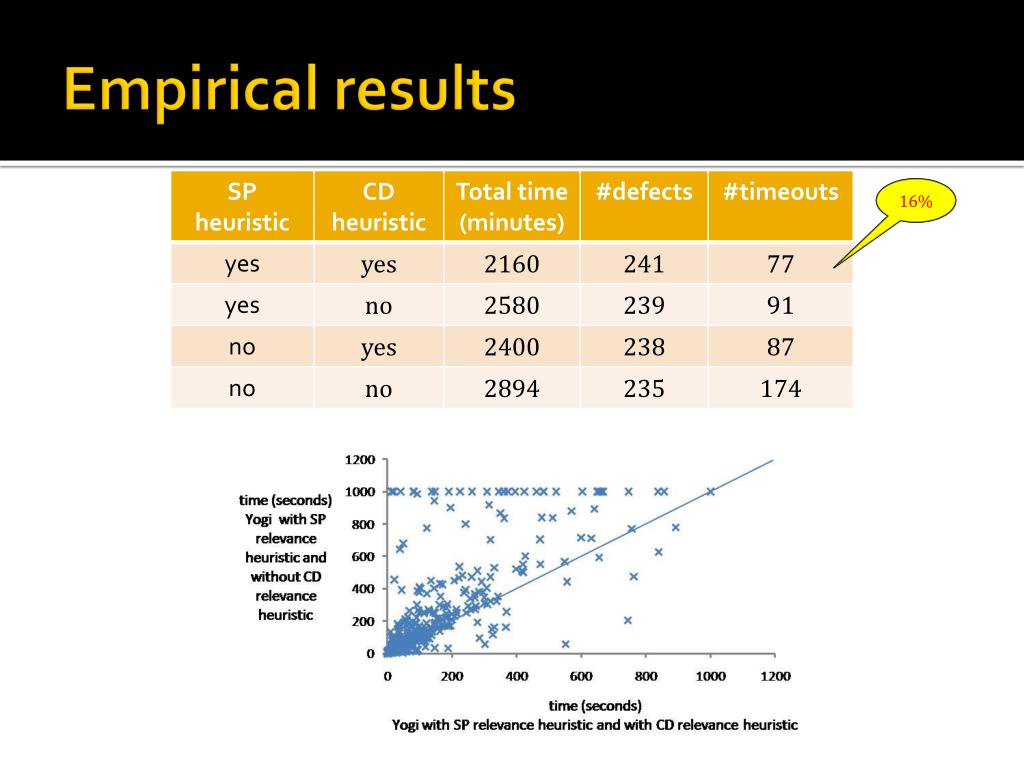

  13. Empirical results 16%

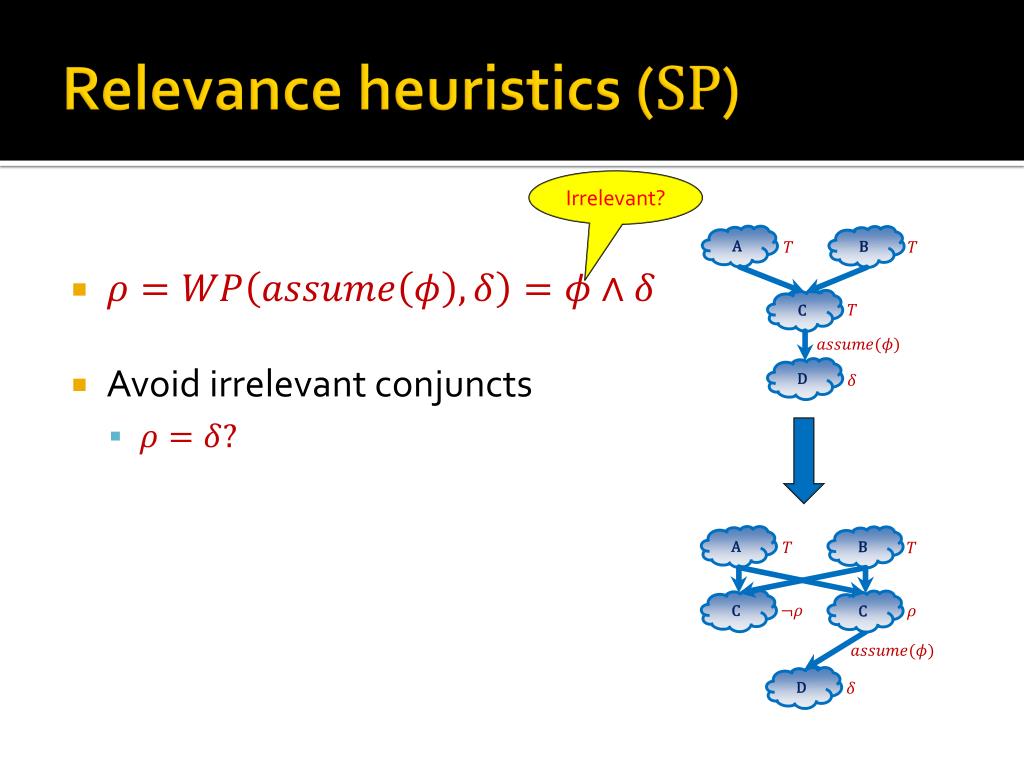

  14. Relevance heuristics (SP) Irrelevant? • Avoid irrelevant conjuncts A B C D A B C C D

  15. Relevance heuristics (CD) • Abstract assume statements that are not potentially relevant by skip statements • If Yogi proves that the program satisfies property, we are done. • Otherwise, validate the error trace and refine the abstraction by putting back assume statements, if the error trace is spurious

  16. Example: SP heuristic int x; void foo() { bool protect = true; … if (x > 0) protect = false; … if (protect) KeAcquireCancelSpinLock(); for (i = 0; i < 1000; i++) { a[i] = readByte(i); } if (protect) KeReleaseCancelSpinLock(); } A B C D A B C C D

  17. Example: SP heuristic int x; void foo() { bool protect = true; … if (x > 0) protect = false; … if (protect) KeAcquireCancelSpinLock(); for (i = 0; i < 1000; i++) { a[i] = readByte(i); } if (protect) KeReleaseCancelSpinLock(); } A B C D A B C C D

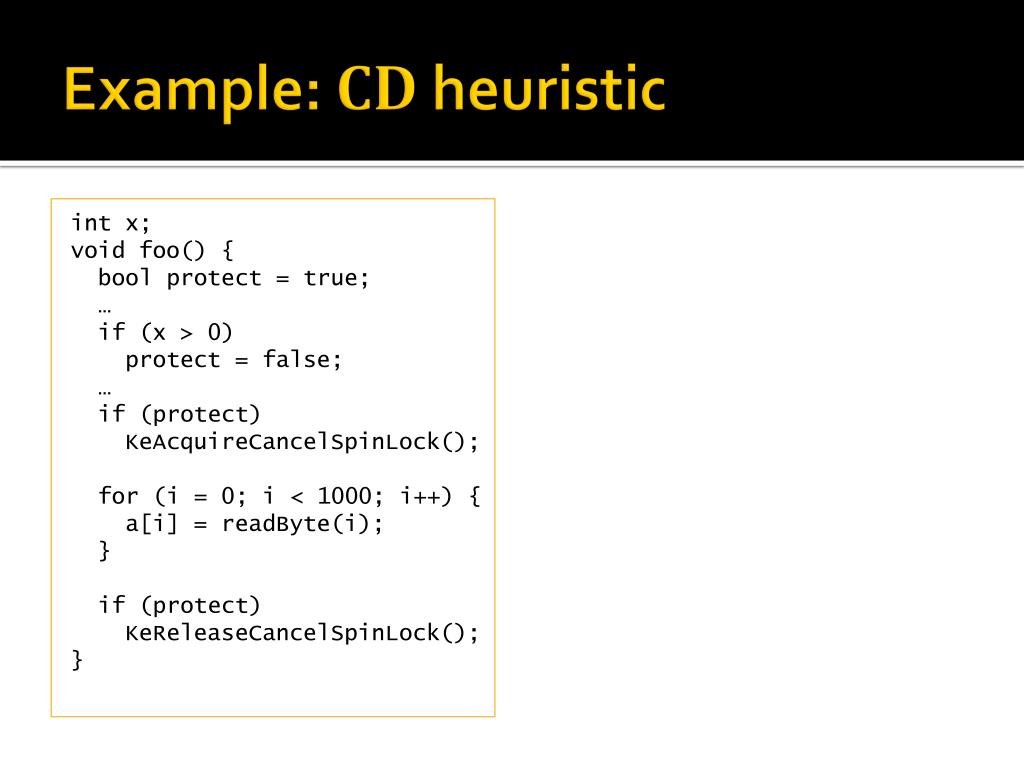

  18. Example: CD heuristic int x; void foo() { bool protect = true; … if (x > 0) protect = false; … if (protect) KeAcquireCancelSpinLock(); for (i = 0; i < 1000; i++) { a[i] = readByte(i); } if (protect) KeReleaseCancelSpinLock(); }

  19. Empirical results 10%

  20. Empirical results 16%

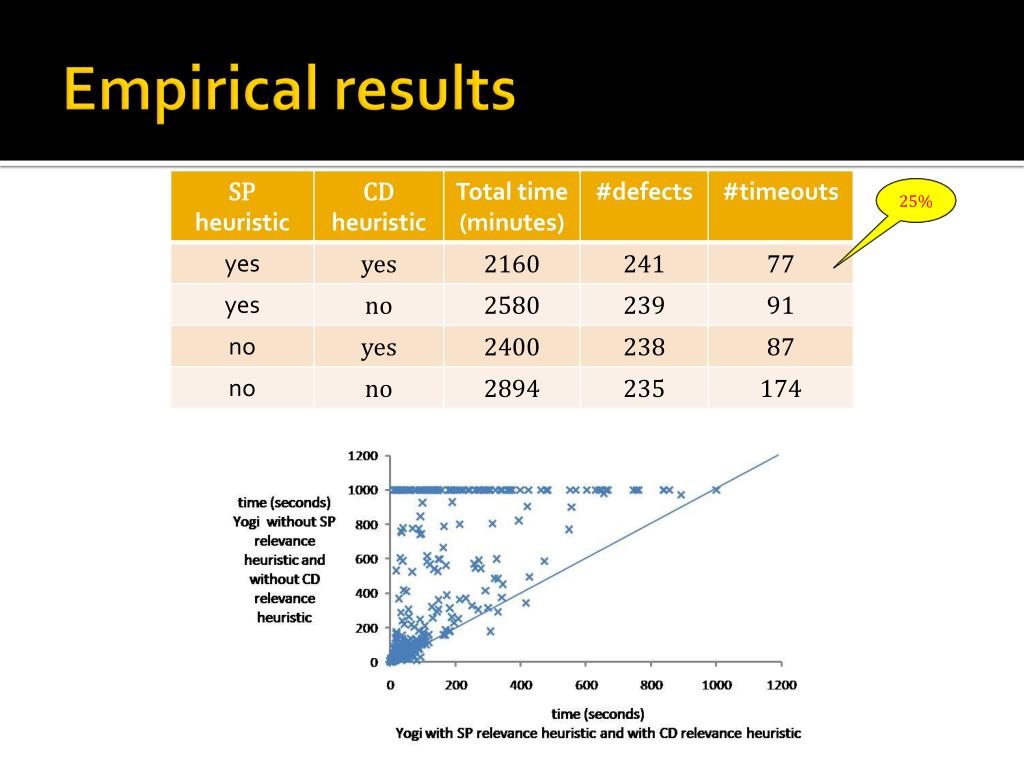

  21. Empirical results 25%

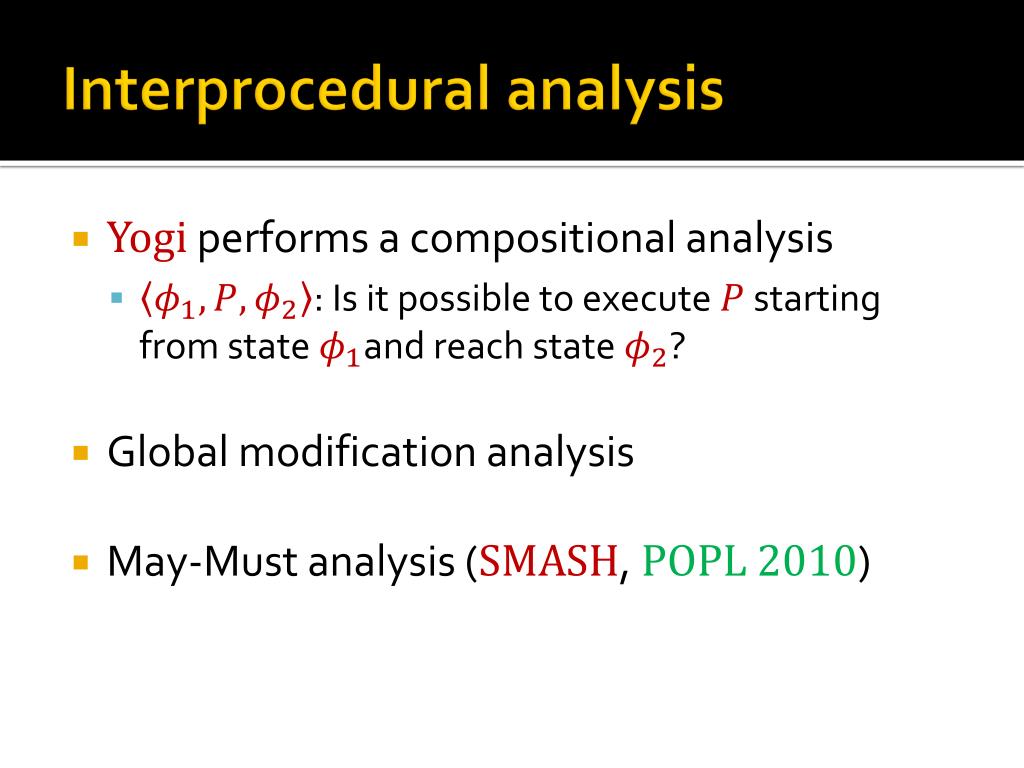

  22. Interprocedural analysis • Yogi performs a compositional analysis • : Is it possible to execute starting from state and reach state ? • Global modification analysis • May-Must analysis (SMASH, POPL 2010)

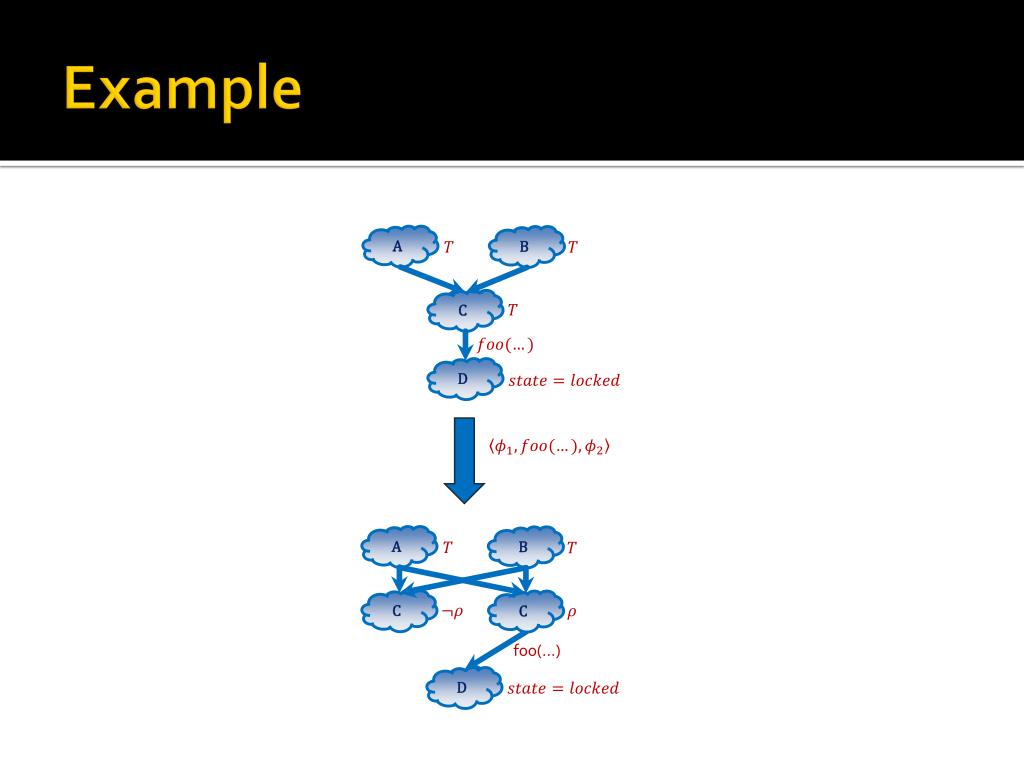

  23. Example A B C D A B C C foo(…) D

  24. Empirical results 32%

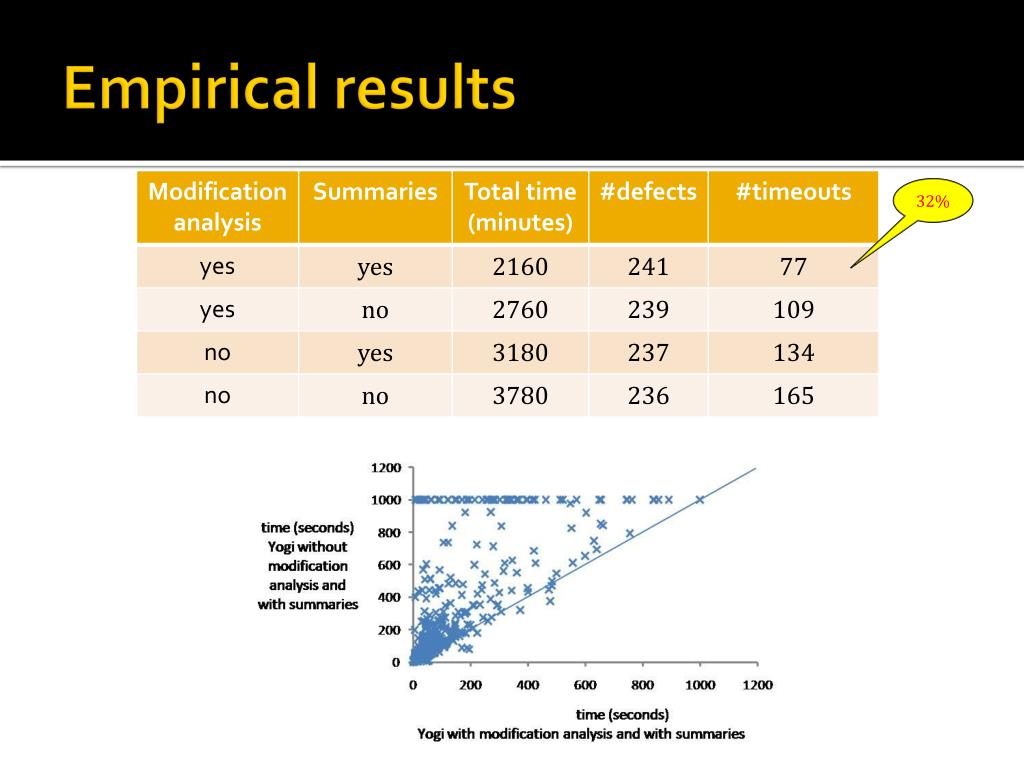

  25. Empirical results 28%

  26. Empirical results 42%

  27. Testing • Yogi relies on tests for “cheap” reachability • Long tests • avoiding several potential reachability queries • results in too many states and thus memory consumption • Test thresholds: time vs. space tradeoff

  28. Empirical evaluation

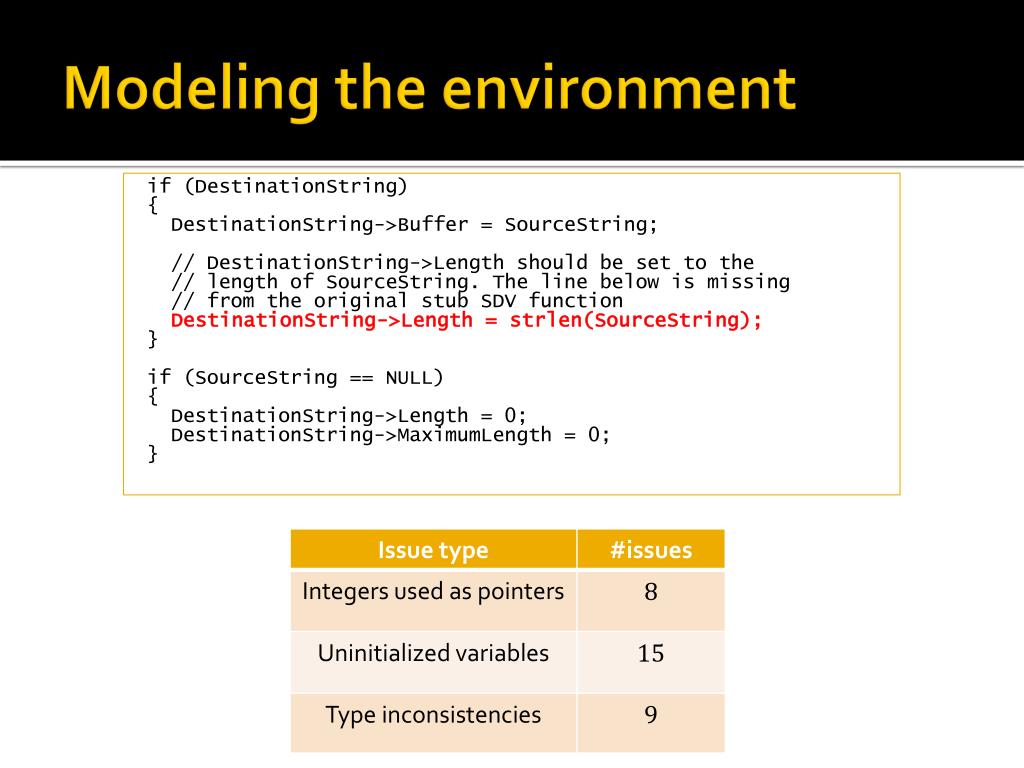

  29. Modeling the environment if (DestinationString) { DestinationString->Buffer = SourceString; // DestinationString->Length should be set to the // length of SourceString. The line below is missing // from the original stub SDV function DestinationString->Length = strlen(SourceString); } if (SourceString== NULL) { DestinationString->Length = 0; DestinationString->MaximumLength = 0; }

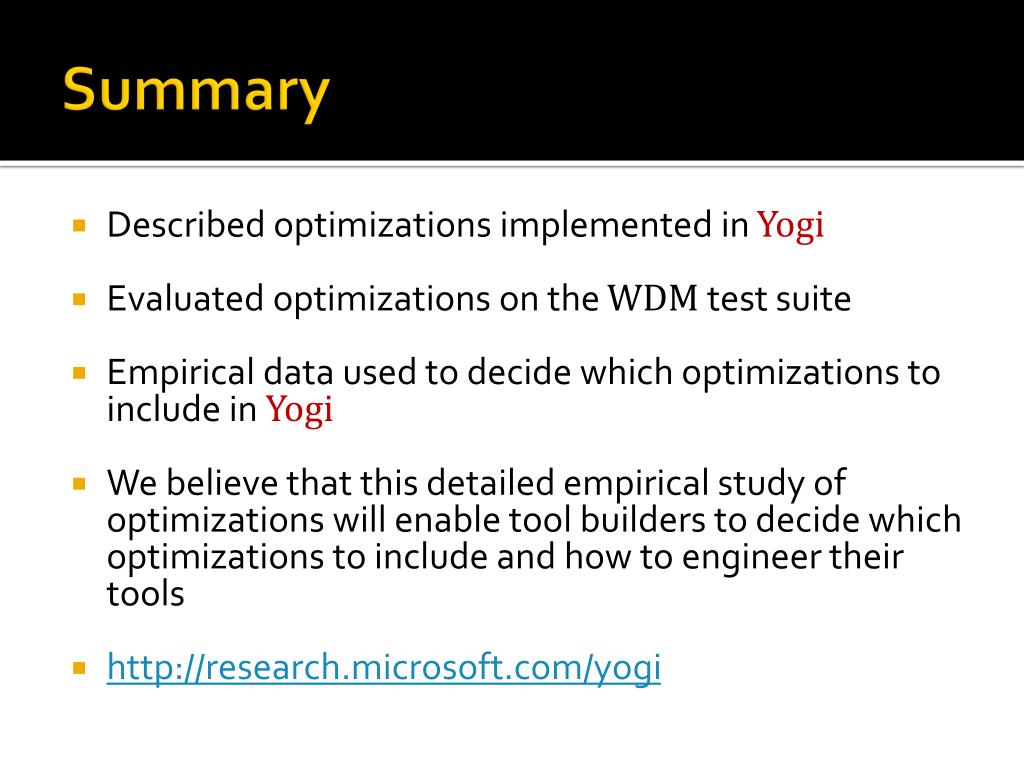

  30. Summary • Described optimizations implemented in Yogi • Evaluated optimizations on the WDMtest suite • Empirical data used to decide which optimizations to include in Yogi • We believe that this detailed empirical study of optimizations will enable tool builders to decide which optimizations to include and how to engineer their tools • http://research.microsoft.com/yogi
