  1. PROCESS INTEGRATED DESIGN WITHIN A MODEL PREDICTIVE CONTROL FRAMEWORK Mario Francisco, Pastora Vega, Omar Pérez University of Salamanca – Spain University of Simón Bolívar – Venezuela 16th IFAC World Congress. Prague (July 2005)

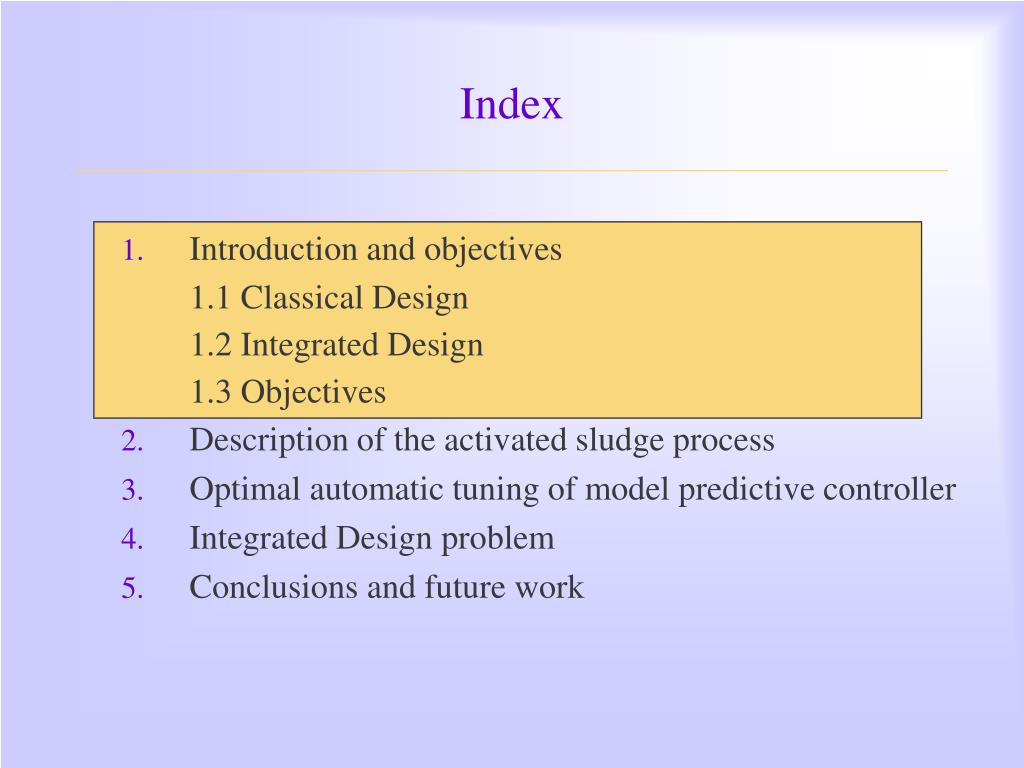

  2. Index • Introduction and objectives 1.1 Classical Design 1.2 Integrated Design 1.3 Objectives • Description of the activated sludge process • Optimal automatic tuning of model predictive controller • Integrated Design problem • Conclusionsand future work

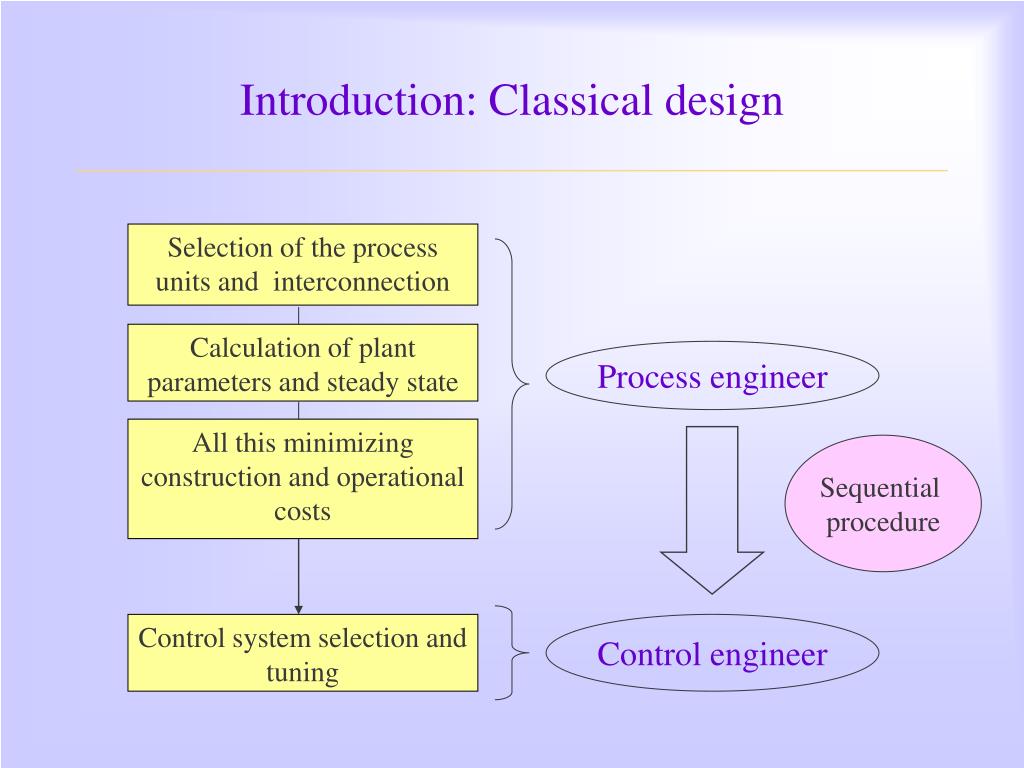

  3. Introduction:Classical design Selection of the process units and interconnection Calculation of plant parameters and steady state Process engineer All this minimizing construction and operational costs Sequential procedure Control system selection and tuning Control engineer

  4. Introduction: Integrated Design Structure selection ( PLANT + MPC CONTROL ) Plant and controller are designed at the same time Definition of the optimization problem (Costs, controllability indexes, model, constraints) Calculation of the optimum design parameters (plant, controllers, steady state point)

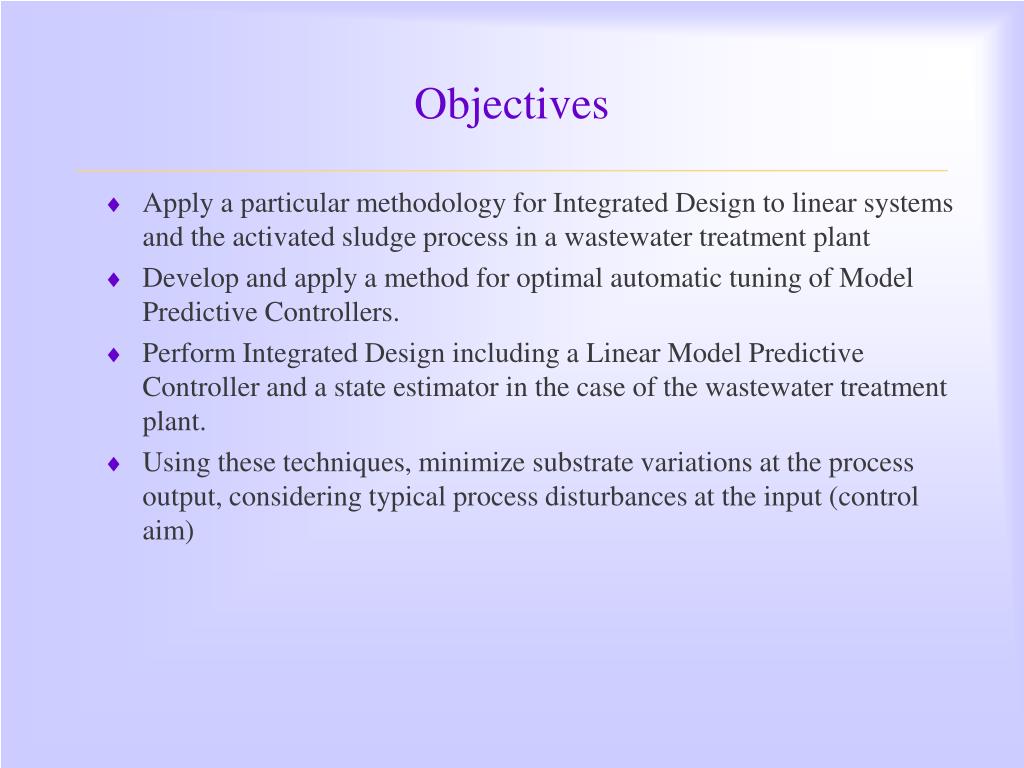

  5. Objectives • Apply a particular methodology for Integrated Design to linear systems and the activated sludge process in a wastewater treatment plant • Develop and apply a method for optimal automatic tuning of Model Predictive Controllers. • Perform Integrated Design including a Linear Model Predictive Controller and a state estimator in the case of the wastewater treatment plant. • Using these techniques, minimize substrate variations at the process output, considering typical process disturbances at the input (control aim)

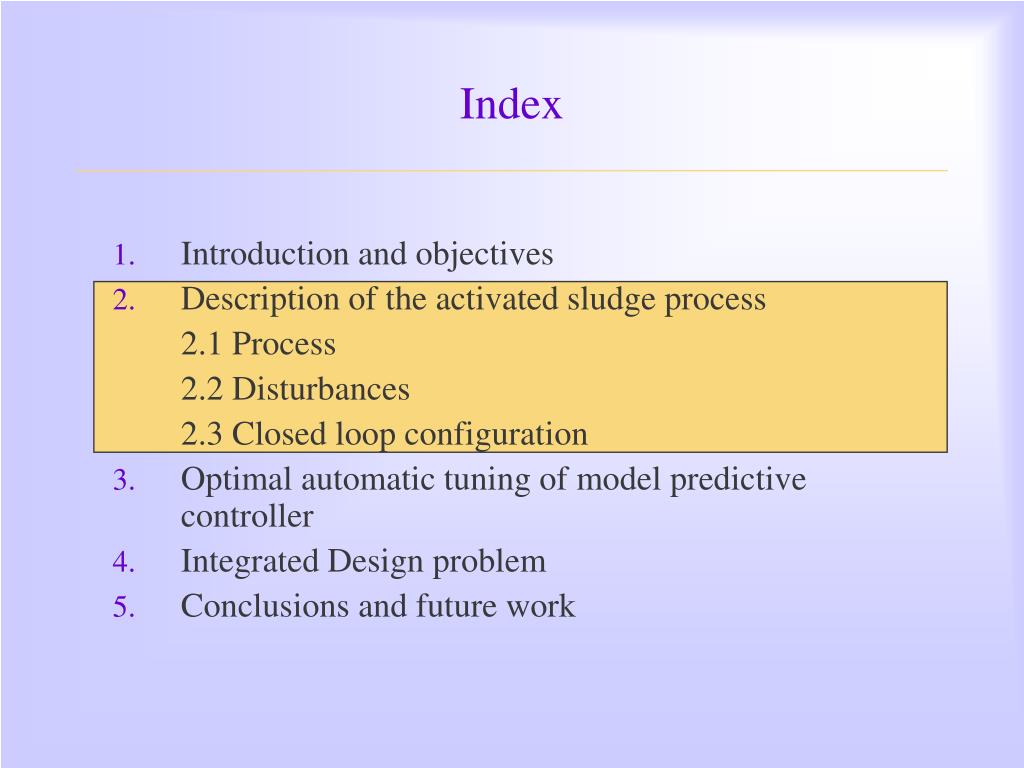

  6. Index • Introduction and objectives • Description of the activated sludge process 2.1 Process 2.2 Disturbances 2.3 Closed loop configuration • Optimal automatic tuning of model predictive controller • Integrated Design problem • Conclusions and future work

  7. Description of the process Nitrate internal recycling Benchmark configuration (control of substrate, oxygen, nitrogen) Settler Bioreactors INFFLUENT EFFLUENT Unaerated aerated Recycling sludge waste Bioreactor Settler Effluent Influent Substrate and oxygen control problem Recycling

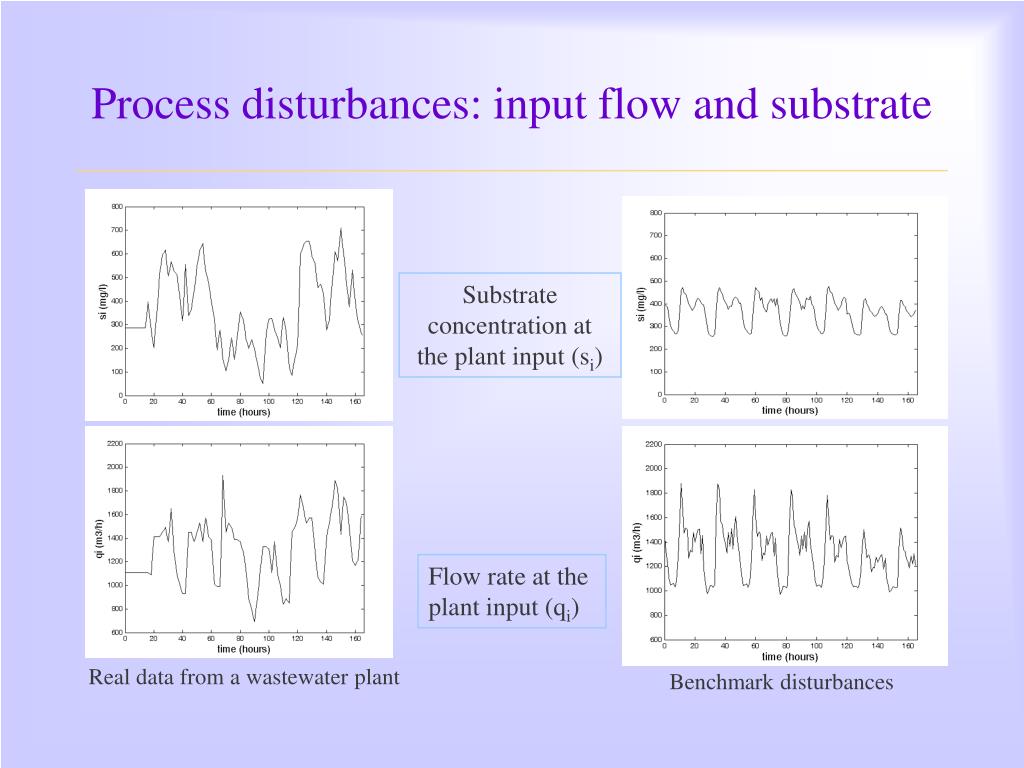

  8. Process disturbances: input flow and substrate Substrate concentration at the plant input (si) Flow rate at the plant input (qi) Real data from a wastewater plant Benchmark disturbances

  9. General MPC controller structure qr1,fk1 manipulated variables s1,c1 controlled x1 constrained Standard linear multivariable MPC controller, using state space model for prediction (MPC Toolbox MATLAB) MPC controller index

  10. Index • Introduction and objectives • Description of the activated sludge process • Optimal automatic tuning of model predictive controller 3.1 Optimization problem 3.2 Tuning parameters 3.3 Algorithm description 3.4 Tuning results • Integrated Design problem • Conclusions and future work

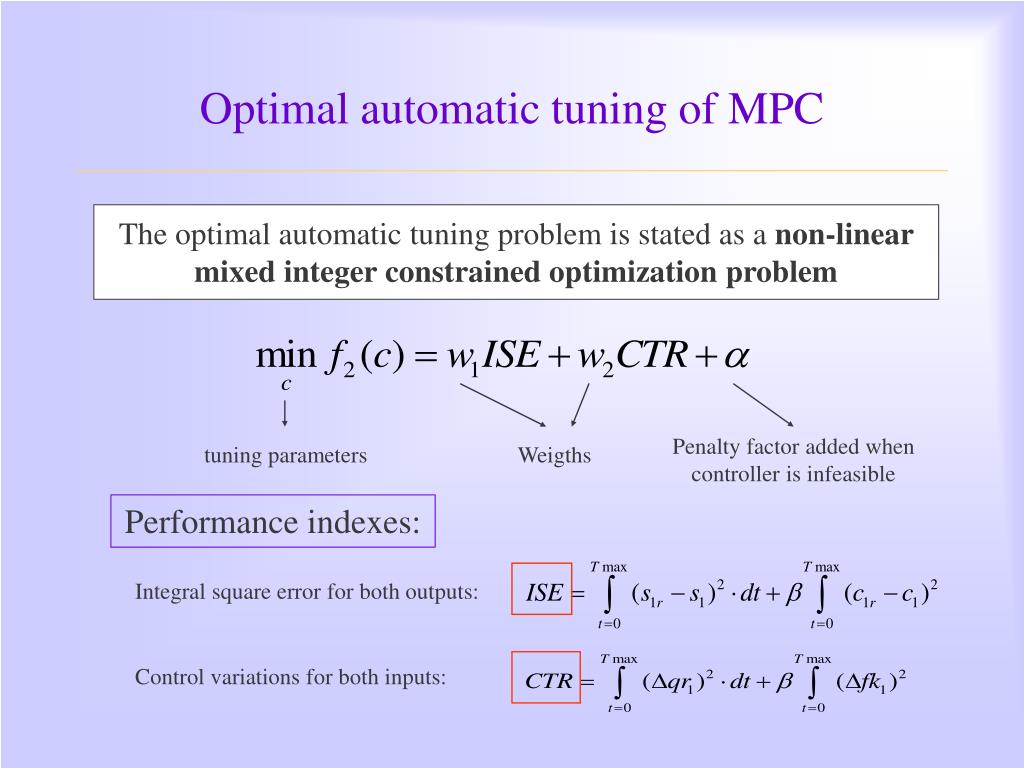

  11. Optimal automatic tuning of MPC The optimal automatic tuning problem is stated as a non-linear mixed integer constrained optimization problem Penalty factor added when controller is infeasible tuning parameters Weigths Performance indexes: Integral square error for both outputs: Control variations for both inputs:

  12. Optimal automatic tuning of MPC TUNING PARAMETERS Hp : Prediction horizon Hc : Control horizon Wu: Weights of the changes of manipulated variables Tref: Time constants of the exponential reference trajectories Integer parameters (Hp, Hc) Modified random search method for all variables Real parameters (Wu, Tref)

  13. Optimization algorithm description Optimization method: Modified random search method based on Solis algorithm (1981) • Algorithm steps: • Initial point for controller parameters, variances and centre of gaussians (for random numbers generation) are chosen. • Two random vectors of Gaussian distributions are generated, one integer and one real. • Two new points are obtained by adding and removing these vectors to the current point. • Cost function is evaluated at the original point and at new points, and the algorithm chooses the point with smallest cost. • If some convergence criteria is satisfied, stop the algorithm, otherwise return to step 2. Variances are decreased.

  14. Tuning results (I) Results considering the linear MPC without constraints applied to a linear system Control variable Output variable

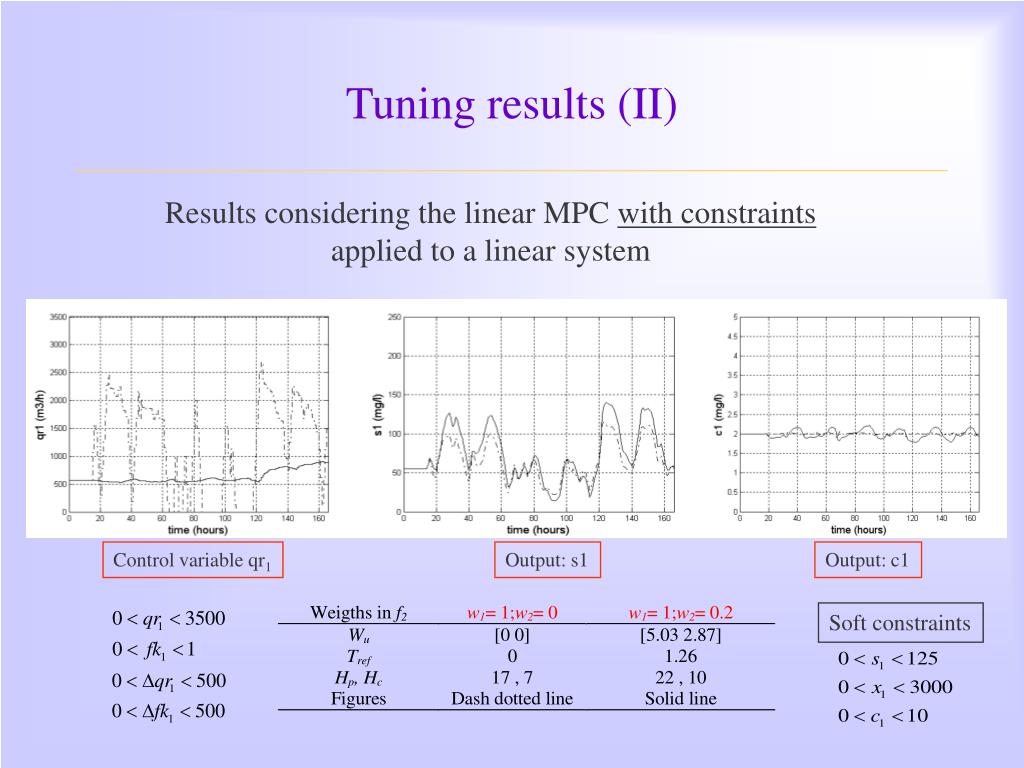

  15. Tuning results (II) Results considering the linear MPC with constraints applied to a linear system Control variable qr1 Output: s1 Output: c1 Soft constraints

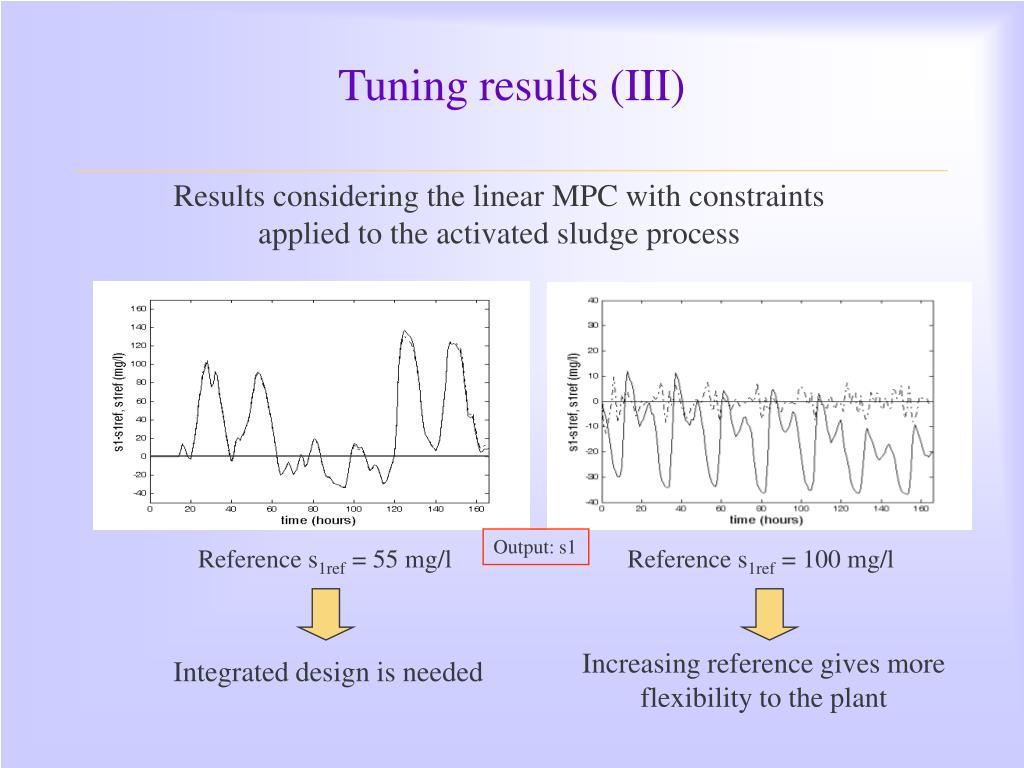

  16. Tuning results (III) Results considering the linear MPC with constraints applied to the activated sludge process Output: s1 Reference s1ref = 55 mg/l Reference s1ref = 100 mg/l Increasing reference gives more flexibility to the plant Integrated design is needed

  17. Index • Introduction and objectives • Description of the activated sludge process • Optimal automatic tuning of model predictive controller • Integrated Design problem 4.1 Two steps approach 4.2 Optimization problem 4.3 Integrated Design results • Conclusions and future work

  18. Integrated Design problem Integrated Design of plant and MPC: Two steps approach Step 1: Optimal MPC tuning previously explained Step 2: Controller parameters fixed, plant design (NLP/DAE problem)

  19. Optimization problem Optimization problem: non-linear constrained problem (NLP /DAE). Solved using SQP algorithm Objective function: Construction costs (reactor volume and settler area) Operational costs (reactor aeration and pumps)

  20. Optimization problem Constraints on the non-linear differential equations of the plant : Process constraints: Residence time Mass loads Sludge age Relationships between flows Controllability constraints:

  21. Integrated Design results (I) Control variable qr1 Output c1 Output s1

  22. Integrated Design results (II) Results only for MPC tuning 125 mg/l Integrated Design Improvement 125 mg/l Integrated design (plant + controller)

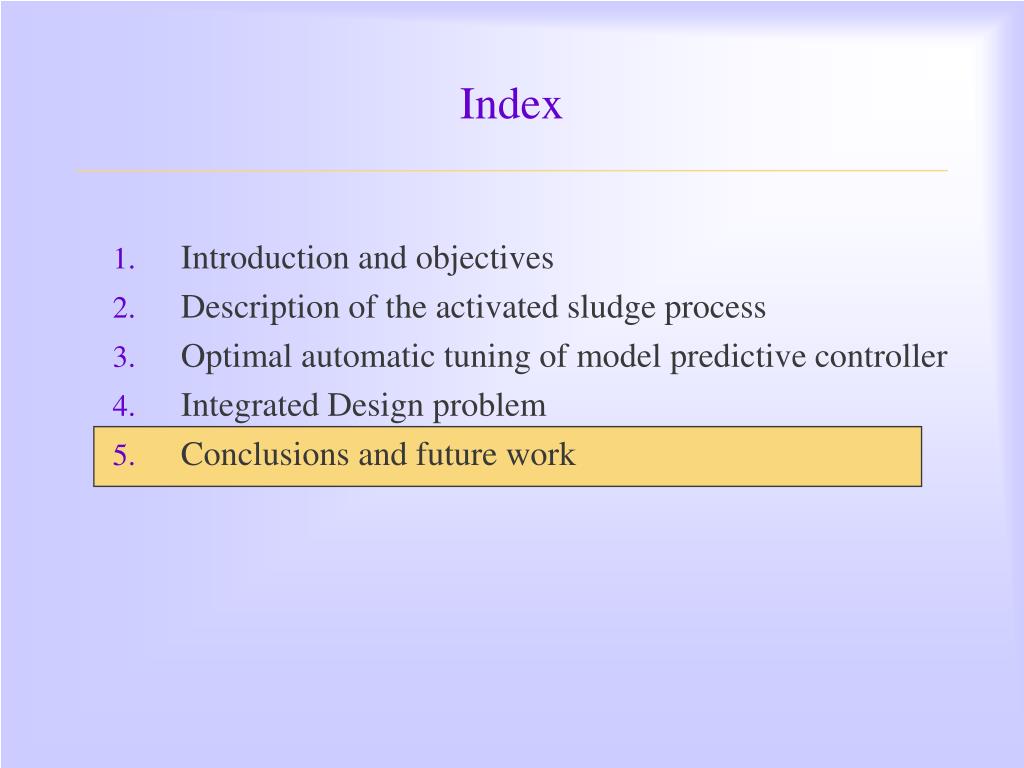

  23. Index • Introductionand objectives • Description of the activated sludge process • Optimal automatic tuning of model predictive controller • Integrated Design problem • Conclusions and future work

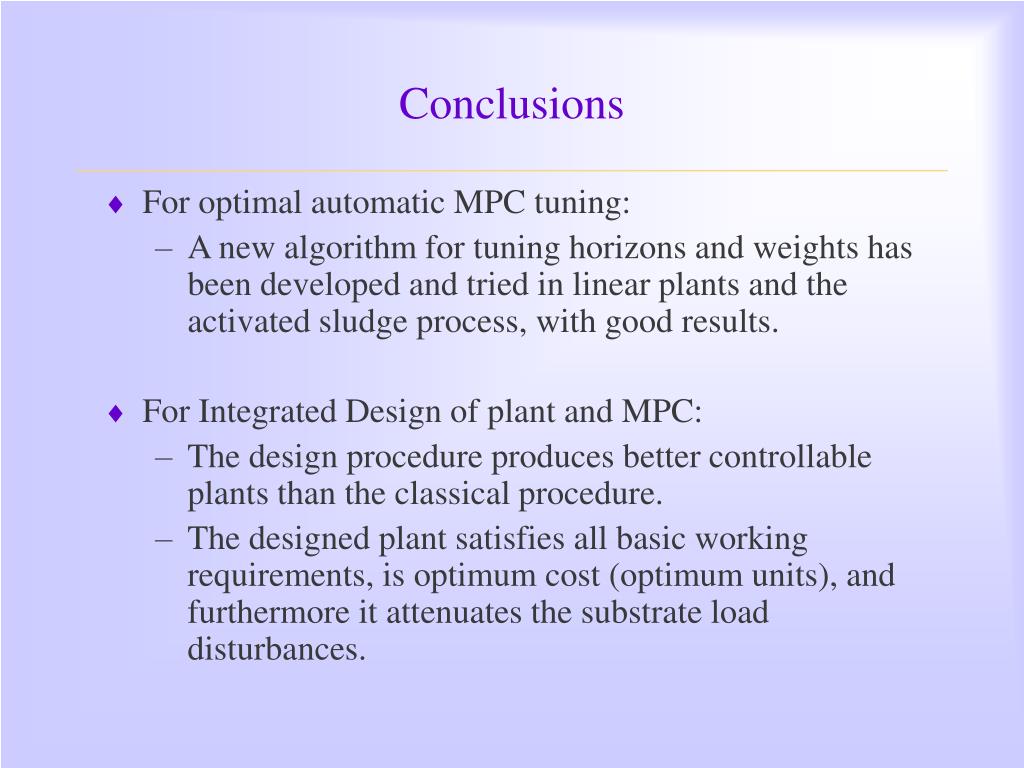

  24. Conclusions • For optimal automatic MPC tuning: • A new algorithm for tuning horizons and weights has been developed and tried in linear plants and the activated sludge process, with good results. • For Integrated Design of plant and MPC: • The design procedure produces better controllable plants than the classical procedure. • The designed plant satisfies all basic working requirements, is optimum cost (optimum units), and furthermore it attenuates the substrate load disturbances.

  25. Future work • Apply optimal automatic tuning techniques to non linear model predictive controllers. • Extend the control problem for the nitrogen loop in the activated sludge process. • Introduce some robustness due to the application of linear models to a non linear plant. • Consider benchmark performance indexes such us time of constraints violation, effluent quality index, etc.
