Understanding Layout and Rendering in Web Architecture

Layout Architecture

Layout • fixed, relative • stack/grid • flow (mostly) root->leaf; parent positions child • flow • flow leaves->root; children resize parents • constraint • variety: geometric, linear, … • might subsume above styles? • want implicit else verbose and too hard (obj. funcs..)

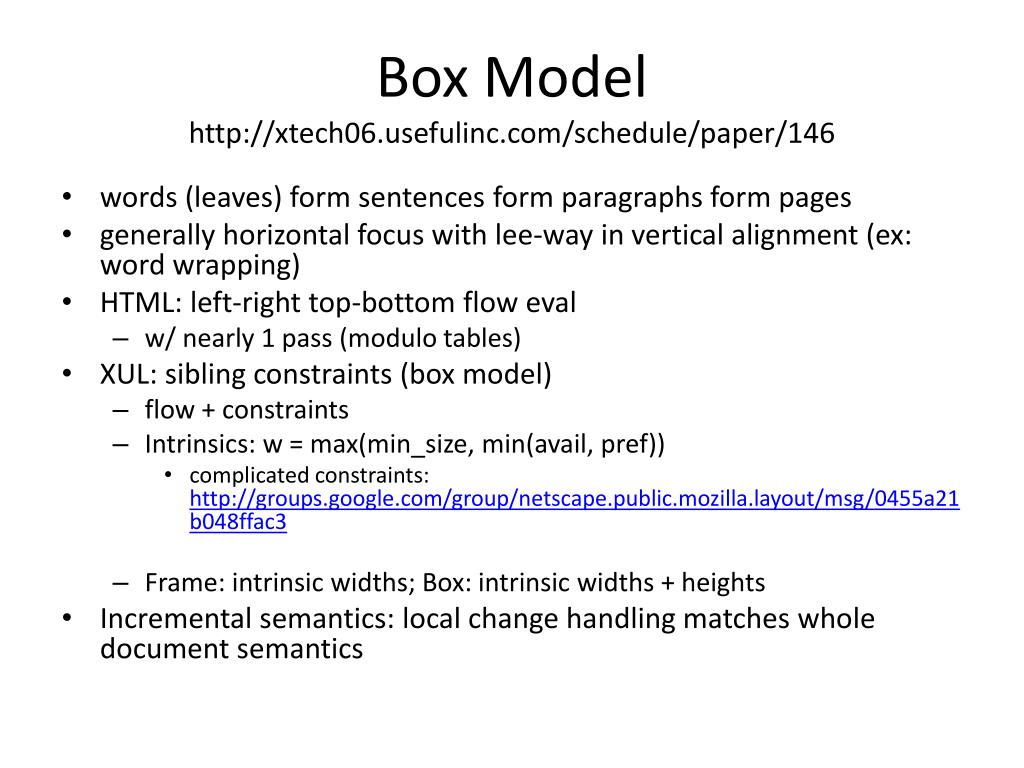

Box Modelhttp://xtech06.usefulinc.com/schedule/paper/146 • words (leaves) form sentences form paragraphs form pages • generally horizontal focus with lee-way in vertical alignment (ex: word wrapping) • HTML: left-right top-bottom flow eval • w/ nearly 1 pass (modulo tables) • XUL: sibling constraints (box model) • flow + constraints • Intrinsics: w = max(min_size, min(avail, pref)) • complicated constraints: http://groups.google.com/group/netscape.public.mozilla.layout/msg/0455a21b048ffac3 • Frame: intrinsic widths; Box: intrinsic widths + heights • Incremental semantics: local change handling matches whole document semantics

External Style Sheets • HTML specifies ~semantic document • style is orthogonal • templating (mass changes) important • CSS: patterns read right-to-left • XUL handbook views good ‘naming’ a useful perf. optimization (http://developer.mozilla.org/en/Writing_Efficient_CSS) • CSS2.1 chapters (dec. ord. imp): 10,9,11,8(https://wiki.mozilla.org/Gecko:Reflow_Refactoring) • generated content: div { content: url(f.gif) ‘hello’ }

Mild Context Adaptivity

Selectorshttp://www.w3.org/TR/2006/WD-CSS21-20060411/selector.htmlSelectorshttp://www.w3.org/TR/2006/WD-CSS21-20060411/selector.html • B ::= (T ‘{‘ <rules> ‘}’)* • T ::= E [‘,’ E]* //or (not nested) • E :: = E E //descendant | E ‘>’ E //child | E + E //E2 with prev. sib. of E1 | L • L ::= [ ‘[‘ P+ ‘]’ ] [<tag> | ‘*’ | ‘#’ <id>] (‘.’ <class>)* [ S ]* • P ::= <attr> | <attr> <relation> <val> • S ::= ‘:’ <pseudo> • pseudo-classes: might get dynamically activated • Pseduo-elements: (first-element, …) • might generate content (:before, :after) like counters or bullets • bottom-up on tree (right-left on selector) • trivially parallel

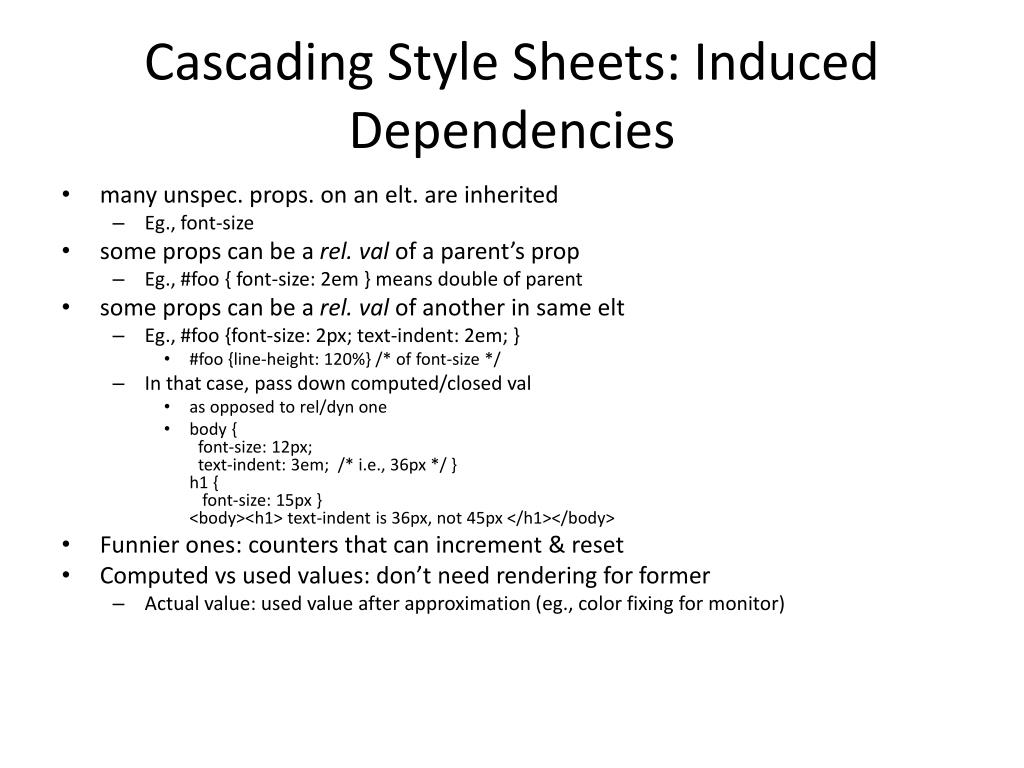

Cascading Style Sheets: Induced Dependencies • many unspec. props. on an elt. are inherited • Eg., font-size • some props can be a rel. val of a parent’s prop • Eg., #foo { font-size: 2em } means double of parent • some props can be a rel. val of another in same elt • Eg., #foo {font-size: 2px; text-indent: 2em; } • #foo {line-height: 120%} /* of font-size */ • In that case, pass down computed/closed val • as opposed to rel/dyn one • body { font-size: 12px; text-indent: 3em; /* i.e., 36px */ }h1 { font-size: 15px }<body><h1> text-indent is 36px, not 45px </h1></body> • Funnier ones: counters that can increment & reset • Computed vs used values: don’t need rendering for former • Actual value: used value after approximation (eg., color fixing for monitor)

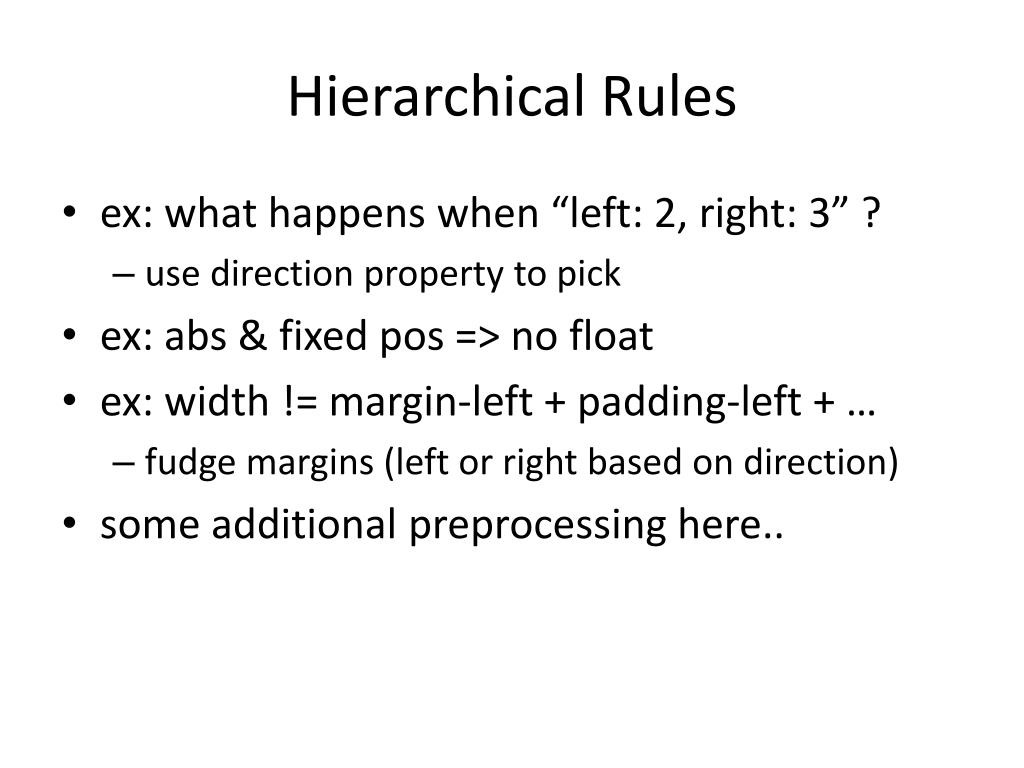

Hierarchical Rules • ex: what happens when “left: 2, right: 3” ? • use direction property to pick • ex: abs & fixed pos => no float • ex: width != margin-left + padding-left + … • fudge margins (left or right based on direction) • some additional preprocessing here..

Rule-based precedence • pre-compile rules into FSM? [work-efficiency] • dynamic / async. stylesheet loading… • Not sure how to understand the ‘cascade’ spec (http://www.w3.org/TR/2006/WD-CSS21-20060411/cascade.html) • Strange maxsum precedence order

WebKit • fork from KDE/KHTML • macs: Safari / iPhone • common for embeddings • Google Android & Chrome

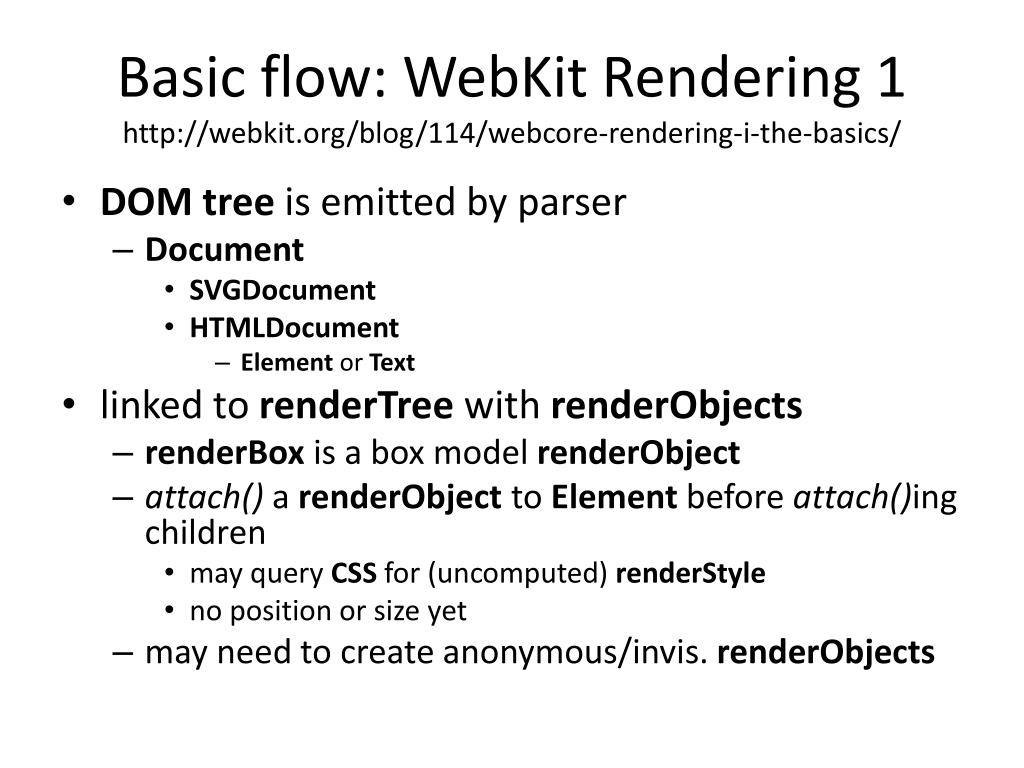

Basic flow: WebKit Rendering 1http://webkit.org/blog/114/webcore-rendering-i-the-basics/ • DOM tree is emitted by parser • Document • SVGDocument • HTMLDocument • Element or Text • linked to renderTreewith renderObjects • renderBoxis a box model renderObject • attach() a renderObjectto Element before attach()ing children • may query CSS for (uncomputed) renderStyle • no position or size yet • may need to create anonymous/invis. renderObjects

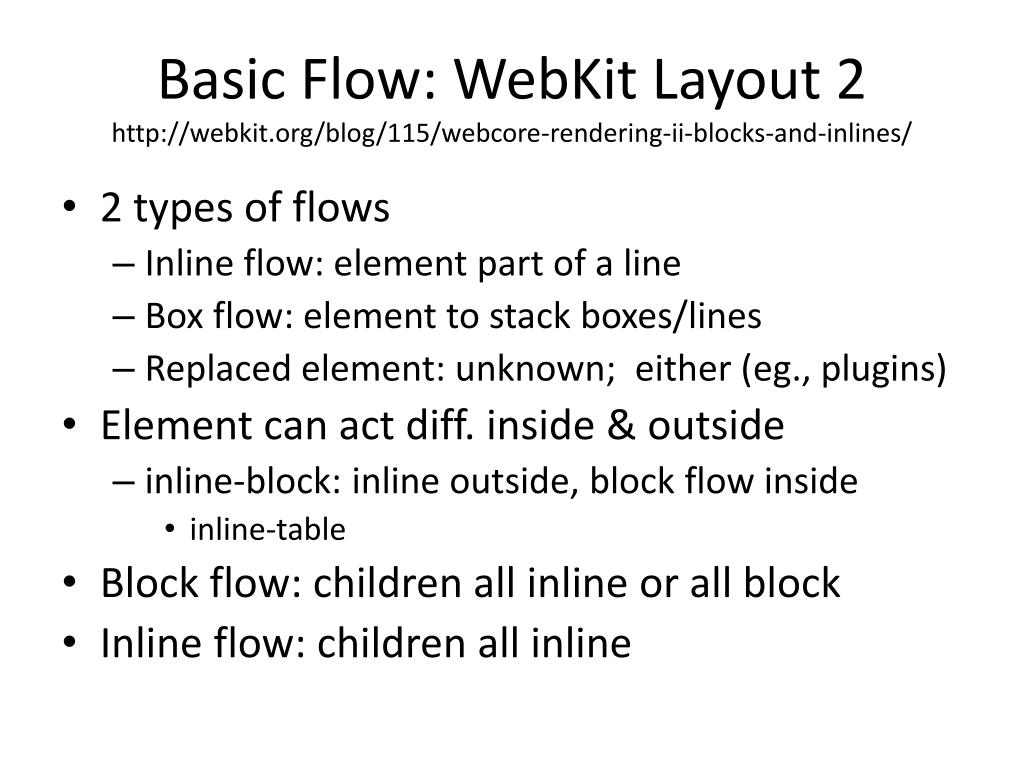

Basic Flow: WebKit Layout 2http://webkit.org/blog/115/webcore-rendering-ii-blocks-and-inlines/ • 2 types of flows • Inline flow: element part of a line • Box flow: element to stack boxes/lines • Replaced element: unknown; either (eg., plugins) • Element can act diff. inside & outside • inline-block: inline outside, block flow inside • inline-table • Block flow: children all inline or all block • Inline flow: children all inline

Basic Flow: WebKit Layout 2http://webkit.org/blog/115/webcore-rendering-ii-blocks-and-inlines/ • Pre-processing • <div>hello <div>block</div></div> • <div><anon-block>hello</anon-block> <div>block</div></div> • <i>some <b>inline</b> <div>or </div><div>really bad</div> code</i> • <anon-block> <anon-block><i>some <b>inline</b></i></> <anon-block><div>or</div><div>really bad</div></> <anon-block><i>code</i></anon-block></anon-block> • notice funny chaining on <i> • called continuation()/splitflow()

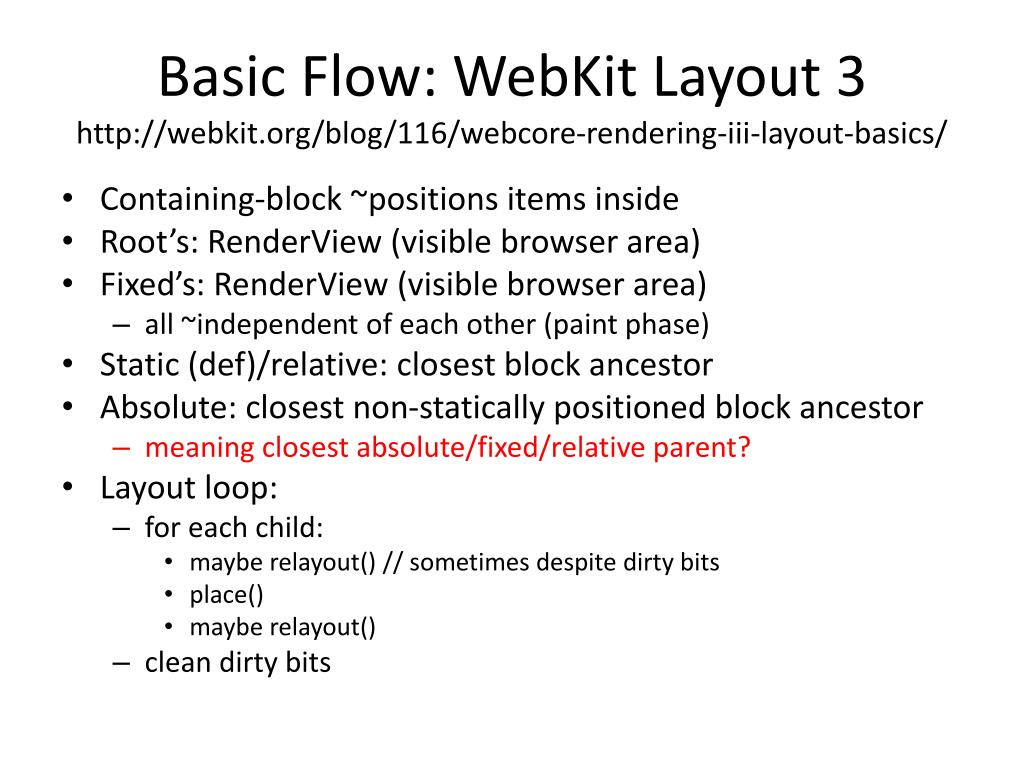

Basic Flow: WebKit Layout 3http://webkit.org/blog/116/webcore-rendering-iii-layout-basics/ • Containing-block ~positions items inside • Root’s: RenderView (visible browser area) • Fixed’s: RenderView (visible browser area) • all ~independent of each other (paint phase) • Static (def)/relative: closest block ancestor • Absolute: closest non-statically positioned block ancestor • meaning closest absolute/fixed/relative parent? • Layout loop: • for each child: • maybe relayout() // sometimes despite dirty bits • place() • maybe relayout() • clean dirty bits

Basic Flow: WebKit Layout 4http://webkit.org/blog/117/webcore-rendering-iv-absolutefixed-and-relative-positioning/ • static: default inline or block (rel. parent) • relative (top, right, bottom, left): • computable @ paint-time, not layout time

Basic Flow: WebKit Layout 4http://webkit.org/blog/117/webcore-rendering-iv-absolutefixed-and-relative-positioning/ • absolute & fixed: • becomes block layout if not before • after positioning (before rendering): • top,left:auto => removed from flow, but painted in natural location! • display() vsoriginalDisplay() • independent of siblings (stack on z plane) • fixed is a special case of absolute: position relative to viewport instead of closest containing block • relative inlined element may become containing view of abs. pos. child • meaning must be positioned before location of children can be figured out • but *relative* positioning of children can still be done independently..

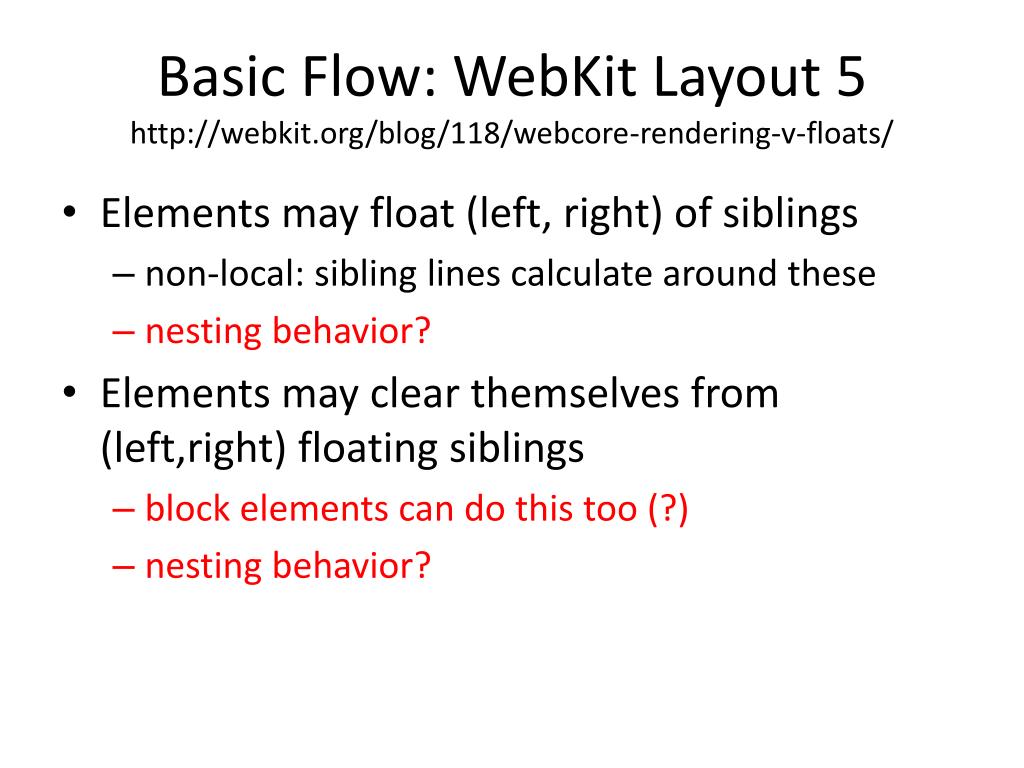

Basic Flow: WebKit Layout 5http://webkit.org/blog/118/webcore-rendering-v-floats/ • Elements may float (left, right) of siblings • non-local: sibling lines calculate around these • nesting behavior? • Elements may clear themselves from (left,right) floating siblings • block elements can do this too (?) • nesting behavior?

Intermezzo: Overflows • Element’s contents may conflict with specified size • Handling specified via overflow property • hidden: anything outside containing box clipped • scroll: clip, but display scrollbars • Good for dynamic regions: resizing won’t introduce new scrollbars as they’re already there • auto: UA choice, must have scrollbars on overflow • Visible: content not clipped • TODO check if paint time or layout time

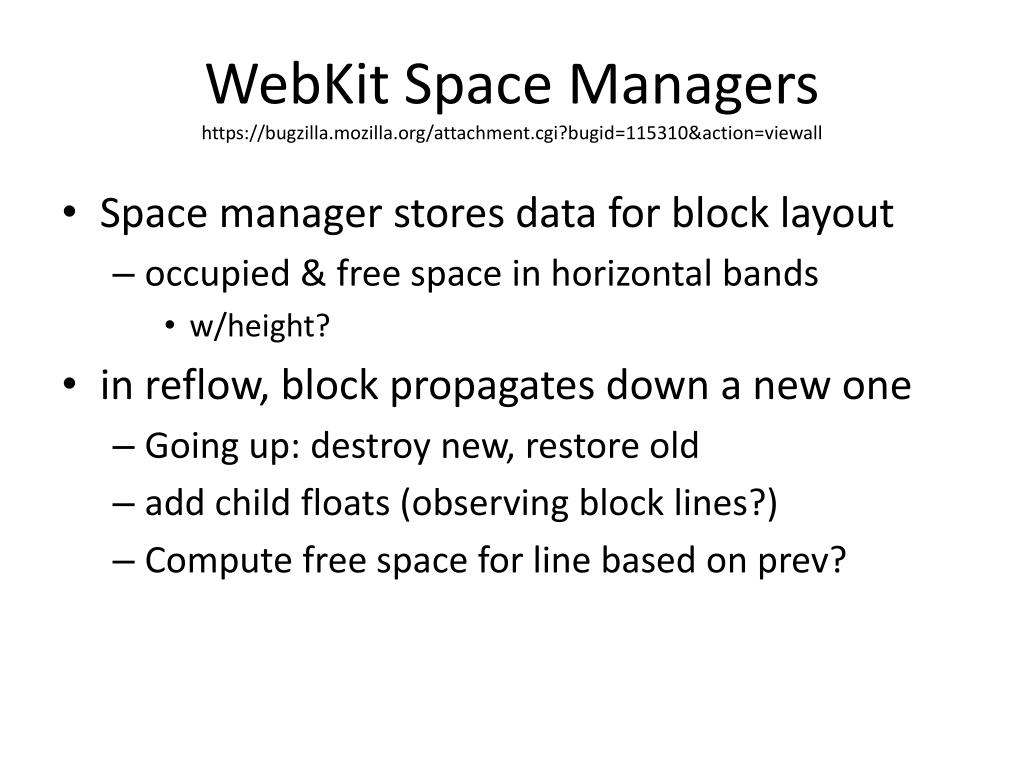

WebKit Space Managershttps://bugzilla.mozilla.org/attachment.cgi?bugid=115310&action=viewall • Space manager stores data for block layout • occupied & free space in horizontal bands • w/height? • in reflow, block propagates down a new one • Going up: destroy new, restore old • add child floats (observing block lines?) • Compute free space for line based on prev?

Mozilla’s Gecko • started as Netscape engine • had a huge overhaul (“new layout”) • behind on acid tests • … but believed to be (one of?) best ‘overall’

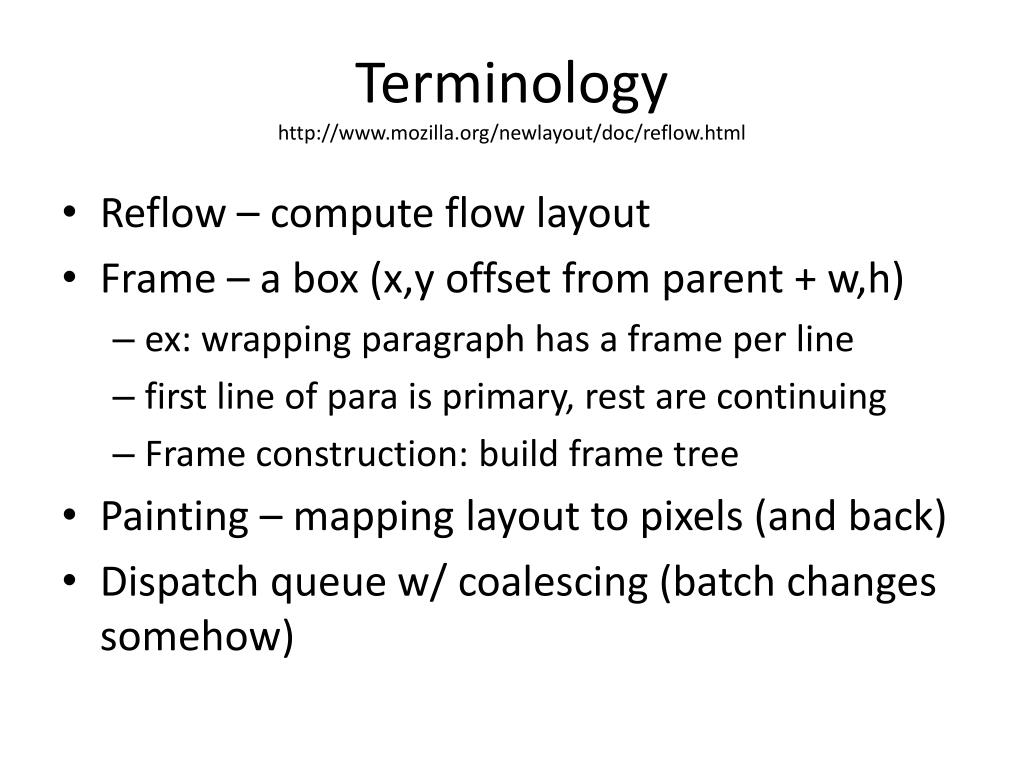

Terminologyhttp://www.mozilla.org/newlayout/doc/reflow.html • Reflow – compute flow layout • Frame – a box (x,y offset from parent + w,h) • ex: wrapping paragraph has a frame per line • first line of para is primary, rest are continuing • Frame construction: build frame tree • Painting – mapping layout to pixels (and back) • Dispatch queue w/ coalescing (batch changes somehow)

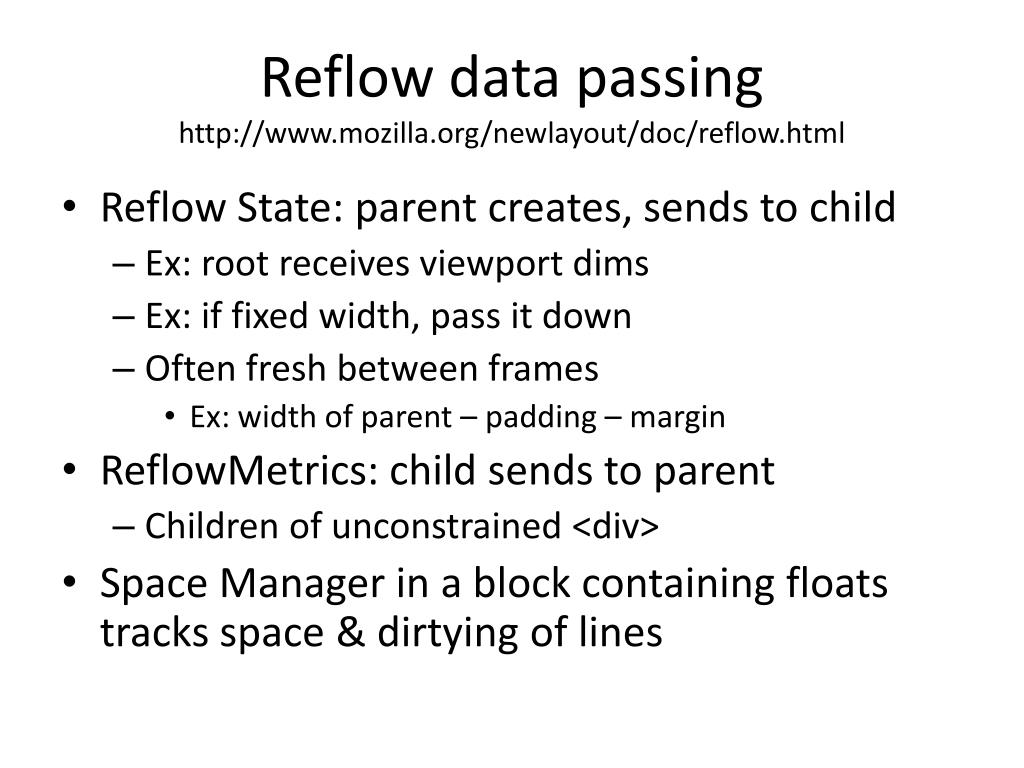

Reflow data passinghttp://www.mozilla.org/newlayout/doc/reflow.html • Reflow State: parent creates, sends to child • Ex: root receives viewport dims • Ex: if fixed width, pass it down • Often fresh between frames • Ex: width of parent – padding – margin • ReflowMetrics: child sends to parent • Children of unconstrained <div> • Space Manager in a block containing floats tracks space & dirtying of lines

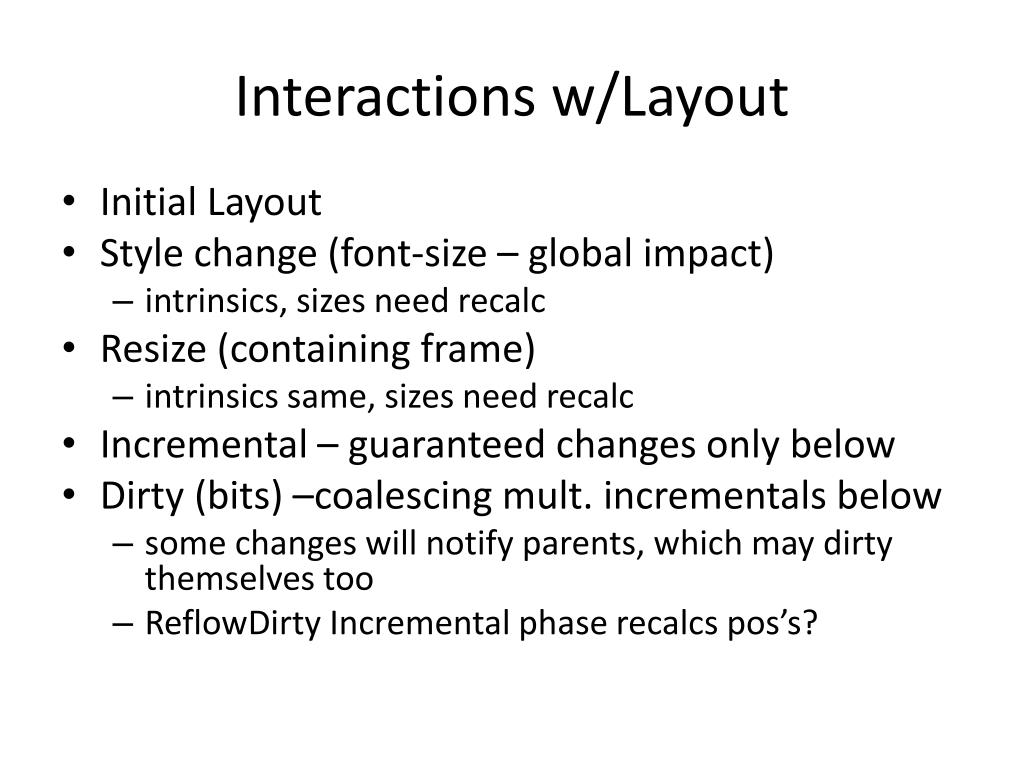

Interactions w/Layout • Initial Layout • Style change (font-size – global impact) • intrinsics, sizes need recalc • Resize (containing frame) • intrinsics same, sizes need recalc • Incremental – guaranteed changes only below • Dirty (bits) –coalescing mult. incrementals below • some changes will notify parents, which may dirty themselves too • ReflowDirty Incremental phase recalcspos’s?

Floats • normalize floats: shift up & left (right) until • touches containing block • touches another float • cannot overlap floating boxes of opposite type • cannot be higher than preceding line boxes, floats • float policy within container seems sequential • Inside of float is a block • but can do inner containers in parallel? (width vs height?) • Line-boxes: flow around • non-position boxes: ignore all floats • ex: • what if line-boxes in-between? • clearance • push top margin of element below floats (left ones, right, both types, or don’t) • floats can have clearence • additional parallelism within float

Z-Indexing: Stacking Contexts • Page is like a bunch of layered transparencies • back/bottom/negatives to top (you!) • Siblings atomic wrt each other • As if all of sibling was below or above you • Really a paint-time issue • Paint from bottom to top? • could also do top-to-bottom until all holes are covered • Users can specify z-indexes • Floats, inlines, blocks separated on diff. contexts • Order: Background, Negatives, Blocks, Floats, Inlines, Positioned, positives

More on width/heights • Width: 5%, 5em, … etc. • relative to containing view (parent) • Blocks, abs/fixed pos elts: • 100% width of parent by default (usually) • Floats, some abs (left+right:auto), inline block • shrink-to-fit: base on intrinsics • … that may require layout of children (line breaking..) • preferred min width: all combos of breaks • would breaking everywhere be sufficient? • preferred width: only break where explicitly specified • available width • child layout depends on container… container depends on child • unclear why stable..

Ratios • w = intrinsic_ratio * h • common for ‘replaced’ elements • flash, images, video (?), svg • TODO non-linear constraints?
