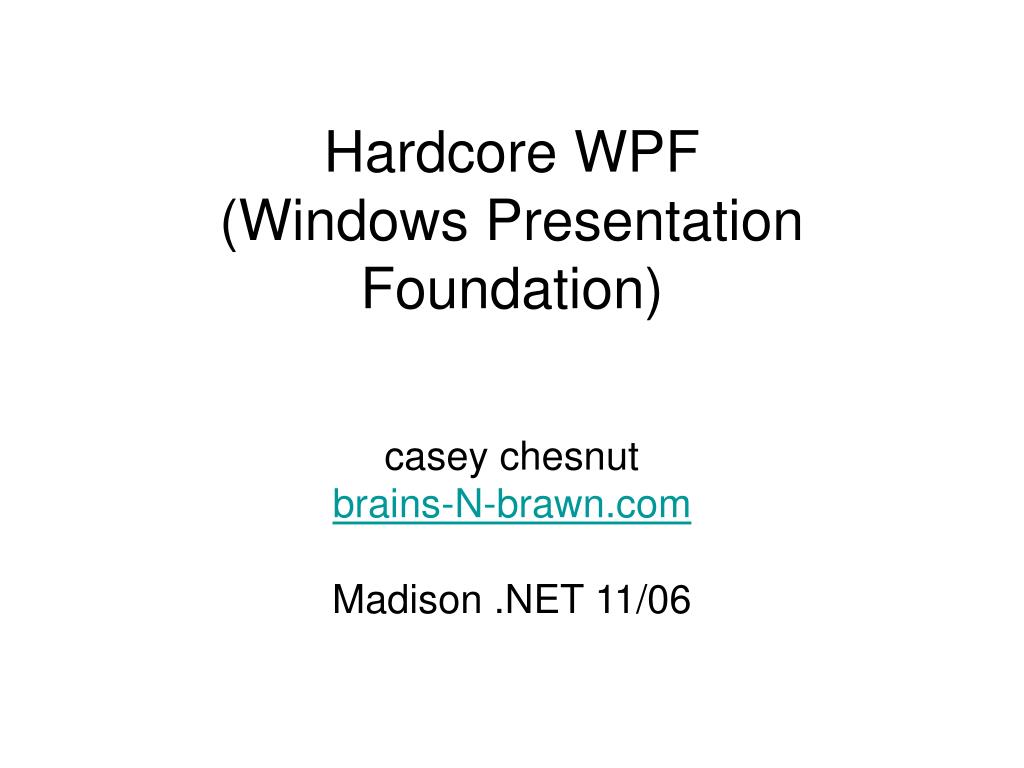

  1. Hardcore WPF (Windows Presentation Foundation) casey chesnut brains-N-brawn.com Madison .NET 11/06

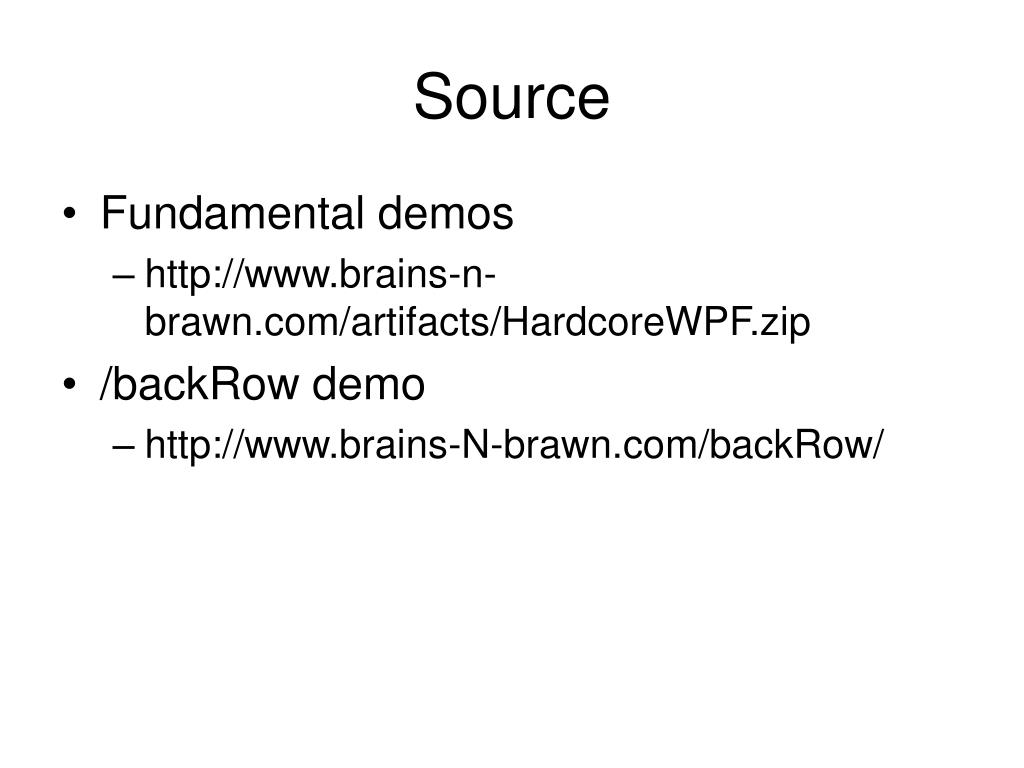

  2. Source • Fundamental demos • http://www.brains-n-brawn.com/artifacts/HardcoreWPF.zip • /backRow demo • http://www.brains-N-brawn.com/backRow/

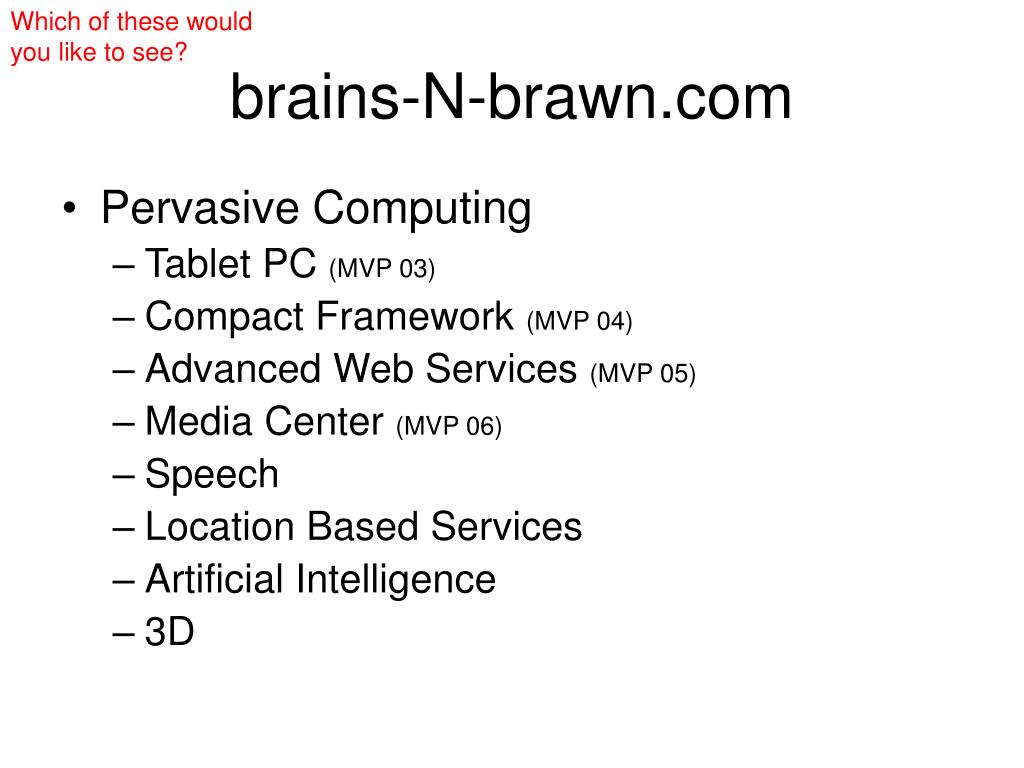

  3. Which of these would you like to see? brains-N-brawn.com • Pervasive Computing • Tablet PC (MVP 03) • Compact Framework (MVP 04) • Advanced Web Services (MVP 05) • Media Center (MVP 06) • Speech • Location Based Services • Artificial Intelligence • 3D

  4. OUTLINE • Overview • Fundamentals – demos! • Application Models • /backRow demo!

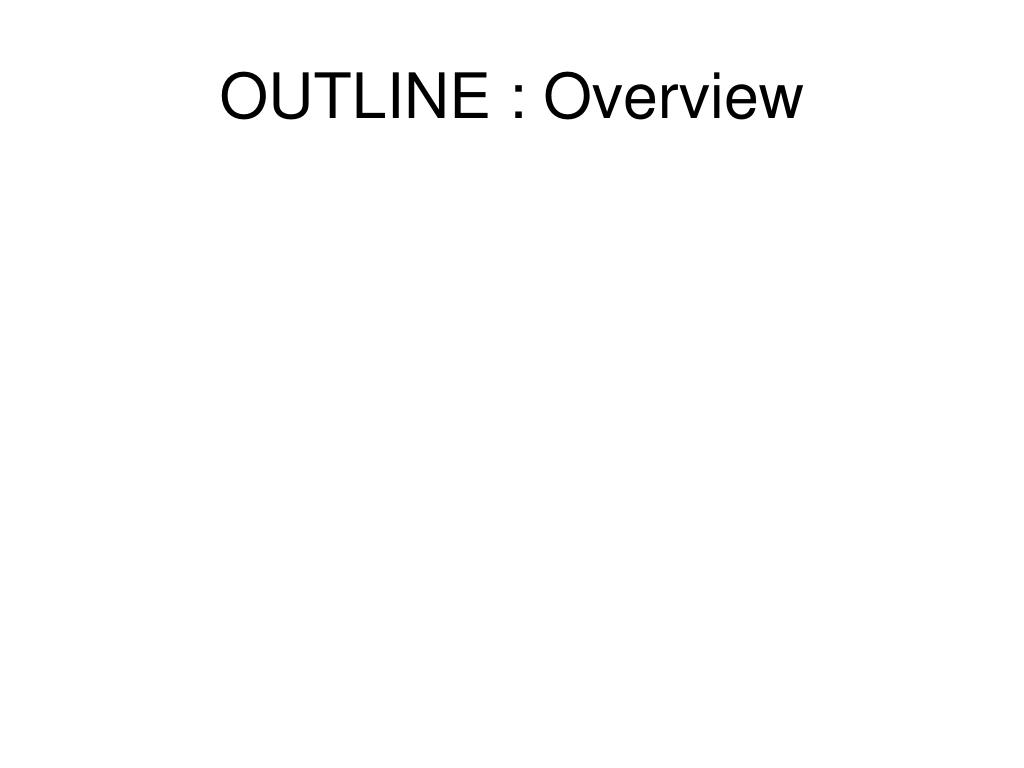

  5. OUTLINE : Overview

  6. Which of these have you worked with? Now • GDI (20 years), GDI+, WinForms • DirectX (11 years), Direct3D • Quartz, DirectShow (8 years) • Problems • Showing their age • Each API is different • Mixing APIs is challenging

  7. Next Gen • WPF – replaces GDI • Direct3D – large games, used by WPF • Media Foundation – ultimately will replace DirectShow • MCML –markup language for Media Center Edition applications • XNA – small games

  8. WPF • Compositing • UI, Documents, Media, 3D, Browser, … • Declarative programming with XAML markup • For Designers and Developers • Rewritten from scratch • Built on top of Direct3D • Hardware accelerated • Vector based • Resolution independent (1/96 inch) • Retained graphics

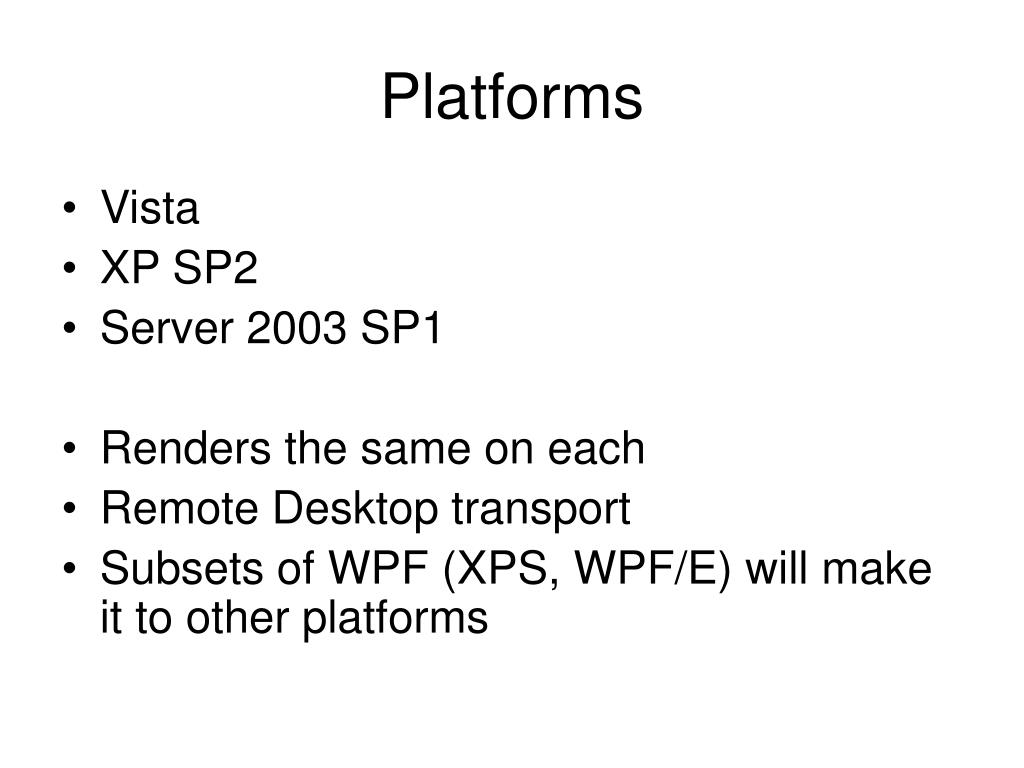

  9. Platforms • Vista • XP SP2 • Server 2003 SP1 • Renders the same on each • Remote Desktop transport • Subsets of WPF (XPS, WPF/E) will make it to other platforms

  10. Tiers • Tier 2 – DirectX 9, Shader 2.0, 128 megs video ram (hardware rendering) • Tier 1 – DirectX 7, 32 megs video ram (mixed hw/sw rendering) • Tier 0 – below (software rendering) • Defaults to 60 fps • Anti-aliasing

  11. Timeline • Pillar of .NET 3.0 • Class libraries built on .NET 2.0 • WPF, WCF, WF, InfoCard • Past Release Candidate • Go-live licenses available • Released with Vista • “Orcas”, .NET 3.X coming after that

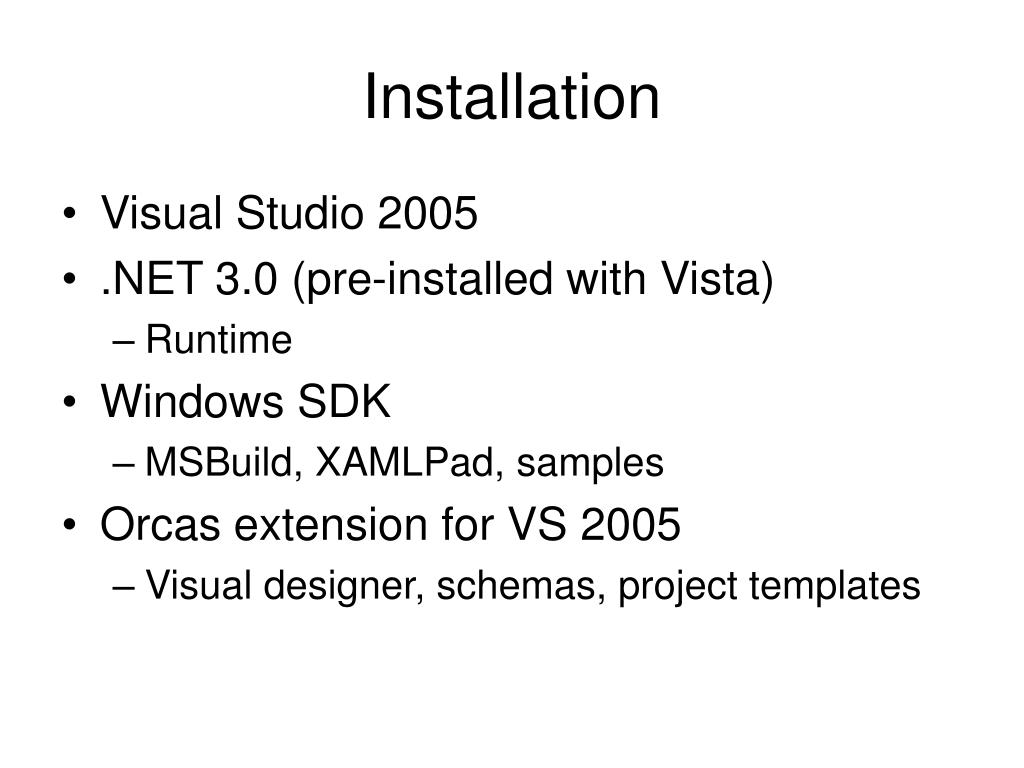

  12. Installation • Visual Studio 2005 • .NET 3.0 (pre-installed with Vista) • Runtime • Windows SDK • MSBuild, XAMLPad, samples • Orcas extension for VS 2005 • Visual designer, schemas, project templates

  13. XAMLPad Microsoft Expression Interactive Designer Tools • Windows SDK • XAMLPad, Perforator, UISpy, XPS Conformance, WICExplorer • VS 2005 • Orcas Extensions (beta) • Electric Rain Zam 3D • Mobiform Aurora • Microsoft Expression • Graphics Designer • Interactive Designer • “Orcas”, Cider

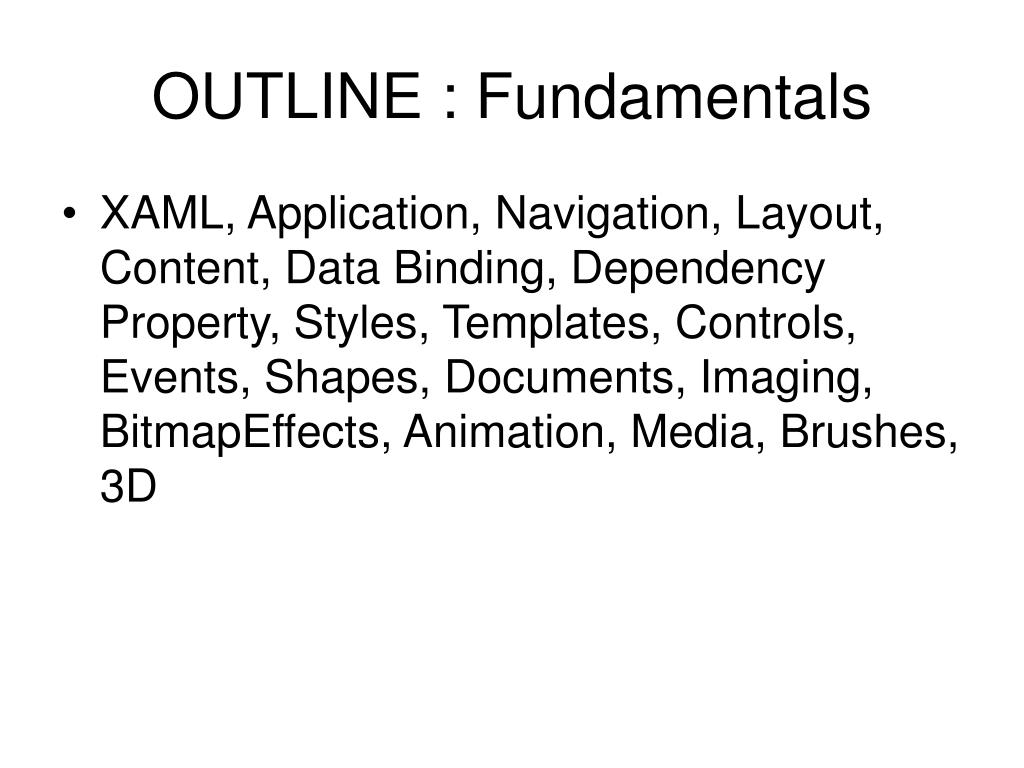

  14. OUTLINE : Fundamentals • XAML, Application, Navigation, Layout, Content, Data Binding, Dependency Property, Styles, Templates, Controls, Events, Shapes, Documents, Imaging, BitmapEffects, Animation, Media, Brushes, 3D

  15. HelloWorldXamlPage HelloWorldCodePage XAML • Declarative object instantiation • Not exclusive to WPF • Separates UI and logic • Common language for Designers and Developers • Parallel development • Localization, Branding • Targeted UI (devices, users, …) • Tool support • Supports C# and VB.NET

  16. VS.NET WPF app from scratch DragDrop Cider controls from Toolbox Application • Global • Message handling • App events (e.g. startup, shutdown) • NavigationService • Properties collection • StartupUri

  17. XamlSyntax XAML • Object elements, Attribute syntax • Property elements, Abbreviated syntax • Content syntax • Attached properties, Attached events • Markup extensions • Binding syntax, Resource syntax • Xml Namespaces • Code-behind vs Inline vs Code-only

  18. MainWindowTransparency Window • Window • NavigationWindow • Page

  19. http://localhost/PageNavigation/PageNavigation.xbap Navigation • NavigationWindow and Frame • Hyperlink • NavigationService • URI, fragment support • Events • Journal • PageFunctions

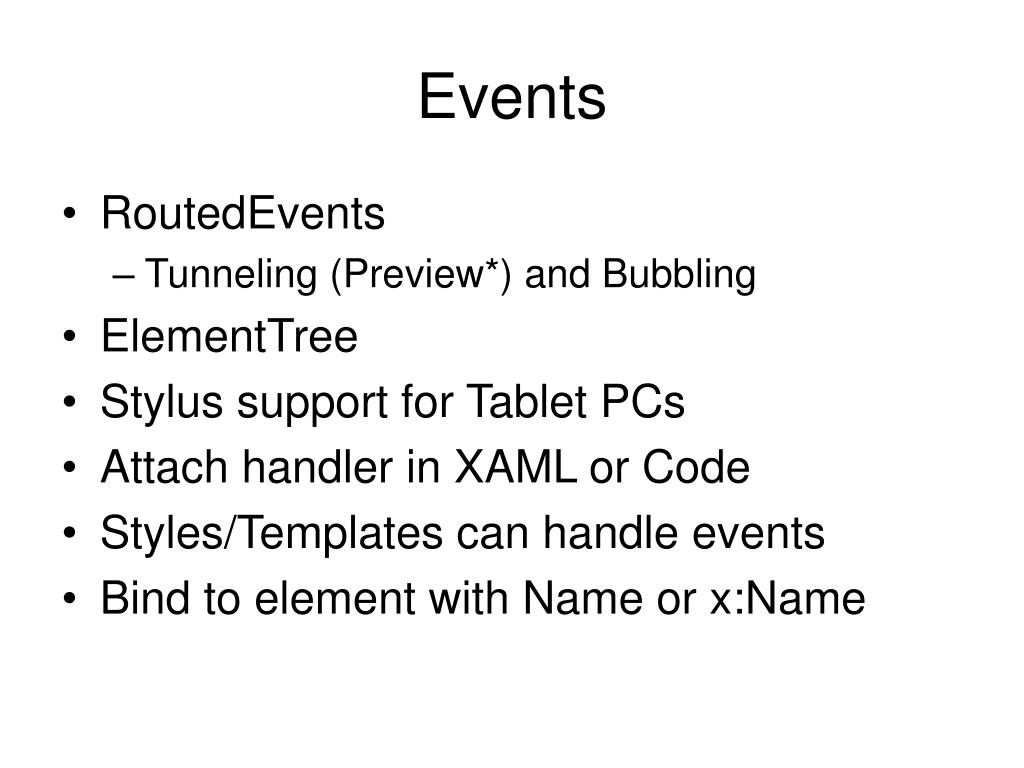

  20. Events • RoutedEvents • Tunneling (Preview*) and Bubbling • ElementTree • Stylus support for Tablet PCs • Attach handler in XAML or Code • Styles/Templates can handle events • Bind to element with Name or x:Name

  21. PanelLayout Layout • Dynamic sizing and positioning • Panels are key • Grid, StackPanel, DockPanel, WrapPanel, Canvas, … • Alignment • Stretch (Size to container) • Left, Right, Center (Size to content) • Margin (parent) and Padding (content) • Overflow • Clip, Wrap, Scroll, Scale

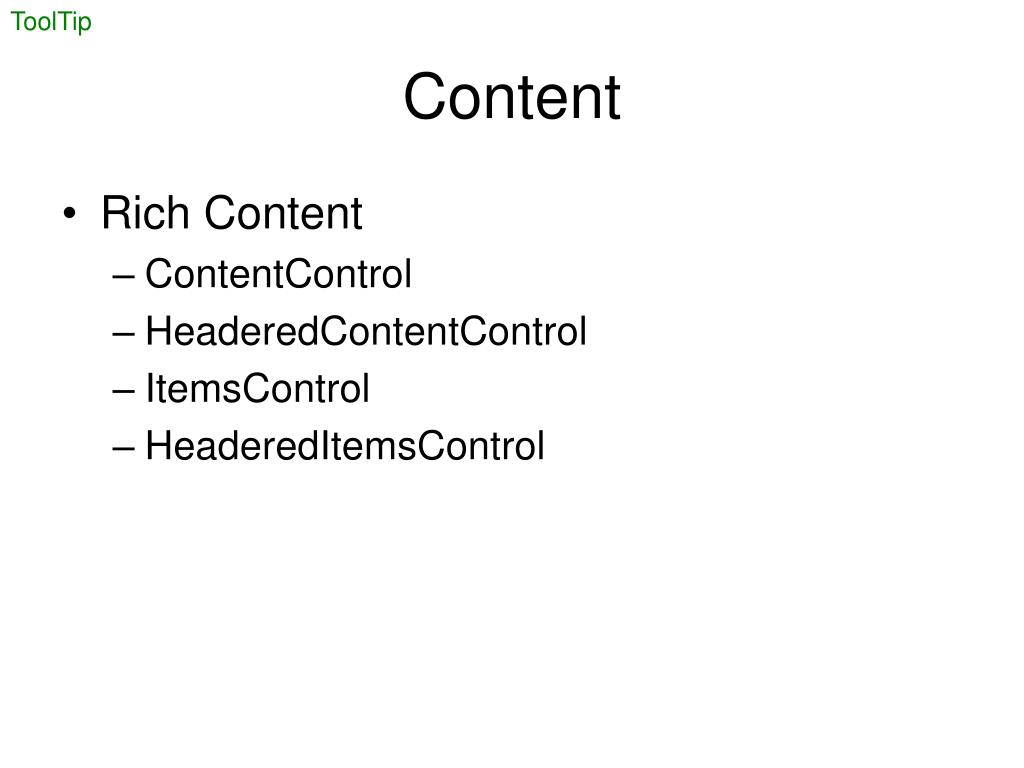

  22. ToolTip Content • Rich Content • ContentControl • HeaderedContentControl • ItemsControl • HeaderedItemsControl

  23. InteropWinForm Interop • HwndSource, HwndHost • Interops with WinForms, Win32, DirectX, … • ActiveX interop is through WinForms interop • Cannot share airspace, so compositing will not work

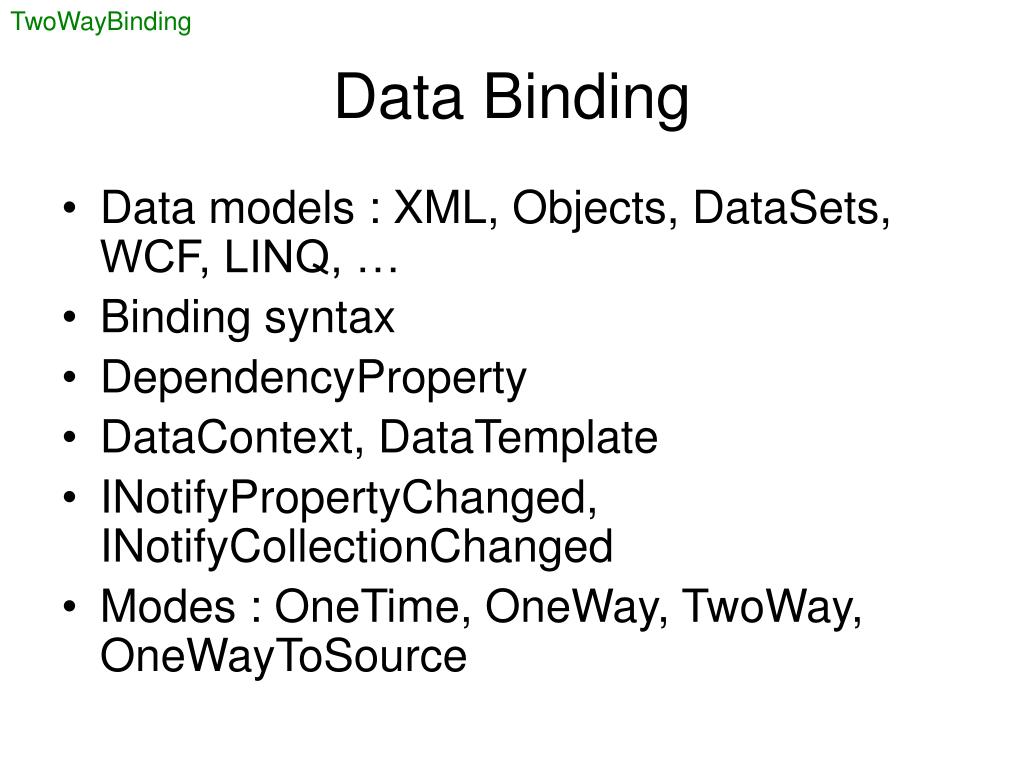

  24. TwoWayBinding Data Binding • Data models : XML, Objects, DataSets, WCF, LINQ, … • Binding syntax • DependencyProperty • DataContext, DataTemplate • INotifyPropertyChanged, INotifyCollectionChanged • Modes : OneTime, OneWay, TwoWay, OneWayToSource

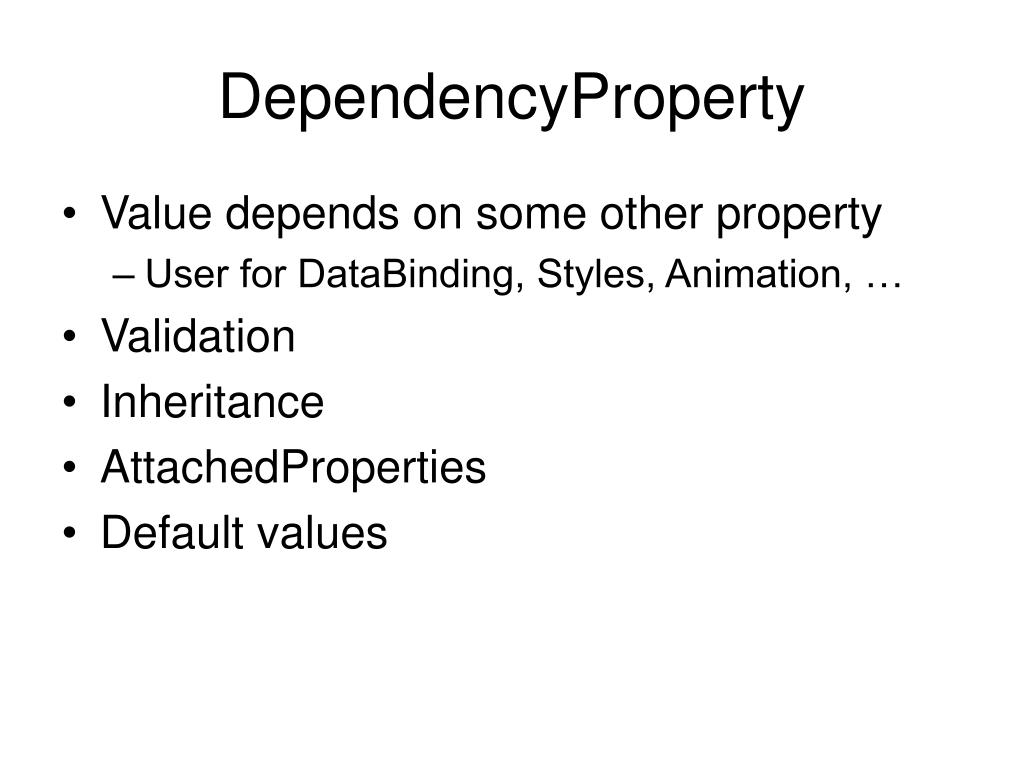

  25. DependencyProperty • Value depends on some other property • User for DataBinding, Styles, Animation, … • Validation • Inheritance • AttachedProperties • Default values

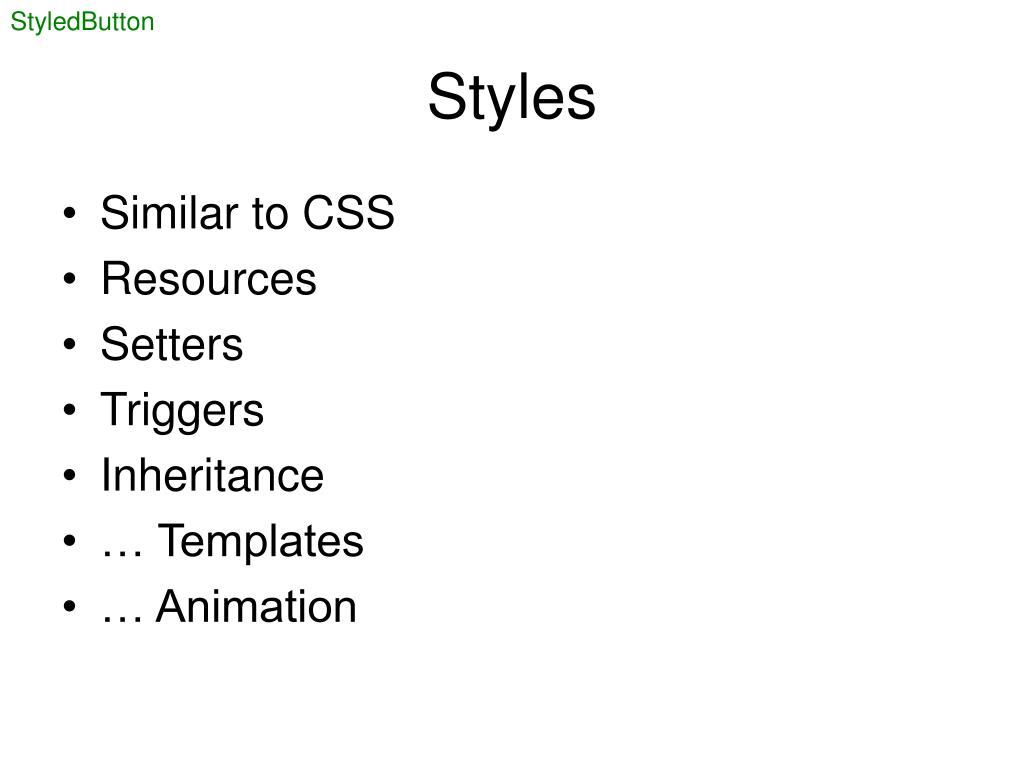

  26. StyledButton Styles • Similar to CSS • Resources • Setters • Triggers • Inheritance • … Templates • … Animation

  27. TemplateButton Templates • Controls are built based on their functionality • The default template can be changed to radically change how the control renders • The goal is to avoid having to create user drawn controls

  28. VS.NET Toolbox Controls • Comes with a set of standard set of common controls for UI • UserControl • Simple reusable control • Similar to application development • Control • Provides templating • For reuse between many applications

  29. Shapes Shapes • 2D Geometric Shapes • Ellipse • Line • Path • Polygon • Polyline • Rectangle

  30. FlowDocument File – Print - XPS Documents • Flow vs Fixed (XPS) • Packaging • Document viewing • Typography • ClearType • OpenFont • Font can be deployed with an Application • Printing • Annotating

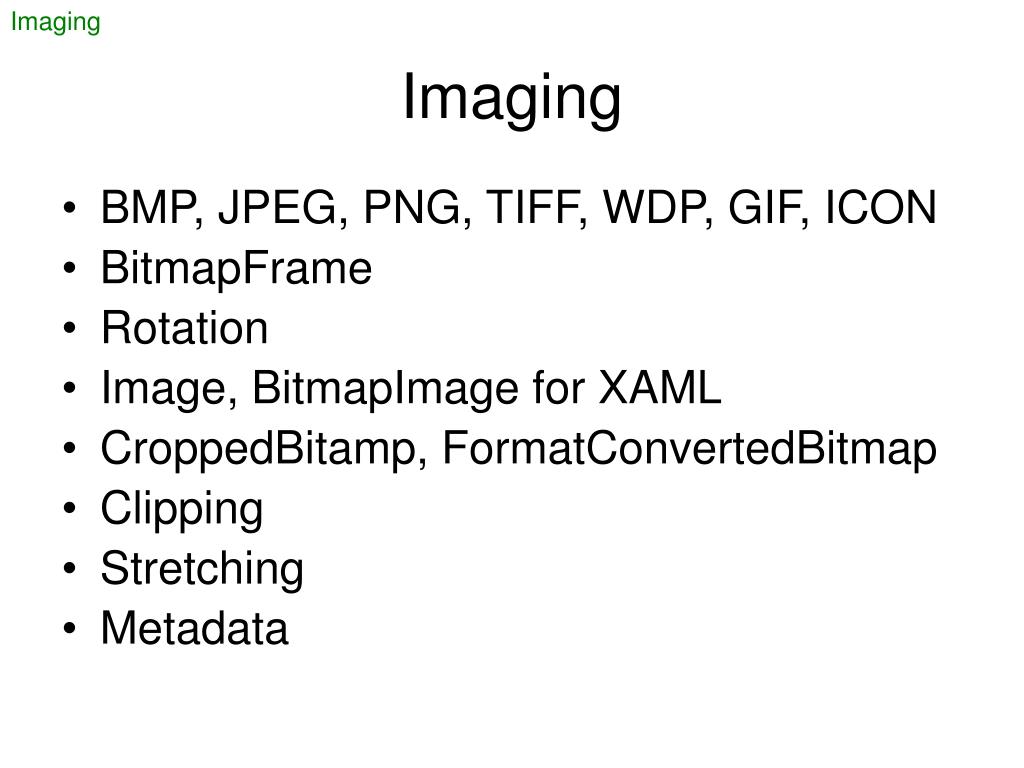

  31. Imaging Imaging • BMP, JPEG, PNG, TIFF, WDP, GIF, ICON • BitmapFrame • Rotation • Image, BitmapImage for XAML • CroppedBitamp, FormatConvertedBitmap • Clipping • Stretching • Metadata

  32. BitmapEffect BitmapEffect • Applied to Visuals • Can be chained • Blur • OuterGlow • DropShadow • Bevel • Emboss

  33. AnimatedButton Animation • Dependency Properties • Animation Types : Double, Color, String, Point, Int32, Path, … • Targets : From, To, By • Time based : duration, repetition, start times, … • Storyboards : pausing, stopping, resume • Key-Frame support

  34. MediaInk Media • Audio • Video

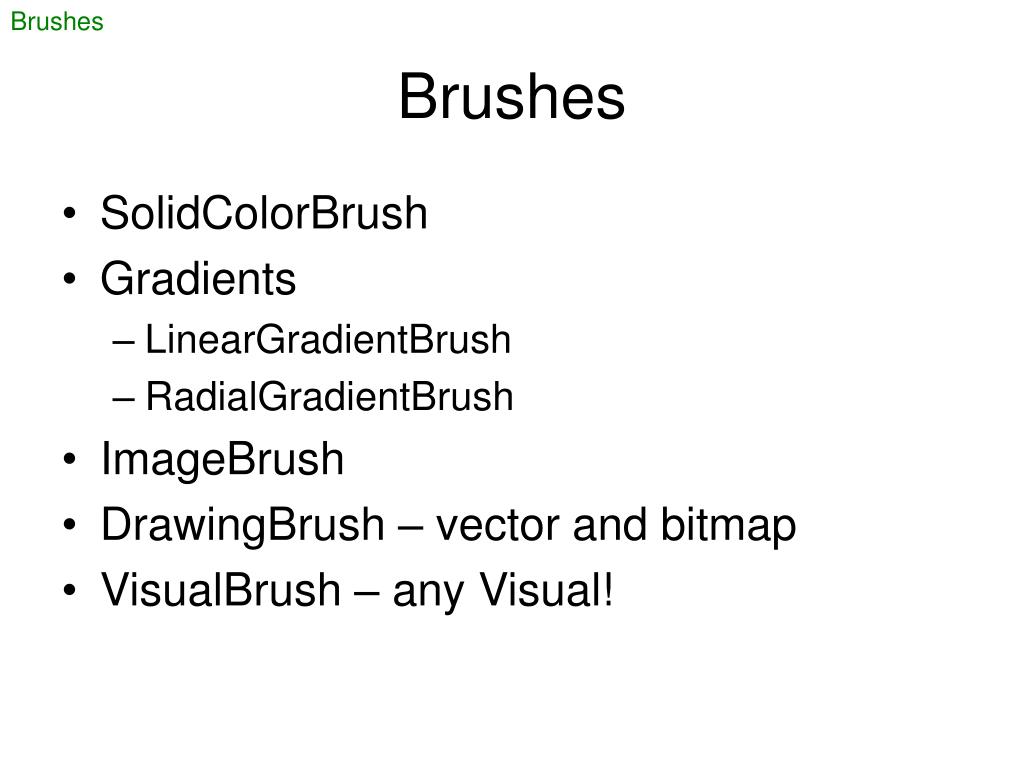

  35. Brushes Brushes • SolidColorBrush • Gradients • LinearGradientBrush • RadialGradientBrush • ImageBrush • DrawingBrush – vector and bitmap • VisualBrush – any Visual!

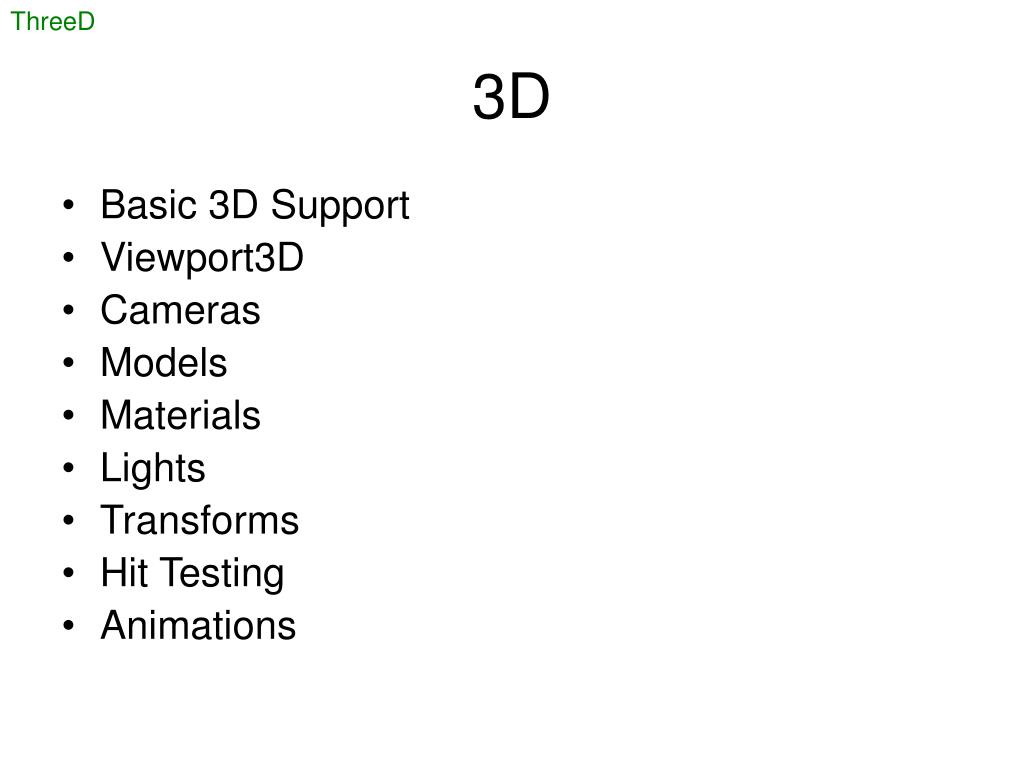

  36. ThreeD 3D • Basic 3D Support • Viewport3D • Cameras • Models • Materials • Lights • Transforms • Hit Testing • Animations

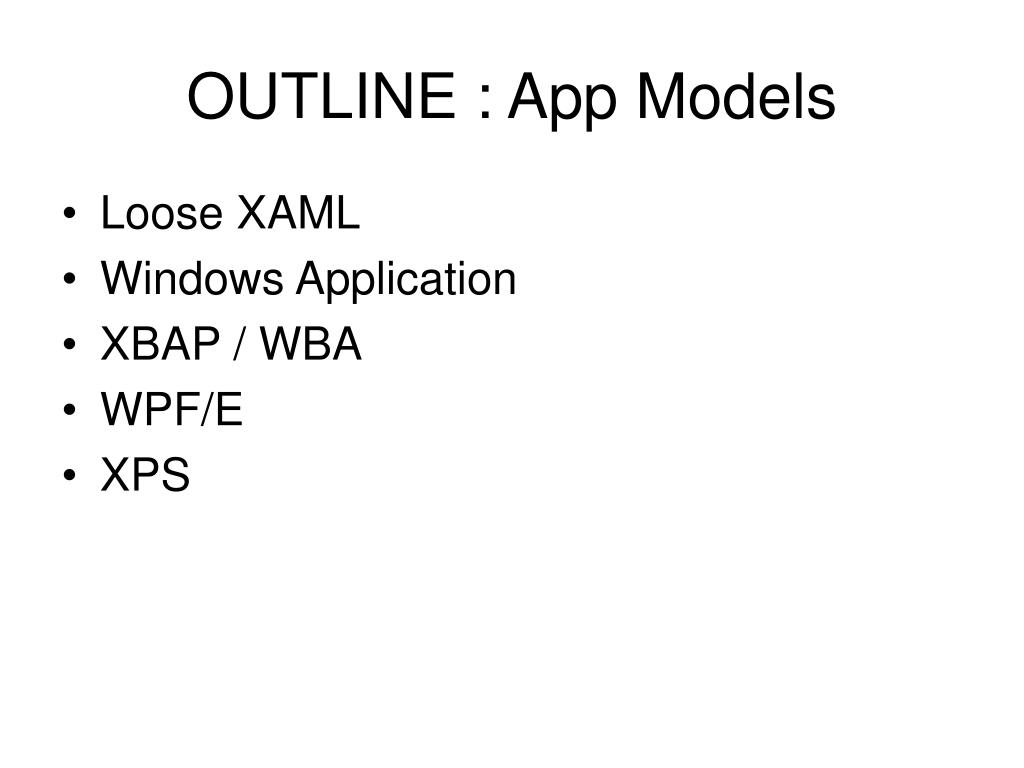

  37. OUTLINE : App Models • Loose XAML • Windows Application • XBAP / WBA • WPF/E • XPS

  38. Loose XAML • XAML without any code • Opens in IE • Can be dynamically generated

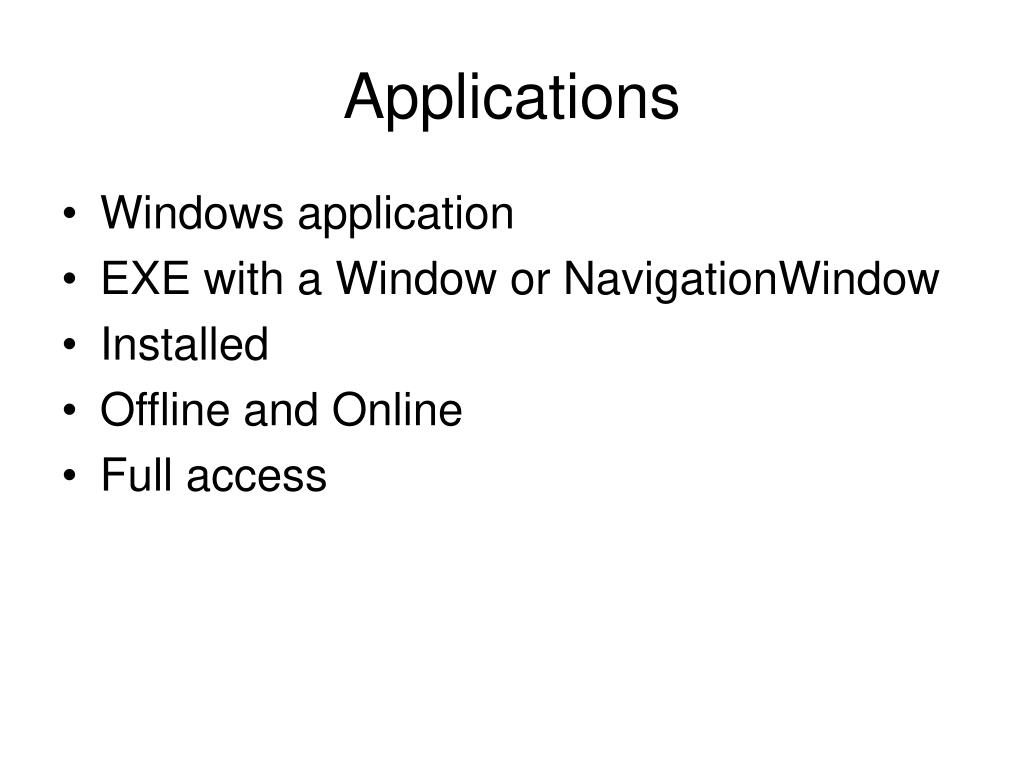

  39. Applications • Windows application • EXE with a Window or NavigationWindow • Installed • Offline and Online • Full access

  40. XBAP / WBA • Hosted in a browser, IE6 and above • Other browsers, FireFox with a plugin • Online only • Internet zone permissions • Embed in webpage using IFrame • Cannot interact with hosting page • Media Center, Sidebar Gadgets

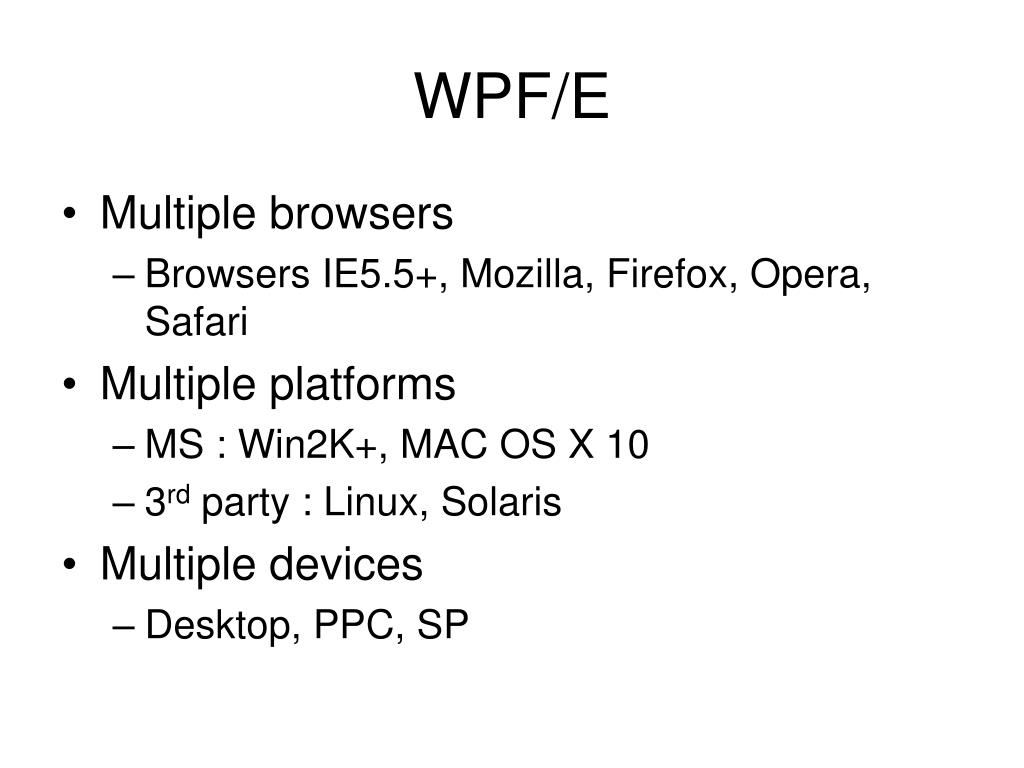

  41. WPF/E • Multiple browsers • Browsers IE5.5+, Mozilla, Firefox, Opera, Safari • Multiple platforms • MS : Win2K+, MAC OS X 10 • 3rd party : Linux, Solaris • Multiple devices • Desktop, PPC, SP

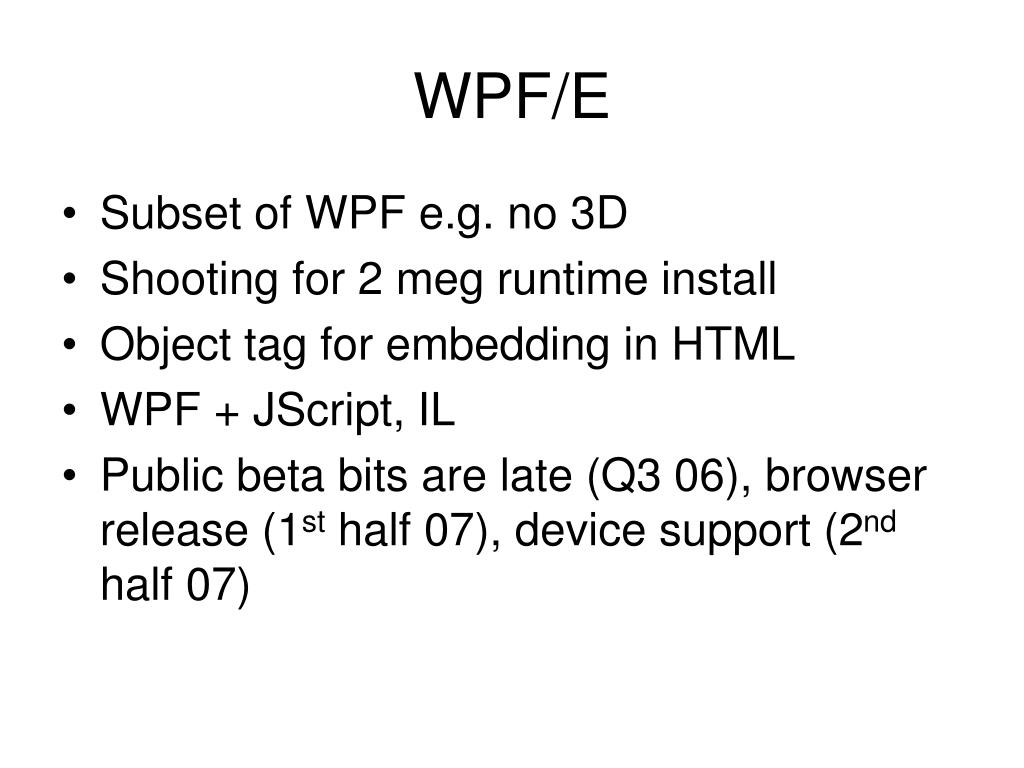

  42. WPF/E • Subset of WPF e.g. no 3D • Shooting for 2 meg runtime install • Object tag for embedding in HTML • WPF + JScript, IL • Public beta bits are late (Q3 06), browser release (1st half 07), device support (2nd half 07)

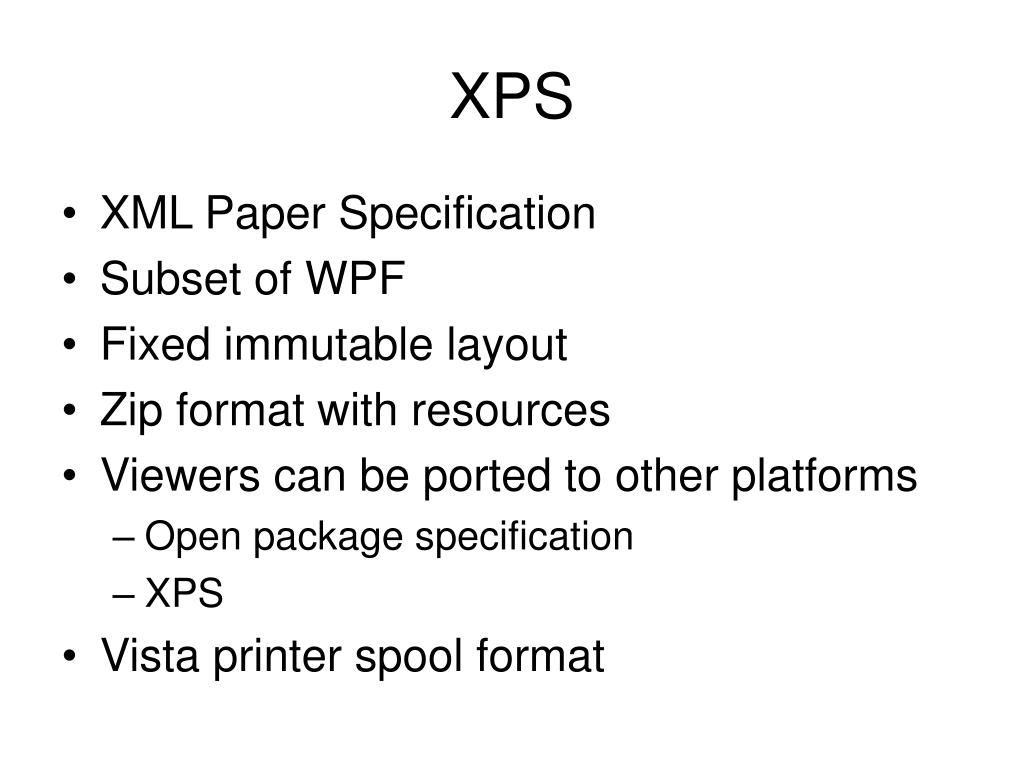

  43. XPS • XML Paper Specification • Subset of WPF • Fixed immutable layout • Zip format with resources • Viewers can be ported to other platforms • Open package specification • XPS • Vista printer spool format

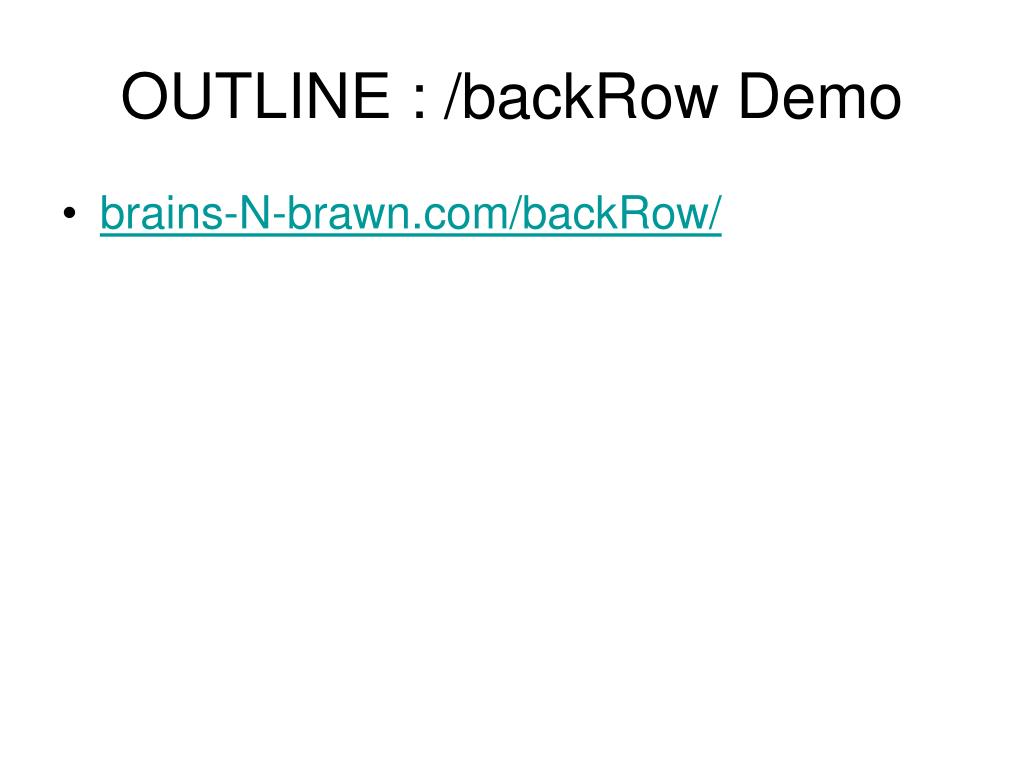

  44. OUTLINE : /backRow Demo • brains-N-brawn.com/backRow/

  45. Resources • Books • Applications = Code + Markup • Programming Windows Presentation Foundation • XAML in a Nutshell • Forum Windows Presentation Foundation ("Avalon“) • Newsgroup microsoft.public.windows.developer.winfx.avalon

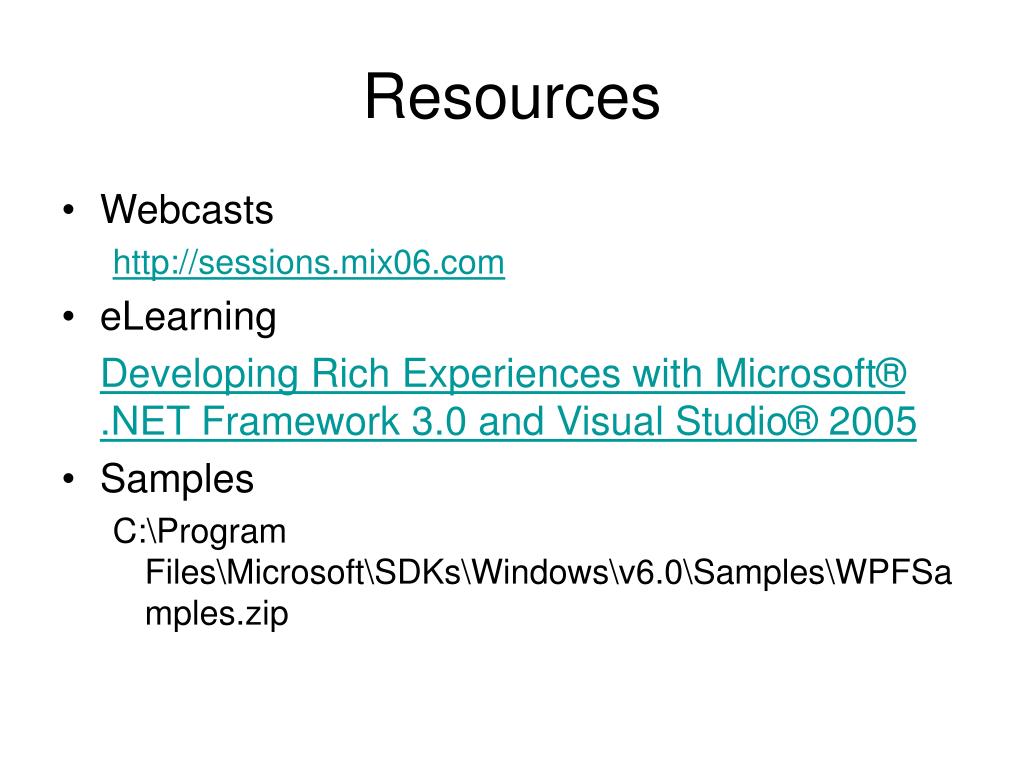

  46. Resources • Webcasts http://sessions.mix06.com • eLearning Developing Rich Experiences with Microsoft® .NET Framework 3.0 and Visual Studio® 2005 • Samples C:\Program Files\Microsoft\SDKs\Windows\v6.0\Samples\WPFSamples.zip

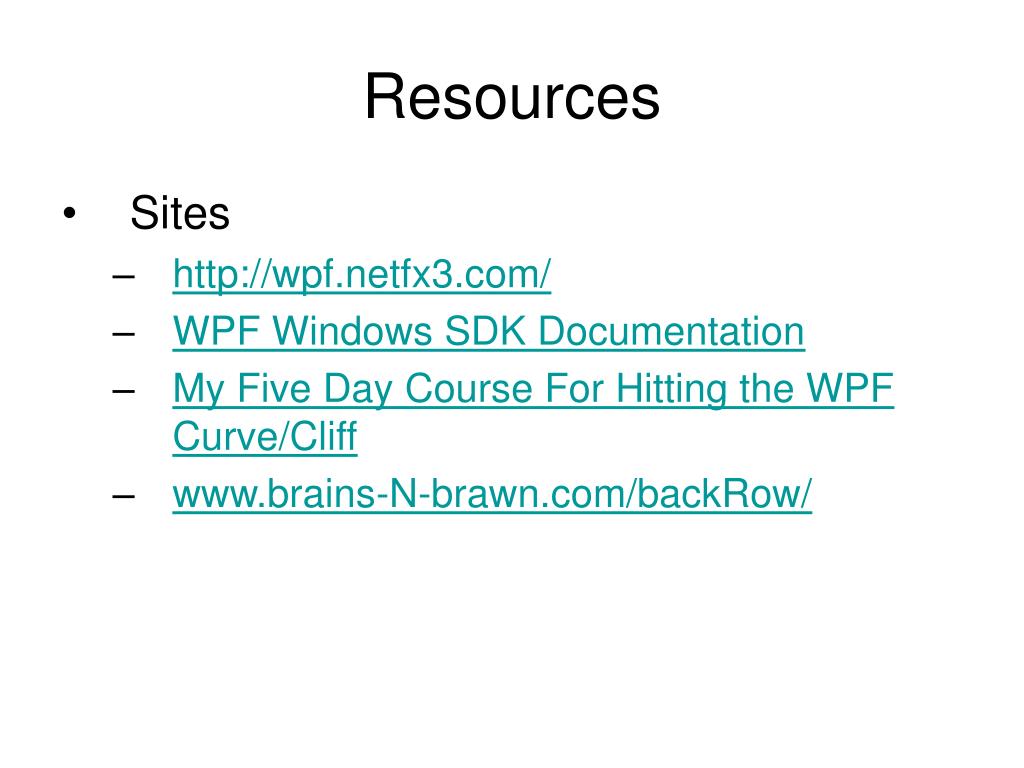

  47. Resources • Sites • http://wpf.netfx3.com/ • WPF Windows SDK Documentation • My Five Day Course For Hitting the WPF Curve/Cliff • www.brains-N-brawn.com/backRow/

  48. Questions
