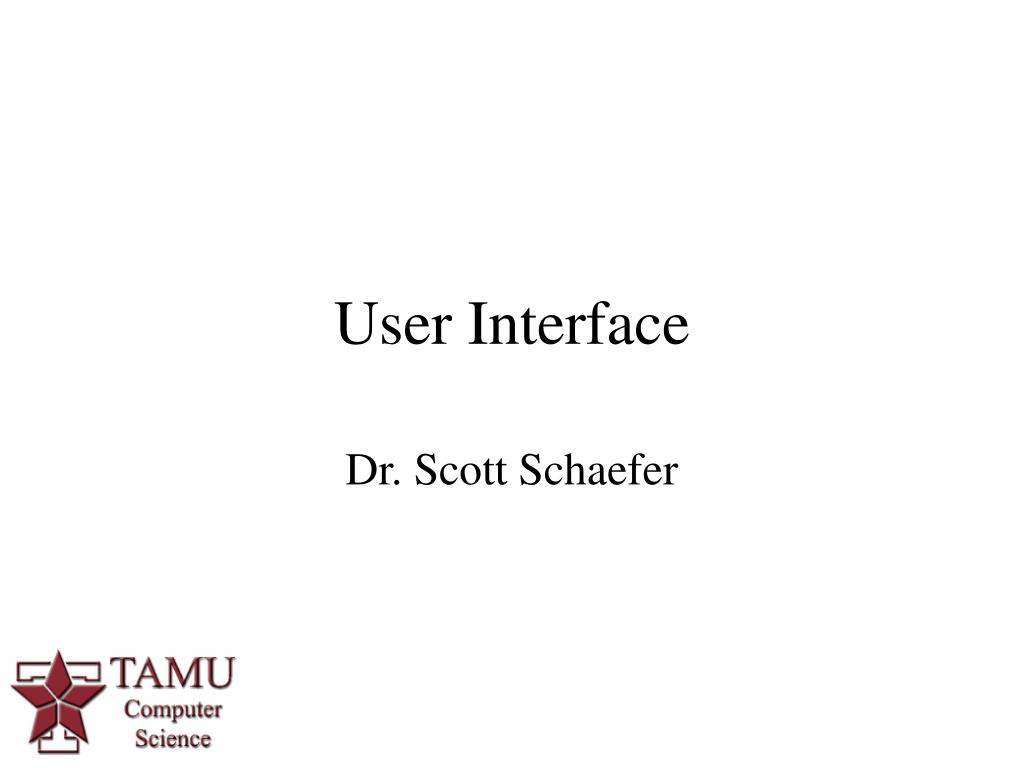

  1. User Interface Dr. Scott Schaefer

  2. User Interface • Make it simple/easy to do common tasks • Don’t obscure the FOV • Simpler is typically better • Consistency is important!

  3. Diablo

  4. Warcraft 3

  5. World of Warcraft

  6. Quake 3

  7. Quake 4

  8. Madden ‘09

  9. Game Control • Must consider single/multi-player aspect • Single player? • Networked multi-player? • Multi-player same machine? • Platform limitations

  10. Game Control: Keyboard/Mouse • Connected to every PC but lacking on most other platforms • Fine for single player or multi-player networked • Lots of buttons!

  11. Game Control: Joystick • Found on most consoles • Can also be connect to PC via USB • Win NT supports 2 joysticks • Later versions support 16 joysticks

  12. Game Control: Others

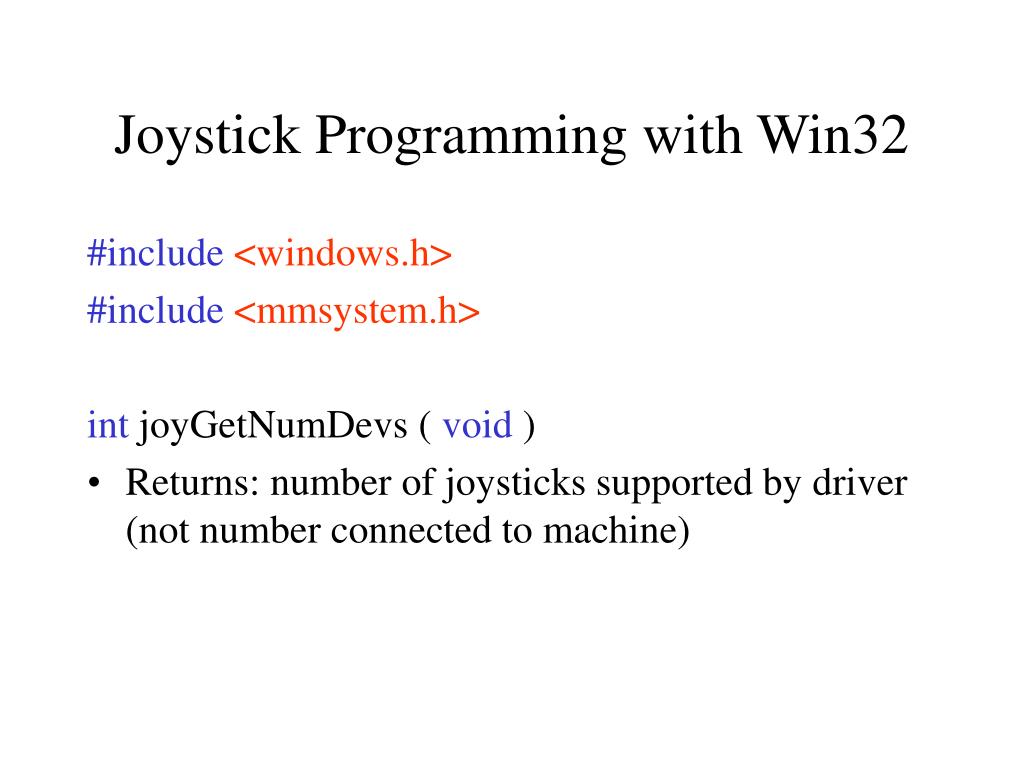

  13. Joystick Programming with Win32 #include<windows.h> #include<mmsystem.h> intjoyGetNumDevs ( void) • Returns: number of joysticks supported by driver (not number connected to machine)

  14. Joystick Programming with Win32 MMResult joyGetDevCaps ( int id, JOYCAPS*cap, int size ) • id: id of the joystick being tested (-1 through 15) • cap: pointer to a JOYCAP structure • size: size of structure pointed to by cap • Returns: JOYERR_NOERROR if no error

  15. Joystick Programming with Win32 • typedefstruct { short wMid; short wPid; char szPname[MAXPNAMELEN]; unsigned int wXmin, wXmax, wYmin, wYmax, wZmin, wZmax; unsigned int wNumButtons; unsigned int wPeriodMin, wPeriodMax; unsigned int wRmin, wRmax, wUmin, wUmax, wVmin, wVmax; unsigned int wCaps; unsigned int wMaxAxes; unsigned int wNumAxes; unsigned int wMaxButtons; char szRegKey[MAXPNAMELEN]; char szOEMVxD[MAX_JOYSTICKOEMVXDNAME]; } JOYCAPS;

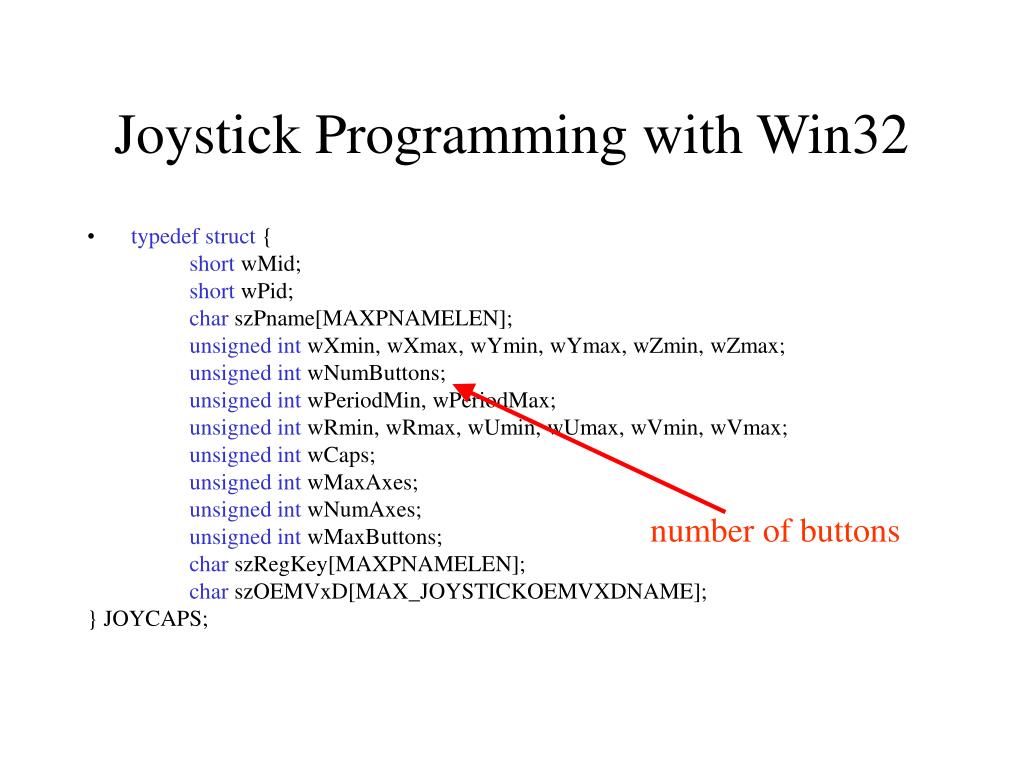

  16. Joystick Programming with Win32 • typedefstruct { short wMid; short wPid; char szPname[MAXPNAMELEN]; unsigned int wXmin, wXmax, wYmin, wYmax, wZmin, wZmax; unsigned int wNumButtons; unsigned int wPeriodMin, wPeriodMax; unsigned int wRmin, wRmax, wUmin, wUmax, wVmin, wVmax; unsigned int wCaps; unsigned int wMaxAxes; unsigned int wNumAxes; unsigned int wMaxButtons; char szRegKey[MAXPNAMELEN]; char szOEMVxD[MAX_JOYSTICKOEMVXDNAME]; } JOYCAPS; number of buttons

  17. Joystick Programming with Win32 • typedefstruct { short wMid; short wPid; char szPname[MAXPNAMELEN]; unsigned int wXmin, wXmax, wYmin, wYmax, wZmin, wZmax; unsigned int wNumButtons; unsigned int wPeriodMin, wPeriodMax; unsigned int wRmin, wRmax, wUmin, wUmax, wVmin, wVmax; unsigned int wCaps; unsigned int wMaxAxes; unsigned int wNumAxes; unsigned int wMaxButtons; char szRegKey[MAXPNAMELEN]; char szOEMVxD[MAX_JOYSTICKOEMVXDNAME]; } JOYCAPS; min/max bounds for “hat” controllers

  18. Joystick Programming with Win32 MMResult joyGetPosEx ( int id, JOYINFOEX*info) • id: id of the joystick being tested (-1 through 15) • info: pointer to a JOYINFOEX structure • Returns: JOYERR_NOERROR if no error JOYERR_UNPLUGGED if joystick not connected

  19. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX;

  20. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; MUST be sizeof( JOYINFOEX)

  21. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; SHOULD be JOY_RETURNALL

  22. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; position of “hat” controllers

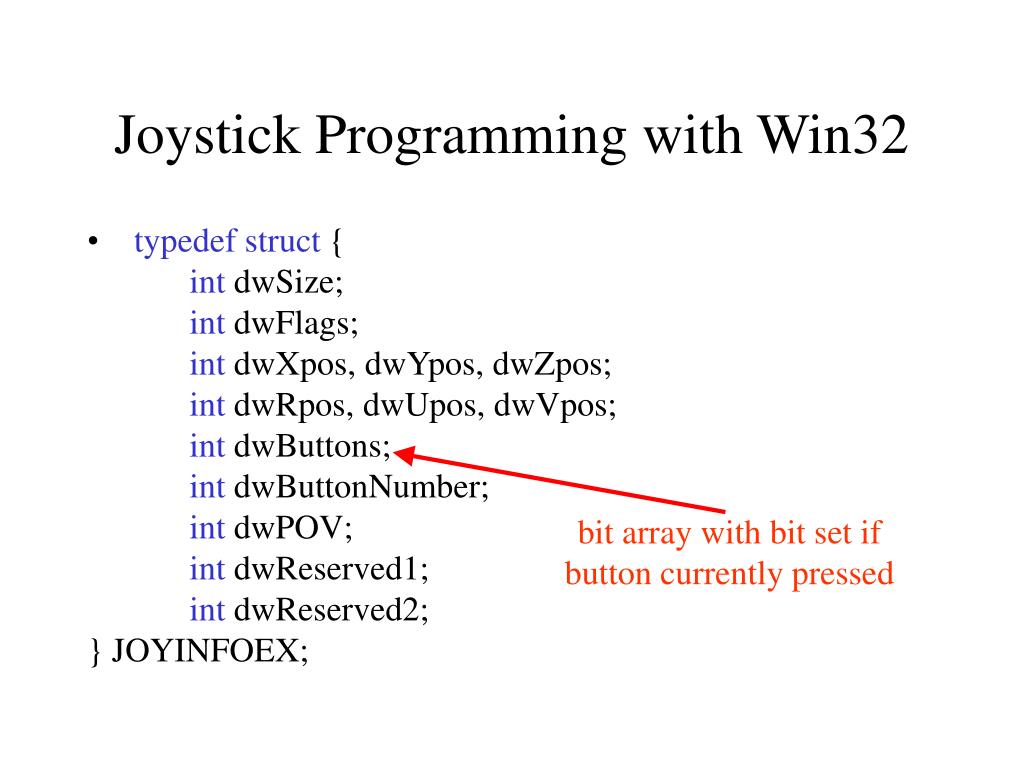

  23. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; bit array with bit set if button currently pressed

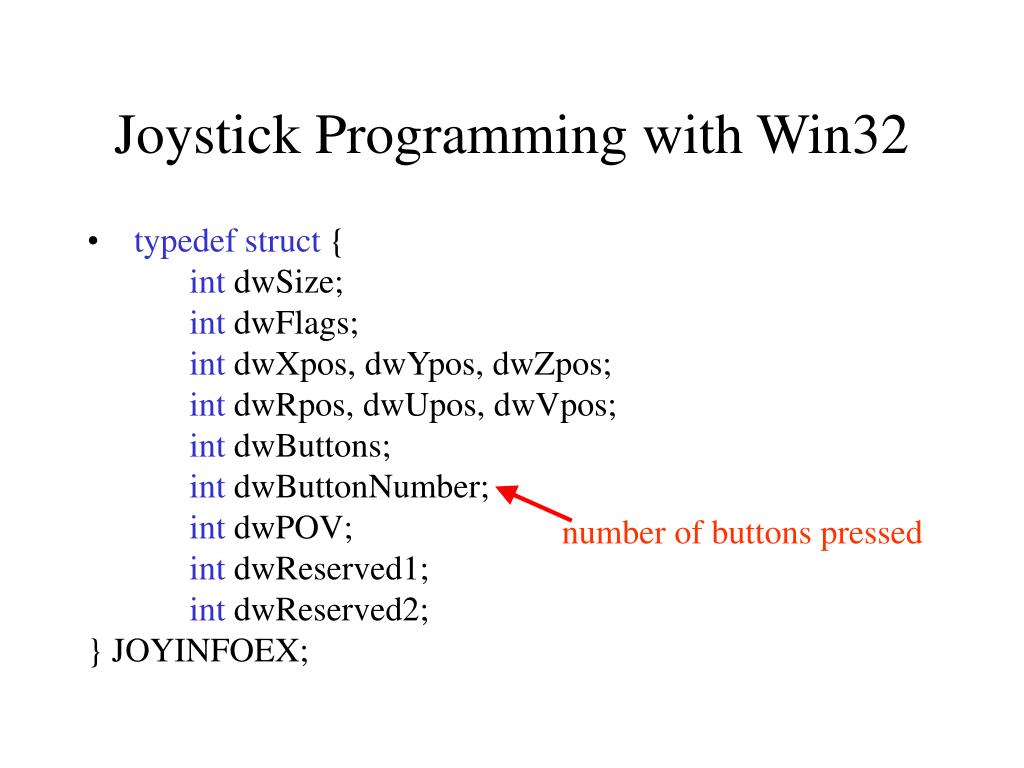

  24. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; number of buttons pressed

  25. Joystick Programming with Win32 • typedefstruct { int dwSize; int dwFlags; int dwXpos, dwYpos, dwZpos; int dwRpos, dwUpos, dwVpos; int dwButtons; int dwButtonNumber; int dwPOV; int dwReserved1; int dwReserved2; } JOYINFOEX; angle of POV controller
