Nervous System Part 2

Nervous System Part 2. Reflex Arc Nerve Impulse and Synapse Spinal Cord. Reflex Arc. reflex arcs are specialized neuron pathways conduction by a reflex arc results in a reflex (that is, contraction by a muscle or secretion by a gland). Reflex Arc.

ivan-hartman
Télécharger la présentation

Nervous System Part 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

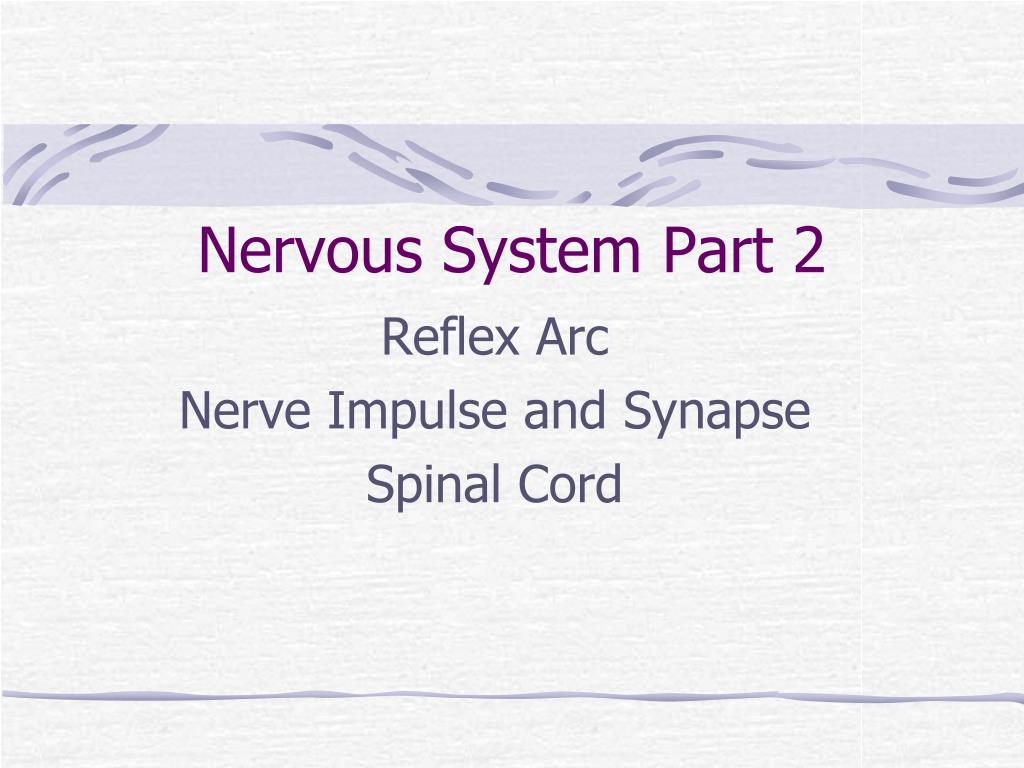

  1. Nervous System Part 2 Reflex Arc Nerve Impulse and Synapse Spinal Cord

  2. Reflex Arc • reflex arcs are specialized neuron pathways • conduction by a reflex arc results in a reflex (that is, contraction by a muscle or secretion by a gland)

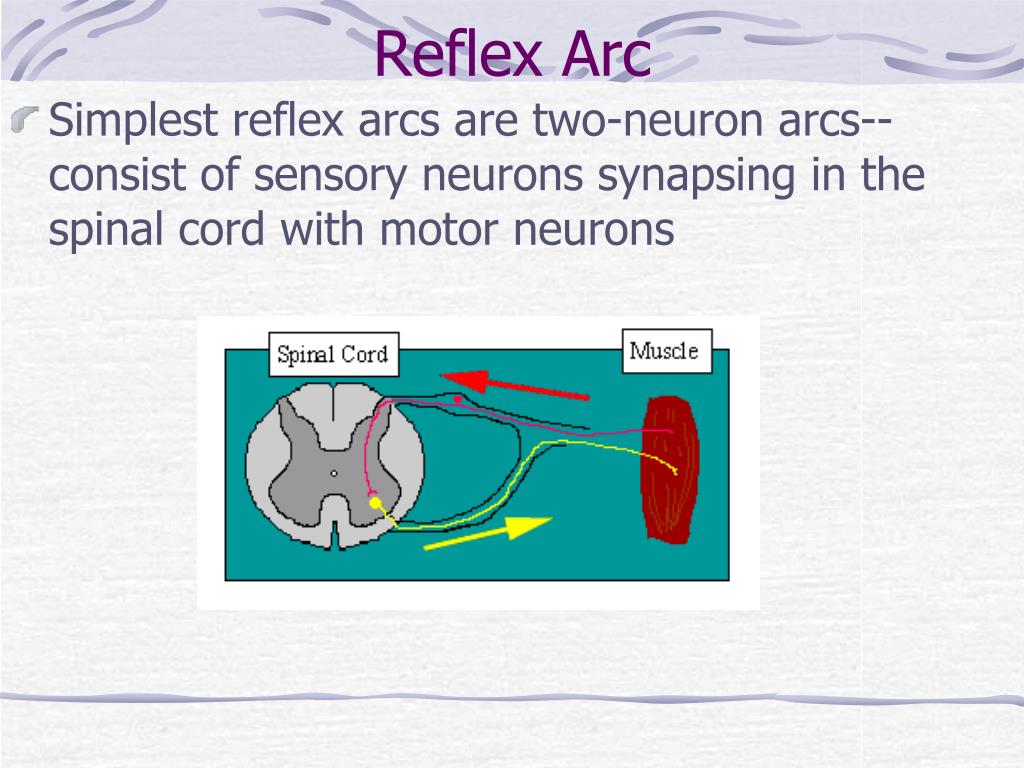

  3. Reflex Arc • Simplest reflex arcs are two-neuron arcs--consist of sensory neurons synapsing in the spinal cord with motor neurons

  4. Three-neuron arcs consists of sensory neurons synapsing in the spinal cord with interneurons that synapse with motor neurons Reflex Arc

  5. Nerve Impulse and Synapse • The membrane of each resting neuron has a slight negative charge.

  6. Nerve Impulse and Synapse • A stimulus (change in environment--pressure, temp) triggers the opening of Na+ channels in the plasma membrane of the sensory neuron.

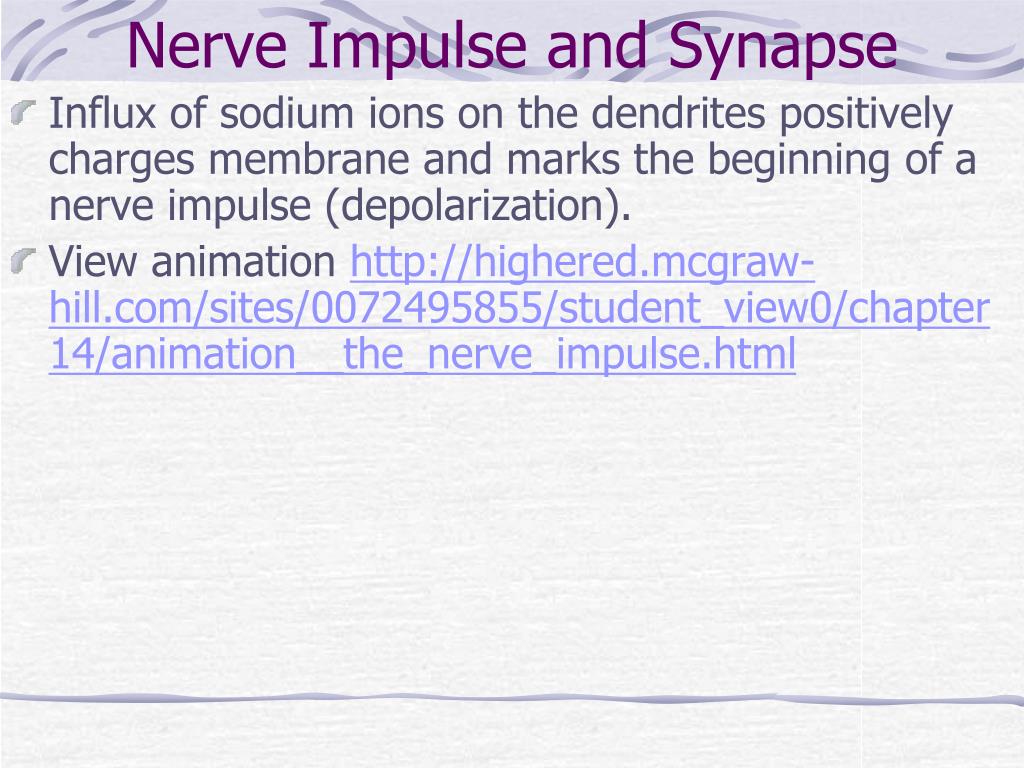

  7. Nerve Impulse and Synapse • Influx of sodium ions on the dendrites positively charges membrane and marks the beginning of a nerve impulse (depolarization). • View animation http://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter14/animation__the_nerve_impulse.html

  8. Nerve Impulse and Synapse • When the impulse (action potential) encounters the insulating myelin, it jumps around it. This is called saltatory conduction and is faster than nonmyelinated travel. • View animationhttp://www.youtube.com/watch?v=pnB_Hc-Qfs0

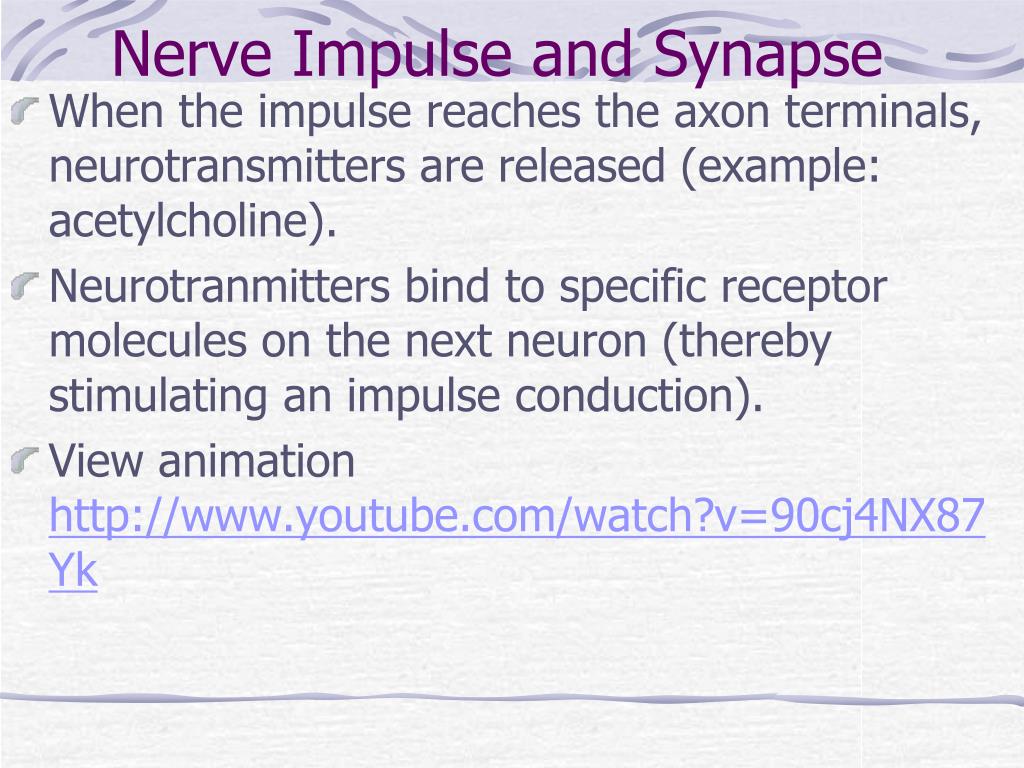

  9. Nerve Impulse and Synapse • When the impulse reaches the axon terminals, neurotransmitters are released (example: acetylcholine). • Neurotranmitters bind to specific receptor molecules on the next neuron (thereby stimulating an impulse conduction). • View animation http://www.youtube.com/watch?v=90cj4NX87Yk

  10. Coverings and fluid spaces of the spinal cord: Coverings Vertebrae Spinal meninges--the dura mater (outer), the pia mater (inner), and the arachnoid (middle) Spinal Cord • pia: blood vessels • arachnoid: fibrous “spider web” • dura: tough CT

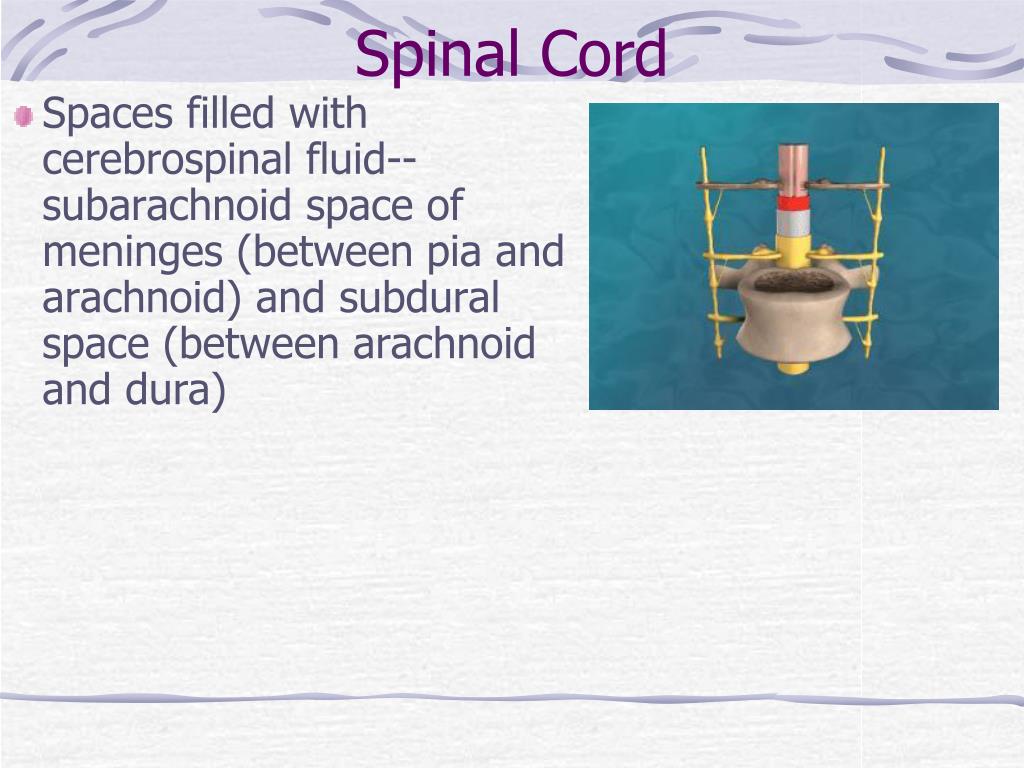

  11. Spaces filled with cerebrospinal fluid--subarachnoid space of meninges (between pia and arachnoid) and subdural space (between arachnoid and dura) Spinal Cord
