Understanding Multicore System Architectures and MCAPI for Enhanced Interprocessor Communication

DESCRIPTION

This presentation delves into the growing significance of multicore designs in embedded systems, highlighting two key hardware architectures: homogeneous and heterogeneous. It explains the software architectures of Symmetric Multiprocessing (SMP) and Asymmetric Multiprocessing (AMP) and elaborates on their implementations. The presentation also introduces the Multicore Communications API (MCAPI), a critical tool for managing interprocessor communication in multicore systems. Join us to explore the latest in multicore processor design, current technologies, and best practices.

1 / 9

Télécharger la présentation

Understanding Multicore System Architectures and MCAPI for Enhanced Interprocessor Communication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Interprocessor Communications and MCAPI Colin Walls colin_walls@mentor.com

  2. Agenda Multicore introduction MCAPI introduction MCAPI concepts MCAPI API MCAPI implementation Conclusions

  3. Agenda Multicore introduction MCAPI introduction MCAPI concepts MCAPI API MCAPI implementation Conclusions

  4. Embedded Multicore • Designs using multiple cores are becoming common • multiple cores on a chip • multiple chips on a board • any combination • Two hardware architectures: • homogenous – multiple identical cores • heterogeneous – multiple cores of different types • Broadly two software architectures: • SMP – Symmetrical MultiProcessing • AMP – Asymmetrical MultiProcessing

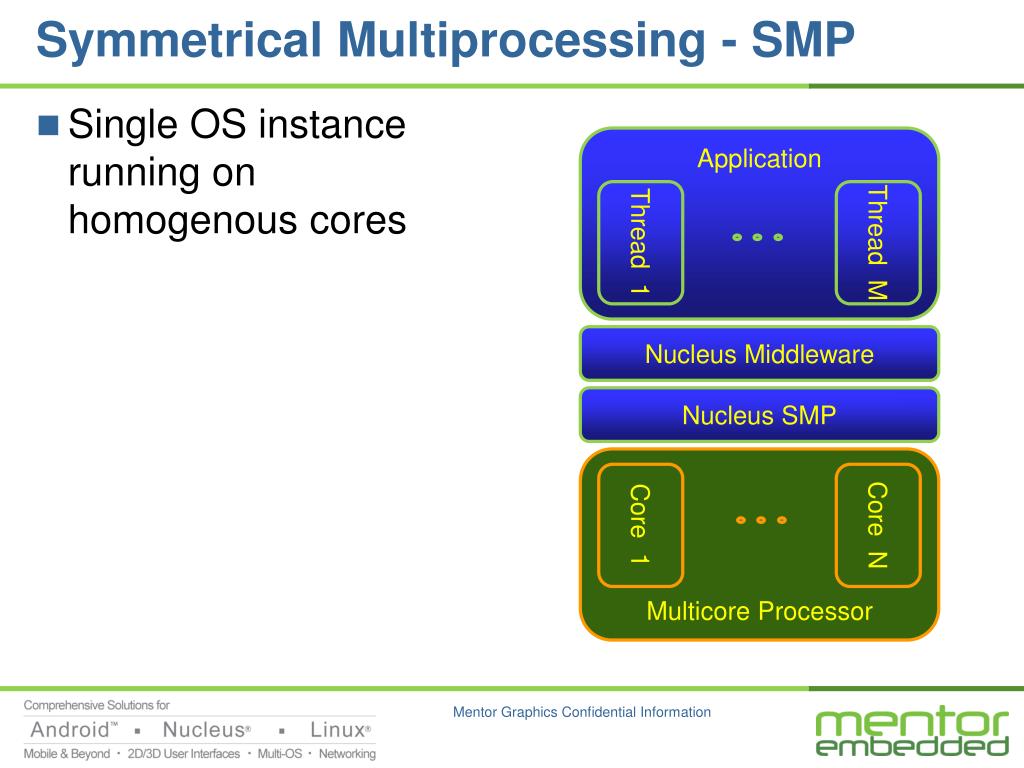

  5. Symmetrical Multiprocessing - SMP • Single OS instance running on homogenous cores Application Thread 1 Thread M Nucleus Middleware Nucleus SMP Multicore Processor Core 1 Core N

  6. Asymmetrical Multiprocessing - AMP • Multiple OS instances running on heterogeneous or homogenous cores Application 1 Application 2 Thread 1 Thread 1 Thread m Thread M Android Middleware Linux Nucleus MCAPI Multicore Processor Core 1 Core N

  7. Multicore Architectures Heterogeneous Homogeneous AMP SMP

  8. Current Multicore Processors • Heterogeneous devices • OMAP2 – ARM + DSP • OMAP3 – ARM + DSP + Accelerators • OMAP4 – (ARM x 2) + DSP + Accelerators • Homogeneous devices • Marvell – ARM x 2 • ARM Cortex-A9 MPCore – ARM x 4 • FreescaleQorIQ – PPC x 8 • MIPS 1004K – MIPS32 x 4

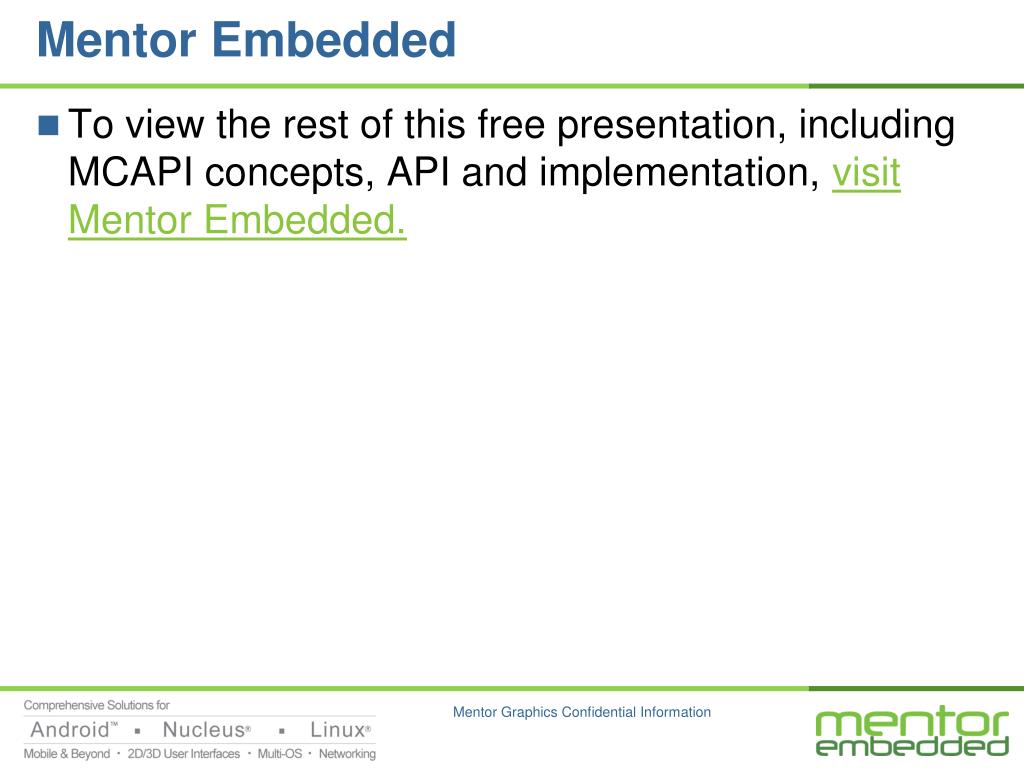

  9. Mentor Embedded • To view the rest of this free presentation, including MCAPI concepts, API and implementation, visit Mentor Embedded.
