  1. Harmonic3D Shape Matching Michael KazhdanThomas Funkhouser Princeton University

  2. Motivation • Large databases of 3D models Computer Graphics (Princeton 3D Search Engine) Mechanical CAD (National Design Repository) Molecular Biology (Audrey Sanderson)

  3. Goal • Find 3D models with similar shapes 3D Model ShapeDescriptor Nearest Neighbor Model Database

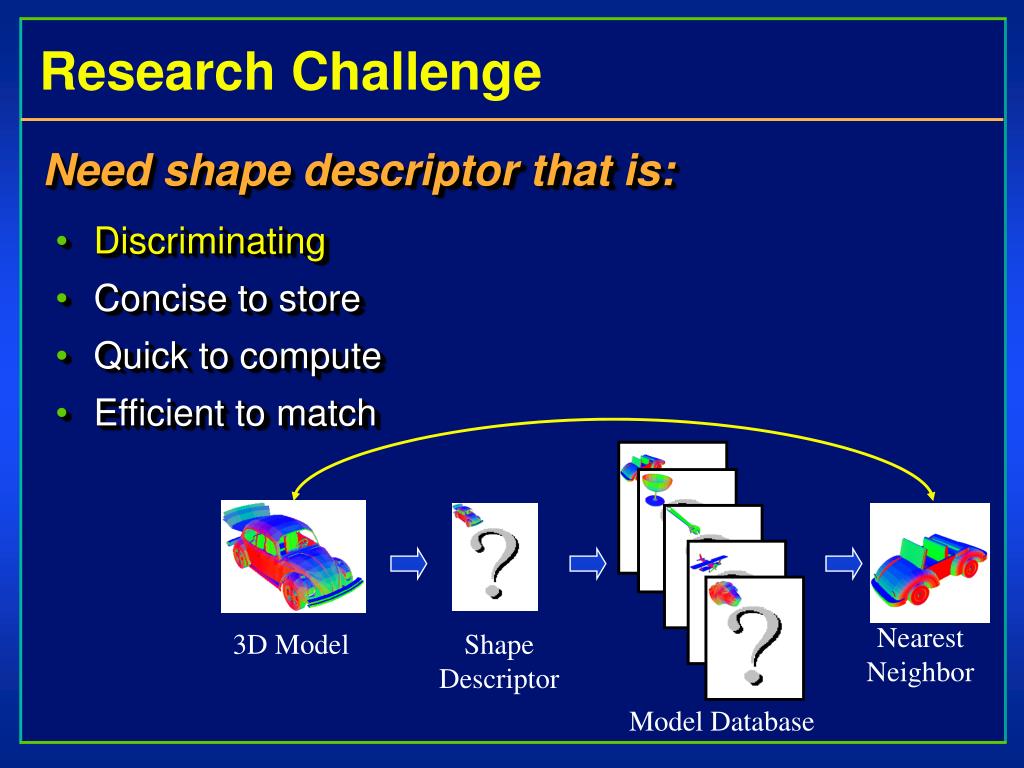

  4. Research Challenge • Need shape descriptor that is: • Discriminating • Concise to store • Quick to compute • Efficient to match Nearest Neighbor 3D Model ShapeDescriptor Model Database

  5. Research Challenge • Finding a 3D shape descriptor that is: • Discriminating • Concise to store • Quick to compute • Efficient to match Nearest Neighbor 3D Model ShapeDescriptor Model Database

  6. Research Challenge • Finding a 3D shape descriptor that is: • Discriminating • Concise to store • Quick to compute • Efficient to match Nearest Neighbor 3D Model ShapeDescriptor Model Database

  7. Research Challenge • Finding a 3D shape descriptor that is: • Discriminating • Concise to store • Quick to compute • Efficient to match Nearest Neighbor 3D Model ShapeDescriptor Model Database

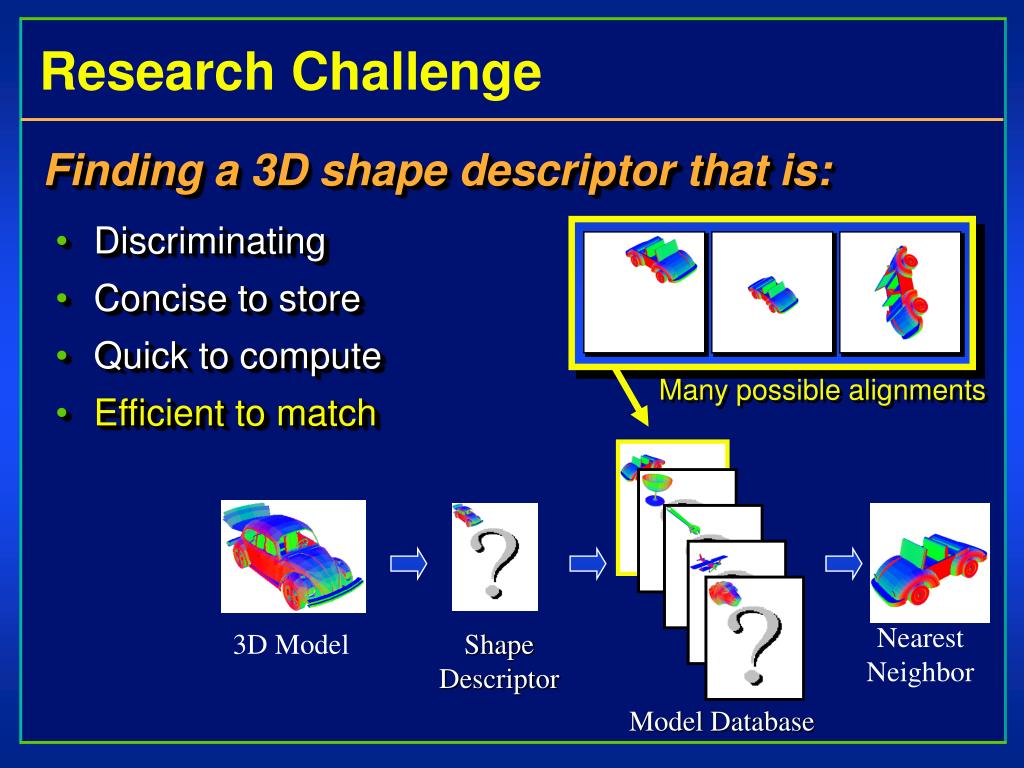

  8. Research Challenge • Finding a 3D shape descriptor that is: • Discriminating • Concise to store • Quick to compute • Efficient to match Many possible alignments Nearest Neighbor 3D Model ShapeDescriptor Model Database

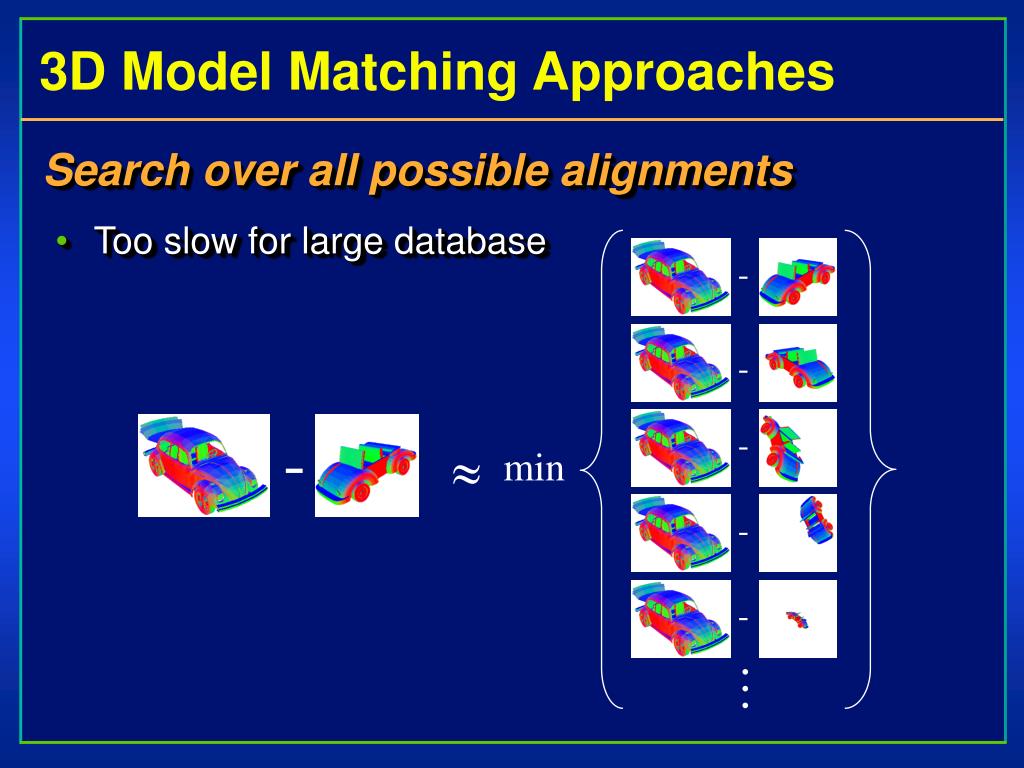

  9. 3D Model Matching Approaches • Search over all possible alignments • Too slow for large database - - - - min - -

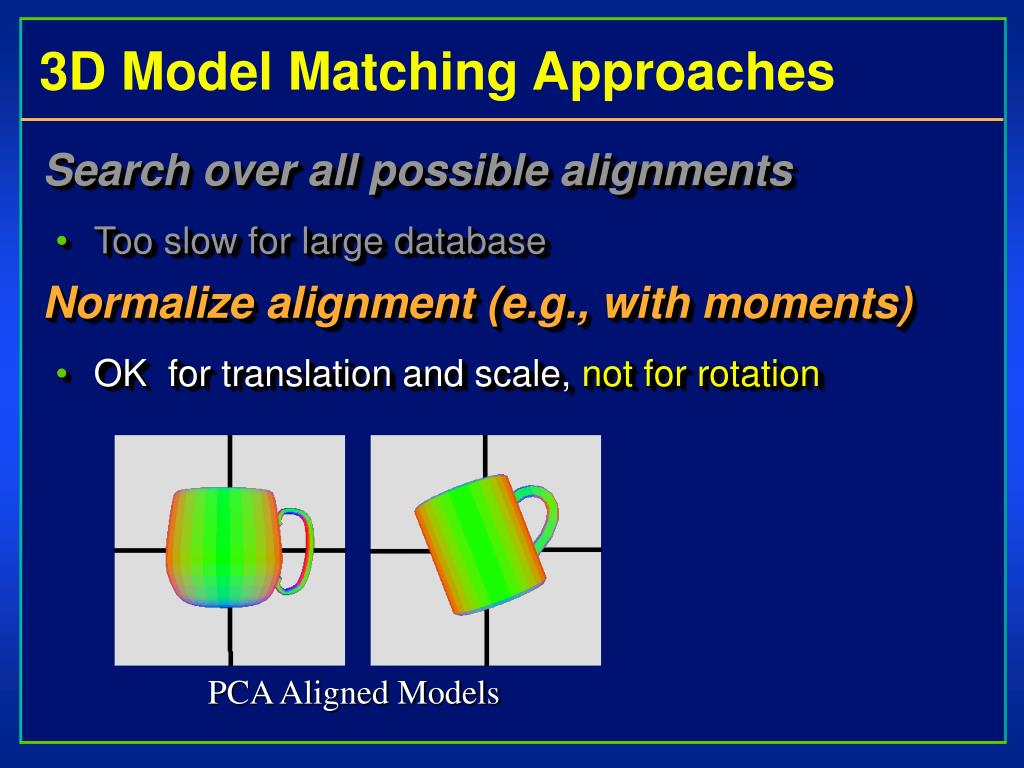

  10. 3D Model Matching Approaches • Search over all possible alignments • Too slow for large database • Normalize alignment (e.g., with moments) • OK for translation and scale, not for rotation PCA Aligned Models

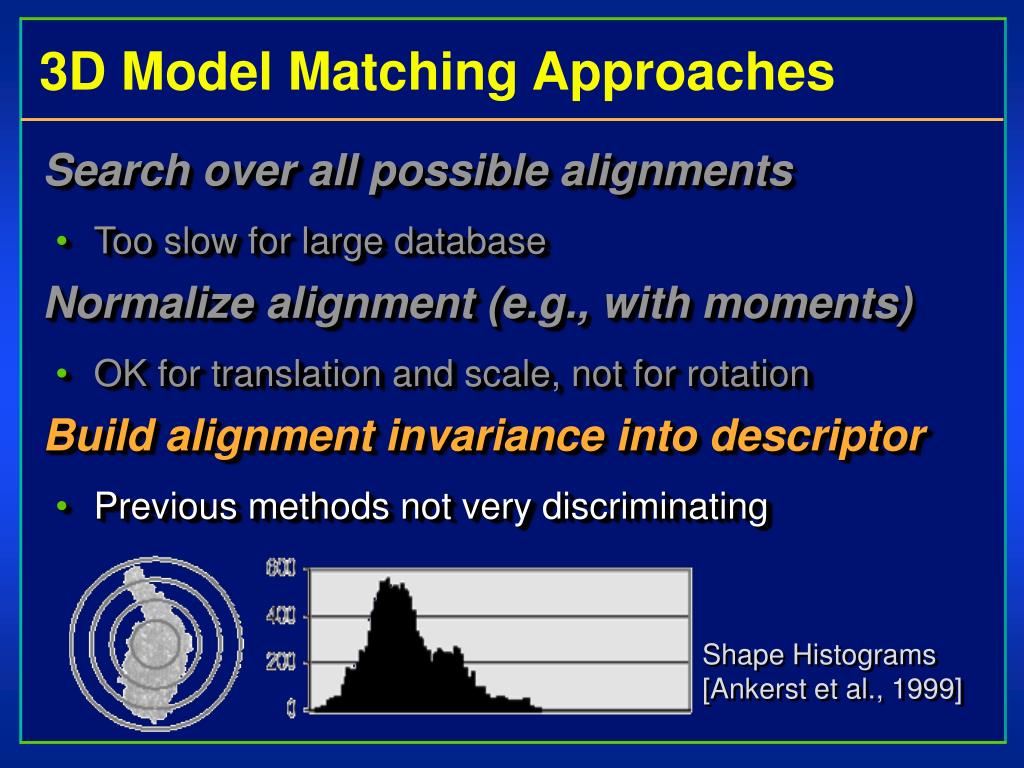

  11. 3D Model Matching Approaches • Search over all possible alignments • Too slow for large database • Normalize alignment (e.g., with moments) • OK for translation and scale, not for rotation • Build alignment invariance into descriptor • Previous methods not very discriminating Shape Histograms [Ankerst et al., 1999]

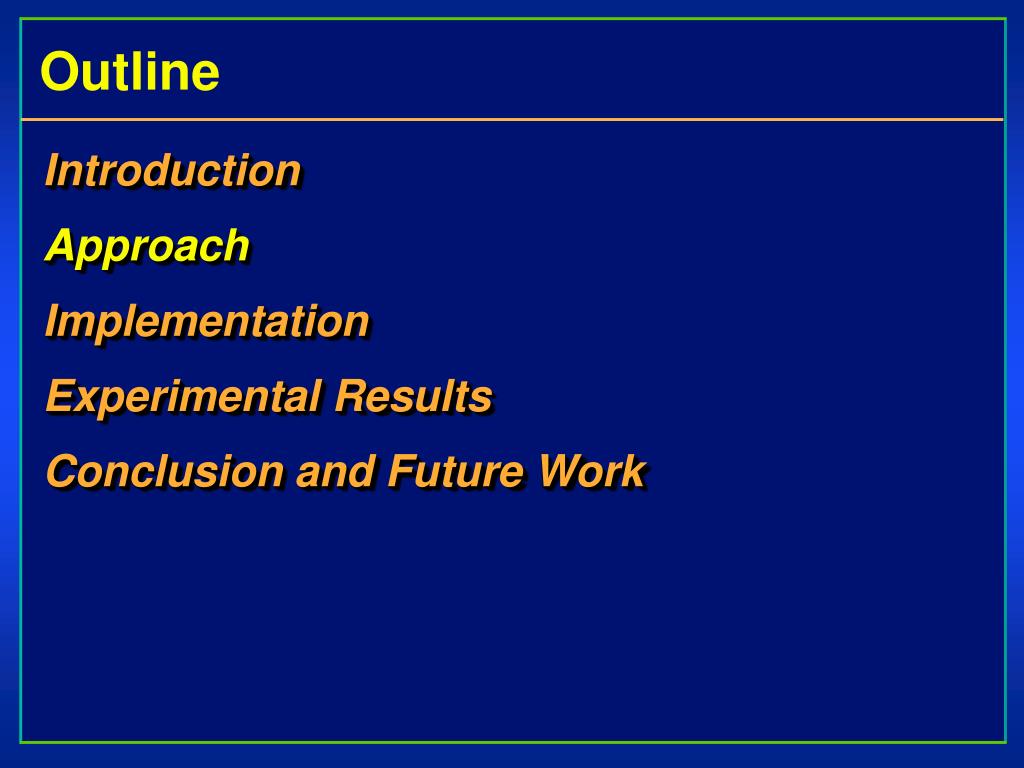

  12. Outline • Introduction • Approach • Implementation • Experimental Results • Conclusion and Future Work

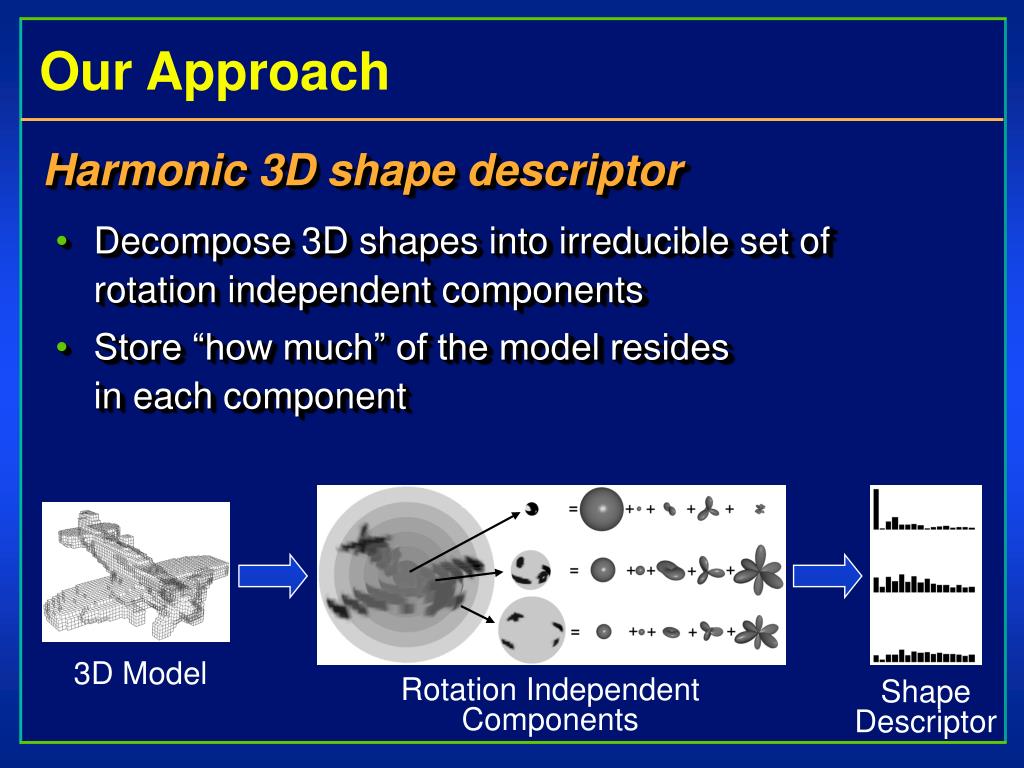

  13. Our Approach • Harmonic 3D shape descriptor • Decompose 3D shapes into irreducible set of rotation independent components • Store “how much” of the model resides in each component 3D Model Rotation IndependentComponents ShapeDescriptor

  14. Our Approach • Harmonic 3D shape descriptor • Decompose 3D shapes into irreducible set of rotation independent components • Store “how much” of the model resides in each component Concentric Spheres 3D Model Rotation IndependentComponents ShapeDescriptor

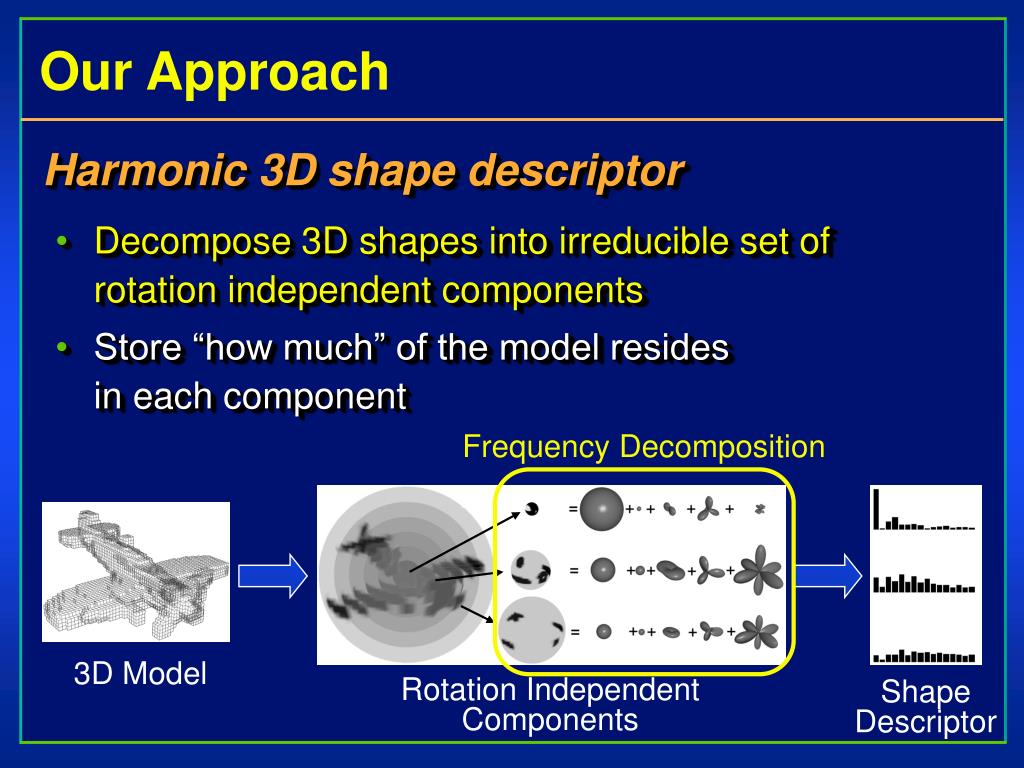

  15. Our Approach • Harmonic 3D shape descriptor • Decompose 3D shapes into irreducible set of rotation independent components • Store “how much” of the model resides in each component Frequency Decomposition 3D Model Rotation IndependentComponents ShapeDescriptor

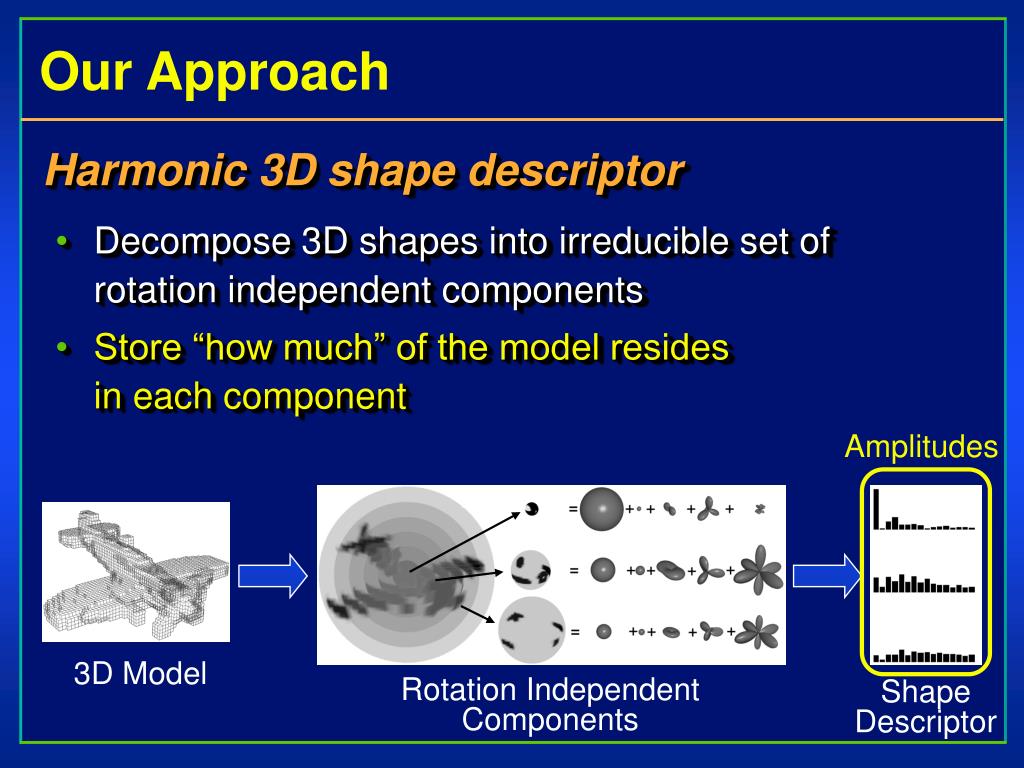

  16. Our Approach • Harmonic 3D shape descriptor • Decompose 3D shapes into irreducible set of rotation independent components • Store “how much” of the model resides in each component Amplitudes 3D Model Rotation IndependentComponents ShapeDescriptor

  17. Outline • Introduction • Approach • Implementation • Experimental Results • Conclusion and Future Work

  18. Voxelization • Convert polygonal model to 3D voxel grid • Rasterize surfaces (no solid reconstruction) • Normalize for translation and scale 3D Model 3D Voxel Grid

  19. Spherical Decomposition • Intersect with concentric spheres

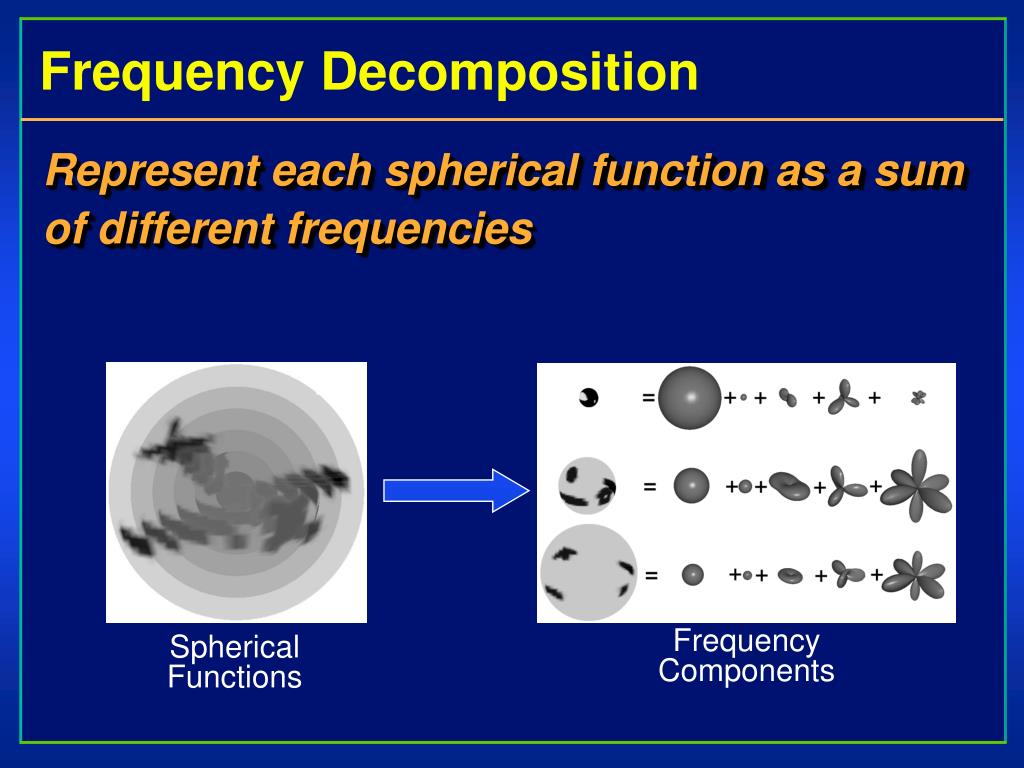

  20. Frequency Decomposition • Represent each spherical function as a sum of different frequencies Frequency Components Spherical Functions

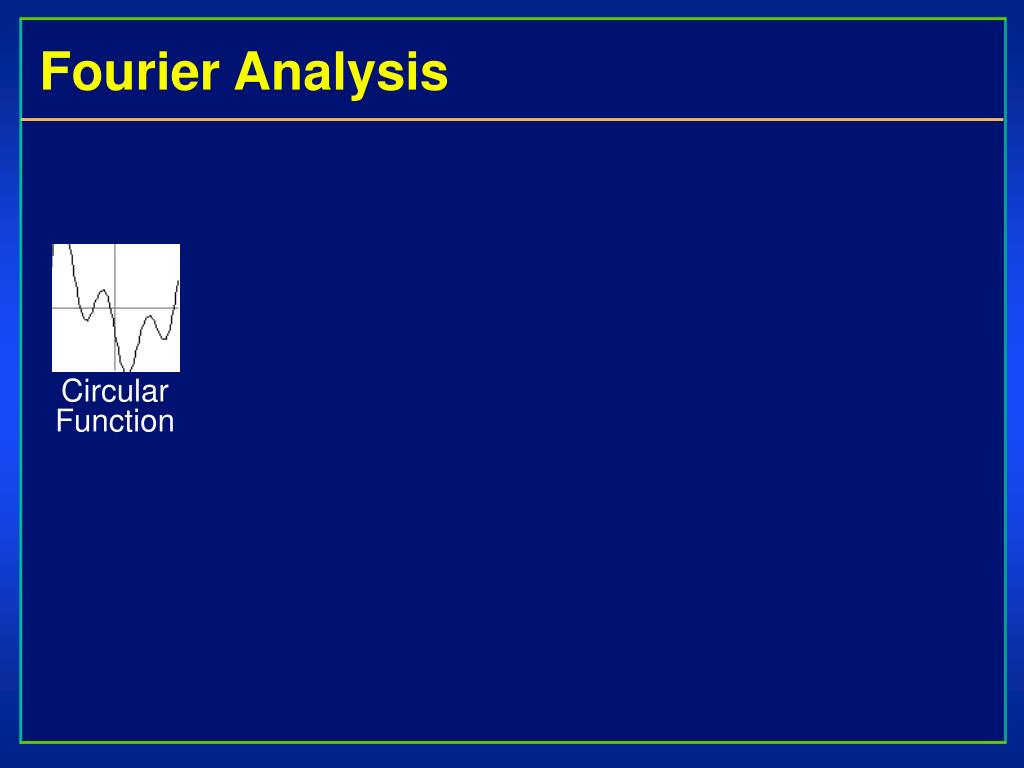

  21. Fourier Analysis CircularFunction

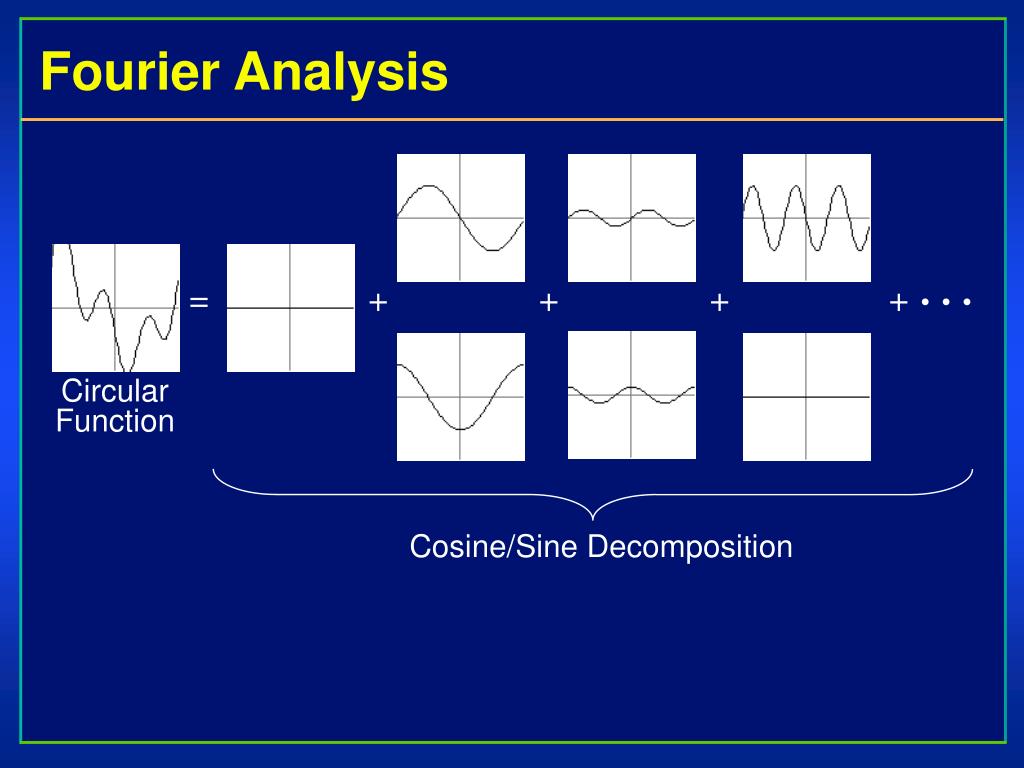

  22. Fourier Analysis … = + + + + CircularFunction Cosine/Sine Decomposition

  23. Fourier Analysis … = + + + + CircularFunction = Constant Frequency Decomposition

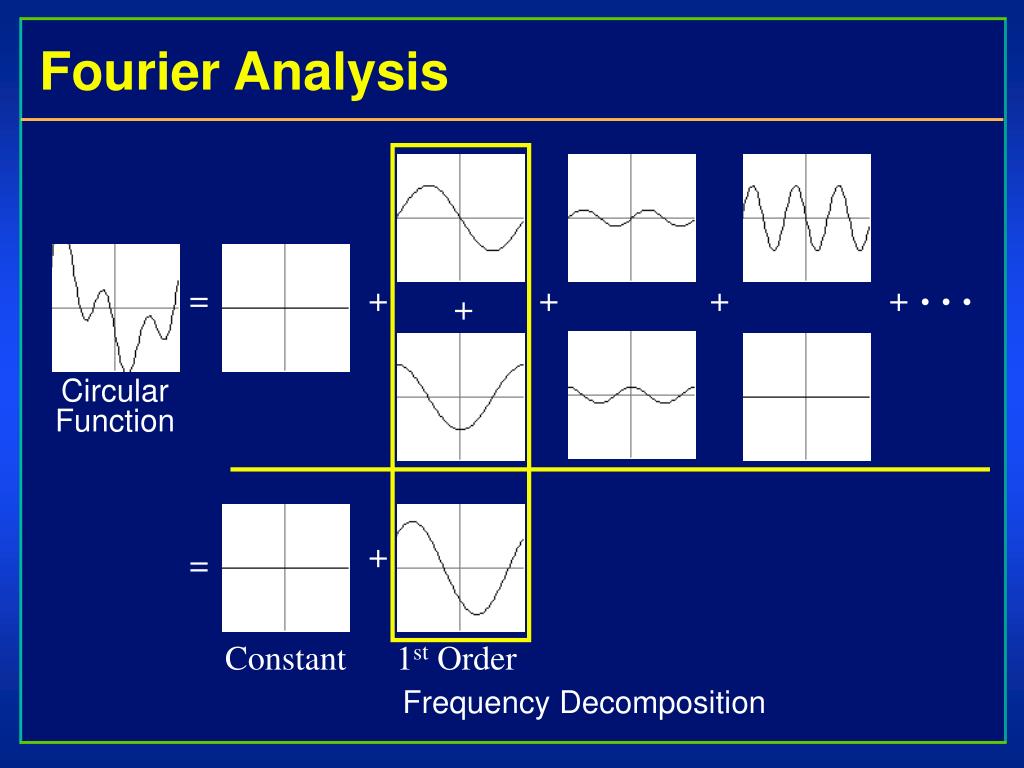

  24. Fourier Analysis … = + + + + + CircularFunction + = Constant 1st Order Frequency Decomposition

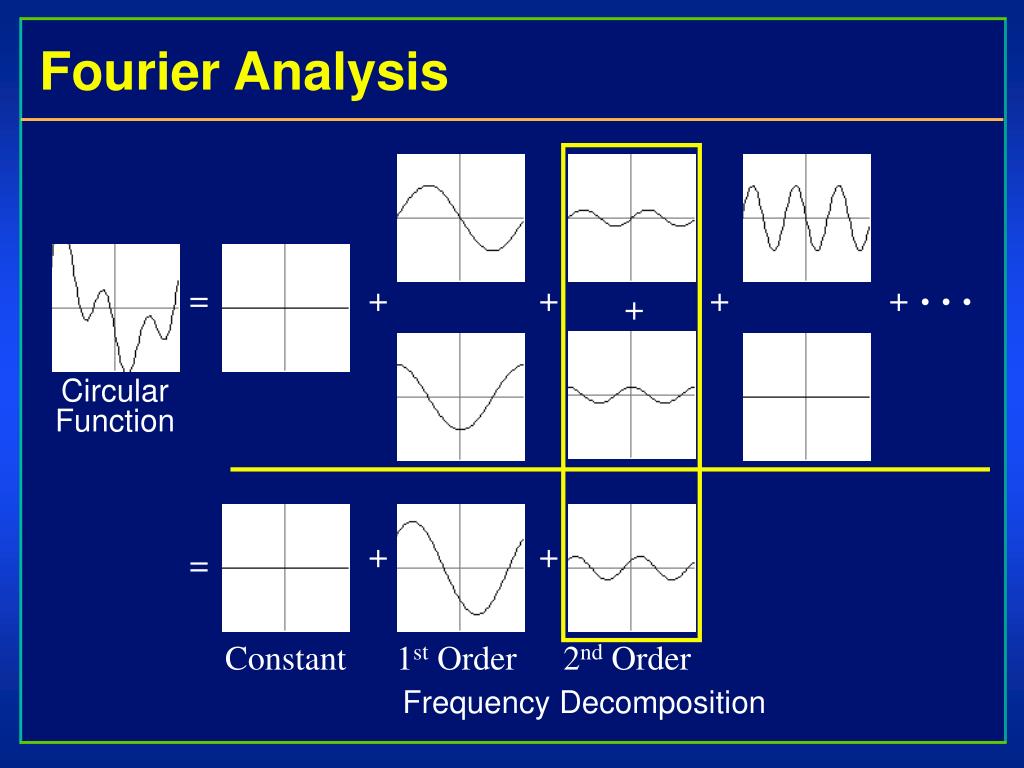

  25. Fourier Analysis … = + + + + + CircularFunction + + = Constant 1st Order 2nd Order Frequency Decomposition

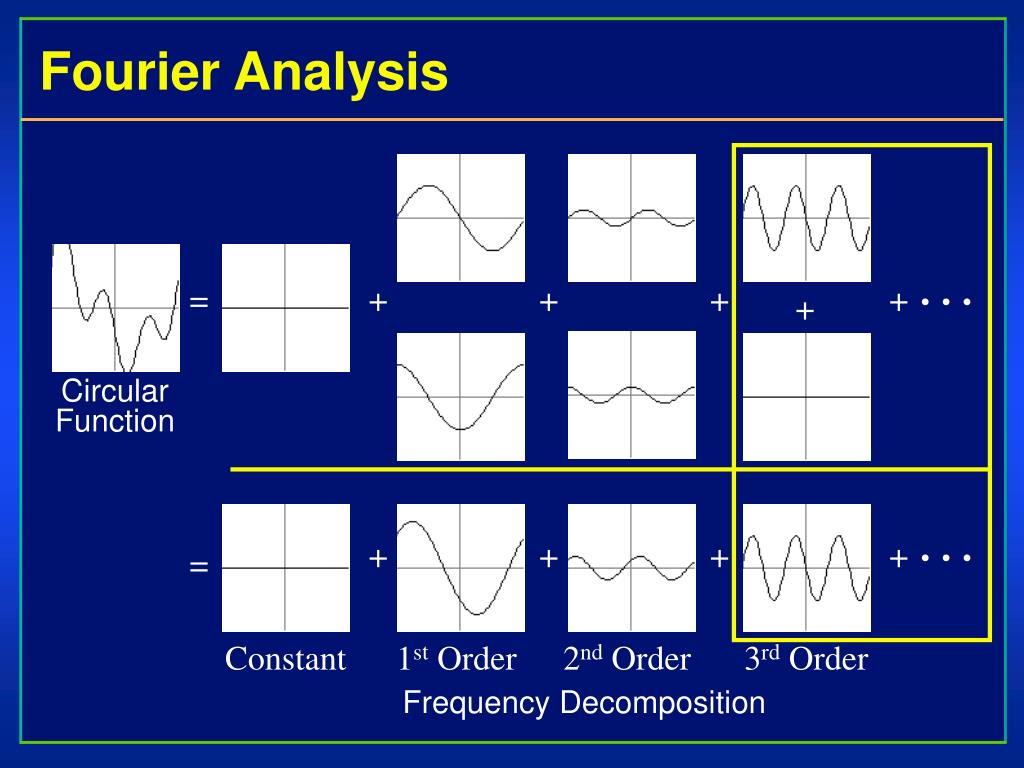

  26. Fourier Analysis … = + + + + + CircularFunction … + + + + = Constant 1st Order 2nd Order 3rd Order Frequency Decomposition

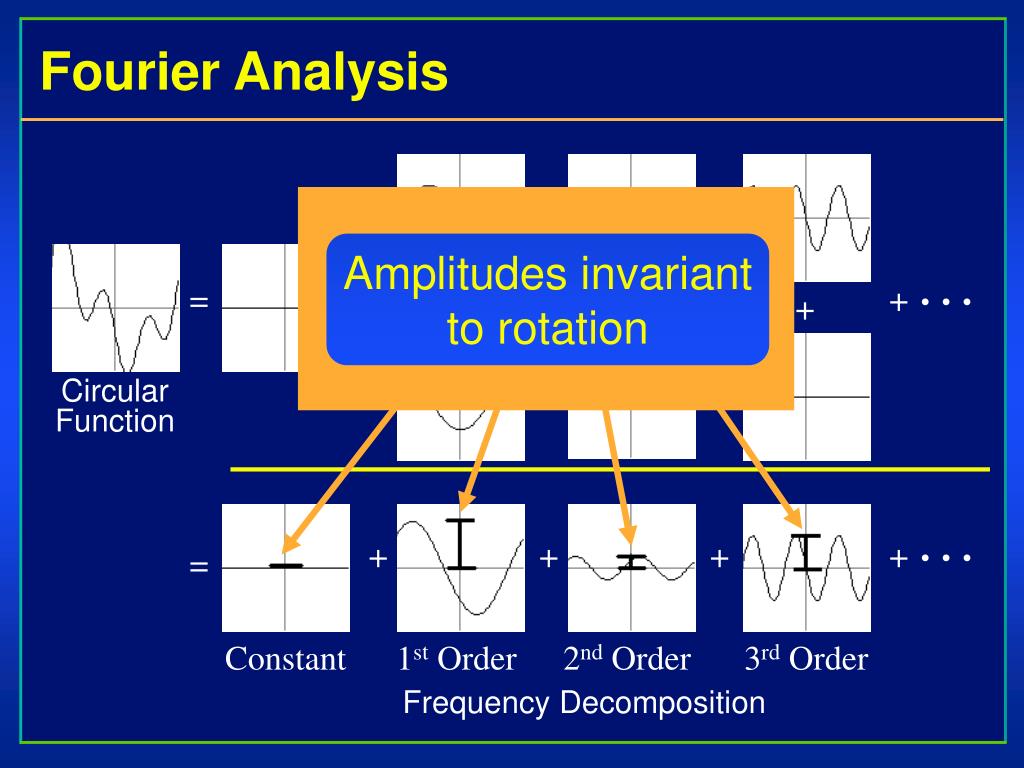

  27. Fourier Analysis Amplitudes invariantto rotation … = + + + + + CircularFunction … + + + + = Constant 1st Order 2nd Order 3rd Order Frequency Decomposition

  28. Harmonic Analysis SphericalFunction

  29. Harmonic Analysis … = + + + + SphericalFunction Harmonic Decomposition

  30. Harmonic Analysis … = + + + + SphericalFunction … = + + + + Constant 1st Order 2nd Order 3rd Order

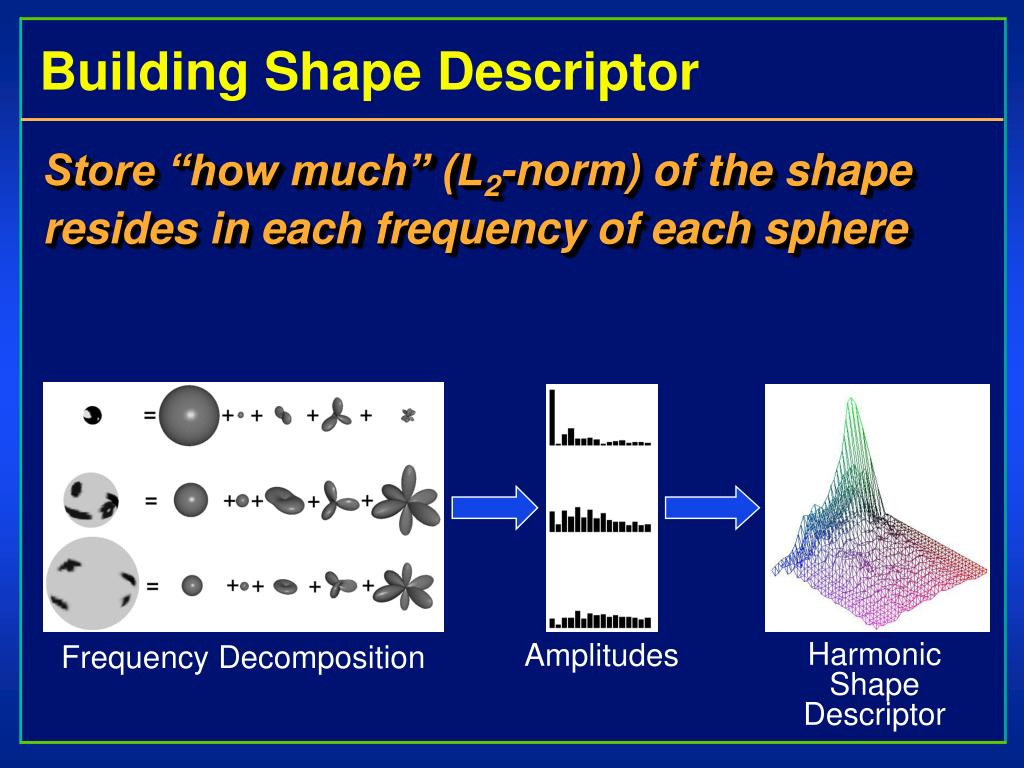

  31. Building Shape Descriptor • Store “how much” (L2-norm) of the shape resides in each frequency of each sphere HarmonicShapeDescriptor Amplitudes Frequency Decomposition

  32. Matching • Model similarity defined as L2-distance between their descriptors • Bounds proximity of voxel gridsover all rotations - - - Sim = , - -

  33. Outline • Introduction • Approach • Implementation • Experimental Results • Conclusion and Future Work

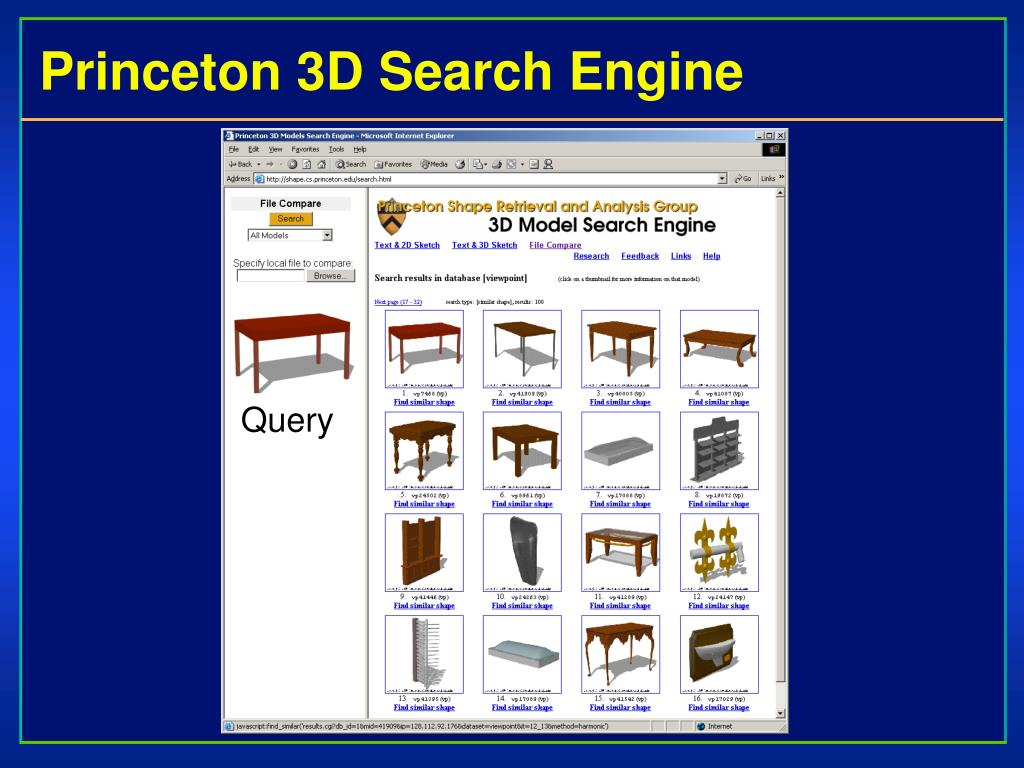

  34. Query Princeton 3D Search Engine

  35. Retrieval Experiment • Viewpoint “household” database1,890 models, 85 classes 153 dining chairs 25 livingroom chairs 16 beds 12 dining tables 8 chests 28 bottles 39 vases 36 end tables

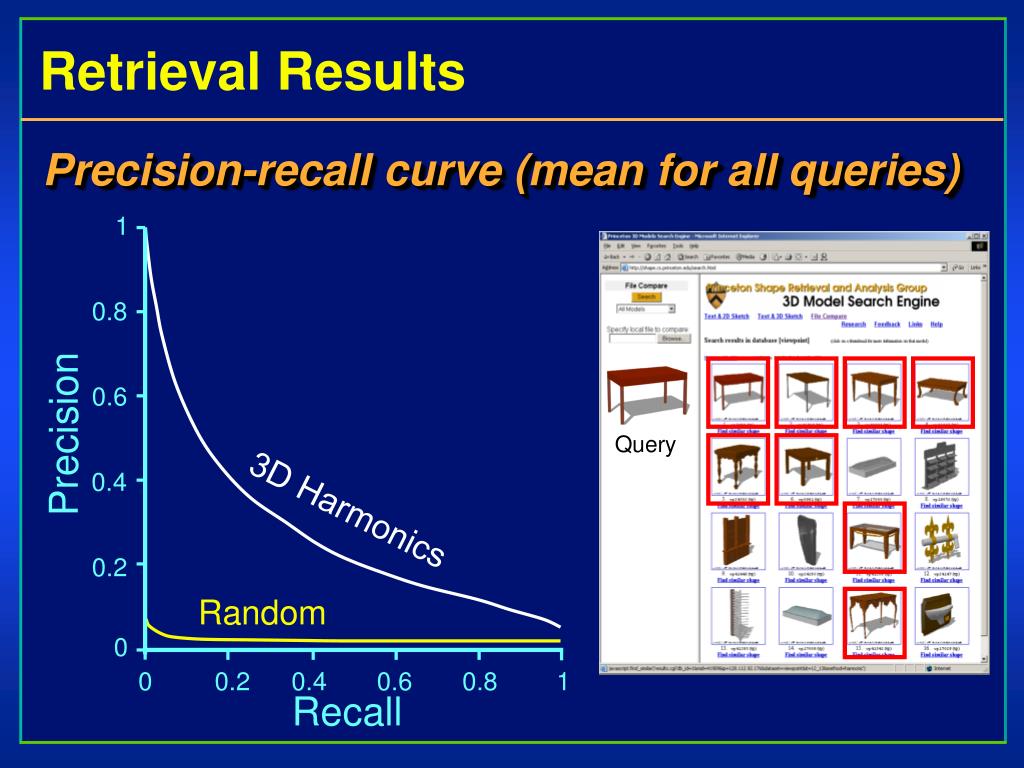

  36. Query Retrieval Results • Precision-recall curve (mean for all queries) 1 0.8 0.6 Precision 0.4 3D Harmonics 0.2 Random 0 0 0.2 0.4 0.6 0.8 1 Recall

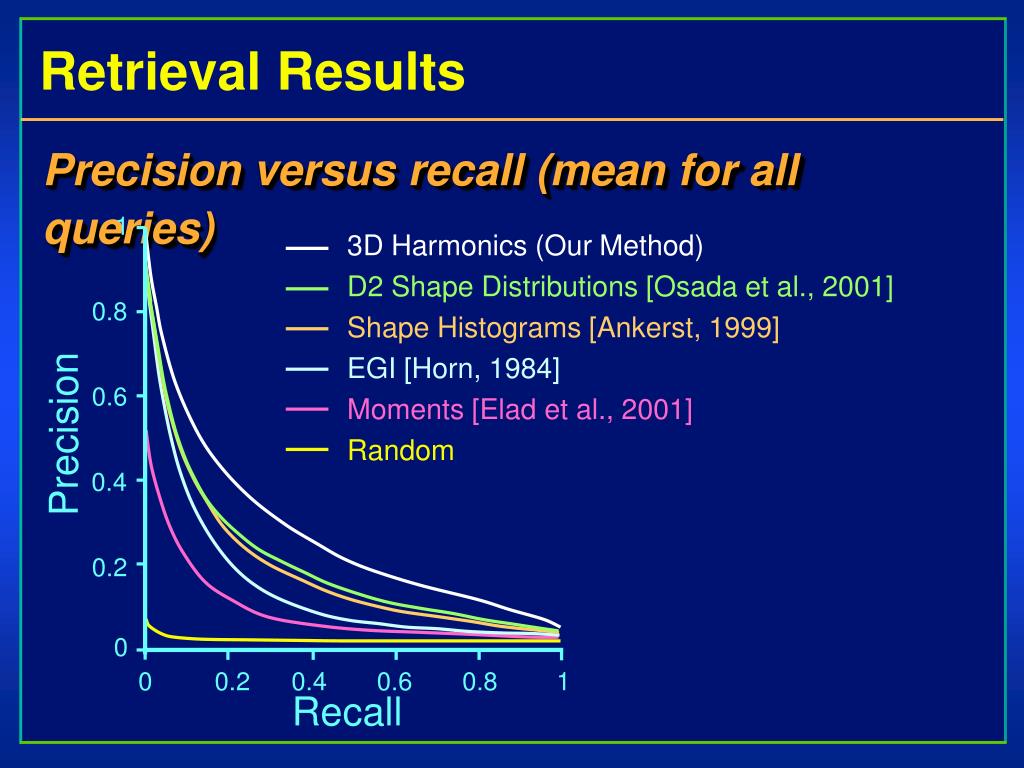

  37. Retrieval Results • Precision versus recall (mean for all queries) 1 3D Harmonics (Our Method) D2 Shape Distributions [Osada et al., 2001] Shape Histograms [Ankerst, 1999] EGI [Horn, 1984] Moments [Elad et al., 2001] Random 0.8 0.6 Precision 0.4 0.2 0 0 0.2 0.4 0.6 0.8 1 Recall

  38. Retrieval Results • Precision versus recall (mean for all queries) 1 3D Harmonics (Our Method) D2 Shape Distributions [Osada et al., 2001] Shape Histograms [Ankerst, 1999] EGI [Horn, 1984] Moments [Elad et al., 2001] Random 0.8 0.6 Precision 0.4 0.2 0 0 0.2 0.4 0.6 0.8 1 Recall

  39. Retrieval Results • Precision versus recall (mean for all queries) 1 3D Harmonics (Our Method) D2 Shape Distributions [Osada et al., 2001] Shape Histograms [Ankerst, 1999] EGI [Horn, 1984] Moments [Elad et al., 2001] Random 0.8 0.6 Precision 0.4 0.2 0 0 0.2 0.4 0.6 0.8 1 Recall

  40. Retrieval Results • Precision versus recall (mean for all queries) 1 3D Harmonics (Our Method) D2 Shape Distributions [Osada et al., 2001] Shape Histograms [Ankerst, 1999] EGI [Horn, 1984] Moments [Elad et al., 2001] Random 0.8 0.6 Precision 0.4 0.2 0 0 0.2 0.4 0.6 0.8 1 Recall

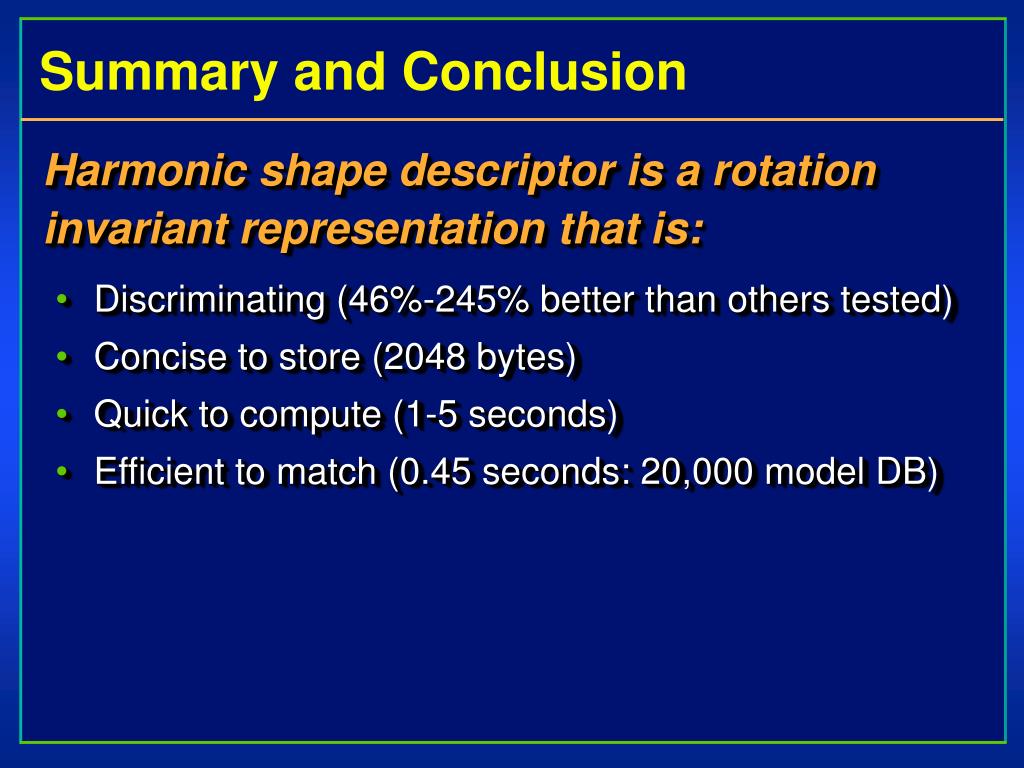

  41. Summary and Conclusion • Harmonic shape descriptor is a rotation invariant representation that is: • Discriminating (46%-245% better than others tested) • Concise to store (2048 bytes) • Quick to compute (1-5 seconds) • Efficient to match (0.45 seconds: 20,000 model DB)

  42. Query Future Work • Extensions • Partial object matching? • Other 3D shape functions? • Other applications • Molecular biology • Medicine • Paleontology • Forensics http://shape.cs.princeton.edu/

  43. Thank You • Funding • National Science Foundation • Sloan Foundation • People • Bernard Chazelle, David Dobkin, David Jacobs, David Kazhdan, Allison Klein, Patrick Min, Szymon Rusinkiewicz, Peter Sarnak, Julianna Tymoczko http://shape.cs.princeton.edu/

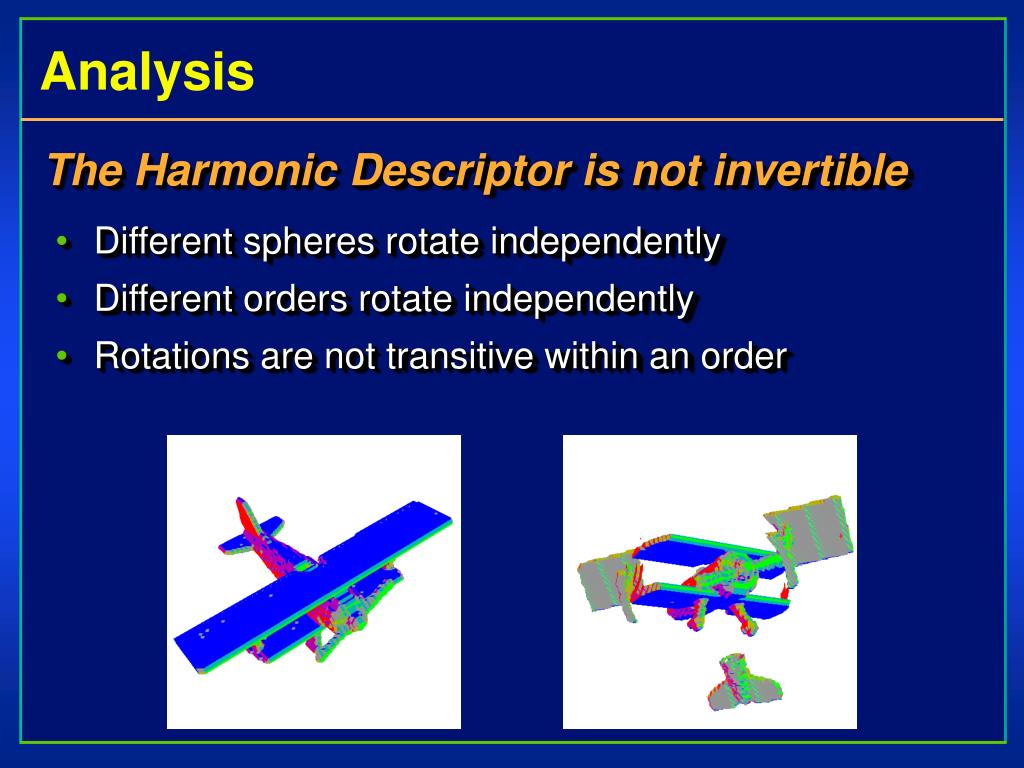

  44. Analysis • The Harmonic Descriptor is not invertible • Different spheres rotate independently • Different orders rotate independently • Rotations are not transitive within an order

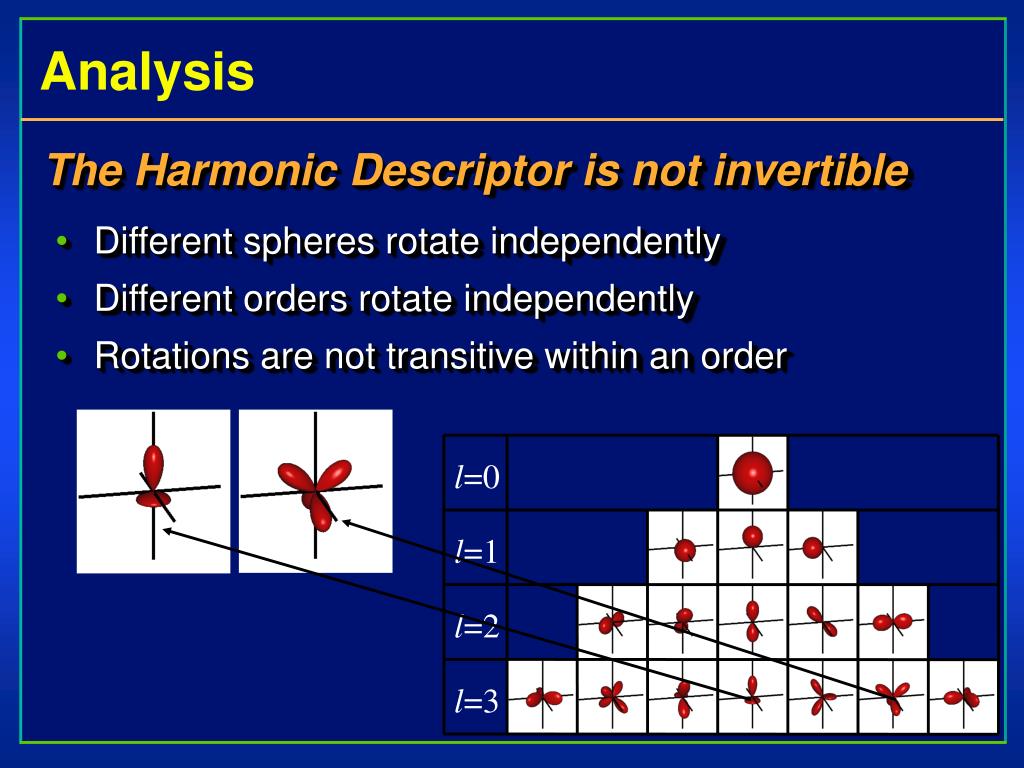

  45. Analysis • The Harmonic Descriptor is not invertible • Different spheres rotate independently • Different orders rotate independently • Rotations are not transitive within an order l=0 l=1 l=2 l=3

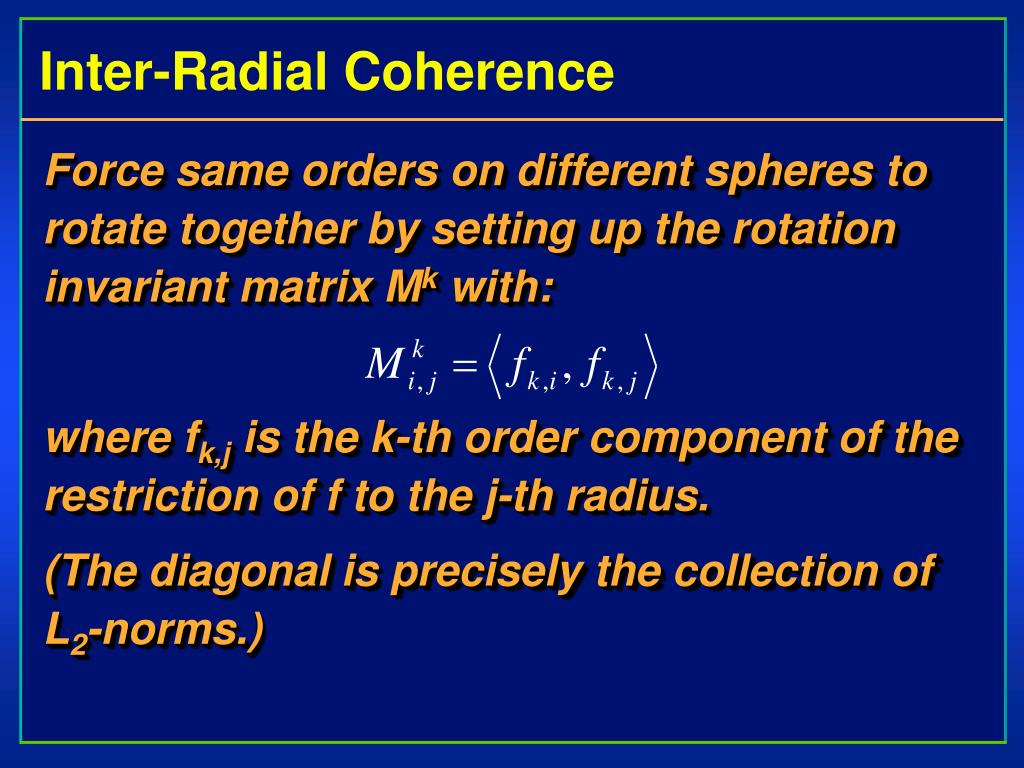

  46. Inter-Radial Coherence • Force same orders on different spheres to rotate together by setting up the rotation invariant matrix Mk with: • where fk,j is the k-th order component of the restriction of f to the j-th radius. • (The diagonal is precisely the collection of L2-norms.)

  47. Polygon Rasterization • Rasterize using the Euclidean Distance Transform to measure how much models miss by: Polygonal Model Voxel Model
