  1. Creating an Oracle Database

  2. Considerations before creating a DB Planning for Database Creation • Select the standard database block size. • Use an undo tablespace to manage your undo records • Develop a backup and recovery strategy to protect the database from failure • Familiarize yourself with the principles and options of starting up and shutting down an instance and mounting and opening a database.

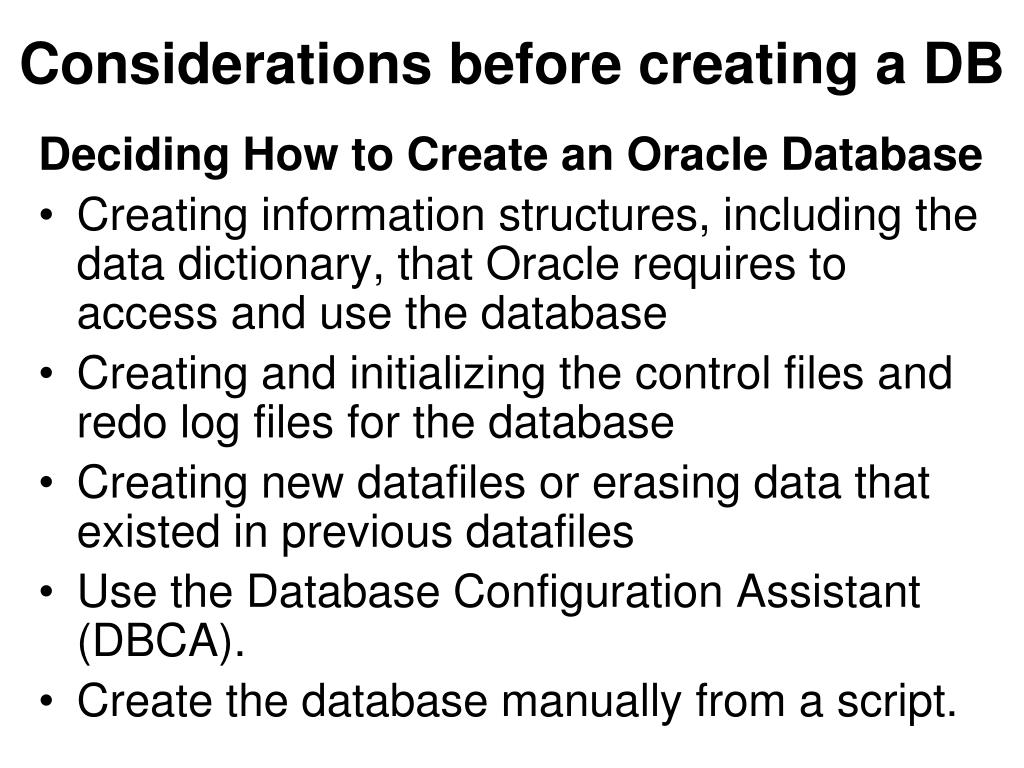

  3. Considerations before creating a DB Deciding How to Create an Oracle Database • Creating information structures, including the data dictionary, that Oracle requires to access and use the database • Creating and initializing the control files and redo log files for the database • Creating new datafiles or erasing data that existed in previous datafiles • Use the Database Configuration Assistant (DBCA). • Create the database manually from a script.

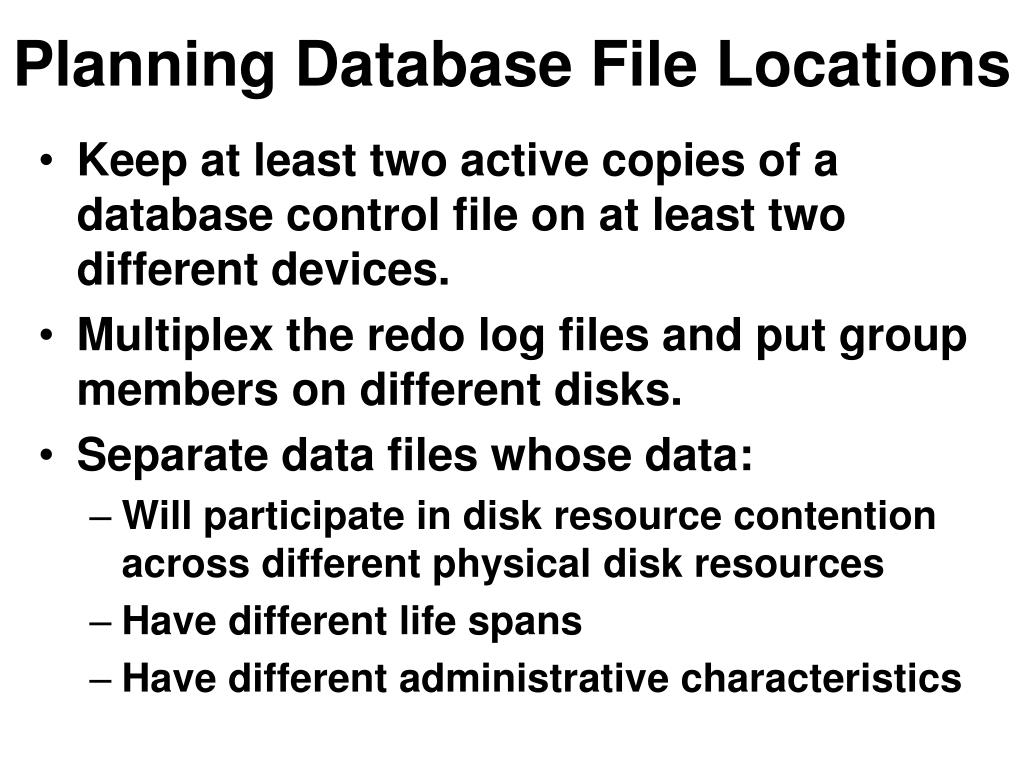

  4. Planning Database File Locations • Keep at least two active copies of a database control file on at least two different devices. • Multiplex the redo log files and put group members on different disks. • Separate data files whose data: • Will participate in disk resource contention across different physical disk resources • Have different life spans • Have different administrative characteristics

  5. Creating a Database Using DBCA • Selecting the Template • Including Datafiles • Specifying Global Database Name and Database Features • Specifying Database Features • Specifying Mode, Initialization Parameters, and Datafiles

  6. Manually creating an Oracle DB • Step 1: Decide on Your Instance Identifier (SID) • Step 2: Establish the Database Administrator Authentication Method • Step 3: Create the Initialization Parameter File • Step 4: Connect to the Instance • Step 5: Start the Instance. • Step 6: Issue the CREATE DATABASE Statement • Step 7: Create Additional Tablespaces • Step 8: Run Scripts to Build Data Dictionary Views • Step 9: Run Scripts to Install Additional Options (Optional) • Step 10: Create a Server Parameter File (Recommended) • Step 11: Back Up the Database.

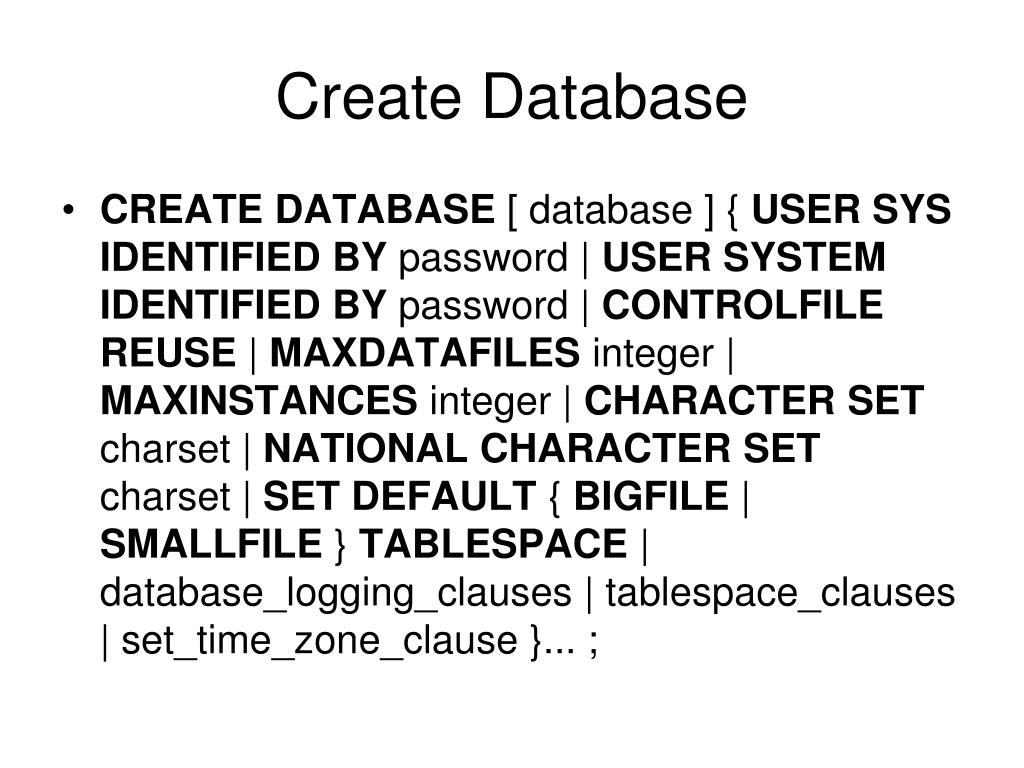

  7. Create Database • CREATE DATABASE [ database ] { USER SYS IDENTIFIED BY password | USER SYSTEM IDENTIFIED BY password | CONTROLFILE REUSE | MAXDATAFILES integer | MAXINSTANCES integer | CHARACTER SET charset | NATIONAL CHARACTER SET charset | SET DEFAULT { BIGFILE | SMALLFILE } TABLESPACE | database_logging_clauses | tablespace_clauses | set_time_zone_clause }... ;

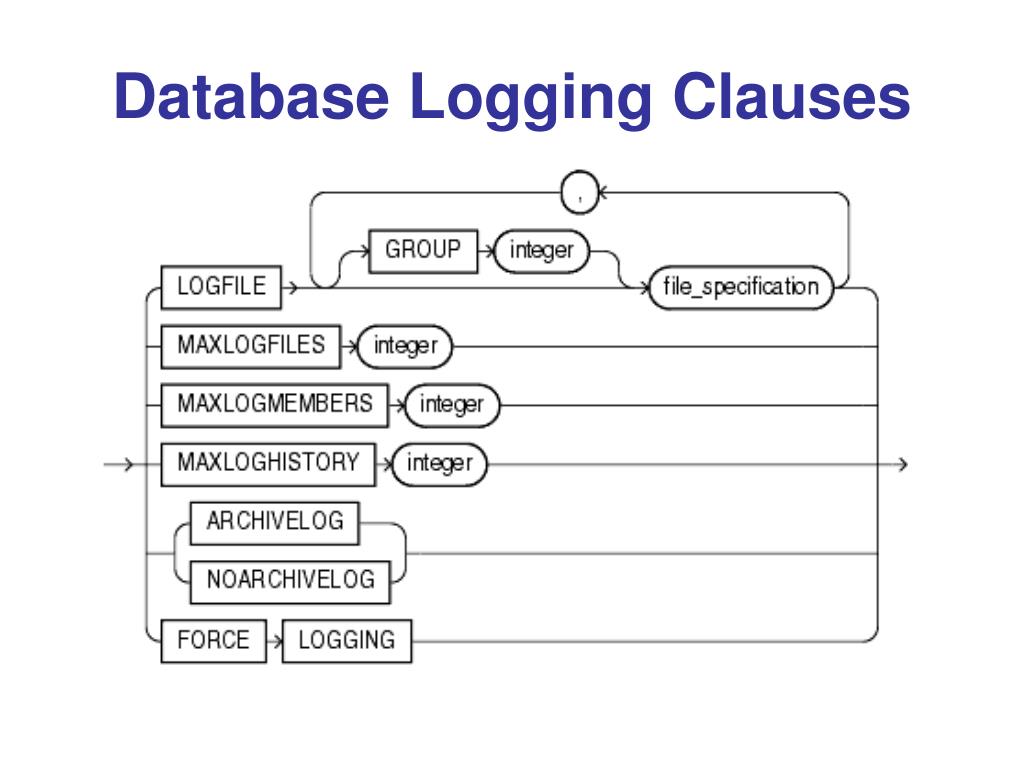

  8. Database Logging Clauses

  9. { LOGFILE [ GROUP integer ] file_specification [, [ GROUP integer ] file_specification ]... | MAXLOGFILES integer | MAXLOGMEMBERS integer | MAXLOGHISTORY integer | { ARCHIVELOG | NOARCHIVELOG } | FORCELOGGING }

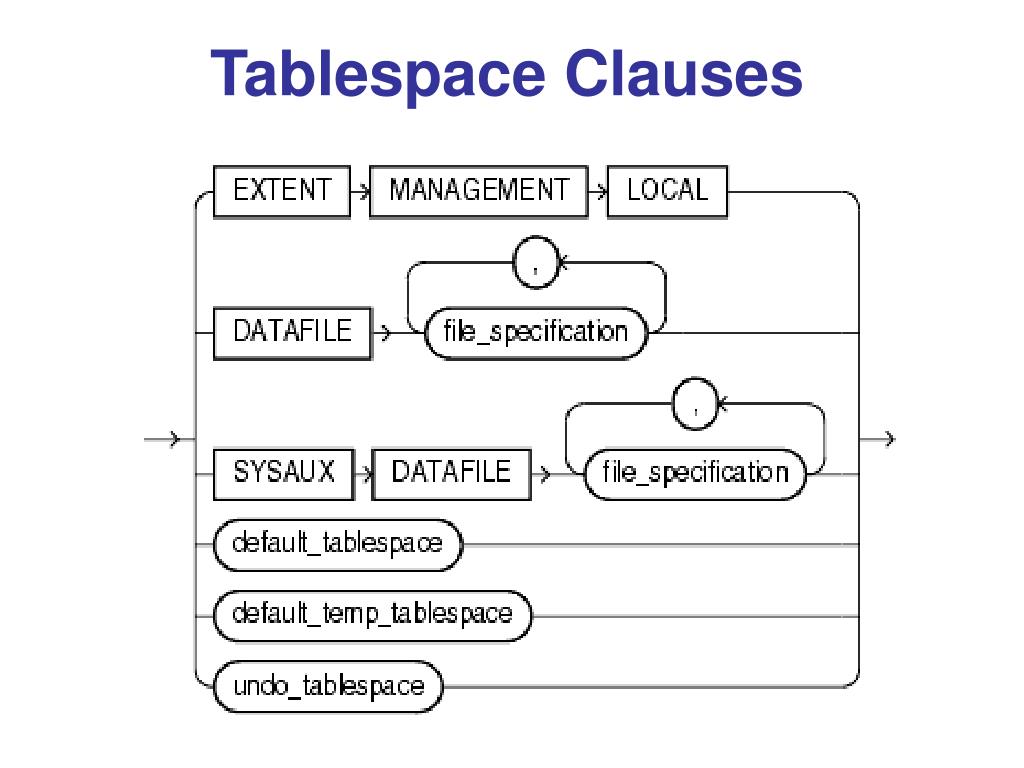

  10. Tablespace Clauses

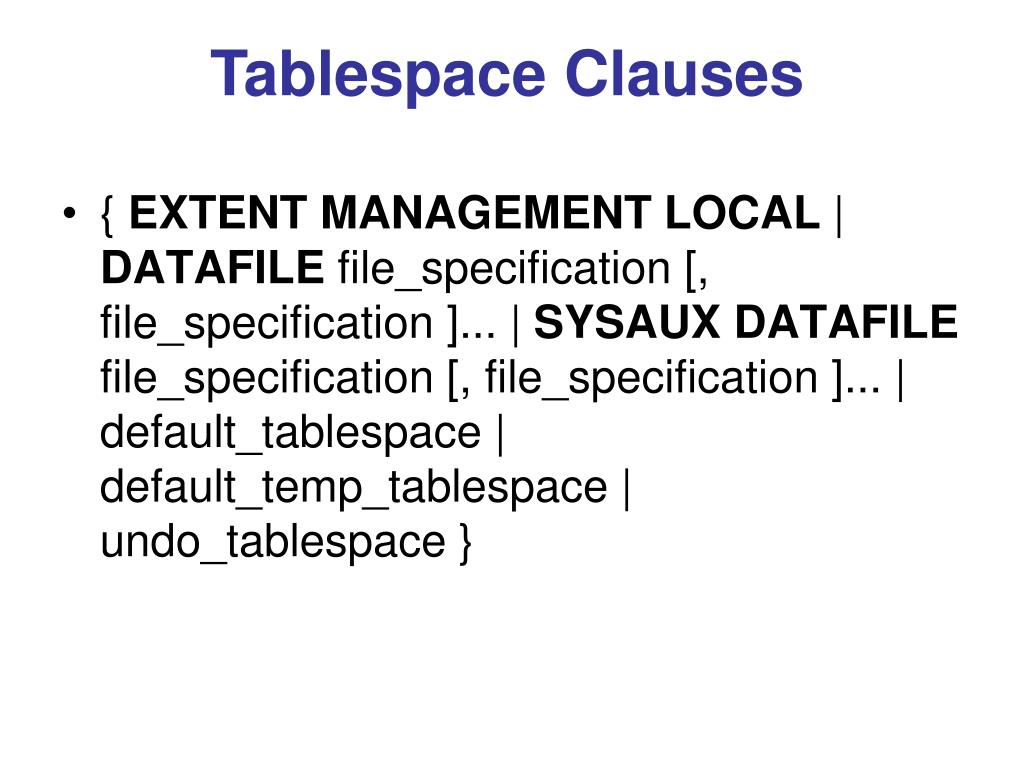

  11. Tablespace Clauses • { EXTENTMANAGEMENTLOCAL | DATAFILE file_specification [, file_specification ]... | SYSAUX DATAFILE file_specification [, file_specification ]... | default_tablespace | default_temp_tablespace | undo_tablespace }

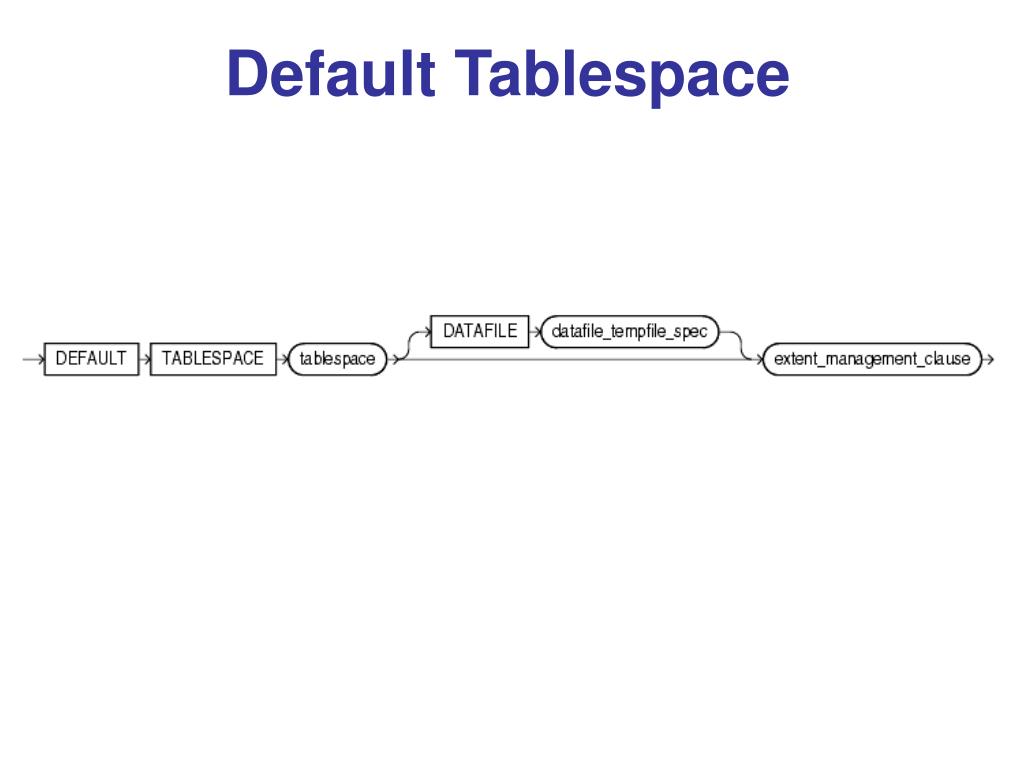

  12. Default Tablespace

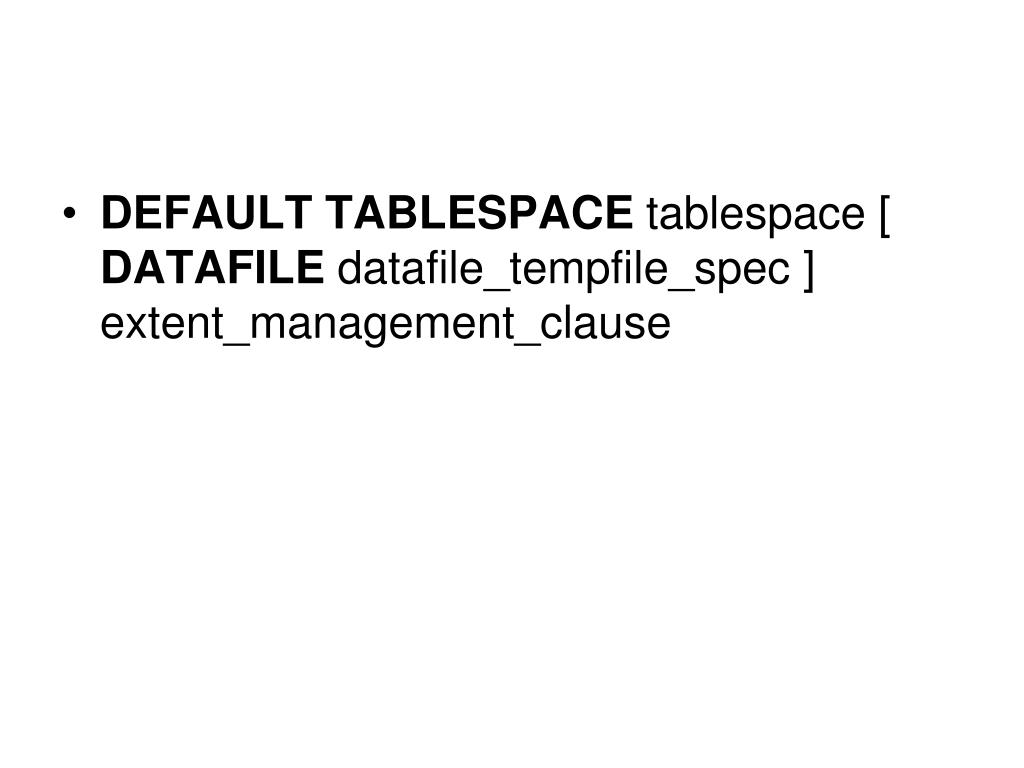

  13. DEFAULT TABLESPACE tablespace [ DATAFILE datafile_tempfile_spec ] extent_management_clause

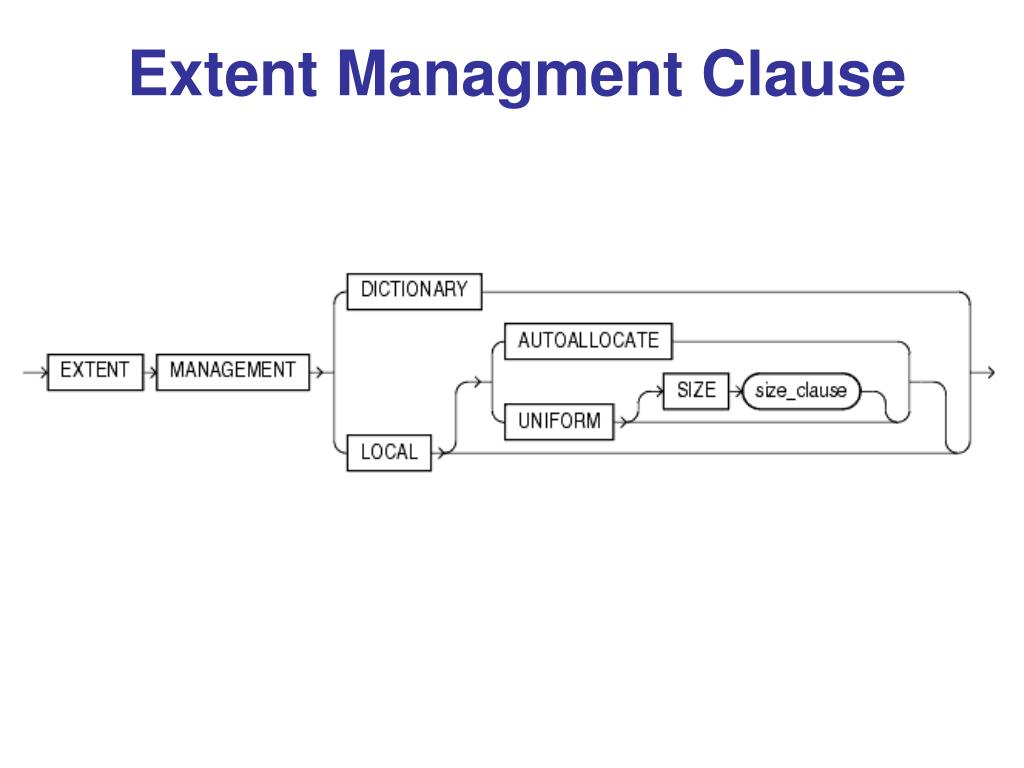

  14. Extent Managment Clause

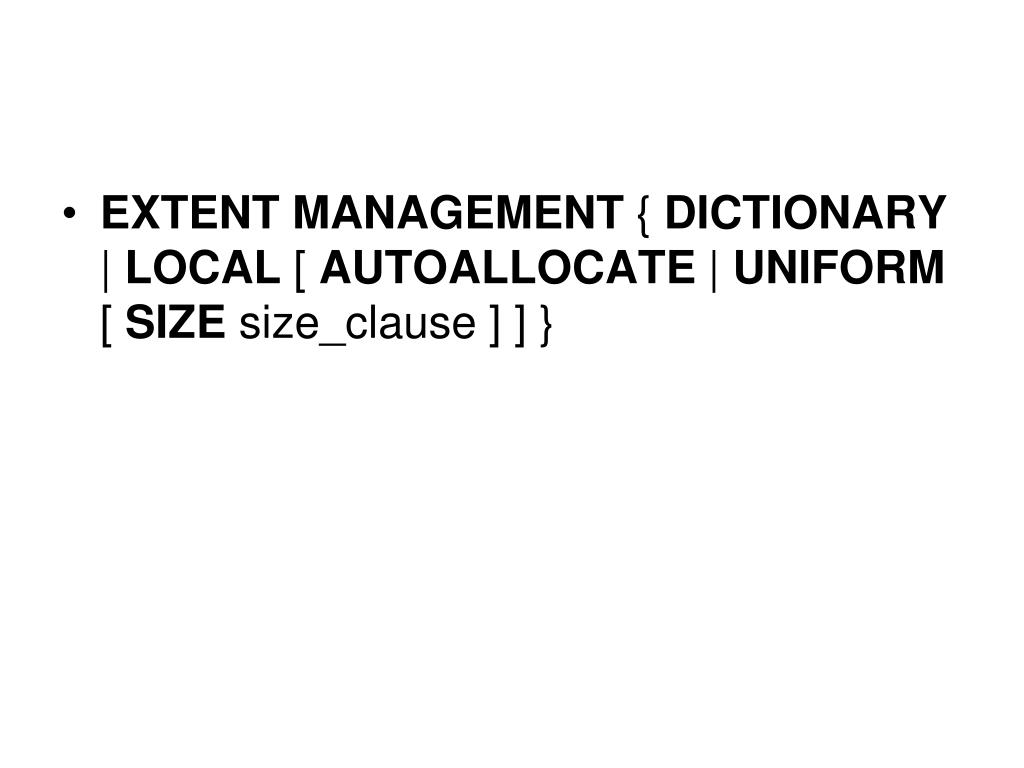

  15. EXTENT MANAGEMENT { DICTIONARY | LOCAL [ AUTOALLOCATE | UNIFORM [ SIZE size_clause ] ] }

  16. Database creations are of three types: • Copy an existing database and delete the old database. • Copy an existing database and keep the old database. • Create a new database when no database exists on your system.

  17. Considerations before creating a DB Planning for Database Creation • Plan the database tables and indexes and estimate the amount of space they will require. • Plan the layout of the underlying operating system files that are to comprise your database. • Select the global database name, DB_NAME, DB_DOMAIN • Familiarize yourself with the initialization parameters • Select the database character set. • Consider what time zones your database must support.

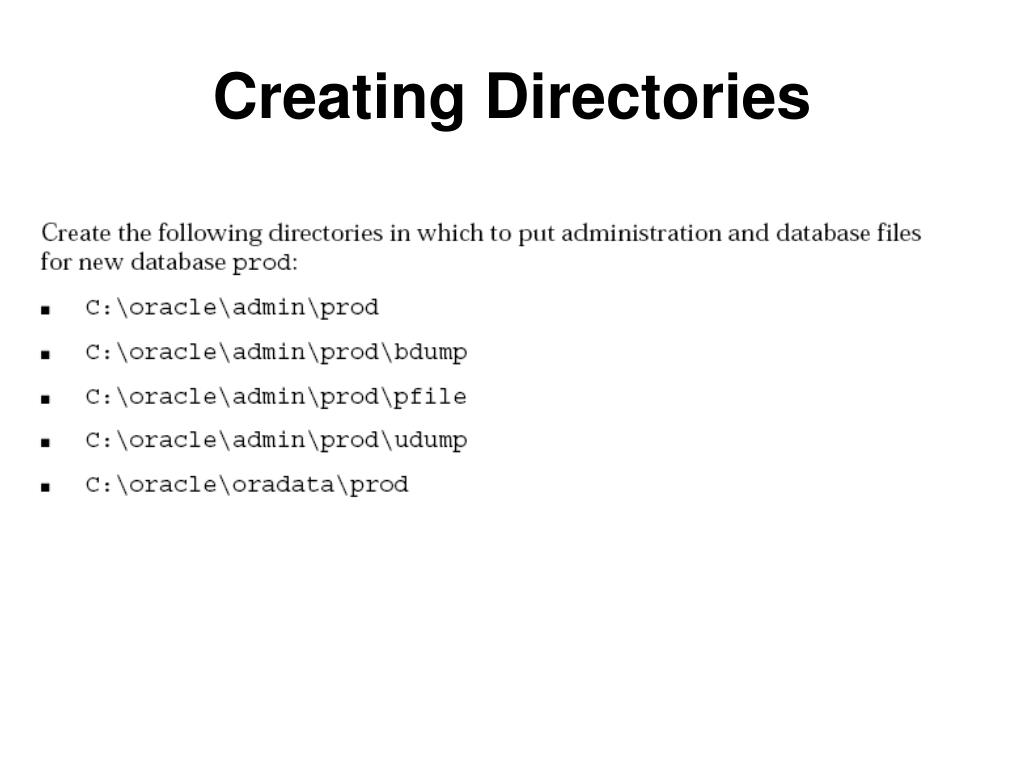

  18. Creating Directories

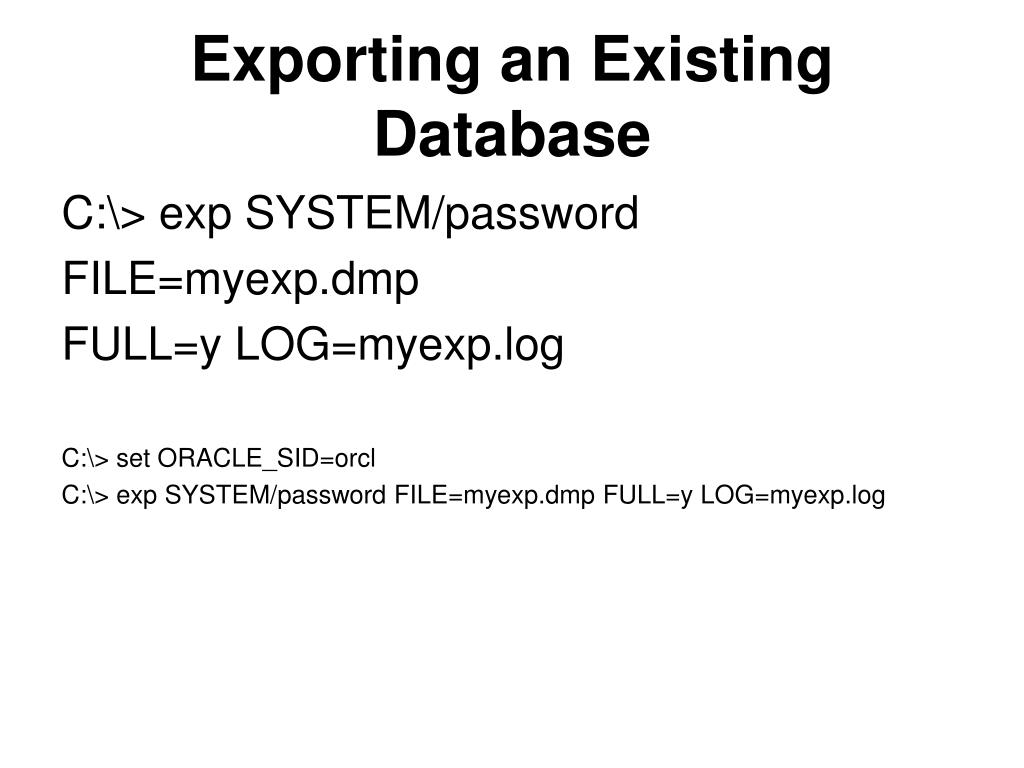

  19. Exporting an Existing Database C:\> exp SYSTEM/password FILE=myexp.dmp FULL=y LOG=myexp.log C:\> set ORACLE_SID=orcl C:\> exp SYSTEM/password FILE=myexp.dmp FULL=y LOG=myexp.log

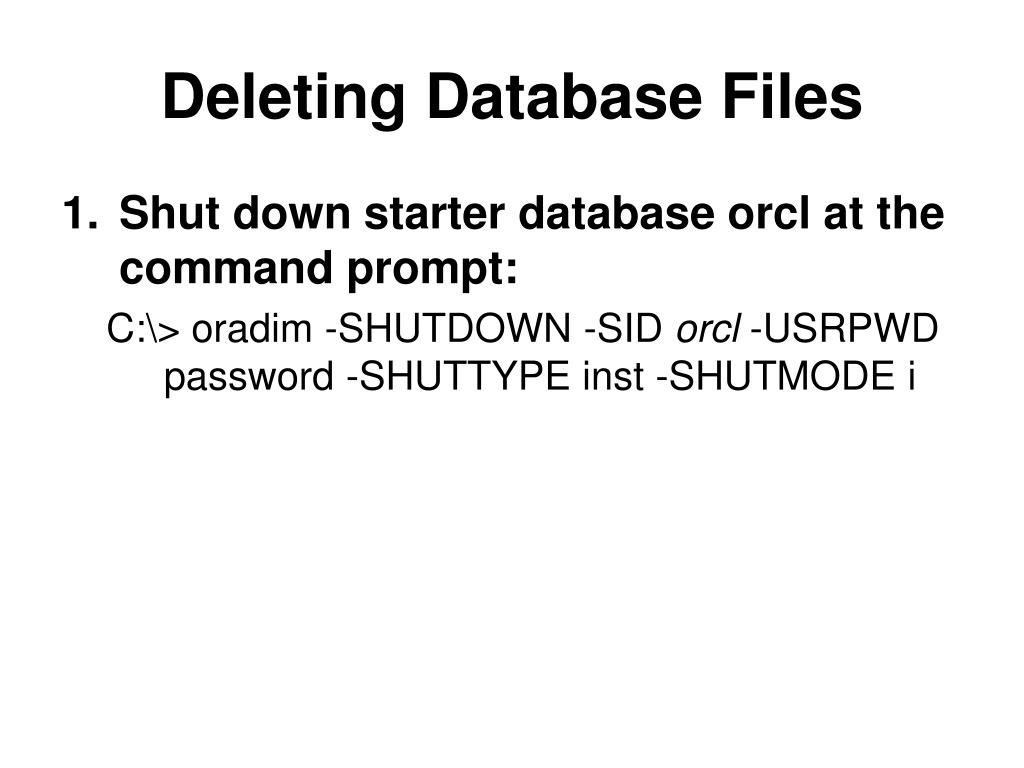

  20. Deleting Database Files • Shut down starter database orcl at the command prompt: C:\> oradim -SHUTDOWN -SID orcl -USRPWD password -SHUTTYPE inst -SHUTMODE i

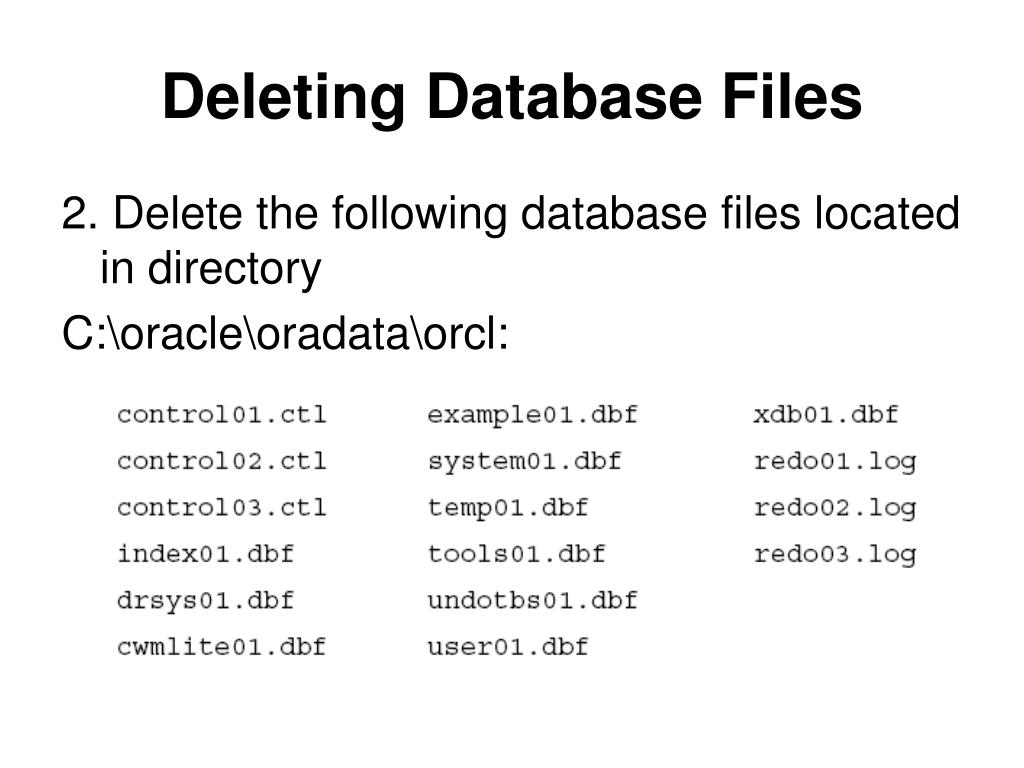

  21. Deleting Database Files 2. Delete the following database files located in directory C:\oracle\oradata\orcl:

  22. Modifying the Initialization Parameter File • Copy: C:\ORACLE_BASE\admin\orcl\pfile\init.ora • to C:\ORACLE_BASE\admin\prod\pfile\init.ora ------------------------------------------------------------------- • initsmpl.ora • ORACLE_BASE\ORACLE_HOME\admin\sample\pfile

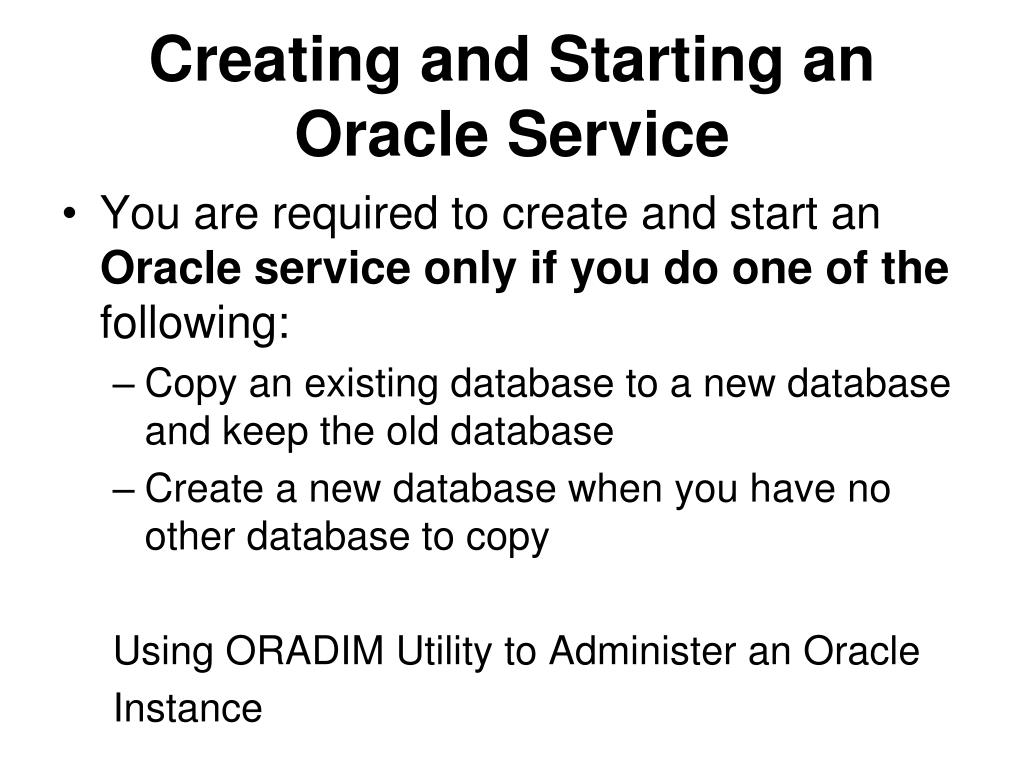

  23. Creating and Starting an Oracle Service • You are required to create and start an Oracle service only if you do one of the following: • Copy an existing database to a new database and keep the old database • Create a new database when you have no other database to copy Using ORADIM Utility to Administer an Oracle Instance

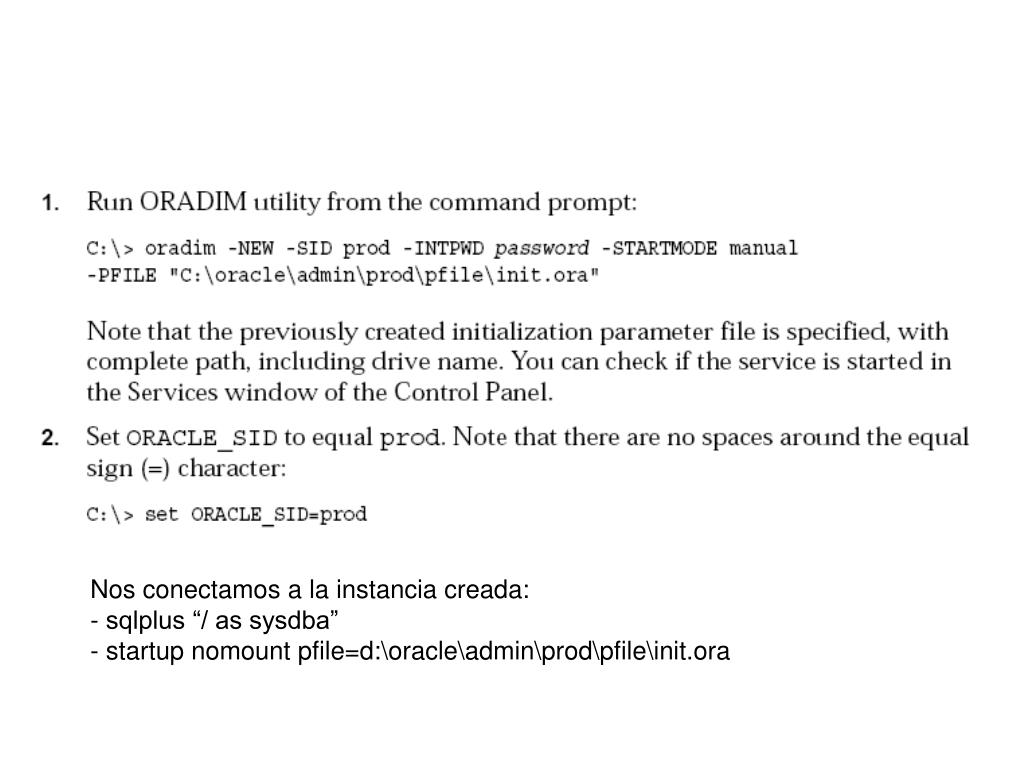

  24. Nos conectamos a la instancia creada: - sqlplus “/ as sysdba” - startup nomount pfile=d:\oracle\admin\prod\pfile\init.ora

  25. Putting the CREATE DATABASE Statement in a Script

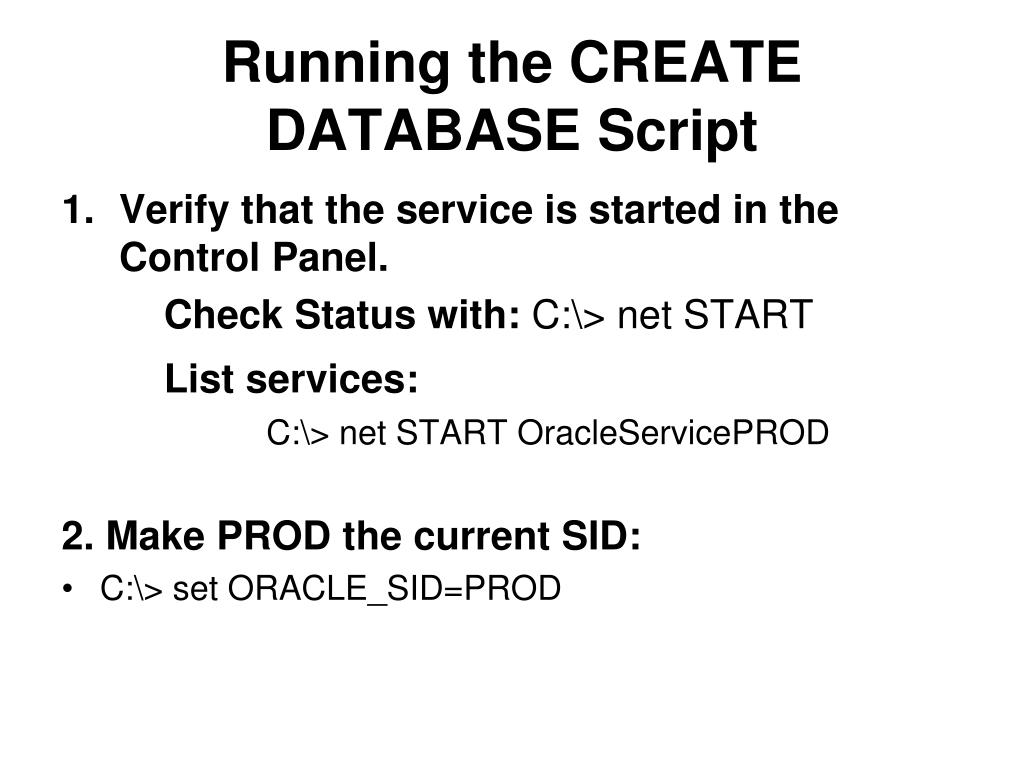

  26. Running the CREATE DATABASE Script • Verify that the service is started in the Control Panel. Check Status with: C:\> net START Listservices: C:\> net START OracleServicePROD 2. Make PROD the current SID: • C:\> set ORACLE_SID=PROD

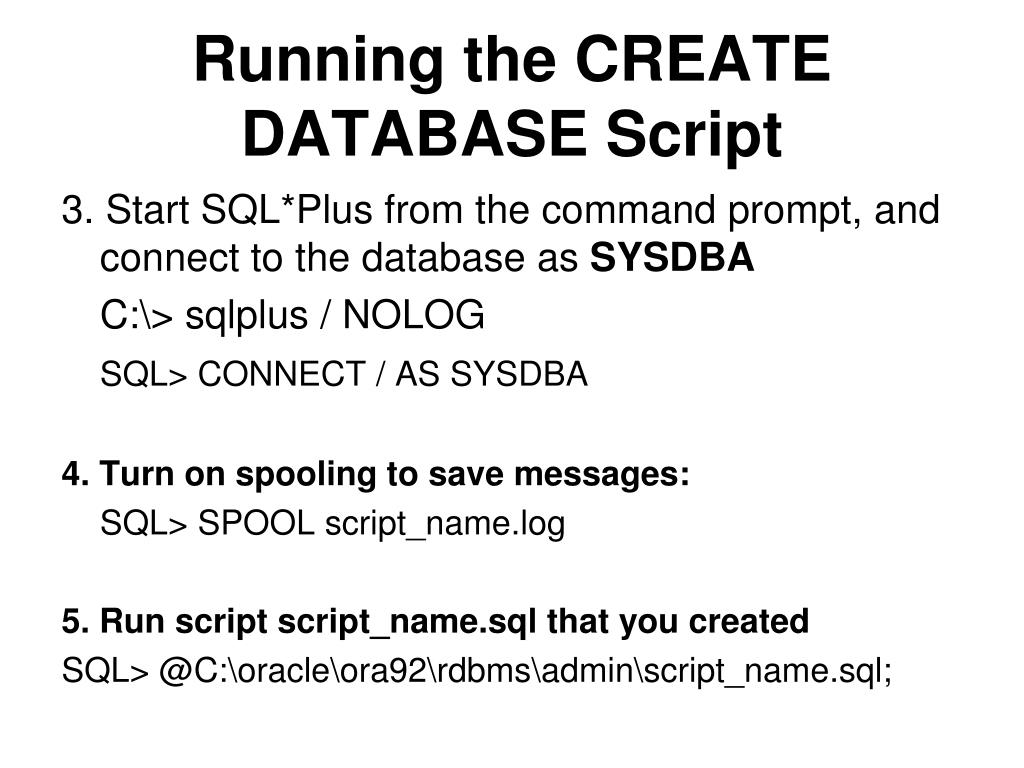

  27. Running the CREATE DATABASE Script 3. Start SQL*Plus from the command prompt, and connect to the database as SYSDBA C:\> sqlplus / NOLOG SQL> CONNECT / AS SYSDBA 4. Turn on spooling to save messages: SQL> SPOOL script_name.log 5. Run script script_name.sql that you created SQL> @C:\oracle\ora92\rdbms\admin\script_name.sql;

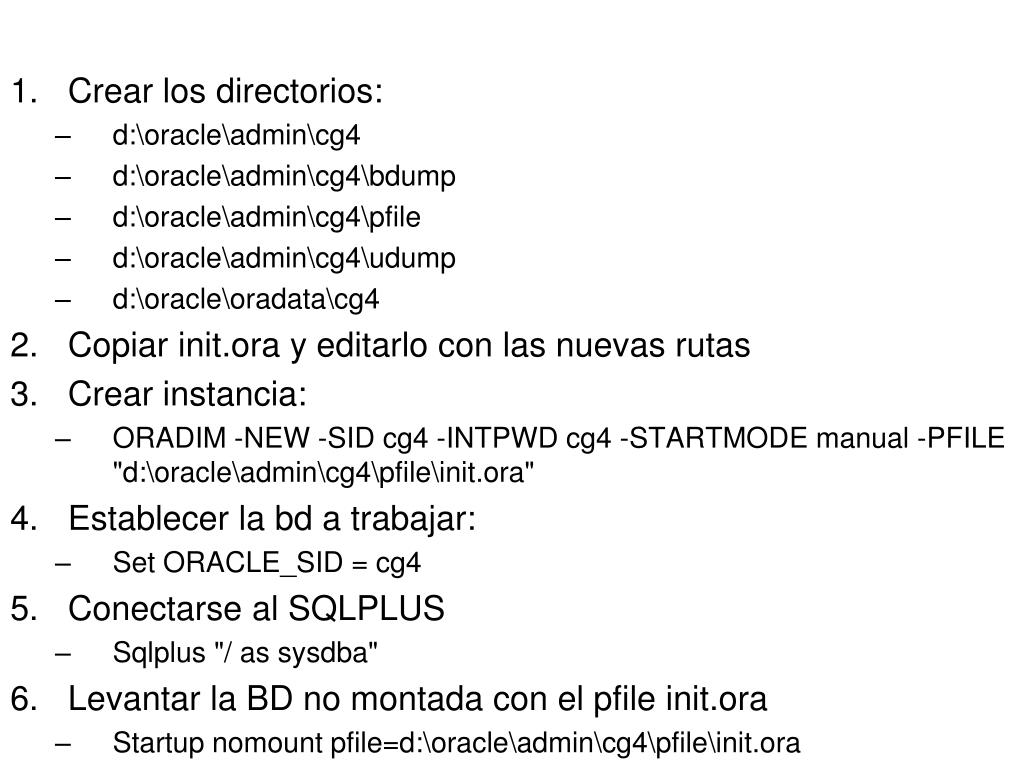

  28. Crear los directorios: • d:\oracle\admin\cg4 • d:\oracle\admin\cg4\bdump • d:\oracle\admin\cg4\pfile • d:\oracle\admin\cg4\udump • d:\oracle\oradata\cg4 • Copiar init.ora y editarlo con las nuevas rutas • Crear instancia: • ORADIM -NEW -SID cg4 -INTPWD cg4 -STARTMODE manual -PFILE "d:\oracle\admin\cg4\pfile\init.ora" • Establecer la bd a trabajar: • Set ORACLE_SID = cg4 • Conectarse al SQLPLUS • Sqlplus "/ as sysdba" • Levantar la BD no montada con el pfile init.ora • Startup nomount pfile=d:\oracle\admin\cg4\pfile\init.ora

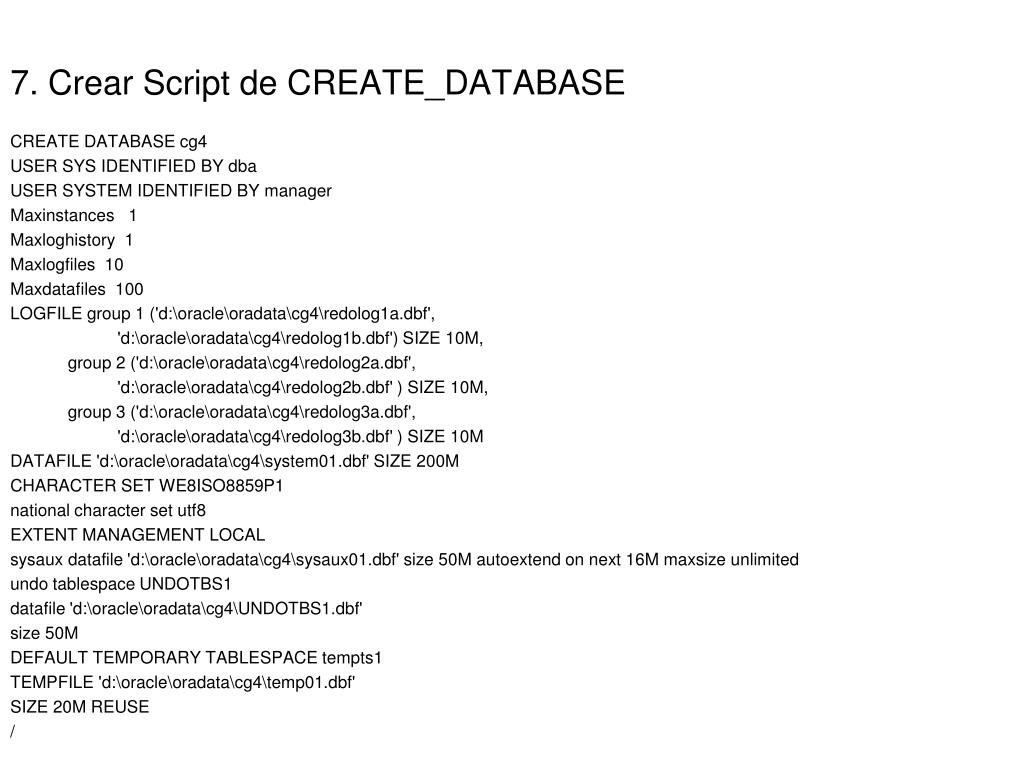

  29. 7. Crear Script de CREATE_DATABASE CREATE DATABASE cg4 USER SYS IDENTIFIED BY dba USER SYSTEM IDENTIFIED BY manager Maxinstances 1 Maxloghistory 1 Maxlogfiles 10 Maxdatafiles 100 LOGFILE group 1 ('d:\oracle\oradata\cg4\redolog1a.dbf', 'd:\oracle\oradata\cg4\redolog1b.dbf') SIZE 10M, group 2 ('d:\oracle\oradata\cg4\redolog2a.dbf', 'd:\oracle\oradata\cg4\redolog2b.dbf' ) SIZE 10M, group 3 ('d:\oracle\oradata\cg4\redolog3a.dbf', 'd:\oracle\oradata\cg4\redolog3b.dbf' ) SIZE 10M DATAFILE 'd:\oracle\oradata\cg4\system01.dbf' SIZE 200M CHARACTER SET WE8ISO8859P1 national character set utf8 EXTENT MANAGEMENT LOCAL sysaux datafile 'd:\oracle\oradata\cg4\sysaux01.dbf' size 50M autoextend on next 16M maxsize unlimited undo tablespace UNDOTBS1 datafile 'd:\oracle\oradata\cg4\UNDOTBS1.dbf' size 50M DEFAULT TEMPORARY TABLESPACE tempts1 TEMPFILE 'd:\oracle\oradata\cg4\temp01.dbf' SIZE 20M REUSE /

  30. 8. Ejecutar scripts de catalogos y diccionario de datos ORACLE_HOME\rdbms\admin START d:\oracle\ora92\rdbms\admin\CATALOG.sql START d:\oracle\ora92\rdbms\admin\CATPROC.sql START d:\oracle\ora92\rdbms\admin\catexp.sql
