  1. V3DTs: Real World Concepts January 25, 1999 Orlando, FL

  2. Real World Concept Types • Code Value • Code Phrase • Code Translation • Concept Descriptor

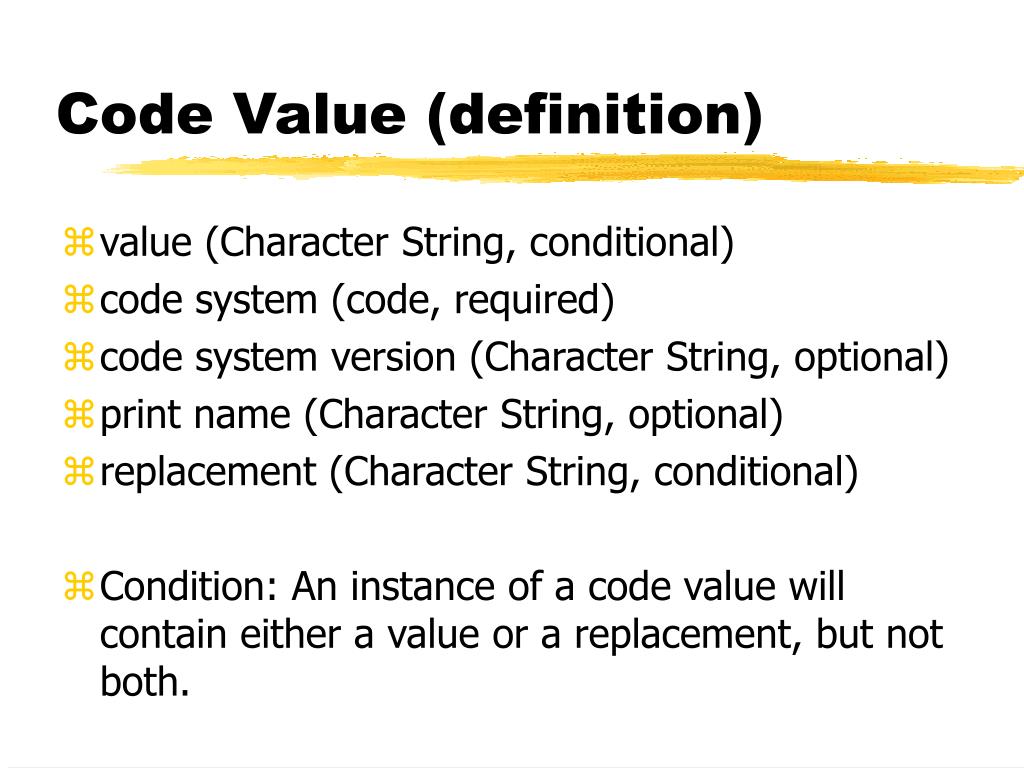

  3. Code Value (definition) • value (Character String, conditional) • code system (code, required) • code system version (Character String, optional) • print name (Character String, optional) • replacement (Character String, conditional) • Condition: An instance of a code value will contain either a value or a replacement, but not both.

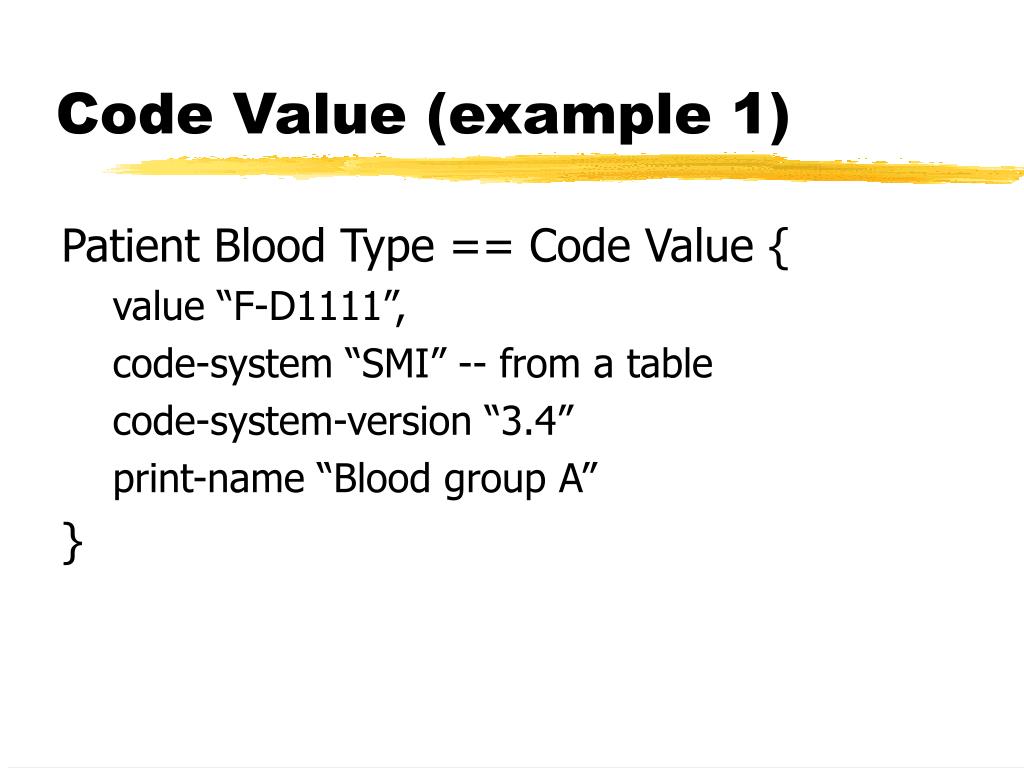

  4. Code Value (example 1) Patient Blood Type == Code Value { value “F-D1111”, code-system “SMI” -- from a table code-system-version “3.4” print-name “Blood group A” }

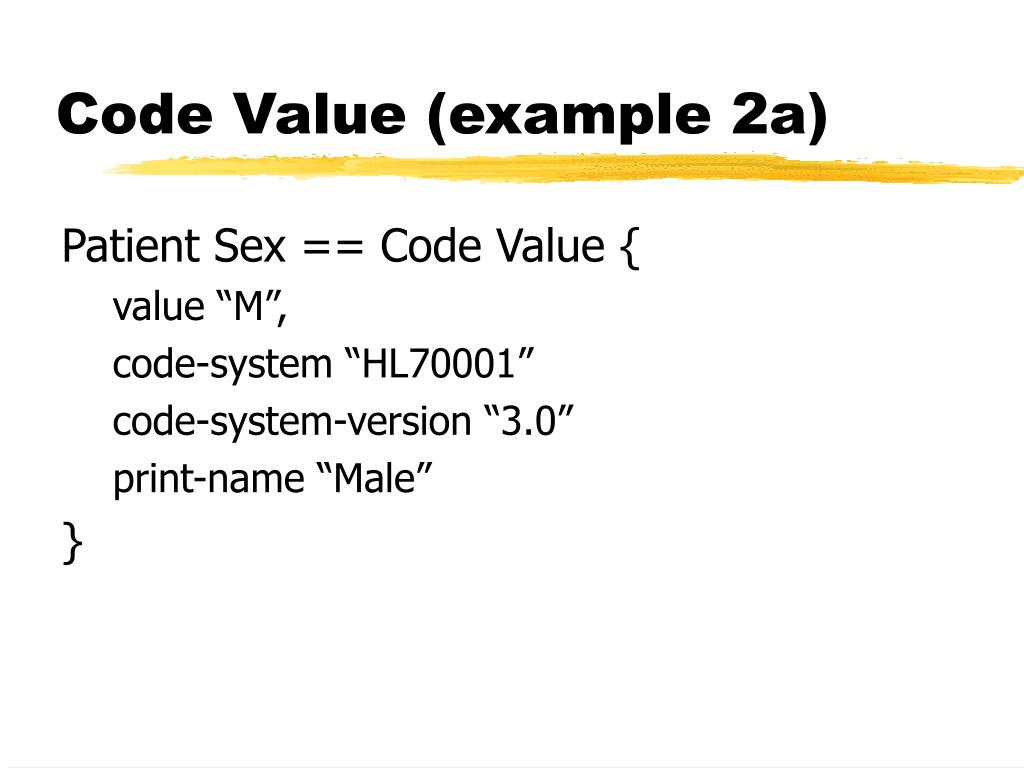

  5. Code Value (example 2a) Patient Sex == Code Value { value “M”, code-system “HL70001” code-system-version “3.0” print-name “Male” }

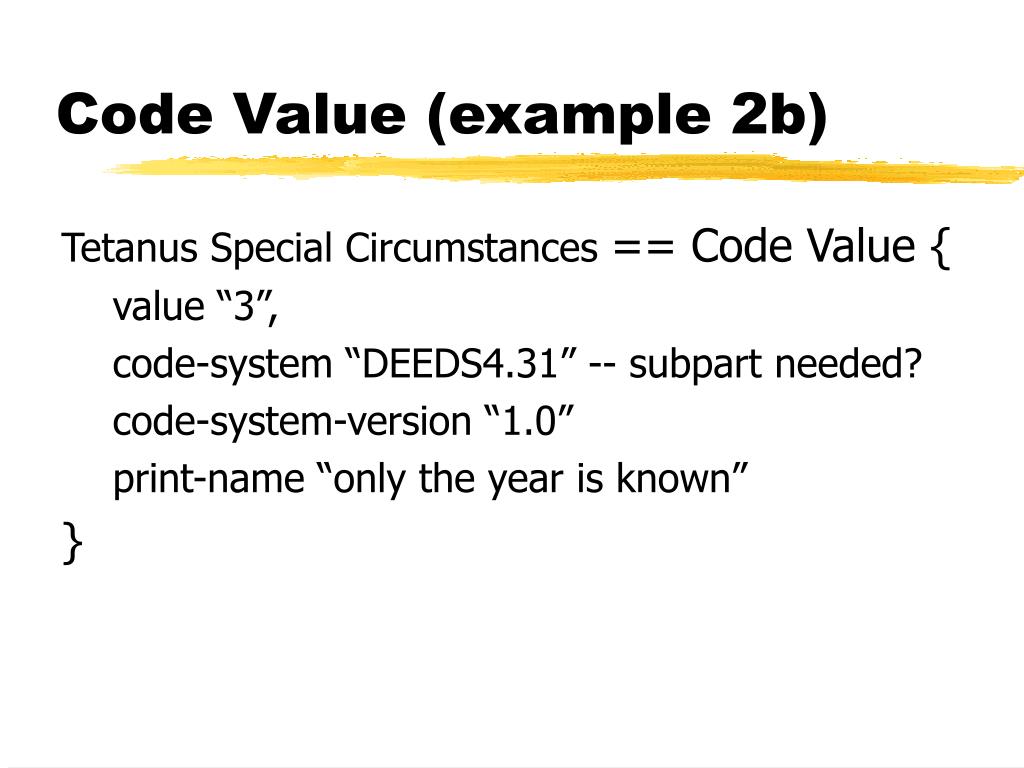

  6. Code Value (example 2b) Tetanus Special Circumstances == Code Value { value “3”, code-system “DEEDS4.31” -- subpart needed? code-system-version “1.0” print-name “only the year is known” }

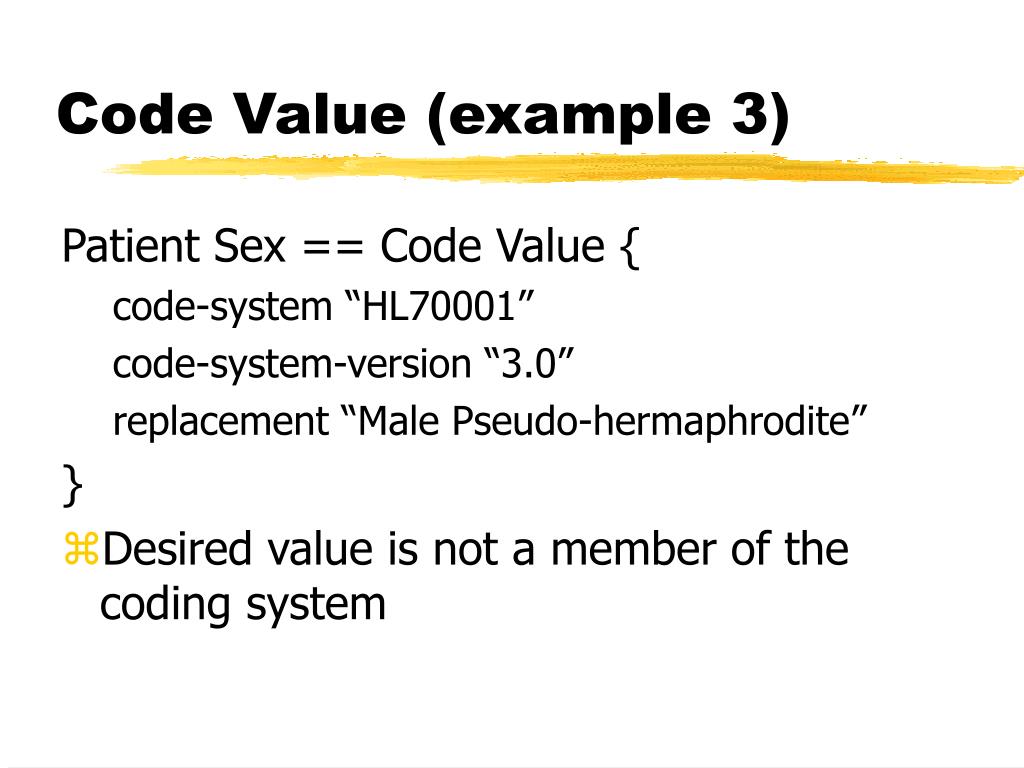

  7. Code Value (example 3) Patient Sex == Code Value { code-system “HL70001” code-system-version “3.0” replacement “Male Pseudo-hermaphrodite” } • Desired value is not a member of the coding system

  8. Code Value (incorrect 4) Patient Sex == Code Value { value “MPH” code-system “HL70001” code-system-version “3.0” replacement “Male Pseudo-hermaphrodite” } • Value and Replacement should not be present at the same time.

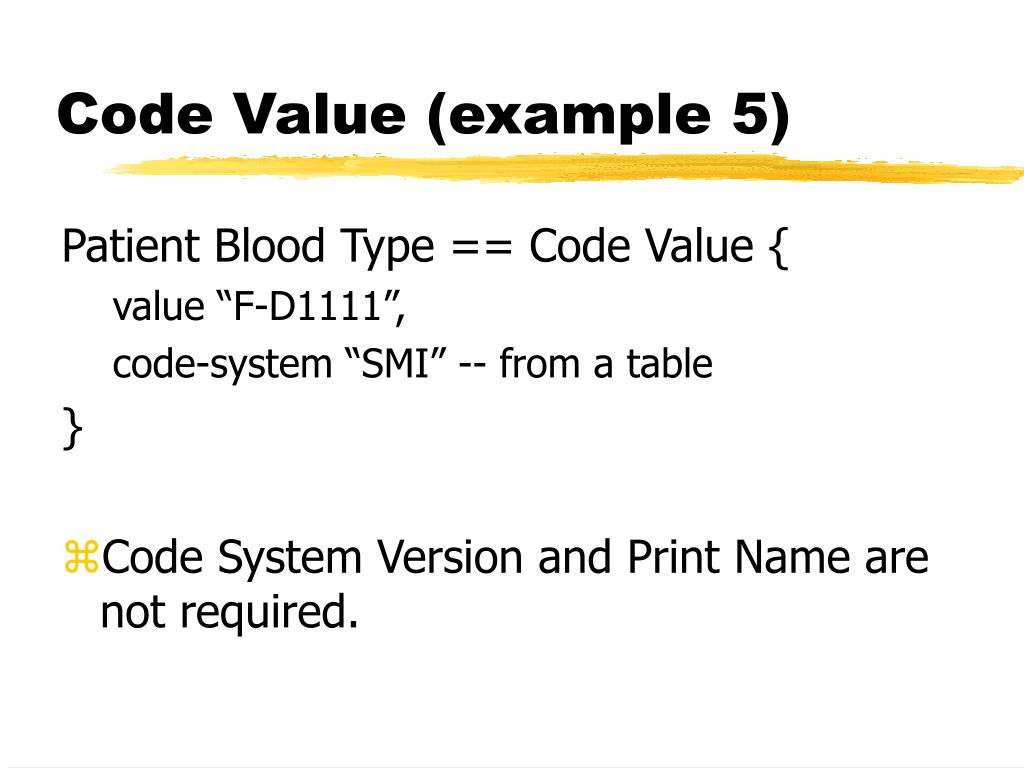

  9. Code Value (example 5) Patient Blood Type == Code Value { value “F-D1111”, code-system “SMI” -- from a table } • Code System Version and Print Name are not required.

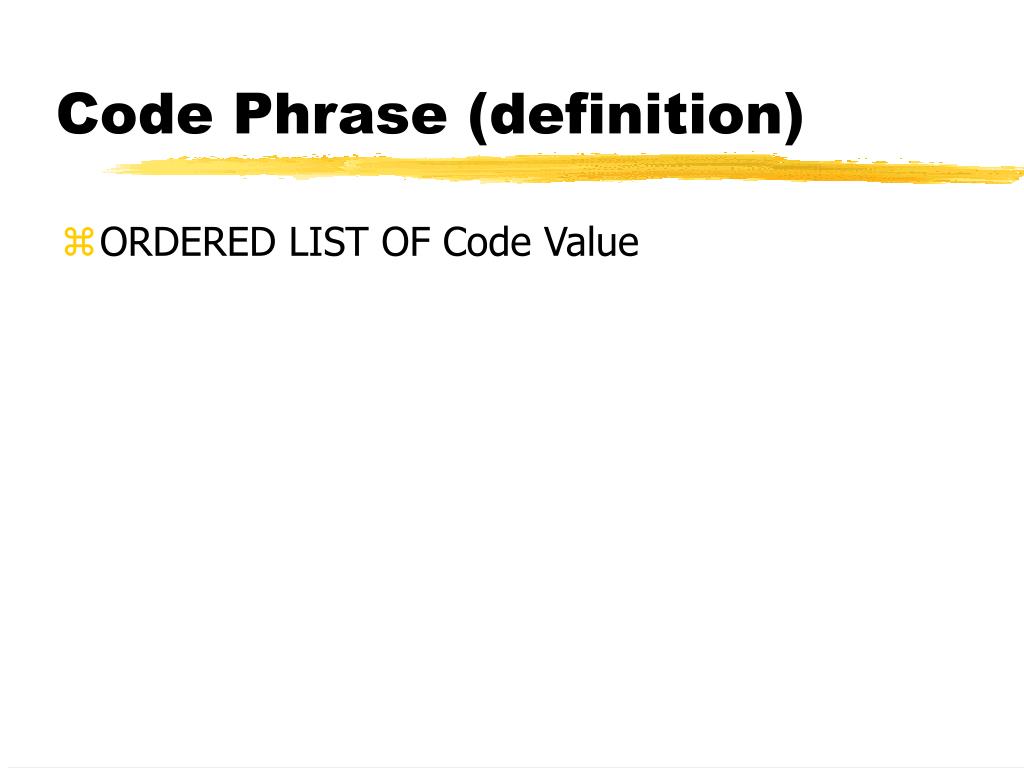

  10. Code Phrase (definition) • ORDERED LIST OF Code Value

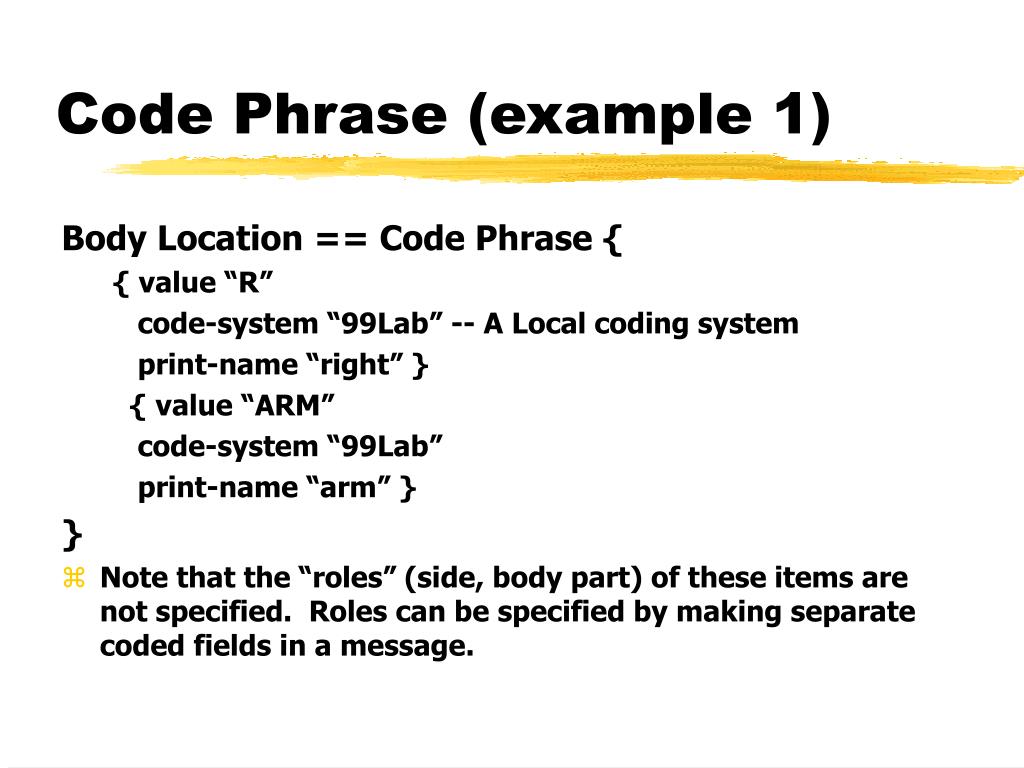

  11. Code Phrase (example 1) Body Location == Code Phrase { { value “R” code-system “99Lab” -- A Local coding system print-name “right” } { value “ARM” code-system “99Lab” print-name “arm” } } • Note that the “roles” (side, body part) of these items are not specified. Roles can be specified by making separate coded fields in a message.

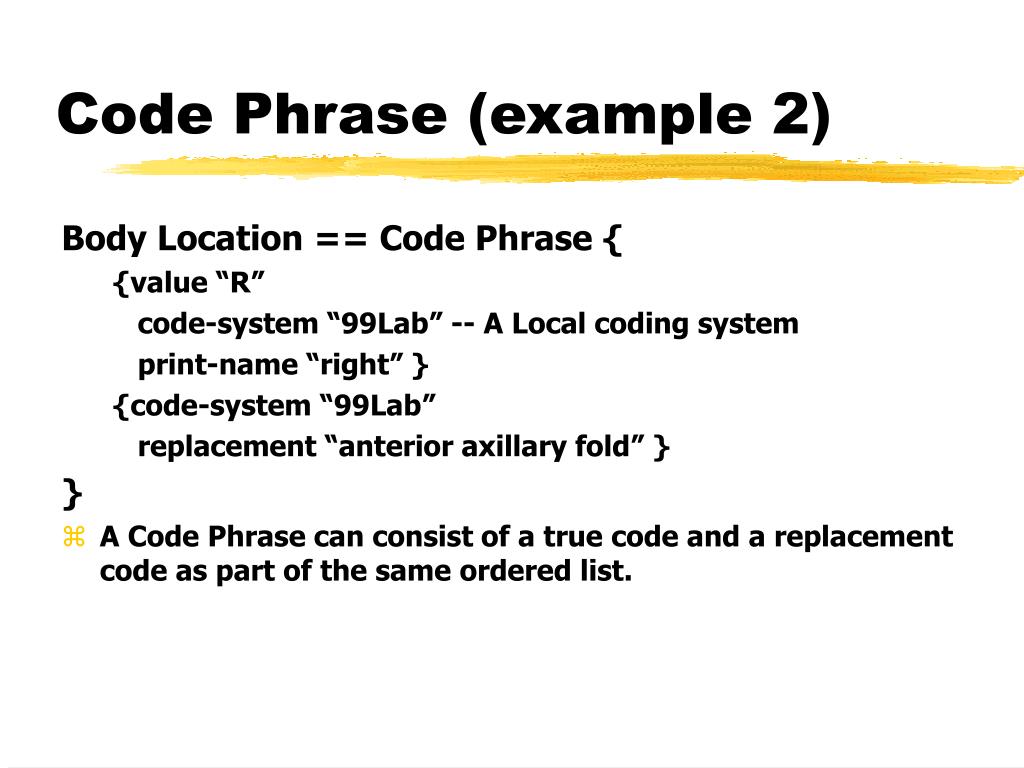

  12. Code Phrase (example 2) Body Location == Code Phrase { {value “R” code-system “99Lab” -- A Local coding system print-name “right” } {code-system “99Lab” replacement “anterior axillary fold” } } • A Code Phrase can consist of a true code and a replacement code as part of the same ordered list.

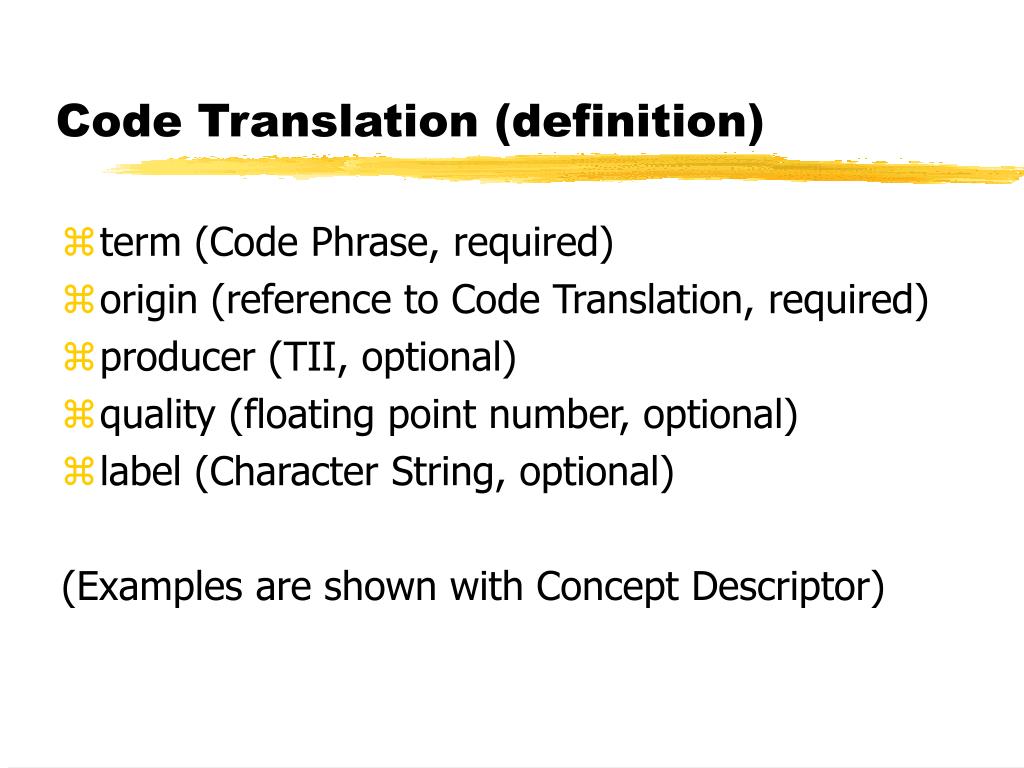

  13. Code Translation (definition) • term (Code Phrase, required) • origin (reference to Code Translation, required) • producer (TII, optional) • quality (floating point number, optional) • label (Character String, optional) (Examples are shown with Concept Descriptor)

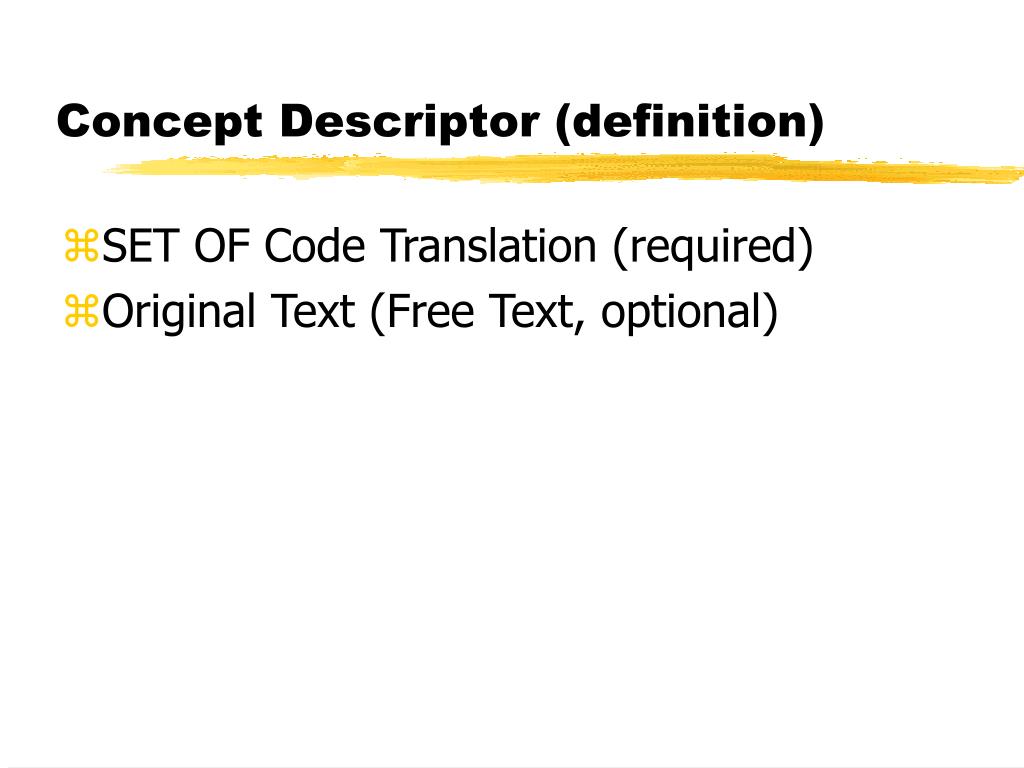

  14. Concept Descriptor (definition) • SET OF Code Translation (required) • Original Text (Free Text, optional)

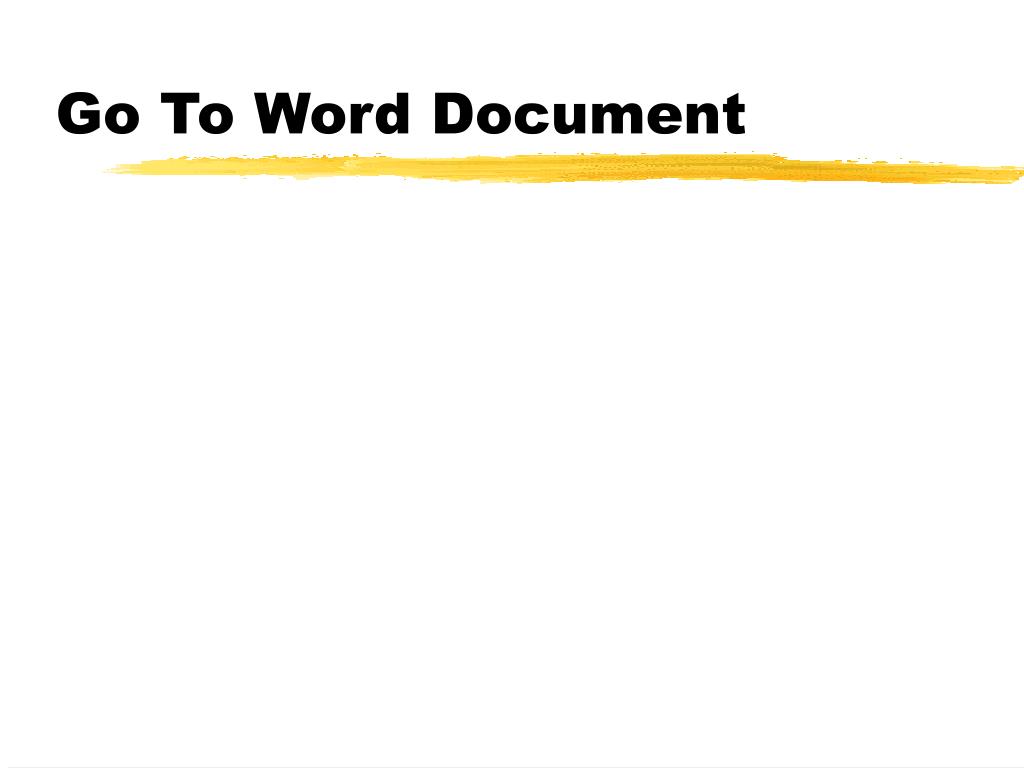

  15. Go To Word Document

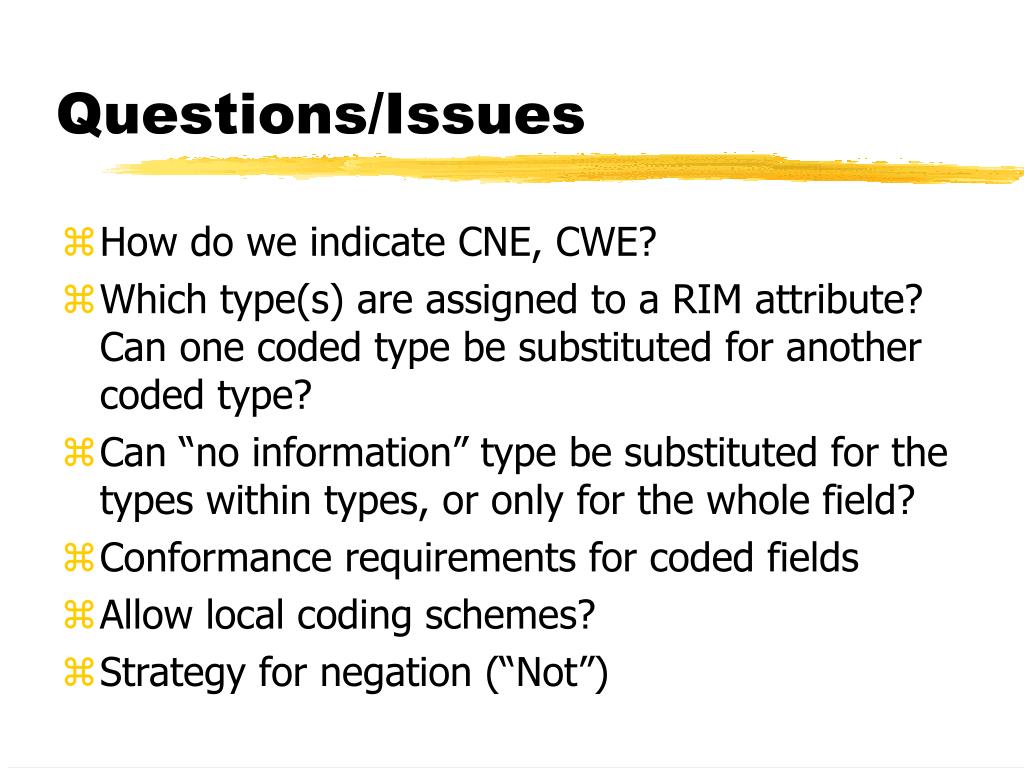

  16. Questions/Issues • How do we indicate CNE, CWE? • Which type(s) are assigned to a RIM attribute? Can one coded type be substituted for another coded type? • Can “no information” type be substituted for the types within types, or only for the whole field? • Conformance requirements for coded fields • Allow local coding schemes? • Strategy for negation (“Not”)
