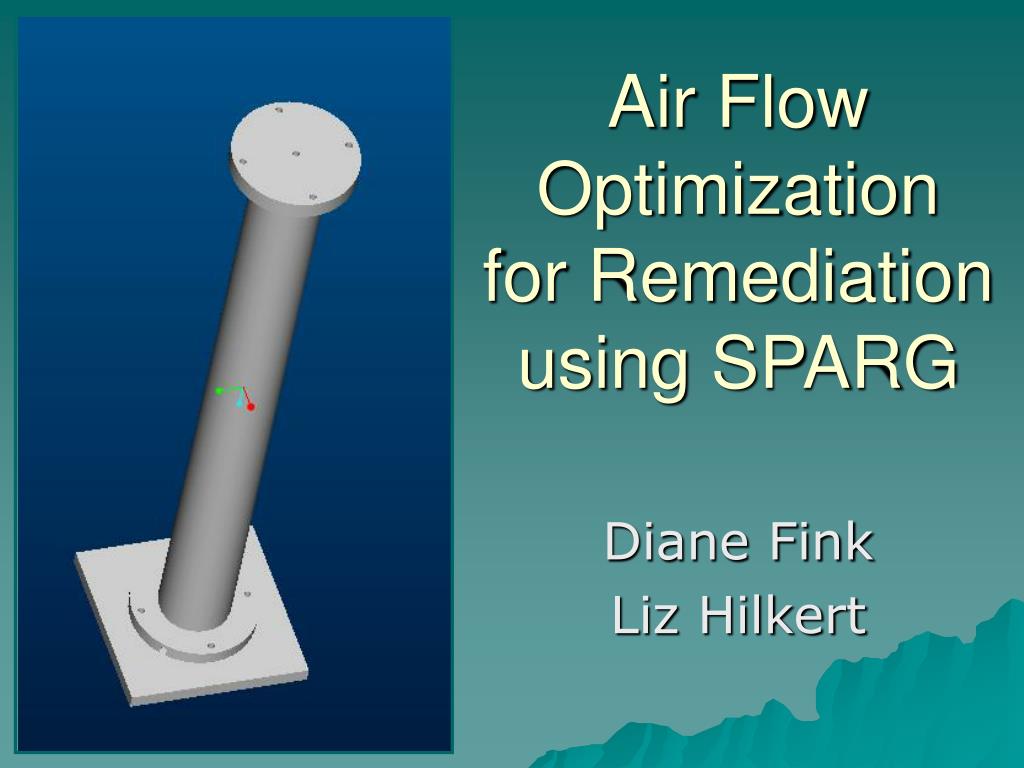

  1. Air Flow Optimization for Remediation using SPARG Diane Fink Liz Hilkert

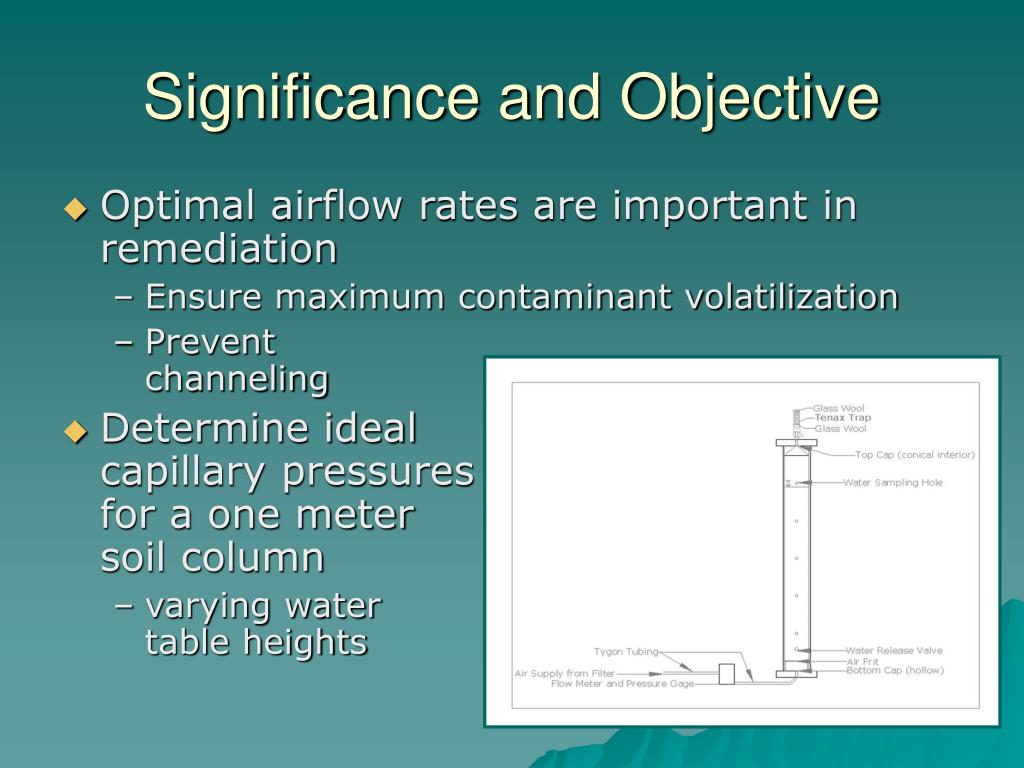

  2. Significance and Objective • Optimal airflow rates are important in remediation • Ensure maximum contaminant volatilization • Prevent channeling • Determine ideal capillary pressuresfor a one meter soil column • varying water table heights

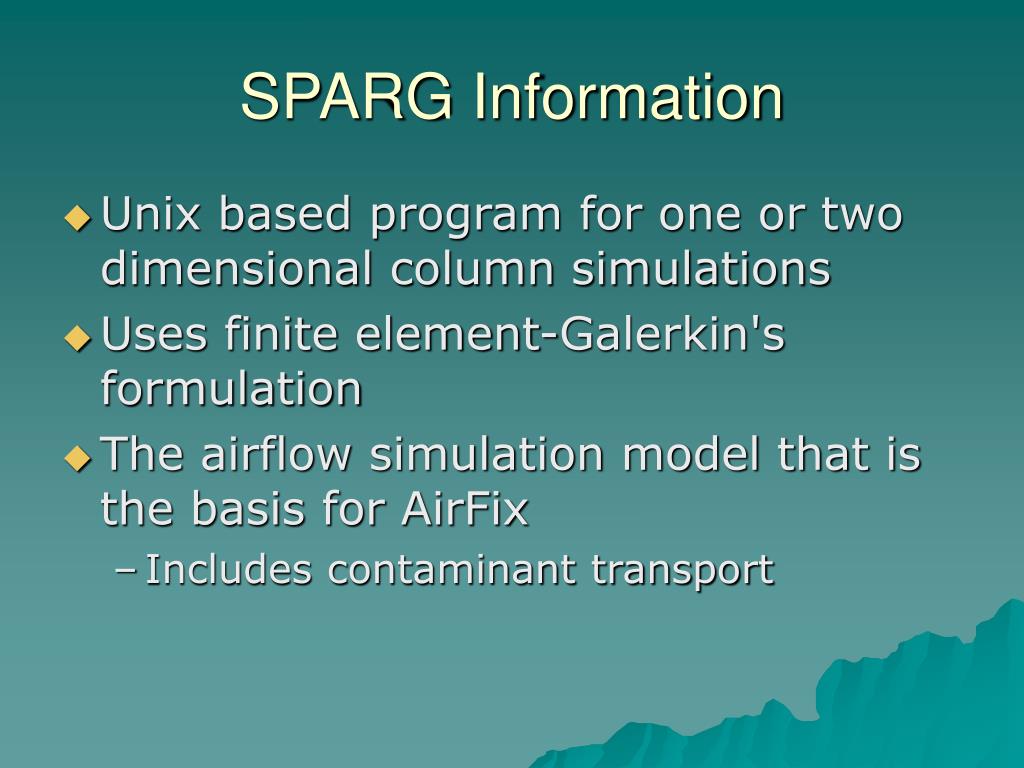

  3. SPARG Information • Unix based program for one or two dimensional column simulations • Uses finite element-Galerkin's formulation • The airflow simulation model that is the basis for AirFix • Includes contaminant transport

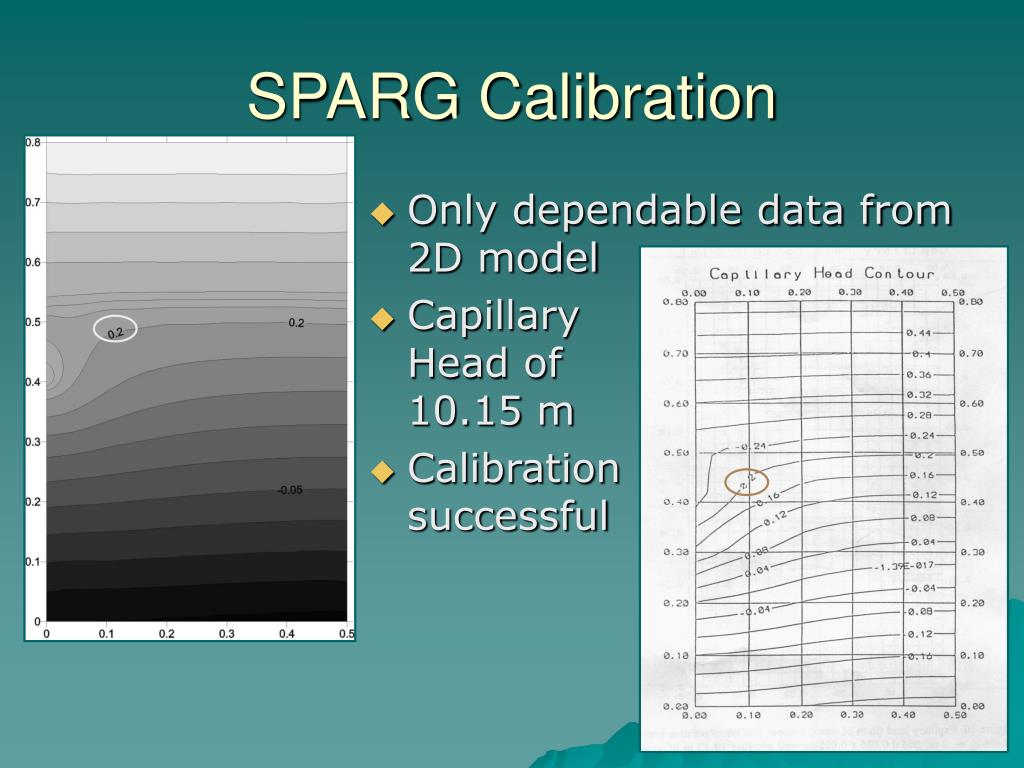

  4. SPARG Calibration • Only dependable data from 2D model • Capillary Head of 10.15 m • Calibration successful

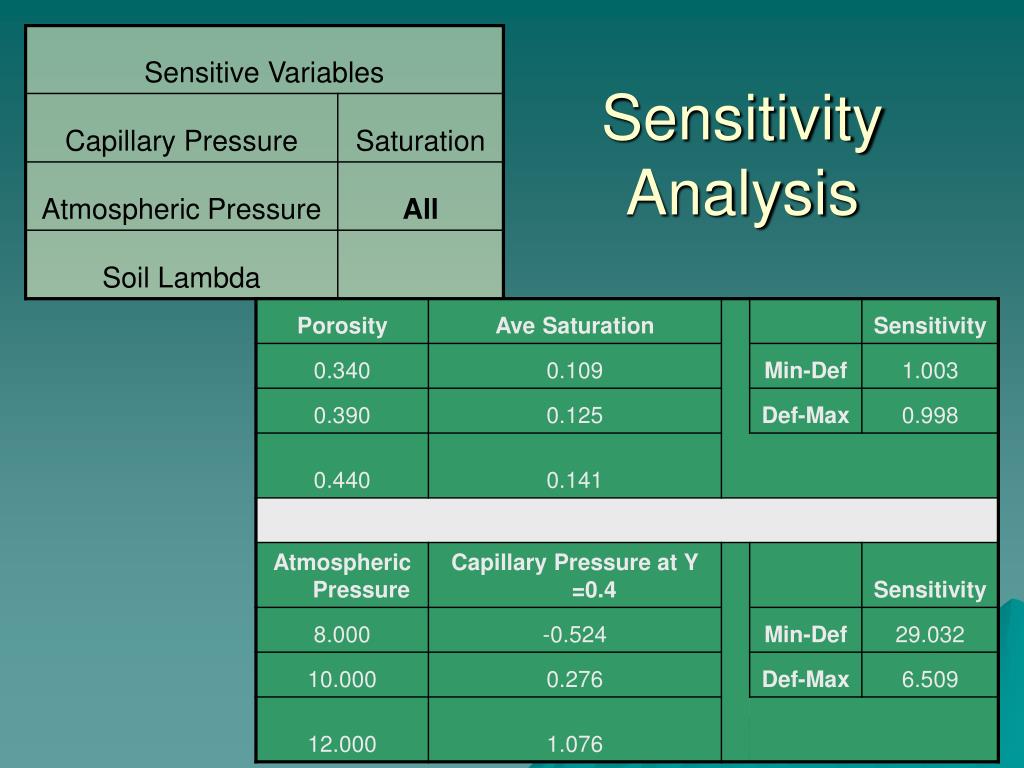

  5. Sensitivity Analysis

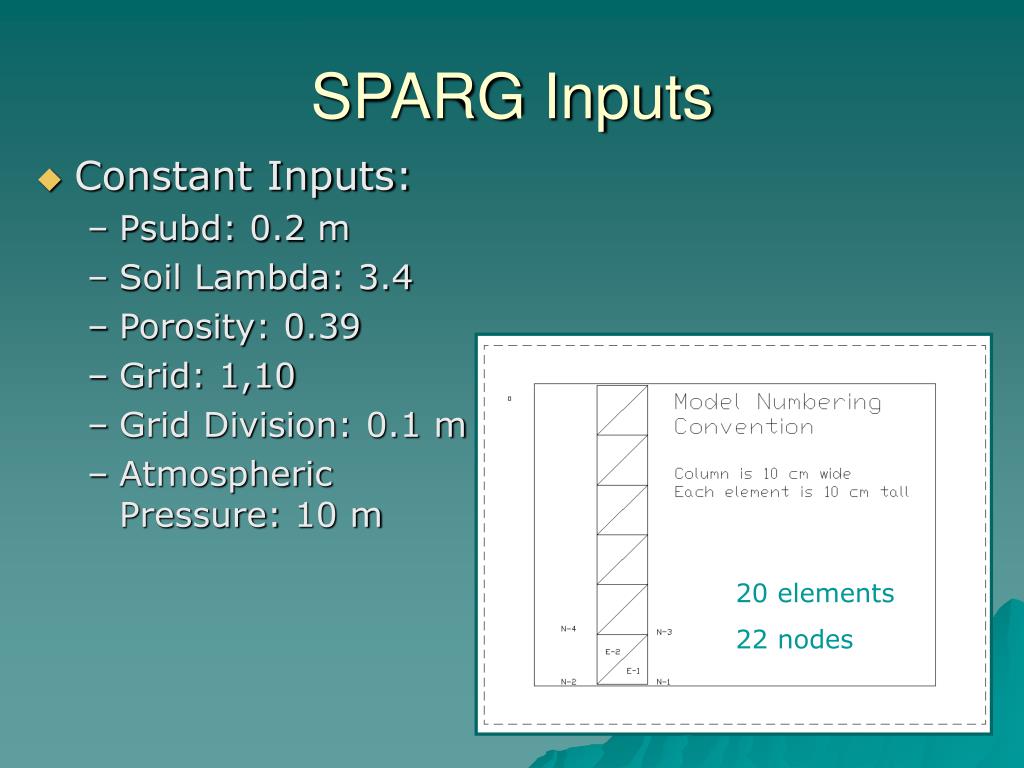

  6. Constant Inputs: Psubd: 0.2 m Soil Lambda: 3.4 Porosity: 0.39 Grid: 1,10 Grid Division: 0.1 m Atmospheric Pressure: 10 m SPARG Inputs 20 elements 22 nodes

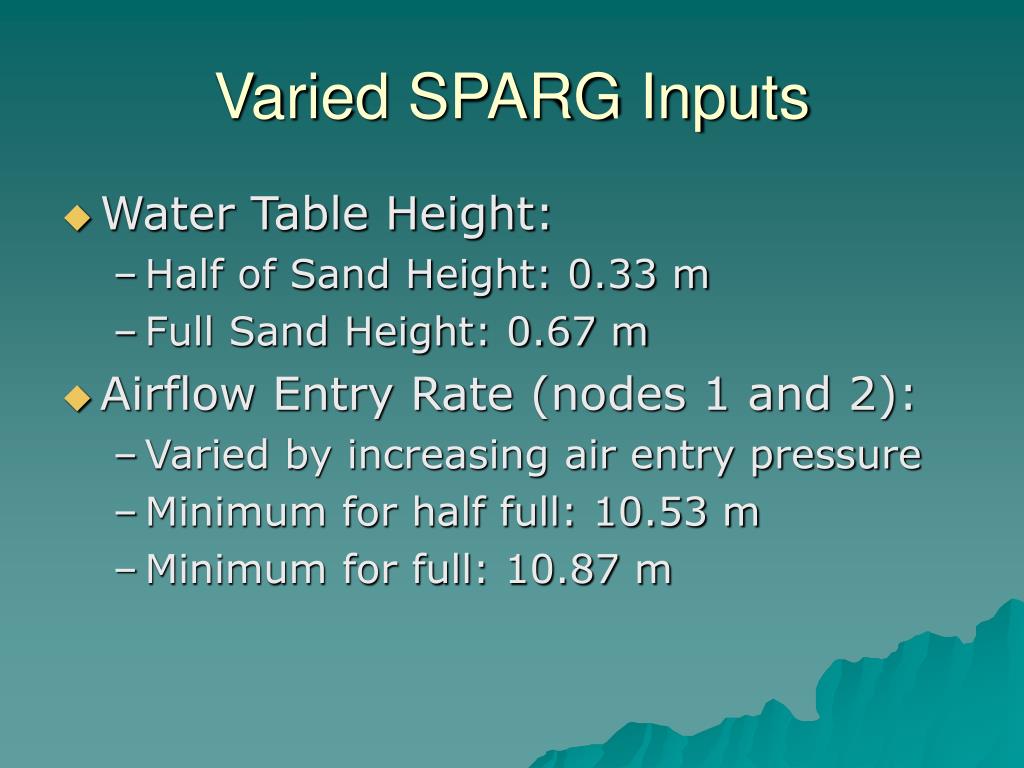

  7. Varied SPARG Inputs • Water Table Height: • Half of Sand Height: 0.33 m • Full Sand Height: 0.67 m • Airflow Entry Rate (nodes 1 and 2): • Varied by increasing air entry pressure • Minimum for half full: 10.53 m • Minimum for full: 10.87 m

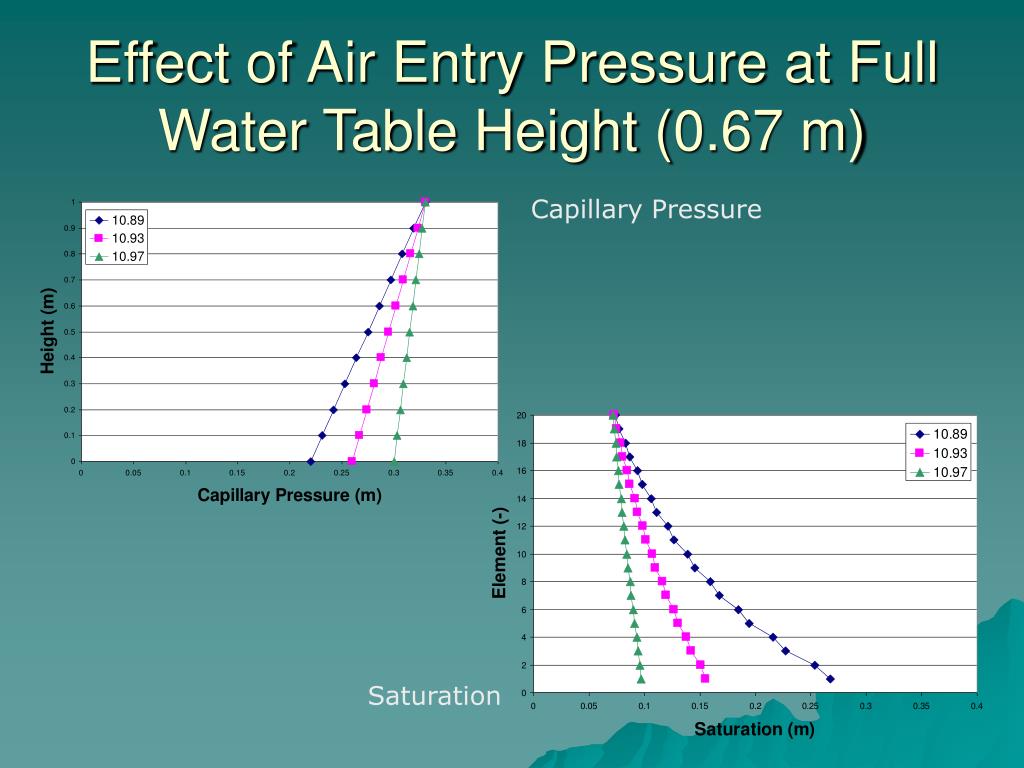

  8. Effect of Air Entry Pressure at Full Water Table Height (0.67 m) Capillary Pressure Saturation

  9. Effect of Air Entry Pressure at Half Water Table Height (0.33 m) Capillary Pressure Saturation

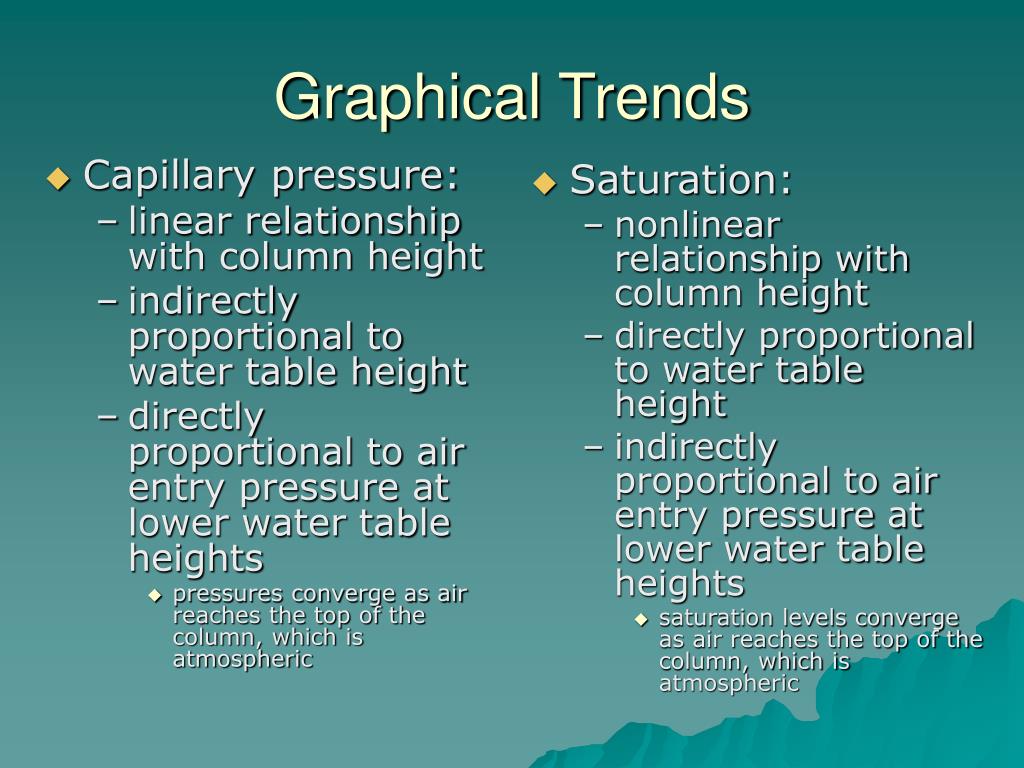

  10. Capillary pressure: linear relationship with column height indirectly proportional to water table height directly proportional to air entry pressure at lower water table heights pressures converge as air reaches the top of the column, which is atmospheric Saturation: nonlinear relationship with column height directly proportional to water table height indirectly proportional to air entry pressure at lower water table heights saturation levels converge as air reaches the top of the column, which is atmospheric Graphical Trends

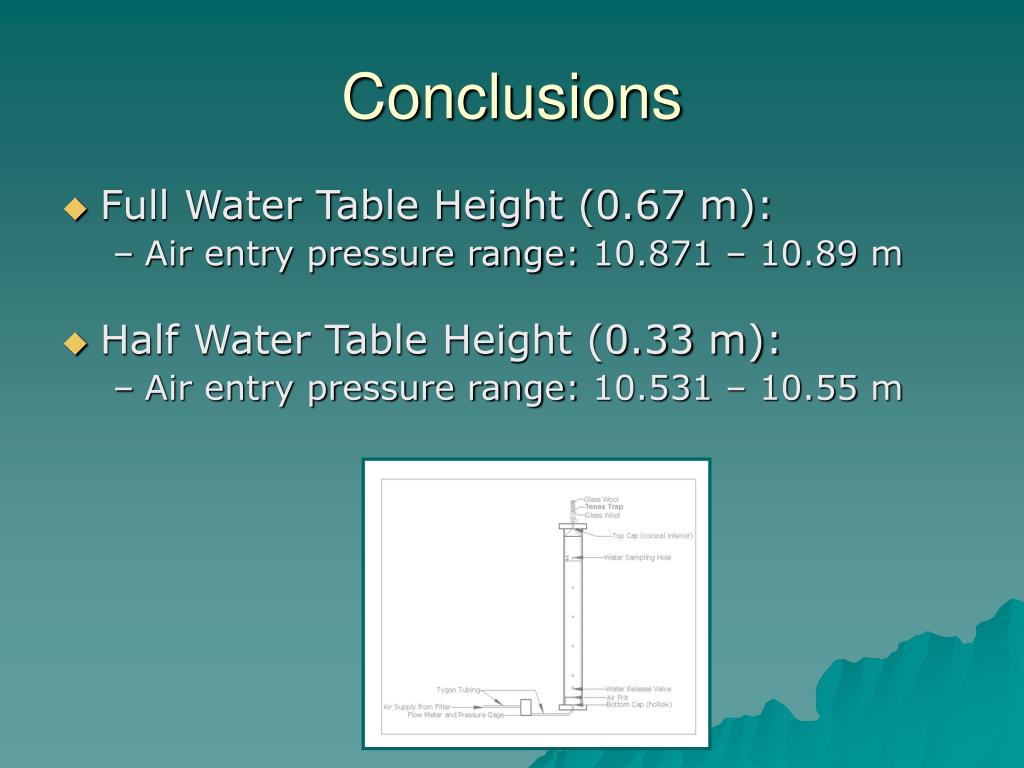

  11. Conclusions • Full Water Table Height (0.67 m): • Air entry pressure range: 10.871 – 10.89 m • Half Water Table Height (0.33 m): • Air entry pressure range: 10.531 – 10.55 m

  12. Thank You Questions?
