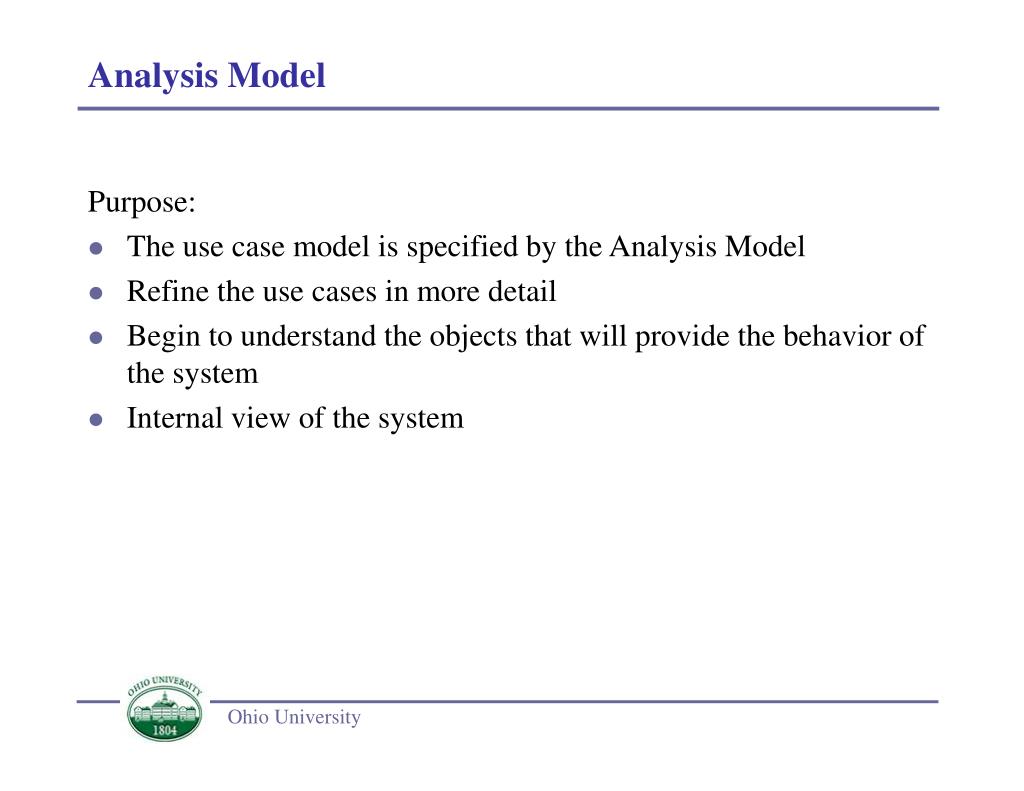

  1. Analysis Model Purpose: • The use case model is specified by the Analysis Model • Refine the use cases in more detail • Begin to understand the objects that will provide the behavior of the system • Internal view of the system Ohio University

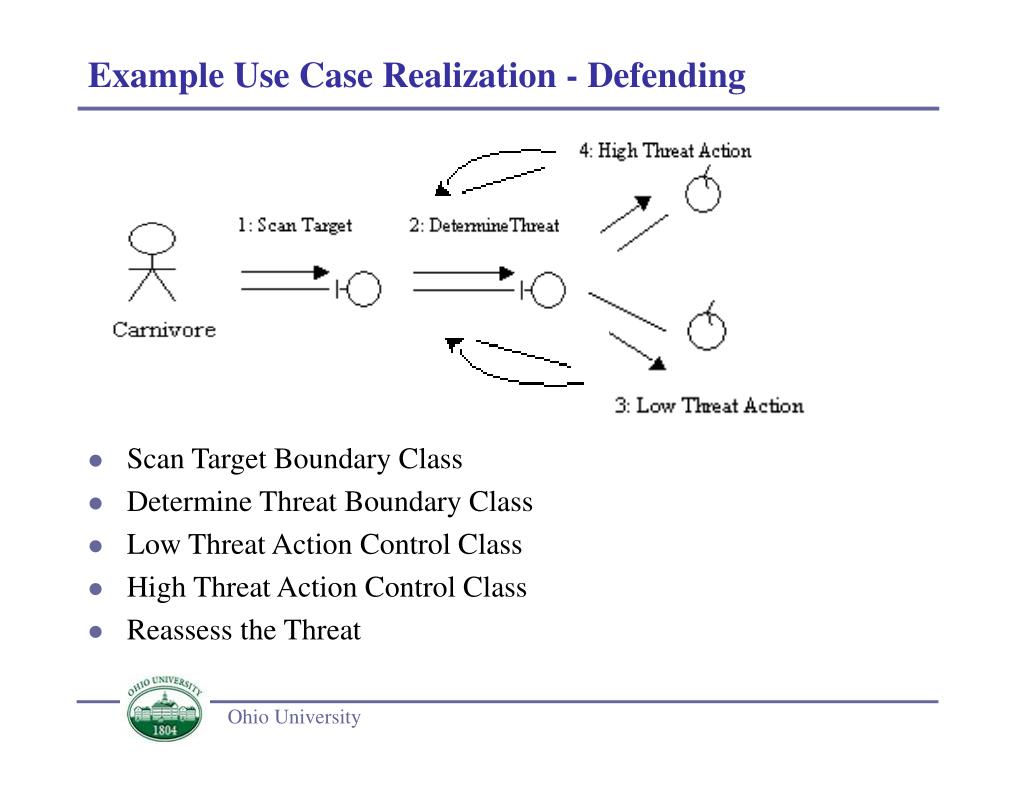

  2. Example Use Case Realization - Defending • Scan Target Boundary Class • Determine Threat Boundary Class • Low Threat Action Control Class • High Threat Action Control Class • Reassess the Threat Ohio University

  3. Package Analysis – Three Packages • Movement Management • Action Management • Battle Management Ohio University

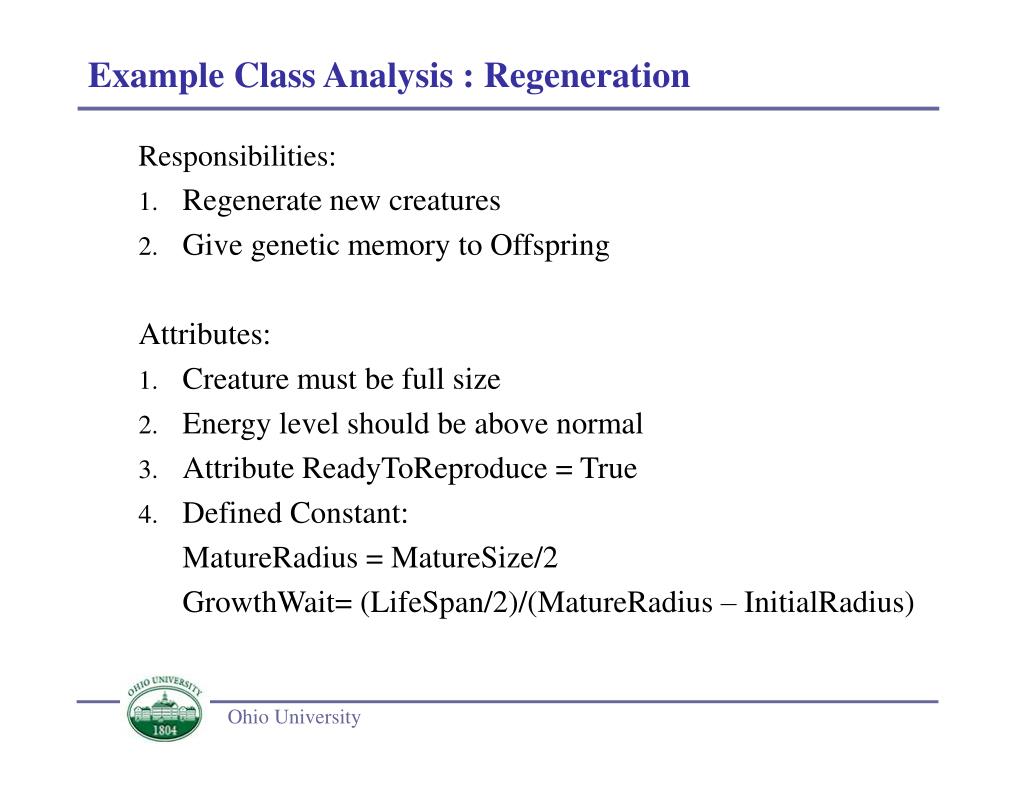

  4. Example Class Analysis : Regeneration Responsibilities: • Regenerate new creatures • Give genetic memory to Offspring Attributes: • Creature must be full size • Energy level should be above normal • Attribute ReadyToReproduce = True • Defined Constant: MatureRadius = MatureSize/2 GrowthWait= (LifeSpan/2)/(MatureRadius – InitialRadius) Ohio University
