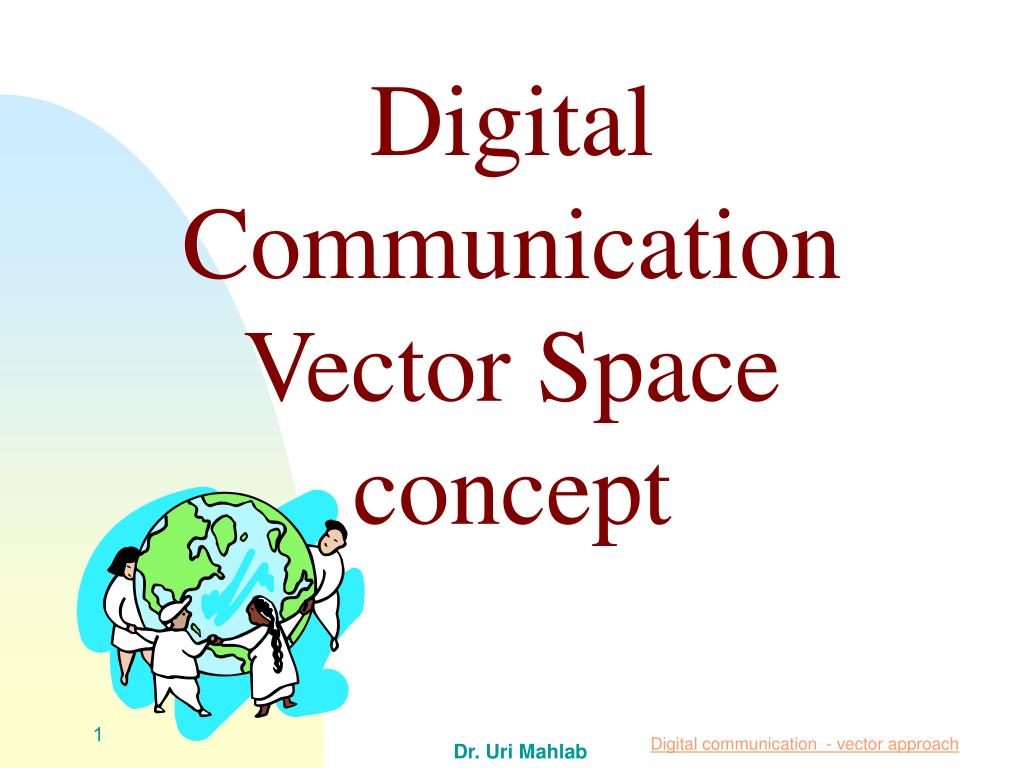

  1. Digital Communication Vector Space concept 1

  2. Signal space • Signal Space • Inner Product • Norm • Orthogonality • Equal Energy Signals • Distance • Orthonormal Basis • Vector Representation • Signal Space Summary 2

  3. Signal Space S(t) S=(s1,s2,…) • Inner Product (Correlation) • Norm (Energy) • Orthogonality • Distance (Euclidean Distance) • Orthogonal Basis 3

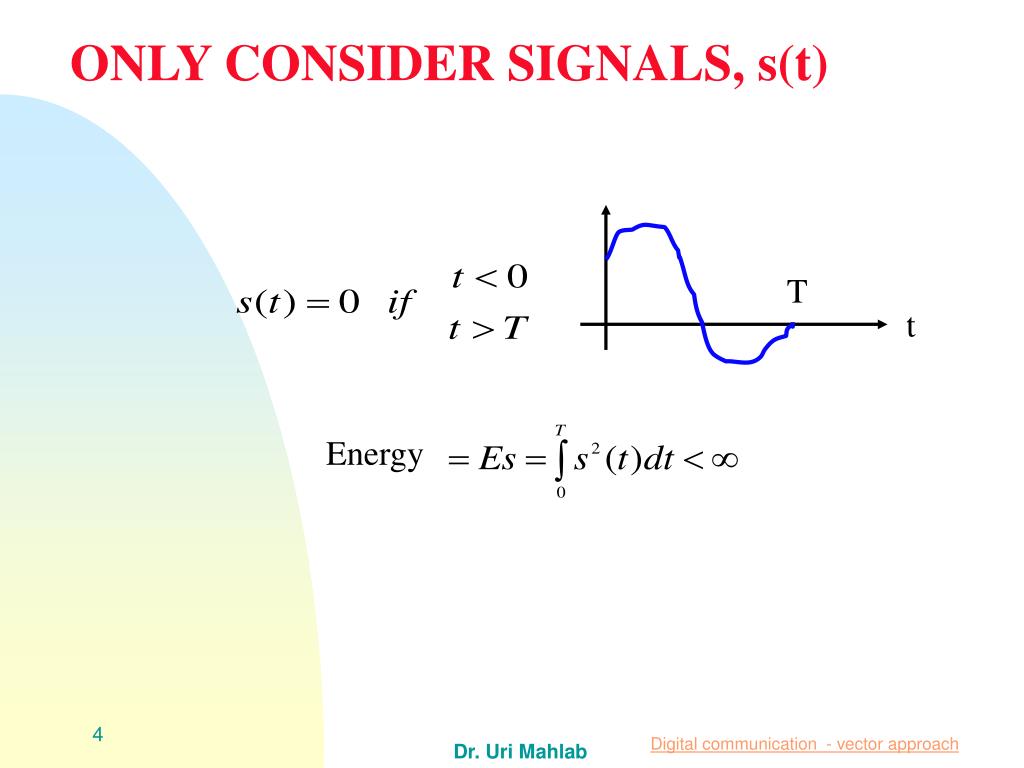

  4. ONLY CONSIDER SIGNALS, s(t) T t Energy 4

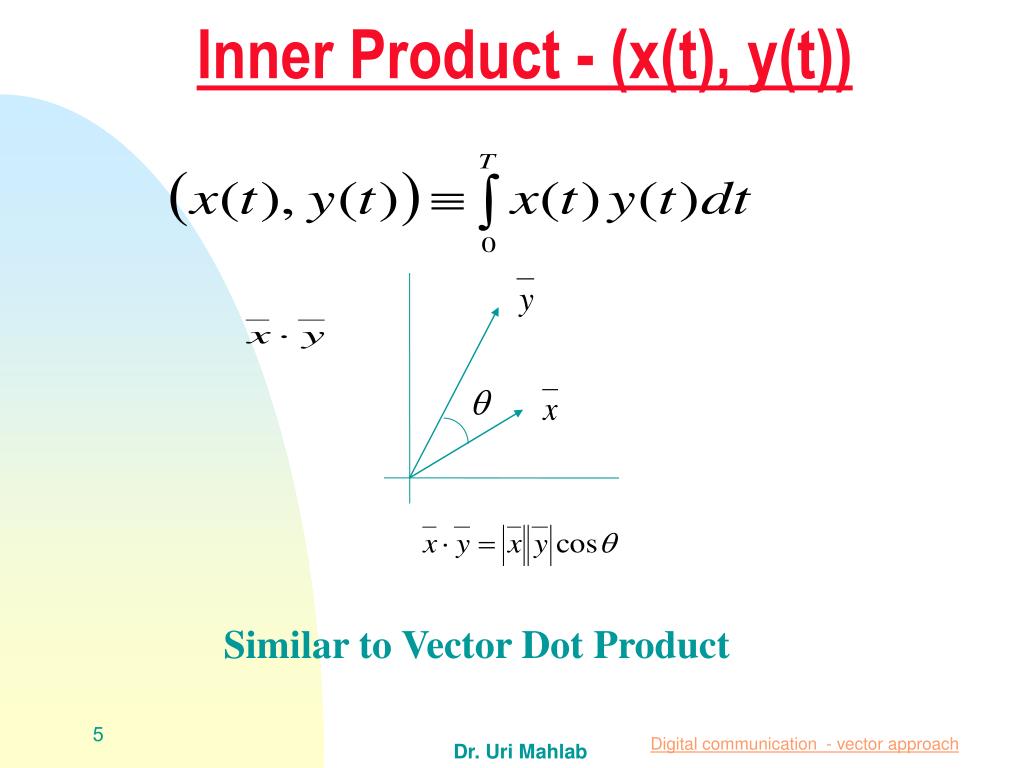

  5. Inner Product - (x(t), y(t)) Similar to Vector Dot Product 5

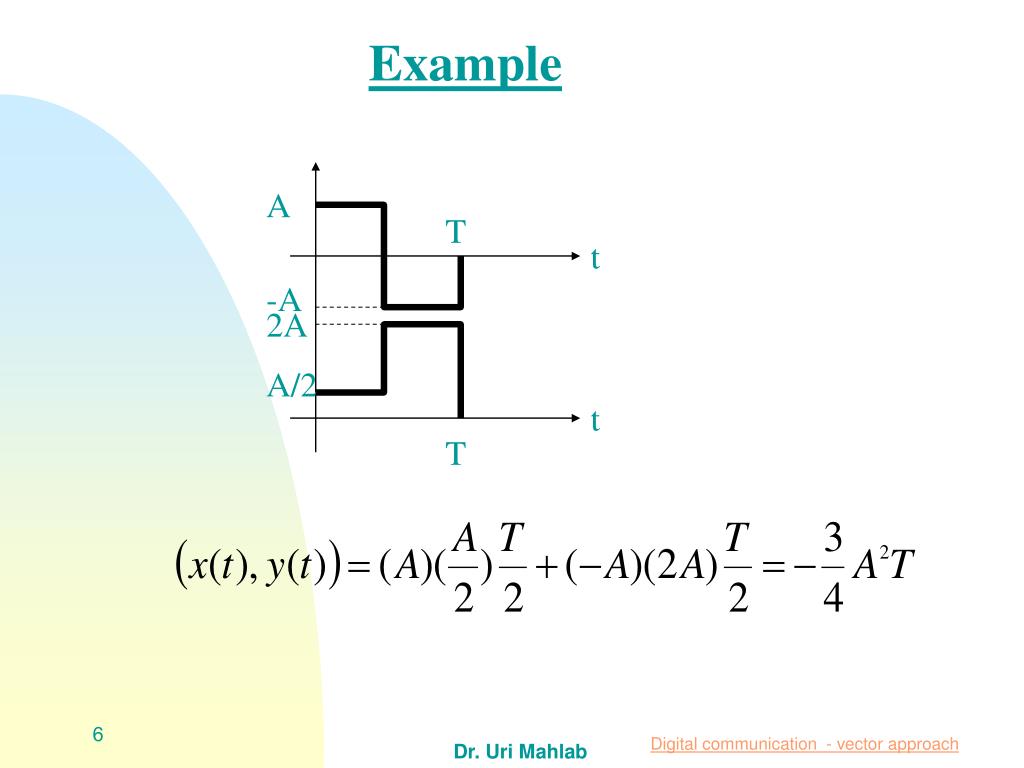

  6. Example A T t -A 2A A/2 t T 6

  7. Norm - ||x(t)|| Similar to norm of vector A T -A 7

  8. Orthogonality A T -A Y(t) B Similar to orthogonal vectors T 8

  9. X(t) • ORTHONORMAL FUNCTIONS { T Y(t) T 9

  10. Correlation Coefficient 1    -1 =1 when x(t)=ky(t) (k>0) • In vector presentation 10

  11. Example Y(t) X(t) 10A A t t -A T T/2 7T/8 Now, shows the “real” correlation 11

  12. Distance, d • For equal energy signals • =-1 (antipodal) • =0 (orthogonal) • 3dB “better” then orthogonal signals 12

  13. Equal Energy Signals • To maximize d (antipodal signals) • PSK(phase Shift Keying) 13

  14. EQUAL ENERGY SIGNALS • ORTHOGONAL SIGNALS (=0) PSK (Orthogonal Phase Shift Keying) (Orthogonal if 14

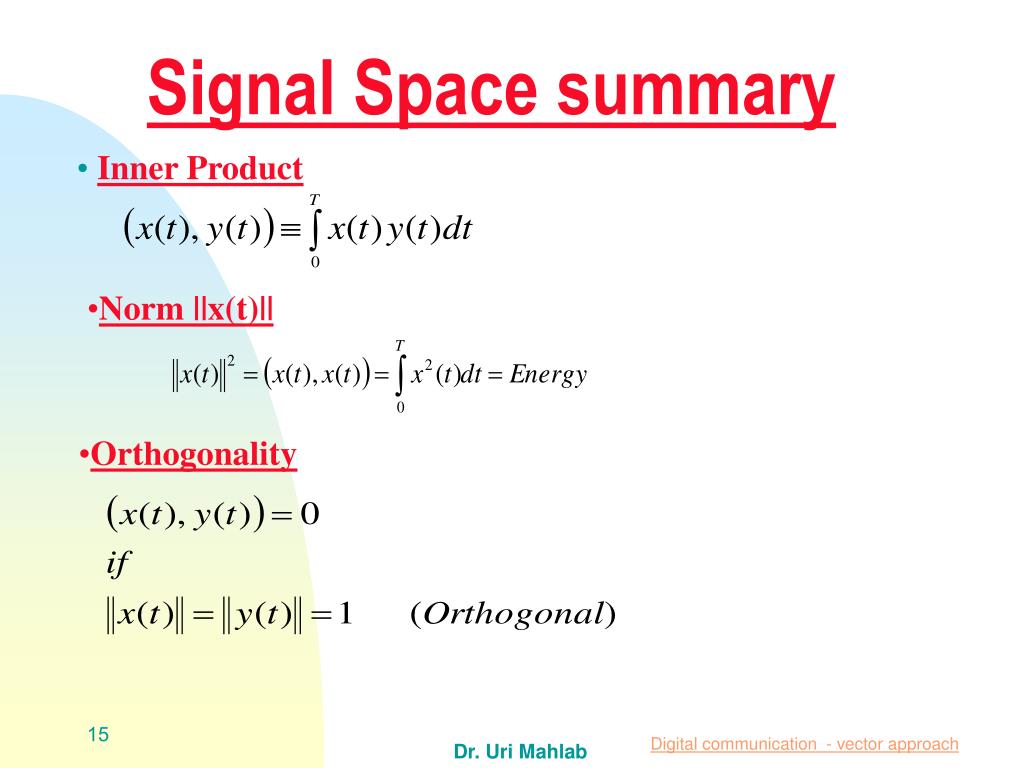

  15. Signal Space summary • Inner Product • Norm ||x(t)|| • Orthogonality 15

  16. Corrolation Coefficient,  • Distance, d 16

  17. Modulation QAM BPSK QPSK BFSK 17

  18. Modulation • BPSK • QPSK • MPSK • QAM • Orthogonal FSK • Orthogonal MFSK • Noise • Probability of Error Modulation 18

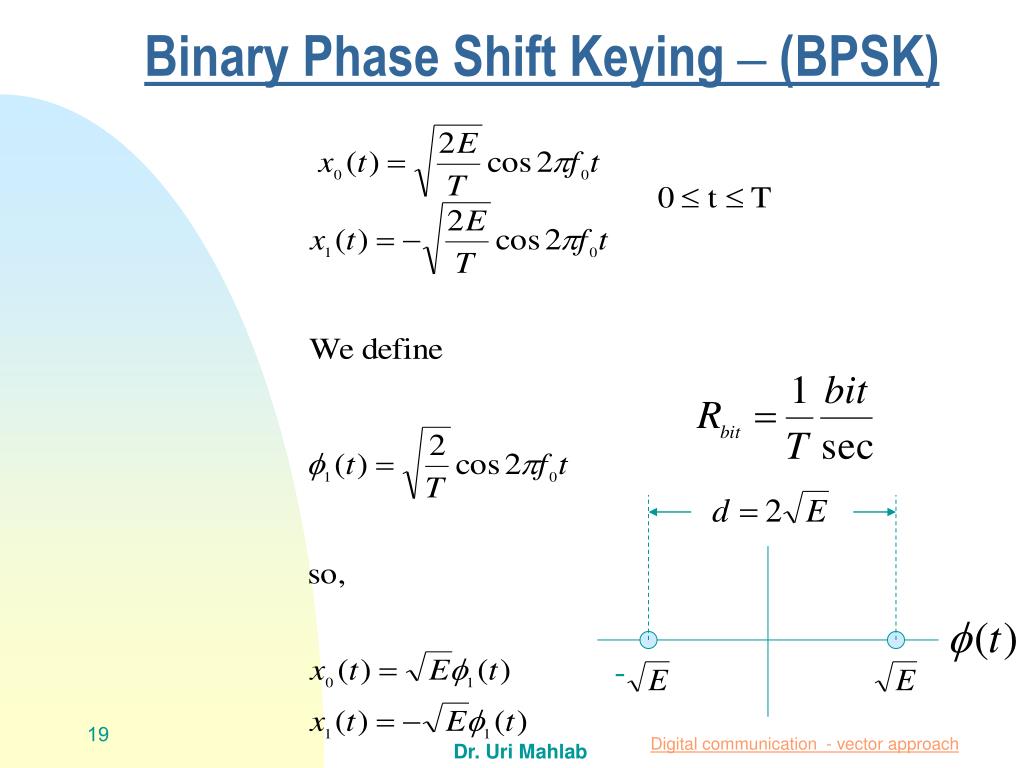

  19. Binary Phase Shift Keying – (BPSK) - 19

  20. Binary antipodal signals vector presentation • Consider the two signals: The equivalent low pass waveforms are: 20

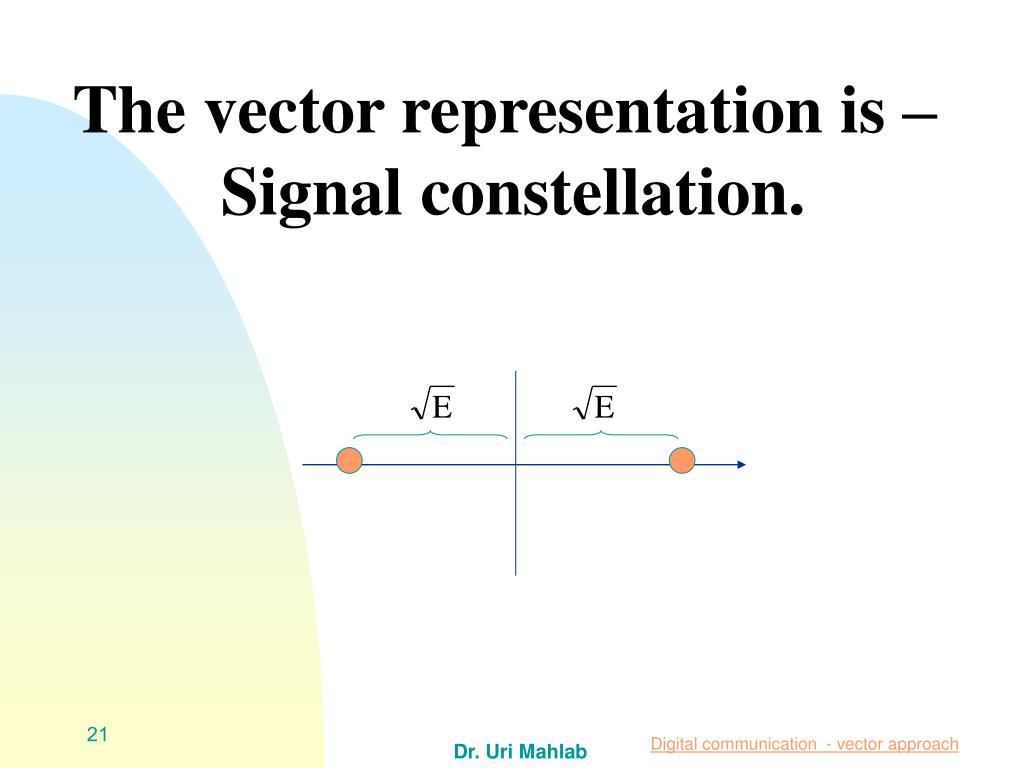

  21. The vector representation is – Signal constellation. 21

  22. The cross-correlation coefficient is: The Euclidean distance is: Two signals with cross-correlation coefficient of -1 are called antipodal 22

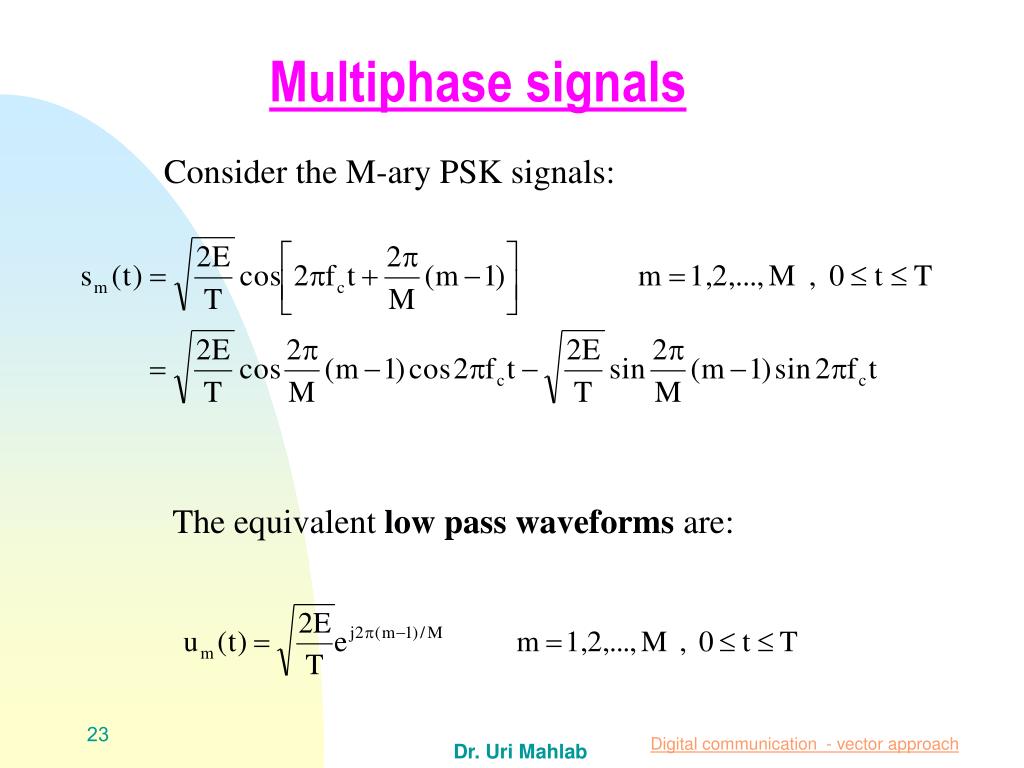

  23. Multiphase signals • Consider the M-ary PSK signals: The equivalent low pass waveforms are: 23

  24. The vector representation is: Or in complex-valued form as: 24

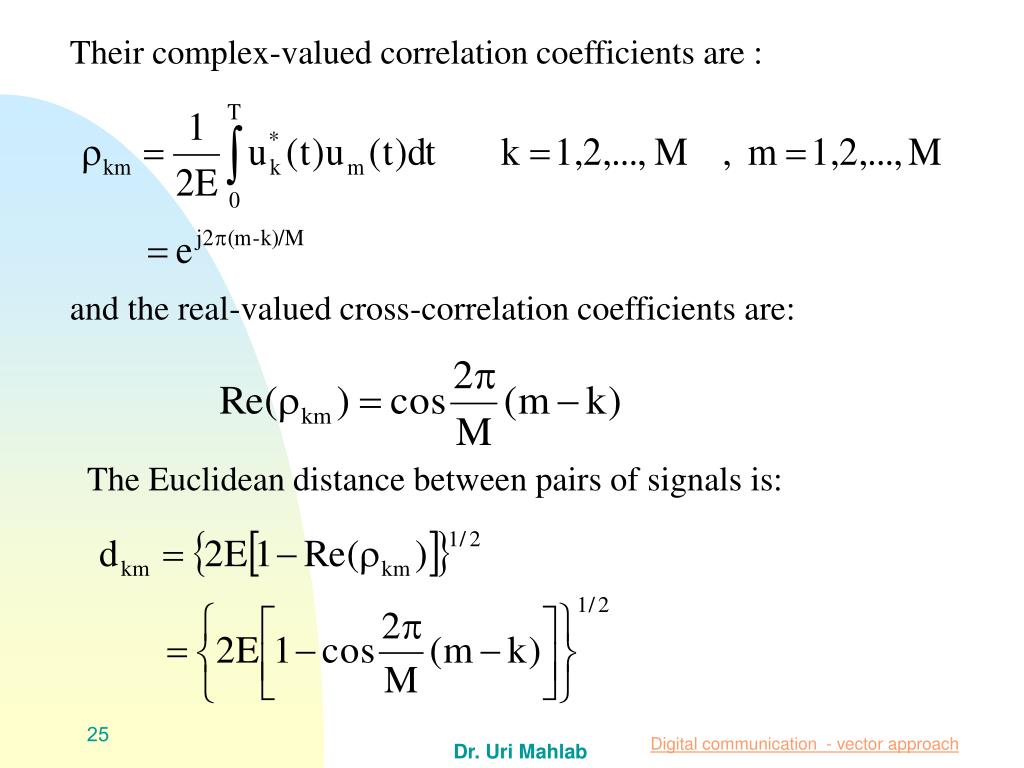

  25. Their complex-valued correlation coefficients are : and the real-valued cross-correlation coefficients are: The Euclidean distance between pairs of signals is: 25

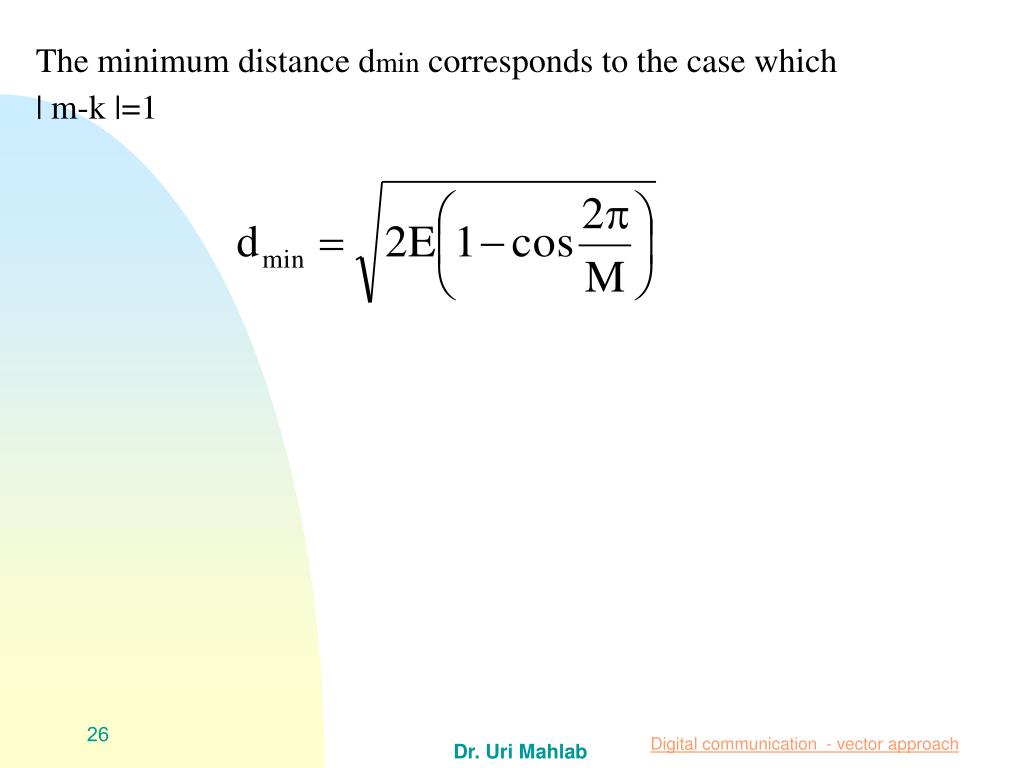

  26. The minimum distance dmin corresponds to the case which | m-k |=1 26

  27. Quaternary PSK - QPSK (00) (10) (11) (01) * 27

  28. X(t) 28

  29. (00) (10) (11) (01) 29

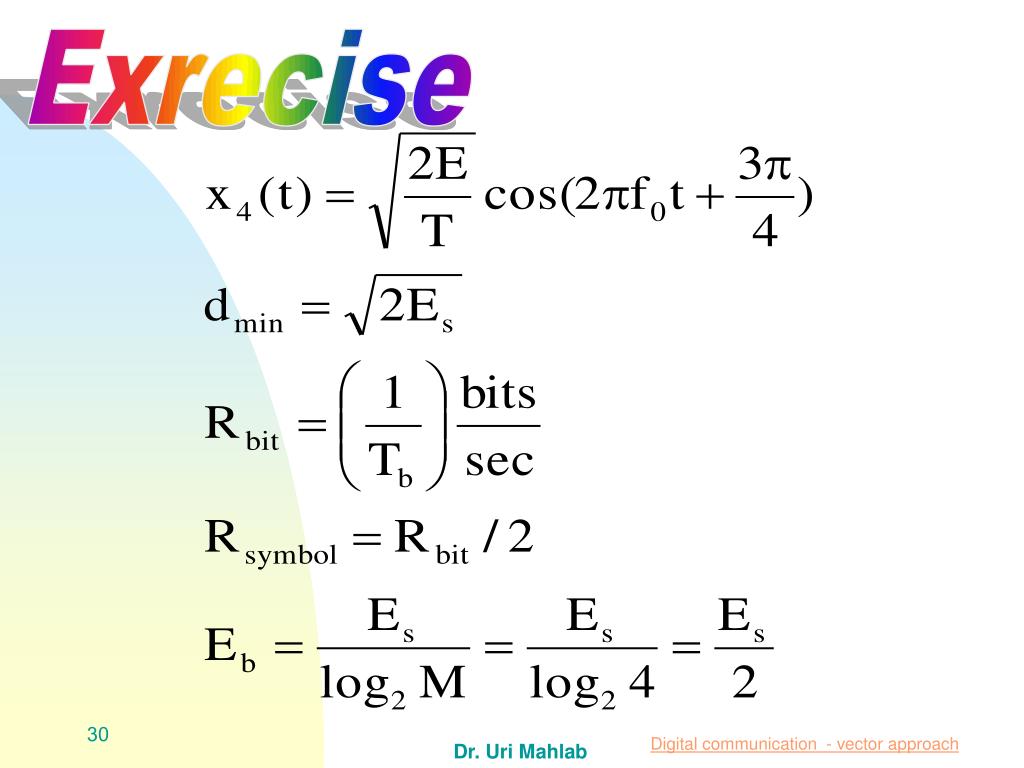

  30. Exrecise 30

  31. MPSK 31

  32. 32

  33. Multi-amplitude Signal Consider the M-ary PAM signals m=1,2,….,M Where this signal amplitude takes the discrete values (levels) m=1,2,….,M The signal pulse u(t) , as defined is rectangular U(t)= But other pulse shapes may be used to obtain a narrower signal spectrum . 33

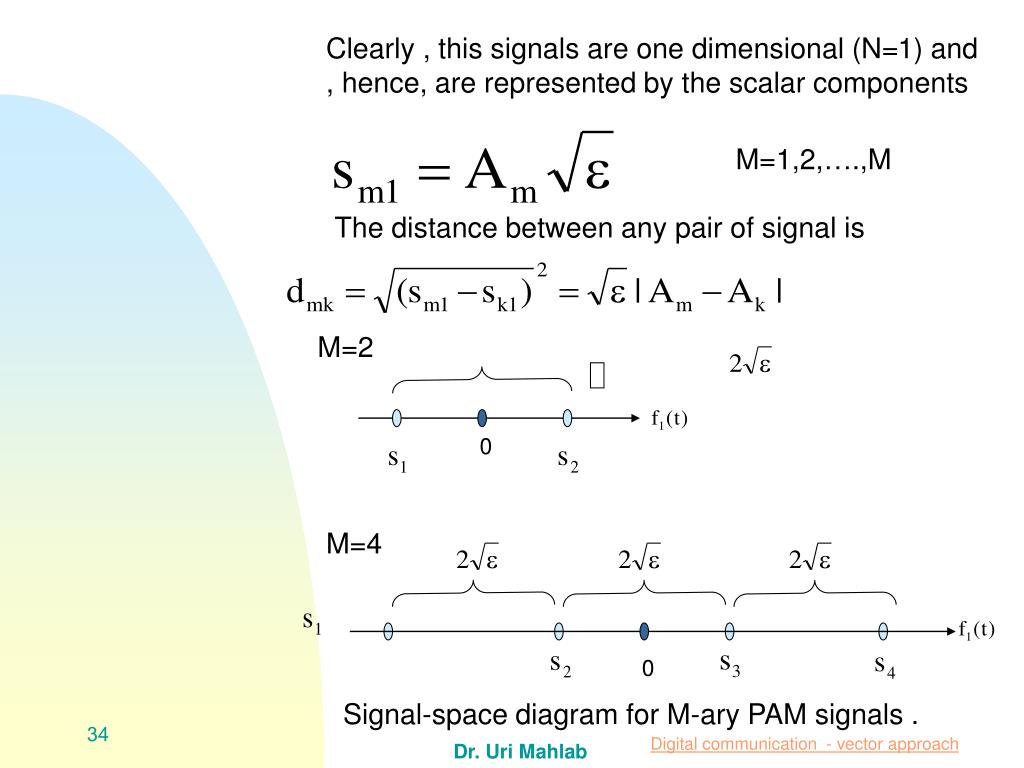

  34. Clearly , this signals are one dimensional (N=1) and , hence, are represented by the scalar components M=1,2,….,M The distance between any pair of signal is M=2 0 M=4 0 Signal-space diagram for M-ary PAM signals . 34

  35. The minimum distance between a pair signals 35

  36. Multi-Amplitude MultiPhase signalsQAM Signals A quadrature amplitude-modulated (QAM) signal or a quadrature-amplitude-shift-keying (QASK) is represented as Where and are the information bearing signal amplitudes of the quadrature carriers and u(t)= . 36

  37. QAM signals are two dimensional signals and, hence, they are represented by the vectors The distance between a pair of signal vectors is k,m=1,2,…,M When the signal amplitudes take the discrete values In this case the minimum distance is 37

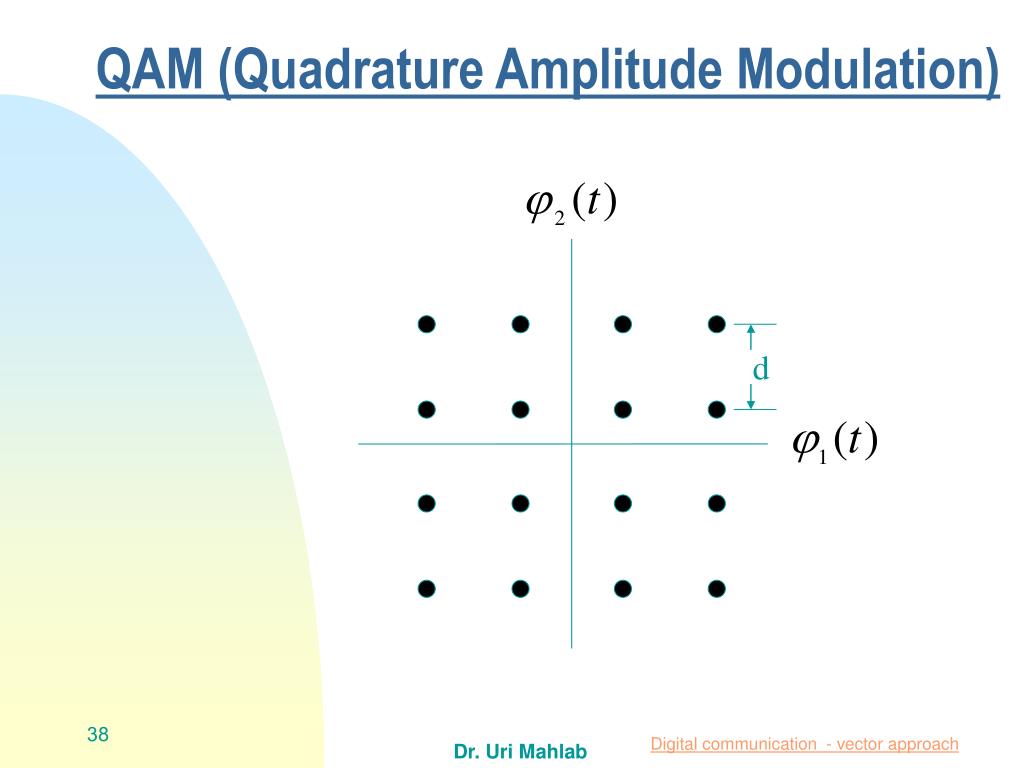

  38. d QAM (Quadrature Amplitude Modulation) 38

  39. d QAM=QASK=AM-PM Exrecise 39

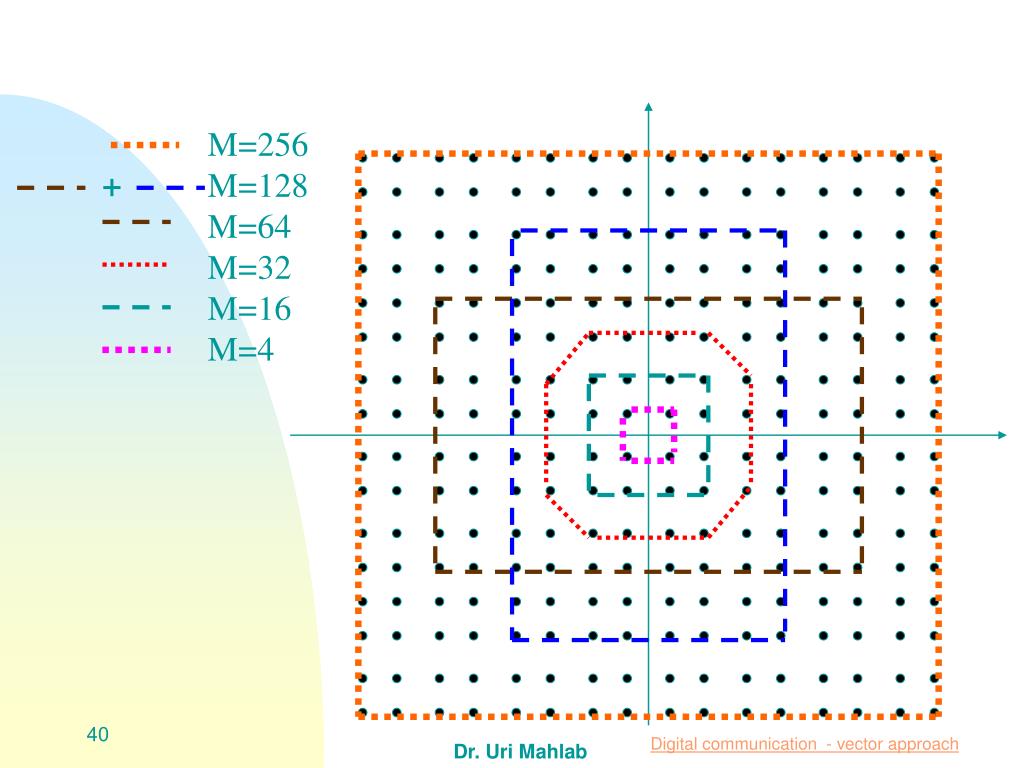

  40. M=256 M=128 M=64 M=32 M=16 M=4 + 40

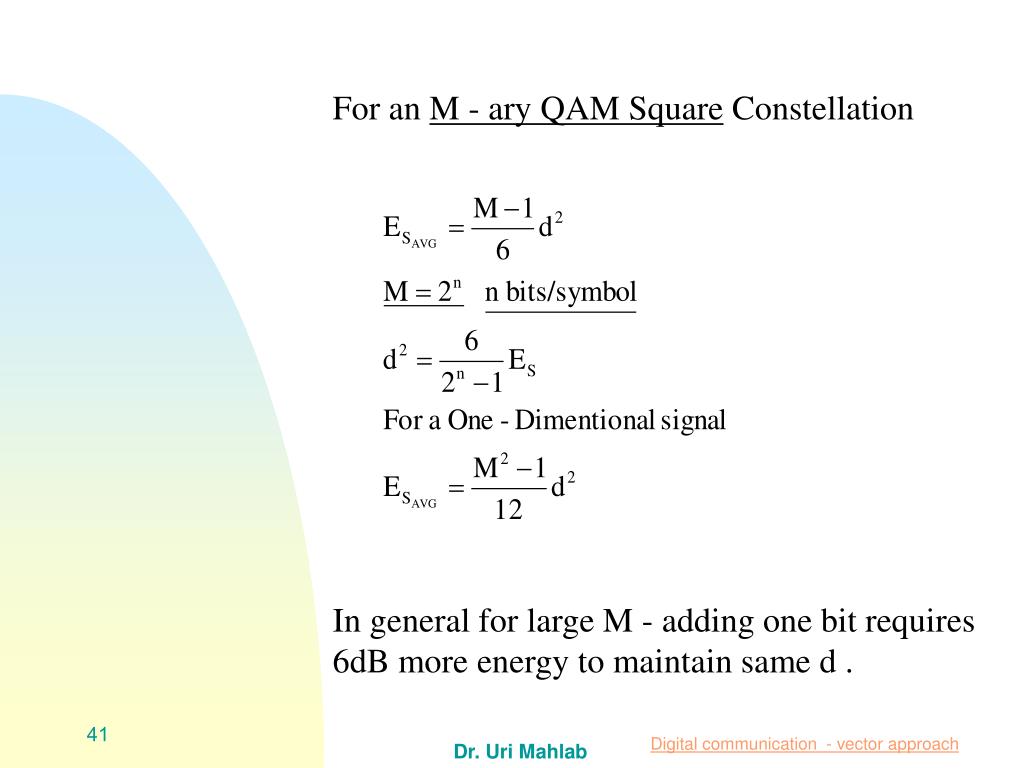

  41. For an M - ary QAM Square Constellation In general for large M - adding one bit requires 6dB more energy to maintain same d . 41

  42. Binary orthogonal signals Consider the two signals Where either fc=1/T or fc>>1/T, so that Since Re(p12)=0, the two signals are orthogonal. 42

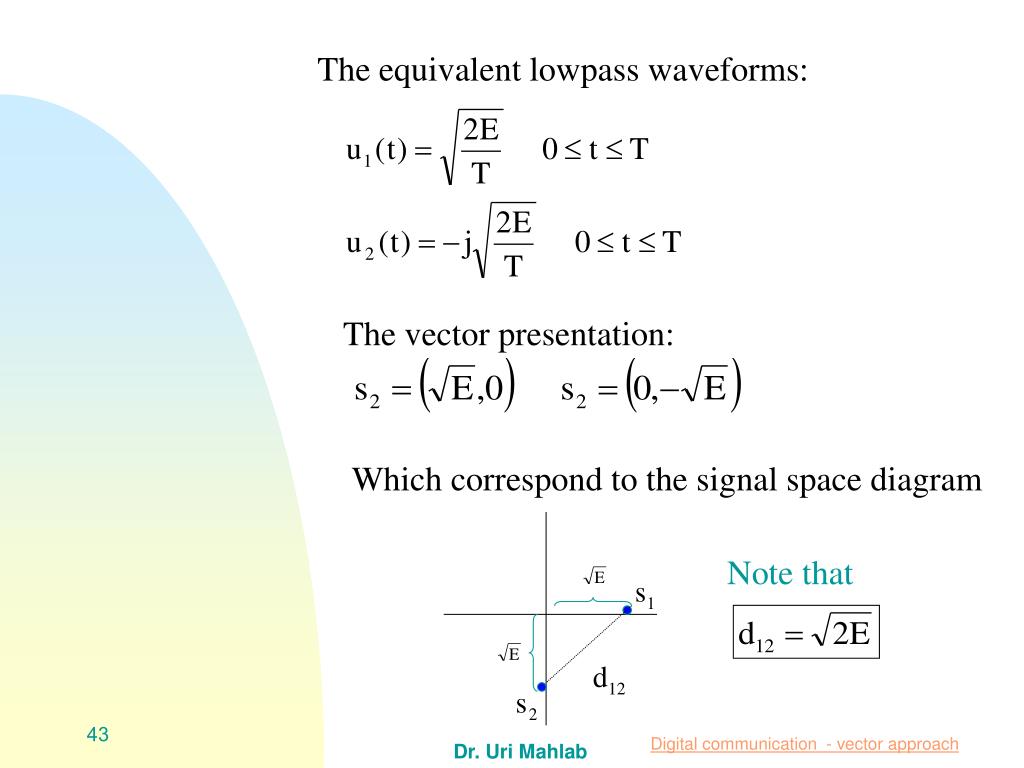

  43. The equivalent lowpass waveforms: The vector presentation: Which correspond to the signal space diagram Note that 43

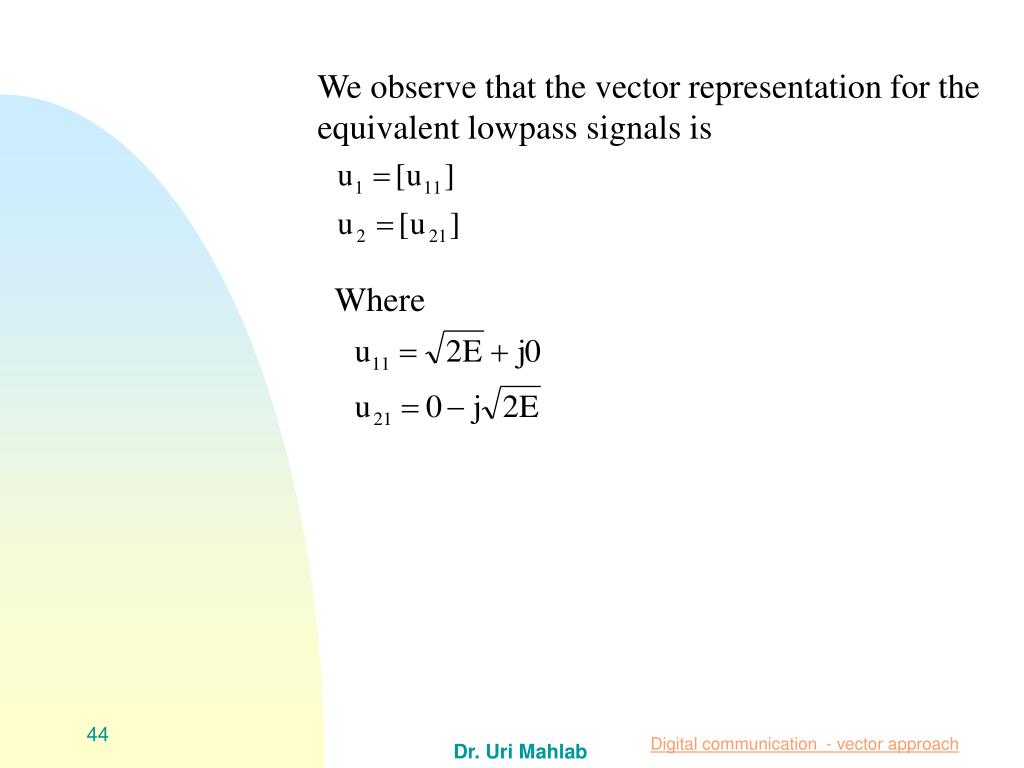

  44. We observe that the vector representation for the equivalent lowpass signals is Where 44

  45. M-ary Orthogonal Signal Let us consider the set of M FSK signals m=1,2,….,M This waveform are characterized as having equal energy and cross-correlation coefficients 45

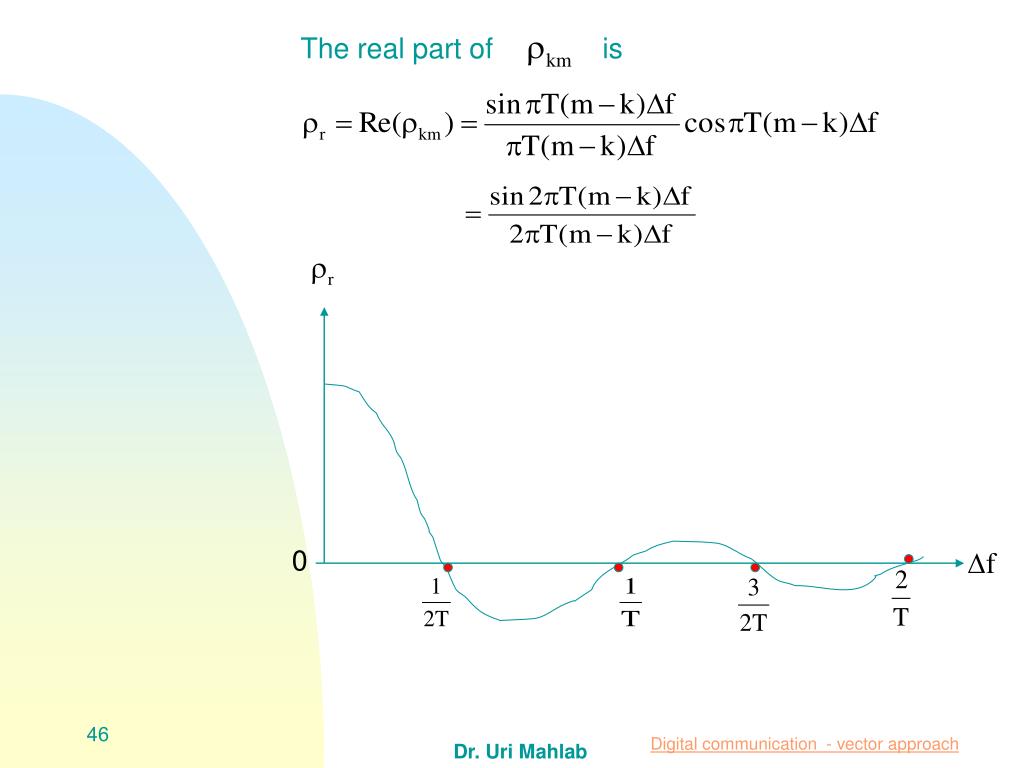

  46. The real part of is 0 46

  47. First, we observe that =0 when and . Since |m-k|=1 corresponds to adjacent frequency slots , represent the minimum frequency separation between adjacent signals for orthogonality of the M signals. 47

  48. For the case in which ,the FSK signals are equivalent to the N-dimensional vectors =( ,0,0,…,0) =(0, ,0,…,0) Orthogonal signals for M=N=3 signal space diagram =(0,0,…,0, ) Where N=M. The distance between pairs of signals is all m,k Which is also the minimum distance. 48

  49. Orthogonal FSK(Orthogonal Frequency Shift Keying) 51

  50. “0” “1” 52
