IEC Compound, part B and C

IEC Compound, part B and C. Concrete pad, 10 x10 m. Warehouse. Bldg No 5. Bldg No 4. Crossroad cutting details. 85 m. 32.6 m. 32.6 m. 8 m. 8 m. 8 m. 8 m. 8 m. 8 m. Cutting A-A. 20 m. 20 m. 24.4 m. 13.5 m. 21.1 m. 18 m. 24.5 m. 25 m. 35 m. 11 m. 47 m. 20 m. 288 m.

jackson-daugherty
Télécharger la présentation

IEC Compound, part B and C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

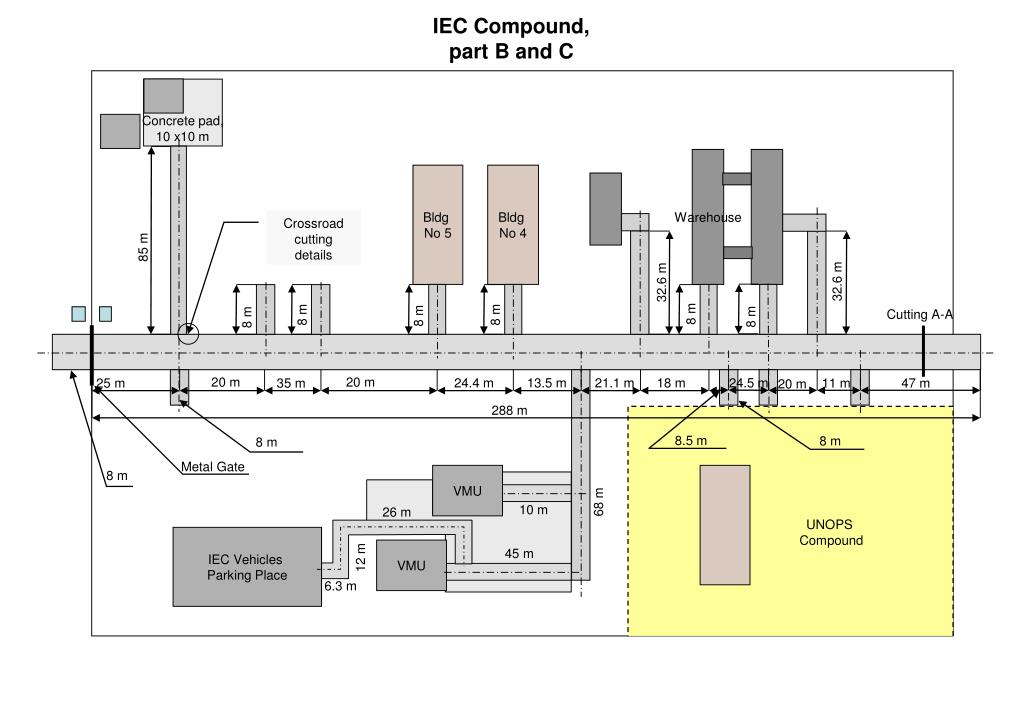

  1. IEC Compound, part B and C Concrete pad, 10 x10 m Warehouse Bldg No 5 Bldg No 4 Crossroad cutting details 85 m 32.6 m 32.6 m 8 m 8 m 8 m 8 m 8 m 8 m Cutting A-A 20 m 20 m 24.4 m 13.5 m 21.1 m 18 m 24.5 m 25 m 35 m 11 m 47 m 20 m 288 m 8.5 m 8 m 8 m Metal Gate 8 m VMU 68 m 10 m 26 m UNOPS Compound IEC Vehicles Parking Place VMU 45 m 12 m 6.3 m

  2. Main Entrance Road Cutting(A-A) 10,80 m slope of plane- 3-5 degrees 0,25 m 10 m 0,15 m Kerbs stone, Layer of Concrete Steel mesh fabric reinforcement 0,15 m Layer of gravel

  3. Driveways Cutting(to the Office buildings) 3,5 m slope of plane- 3-5 degrees 0,25 m 2,7 m Kerbs stone 0,15 m Layer of Concrete 0,15 m Layer of gravel

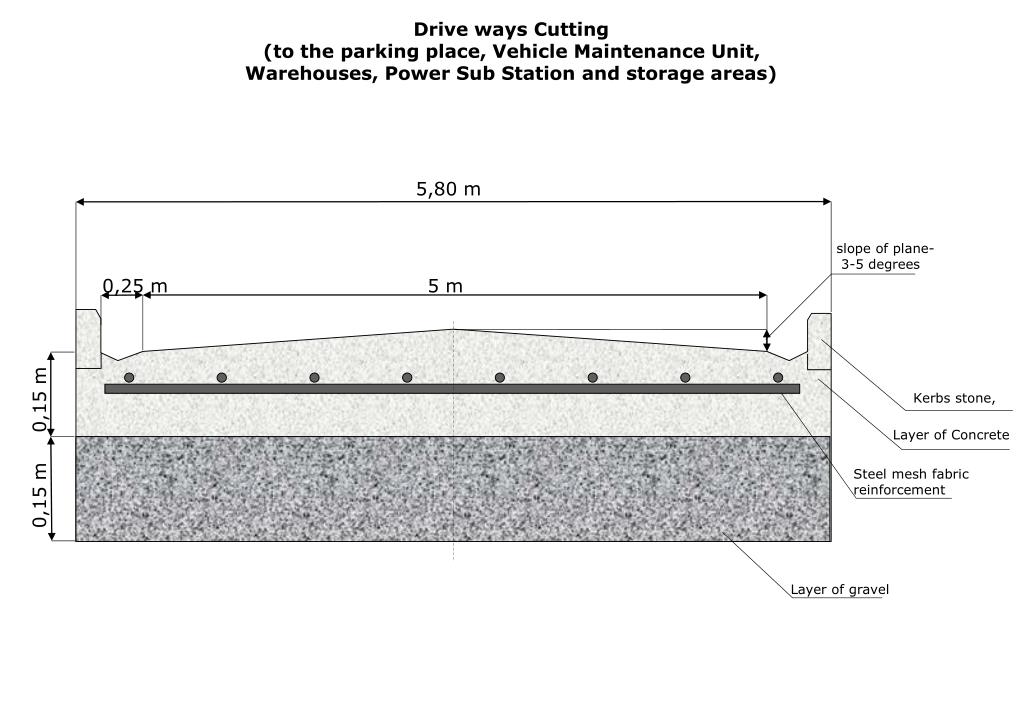

  4. Drive ways Cutting(to the parking place, Vehicle Maintenance Unit, Warehouses, Power Sub Station and storage areas) 5,80 m slope of plane- 3-5 degrees 0,25 m 5 m 0,15 m Kerbs stone, Layer of Concrete Steel mesh fabric reinforcement 0,15 m Layer of gravel

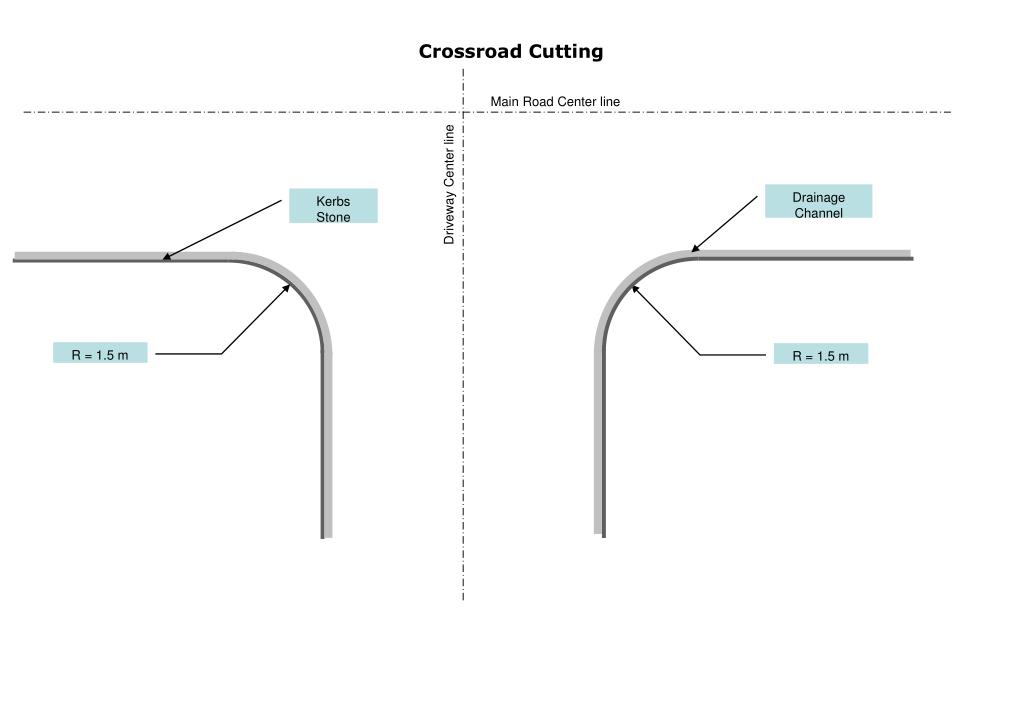

  5. Crossroad Cutting Main Road Center line Driveway Center line Drainage Channel Kerbs Stone R = 1.5 m R = 1.5 m
