Chapter 3 Kinematics of particles

Chapter 3 Kinematics of particles. Increment: distance traveled at the end of the 1 st second = 10 m distance traveled at the end of the 3 rd second = 14 m increment of distance = 4 m increment of time = 2 s

jackson-webb
Télécharger la présentation

Chapter 3 Kinematics of particles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 3 Kinematics of particles Increment: distance traveled at the end of the 1st second = 10 m distance traveled at the end of the 3rd second = 14 m increment of distance = 4 m increment of time = 2 s Ratio between two increments = 4 m/2s = 2 m/s (average velocity) More detailed measurement: distance traveled at the end of 1.01 second, the distance traveled is 10.025 m, the ratio becomes 0.025 m / 0.01 s = 2.5 m/s (instantaneous velocity). Differentiation: the ratio between two increments when they are extremely small, e.g. velocity.

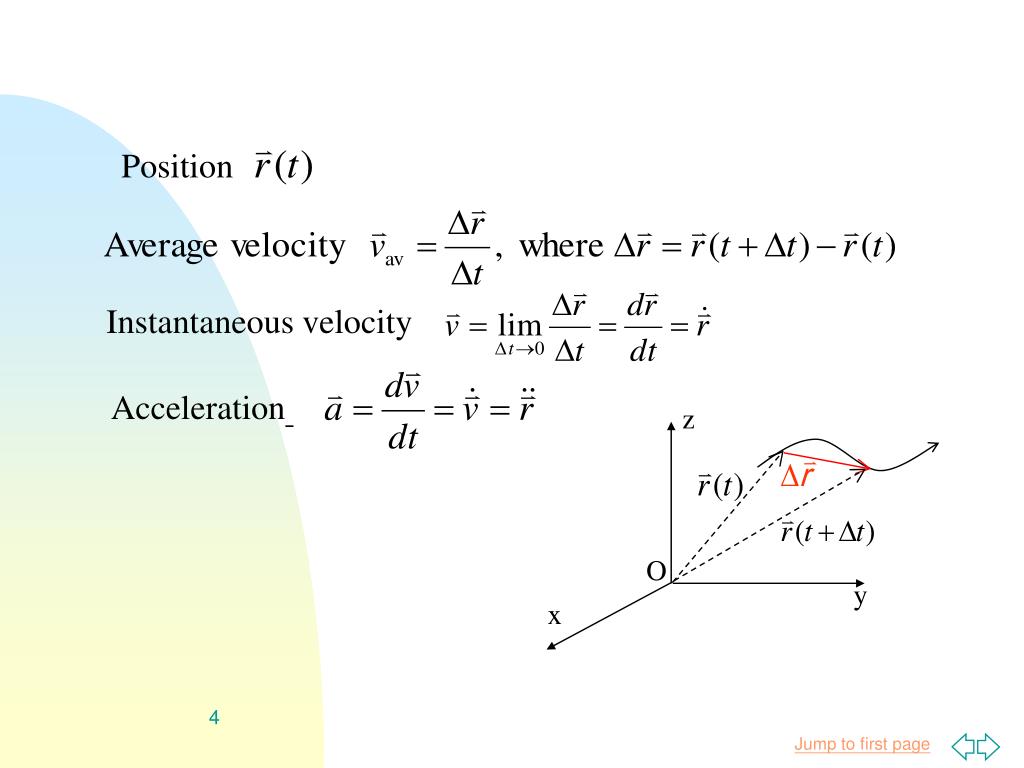

  2. Position z Instantaneous velocity O y Acceleration x

  3. z y x Cartesian coordinate system

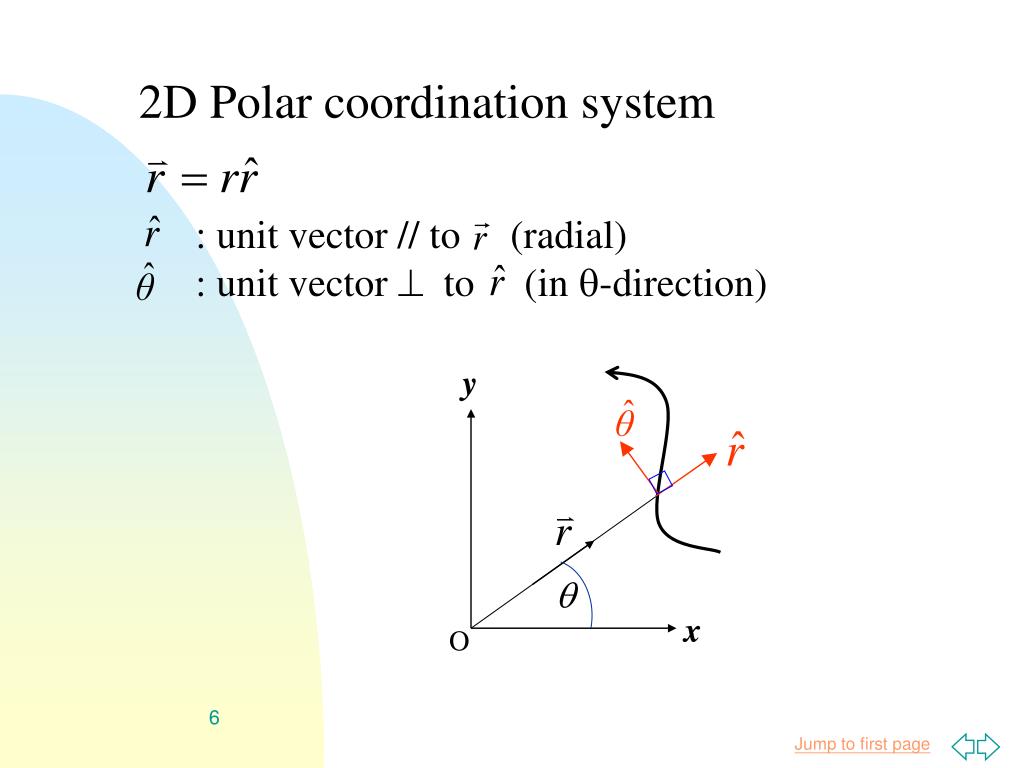

  4. 2D Polar coordination system y : unit vector // to (radial) : unit vector  to (in -direction) x O

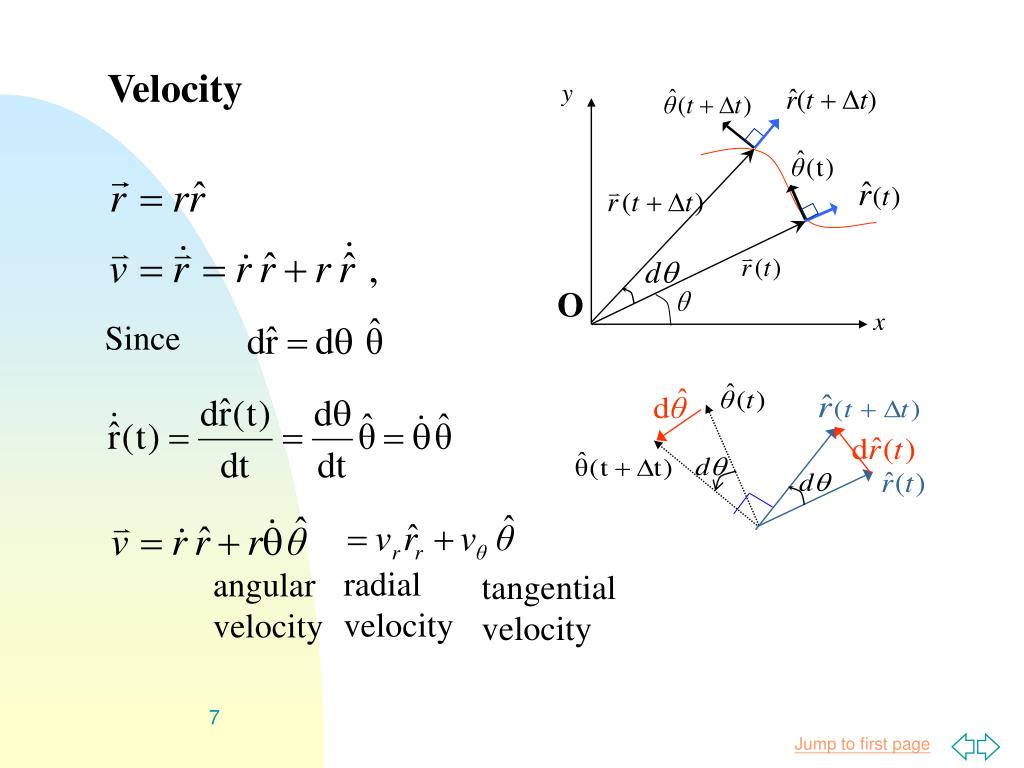

  5. y O x radial velocity angular velocity tangential velocity Velocity Since

  6. Acceleration Since centripetal acceleration.

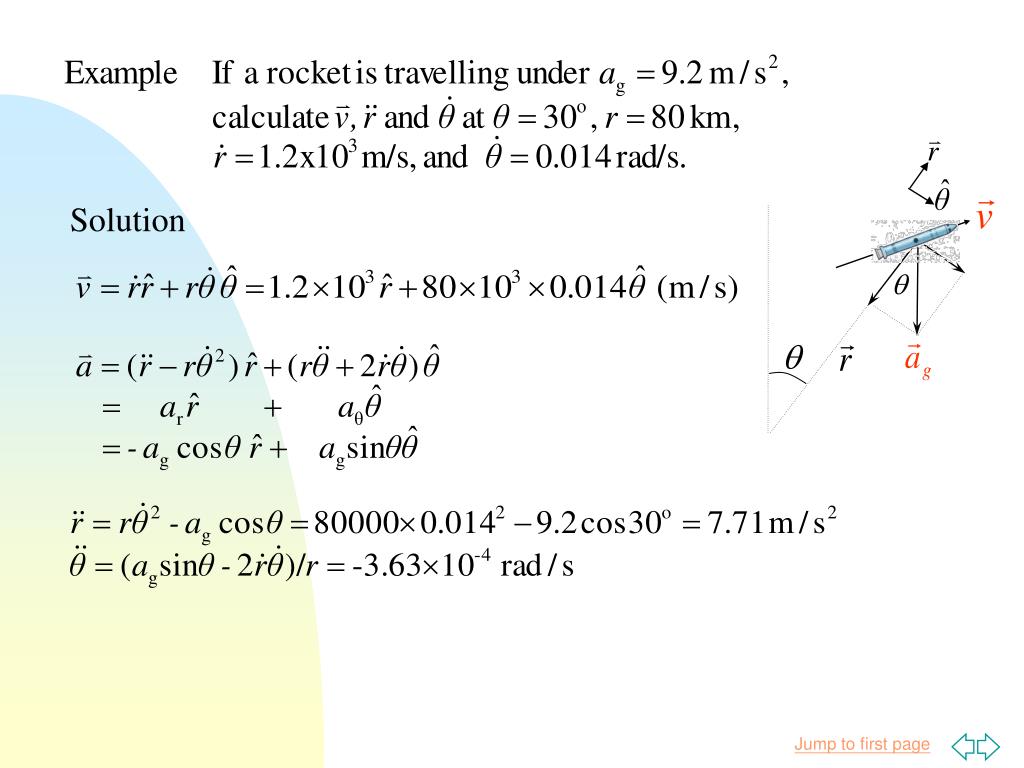

  7.  Solution

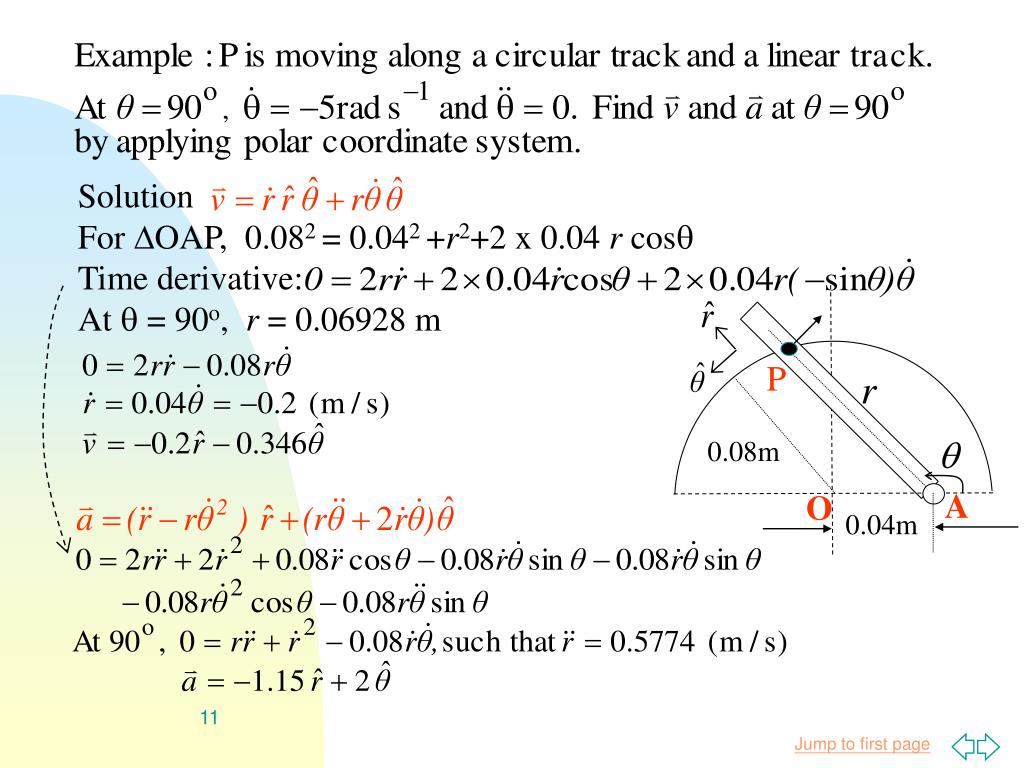

  8. Solution For OAP, 0.082 = 0.042 +r2+2 x 0.04 r cos Time derivative: At  = 90o, r = 0.06928 m P r 0.08m A O 0.04m

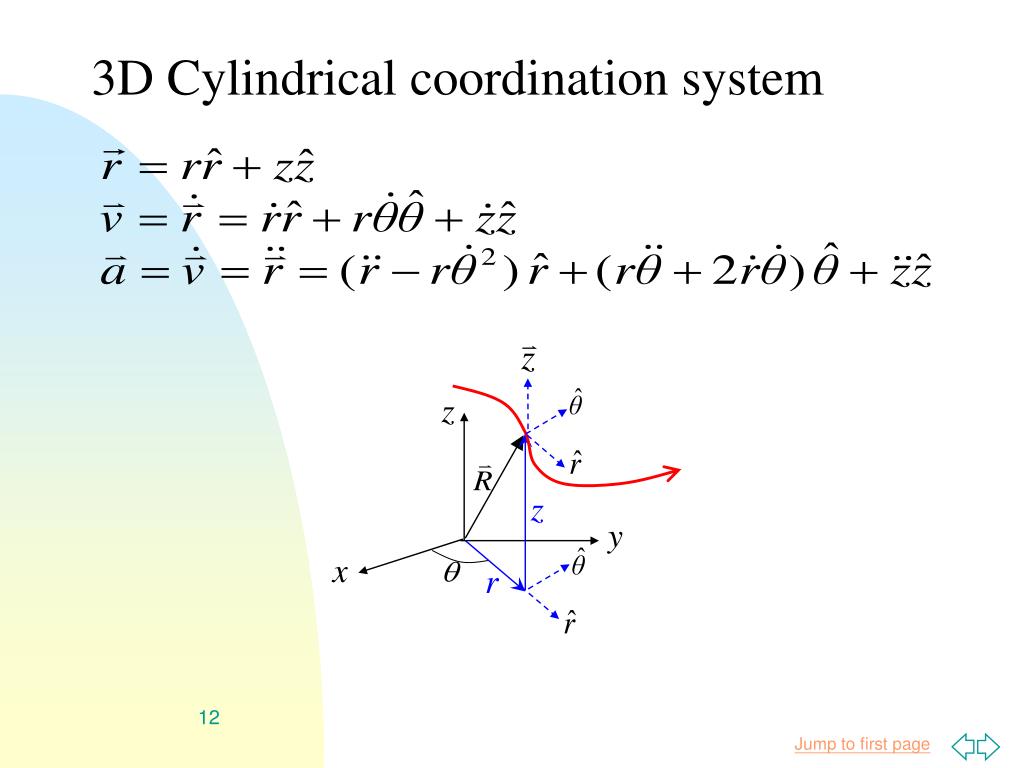

  9. z z y x r 3D Cylindrical coordination system

  10. radius of curvature  O’  O’ Normal and Tangential Coordinates (n-t) :

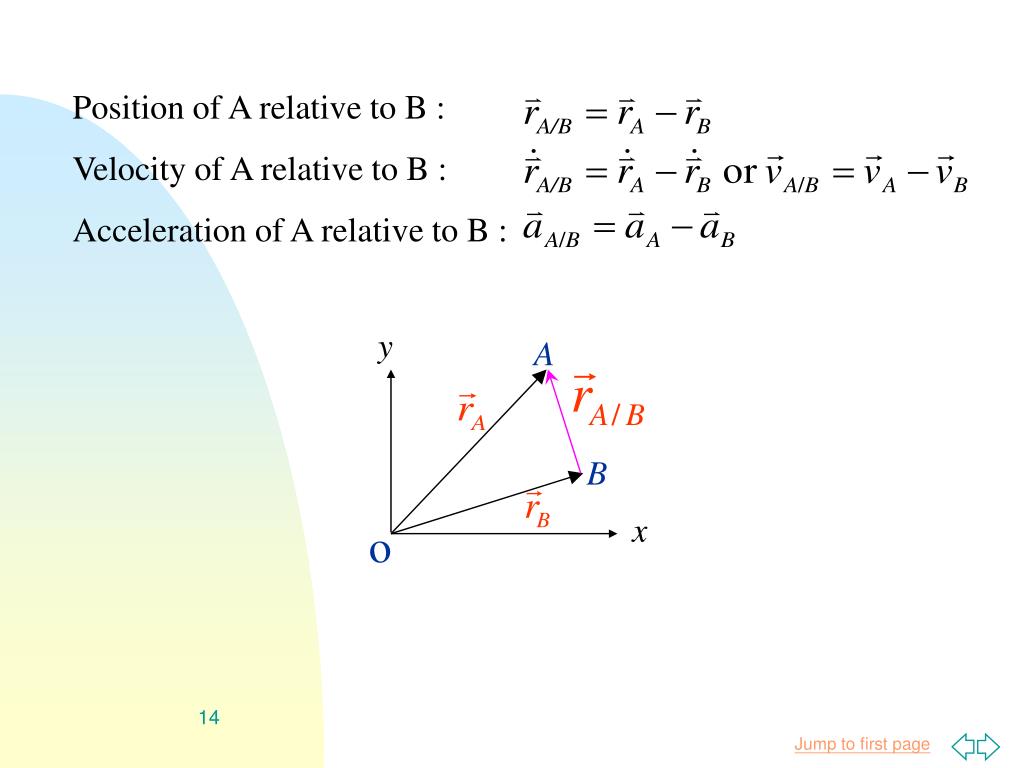

  11. Position of A relative to B : Velocity of A relative to B : Acceleration of A relative to B : y A B x o
