  1. Preprocessing support for large scale process mining of SAP transactions Jon Espen Ingvaldsen Jon Atle Gulla

  2. Overview • Motivation • Process mining SAP data • EVS ModelBuilder • Preprocessing steps • Algorithm for constructing process instances • Mapping to MXML • Discussion & Experiences

  3. Interprete Business Understanding Explore Models Extract Process Instances Information Systems Process mining project

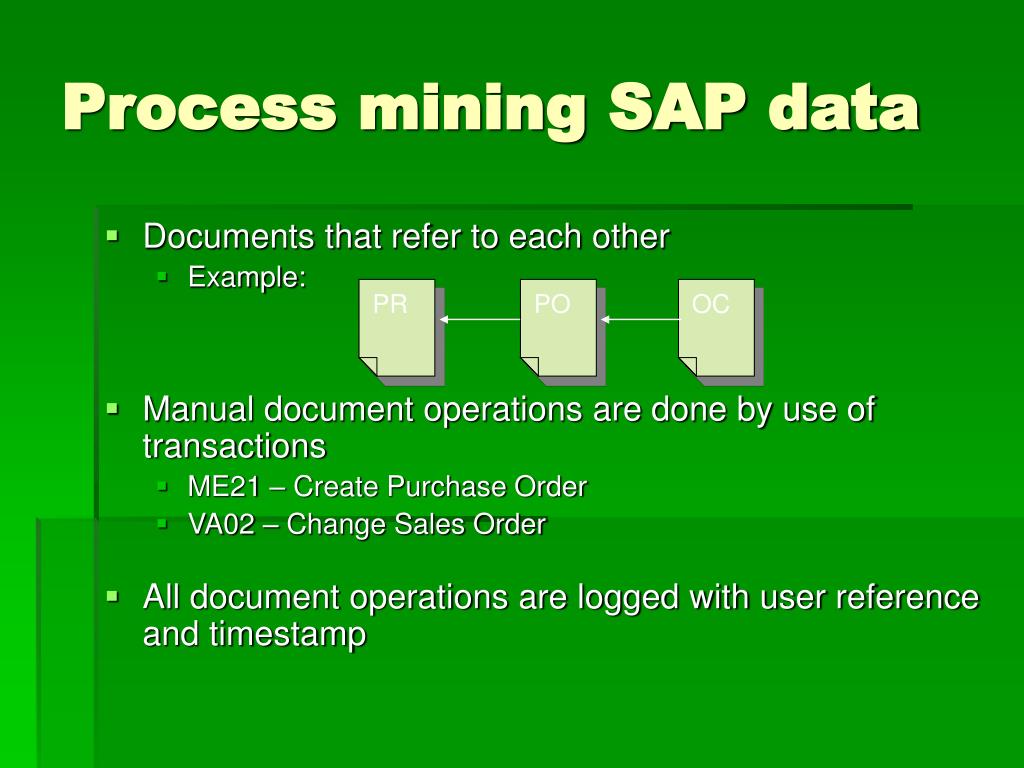

  4. Process mining SAP data • Documents that refer to each other • Example: • Manual document operations are done by use of transactions • ME21 – Create Purchase Order • VA02 – Change Sales Order • All document operations are logged with user reference and timestamp PR PO OC

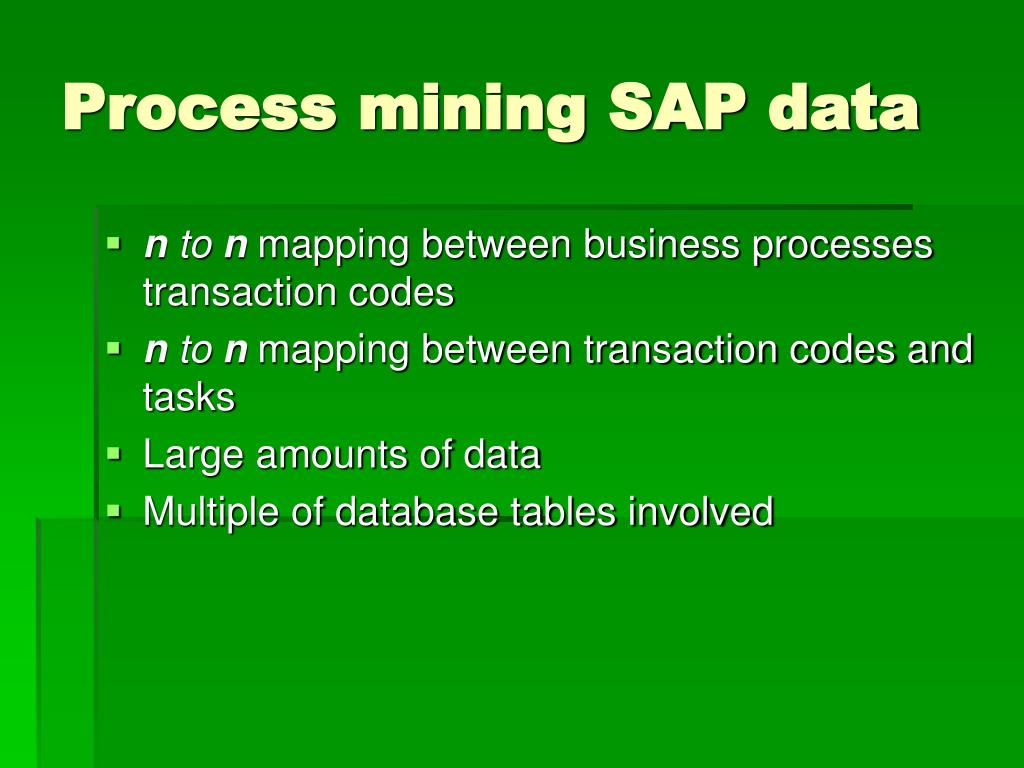

  5. Process mining SAP data • n to n mapping between business processes transaction codes • n to n mapping between transaction codes and tasks • Large amounts of data • Multiple of database tables involved

  6. EVS ModelBuilder • Developed as a set of plugins to Eclipse • Tested and applied at Nidar AS to investigate their purchase agreement processes

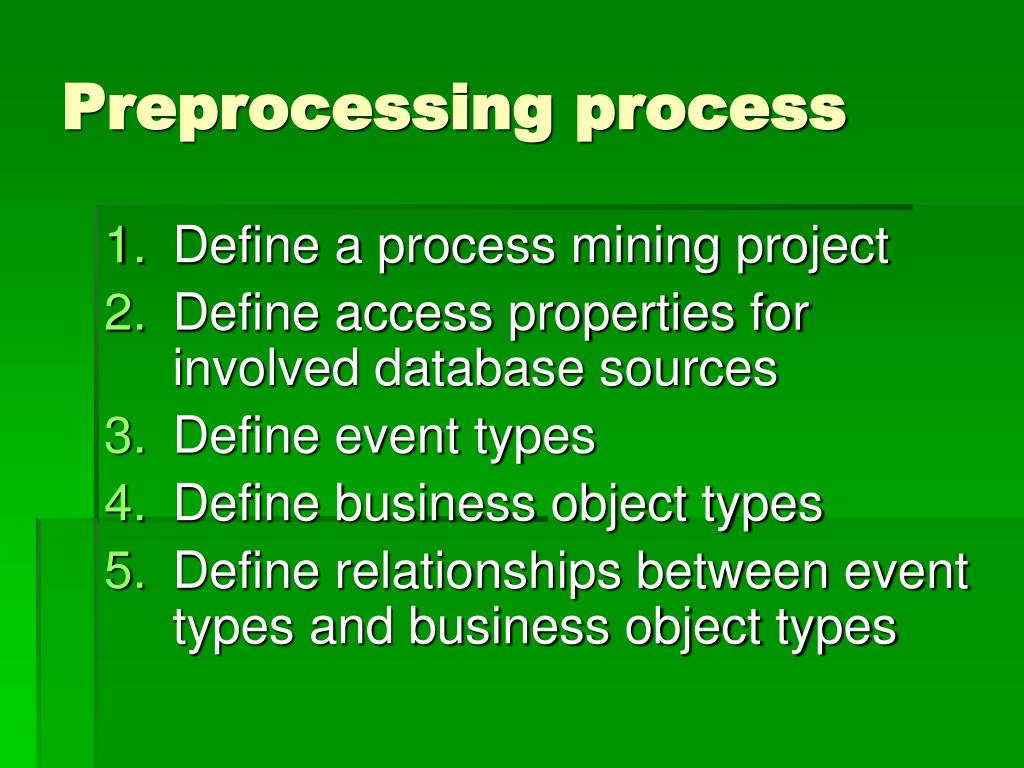

  7. Preprocessing process • Define a process mining project • Define access properties for involved database sources • Define event types • Define business object types • Define relationships between event types and business object types

  8. How do we define event types? • Type name • Key attributes • Ensure unique identification • Timestamp attribute and format • Tells when the event occurred and how to parse the timestamp values • Relationships to BO types • Tells which BOs that were involved in the event • Discriminators

  9. Example of an event description • Type name: • ALTER PURCHASE ORDER • Key attributes: • CDHDR.CHANGENR • Timestamp attributes: • CDHDR.UDATE (ddMMyyyy) and CDHDR.TIME (hhmmss) • Discriminators: • CDHDR.OBJECTCLAS = ”EINKBELEG”

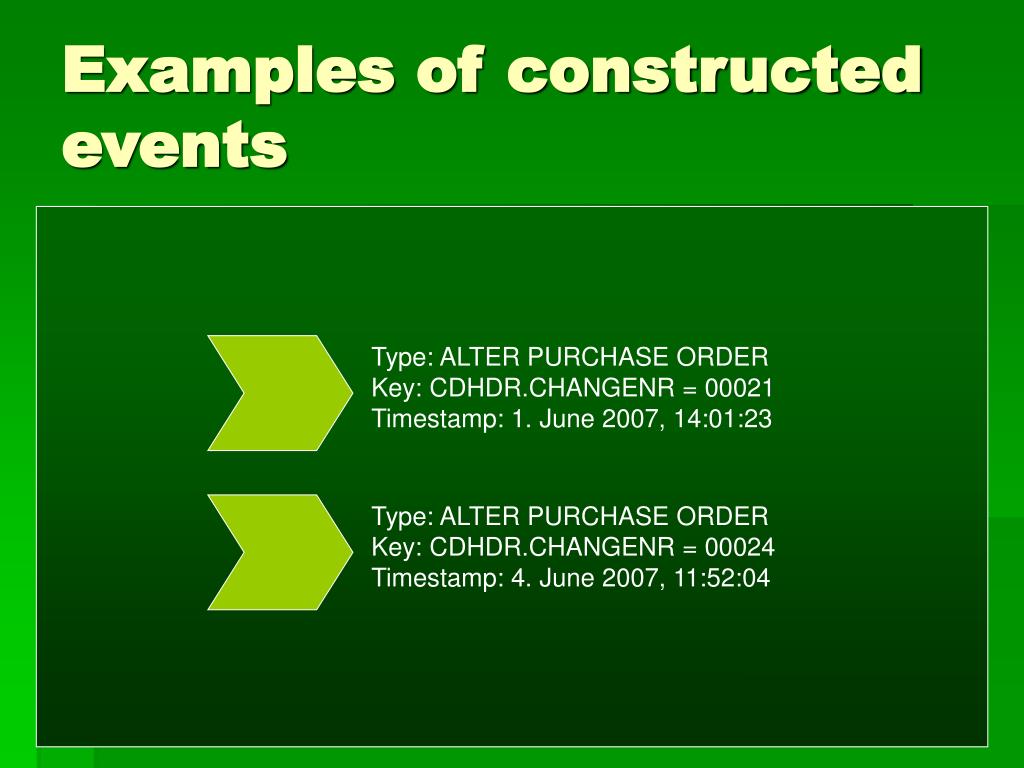

  10. Examples of constructed events Type: ALTER PURCHASE ORDER Key: CDHDR.CHANGENR = 00021 Timestamp: 1. June 2007, 14:01:23 Type: ALTER PURCHASE ORDER Key: CDHDR.CHANGENR = 00024 Timestamp: 4. June 2007, 11:52:04

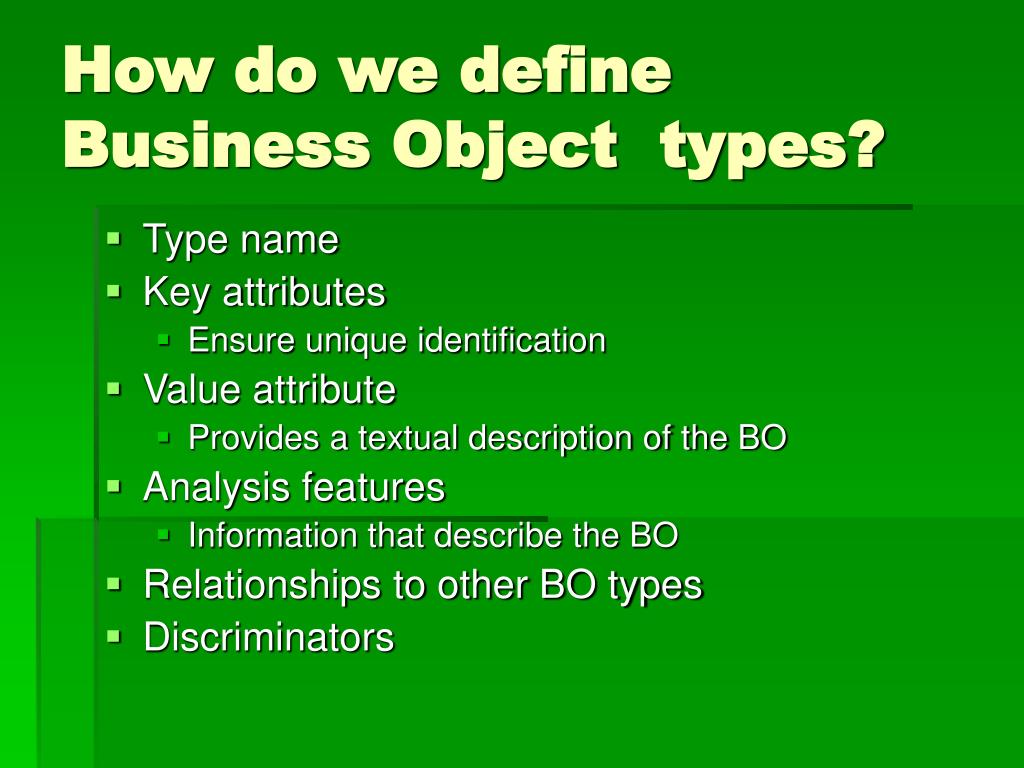

  11. How do we define Business Object types? • Type name • Key attributes • Ensure unique identification • Value attribute • Provides a textual description of the BO • Analysis features • Information that describe the BO • Relationships to other BO types • Discriminators

  12. Examples of Business Object descriptions • Type name: USER • Key attributes: USR01.BNAME • Value attribute: USR01.NAME1 • Analysis features: (NONE) • Discriminators: (NONE)

  13. Examples of constructed business objects Type: USER Key: USR01.BNAME = JACKSON Value: Michael Jackson Type: USER Key: USR01.BNAME = SIMPS Value: Homer Simpson

  14. How do we define relations? • Relations consist of: • Two end points • Textual description • Mapping attributes / path

  15. Example of a relation Type: USER Key: USR01.BNAME = JACKSON Value: Michael Jackson Relation name: Has user / Executes Mapping attributes: CDHDR.USERNAME = USR01.BNAME Type: ALTER PURCHASE ORDER Key: CDHDR.CHANGENR = 00021 Timestamp: 1. June 2007, 14:01:23

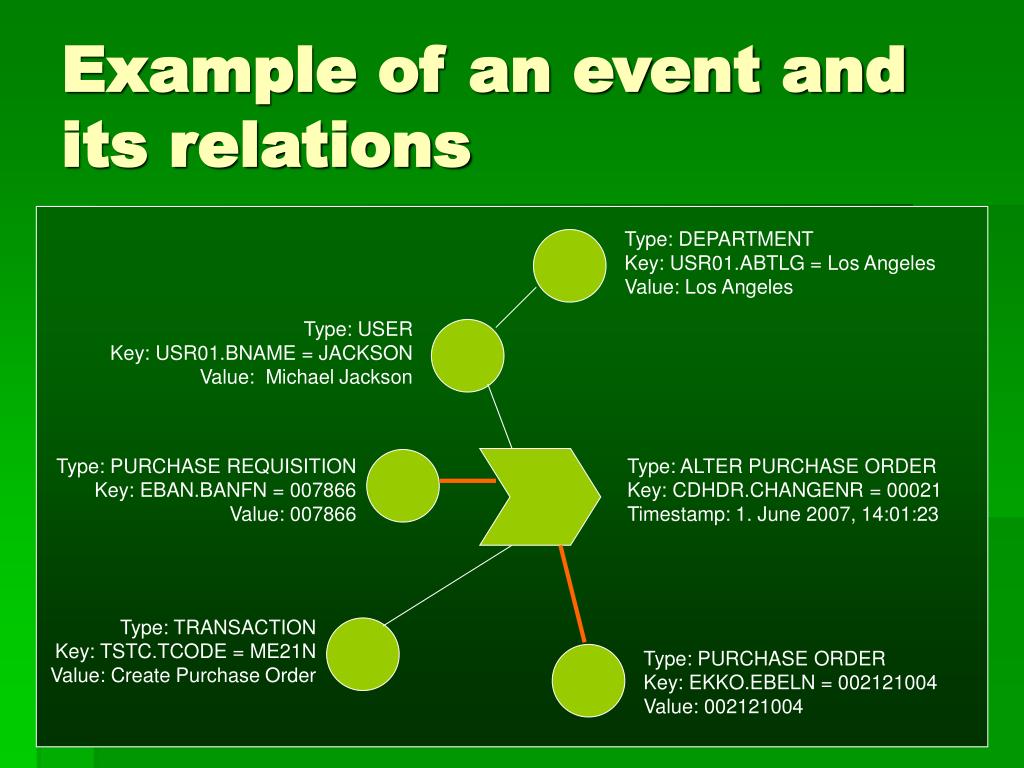

  16. Example of an event and its relations Type: DEPARTMENT Key: USR01.ABTLG = Los Angeles Value: Los Angeles Type: USER Key: USR01.BNAME = JACKSON Value: Michael Jackson Type: PURCHASE REQUISITION Key: EBAN.BANFN = 007866 Value: 007866 Type: ALTER PURCHASE ORDER Key: CDHDR.CHANGENR = 00021 Timestamp: 1. June 2007, 14:01:23 Type: TRANSACTION Key: TSTC.TCODE = ME21N Value: Create Purchase Order Type: PURCHASE ORDER Key: EKKO.EBELN = 002121004 Value: 002121004

  17. 14. June 17. June 2. June 21. June 22. June Construction of process instances

  18. Process instances

  19. MXML • The input format for ProM • Requirements for events (AuditTrailEntries) in MXML: • Reference to an activity • Reference to a process instance • Reference to a performer • Labeled with a timestamp • Ordered on timestamp within the process instance

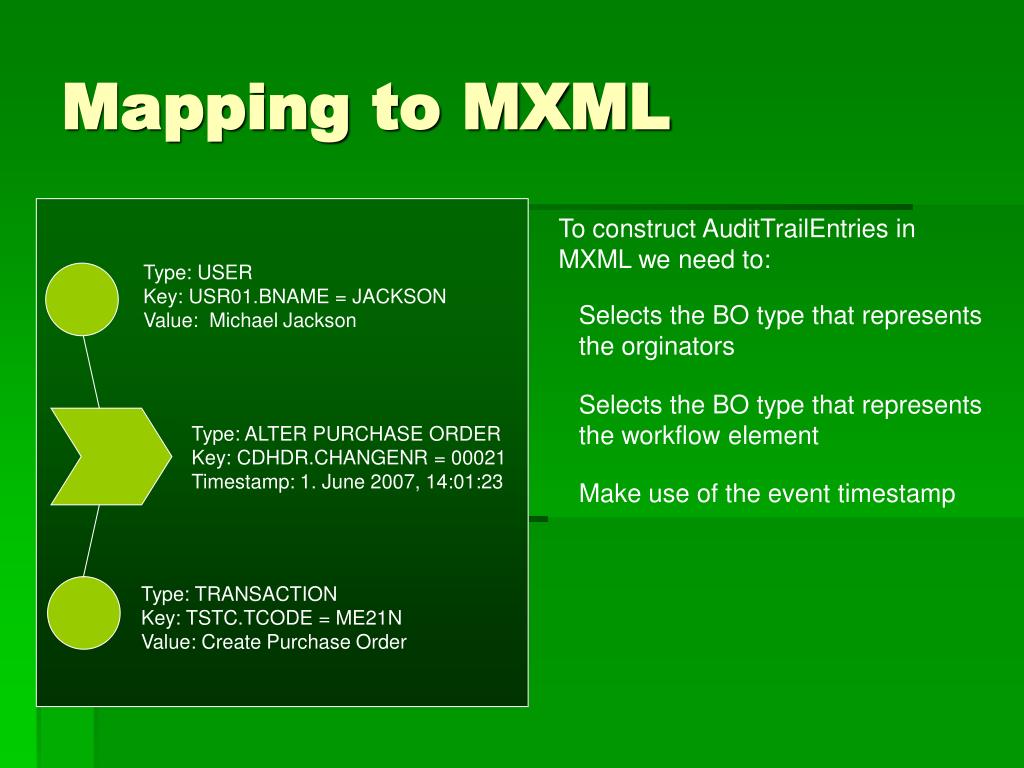

  20. Mapping to MXML To construct AuditTrailEntries inMXML we need to: Type: USER Key: USR01.BNAME = JACKSON Value: Michael Jackson Selects the BO type that represents the orginators Selects the BO type that represents the workflow element Type: ALTER PURCHASE ORDER Key: CDHDR.CHANGENR = 00021 Timestamp: 1. June 2007, 14:01:23 Make use of the event timestamp Type: TRANSACTION Key: TSTC.TCODE = ME21N Value: Create Purchase Order

  21. Discussion & Experiences • Still a effort is required! • Preprocessing support have most value: • When mining longer process chains • A lot of database tables are involved • Stores data source descriptions, not the process of transforming the data • Ensures reusability across process mining projects. • Enable process mining of processes that spans multiple information systems

  22. Thank you!
