  1. Midterm Monday Oct. 20

  2. Chapter 3Decompositions of Graphs

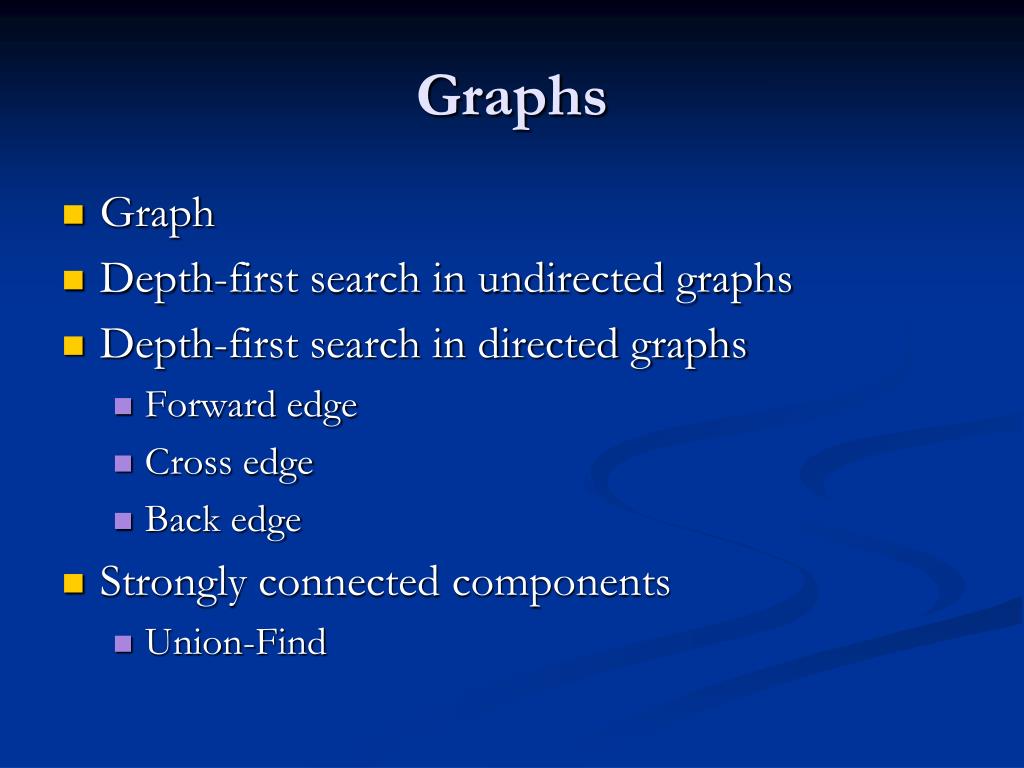

  3. Graphs • Graph • Depth-first search in undirected graphs • Depth-first search in directed graphs • Forward edge • Cross edge • Back edge • Strongly connected components • Union-Find

  4. Graph • Graph G = (V, E) • V = set of vertices • E = set of edges  (VV)

  5. a b b d c a 1 2 1 2 3 4 1 0 1 1 1 2 1 0 1 0 3 1 1 0 1 4 1 0 1 0 a b a c b c d a b c d c d d a c 3 4 Representation of Graphs • Two standard ways. • Adjacency Lists. • Adjacency Matrix.

  6. a b b d c a c b c d c d d a b b d c a a c b c d a b c d d a c Adjacency Lists • Consists of an array Adj of |V| lists. • One list per vertex. • For uV, Adj[u] consists of all vertices adjacent to u. If weighted, store weights also in adjacency lists.

  7. 1 2 1 2 3 4 1 0 1 1 1 2 0 0 1 0 3 0 0 0 1 4 0 0 0 0 a b c d 4 3 1 2 1 2 3 4 1 0 1 1 1 2 1 0 1 0 3 1 1 0 1 4 1 0 1 0 a b c d 3 4 Adjacency Matrix • |V|  |V| matrix A. • Number vertices from 1 to |V| in some arbitrary manner. • A is then given by: A = AT for undirected graphs.

  8. Adjacency Matrix vs Adjacency List • Adjacency matrix uses fixed amount of space • Depends on number of vertices • Does not depend on number of edges • Presence of an edge between two vertices can be known immediately • All neighbors of a vertex found by scanning entire row for that vertex • Adjacency list represents only edges that originate from the vertex • Space not reserved for edges that do not exist • more often used than adjacency matrix

  9. DFS Depth-first search in undirected graphs

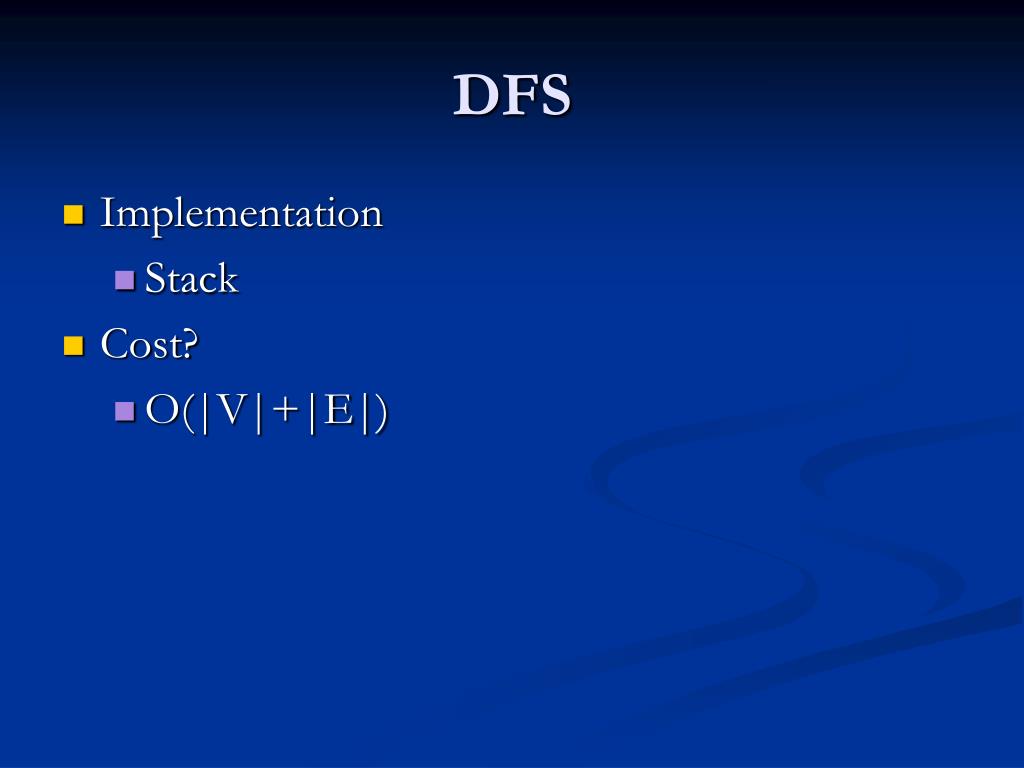

  10. DFS • Implementation • Stack • Cost? • O(|V|+|E|)

  11. DFS Depth-first search in directed graphs

  12. DFS

  13. DAG Directed acyclic graphs

  14. Strongly connected components Directed graph: u and v are connectediff there is a path from u to v and a path from v to u. 5 strongly connected components

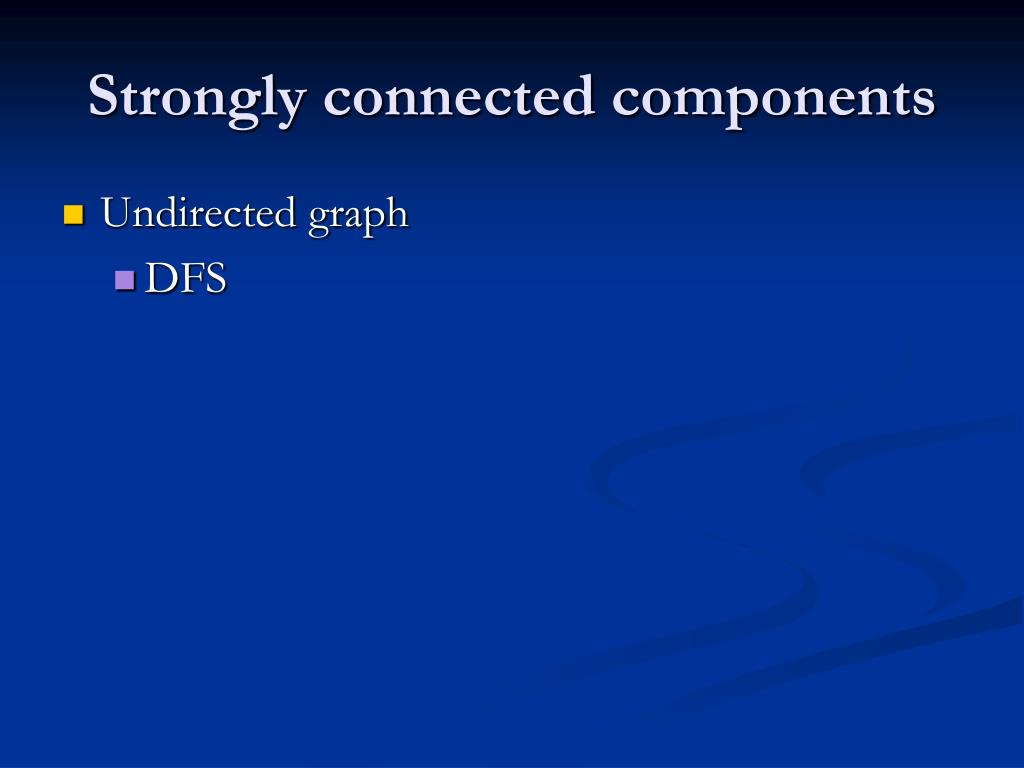

  15. Strongly connected components • Undirected graph • DFS

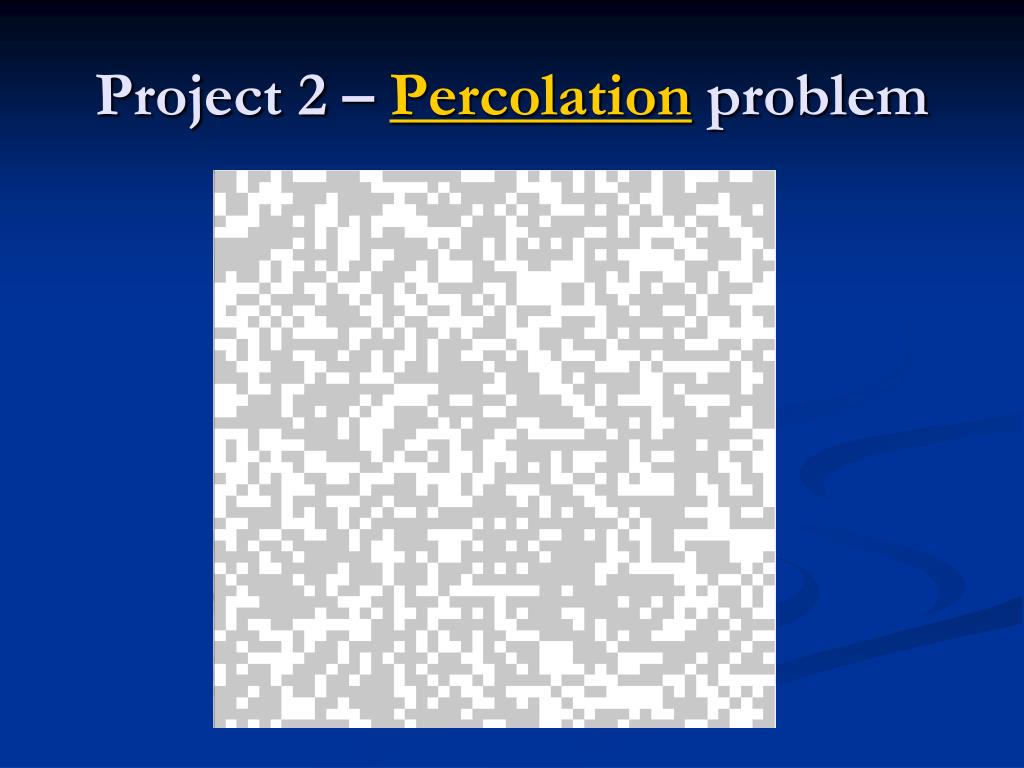

  16. Project 2 – Percolation problem

  17. Union/Find Disjoint Sets Union/Find Algorithms

  18. Parent Pointer Array Implementation for a General Tree

  19. Implementation (cont.) The parent pointer representation is often used to maintain a collection of disjoint sets and support the two basic operations: • Check if two objects are in same set • Merge two sets

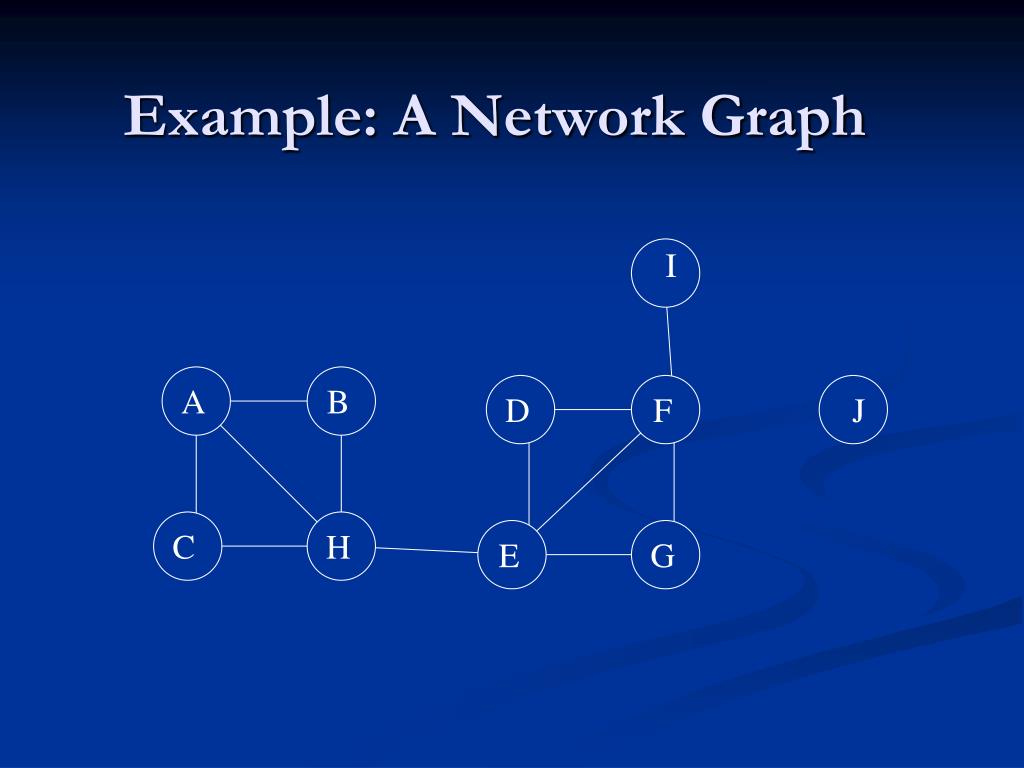

  20. I A B D F J C H E G Example: A Network Graph

  21. Find Root • Check if two elements are in same tree // Return TRUE if nodes in different trees boolean differ(int a, int b) { int root1 = find(a); // Find root for a int root2 = find(b); // Find root for b return root1 != root2; // Compare roots }

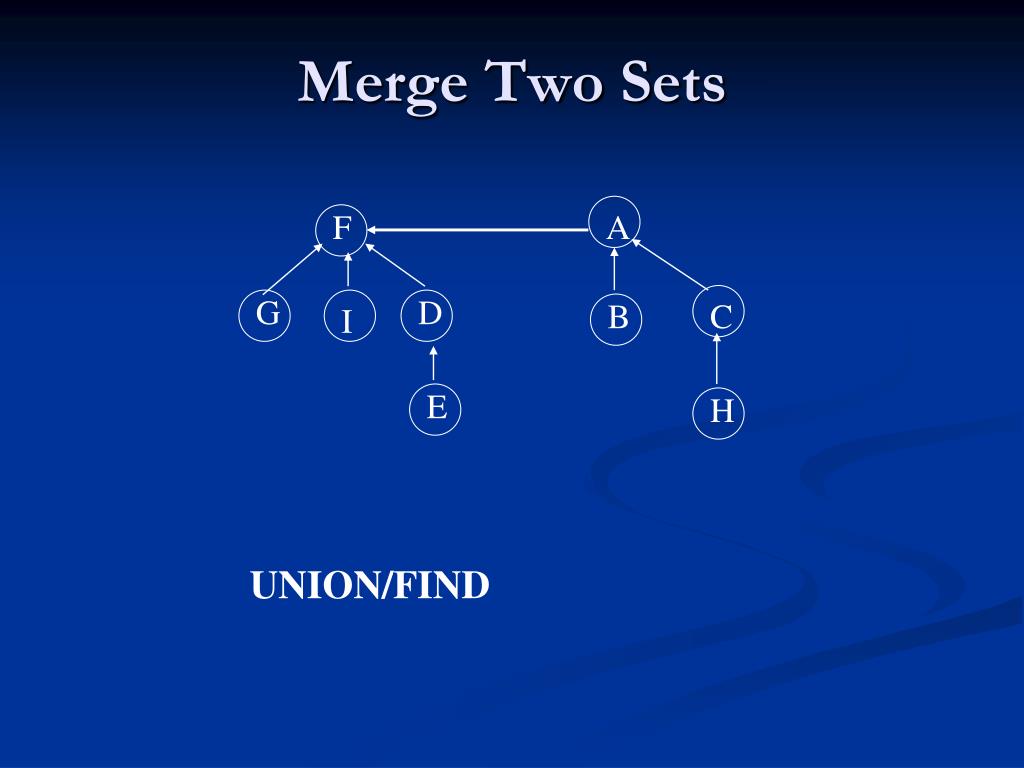

  22. F A G D B C I E H Merge Two Sets UNION/FIND

  23. Equiv Class Processing (1) (A,B) (C,H) (G,F) (D,E) (I,F) (H,A) (E,G)

  24. Equiv Class Processing (2) (H,E)

  25. Union/Find int find(int curr) { while (array[curr]!=ROOT) curr = array[curr]; return curr; // At root } void union(int a, int b) { int root1 = find(a); // Find root for a int root2 = find(b); // Find root for b if (root1 != root2) array[root2] = root1; } Want to keep the depth small. Weighted union rule: Join the tree with fewer nodes to the tree with more nodes.

  26. Path Compression • Find: • Return root of current node • Reset every node on the path from curr to the • root to point directly to the root.

  27. G D D G A A H B C E E F F I I H B C Path Compression (cont.) Find: • Return root of current node • Reset every node on the path from curr to the root to point directly to the root.

  28. D G A E F I H B C Path Compression (cont.) UNION:
