Introduction to Muscles

Introduction to Muscles. Origin: Attachment of a muscle tendon to the stationary bone. Insertion: Attachment of the other muscle tendon to the movable bone. Action: The movement that occurs at the joint due to muscle contraction. Origin and Insertion. Belly.

jaden
Télécharger la présentation

Introduction to Muscles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Introduction to Muscles Origin: Attachment of a muscle tendon to the stationary bone. Insertion: Attachment of the other muscle tendon to the movable bone. Action: The movement that occurs at the joint due to muscle contraction.

  2. Origin and Insertion

  3. Belly

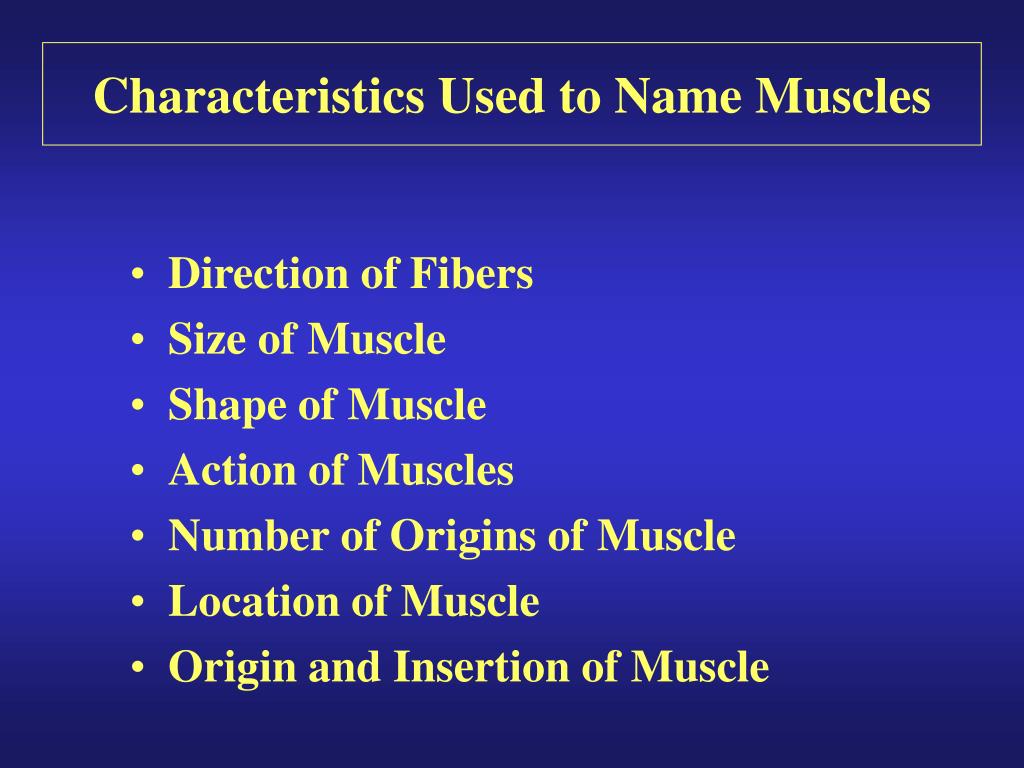

  4. Characteristics Used to Name Muscles • Direction of Fibers • Size of Muscle • Shape of Muscle • Action of Muscles • Number of Origins of Muscle • Location of Muscle • Origin and Insertion of Muscle

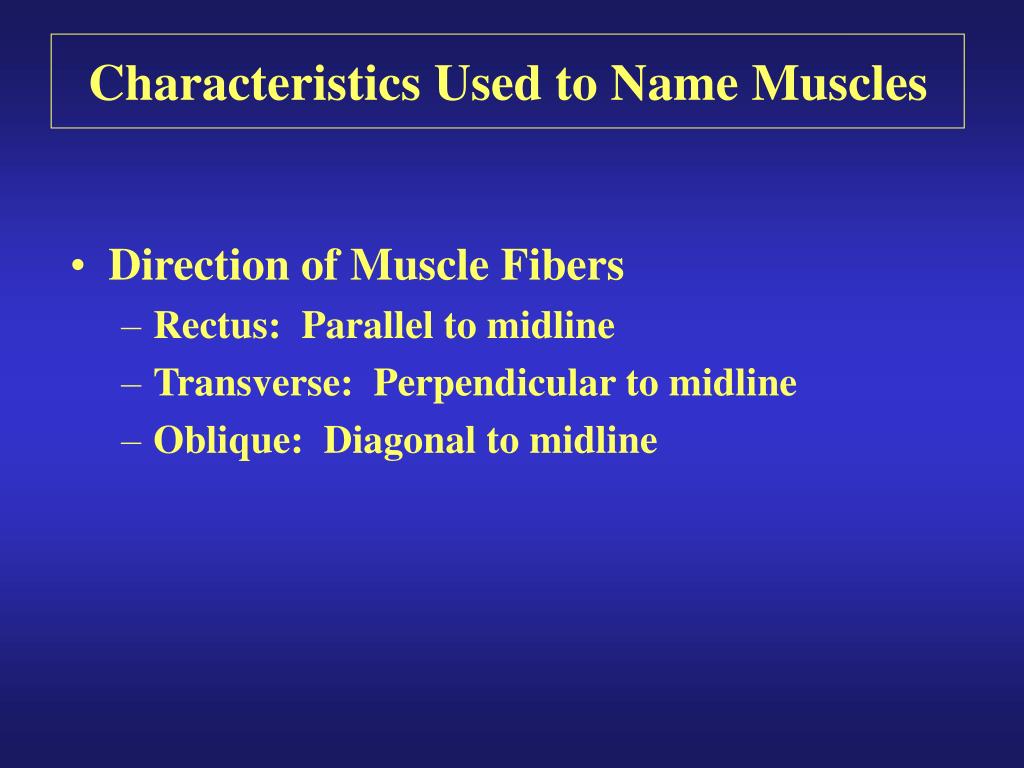

  5. Characteristics Used to Name Muscles • Direction of Muscle Fibers • Rectus: Parallel to midline • Transverse: Perpendicular to midline • Oblique: Diagonal to midline

  6. Rectus: Parallel to midline

  7. Transverse: Perpendicular to midline

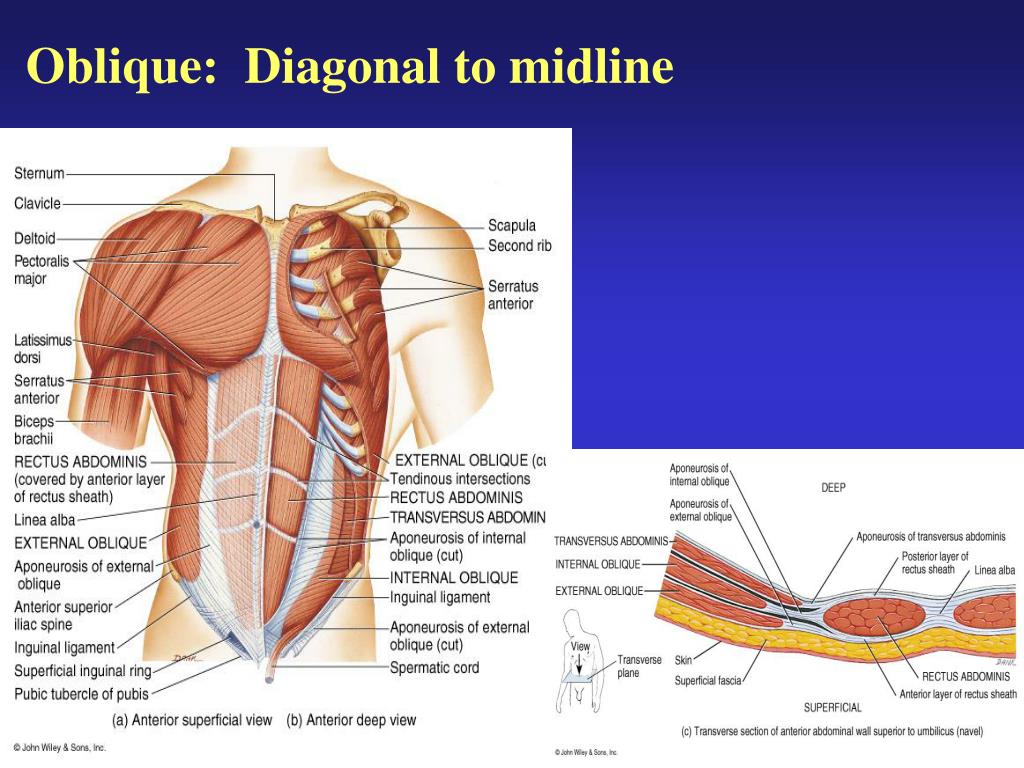

  8. Oblique: Diagonal to midline

  9. Characteristics Used to Name Muscles • Size of the Muscle: • Maximus: Largest muscle in a group • Minimus: Smallest muscle in a group • Longus: Longest muscle in a group • Brevis: Shortest muscle in a group • Latissimus: Widest muscle in a group • Magnus: Largest muscle in a group • Major: Largest muscle in a group • Minor: Smallest muscle in a group • Vastus: Great or large muscle

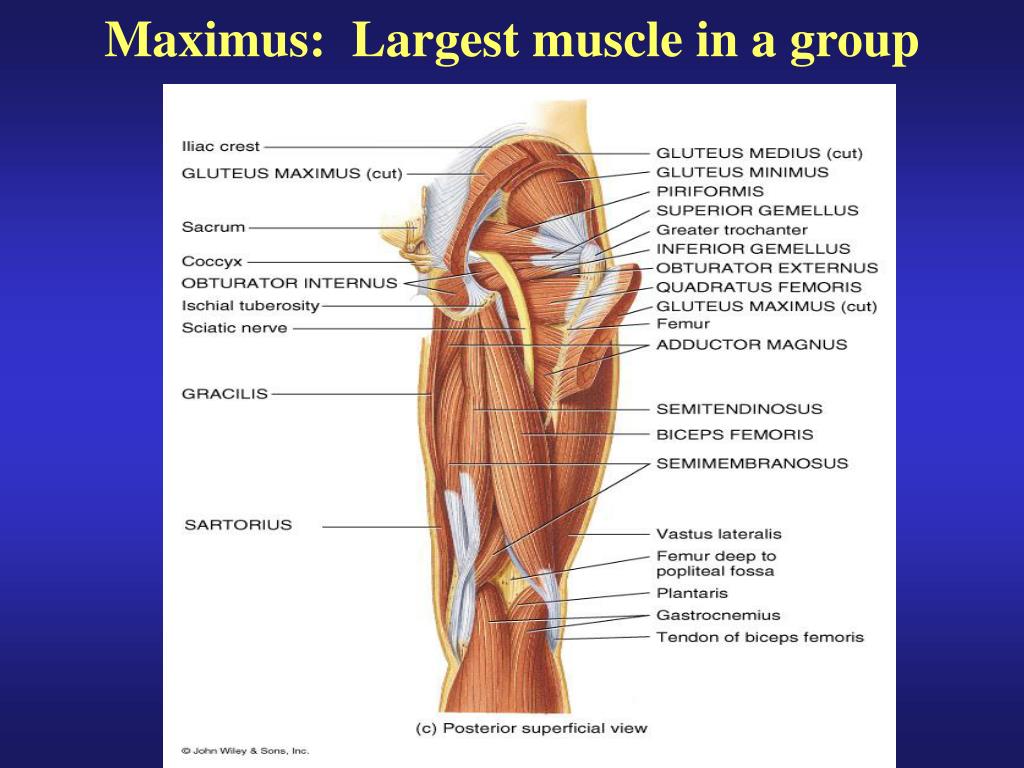

  10. Maximus: Largest muscle in a group

  11. Minimus: Smallest muscle in a group

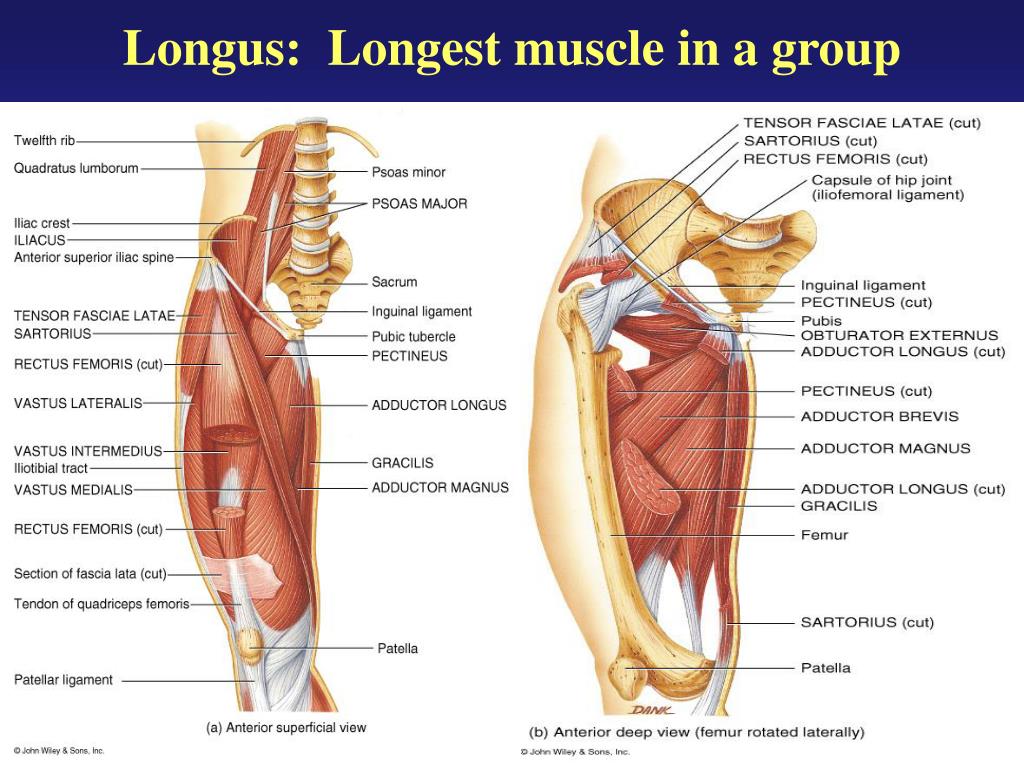

  12. Longus: Longest muscle in a group

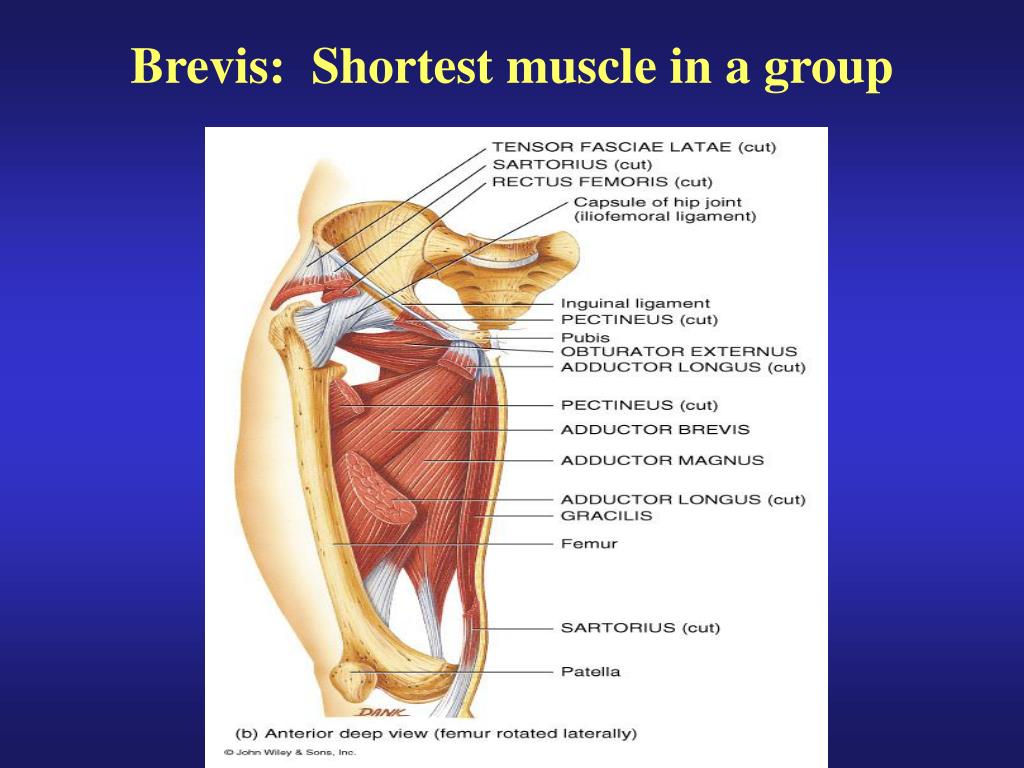

  13. Brevis: Shortest muscle in a group

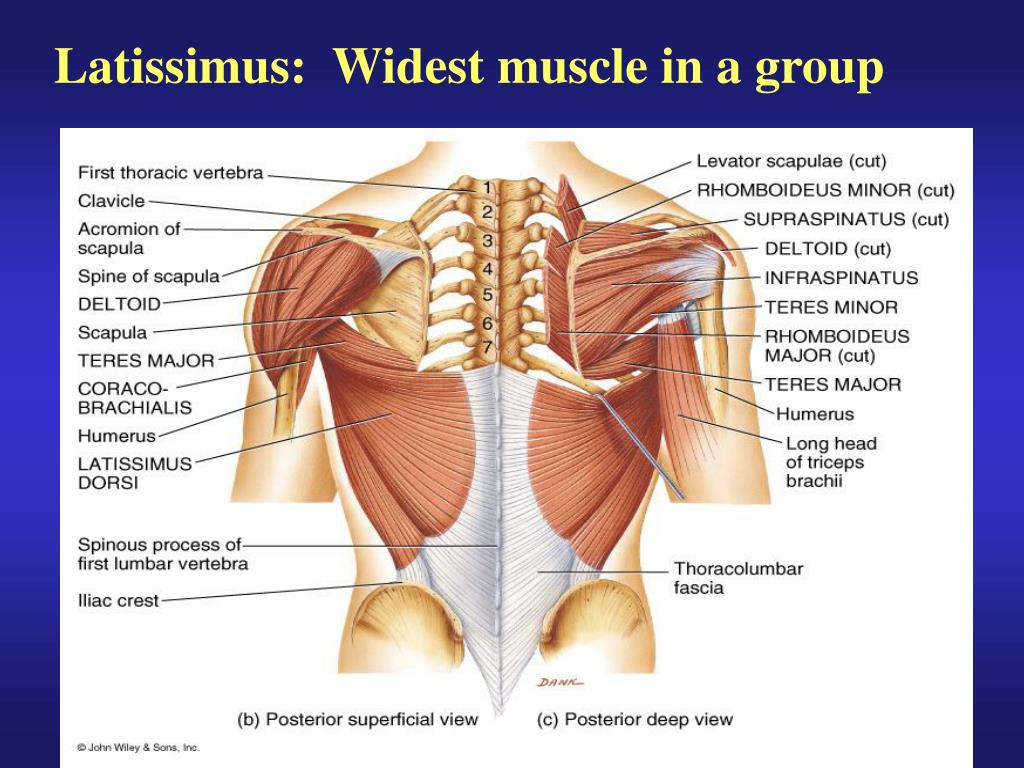

  14. Latissimus: Widest muscle in a group

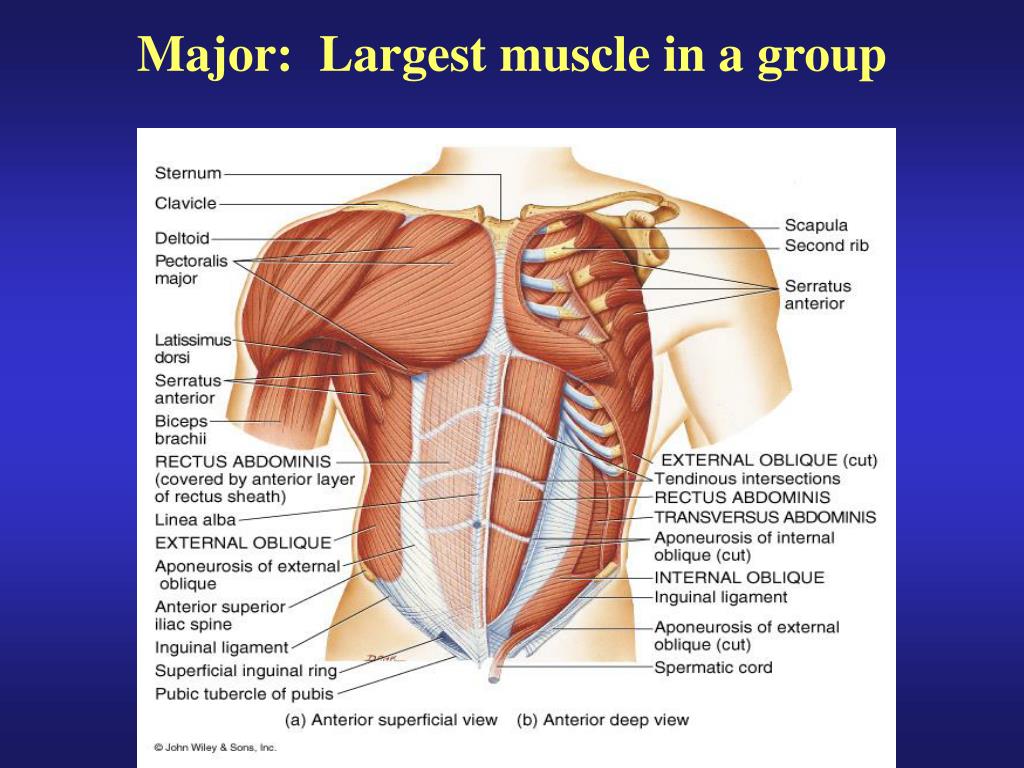

  15. Major: Largest muscle in a group

  16. Minor: Smallest muscle in a group

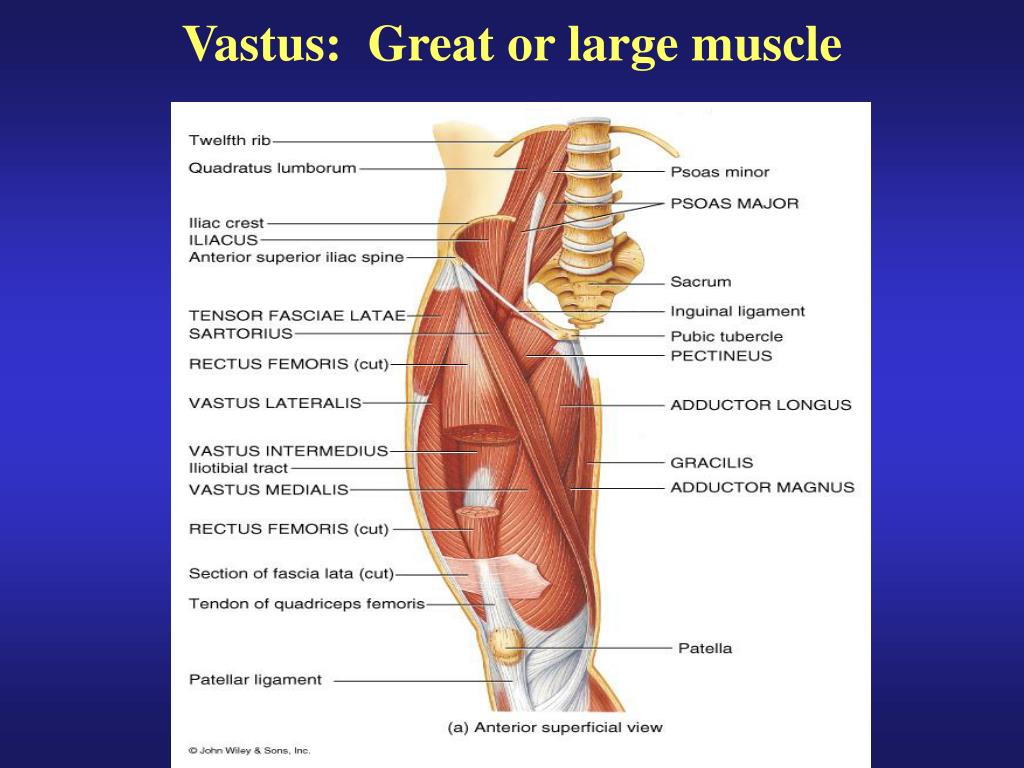

  17. Vastus: Great or large muscle

  18. Characteristics Used to Name Muscles • Shape of Muscle • Deltoid: Triangular shaped • Trapezius: Trapezoid shaped • Serratus: Saw-toothed muscle edge • Rhomboideus: Diamond shaped • Orbicularis: Circular shaped • Pectinate: Comblike shaped • Platys: Flat muscle • Quadratus: Square shaped • Gracilis: slender muscle

  19. Deltoid: Triangular shaped

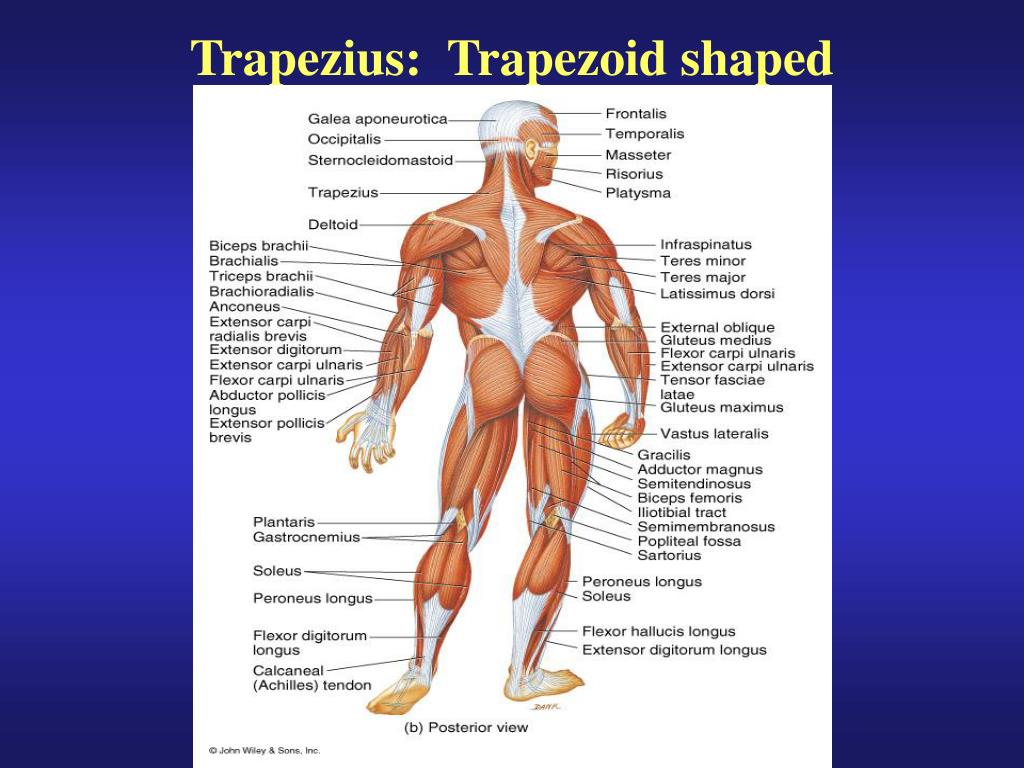

  20. Trapezius: Trapezoid shaped

  21. Serratus: Saw-toothed muscle edge

  22. Rhomboideus: Diamond shaped

  23. Orbicularis: Circular shaped

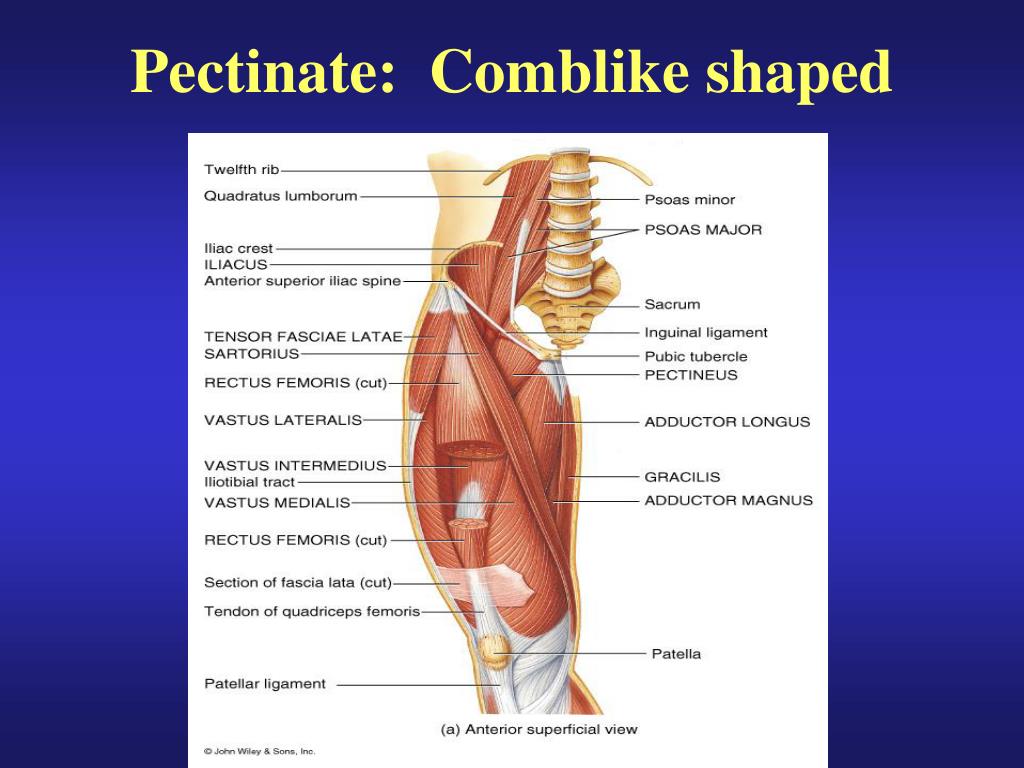

  24. Pectinate: Comblike shaped

  25. Platys: Flat muscle

  26. Quadratus: Square shaped

  27. Gracilis: Slender muscle

  28. Characteristics Used to Name Muscles • Action of Muscles • Flexor: Decreases angle at joint • Extensor: Increases angle at joint • Abductor: Moves bone away from midline • Adductor: Moves bone toward midline • Levator: Produces superior movement • Depressor: Produces inferior movement • Supinator: Turns palm anteriorly • Pronator: Turns palm posteriorly • Sphincter: Decreases size of opening • Tensor: Makes a body part rigid • Rotator: Moves bone around an axis

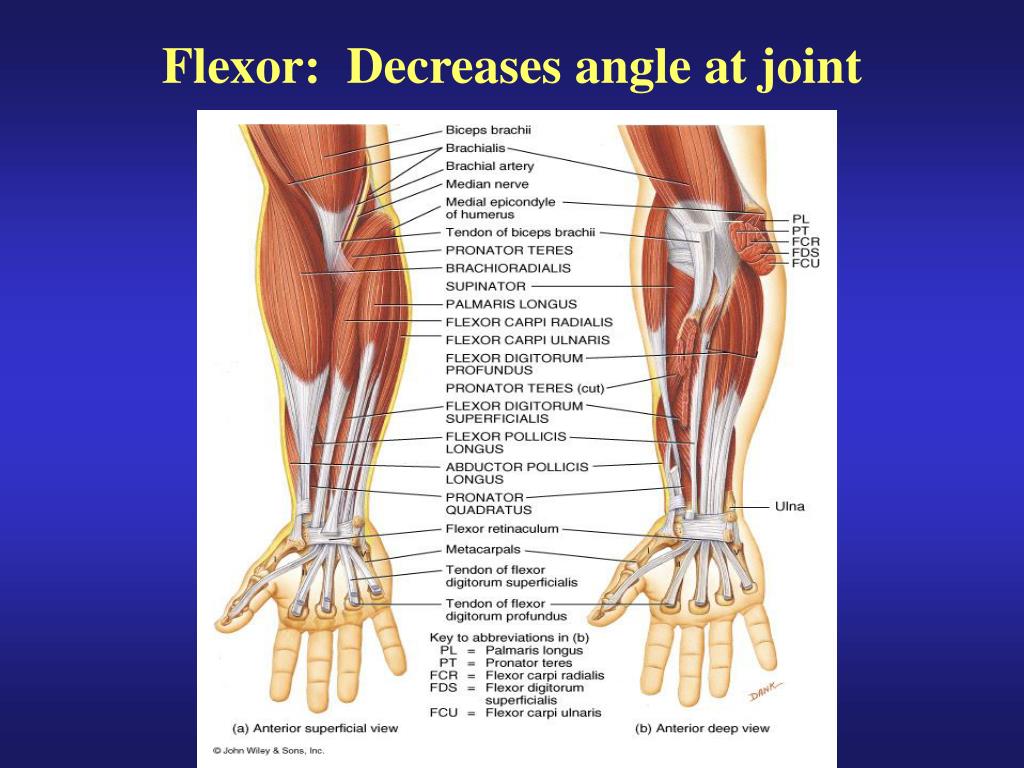

  29. Flexor: Decreases angle at joint

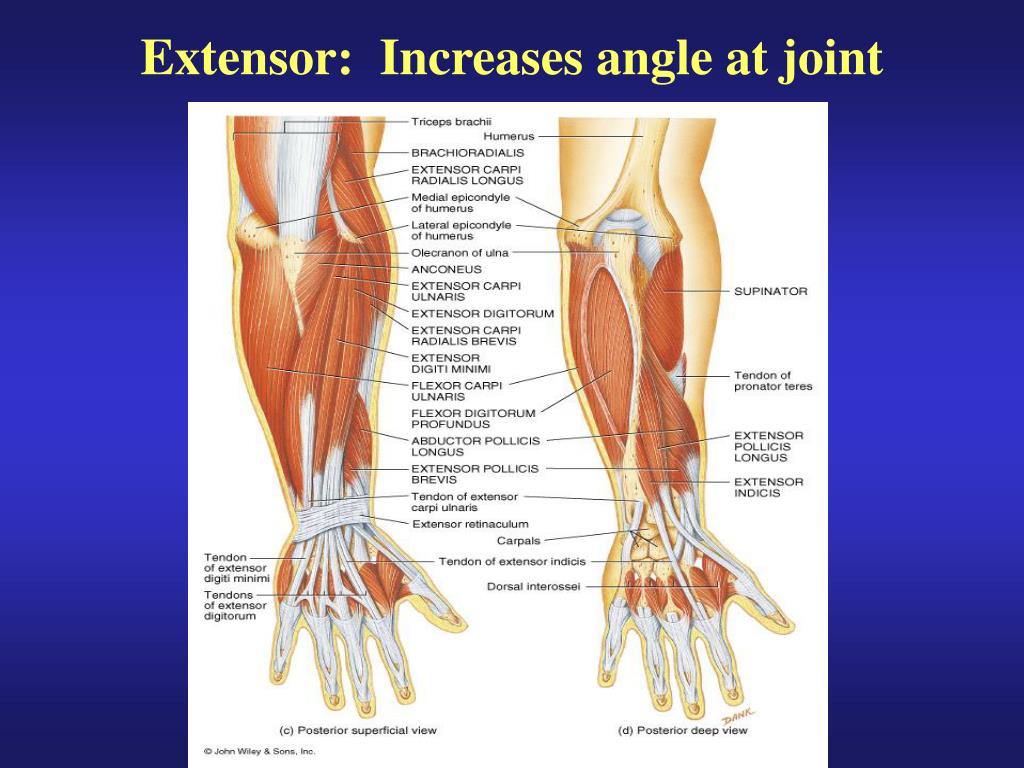

  30. Extensor: Increases angle at joint

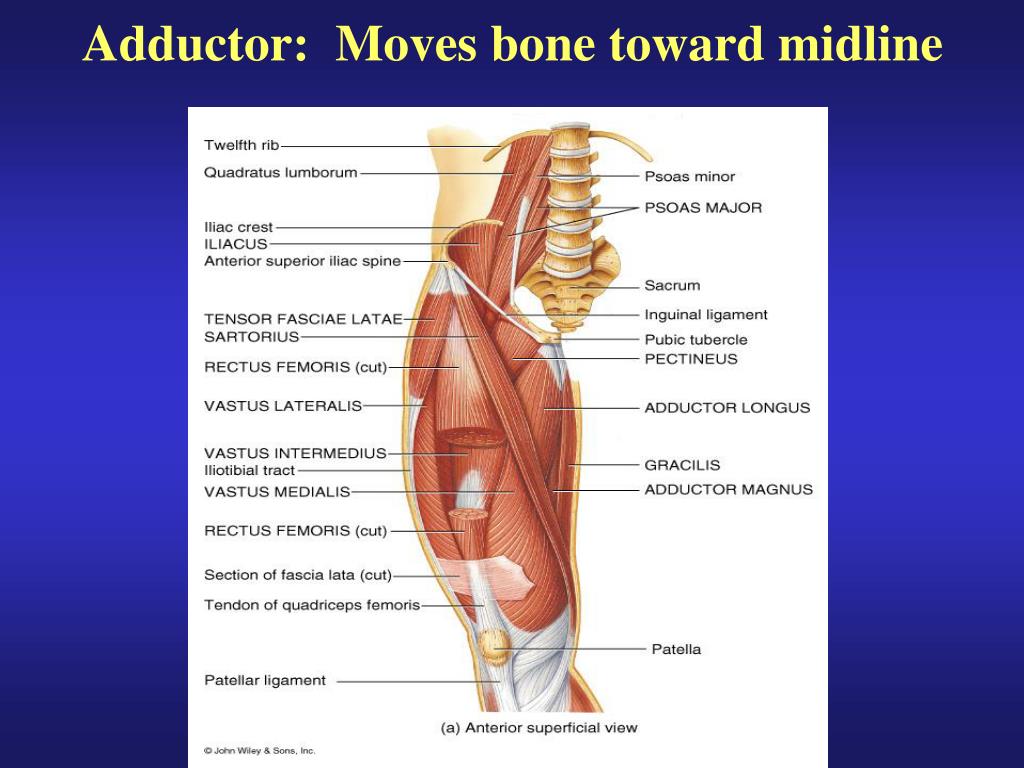

  31. Adductor: Moves bone toward midline

  32. Levator: Produces superior movement

  33. Depressor: Produces inferior movement

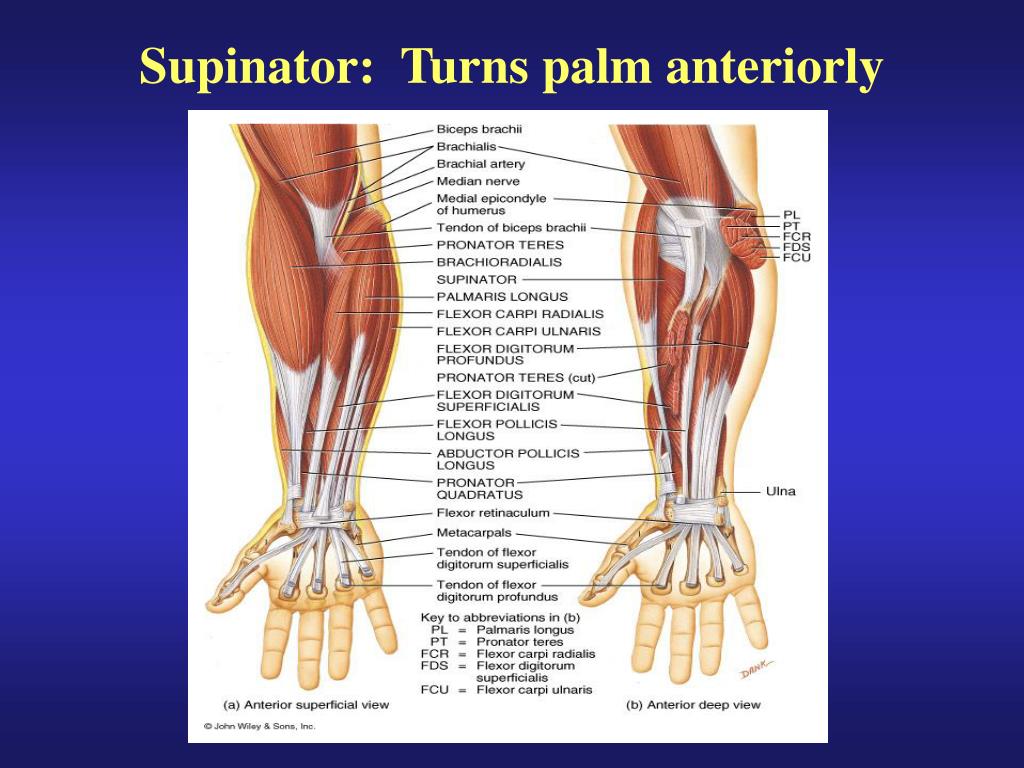

  34. Supinator: Turns palm anteriorly

  35. Pronator: Turns palm posteriorly

  36. Sphincter: Decreases size of opening

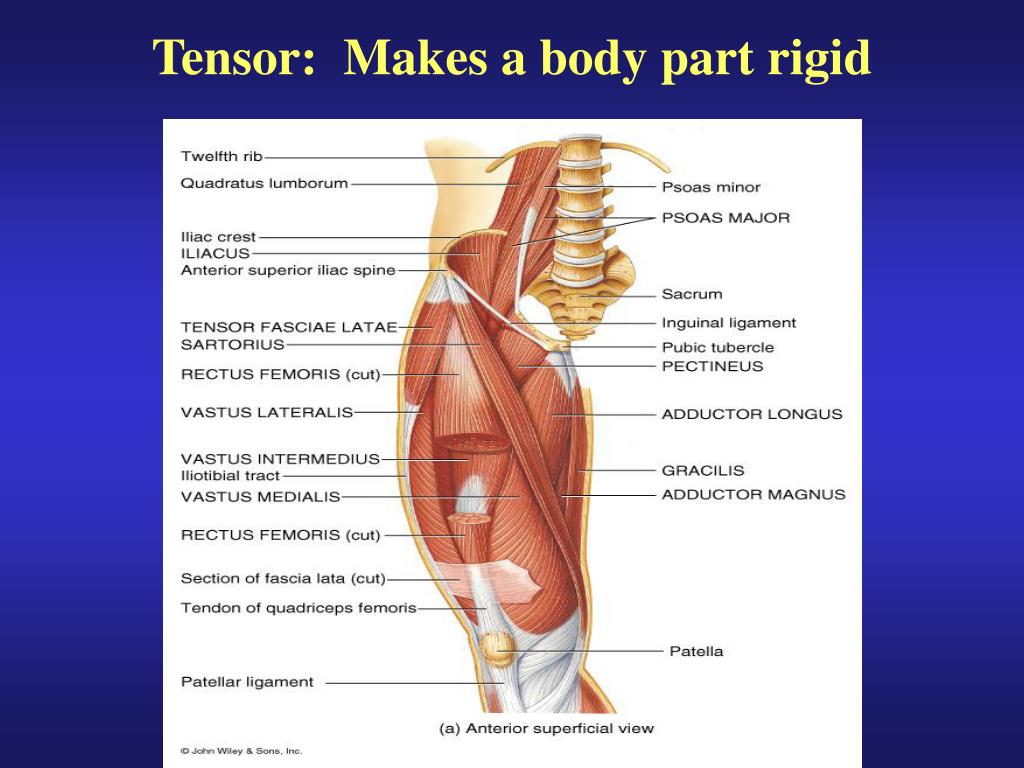

  37. Tensor: Makes a body part rigid

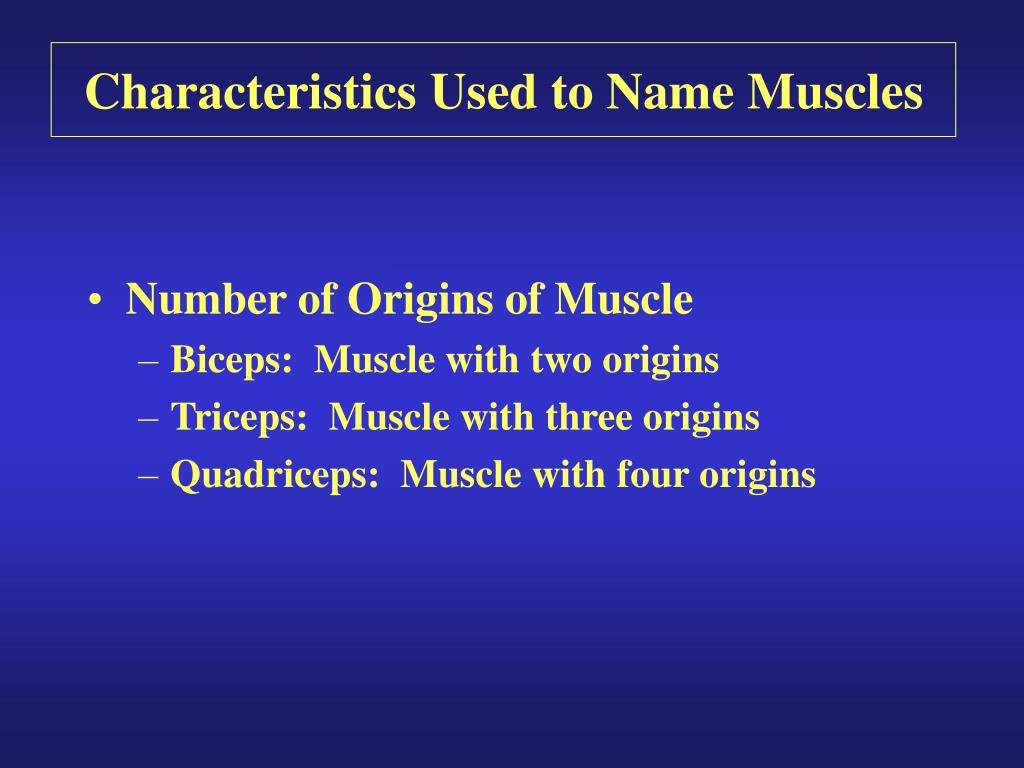

  38. Characteristics Used to Name Muscles • Number of Origins of Muscle • Biceps: Muscle with two origins • Triceps: Muscle with three origins • Quadriceps: Muscle with four origins

  39. Biceps: Muscle with two origins

  40. Triceps: Muscle with three origins

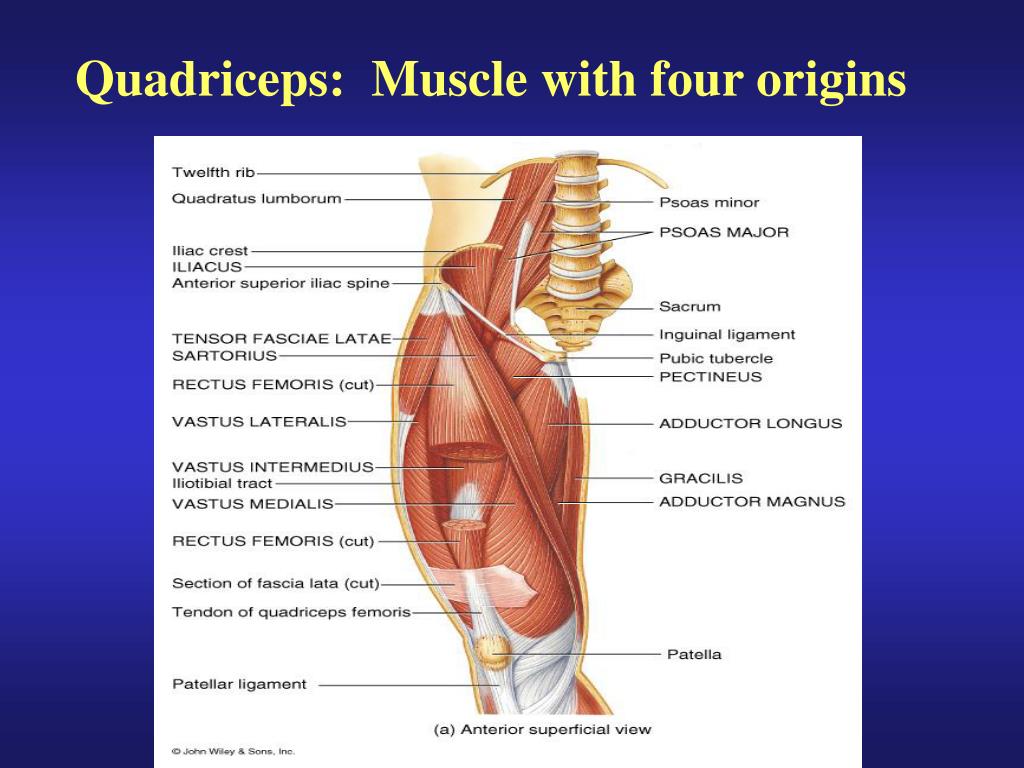

  41. Quadriceps: Muscle with four origins

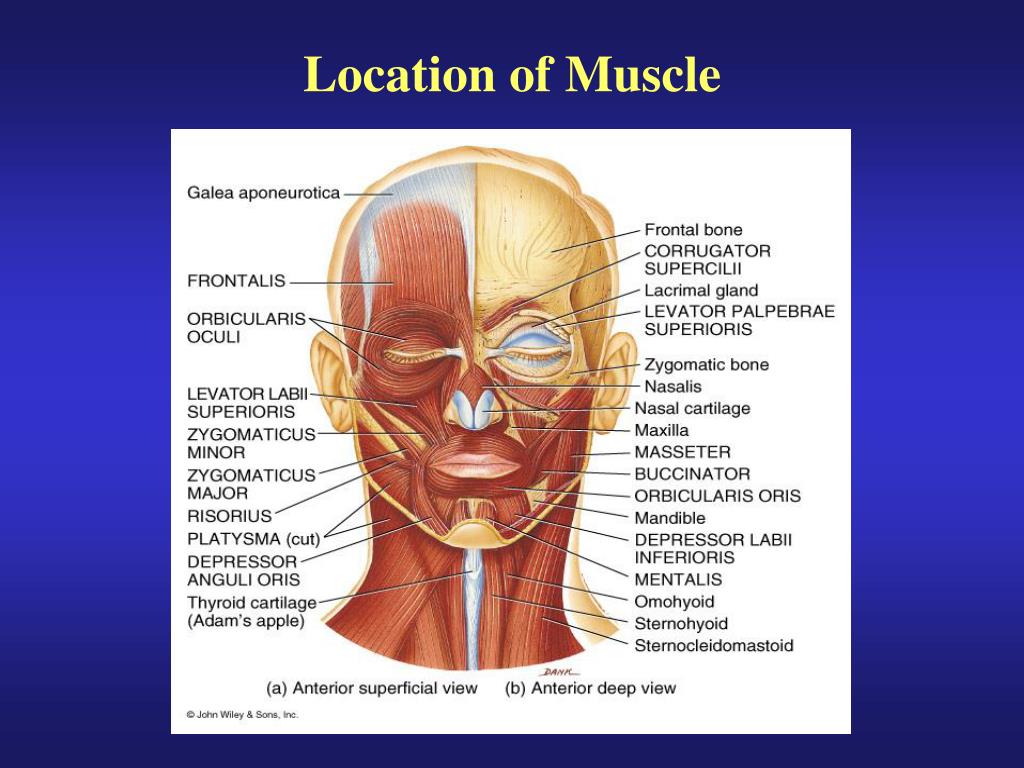

  42. Location of Muscle

  43. Origin and Insertion of Muscle

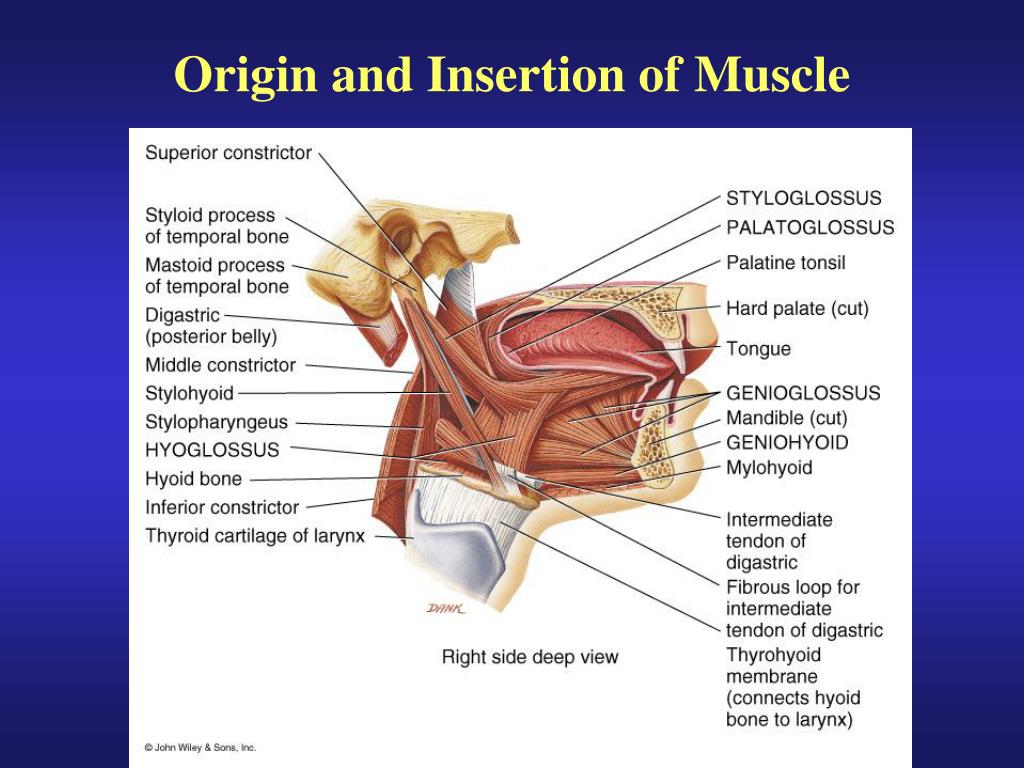

  44. Origin and Insertion of Muscle
