PI Batch and PI-BatchView. Jon Peterson & Jack Aude OSI Software, Inc . Unit Table. Create Units in the PI-BAUnit Table Unit Name Active Tag Batch ID Expression Product ID Expression. Batch Table. Batch Monitor populates the Batch Table Batch ID, Product ID, Start Time, End Time

jaden
Télécharger la présentation

PI Batch and PI-BatchView

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PI Batch and PI-BatchView Jon Peterson & Jack Aude OSI Software, Inc.

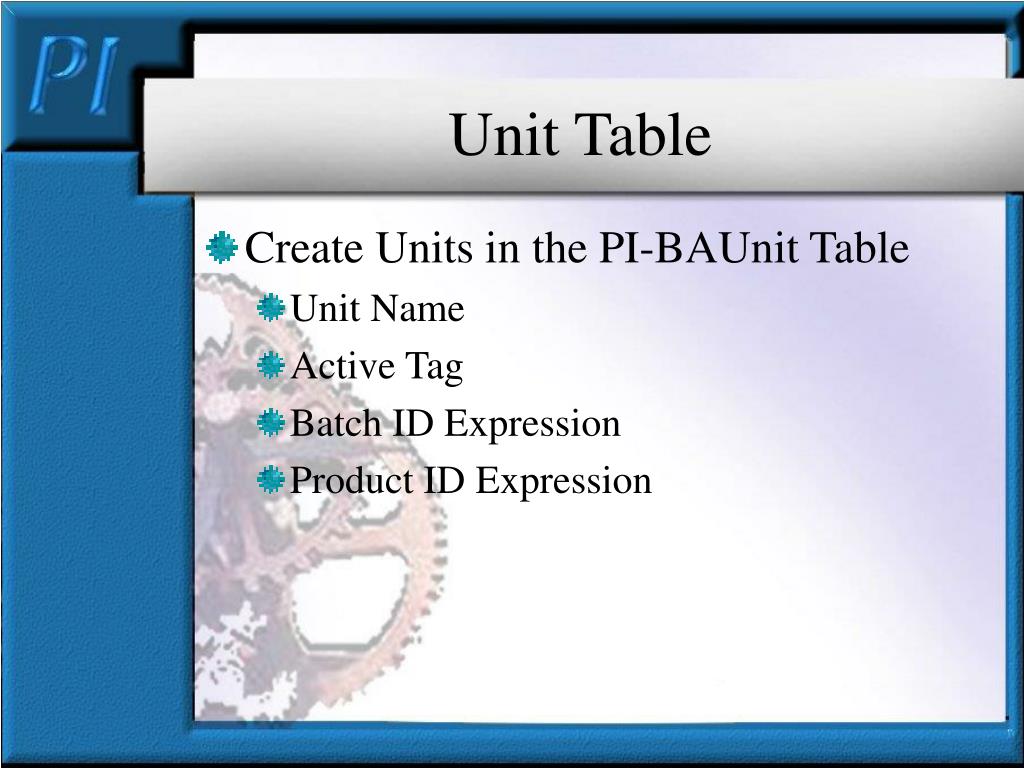

  2. Unit Table • Create Units in the PI-BAUnit Table • Unit Name • Active Tag • Batch ID Expression • Product ID Expression

  3. Batch Table • Batch Monitor populates the Batch Table • Batch ID, Product ID, Start Time, End Time • Alias Tags back to the Units • Allows comparison between Batches on different Units

  4. Alias Table • The Unit/Alias Provides the Tag(s)

  5. Alias Table • PIBatch provides the Start and End Times Start End

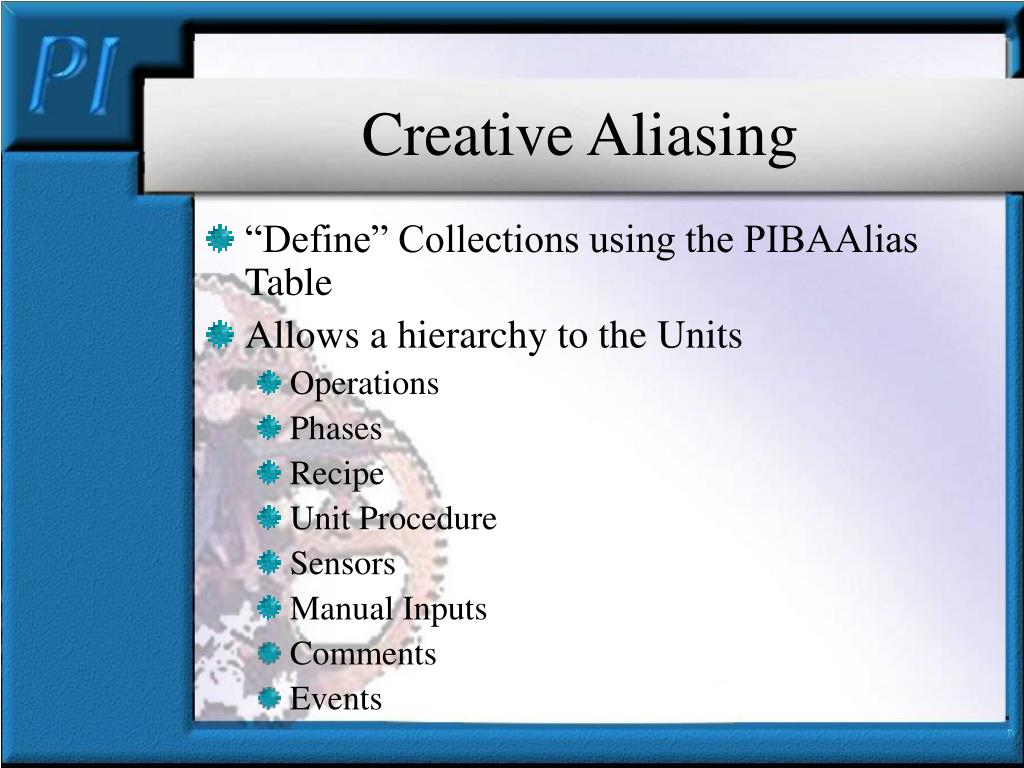

  6. Creative Aliasing • “Define” Collections using the PIBAAlias Table • Allows a hierarchy to the Units • Operations • Phases • Recipe • Unit Procedure • Sensors • Manual Inputs • Comments • Events

  7. Creative Aliasing • Batch Tree Control

  8. Creative Aliasing • Batch Reporting

  9. Creative Aliasing • Advantages • It Works • Active X Controls and applications via Devnet

  10. Creative Aliasing • Disadvantages • Looks at Unit Batches only • Aliasing is cumbersome

  11. PI-Batch Post SDK • Exposed • Modules • Batch • Unit Batch • Sub Batch

  12. Demo

  13. PI-Batch Post SDK • Advantages • Flexible • Objects (no PICONFIG) • Challenges • Full Client Support • New Class of Interface
