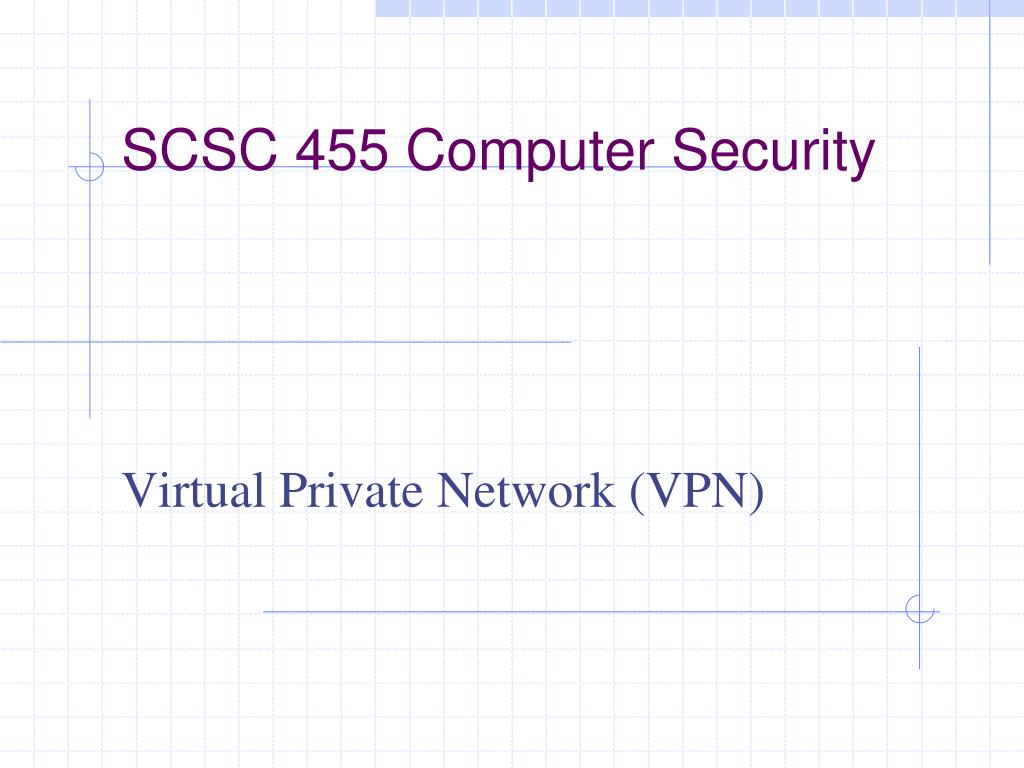

1. SCSC 455 Computer Security Virtual Private Network (VPN)

2. How to connect LANs • There’re common demands of joining two or multiple LANs to facilitate corporate communications • secure point-to-point communications • The connection can only used by authenticated LANs / hosts • One solution (traditional one) is to use private leased lines • Problems: don’t scale well, cost is high, and the complexity of maintaining the leased lines • Another solution – virtual private networks

3. VPNs • Goal of VPNs • Provide a cost-effective and secure way to connect businesses to one another and remote workers to office networks • Functionalities of VPNs • Encapsulate and encrypt data being transmitted • Use authentication to ensure that only approved users can access the VPN • Provide a means of secure point-to-point communications over the public Internet

4. Index • VPN components and operations • Types of VPNs • VPN setups • Tunneling protocols used with VPNs • Enabling secure remote access connections within VPNs • VPNs best practices

5. Components within VPNS VPNs consist of two different types of components • Hardware devices • two endpoints (terminators) Encryption, authentication, and encapsulation • a (virtual) tunnel A series of connections between two endpoints than makes use of Internet-based hosts/servers • Software that performs security-related activities

9. Essential Activities of VPNs Three essential activities of VPNs • IP encapsulation • Data payload encryption • Encrypted authentication

10. IP Encapsulation • VPN encapsulates actual data packets within packets that use source and destination addresses of VPN gateway • The benefits of encapsulating IP packets • Source and destination information of actual data packets are completely hidden • source and destination IP addresses of actual data packets can be in private reserved blocks not usually routable over the Internet

11. Data Payload Encryption • VPNs do NOT encrypt the header within packets, only the data payload that the packets carry. • The encryption can be performed in one of two ways: • Transport method • The host encrypts traffic when it’s generated • Tunnel method • The traffic is encrypted and decrypted in transit, somewhere between the source host and destination.

12. Encrypted Authentication • Authentication is essential Hosts in the network that receive VPN communication need to know that the host originating the communications is an approved user of the VPN • Hosts are authenticated by exchanging long blocks of code - keys • Types of keys that can be exchanged in an encrypted transaction: • Symmetric keys • Asymmetric keys

13. Index • VPN components and operations • Types of VPNs • VPN setups • Tunneling protocols used with VPNs • Enabling secure remote access connections within VPNs • VPNs best practices

14. Types of VPNs • Two types of VPNs • Site-to-site VPN • Links two or more networks • Client-to-site VPN • Makes a network accessible to remote users who need dial-in access • These two types VPNs are NOT mutually exclusive e.g., a large corporations’ network support both site-to-site VPN and client-to-site VPN

15. Advantage of Using Hardware Systems

16. Software VPN Systems • Software VPN are generally less expensive than hardware systems • Tend to scale better for fast-growing networks • Examples • F-Secure VPN+ • Novell BorderManager VPN services • Check Point FireWall-1

17. Index • VPN components and operations • Types of VPNs • VPN setups • Tunneling protocols used with VPNs • Enabling secure remote access connections within VPNs • VPNs best practices

18. Index • VPN components and operations • Types of VPNs • VPN setups • Tunneling protocols used with VPNs • Enabling secure remote access connections within VPNs • VPNs best practices

19. Tunneling Protocols Used with VPNs • In the past , firewalls support VPNs used proprietary protocols • Both endpoints must use the same brand of firewall • Today the proprietary protocols are used less often. Most VPNs use standard tunneling protocols • IPSec/IKE • PPTP (Point-to-Point Tunneling Protocol) • L2TP (Layer 2 Tunneling Protocol) • PPP over SSL (Point-to-Point Protocol over Secure Sockets Layer) • PPP over SSH (Point-to-Point Protocol over Secure Shell)

20. IPSec/IKE • IPSec provides: • Encryption of the data part of packets • Authentication • Encapsulation between two VPN hosts • Two security methods (AH and ESP) • Authenticated header is used to authenticate packets • Encapsulating Security Payload encrypts the data portions of the packet • IPSec is commonly combined with IKE as means of using public key cryptography to encrypt data • IKE provides: • Exchange of public keys • Ability to determine which encryption protocols should be used to encrypt data that flows through VPN tunnel

21. Other tunneling protocols: PPTP PPTP is developed by Microsoft for granting VPN access to remote users over dial-up connections • Uses Microsoft Point-to-Point Encryption (MPPE) to encrypt data • Useful if support for older clients is needed • Compatible with Network Address Translation (NAT) • Replaced by L2TP

22. Other tunneling protocols: L2TP • L2TP is an extension of Point-to-point Protocol (PPP) that enables dial-up users to establish a VPN connection to a remote access server • Uses IPSec rather than MPPE to encrypt data • provides a higher level of encryption and authentication • Incompatible with NAT

23. Other tunneling protocols: PPP Over SSL and PPP Over SSH • PPP over SSL and PPP over SSH are two UNIX based methods for creating VPNs • Both combine existing tunnel system (PPP) with a way of encrypting data in transport (SSL or SSH) • SSL • Public key encryption system used to provide secure communications over the Web • SSH • UNIX secure shell that perform secure authenticated logons and encrypted communications between a client and a server.

24. When to Use Different tunneling Protocols (important!)
