  1. Harrison B. Prosper Florida State University YSP 2012 Relativity 1

  2. Where Do We Come From? What Are We? Paul Gauguin (1897) Where Are We Going? Museum of Fine Arts, Boston

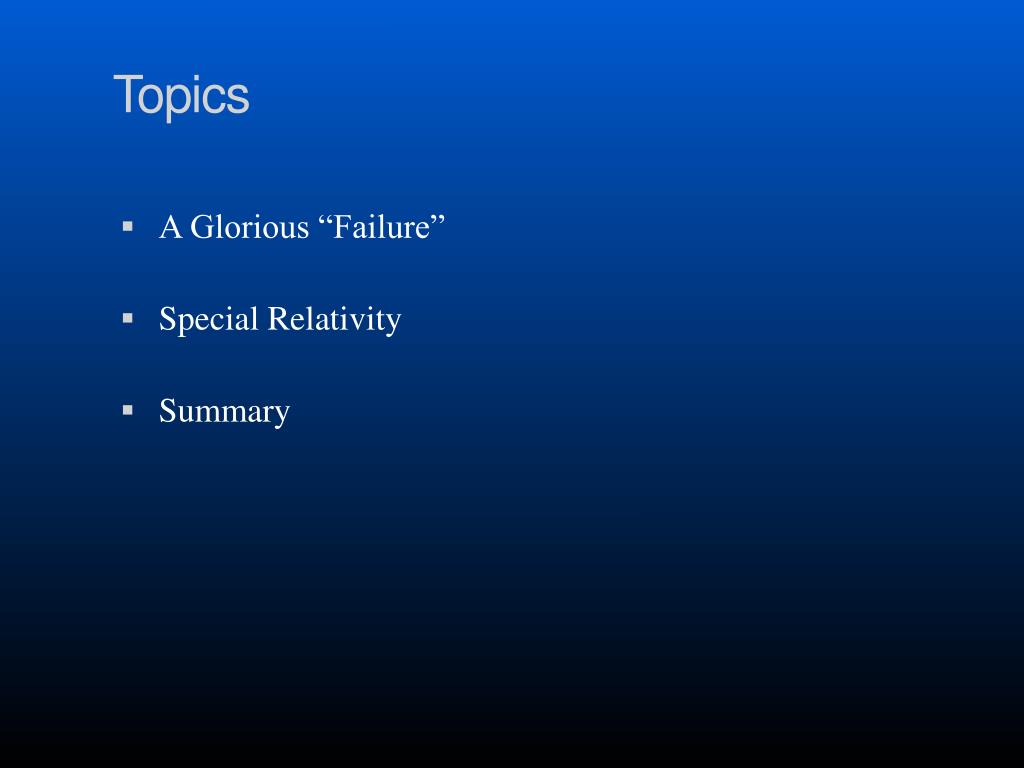

  3. Topics • A Glorious “Failure” • Special Relativity • Summary

  4. A Glorious “Failure”

  5. James Clerk Maxwell (1831-1879) Maxwell’s Equations describing electric and magnetic fields in a vacuum. http://www.pa.msu.edu/courses/1997/spring/PHY232/lectures/emwaves/maxwell.html

  6. Electro + Magnetism = Light “We can scarcely avoid the conclusion that light consists in the transverse undulations of the same medium which is the cause of electric and magnetic phenomena.” Maxwell (1866) Moreover, light travels at a specific speed in this medium (the aether): 300,000 km/s

  7. The Aether Wind Taking the stars as our reference, the Earth travels at about 30 km/s around the Sun. Therefore, it was argued (in the late 1870s), the aether should be flowing past us at a speed close to 30 km/s, since the aether is surely at rest relative to the stars.

  8. Swimming The Aether Sea Michelson’s clever idea: Speed of water relative to bank: 3 ft/s Speed of swimmer relative to water: 5 ft/s Who wins the race? b w a c

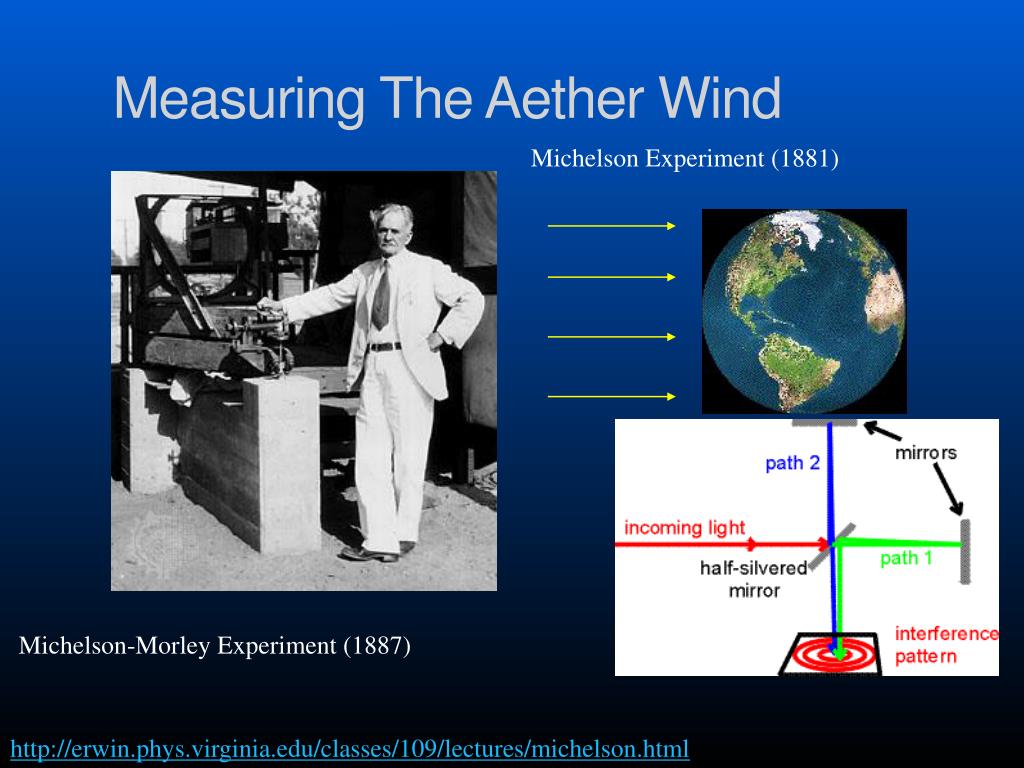

  9. Measuring The Aether Wind Michelson Experiment (1881) Michelson-Morley Experiment (1887) http://erwin.phys.virginia.edu/classes/109/lectures/michelson.html

  10. A Glorious “Failure” “The interpretation of these results is that there is no displacement of the interference bands. … The result of the hypothesis of a stationary aether is thus shown to be incorrect.” A. A. Michelson, Am. J. Sci., 122, 120 (1881) Nobel Prize 1907!

  11. The Lorentz-FitzGerald Theory FitzGerald (1851-1901) Lorentz (1853-1928) http://www-history.mcs.st-and.ac.uk/~history/Mathematicians

  12. Special Relativity 1905

  13. Hermann Einstein 14 March, 1879, Ulm, Germany Albert Pauline Einstein

  14. Aarau Class of 1896 Marcel Grossman From 1896-1900, Einstein was enrolled at the Eidgenössische Technische Hochschule, Zurich

  15. Technical Expert, Third Class Einstein got a job at the Swiss Patent Office in Bern, on the 23 June 1902 Six months later, he married his Serbian girlfriend, Mileva

  16. 1905 – Annus Mirabilis • 17 March A new theory of light • 30 April A new method to infer the size of molecules • 11 May A new theory of Brownian motion • 30 June A new theory of space and time

  17. Special Relativity – Postulates • Principle of Relativity • The laws of physics are the same in all inertial frames • Principle of Constancy of Speed of Light • The speed of light in vacuum is independent of the motion of its source • The first principle implies that the speed of light is also independent of the motion of the observer

  18. Experiment – At Rest Measure time for a light ray to go from A to B to A in a frame of reference in which experiment is at rest relative to the observer A t = 2d / c d = distance between A and B t = time to go from A to B to A c = speed of light in vacuum B

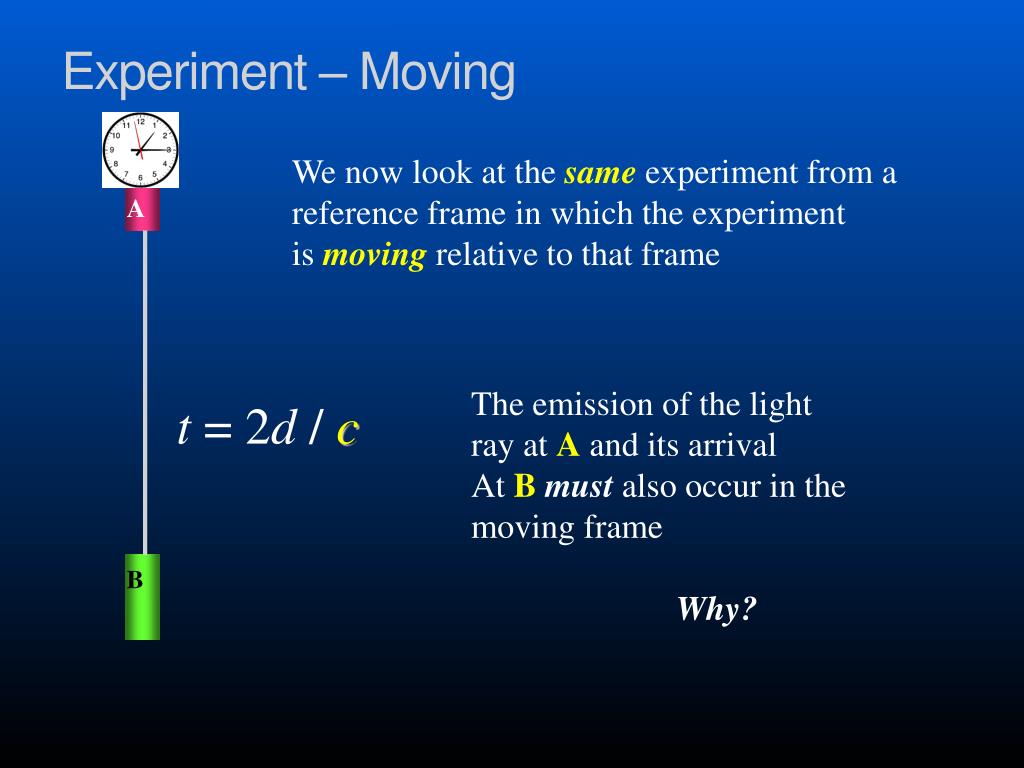

  19. Experiment – Moving We now look at the same experiment from a reference frame in which the experiment is moving relative to that frame A The emission of the light ray at A and its arrival At Bmust also occur in the moving frame Why? t = 2d / c B

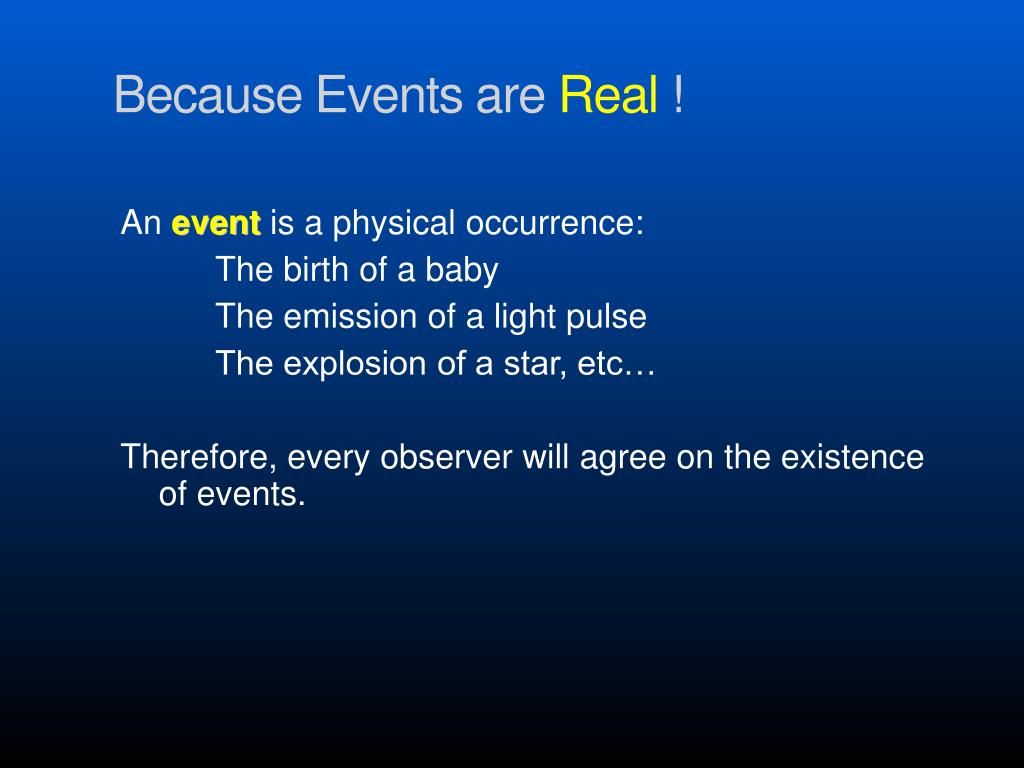

  20. Because Events are Real ! An event is a physical occurrence: The birth of a baby The emission of a light pulse The explosion of a star, etc… Therefore, every observer will agree on the existence of events.

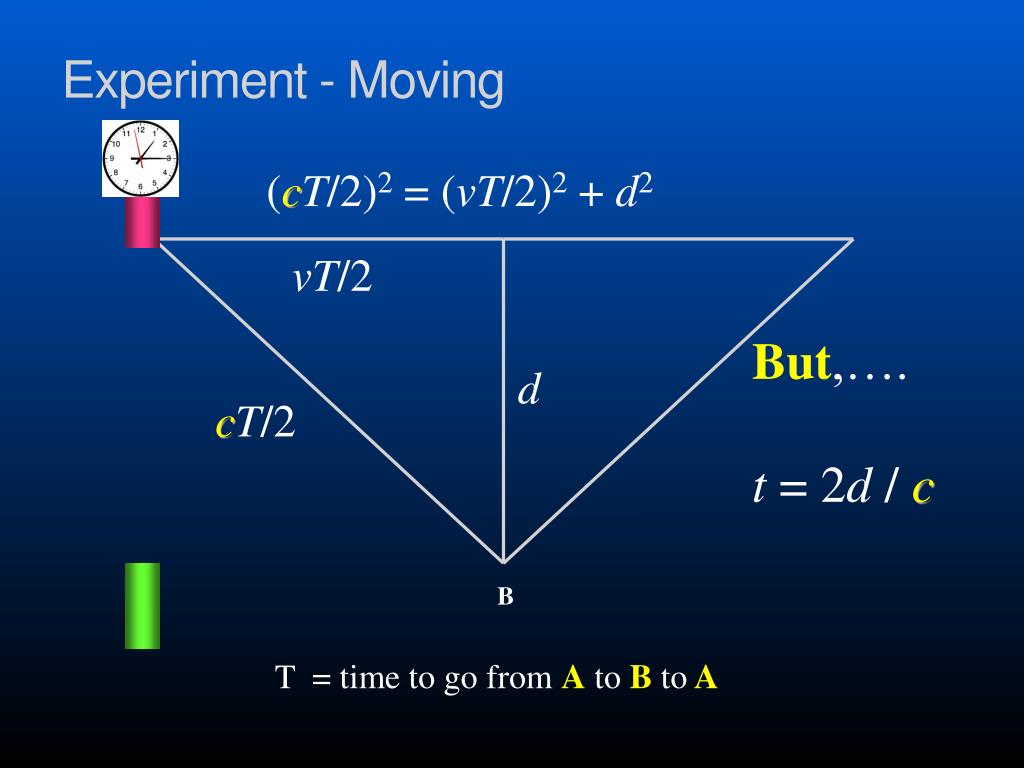

  21. Experiment - Moving (cT/2)2 = (vT/2)2 + d2 A vT/2 But,…. t = 2d /c d cT/2 B T = time to go from A to BtoA

  22. Experiment - Conclusion The only way to avoid a contradiction is if where

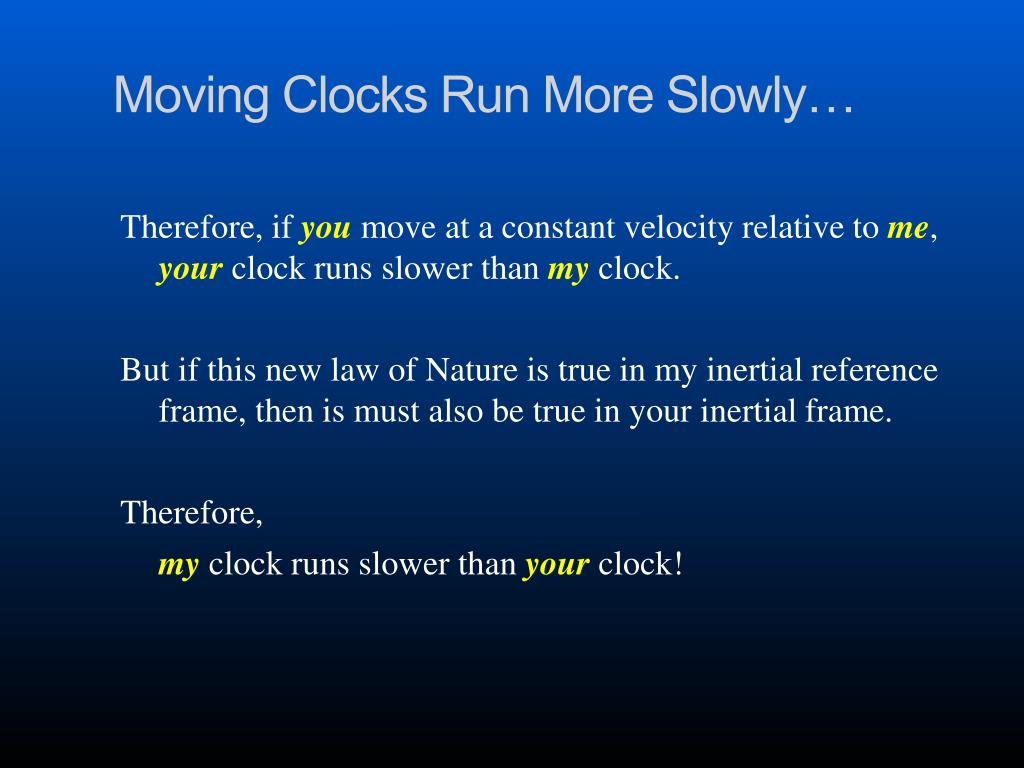

  23. Moving Clocks Run More Slowly… Therefore, if you move at a constant velocity relative to me, your clock runs slower than my clock. But if this new law of Nature is true in my inertial reference frame, then is must also be true in your inertial frame. Therefore, myclock runs slower than your clock!

  24. Relativity of Simultaneity This paradoxical situation is resolved, as are almost all paradoxes in relativity, because of the relativity of simultaneity: Two events that are simultaneous in one inertial frame are not, in general, simultaneous in another inertial frame moving relative to the first

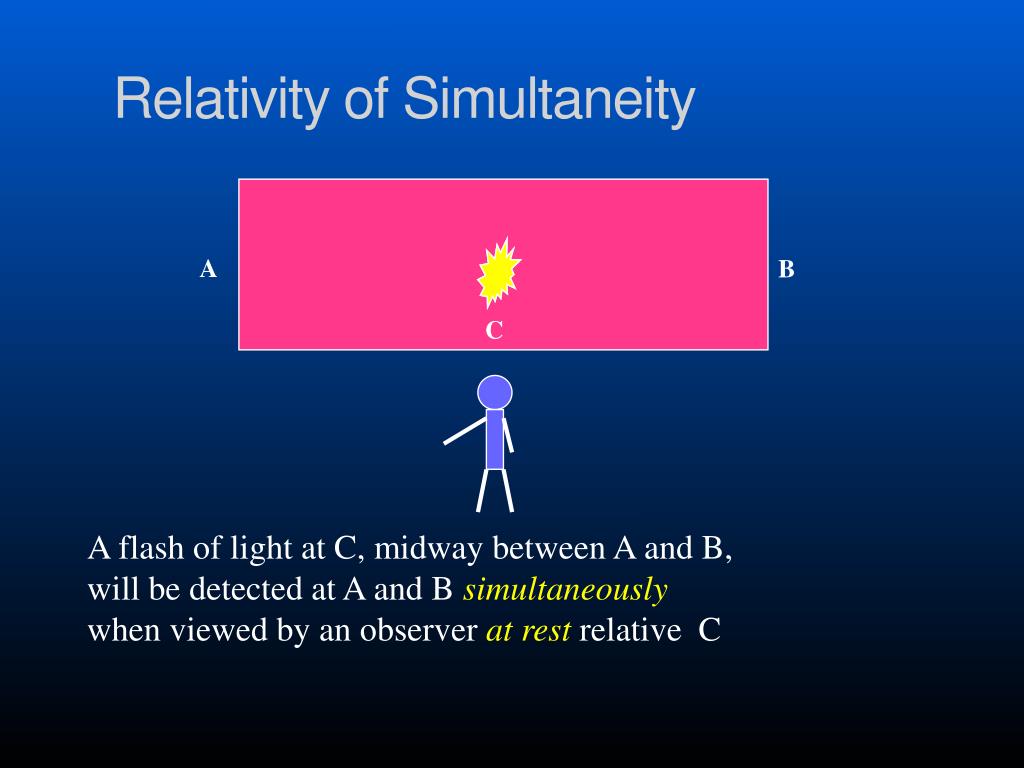

  25. Relativity of Simultaneity A B C A flash of light at C, midway between A and B, will be detected at A and B simultaneously when viewed by an observer at rest relative C

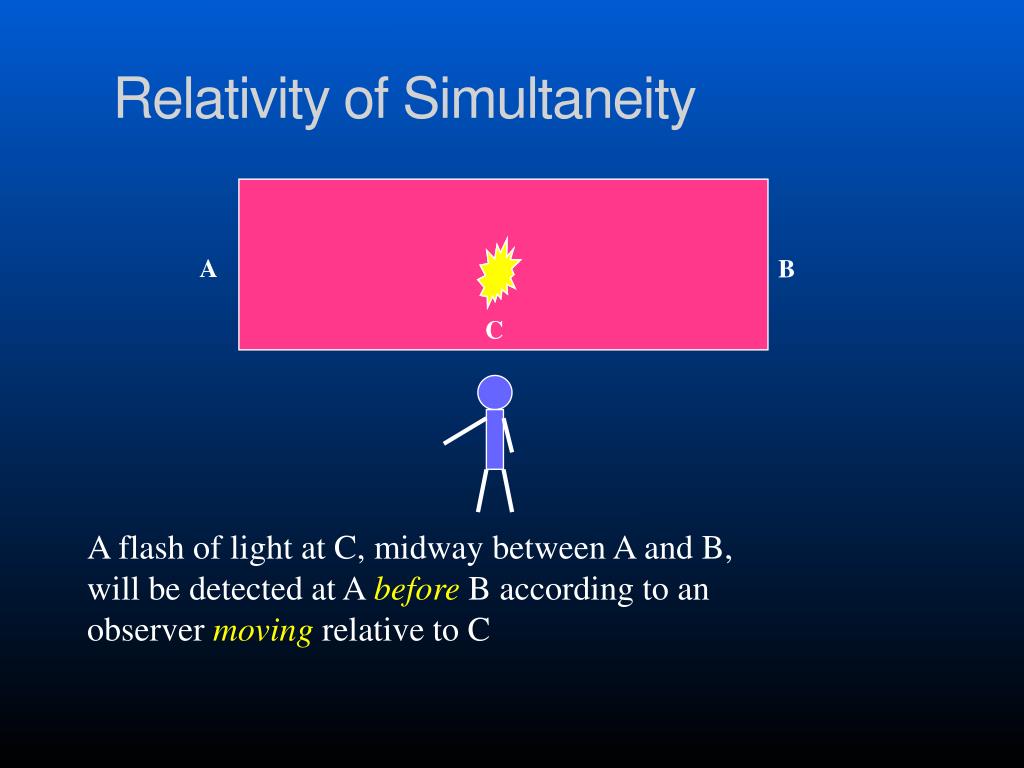

  26. B C Relativity of Simultaneity A A flash of light at C, midway between A and B, will be detected at A before B according to an observer moving relative to C

  27. Prof Length Contraction d = v t You: D = v T v = d / t v = D / Td = D / (T / t) d = D / γ

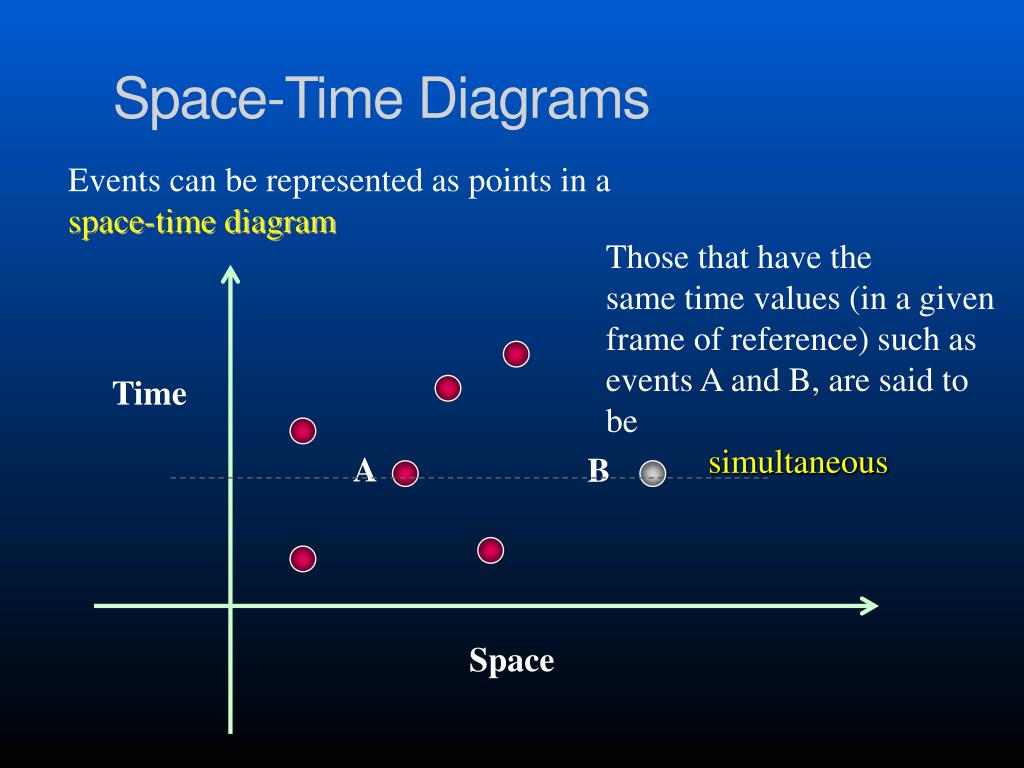

  28. Space-Time Diagrams Events can be represented as points in a space-time diagram Those that have the same time values (in a given frame of reference) such as events A and B, are said to be simultaneous Time A B Space

  29. Space + Time = Spacetime “The distinction between past, present and future is only an illusion, even if a stubborn one.” Albert Einstein

  30. Event: A place at a given time Spacetime: The set of all events Earth’s Time Axis 3012 AD now D C B (t,x,y,z) 2512 AD A 2012 AD y x O

  31. Cosmic Ray Muons ~ 20 km Time to the ground 20km / 300,000 km/s ~ 70 microsecond For every 35 microseconds of our clock, the muon’s “clock” advances only 1 microsecond! Muon lifetime ~ 2 microsecond

  32. Summary • Michelson found no evidence of the Earth’s motion through an aether. • Lorentz and Fitzgerald proposed a clever, but ad hoc, theory to explain the result • Einstein proposed a different theory based on two postulates: • Principle of relativity: The laws of physics are the same in all inertial frames of reference • The speed of light is independent of the motion of the light source
