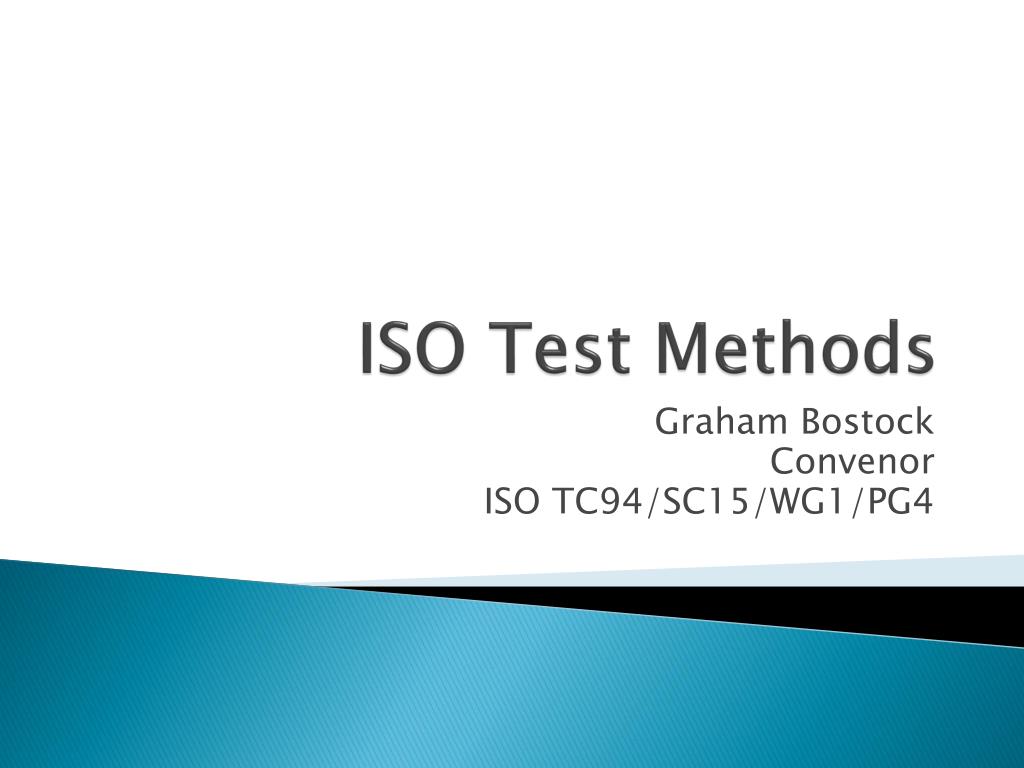

ISO Test Methods. Graham Bostock Convenor ISO TC94/SC15/WG1/PG4. ISO TC94 – Technical Committee: PPE SC15 – Sub-Committee: Respiratory Protection WG1 – Working Group 1: General PG4 – Project Group 4: Test Methods CD: Committee Draft DIS : Draft International Standard

jaeger
Télécharger la présentation

ISO Test Methods

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ISO Test Methods Graham Bostock Convenor ISO TC94/SC15/WG1/PG4

  2. ISO • TC94 – Technical Committee: PPE • SC15 – Sub-Committee: Respiratory Protection • WG1 – Working Group 1: General • PG4 – Project Group 4: Test Methods • CD: Committee Draft • DIS: Draft International Standard • FDIS: Final Draft International Standard

  3. ISO 16900 • Part 1 – Inward Leakage • Part 2 – Breathing Resistance • Part 3 – Particle Filter Penetration • Part 4 – Gas and Vapour Filter Testing • Part 5 – Tools • Part 6 – Mechanical Tests • Part 7 – Practical Performance

  4. ISO 16900 • Part 8 – Flow Measurement • Part 9 – Rebreathed Carbon Dioxide • Part 10 – Flame and Heat • Part 11 – Field of Vision • Part 12 – Work of Breathing • Part 13 – Regenerating Breathing Apparatus • Part 14 – Sound

  5. Part 1: Inward Leakage • NaCl, Corn Oil or SF6 challenges. • Panel of 25 test subjects selected by facial dimensions. • Extended exercise regime to include: • Reaching up and down. • Squatting. • Hands and knees. • 18 minutes duration

  6. Part 1: Inward Leakage

  7. Part 2: Breathing Resistance • First part to be published. • Needs to be revised / updated. • Uses EN headform.

  8. Part 3: Filter Penetration • NaCl and Paraffin Oil mist challenges. • Flame photometry and scattered light detectors. • Flow rates 85 l/min and 135 l/min. • Exposure to 150 mg of the challenge aerosol.

  9. Part 3: Filter Penetration • ISO EN F1 20% FFP1/P1 20% F2 5% FFP2/P2 6% F3 1% FFP3 1% F4 0.1% TH3 0.2% F5 0.01% P3 0.05%

  10. Part 3: Filter Penetration Sodium Chloride Aerosol • the number median of particle size distribution is between 0,06 µm and 0,10 µm electromobility diameter, with a geometric standard deviation between 1,4 and 1,8; • the aerosol concentration is within the range 8 mg/m3 to 35 mg/m3;

  11. Part 3: Filter Penetration Paraffin Oil Mist • The number median of particle size distribution is between 0,16 µm and 0,21 µm electromobility diameter, with a geometric standard deviation between 1,4 and 1,8; • the aerosol concentration is within the range 15 mg/m3 to 35 mg/m3;

  12. Part 4: Gas and Vapour • Gas capacity test – 30 l/min • Gas filter validation test at specified flow rates • Gas and combined filters are exposed to a defined test gas under enhanced flow rates to evaluate whether breakthrough time exceeds a specified minimum. • Migration and Desorption tests

  13. Part 4: Gas and Vapour • Extended range of test gases. • OV, OG, AC, BC, NOX • AC: SO2/Cl2/H2S • Low capacity class 1 • OV challenges • 300 ppm • 1000 ppm • 3000 ppm • 6000 (9000) ppm • High and low humidities.

  14. Part 5: Tools • Head forms. • Torso • Breathing machines / Metabolic simulators. • Required performance parameters. • Sinusoidal. • Fixed displacements of 1.0, 1.5, 2.0, 2.5 and 3.0 litres.

  15. Part 5: Tools

  16. Part 6: Mechanical Tests • Bending • Crushing • Kinking • Drop • Tensile • Rough handling

  17. Part 7: Practical Performance • Walk • Crawl • Climb • Shovel • Lift • Roll • Read • Communicate

  18. Part 8: Flow • Assisted Filtering Devices. • Sensitive to back pressure. • Zero back pressure method. • Plastic bag. • Interactive Flow Rate. • Flow varies with breathing pattern. • Measure pressure drop across the filter as a function of flow.

  19. Part 9: Rebreathed Carbon Dioxide • 3 Test Methods • Method 1 similar to present EN. Main and auxiliary cylinders. • Single breathing tube / ISO headform • Measure at 10 l/min as worst case. • To be resolved

  20. Part 10: Flame and Heat • Retain single and six burner tests. • Hot wire test. • Penetration by hot particles. • Radiant heat test. • Levels 1 and 2 extended arrays. • Level 3 Manikin test based on ISO13506. • Flame engulfment. • Extended burners.

  21. Part 11: Field of Vision

  22. Part 12: Work of Breathing

  23. Part 12: Work of Breathing • Displacement Pressure

  24. Part 13: Regenerating Apparatus • Also known as closed circuit breathing apparatus. • Specifies setting for measuring performance • Tidal volume and frequency: to be changed during the test. • Carbon dioxide supply • Oxygen consumption • Temperature • Humidity

  25. Part 14: Sound • Measurement of unwanted sound – Noise. • Measurement of wanted sound – Warning device. • Use a head form • Higher value but more repeatable. • Small microphones mounted in flat “ear”.

  26. Questions?
