  1. CE 525

  2. Agenda • Homework #4 Returned • Interesting articles • GIS Applications • Poster Proposal Discussion

  3. Interesting Article • Discuss the interesting article you read

  4. Examples of GIS-Based Research in Civil Engineering

  5. Asset management Construction, Transportation, Materials…

  6. Sign Inventory Sign Inventory Georeference Asset Location 2 Options for Data Collection: Photo Log Van SignProx

  7. KYTC Photo Log KYTC Photo Log • KYTC Asset Collection Vehicle • Right of Way Cameras • 3 cameras; One facing forward, right and left • Global Positioning System • Includes Differential and Inertial Measurement Systems • Sub-meter accuracy at highway speeds • Inertial Measurement System retains correct position during GPS Dropouts • Distance Measure Instrument • Roughness Measurement • Dynatest Mark IV RSP • Rutting Measurement • INO Laser Rut Measurement System • 1280 Transverse points http://maps.kytc.ky.gov/photolog/

  8. Panoramic View

  9. Sign Measurement

  10. KYTC Photo Log • Photo Log Collection: • Very accurate GPS • Other data being collected when route driven • Safer Urban collection • Link to Object photo saved in database • No travel time to collect objects from available data

  11. Collected Inventory

  12. KYTC Manual Collection • Manual Collection: • Area Development Districts contracted to collect data • Data stored in shapefile and geodatabase • Merged with Photo Log database

  13. Crash Data Transportation

  14. High Crash Intersections • Intersection list • Intersection ADT • Assign intersection crashes • Calculate intersection crash rates • Identify high crash intersections

  15. KY 29 US 68 KY 29

  16. Intersection List • A spatial database was created for the list of intersections • The database included the roadway characteristics of the major road for each intersection

  17. Intersection of US 25 and US 27 This record would contain US 25’s roadway characteristics

  18. Intersection ADT • Traffic volumes were obtained from the Highway Performance Monitoring System (HPMS) database • The ADT of all intersecting roads was added to the intersection list • This was accomplished spatially using ArcView • Each intersection had up to five ADT sections

  19. Crash Locations • Methods for locating a crash for a police officer • Review of a random sample of crash data • Analysis of current location data • Where should a crash be located? • Conclusions / Recommendations

  20. Paper Reports • Submitted manually • GPS from Magellan, Google® Maps, 911 system • County, Route and Milepoint (CRMP) using reference system

  21. eCrash KYOPS • MapIt • Added October 1st 2007 • CRMP data linked to GPS • Between/Intersect streets • Searchable • RT Unique: “034-US-0068 -000”

  22. Crash Data Potted by GPS

  23. Crash Data plotted by GPS Showing County Check

  24. Kennedy Bridge Study

  25. Crash data plotted by GPS and CRMP within proximity to the “Kennedy Interchange corridors”

  26. Crashes occurring outside the buffer zones were selected due to their location description or using engineering judgment

  27. EPDO Density Plots for the “Kennedy Interchange Corridors” (2005 to 2009)

  28. EPDO Density Plots for the I-64 and I-65 section of the “Kennedy Interchange Corridors” (2005 to 2009)

  29. Travel Data Transportation, Planning, …

  30. Travel Time Study • Purchased travel time/speed data from NAVTEQ • Setup ArcServer to display travel speed data using Tracking Analyst • Uploaded data to ArcGIS.com for interactive viewing

  31. Tracking Analyst

  32. ArcGIS.com

  33. Site Selection Transportation, Construction, Water Resources, …

  34. Potential CORS Stations In and Near Kentucky and Their Coverage

  35. Location-Allocation Outputs • The best sites • The optimal allocation of demand locations to those sites • Lots of statistical and summary information about that particular allocation

  36. Initial Configuration (From Jay Sandhu, ESRI)

  37. Available Sites (From Jay Sandhu, ESRI)

  38. Final Configuration (From Jay Sandhu, ESRI)

  39. Vehicle Routing (From Jay Sandhu, ESRI)

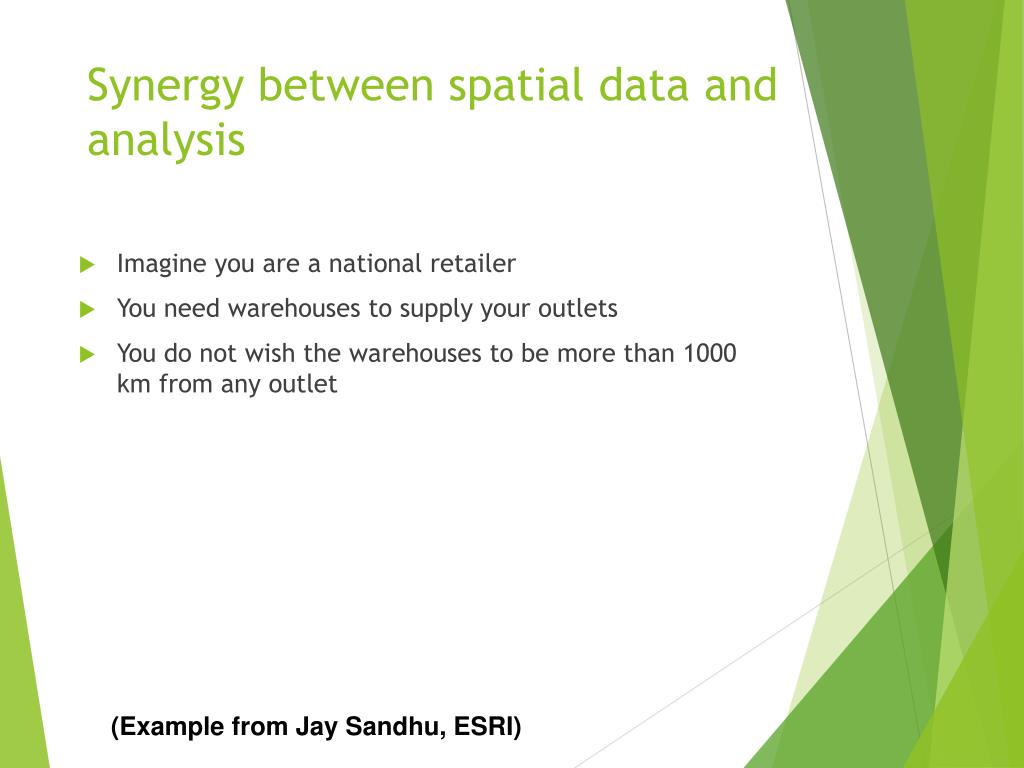

  40. Synergy between spatial data and analysis • Imagine you are a national retailer • You need warehouses to supply your outlets • You do not wish the warehouses to be more than 1000 km from any outlet (Example from Jay Sandhu, ESRI)

  41. Demand (population density) (From Jay Sandhu, ESRI)

  42. Possible Candidate Sites…? (From Jay Sandhu, ESRI)

  43. Feasible Candidate Sites (From Jay Sandhu, ESRI)

  44. Optimal One Site (From Jay Sandhu, ESRI)
