  1. Smart Grid in Transmission Engineering Cell, GETCO, Vadodara

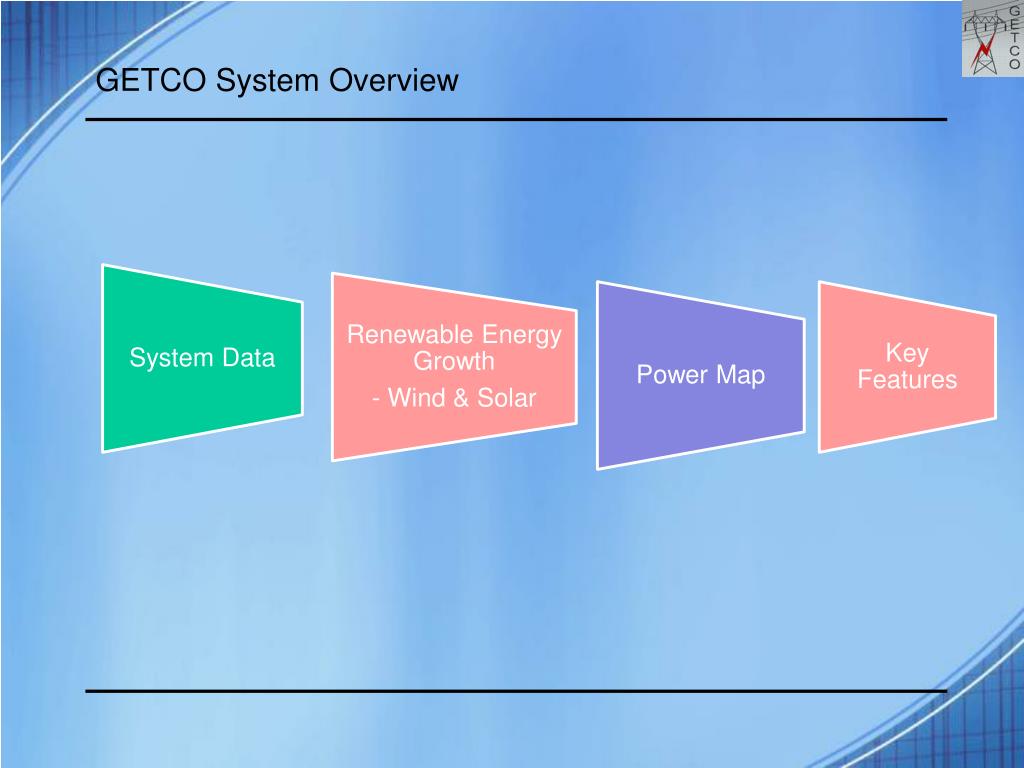

  2. GETCO System Overview

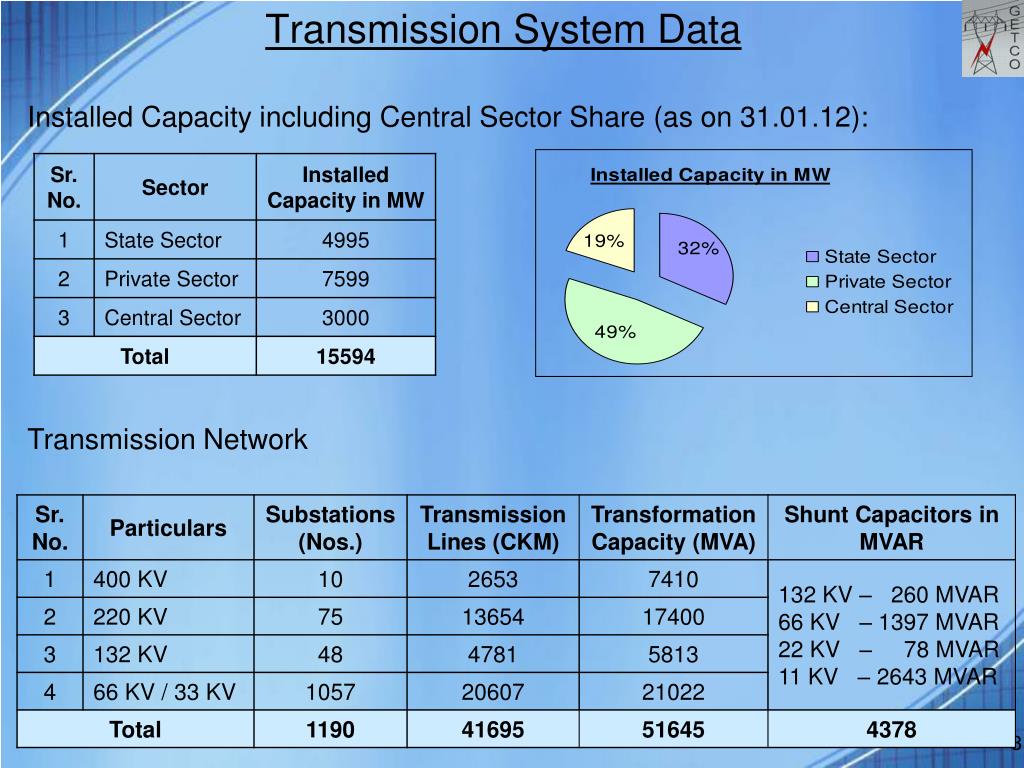

  3. Transmission System Data Installed Capacity including Central Sector Share (as on 31.01.12): Transmission Network 3

  4. Renewable Energy Growth Wind Power Potential available :> 10000 MW, Installed capacity : 2500 MW, • Approved capacity:> 7000 MW. • (2015-16) Solar Power 4

  5. Geographical locations for approved WTGs

  6. Geographical locations for Solar power projects Geographical locations for Solar power projects JSW Energy, Deodar-5MW Solar Semiconductor, Ajwada-20MW Solitaire (MoserBear), Mudetha-15MW Torrent Power, Savpura-25MW NTPC, Morwada-50MW Welspun Urja-40MW Solar semiconductor, Ajwada-20MW ACME Tele, Ghuntwada – 15 MW Astonifield, Bhuj–10 MW Cargo Motors, Rapar – 25 MW CHARANKA Solitaire, Mitha-15MW Precious, Akhaj-15MW Euro Solar, Bhachau–5MW Azure Power, Bhachau-5 MW AES Solar, Bhachau – 15 MW Inspira Solar, Bhachau – 15 MW Lanco, Bhadrada-5MW Lanco, Chandiyala – 15 MW PLG Power, Sami-40MW Welspun, Bhabhar – 15 MW WAA Solar, Sami – 10 MW Moser Baer, Deesa – 15 MW ESP Urja, Samakhiali – 5 MW Bhoomipooja Buildwell, Halvad – 10 MW Lanco, Dasada – 15 MW Sunkon Energy, Dasada – 10 MW Azure Power, Dasada – 10 MW Adani Power – Dasada – 40 MW Millenium Synergy, Dasada – 10 MW Dreisatz, Patdi – 25 MW MI Mysolar, Patdi – 25 MW Skemrock industries Padra GIPCL Mangrol Sunkon Energy

  7. Total installed capacity of Gujarat: 15594MW* (* including Wind farm capacity 2560 MW, Solar capacity 193 MW, Biomass capacity 21 MW)

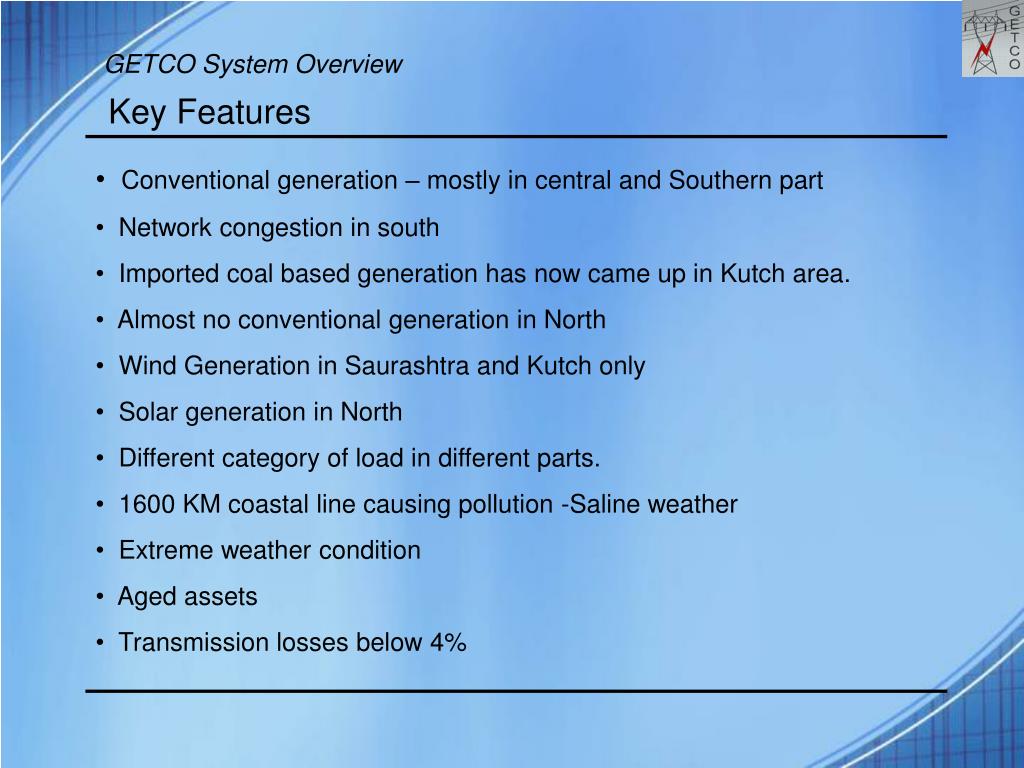

  8. GETCO System OverviewKey Features • Conventional generation – mostly in central and Southern part • Network congestion in south • Imported coal based generation has now came up in Kutch area. • Almost no conventional generation in North • Wind Generation in Saurashtra and Kutch only • Solar generation in North • Different category of load in different parts. • 1600 KM coastal line causing pollution -Saline weather • Extreme weather condition • Aged assets • Transmission losses below 4%

  9. Flow of Presentation

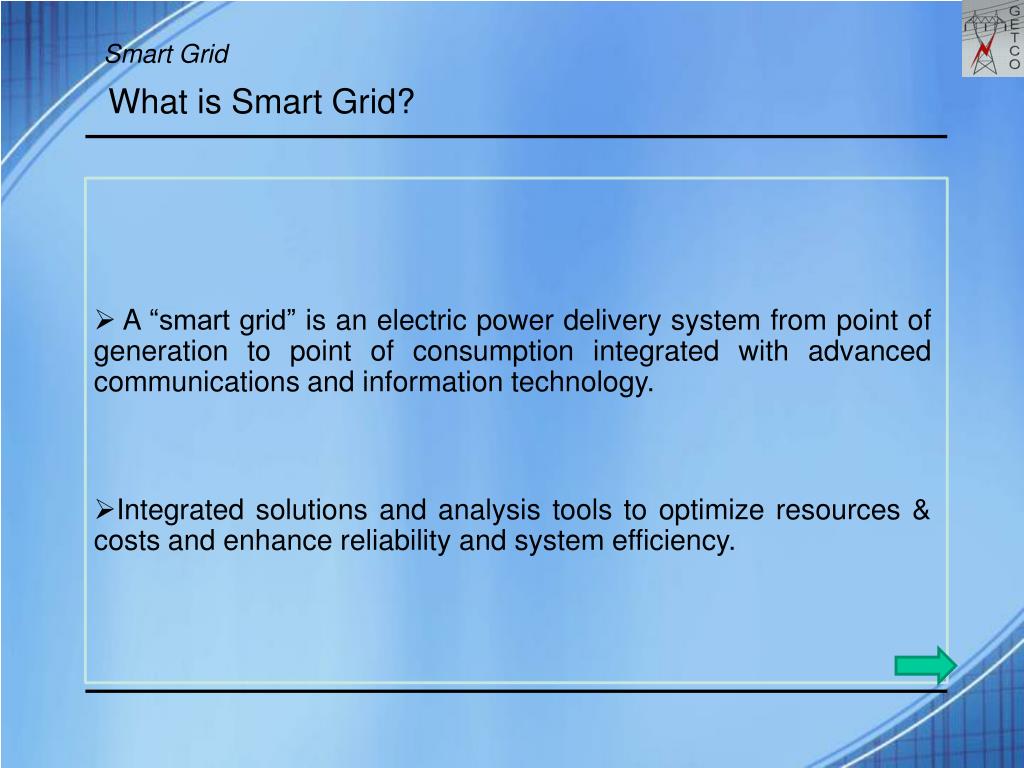

  10. Smart GridWhat is Smart Grid? • A “smart grid” is an electric power delivery system from point of generation to point of consumption integrated with advanced communications and information technology. • Integrated solutions and analysis tools to optimize resources & costs and enhance reliability and system efficiency.

  11. Smart GridWhat is Smart Grid?

  12. Smart GridWho are the drivers? Drivers

  13. Smart GridWho are the drivers? Drivers

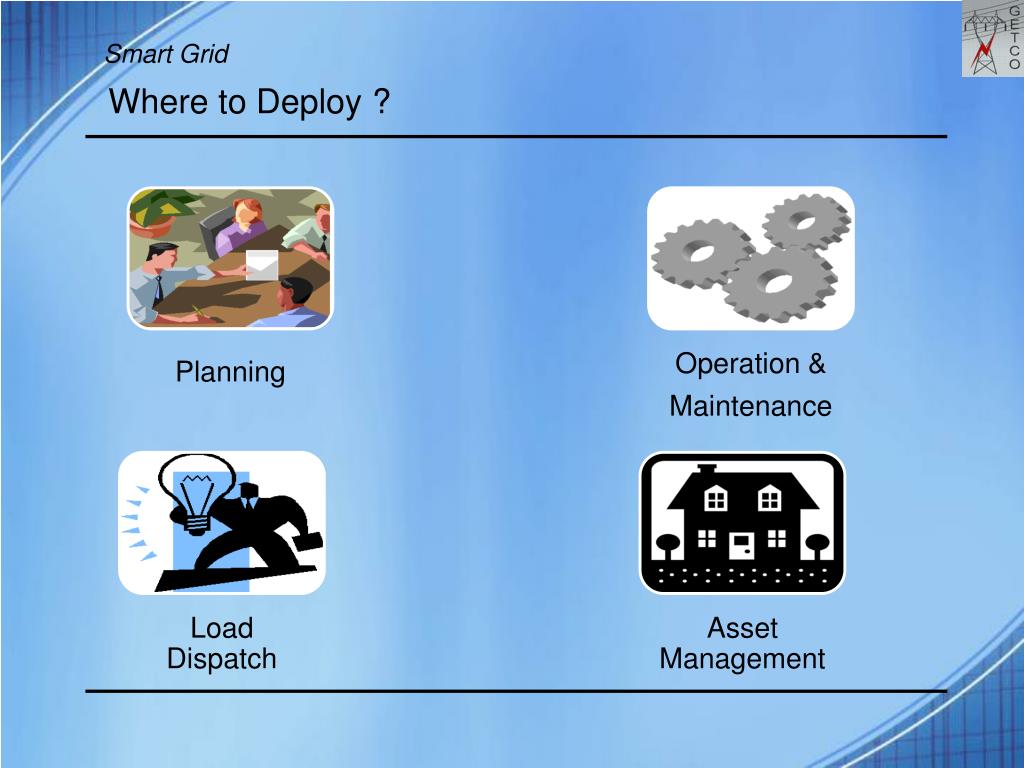

  14. Smart GridWhere to Deploy ? • Planning • Operation & • Maintenance • Load Dispatch • Asset Management

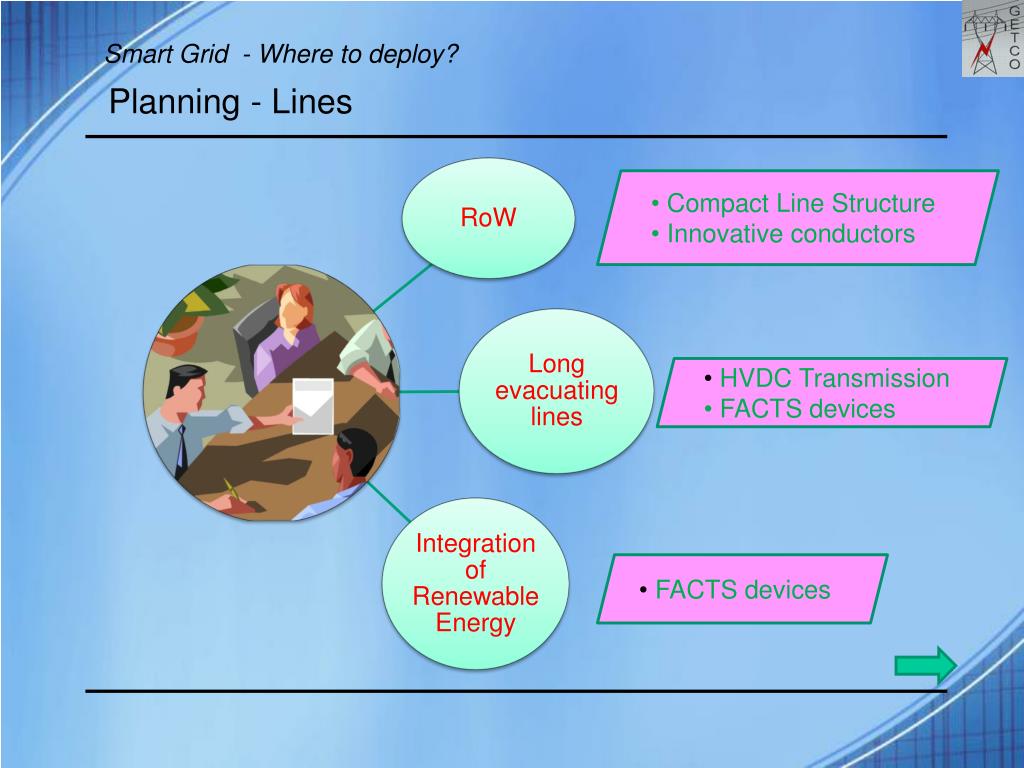

  15. Smart Grid - Where to deploy? Planning - Lines • Compact Line Structure • Innovative conductors • HVDC Transmission • FACTSdevices • FACTSdevices

  16. Smart Grid - Where to deploy? Planning – Sub Stations • GIS , Hybrid Switchgear • Intelligent primary and secondary equipments • Sub station Automation System • Innovative and smart working devices for safety

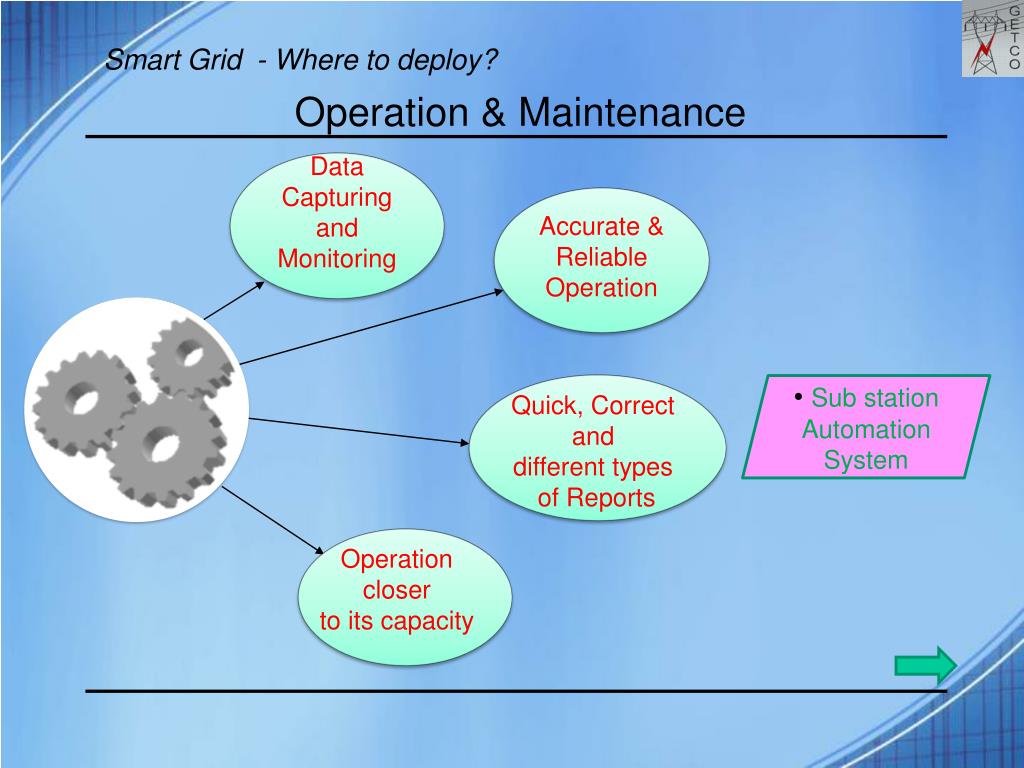

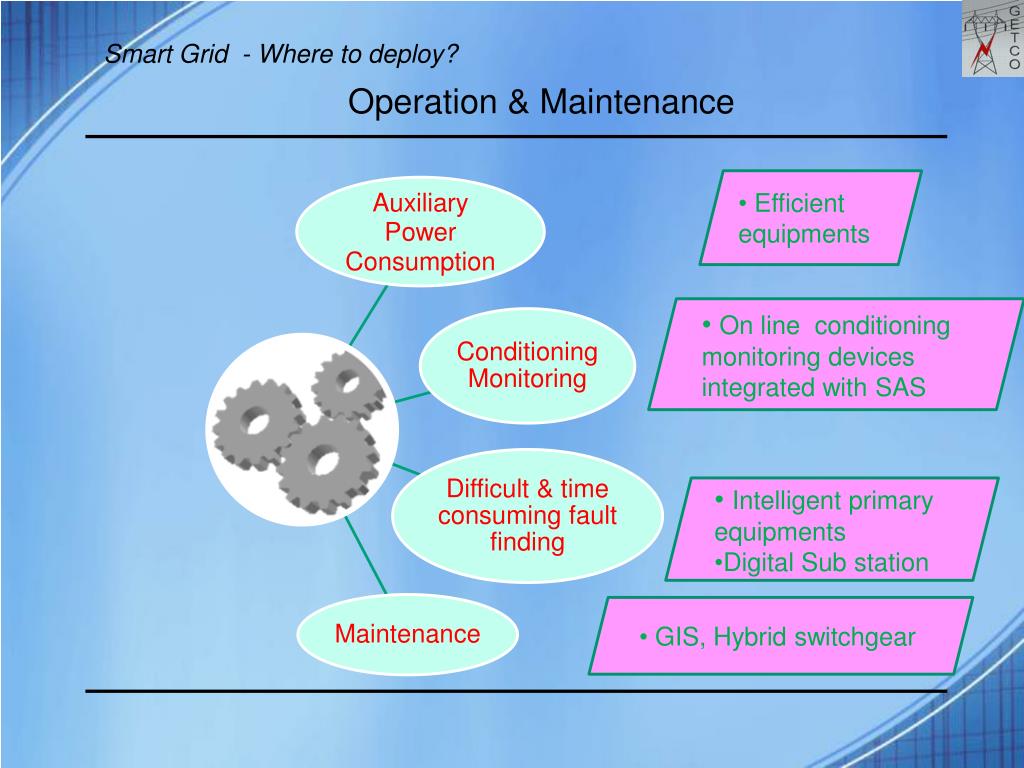

  17. Smart Grid - Where to deploy? Operation & Maintenance • Data Capturing and Monitoring • Accurate & • Reliable • Operation • Sub station • Automation System Quick, Correct and different types of Reports Operation closer to its capacity

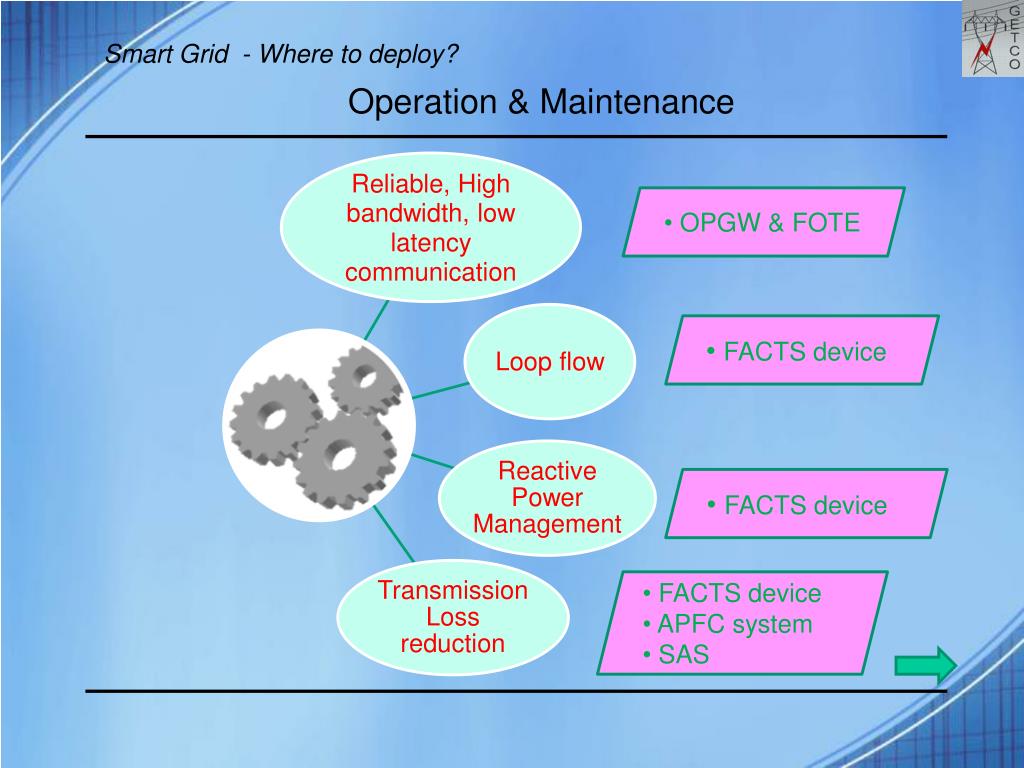

  18. Smart Grid - Where to deploy? Operation & Maintenance • OPGW & FOTE • FACTS device • FACTS device • FACTS device • APFC system • SAS

  19. Smart Grid - Where to deploy? Operation & Maintenance • Efficient equipments • On line conditioning monitoring devices integrated with SAS • Intelligent primary equipments • Digital Sub station • GIS, Hybrid switchgear

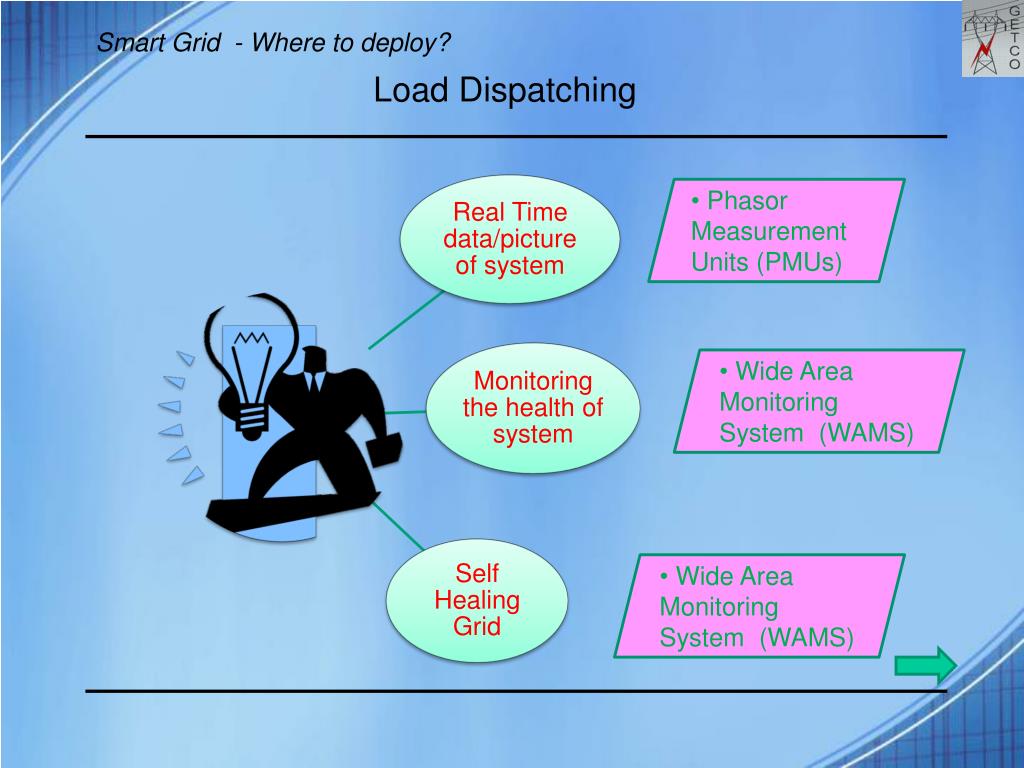

  20. Smart Grid - Where to deploy? Load Dispatching • Phasor Measurement Units (PMUs) • Wide Area Monitoring System (WAMS) • Wide Area Monitoring System (WAMS)

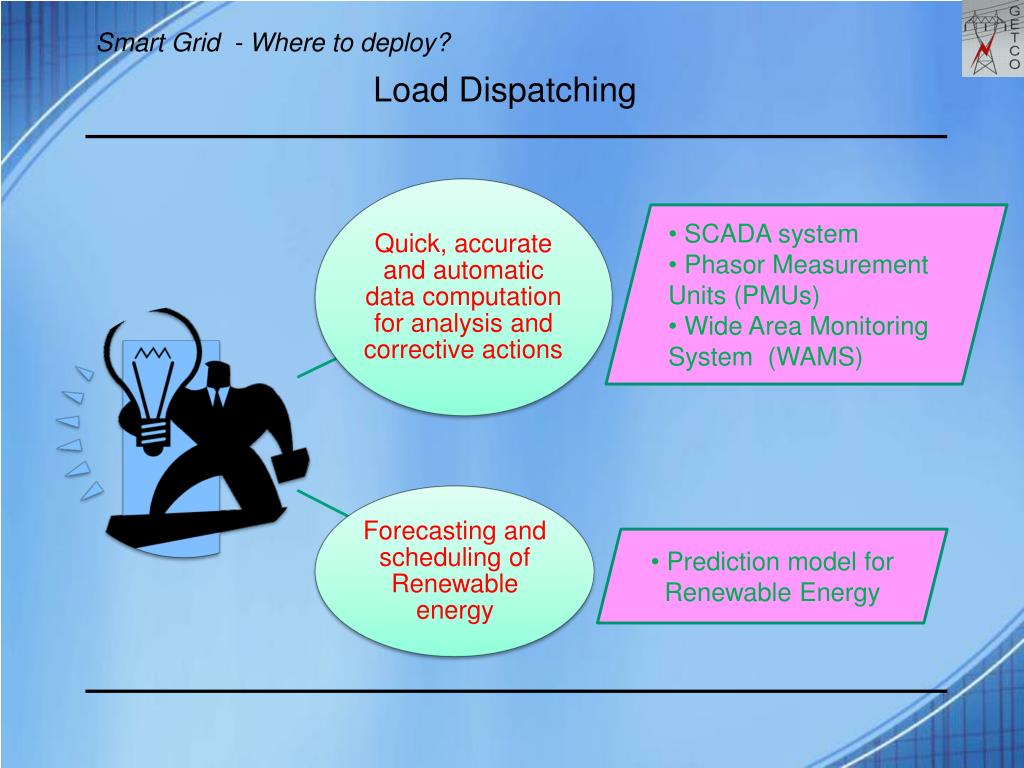

  21. Smart Grid - Where to deploy? Load Dispatching • SCADA system • Phasor Measurement Units (PMUs) • Wide Area Monitoring System (WAMS) • Prediction model for Renewable Energy

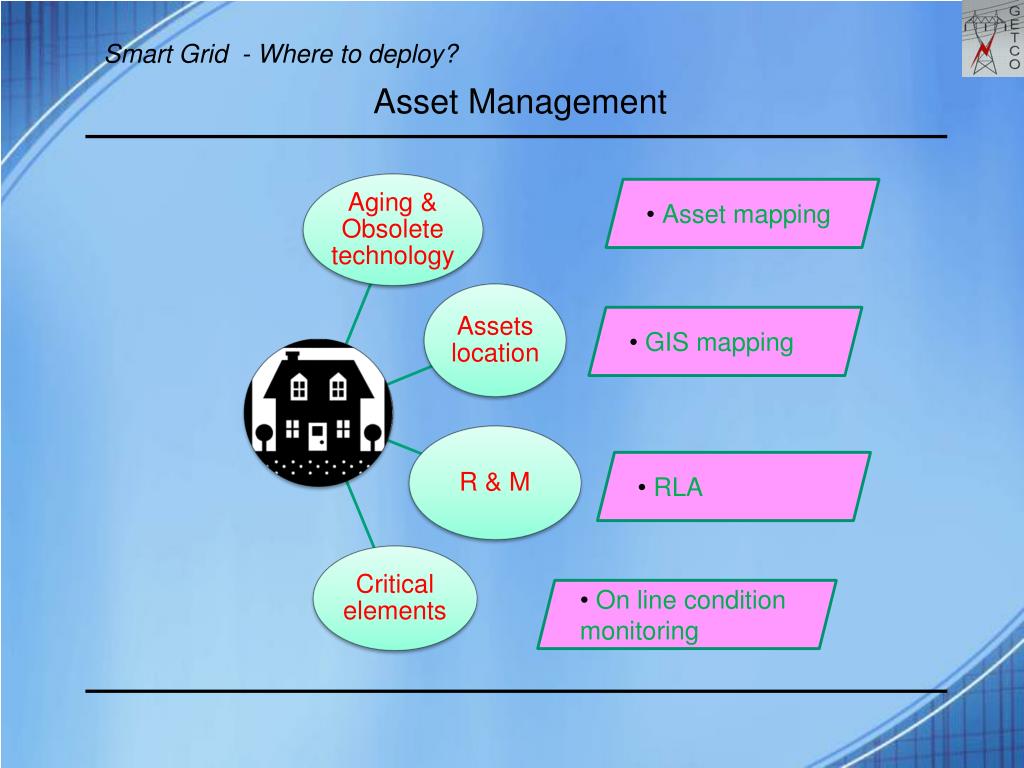

  22. Smart Grid - Where to deploy?Asset Management • Asset mapping • GIS mapping • RLA • On line condition monitoring

  23. Smart Grid What are the Issues, Challenges & Expectations ? Issues & Challenges

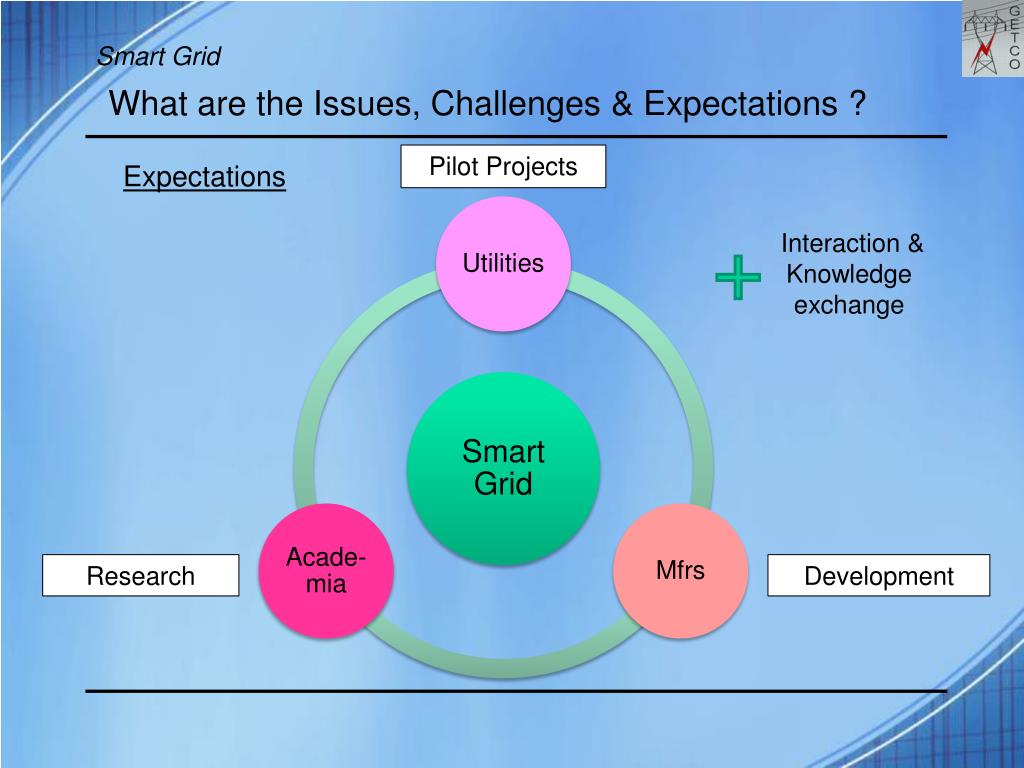

  24. Smart Grid What are the Issues, Challenges & Expectations ? Pilot Projects Expectations Interaction & Knowledge exchange Research Development

  25. Smart Grid Conclusion It is not so much a question whether We can afford Smart Grid, But whether We can afford not to have Smart Grid
