  1. Hand Tools Measuring Tools Cutting and Shaping Tools Striking Tools Drill Bits

  2. Measuring Tools • Measuring tape • Scratch awl • Combination square • Try square • Framing square

  3. Tape measure Tape measures are used to find the exact size of things.

  4. Scratch awl Scratch awls are used to mark the center of holes to be drilled

  5. Framing square Try square Combination square Squares are used to find out if cuts are square and for layout work.

  6. Cutting tools • Utility knife • Wood chisel • Wood rasp • Mill bastard file • Back saw • Hand saw • Block plane • Jack plane • Glue scraper • Putty knife

  7. Utility knife Putty knife Wood chisel Glue scraper Putty knives are used for applying putty to projects. Glue scrapers are for scraping glue off projects. Utility knives are for cutting various materials and wood chisels are for cutting wood.

  8. Hand saw Back saw Hand saws are for cutting through wood, usually detail work. In the past they were the table , radial arm, and miters saws.

  9. Wood rasp Rasps are to shape wood. They are a rough cutting tool. The wood will need smoothing after the rasp is used. Mill bastard file Mill bastard files are for smoothing irregular shapers and for metal work.

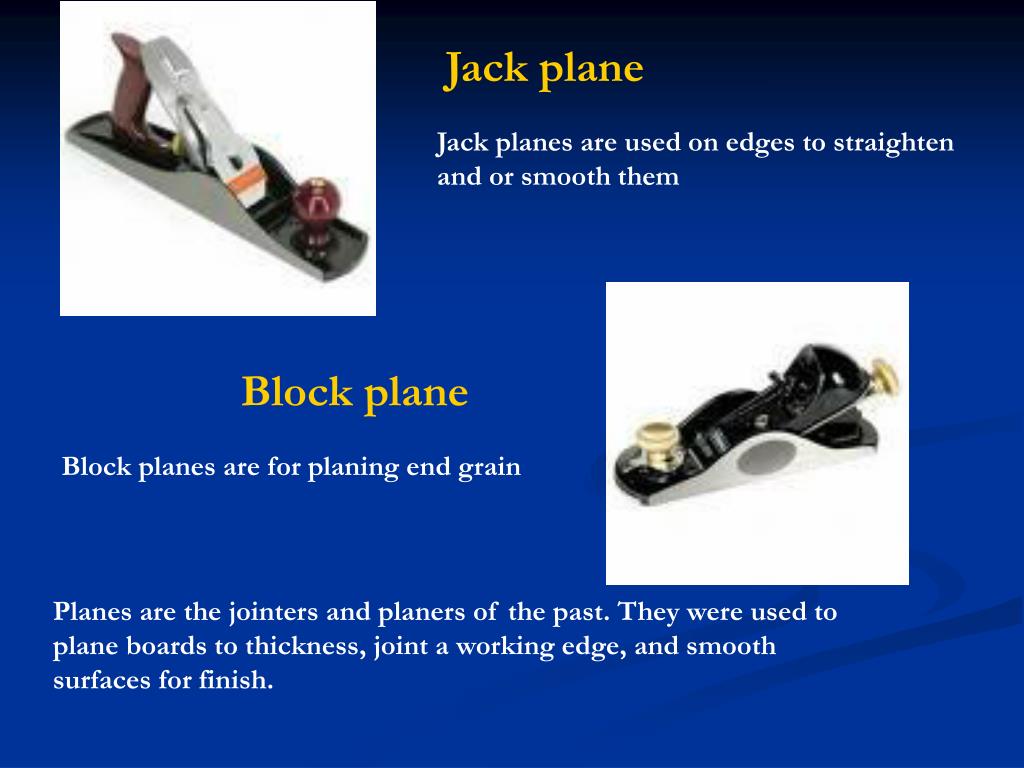

  10. Jack plane Jack planes are used on edges to straighten and or smooth them Block plane Block planes are for planing end grain Planes are the jointers and planers of the past. They were used to plane boards to thickness, joint a working edge, and smooth surfaces for finish.

  11. Identify these hand tools

  12. Ice pick • Scratch awl • Screw driver • Rasp

  13. Framing square • Combination square • Center square • Try square

  14. Framing square • Combination square • Center square • Try square

  15. Cross cut saw • Hack saw • Back saw • Rip saw

  16. Block plane • Jack plane • Smooth plane • Rabbet plane

  17. Block plane • Jack plane • Smooth plane • Rabbet plane

  18. Utility knife • Wood chisel • Putty knife • Glue scraper
