  1. Secure Programs viaGame-based Synthesis • Somesh Jha, Tom Reps, and Bill Harris

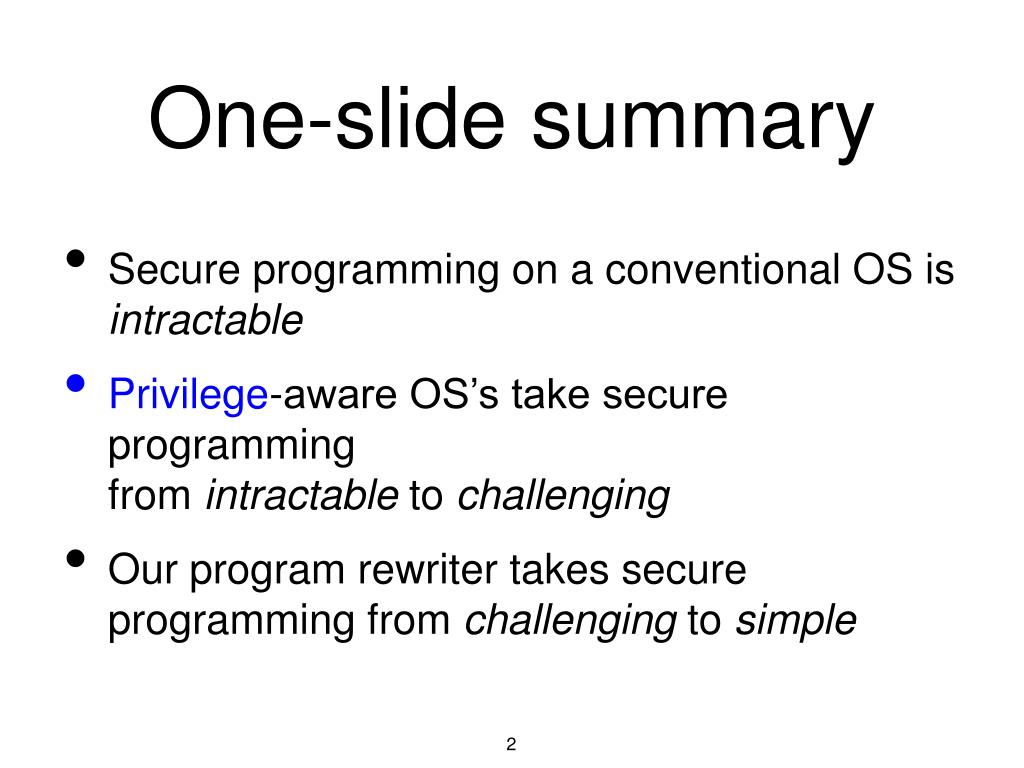

  2. One-slide summary • Secure programming on a conventional OS is intractable • Privilege-aware OS’s take secure programmingfrom intractable to challenging • Our program rewriter takes secure programming from challenging to simple

  3. Outline • Motivation, problem statement • Motivation, problem statement • Previous work: Capsicum [CAV ’12, Oakland ’13] • Ongoing work: HiStar • Open challenges

  4. Secure Programmingis Intractable • 81 exploits in CVE since Sept. 2013 • Many exploit a software bugto carry out undesirable system operations • 2013-5751: exploit SAP NetWeaverto traverse a directory • 2013-5979: exploit bad filename handling inXibo to read arbitrary files • 2013-5725: exploit ByWordto overwrite files 4

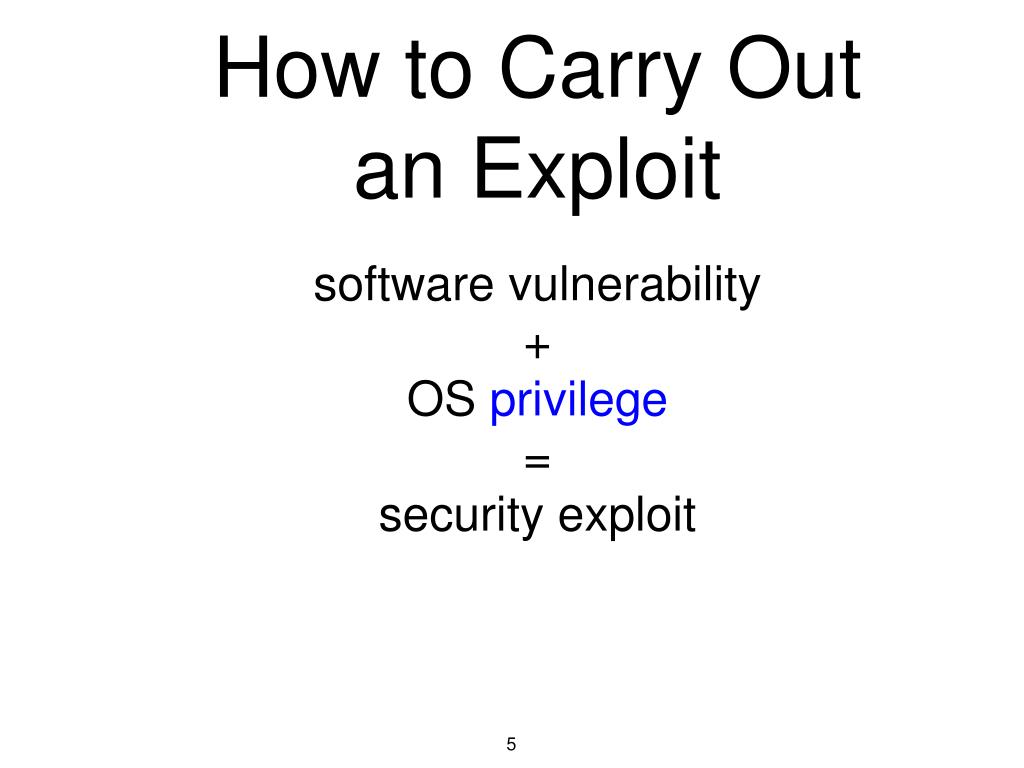

  5. How to Carry Outan Exploit software vulnerability + OS privilege = security exploit

  6. Solution The Conventional-OS software vulnerability + OS privilege = security exploit

  7. Solution The Program-Verification software vulnerability + OS privilege = security exploit

  8. Priv.-aware OS • Introduce explicitprivileges over all system objects,primitives that update privileges • Programs call primitives to manage privilege

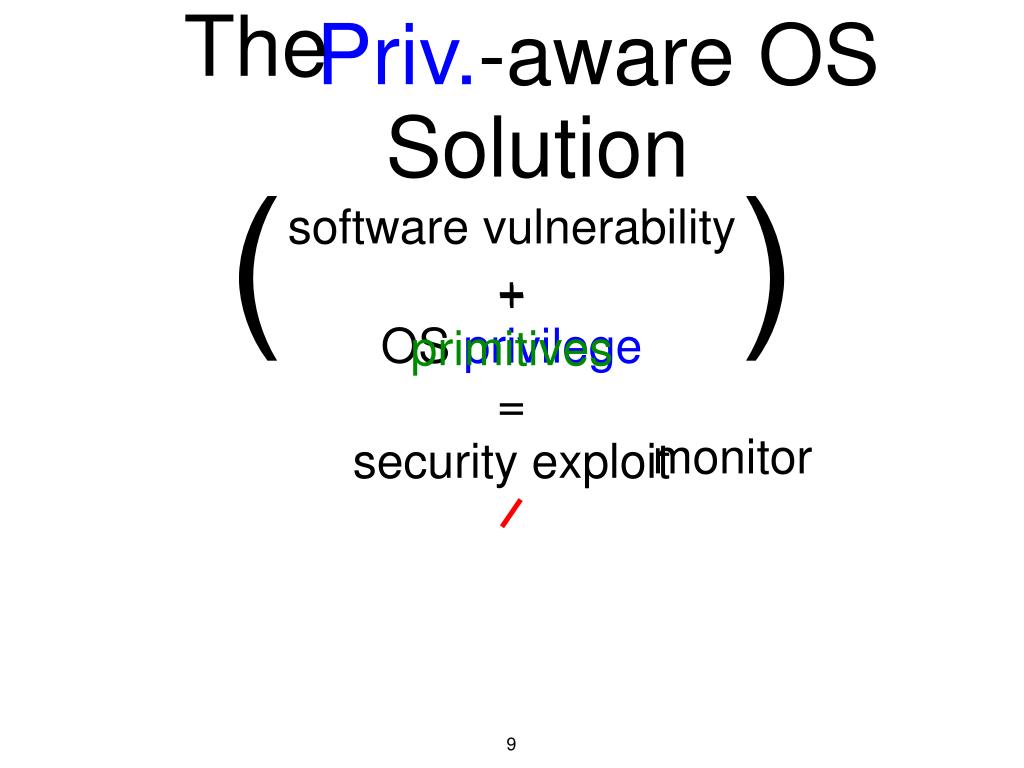

  9. Priv.-aware OS The Solution ( ) software vulnerability + OS privilege = security exploit + primitives monitor

  10. Priv.-aware OS The Capsicum [Watson ’10] • Privilege: ambient authority (Amb) to open descriptors to system objects • Primitives: program calls cap_enter()to manage Amb

  11. Rules of ’s Amb Capsicum • When a process is created,it has the Amb value of its parent • After a process calls cap_enter(),it does not have Amb • If a process does not have Amb,then it can never obtain Amb

  12. gzip • main() { • file_nms = parse_cl(); • for (f in file_nms): • L0: (in, out) = open2(f); • } L1: compress(in, out); L1:compress(in, out); /usr/local http://evil.com

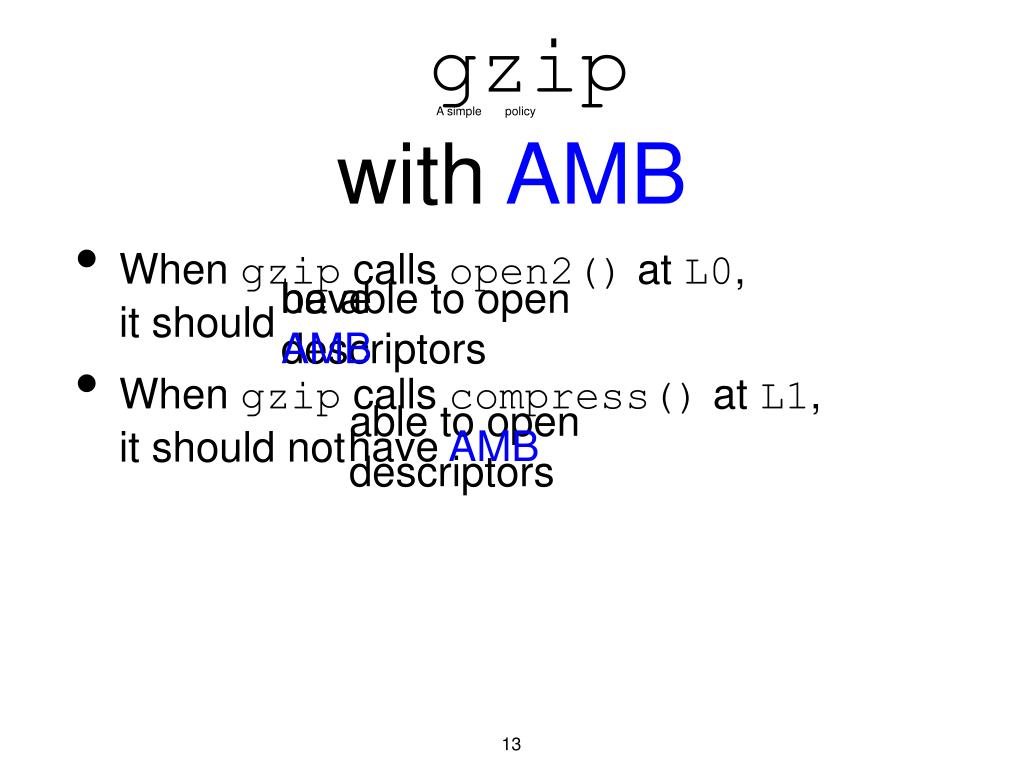

  13. A simple policy gzip with AMB • When gzip calls open2() at L0,it should • When gzip calls compress() at L1,it should not be able to open descriptors have AMB have AMB able to open descriptors

  14. with AMB ? L0:AMB L1:no AMB ? gzip main() { file_nms = parse_cl(); for (f in file_nms): L0: (in, out) = open2(f); L1: compress(in, out); } cap_enter()

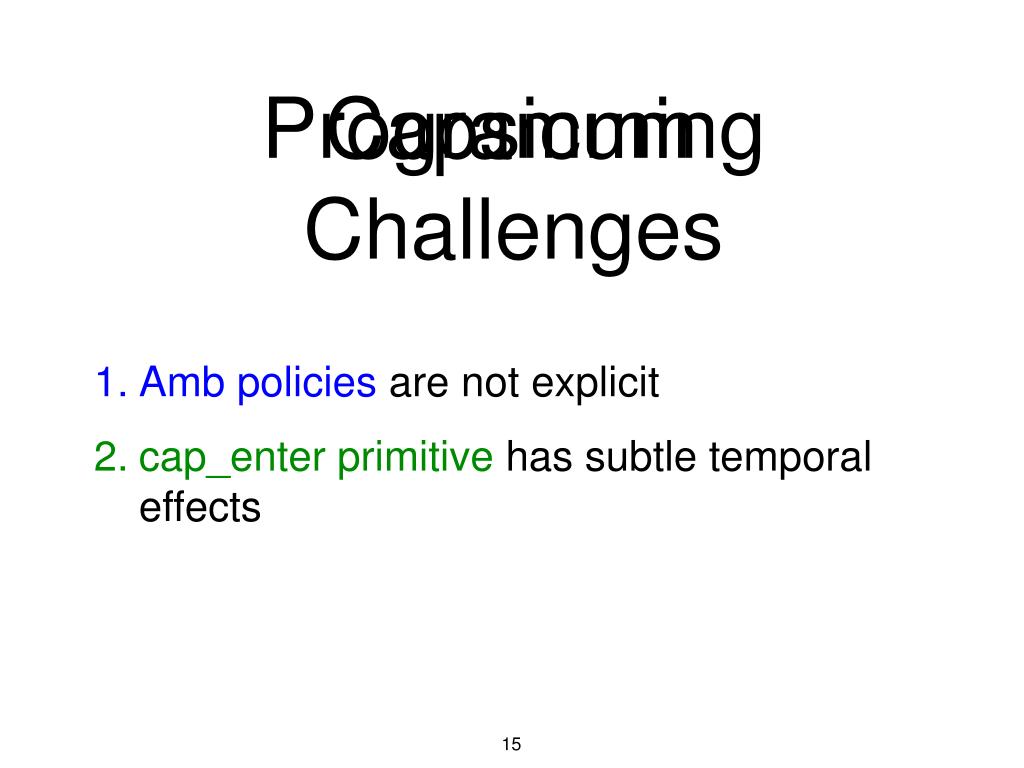

  15. Capsicum Programming Challenges • Amb policies are not explicit • cap_enter primitive has subtle temporal effects

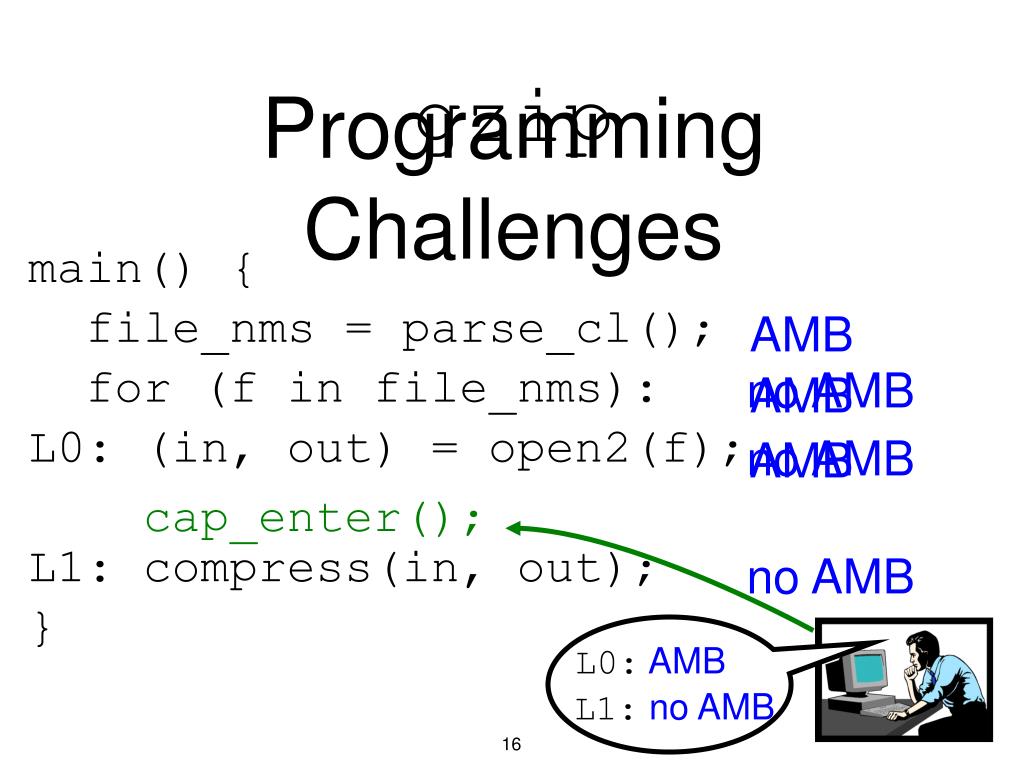

  16. gzip Programming Challenges main() { file_nms = parse_cl(); for (f in file_nms): L0: (in, out) = open2(f); L1: compress(in, out); } AMB no AMB AMB no AMB AMB cap_enter(); no AMB L0:AMB L1:no AMB

  17. Rules of Capsicum’s Amb • When a process is created,it has the AMB value of its parent • After a process calls cap_enter(),it never has AMB • If a process does not have Amb,then it can never obtain Amb

  18. Instrumenting gzip AMB AMB AMB • main() { • file_nms = parse_cl(); • for (f in file_nms): • L0: (in, out) = open2(f); • L1: compress(in, out); • } AMB AMB sync_fork(); cap_enter(); no AMB sync_join(); L0:AMB L1:no AMB

  19. Capsicum ChallengesNot Appearing in This Talk • Program can construct capability from each UNIX descriptor • Capability has a vector of 63 access rights (~1 for every system call on a descriptor) • Programs can assume new capabilities via a Remote Procedure Call (RPC)

  20. with CapWeave Instrumenting Programs • Programmer writes an explicitAmb policy • CapWeave instruments program to invoke primitives so that it satisfies the policy

  21. with CapWeave gzip main() { file_nms = parse_cl(); for (f in file_nms): L0: (in, out) = open2(f); L1: compress(in, out); } Policy Cur(p) => (pc[L0](p) => AMB(p) & (pc[L1](p) => !AMB(p)) L0:AMB L1:no AMB

  22. main() { file_nms = parse_cl(); for (f in file_nms): L0: (in, out) = open2(f); L1: compress(in, out); } CapWeave void main() { L0: open2(...); sync_fork(); cap_enter(); L1: compress(); sync_join(); } Instrumented Program Policy Cur(p) => (pc[L0](p) => AMB(p) & (pc[L1](p) => !AMB(p))

  23. The Next 700Policy Weavers • Analogous challenges with Decentralized Information Flow Control (DIFC) • Asbestos [Efstathopoulos ‘05] • HiStar [Zeldovich ’06] • Flume [Krohn ‘07]

  24. gzip() { file_nms = parse_cl(); ... } Policy Cur(p) => (pc[L0](p) => AMB(p)) & (pc[L1](p) => !AMB(p)) CapWeave gzip() { file_nms = parse_cl(); sync_fork(); cap_enter(); ... } Programmer Capsicum Designer cap_enter: Amb’(p):= Amb(p) & ... WeaverGenerator

  25. Programmer HiStar Designer create_cat(&c):Flows’(p, q) := Flows(p, q) || ... wrapper() { exec(...); ... } Policy forall w, s. Flows(w, s) => ... HiWeave WeaverGenerator scanner() { create_cat(&c); exec(...); ... }

  26. Outline • Previous work: Capsicum • Motivation, problem statement • Previous work: Capsicum • Ongoing work: HiStar • Open challenges

  27. CapWeave Algorithm • Inputs: Program P, Amb Policy Q • Output: Instrumentation of P that always satisfies Q • Build finite IP#⊇instrumented runs that violate Q

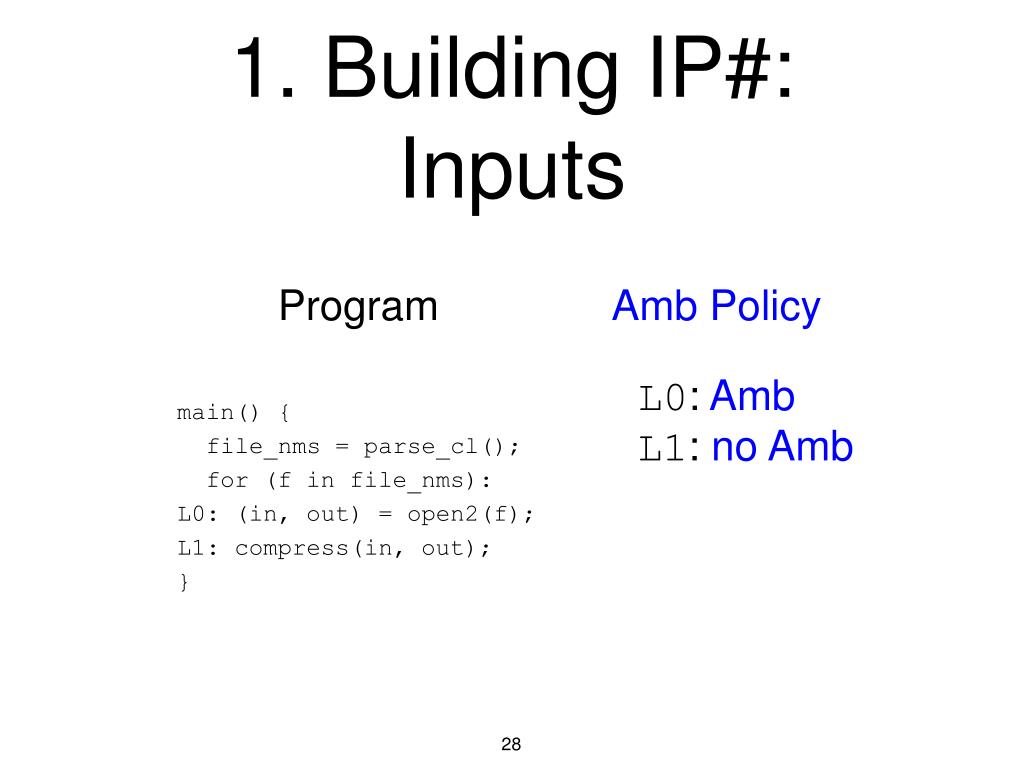

  28. 1. Building IP#: Inputs Program Amb Policy L0: Amb L1: no Amb main() { file_nms = parse_cl(); for (f in file_nms): L0: (in, out) = open2(f); L1: compress(in, out); }

  29. 1. Building IP#: Output parse_cl cap_enter noop L0:open2() L0:open2() sync_join() noop sync_fork() noop noop noop noop cap_enter() cap_enter() L1:compress() L1:compress() L1:compress() L1:compress() noop L1: no Amb L0:open2()

  30. 1. Building IP#: Output parse_cl cap_enter noop L0:open2() L0:open2() sync_join() noop sync_fork() noop noop noop noop cap_enter() cap_enter() L1:compress() L1:compress() L1:compress() L1:compress() noop L0:open2() L0: Amb

  31. Building IP# • Basic idea: construct IP# as a forward explorationof an abstract state space

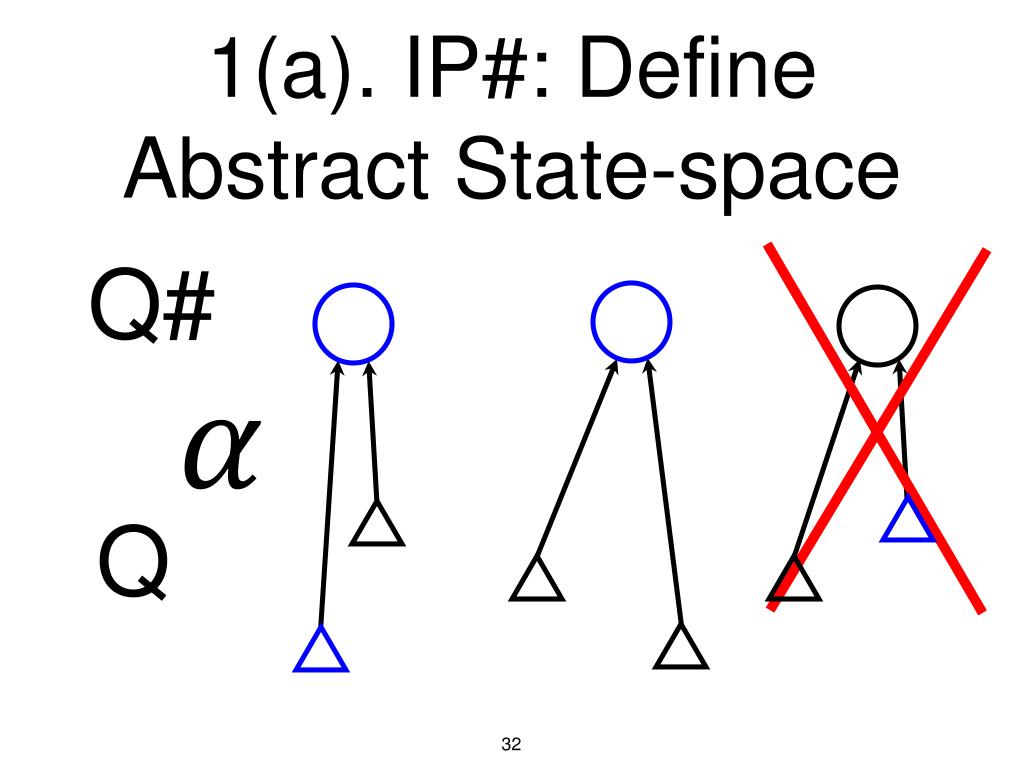

  32. 1(a). IP#: Define Abstract State-space 𝛼 Q# Q

  33. 1(b). IP#: Define Abstract Transformers 𝜏[cap_enter]# 𝛼 Q# Q 𝜏[cap_enter]

  34. 𝜏[noop]# ... noop ... 1(c). Explore Abstract State Space 𝜏[cap_enter]# 𝛼 𝜏[parse_cl]# ... Q# cap_enter ... parse_cl Q L0’ L0 init

  35. parse_cl cap_enter noop L0:open2() L0:open2() sync_join() noop sync_fork() noop noop noop noop cap_enter() cap_enter() L1:compress() L1:compress() L1:compress() L1:compress() noop L0:open2() 𝜏[parse_cl]#

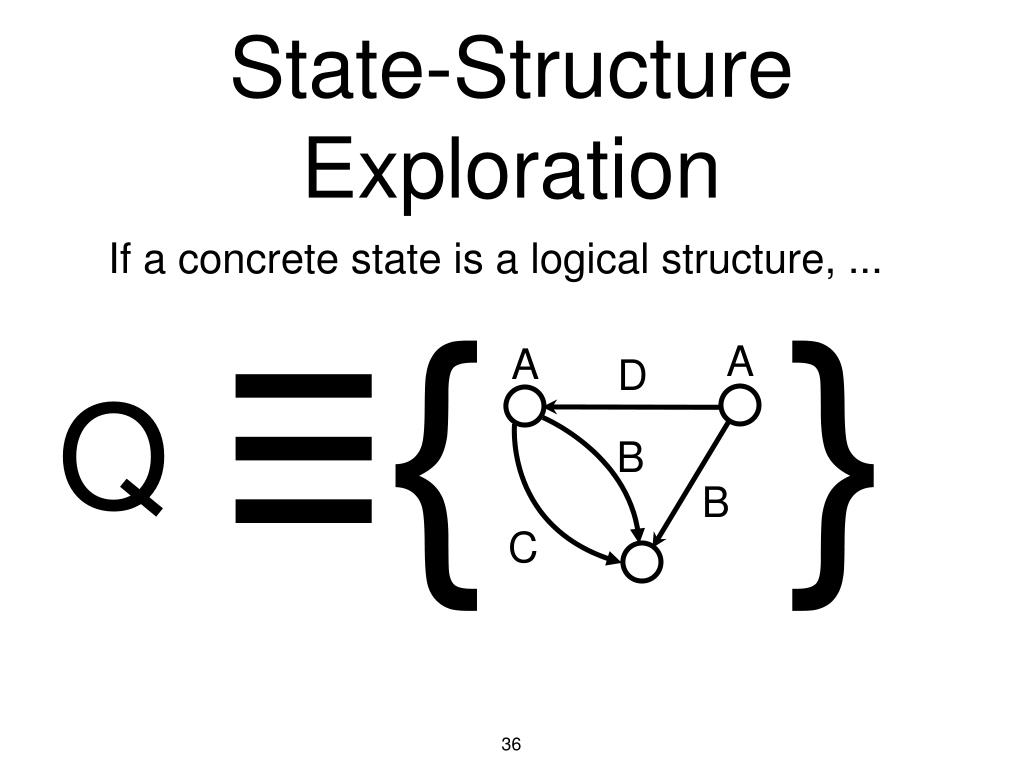

  36. ≡{ } A A D B B C State-Structure Exploration If a concrete state is a logical structure, ... Q

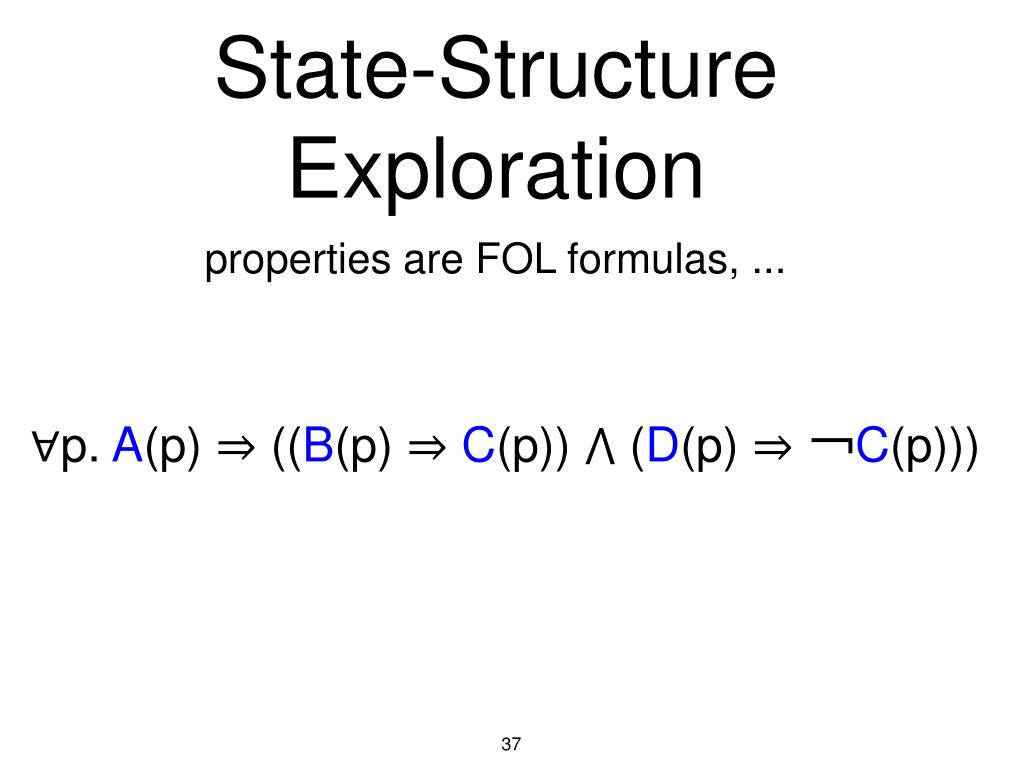

  37. State-Structure Exploration properties are FOL formulas, ... ∀p. A(p) ⇒ ((B(p) ⇒C(p)) ⋀ (D(p) ⇒ ￢C(p)))

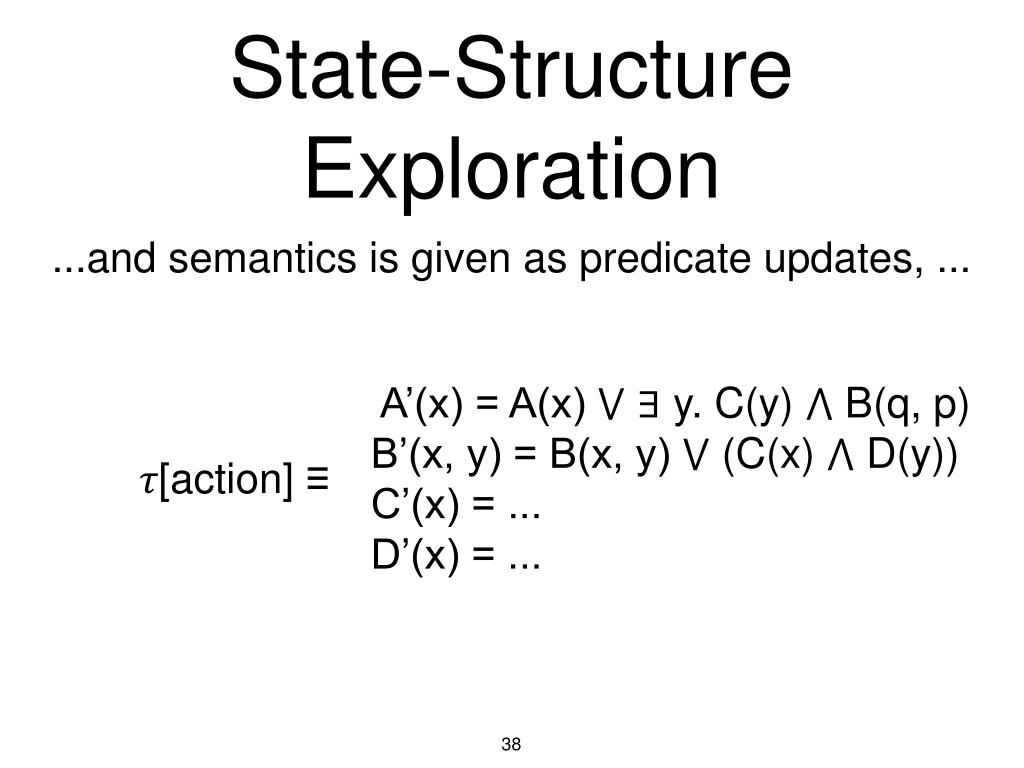

  38. State-Structure Exploration ...and semantics is given as predicate updates, ... A’(x) = A(x) ⋁∃ y. C(y) ⋀ B(q, p) B’(x, y) = B(x, y) ⋁ (C(x) ⋀ D(y)) C’(x) = ... D’(x) = ... 𝜏[action] ≡

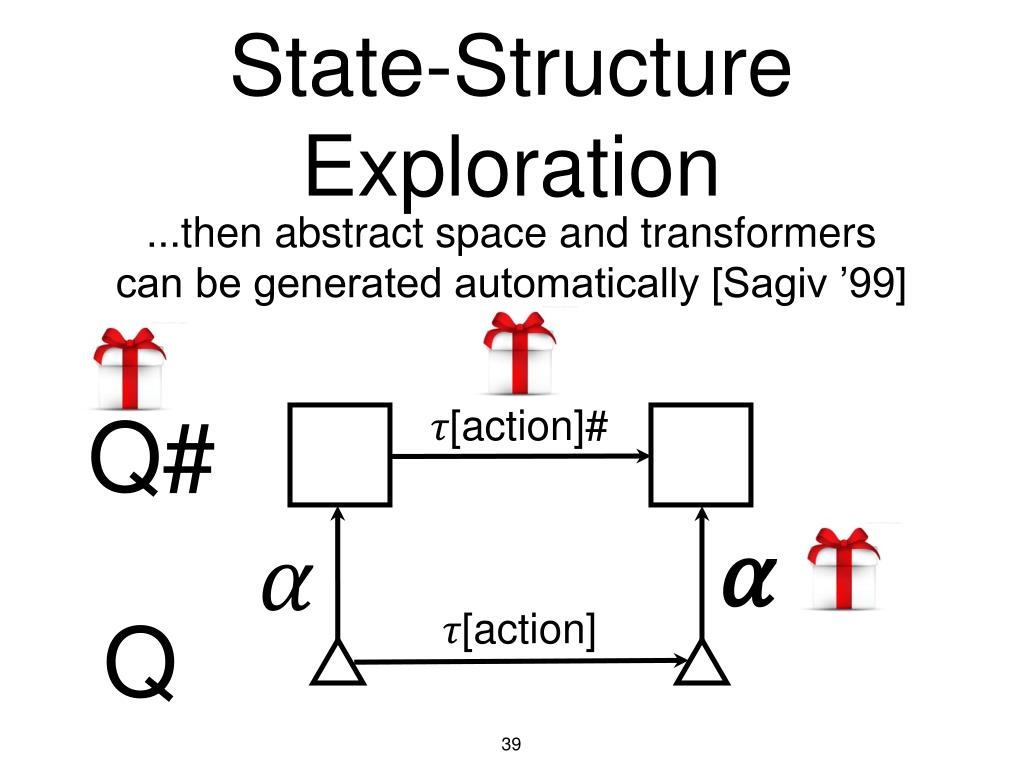

  39. State-Structure Exploration ...then abstract space and transformers can be generated automatically [Sagiv ’99] 𝜏[action]# Q# 𝛼 𝛼 𝜏[action] Q

  40. Capsicum Semantics A A Q ≡ D 1. 2. B B C A’(x) = A(x) ⋁∃ y. C(y) ⋀ B(q, p) B’(x, y) = B(x, y) ⋁ (C(x) ⋀ D(y)) C’(x) = ... D’(x) = ... 𝜏[action] ≡

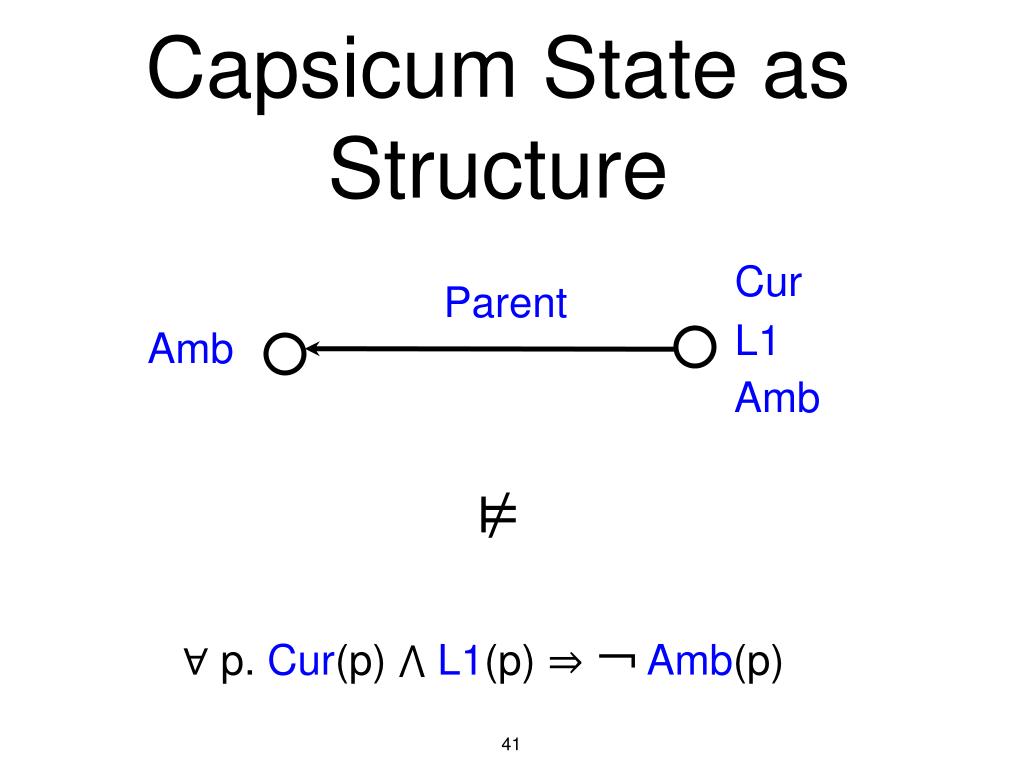

  41. Capsicum State as Structure Cur Parent L1 Amb Amb ⊭ ∀ p. Cur(p) ⋀L1(p) ⇒ ￢ Amb(p)

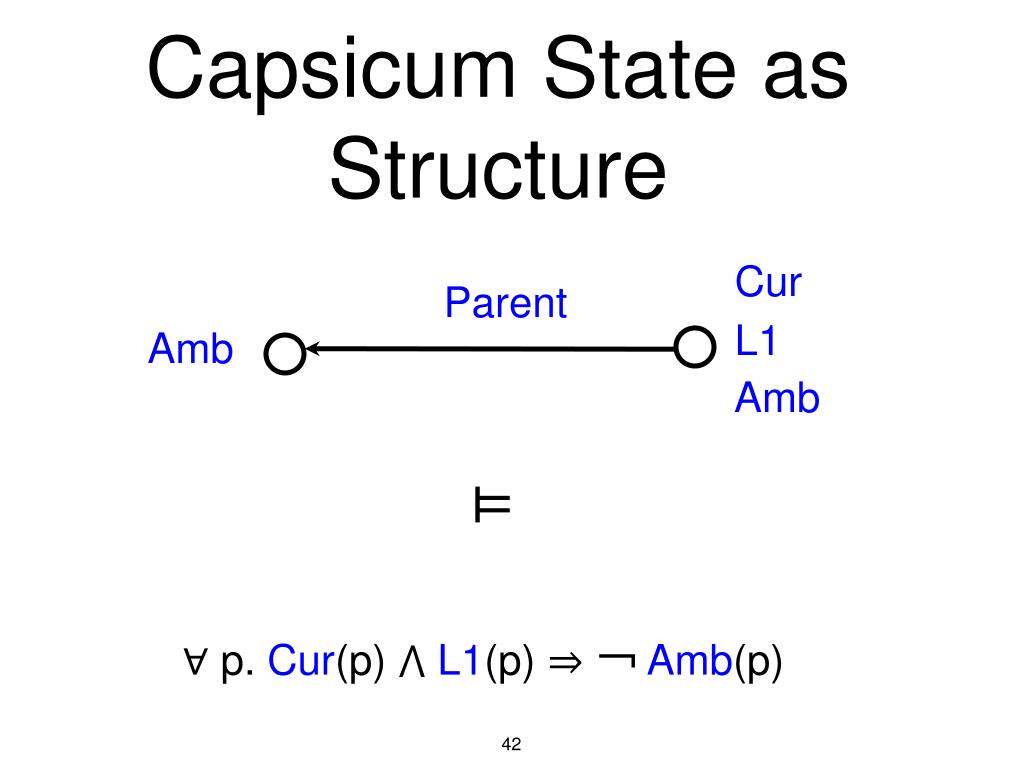

  42. Capsicum State as Structure Cur Parent L1 Amb Amb ⊨ ∀ p. Cur(p) ⋀L1(p) ⇒ ￢ Amb(p)

  43. Capsicum Structure Transformers Fresh Cur Parent Cur Amb Amb Structure Transformer Action Intro Fresh Amb’(p) := Amb(p) ⋁ ( Fresh(p) ⋀ ∃ q. Cur(q) ⋀Amb(q)) sync_fork()

  44. Capsicum Structure Transformers Fresh Parent Cur Amb Amb Structure Transformer Action Amb’(p) := Amb(p) ⋀ ￢Cur(p) cap_enter()

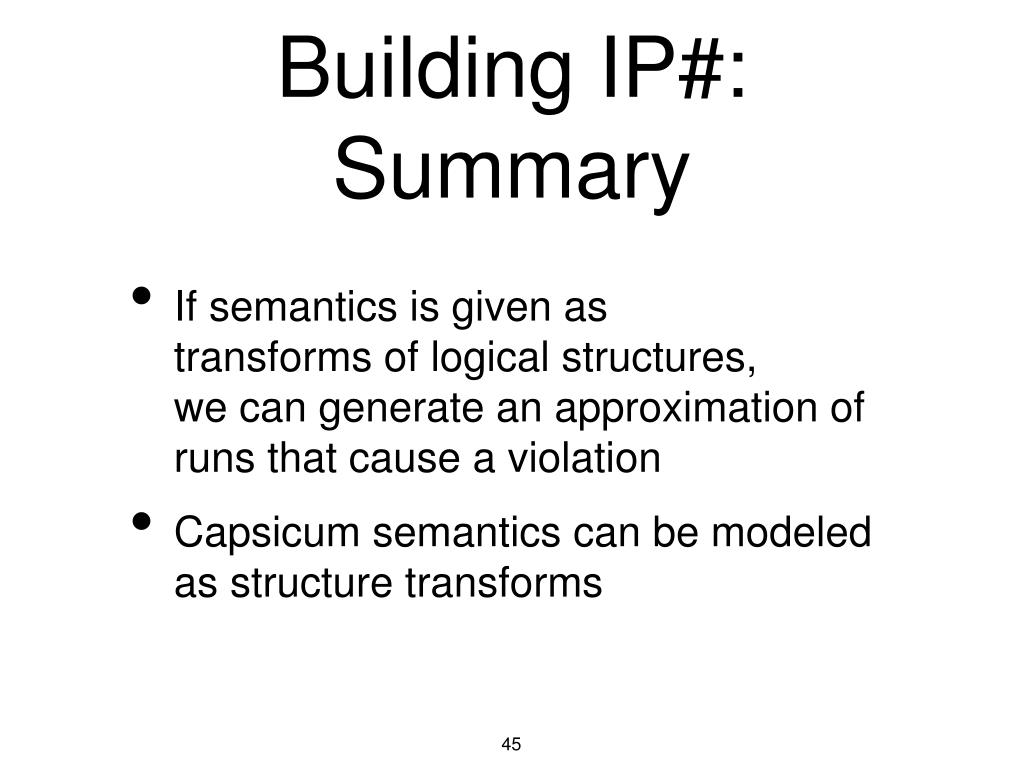

  45. Building IP#: Summary • If semantics is given astransforms of logical structures,we can generate an approximation of runs that cause a violation • Capsicum semantics can be modeled as structure transforms

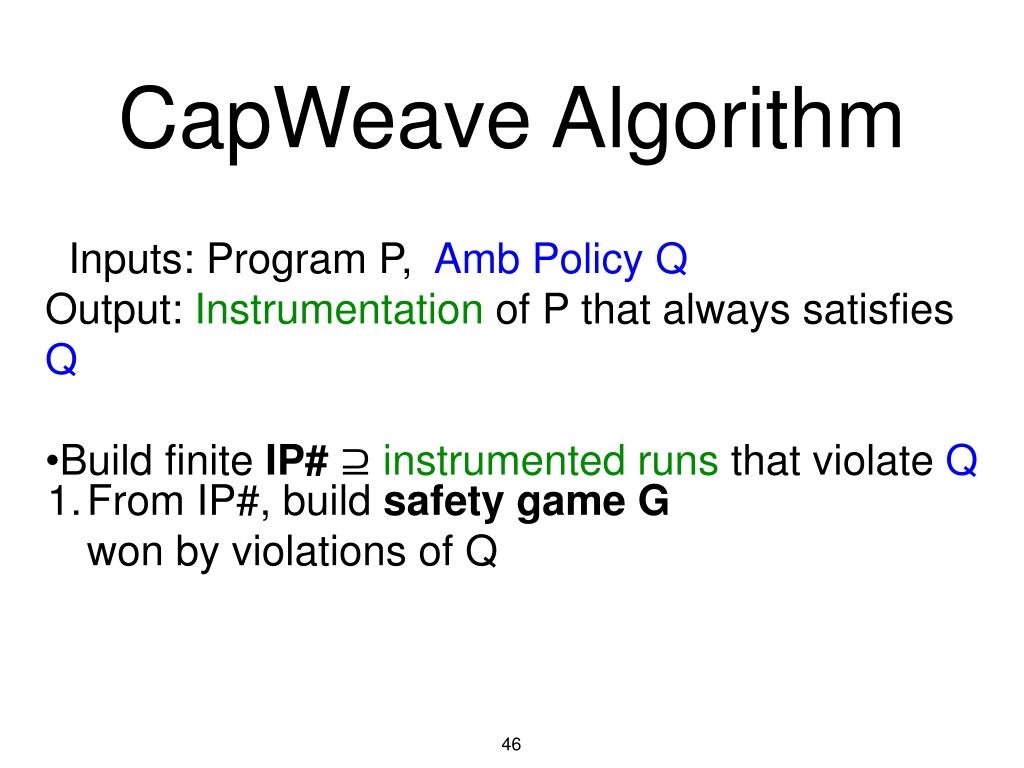

  46. CapWeave Algorithm • Inputs: Program P, Amb Policy Q • Output: Instrumentation of P that always satisfies Q • Build finite IP#⊇instrumented runs that violate Q • From IP#, build safety game Gwon by violations of Q

  47. Two-Player Safety Games • In an Attacker state,the Attacker chooses the next input • In a Defender state,the Defender chooses the next input • Attacker wants to reach an accepting state

  48. a x y b b w y z c c y x y x d d d d y b

  49. Instrumentation as a Game

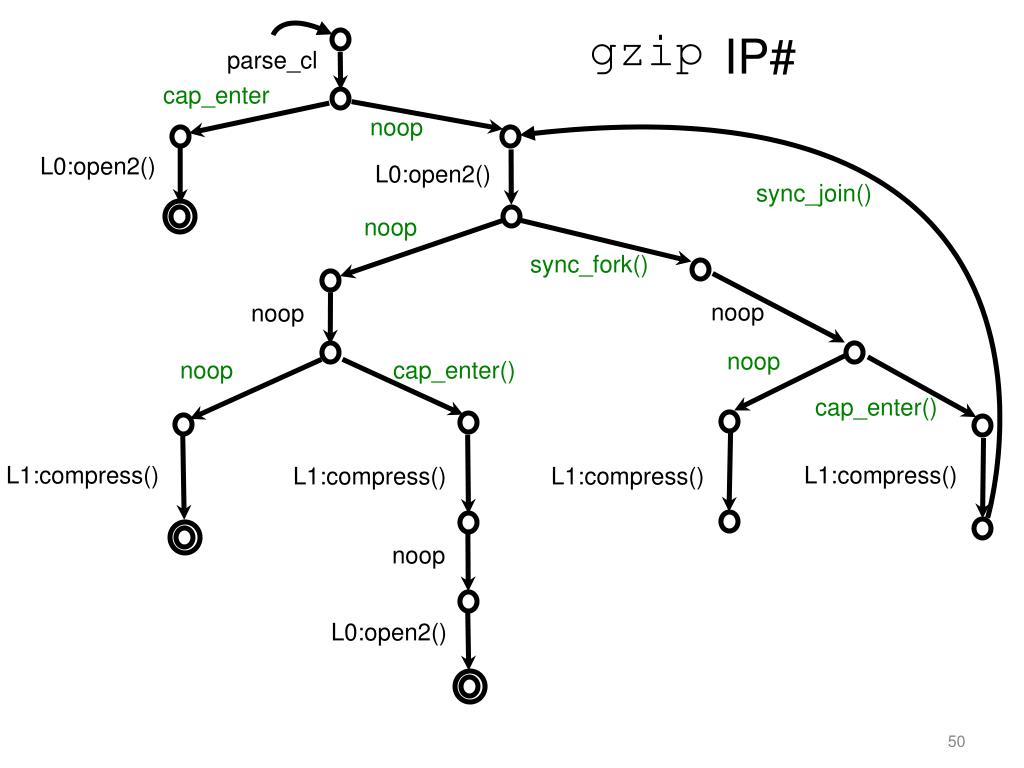

  50. gzip IP# parse_cl cap_enter noop L0:open2() L0:open2() sync_join() noop sync_fork() noop noop noop noop cap_enter() cap_enter() L1:compress() L1:compress() L1:compress() L1:compress() noop L0:open2()
