Science Starter!

Science Starter!. John weighs 735 N on Earth. What is John’s mass in kilograms? What would John’s mass be on the moon where g = 1.6 m/s 2 ? What would John’s weight be on the moon where g = 1.6 m/s 2 ? . F g = 735 N F g = mg g = 9.8 m/s 2 735 = (m) (9.8 m/s 2 )

jam
Télécharger la présentation

Science Starter!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

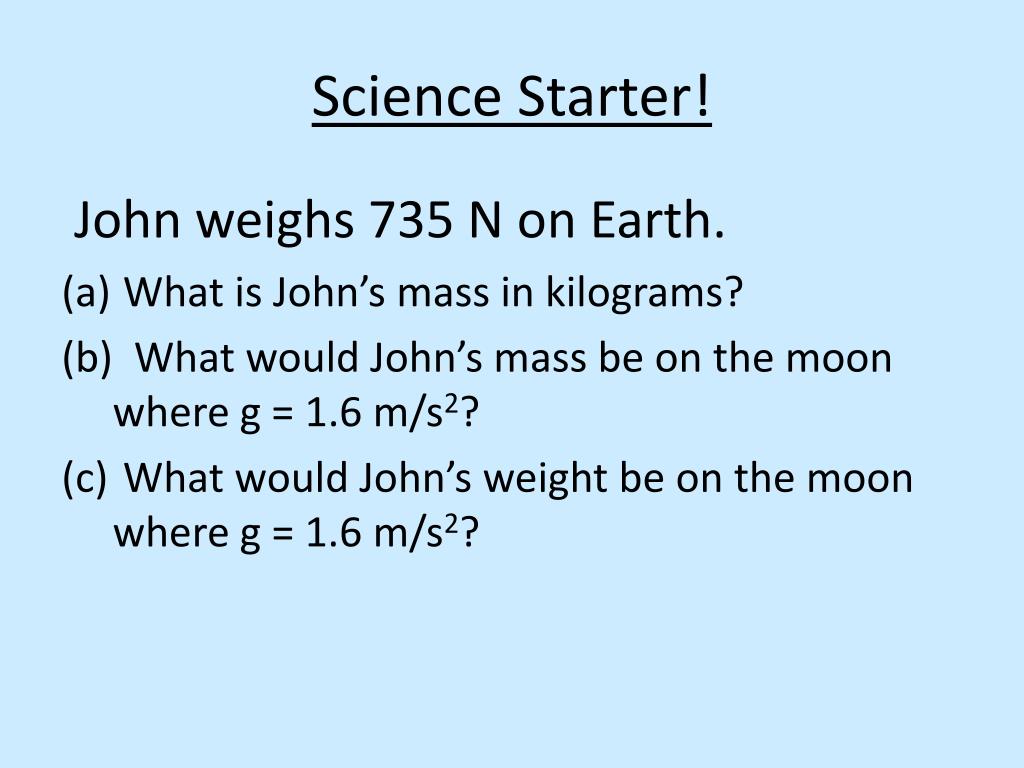

  1. Science Starter! John weighs 735 N on Earth. • What is John’s mass in kilograms? • What would John’s mass be on the moon where g = 1.6 m/s2? • What would John’s weight be on the moon where g = 1.6 m/s2?

  2. Fg = 735 NFg = mg g = 9.8 m/s2735 = (m) (9.8 m/s2) m = ? m = 75 kg • m = 75 kg 3. m = 75 kg Fg = mg g = 1.6 m/s2Fg = (75) (1.6 m/s2) Fg = ? Fg = 120 N

  3. The “Normal” Force Contact force between surfaces (support)

  4. Scales Measure the Normal force …. Not WEIGHT! Normal force – “Apparent” weight “The scale reads 540 N”  FN = 540 N Ex: – Scales on an incline – Scales on an accelerating surface (stepping on a scale in an elevator)

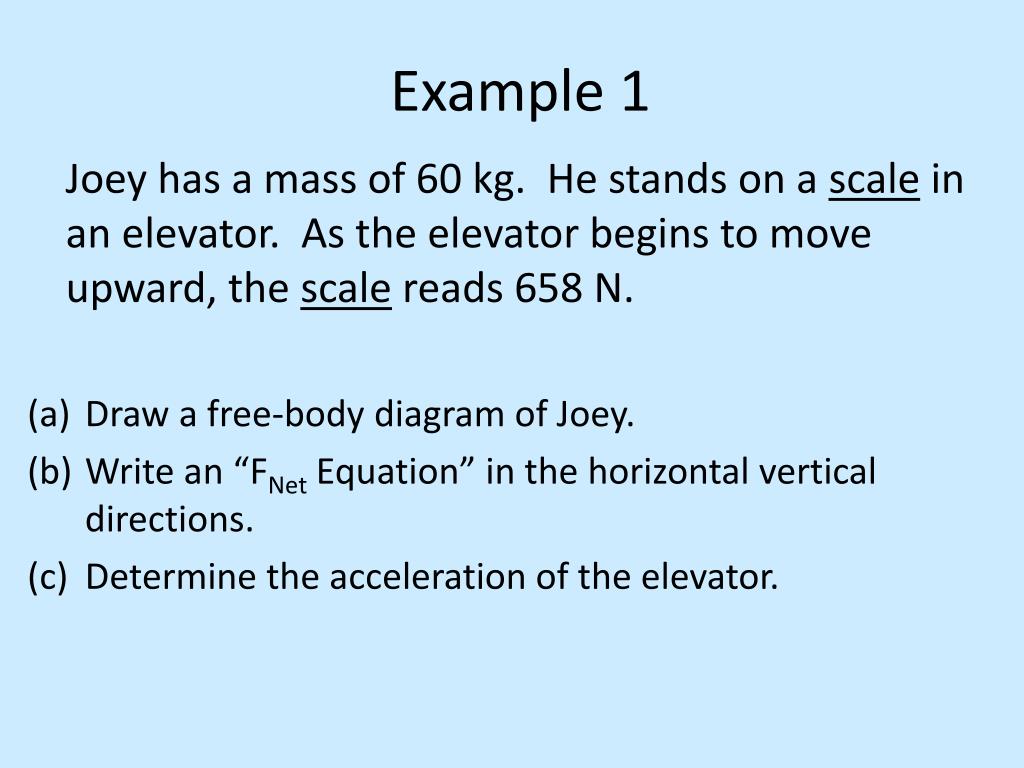

  5. Example 1 Joey has a mass of 60 kg. He stands on a scale in an elevator. As the elevator begins to move upward, the scale reads 658 N. • Draw a free-body diagram of Joey. • Write an “FNet Equation” in the horizontal vertical directions. • Determine the acceleration of the elevator.

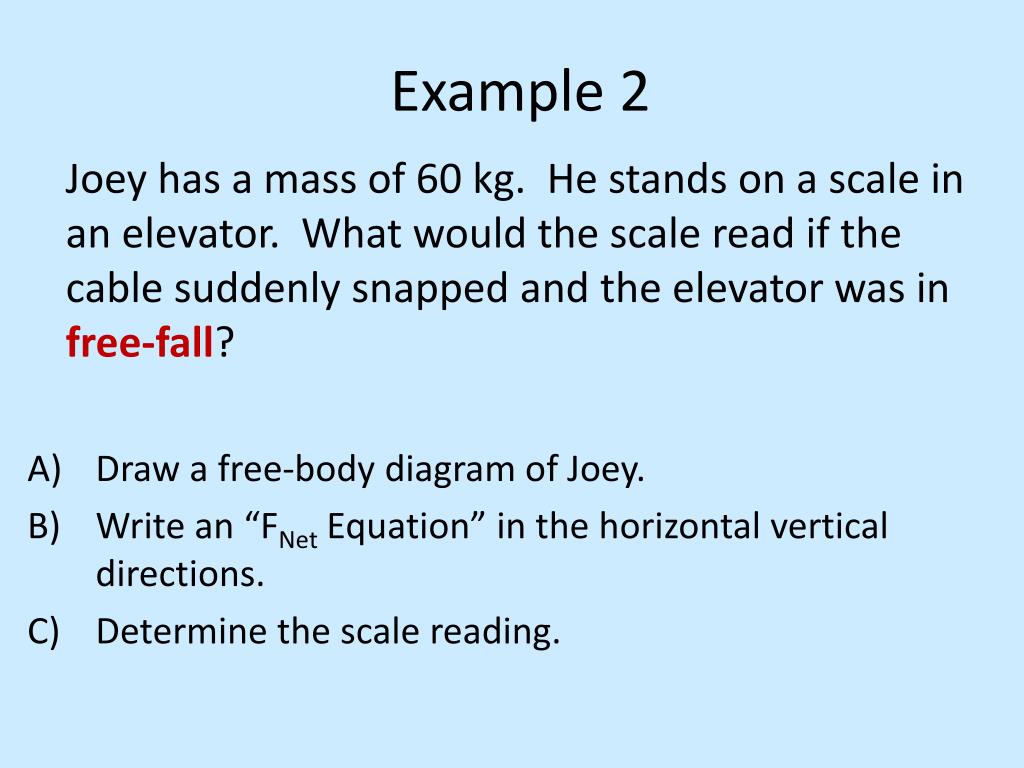

  6. Example 2 Joey has a mass of 60 kg. He stands on a scale in an elevator. What would the scale read if the cable suddenly snapped and the elevator was in free-fall? • Draw a free-body diagram of Joey. • Write an “FNet Equation” in the horizontal vertical directions. • Determine the scale reading.

  7. “Weightlessness” Weightlessness: Absence of a normal force (free-fall) FN = 0 N, but Fg and “g” still exist! Vomit Comet Space Station
