  1. Understanding the Spectrum, Reflection, & Refraction Ms. Majewski

  2. Check your Answers -If a light wave has a wavelength of 400 x 104m, what is its frequency? -If a light wave has a frequency of 2 x 109Hz, what is its wavelength? Use the speed of light: 3.0 x 108 m/s. Show all work and include units. 75 Hz 0.15 m

  3. How Light Rays work… • When a ray of light strikes a plane mirror, the light ray reflects off the mirror. • http://www.physicsclassroom.com/mmedia/optics/lr.cfm *Shows what this looks like in an animated image.

  4. The Law of Reflection According to the law of reflection… the angle of incidence = the angle of reflection • The angle of incidence: the angle between this normal line and the incident ray. • The angle of reflection: the angle between this normal line and the reflected ray.

  5. Law of Reflection Image: Fill it in  Source - Angle of Reflection - Angle of Incidence Normal Mirror

  6. Long wavelength Low frequency Low energy Short wavelength High frequency High energy

  7. Check your Answers 1. What is the order of colors starting at RED and increasing in frequency? Use full names and keep them in order. 2. If you were to start at RED of Visible Light, and decrease frequency into the other parts of the electromagnetic spectrum, what three types of electromagnetic waves would you encounter? Give them in order of decreasing frequency. 3. If you were to start at Violet, and increase frequency into the other parts of the electromagnetic spectrum, what three types of electromagnetic waves would you encounter? Give them in order of increasing frequency. • Red, Orange, Yellow, Green, Blue, Indigo, Violet • Infrared, Microwaves, Radio Waves • Ultraviolet Light, X-Rays, Gamma Rays

  8. Review: Refraction • Caused by the change in speed experienced by a wave when it changes medium.

  9. The Amazing Archer Fish • http://www.physicsclassroom.com/Class/refrn/u14l1f.cfm

  10. Index of refraction (n) • Basically it says how hard it is for light to travel through a media. • The higher the number the harder it is to travel.

  11. Snell’s Law

  12. Practice • A person is shinning a flashlight (through air 1.0) into an unknown medium (n2). The light enters at 28° to the normal line. It becomes 10 °within the 2nd medium. Calculate the index of refraction of the 2nd medium? 28°

  13. Snell’s Law - Example

  14. INDEX OF REFRACTION

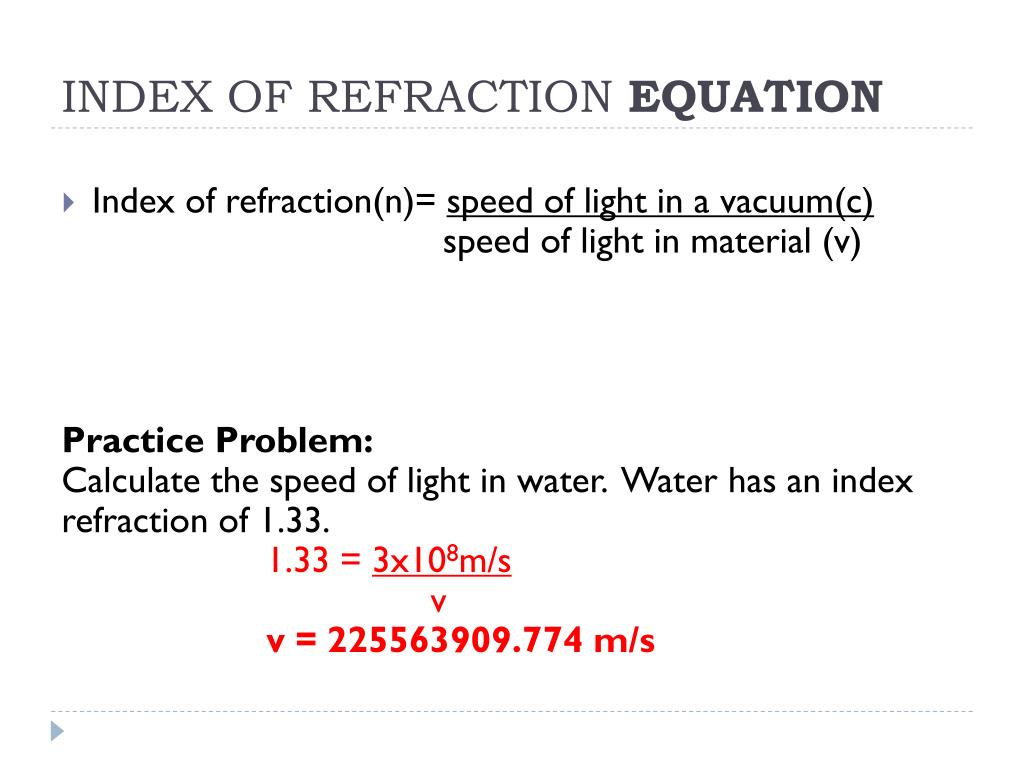

  15. INDEX OF REFRACTION EQUATION • Index of refraction(n)= speed of light in a vacuum(c) speed of light in material (v) Practice Problem: Calculate the speed of light in water. Water has an index refraction of 1.33. 1.33 = 3x108m/s v v = 225563909.774 m/s
